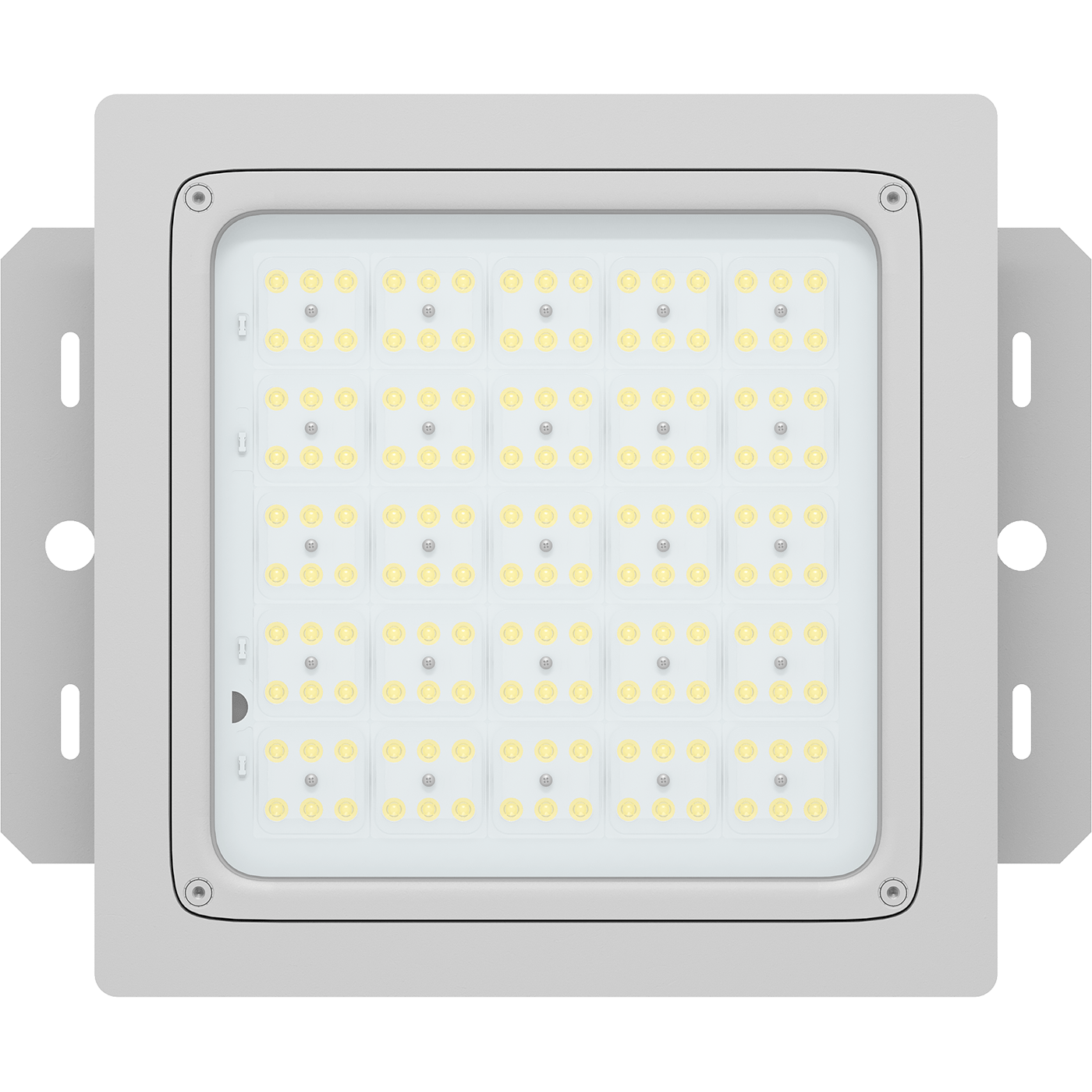

INSEL LB/R LED G3 200W D60 840 WH
INSEL LB/R LED G3 200W D60 840 WH
215 Wluminaire power
32800 lmlight flow
153 lm/Wenergy efficiency
code1332003000
color temperature5000
beam angleD60
weight8.4 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
75 Astarting current pulse time, µs
440 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
215 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
75 A
starting current pulse time, µs
440 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
215 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
8.4 kg
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
390 mm
width, mm
390 mm
height, mm
112 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
360 mm
installation width, mm
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1332003000
illuminating
light flow
32800 lm
flickering factor
<2%
energy efficiency
153 lm/W

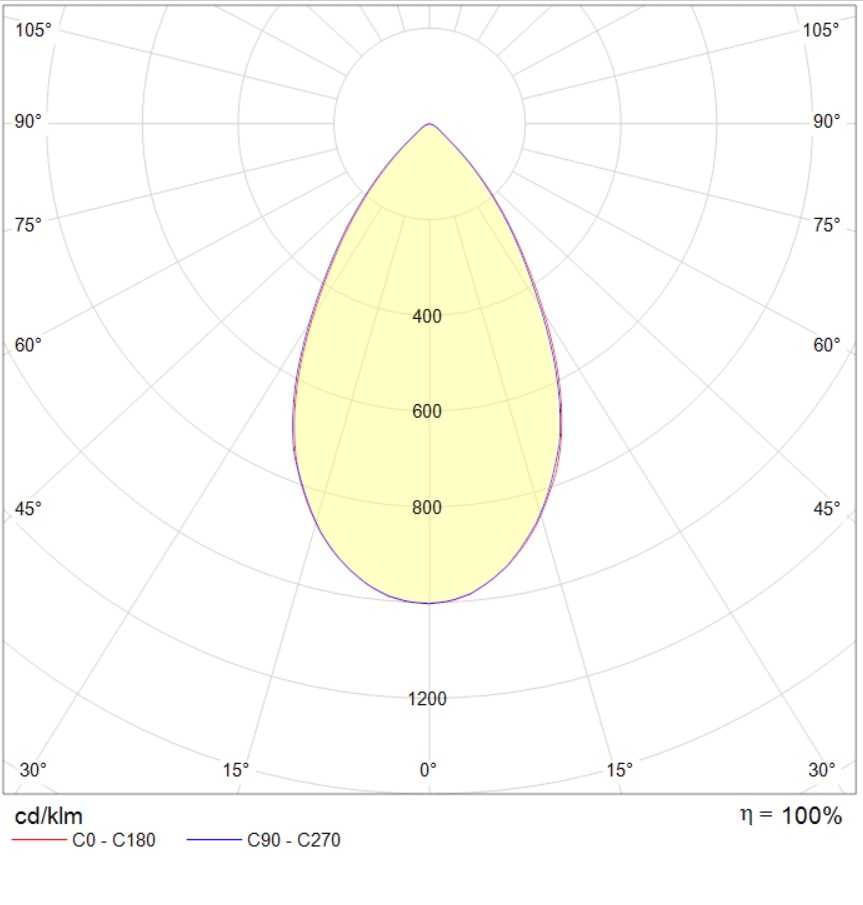

beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files
photometric files
сертификаты
photometric files
ies107 kB
jpg83.4 kB
ldt70.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
