зарегистрирована в реестре российской промышленной продукции

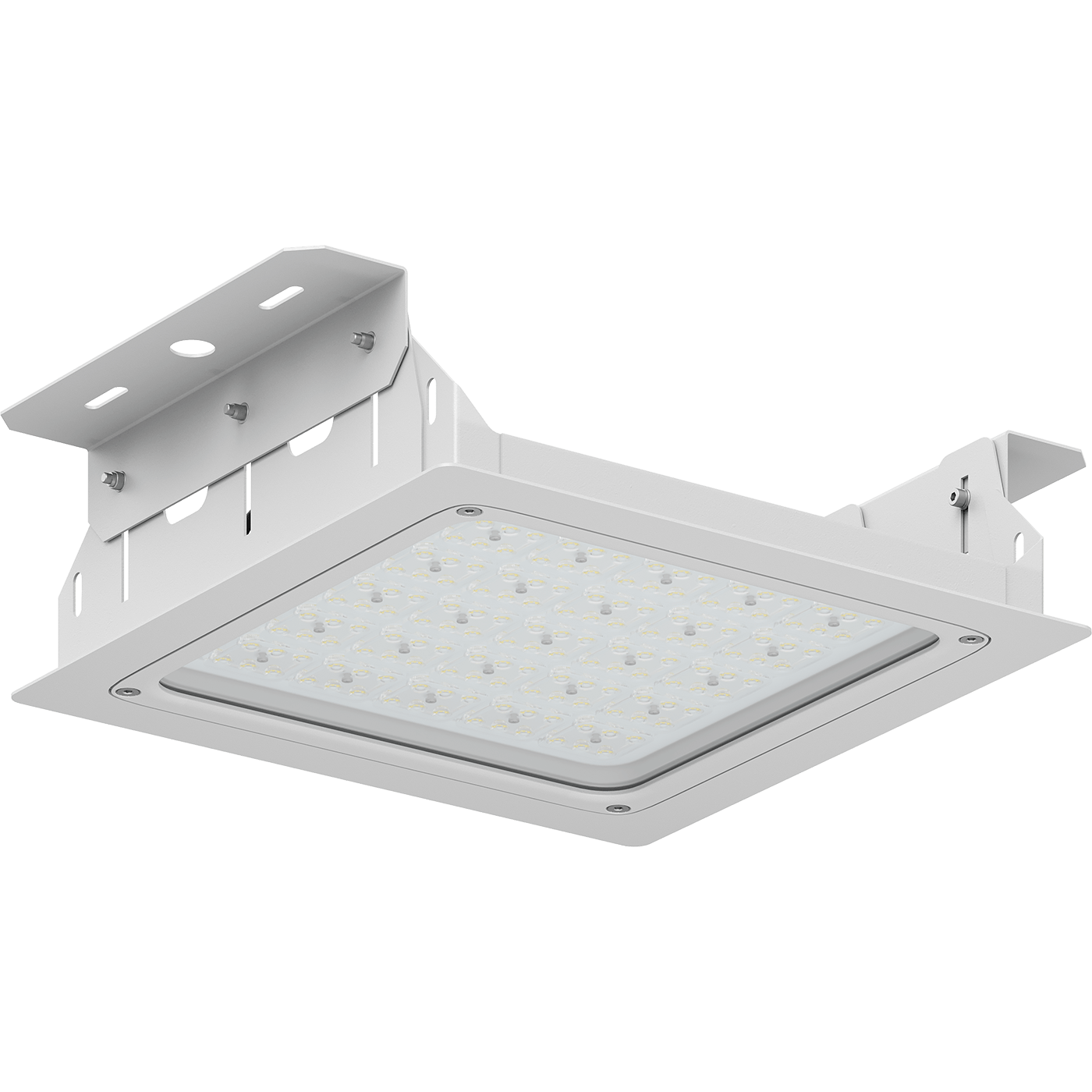

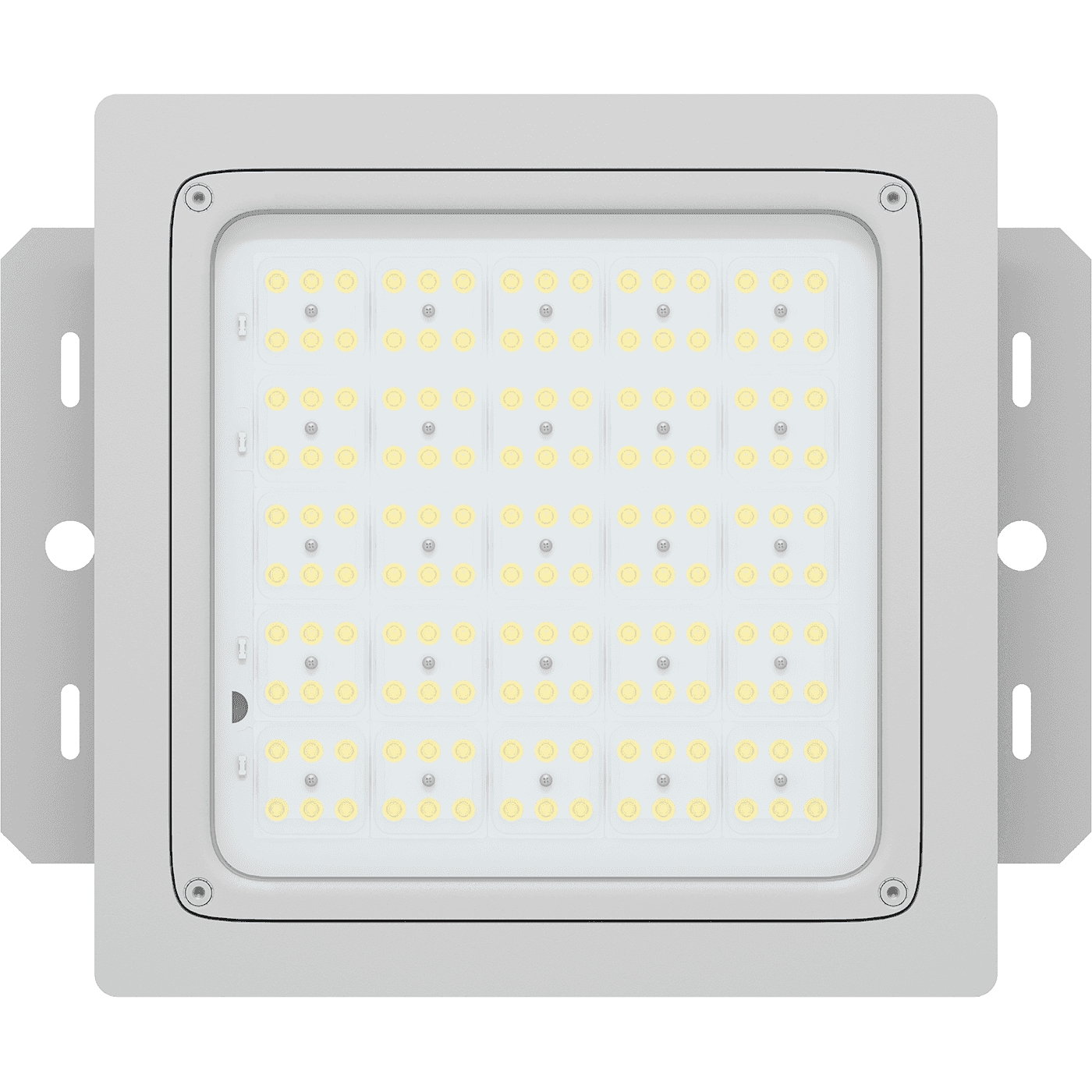

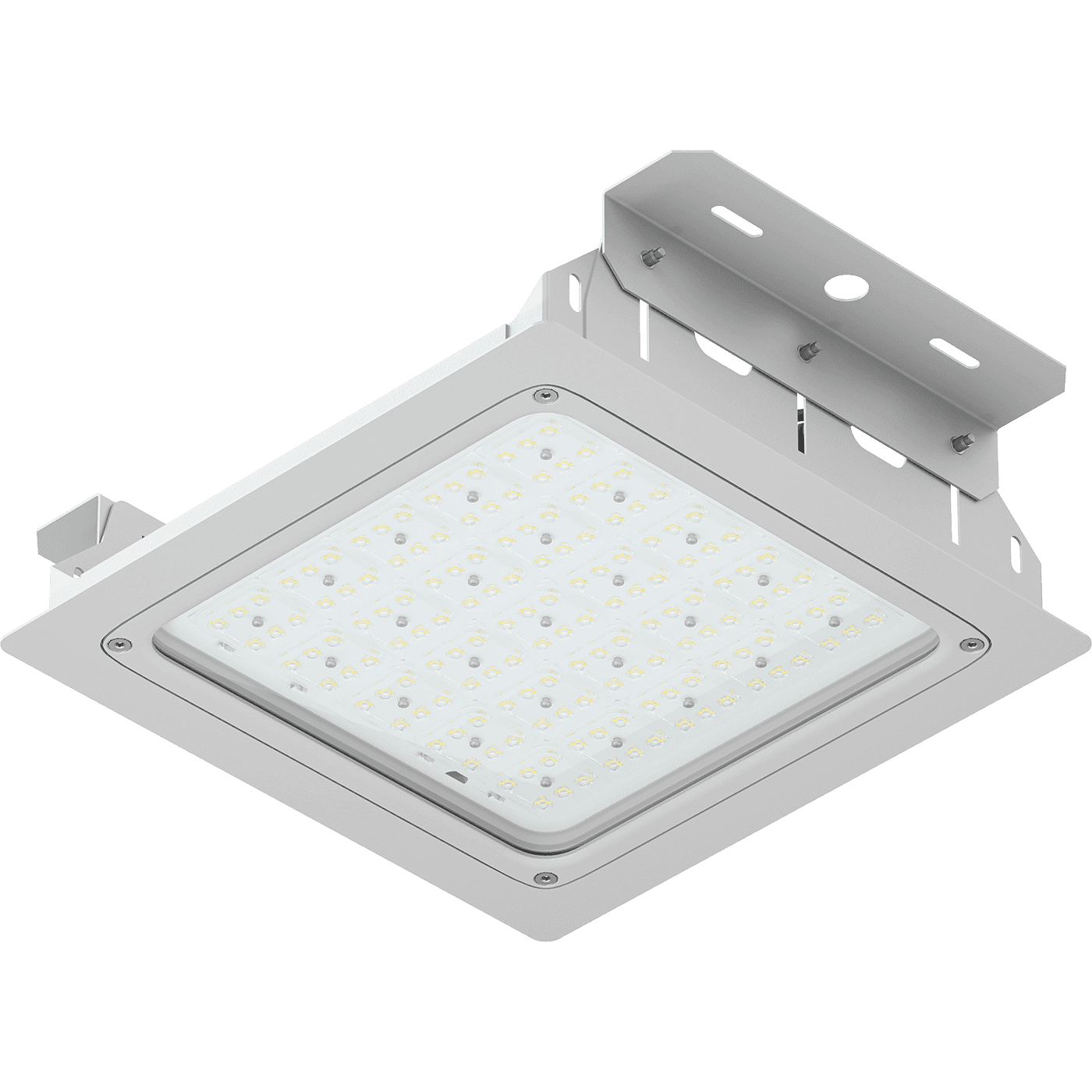

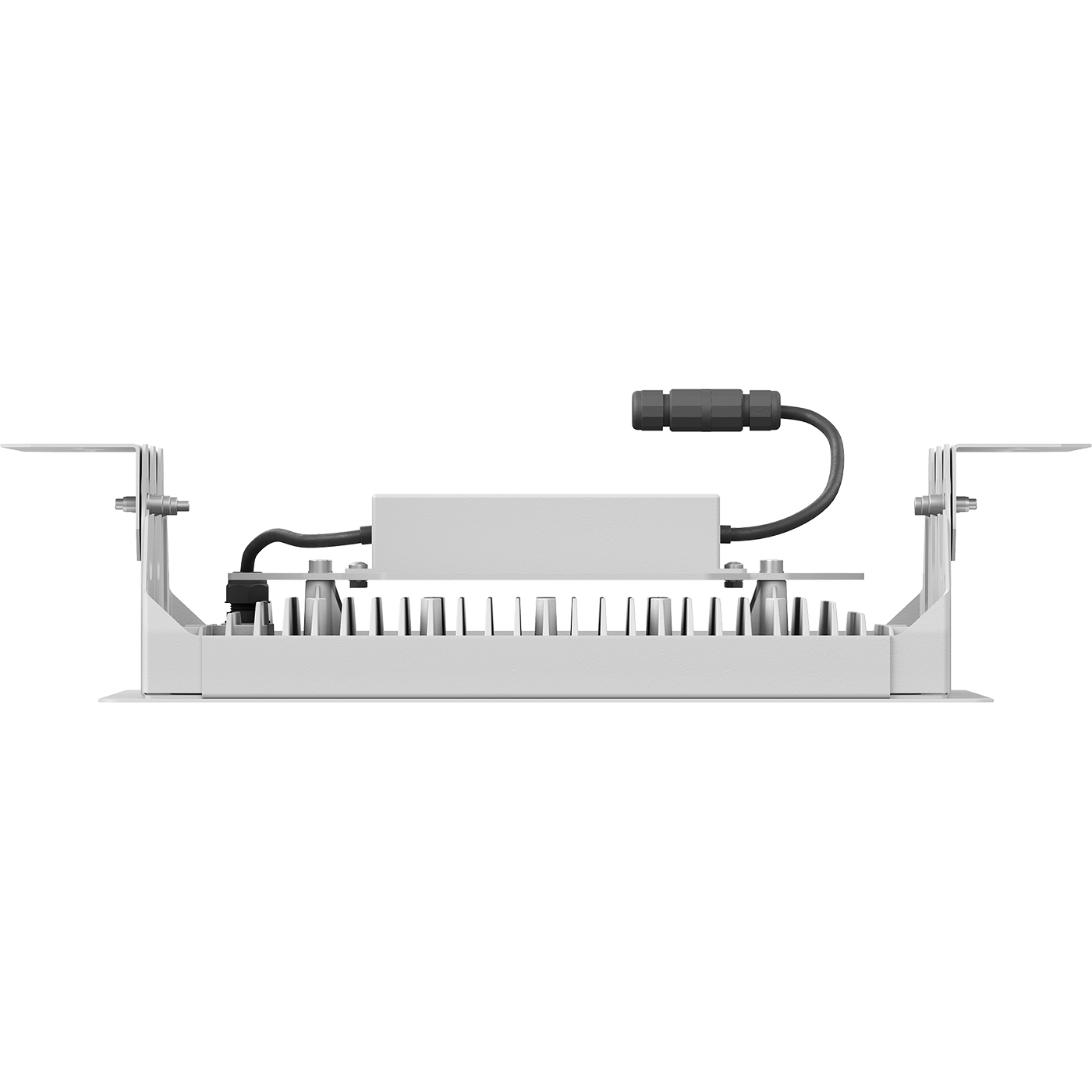

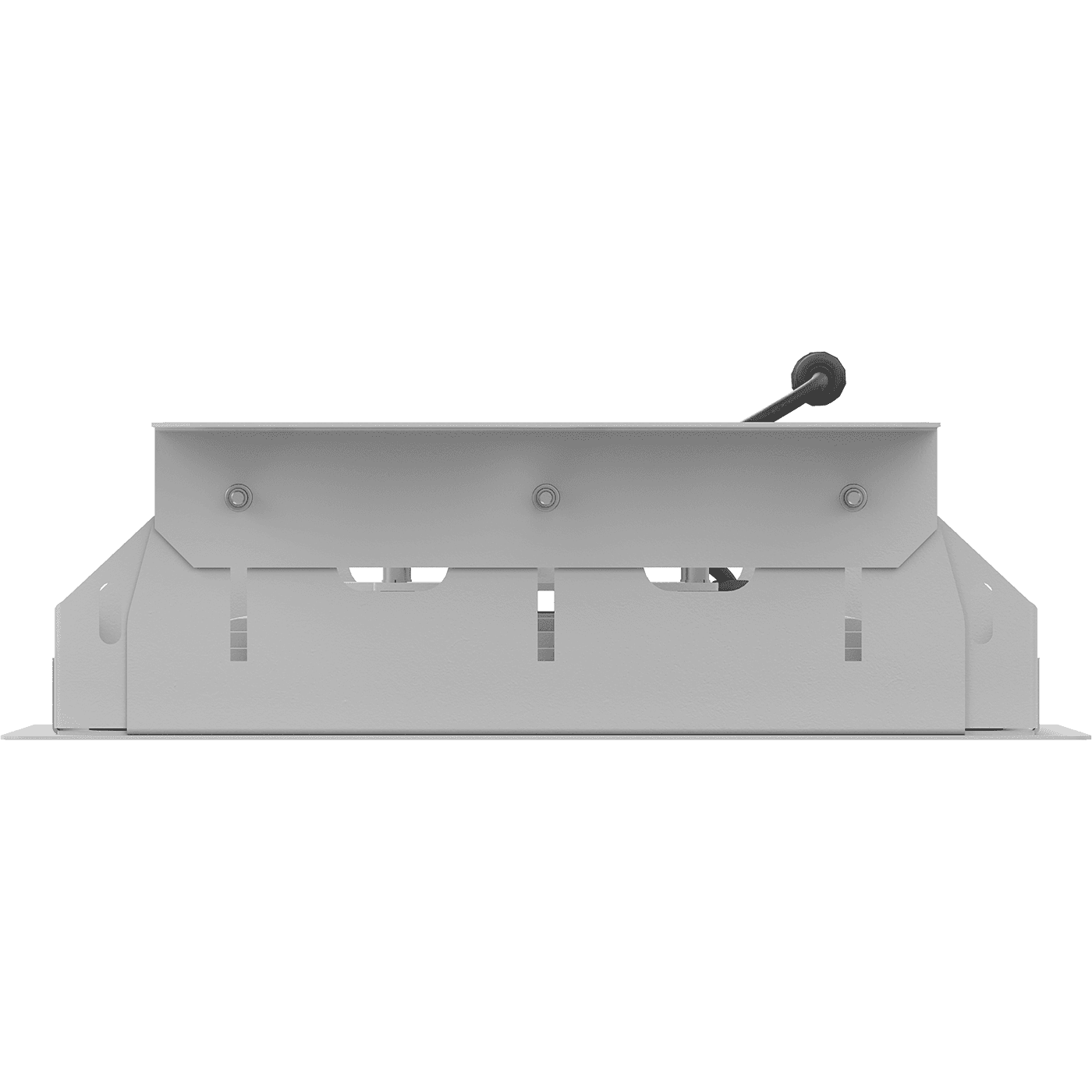

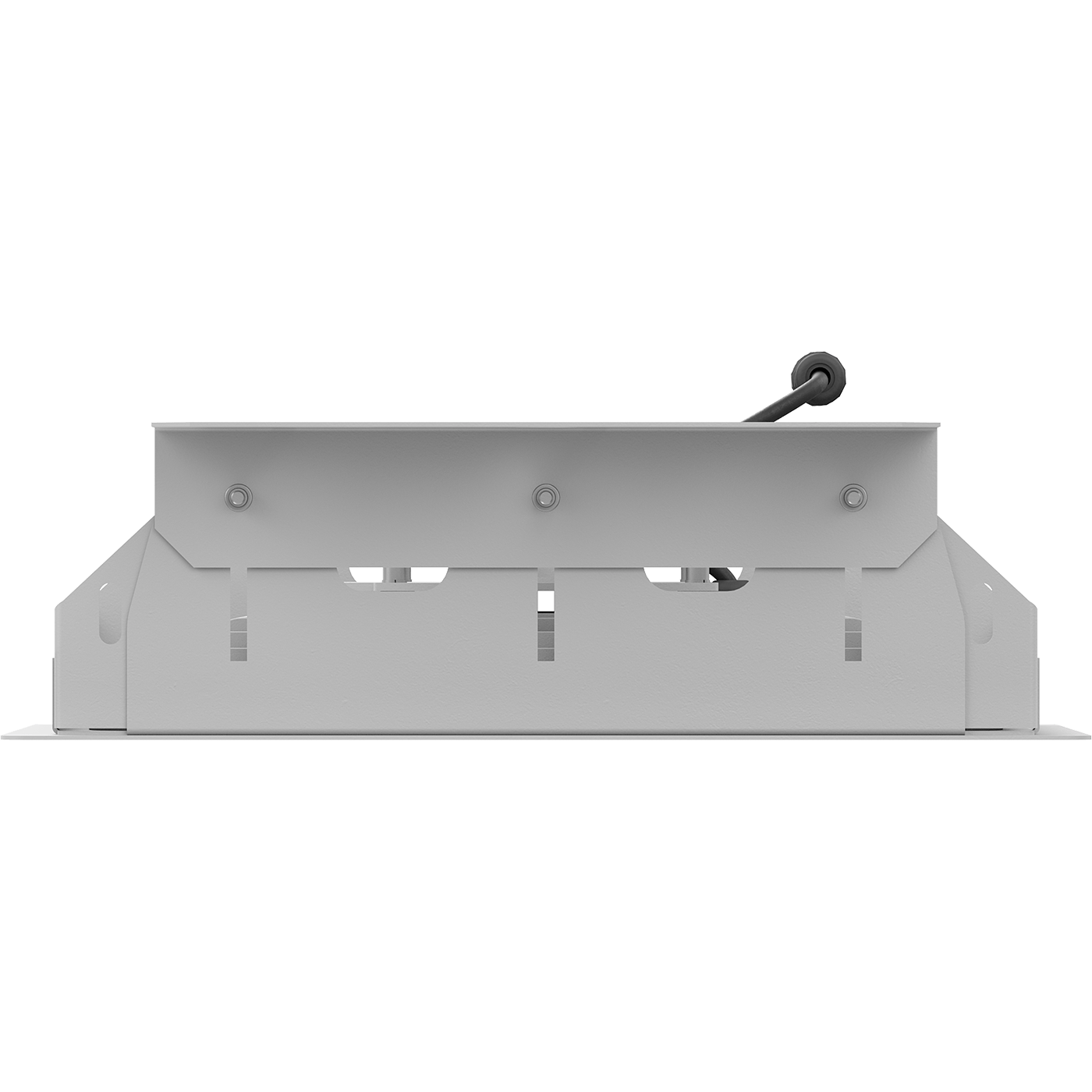

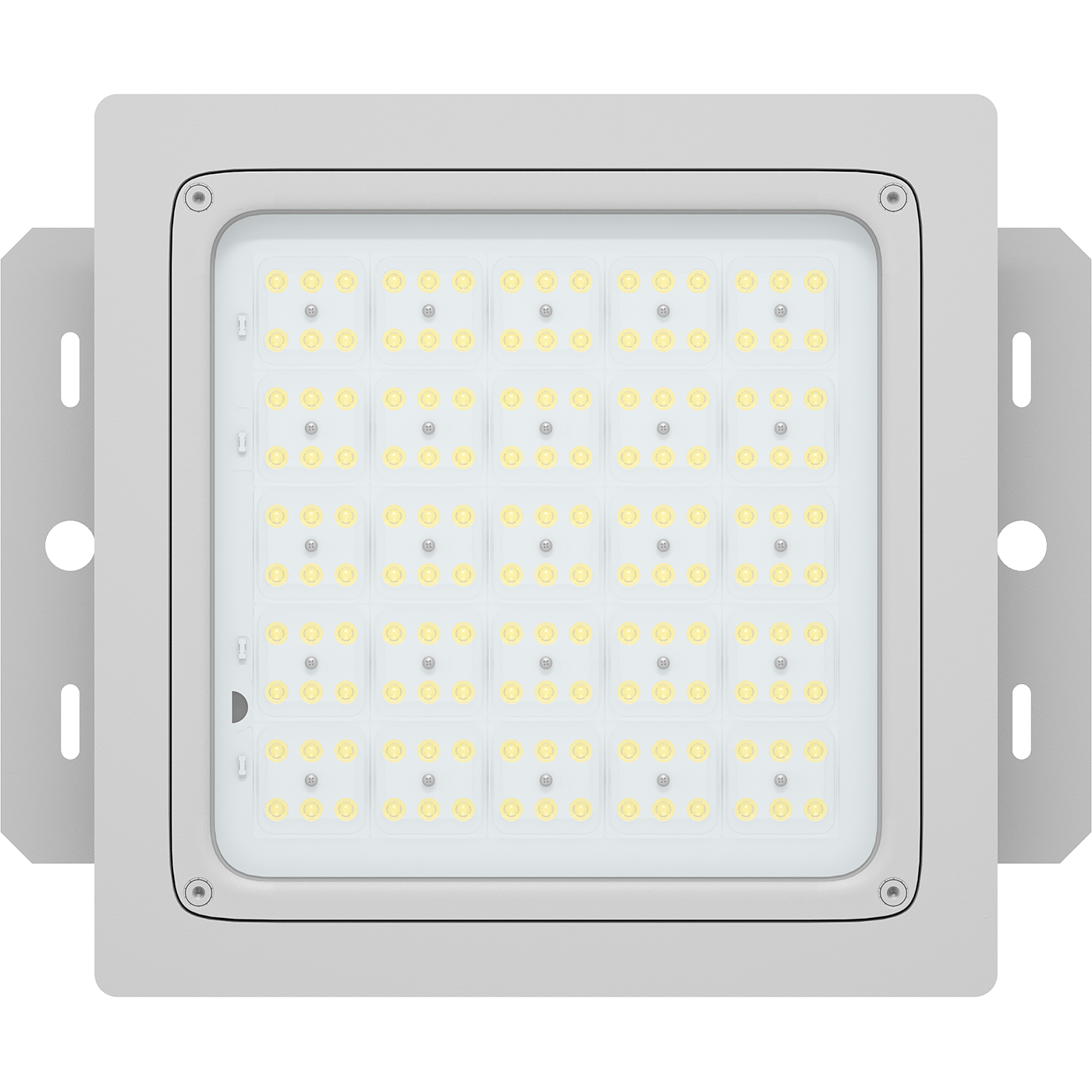

INSEL LB/R LED G3 100W D90 850 WH
зарегистрирована в реестре российской промышленной продукции
INSEL LB/R LED G3 100W D90 850 WH
100 Wluminaire power
16200 lmlight flow
162 lm/Wenergy efficiency
code
1332002500
number from the register of Russian industrial products
10512421
color temperature
5000 K
beam angle
D90
weight
8.4 kg
- main page
- catalog
- by product type
- industrial lighting
- 5-12 meters
- свыше 12 метров
- INSEL LB/R LED G3
- INSEL LB/R LED G3 100W D90 850 WH
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
color rendition index (CRI)
>80light flow
16200 lmflickering factor
<1%energy efficiency
162 lm/Wbeam angle
D90color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
16200 lm
flickering factor
<1%
energy efficiency
162 lm/W
beam angle
D90
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
100 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
33 A
supply voltage
230 V
starting current pulse time
380 µs
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
mounting type
shock resistance (IK)
IK08/5 Дж
weight
8.4 kg
ingress protection (IP)
IP66
length
390 mm
width
390 mm
height
112 mm
installation length
360 mm
installation width
360 mm
emergency
emergency power supply
Нет
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +60 C
code
1332002500
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Рамка монтажная (для INSEL LB/R LED) - 1 шт.
model files
model files

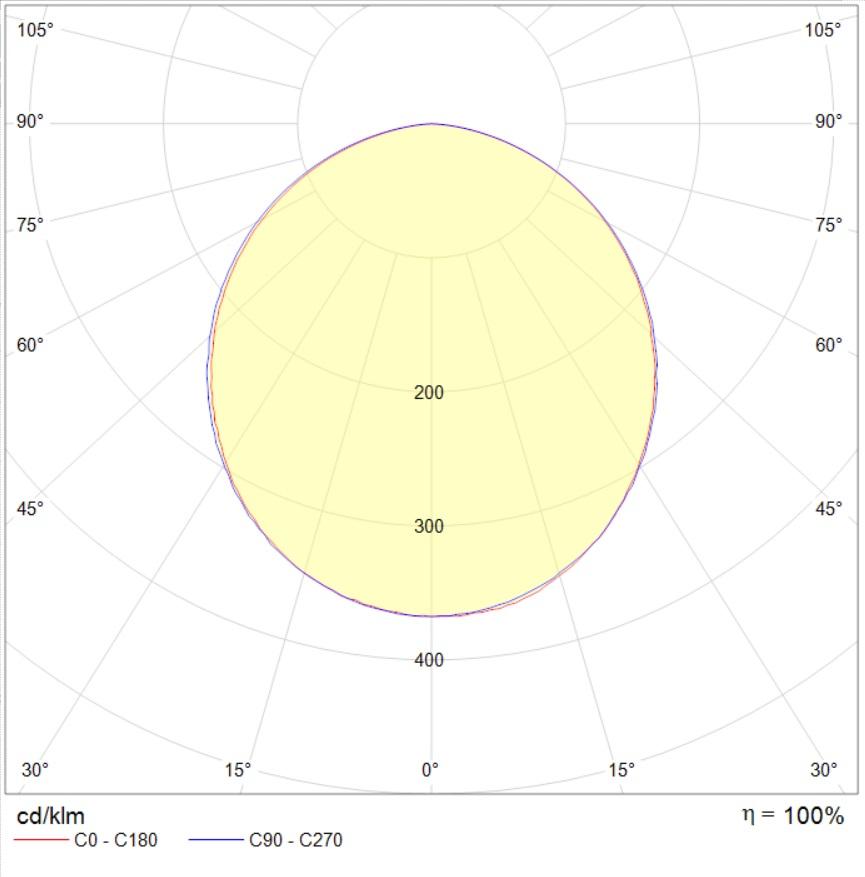

photometric files
сертификаты
photometric files
ies871.6 kB
jpg78.2 kB
ldt545.4 kB
csv441 B
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
