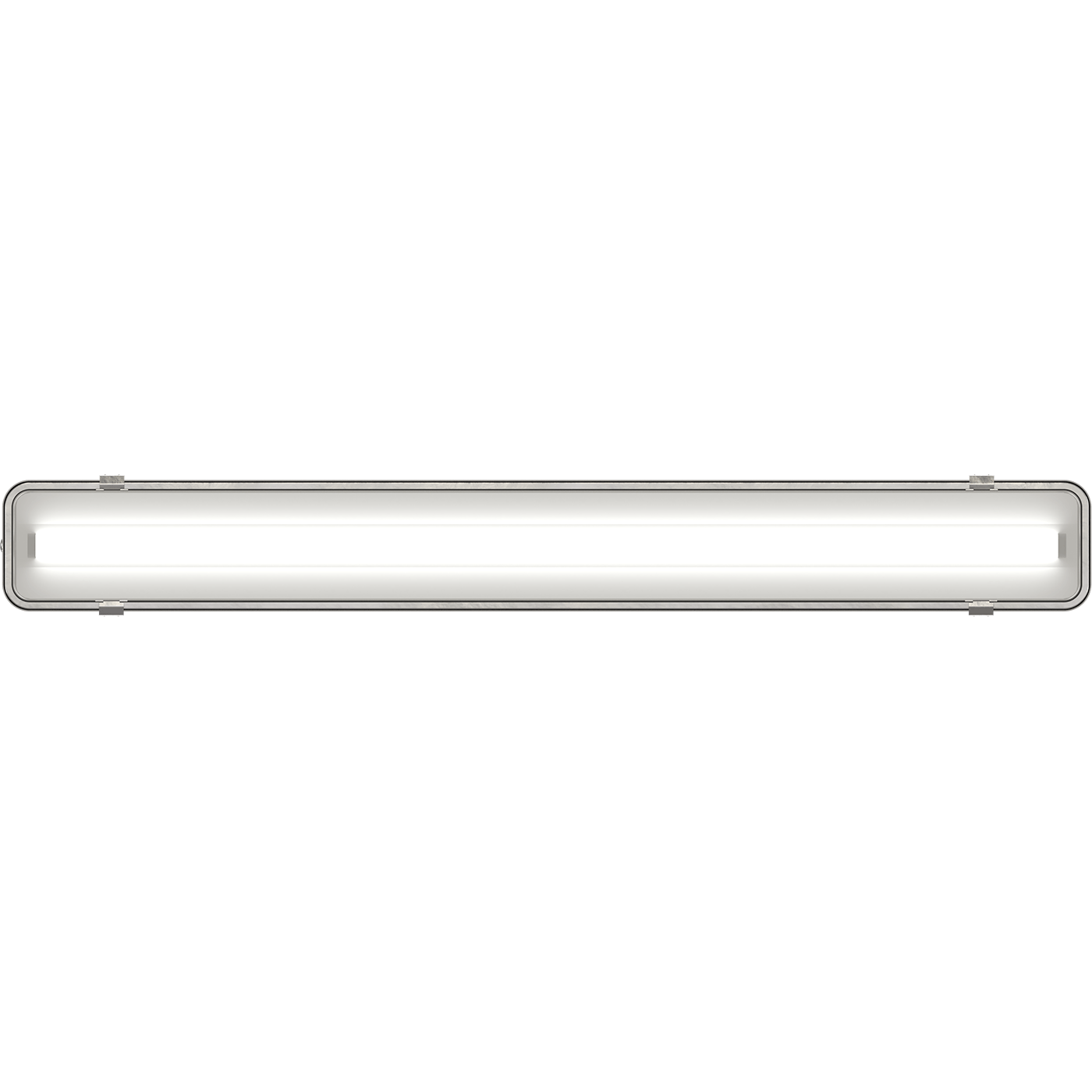

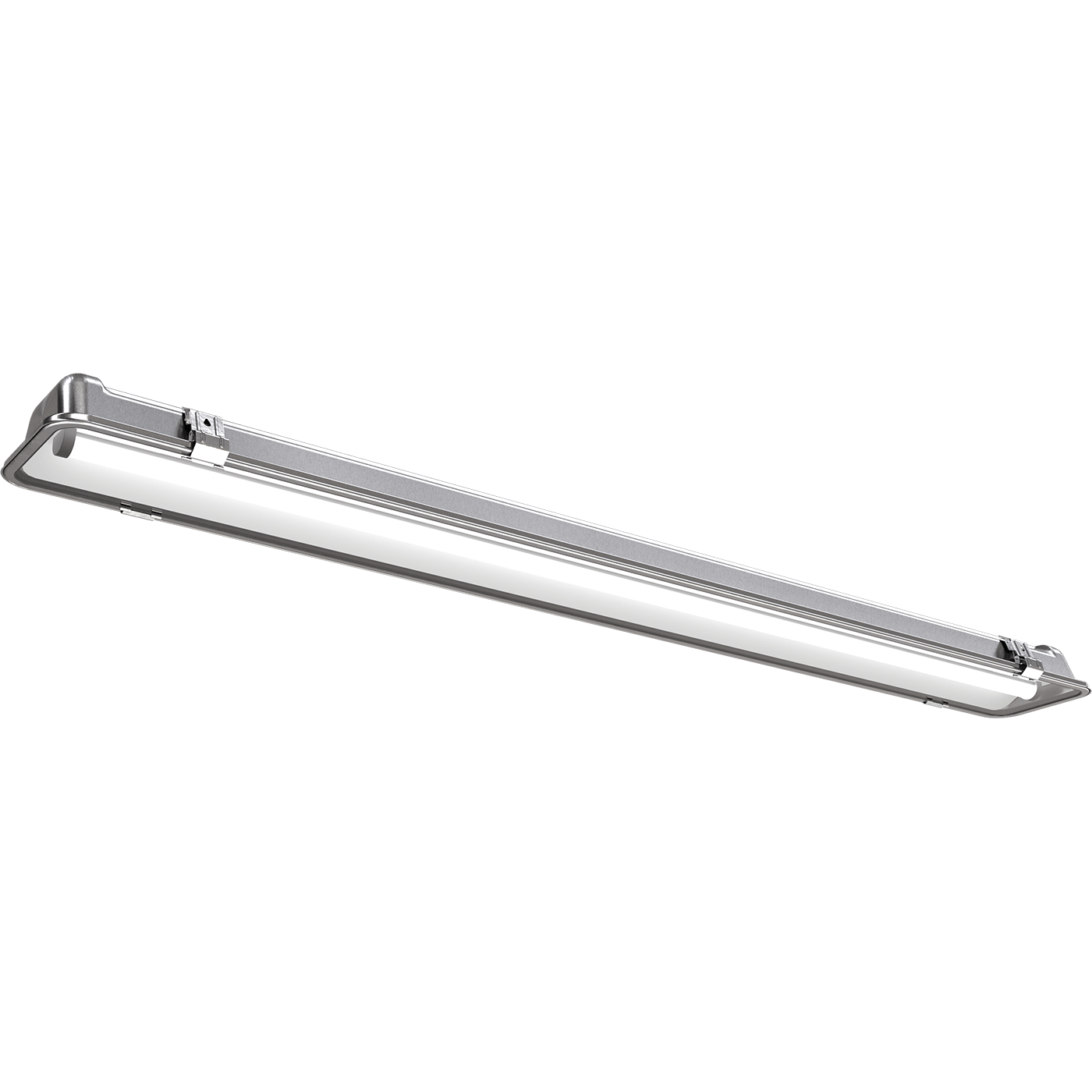

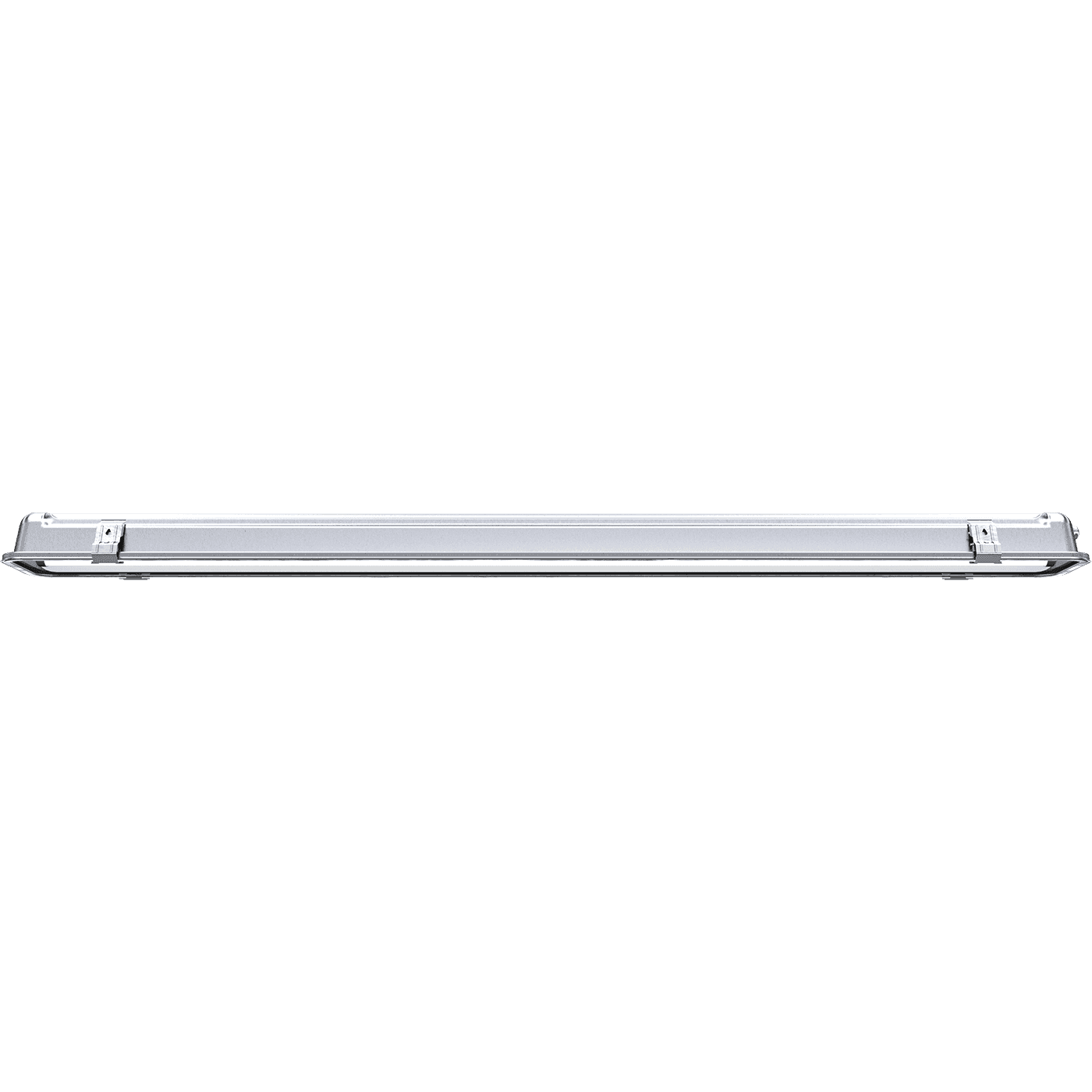

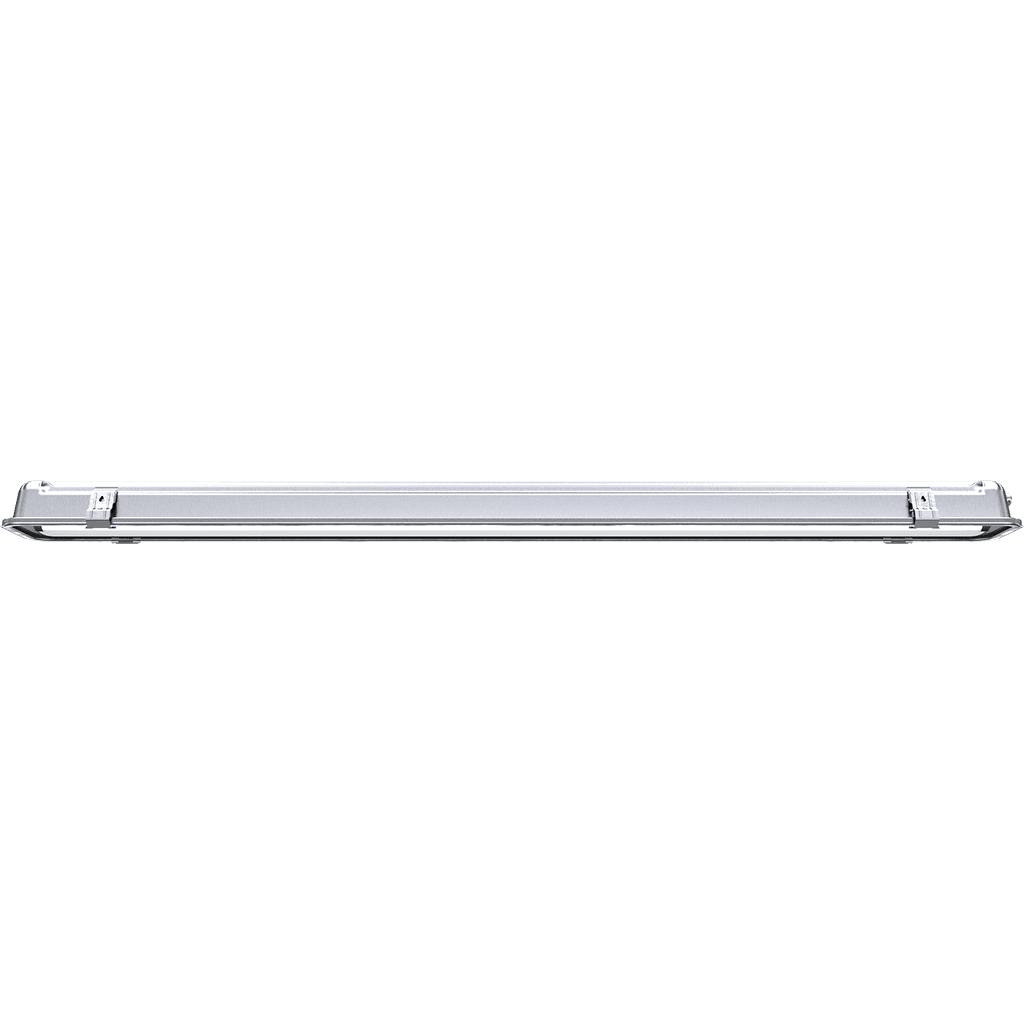

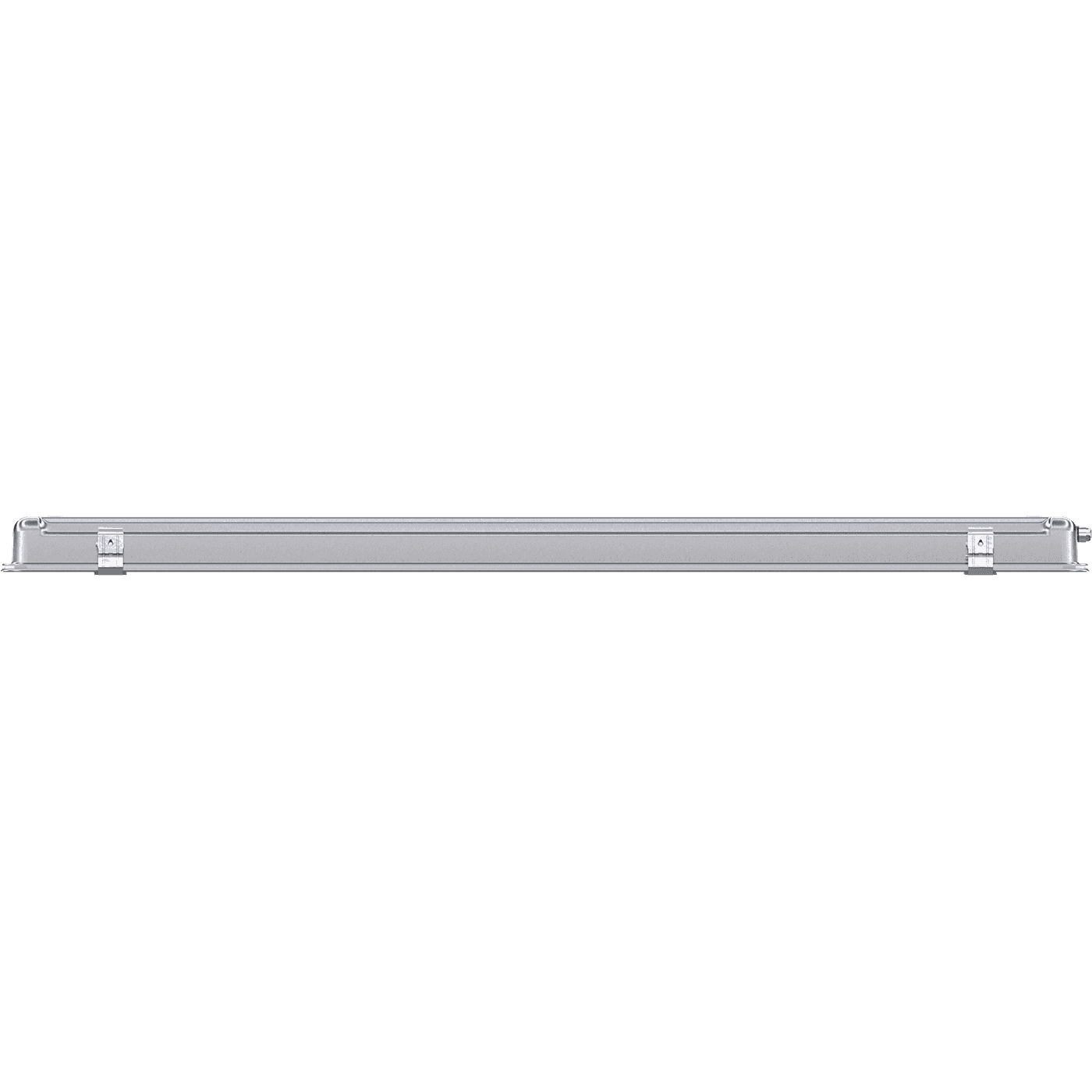

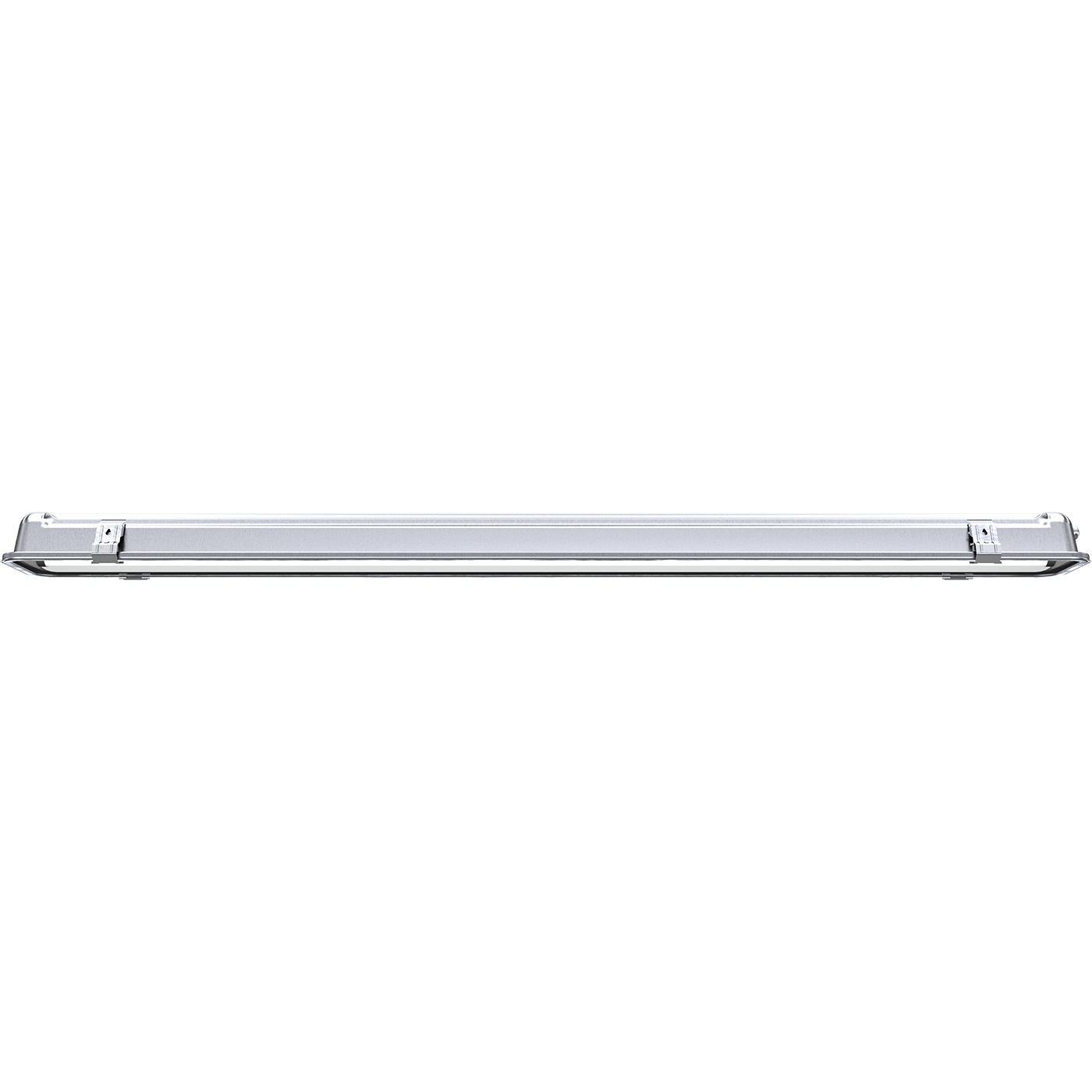

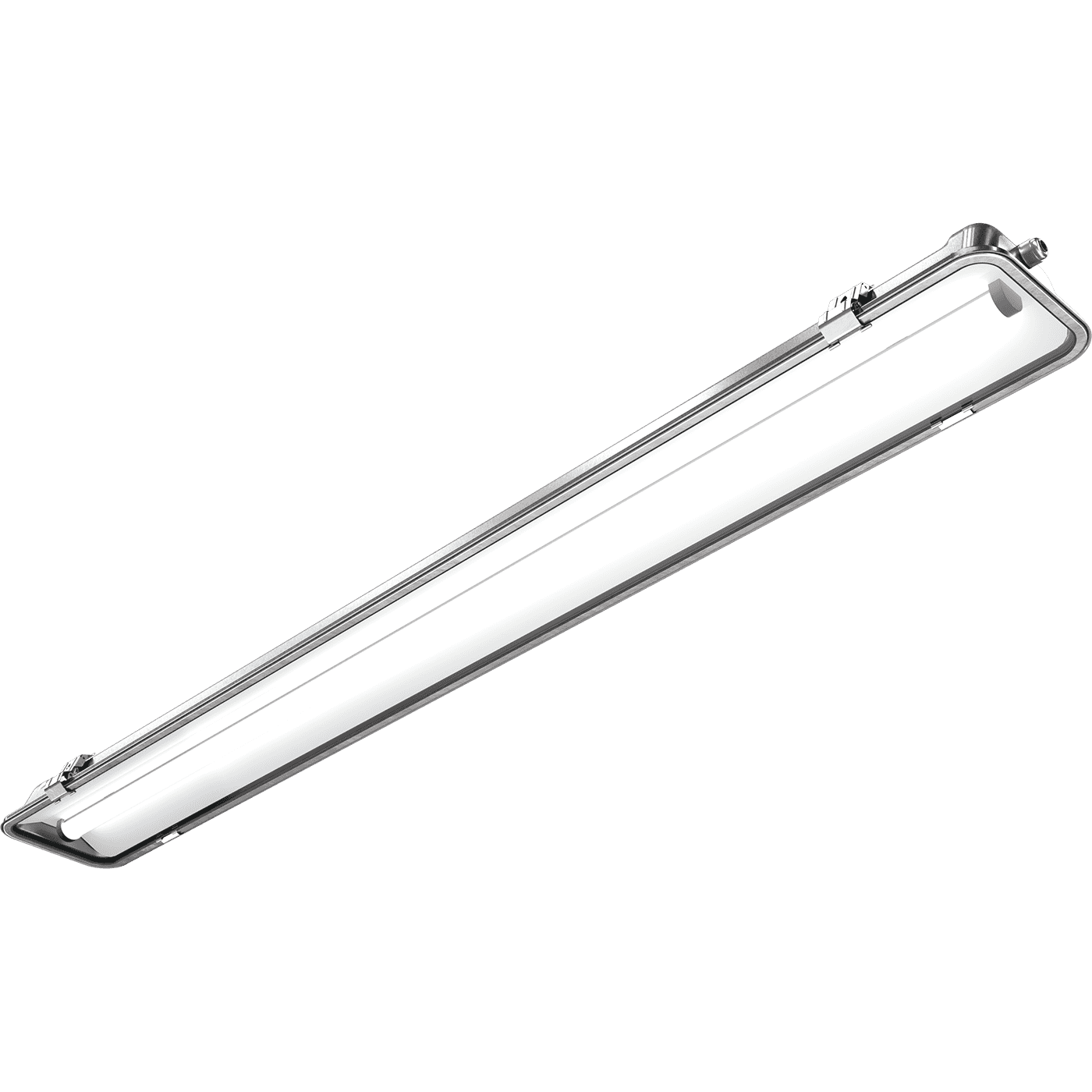

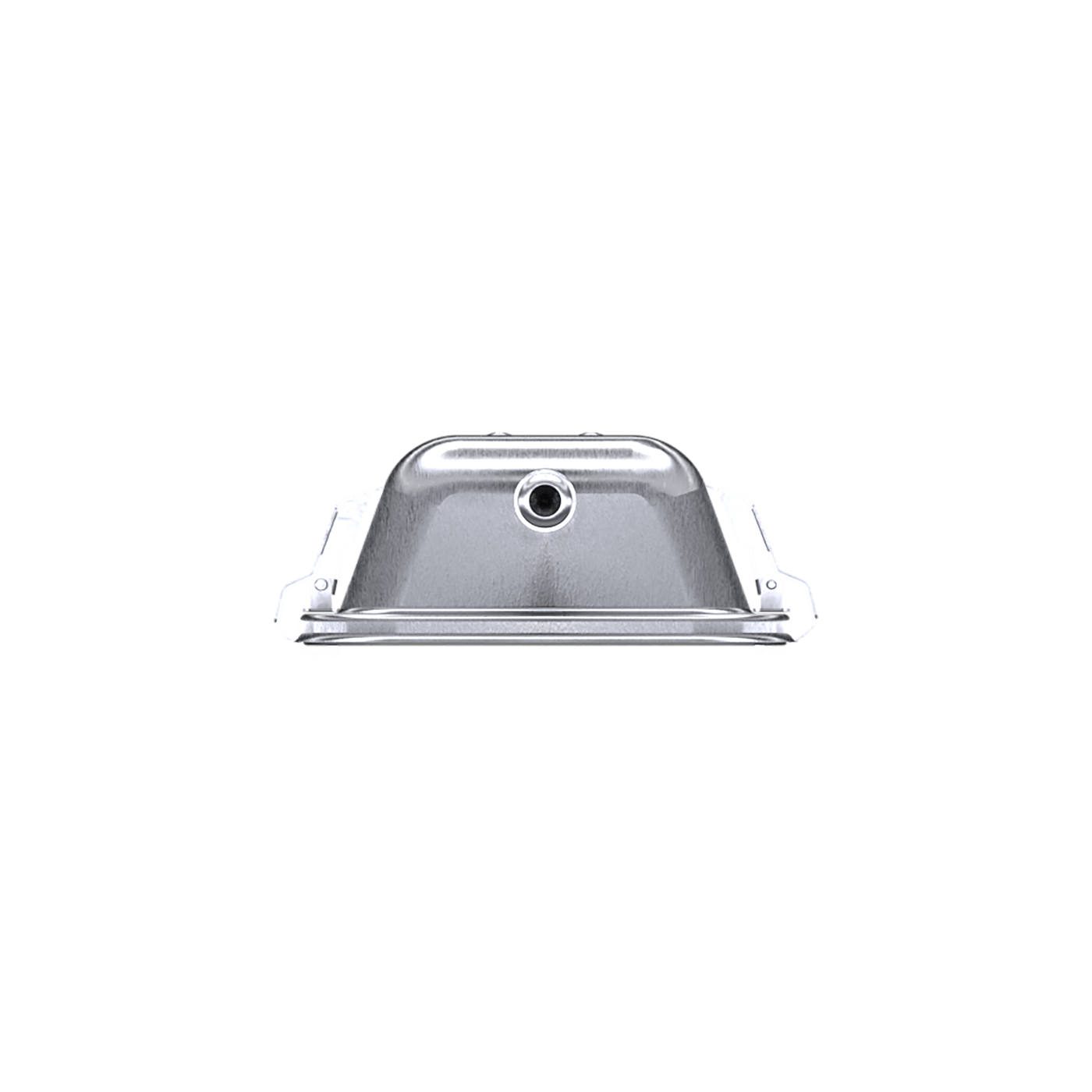

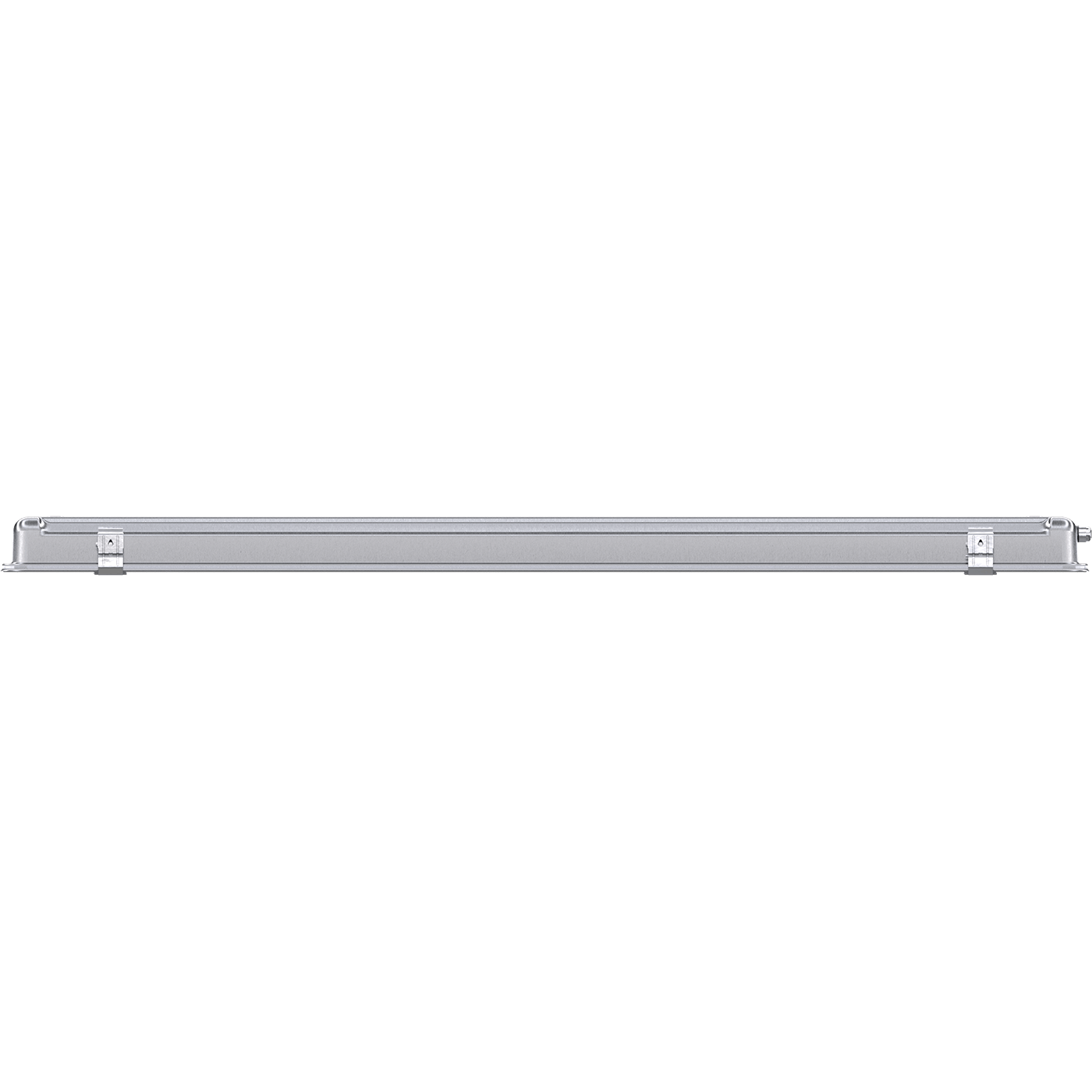

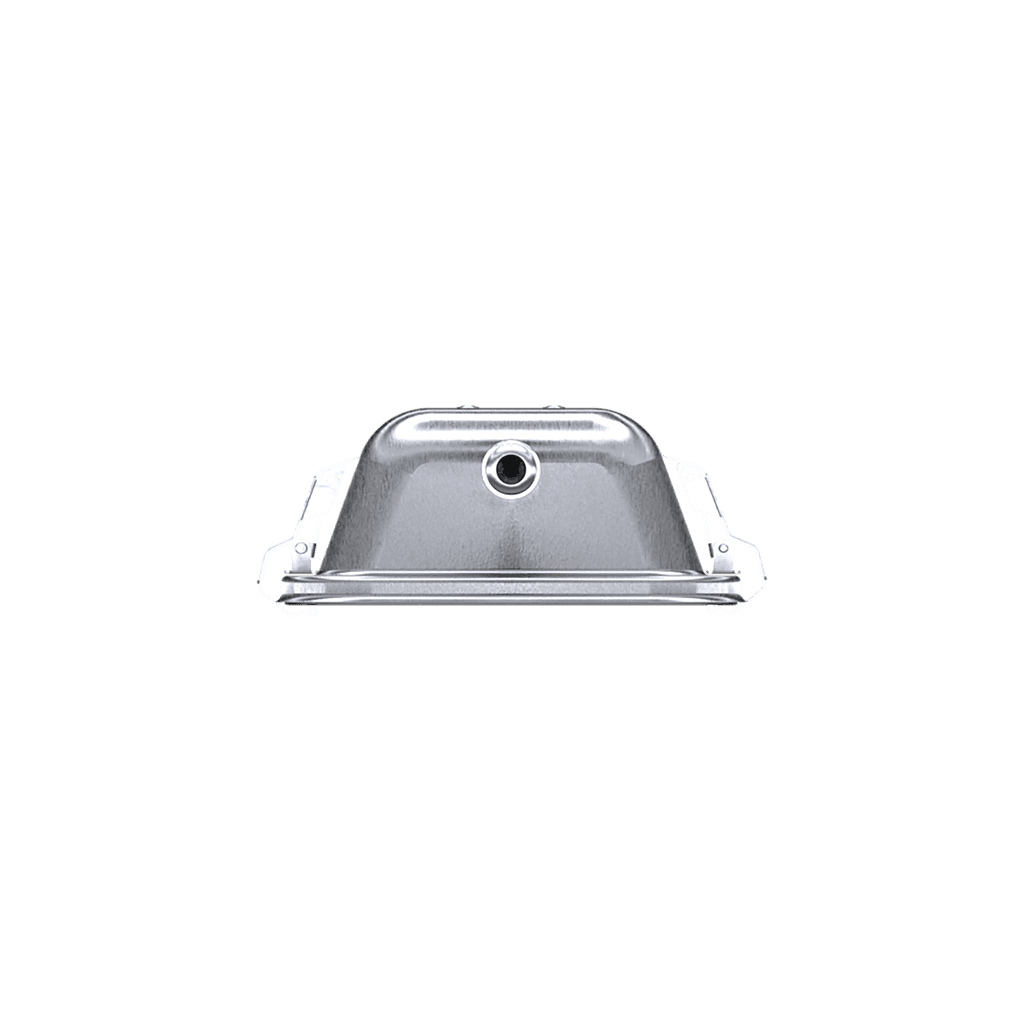

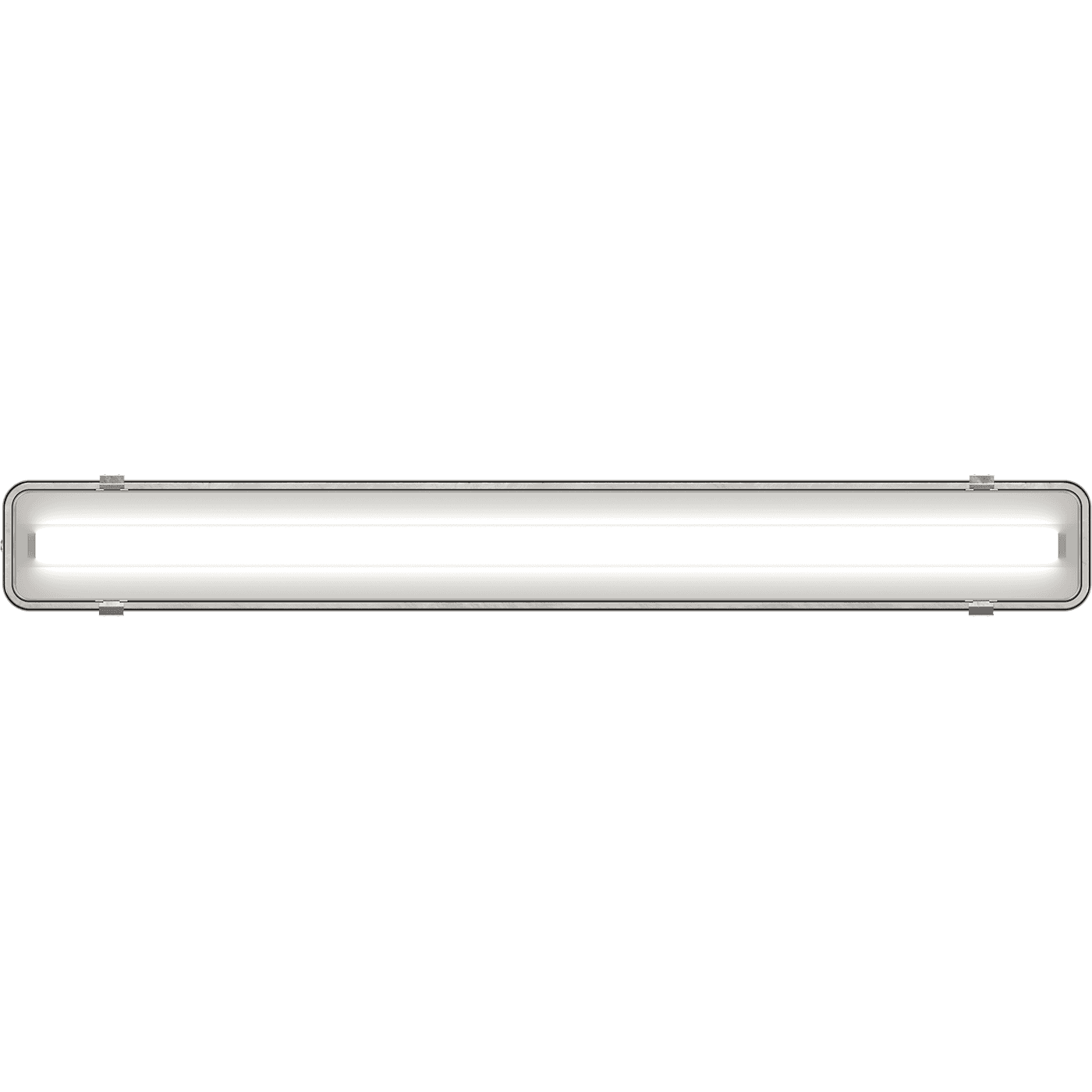

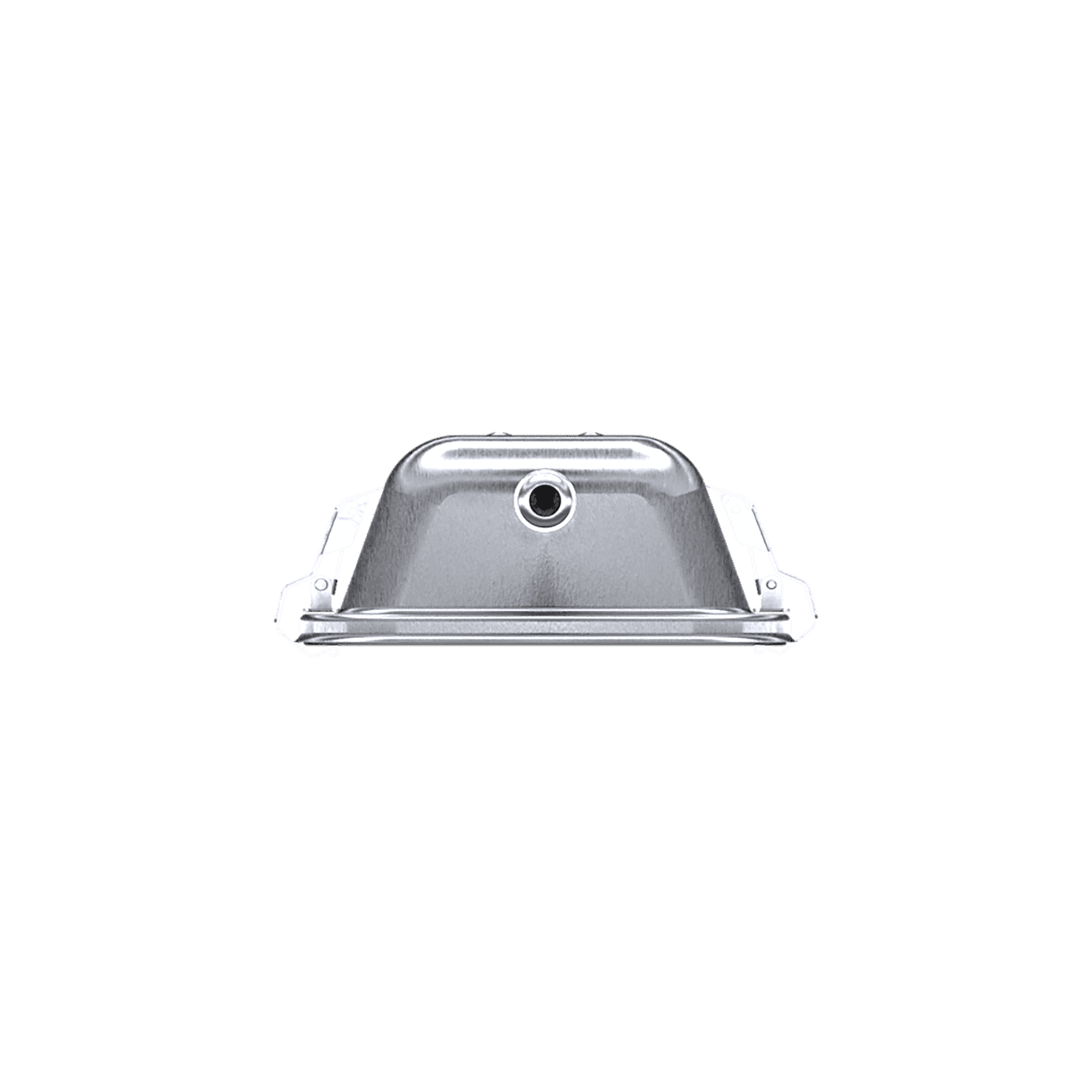

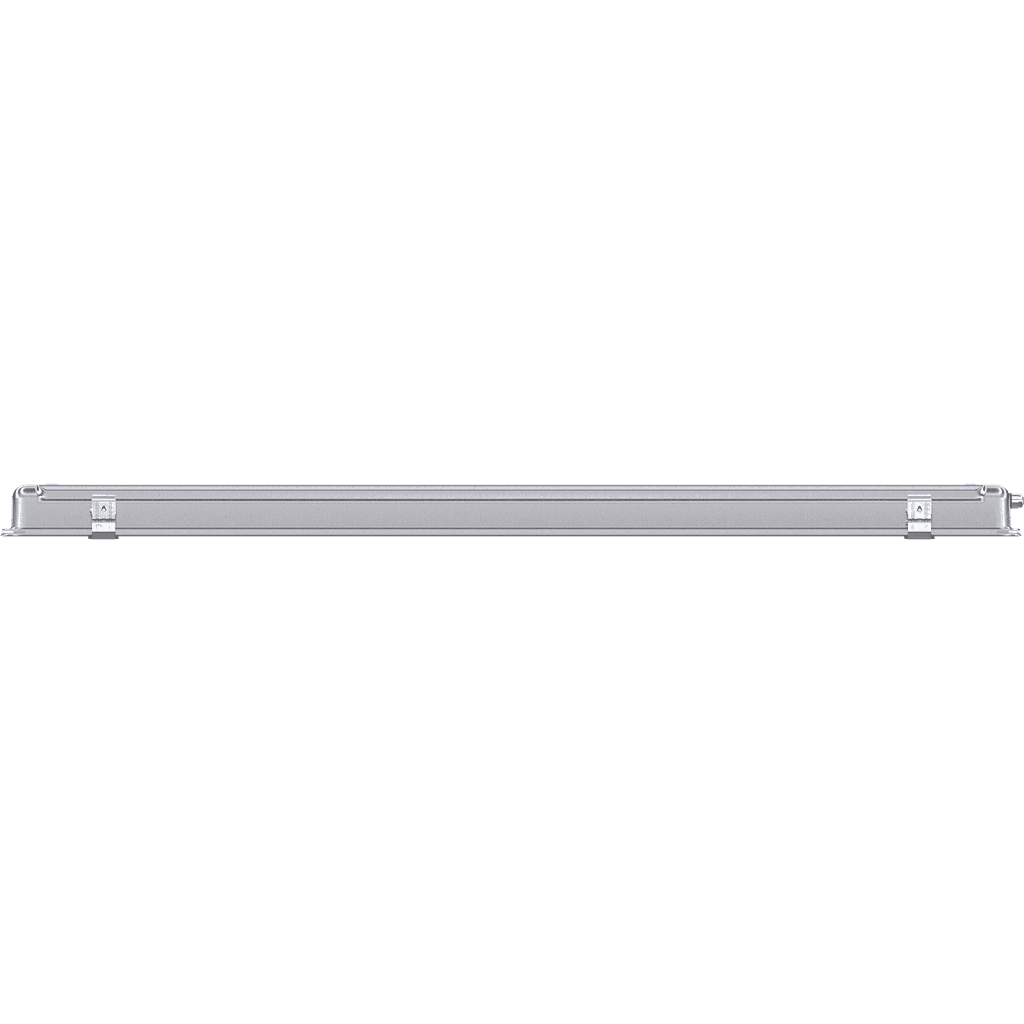

INOX LED 70 EM 4000K
model is discontinued
model is discontinued
INOX LED 70 EM 4000K
66 Wluminaire power
8000 lmlight flow
121 lm/Wenergy efficiency
code1079000350
color temperature4000 K
beam angleD120
weight10.07 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
8000 lmflickering factor
<1%energy efficiency
121 lm/Wbeam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
8000 lm
flickering factor
<1%
energy efficiency
121 lm/W
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
66 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
shock resistance (IK)
IK08/6,5 Дж
climatic performance
УХЛ2*
fire safety class
П-I,II,IIа
material
Сталь нержавеющая
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
10.07 kg
length
1600 mm
width
210 mm
height
90 mm
installation length
1320 mm
emergency
luminous flux in emergency mode
4% lm
operating time in emergency mode
1 h
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от 0 до +40 C
code
1079000350
model files
model files
CAD/BIM files

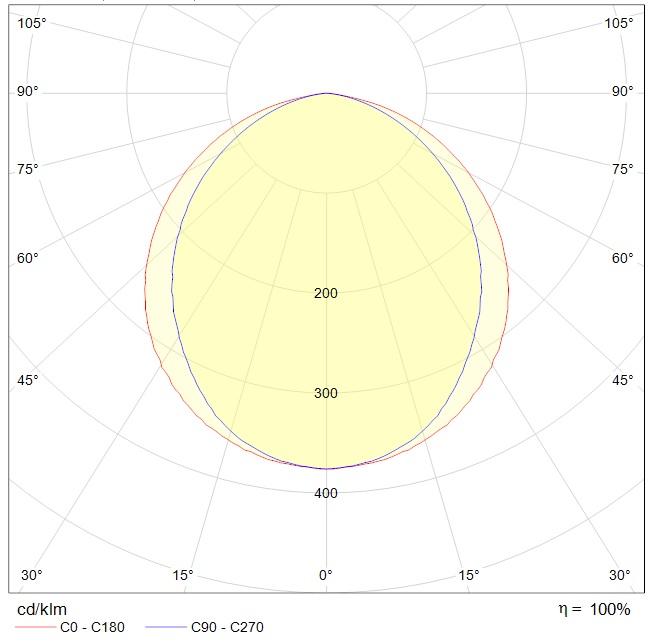

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax640 kB
photometric files
ies330.5 kB
jpg62.6 kB
ldt203.5 kB
csv414 B
documents
passport2.5 mB
сертификаты
Russian origin550.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
