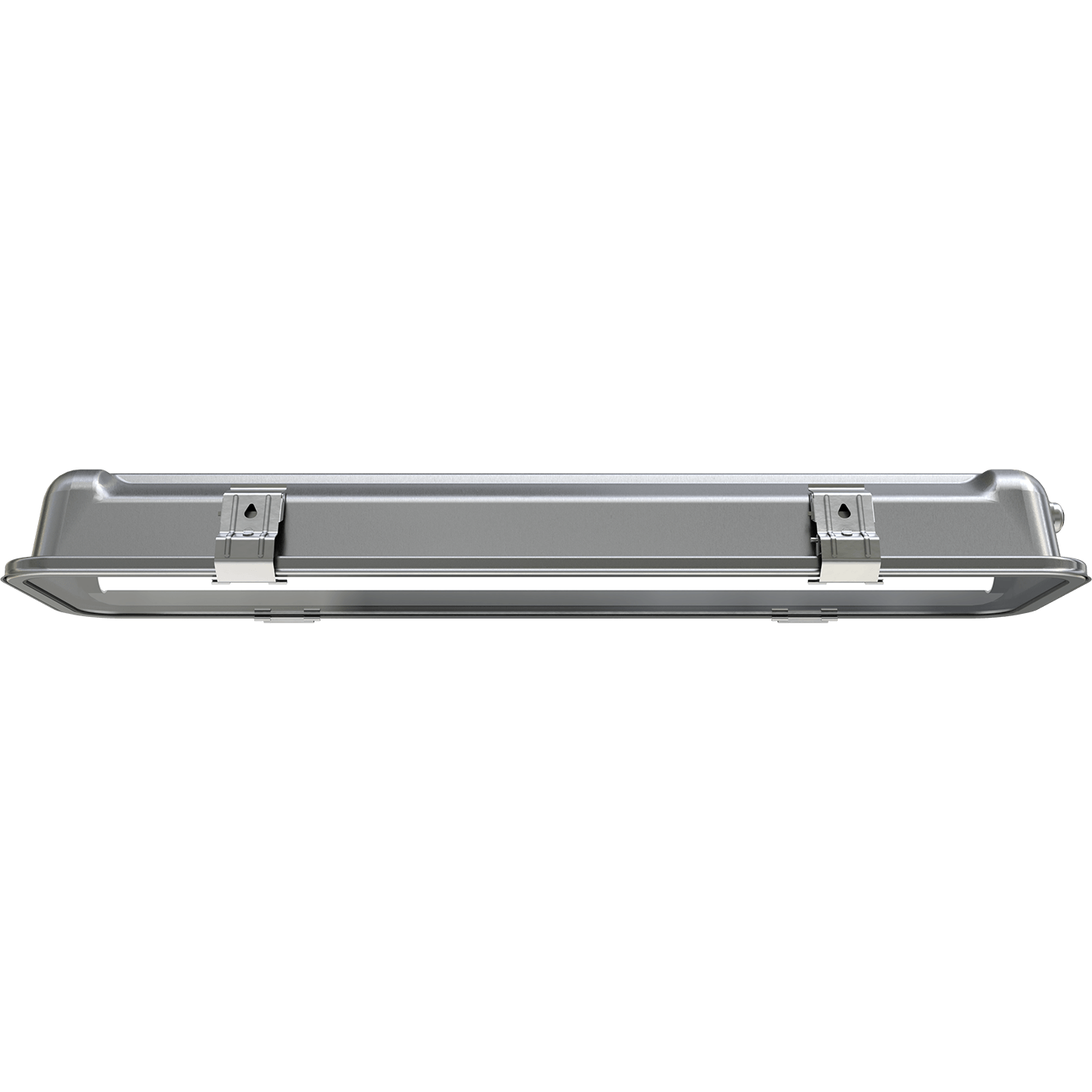

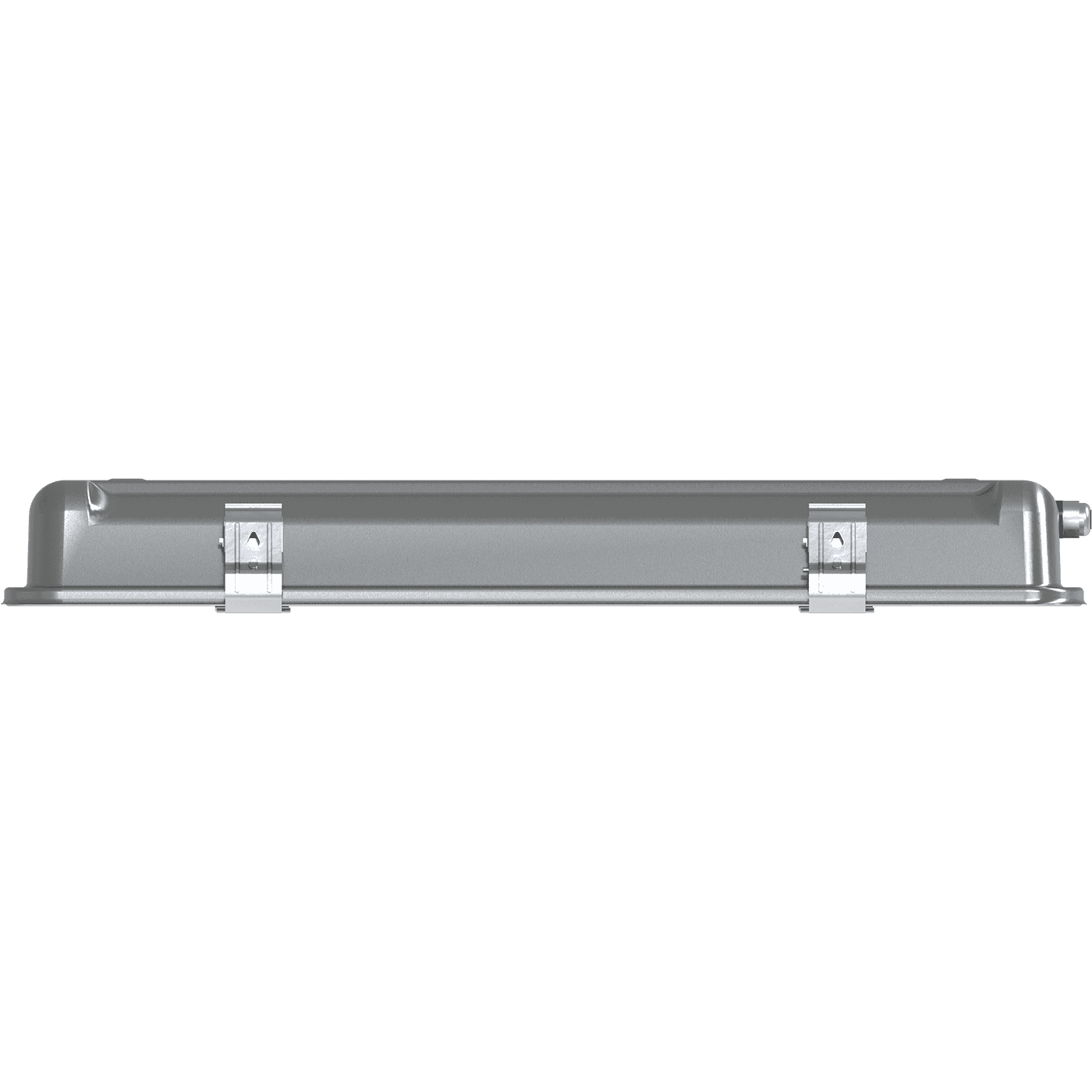

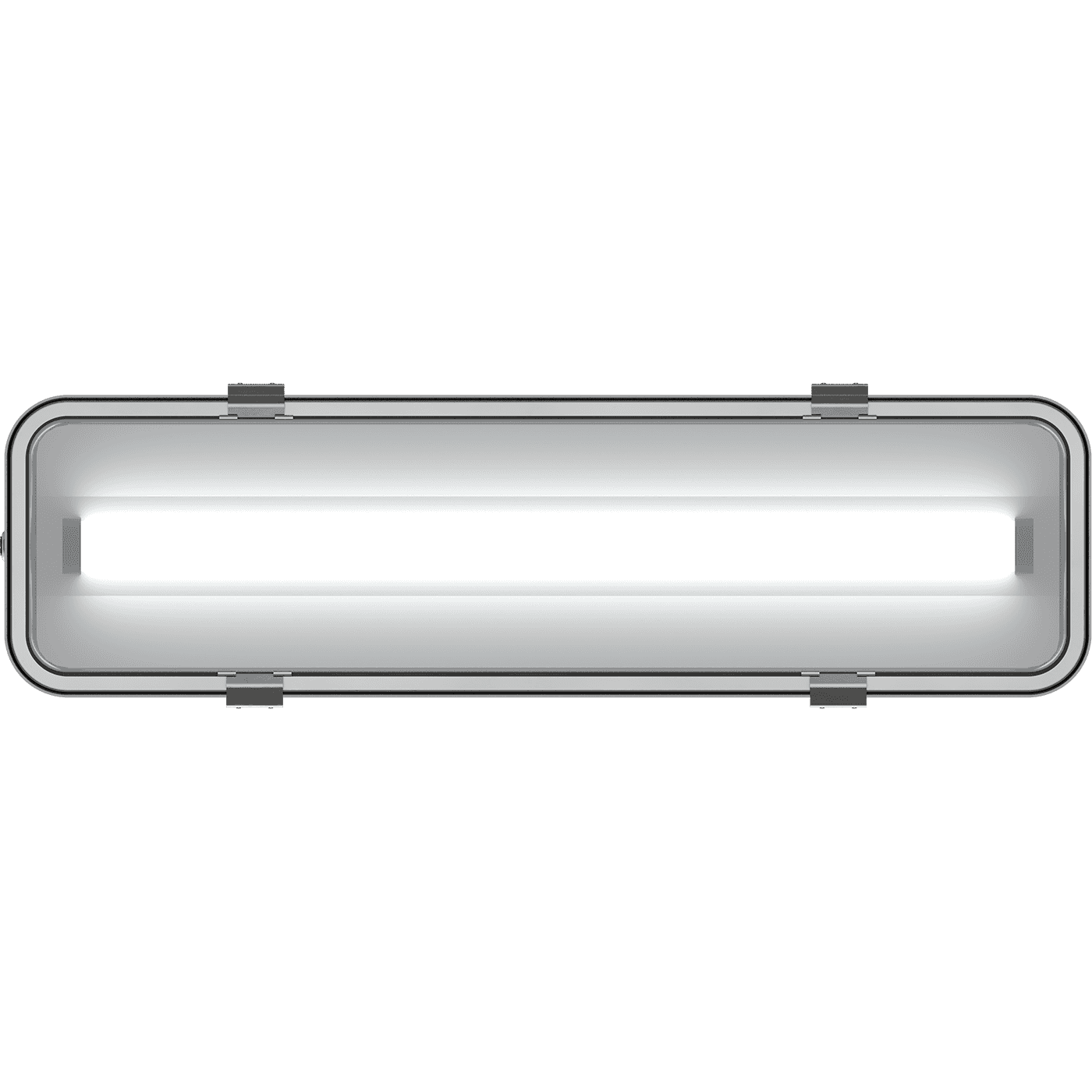

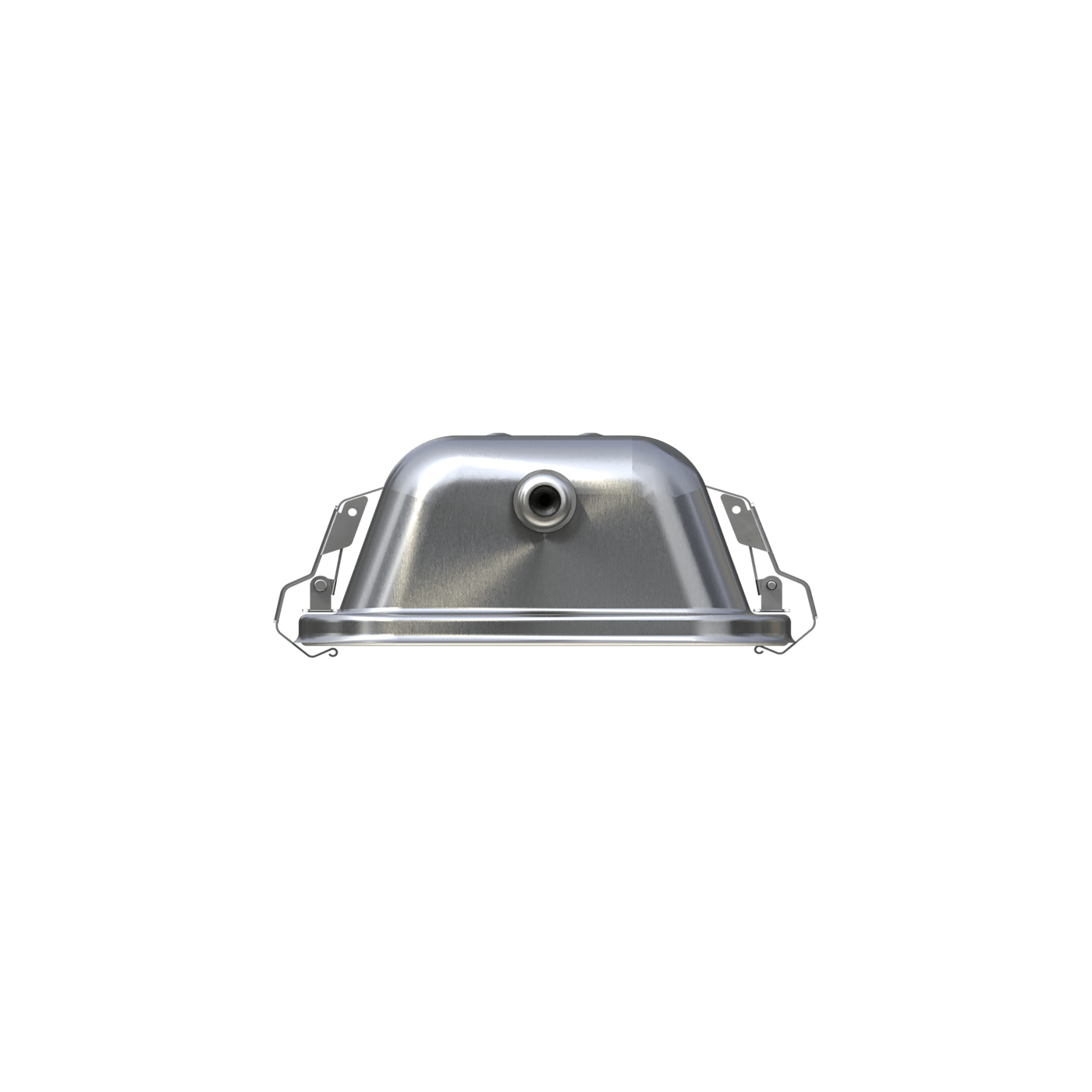

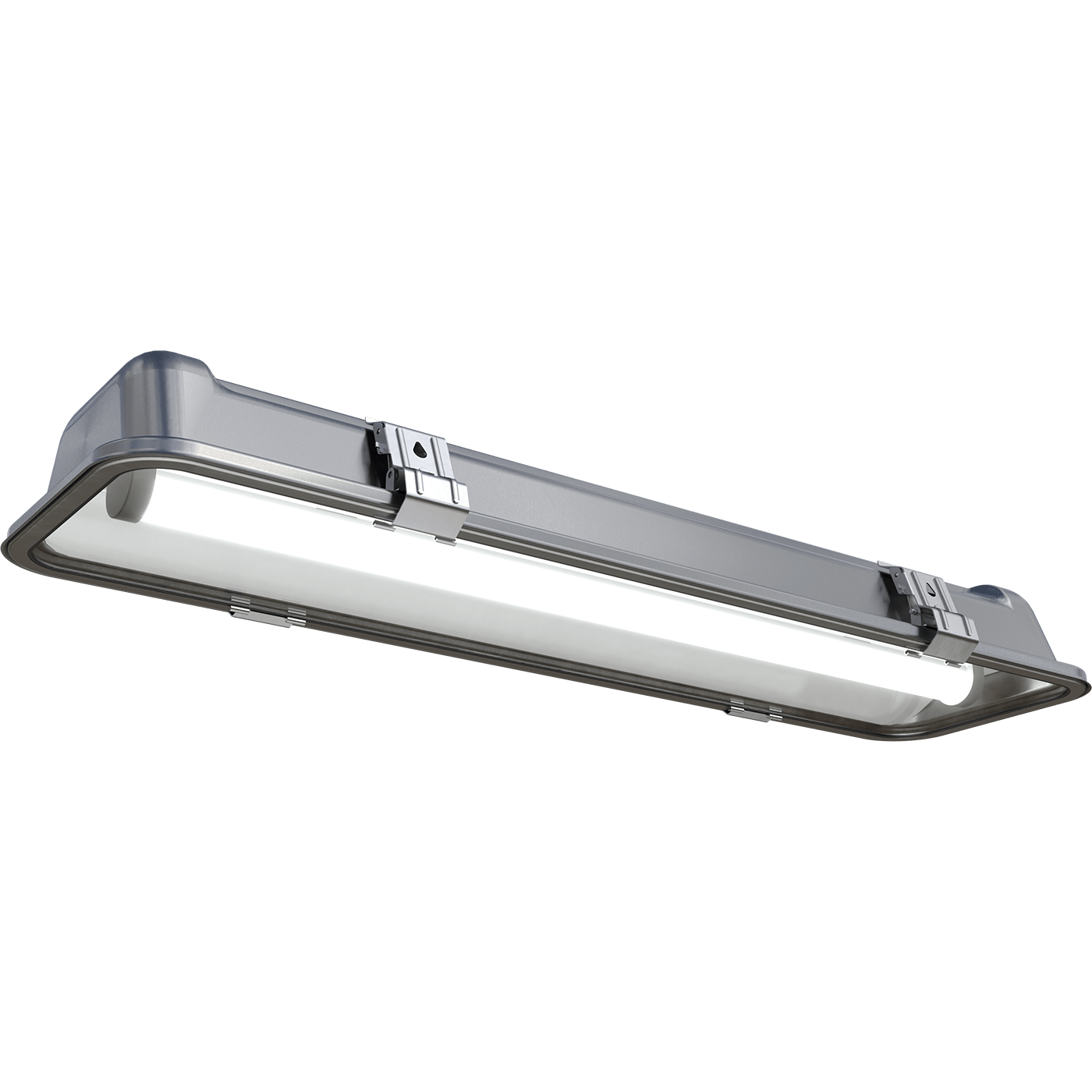

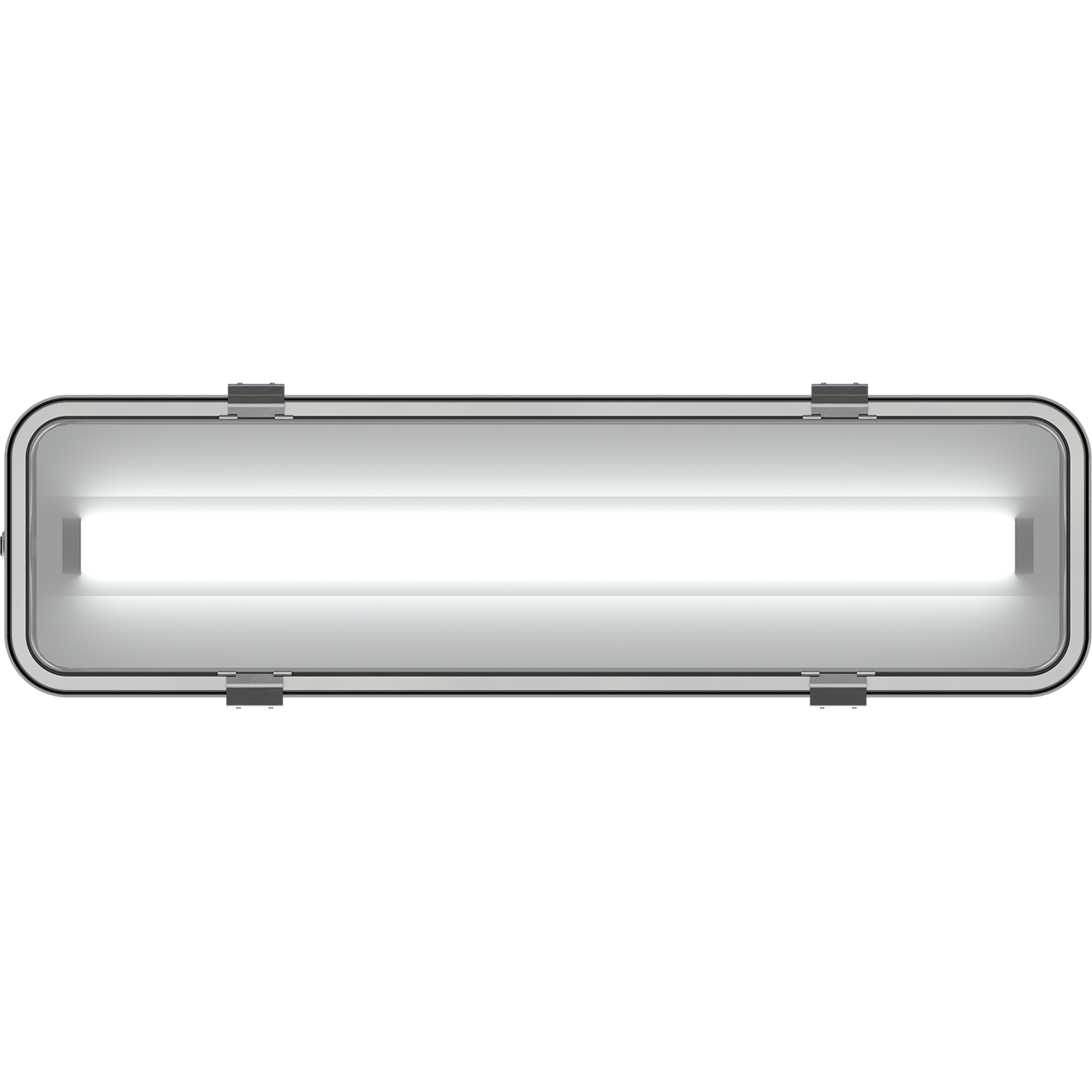

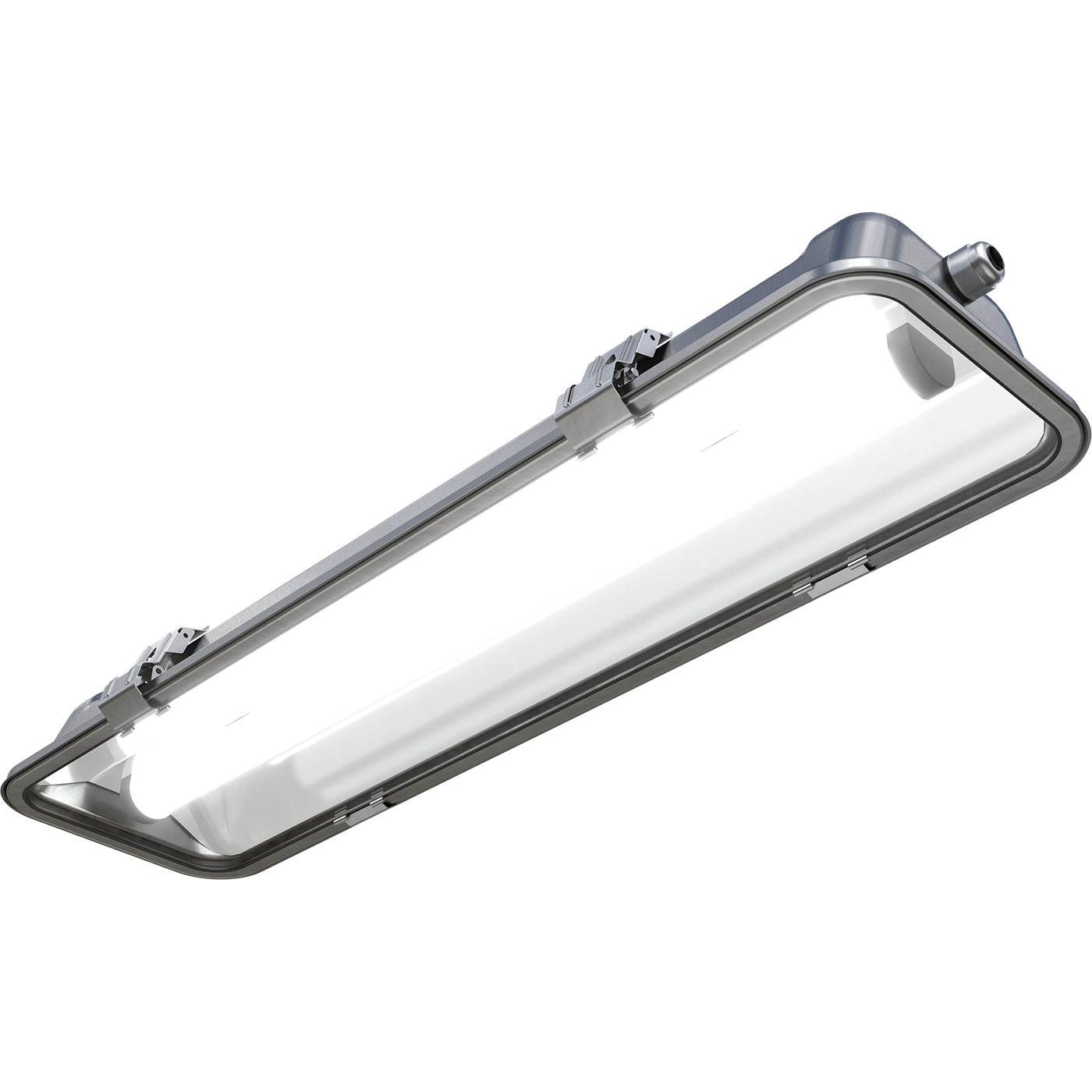

INOX LED 30 HFD 4000K
INOX LED 30 HFD 4000K
26 Wluminaire power
3200 lmlight flow
123 lm/Wenergy efficiency
code1079000370
color temperature4000
beam angleD120
weight4.4 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>80light flow
3200 lmflickering factor
<1%energy efficiency
123 lm/Wbeam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<1%
energy efficiency
123 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
26 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time, µs
250 mks
constructional
shock resistance (IK)
IK08/6,5 Дж
climatic performance
УХЛ2*
fire safety class
П-I,II,IIа
material
Сталь нержавеющая
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
ingress protection (IP)
IP65
weight
4.4 kg
length, mm
700 mm
width, mm
210 mm
height, mm
90 mm
installation length, mm
525 mm
LMS options
dimming
DALI
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от -40 до +40 C
code
1079000370
model files
model files
CAD/BIM files

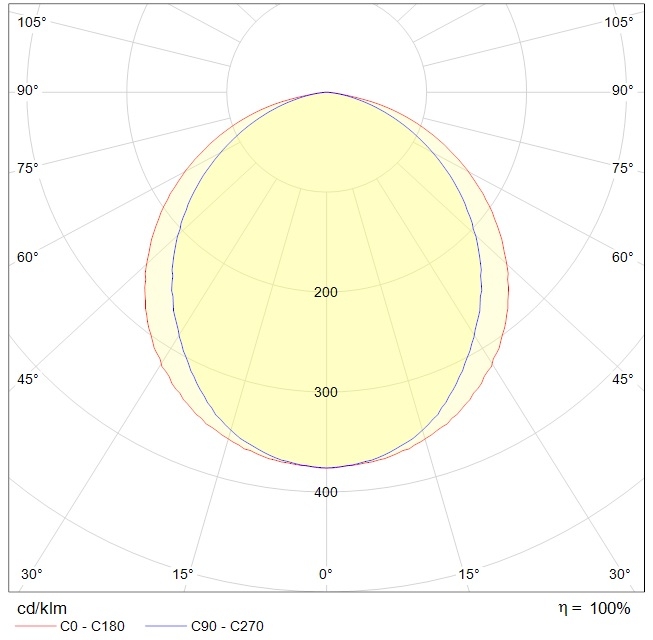

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax620 kB
photometric files
ies330.5 kB
jpg63.7 kB
ldt203.5 kB
csv415 B
documents
passport2.5 mB
сертификаты
Russian origin550.5 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
