INOX LED 80 (GL/SS) 5000K
_5000k.jpg&w=1920&q=100)
_5000k.jpg&w=1024&q=75)
INOX LED 80 (GL/SS) 5000K
80 Wluminaire power
10000 lmlight flow
125 lm/Wenergy efficiency
code1079000270
color temperature5000 K
beam angleD120
weight7.4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
10000 lmflickering factor
<1%energy efficiency
125 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
10000 lm
flickering factor
<1%
energy efficiency
125 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
80 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
shock resistance (IK)
IK08/6,5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Сталь нержавеющая
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65/IP67
weight
7.4 kg
length
757 mm
width
307 mm
height
205 mm
installation length
180 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
code
1079000270
model files
model files

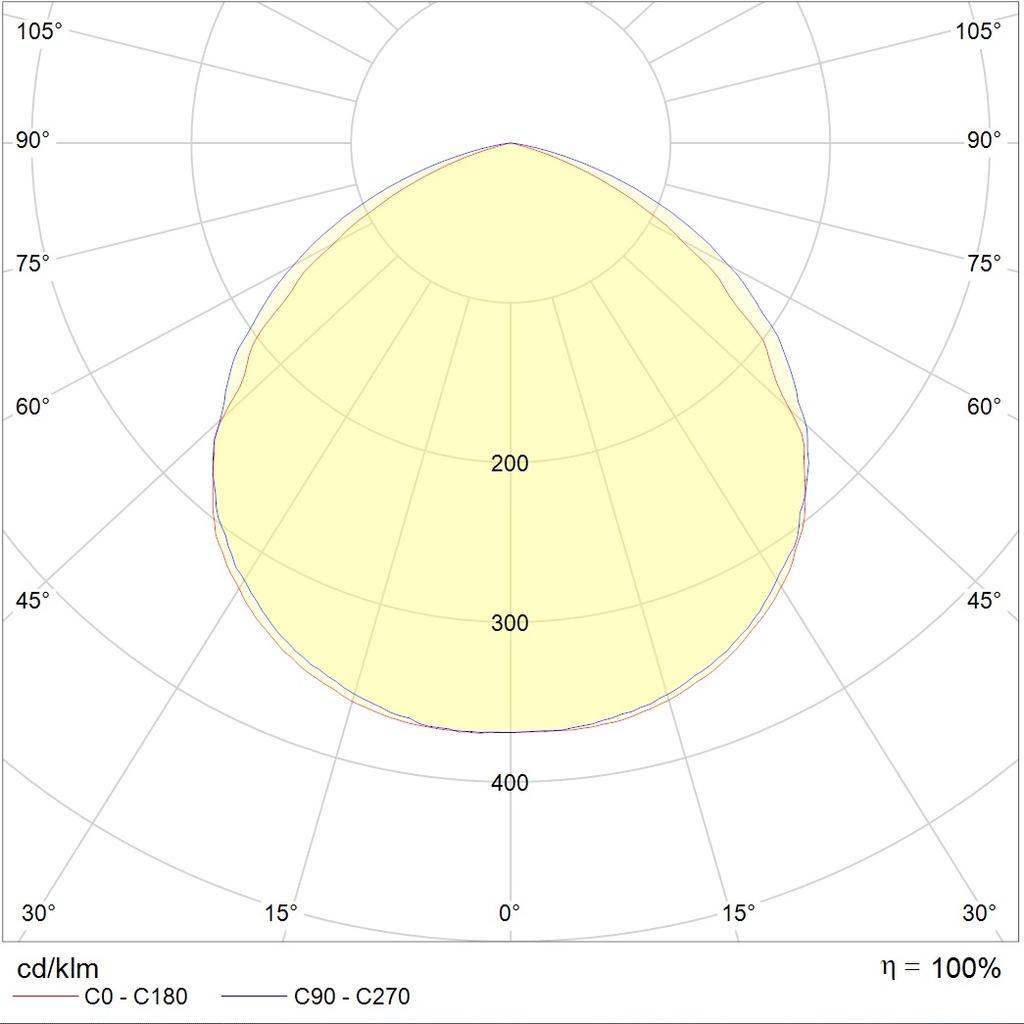

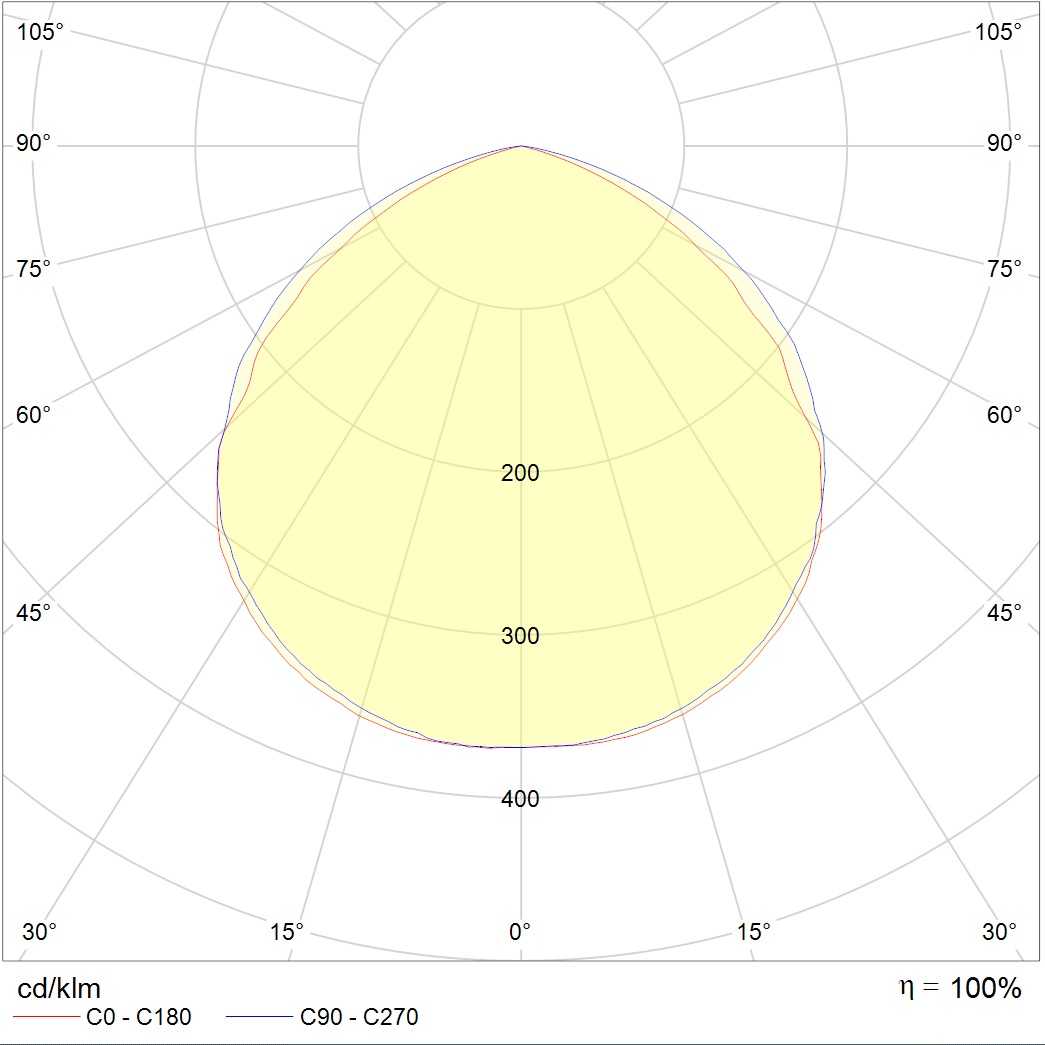

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg125.2 kB
ldt162.7 kB
csv419 B
documents
passport1.1 mB
сертификаты
Russian origin243.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
