INOX LED 20 (GL/SS) 5000K II class
зарегистрирована в реестре российской промышленной продукции
INOX LED 20 (GL/SS) 5000K II class
20 Wluminaire power
2700 lmlight flow
135 lm/Wenergy efficiency
code
1079000740
number from the register of Russian industrial products
10586923
color temperature
5000 K
beam angle
D120
weight
4.75 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
2700 lmenergy efficiency
135 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
2700 lm
energy efficiency
135 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
20 W
electric shock protection
II
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Сталь нержавеющая
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
shock resistance (IK)
IK08/6,5 Дж
weight
4.75 kg
ingress protection (IP)
IP65/IP67
length
458 mm
width
307 mm
height
205 mm
installation length
180 mm
emergency
emergency power supply
Нет
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
code
1079000740
model files
model files

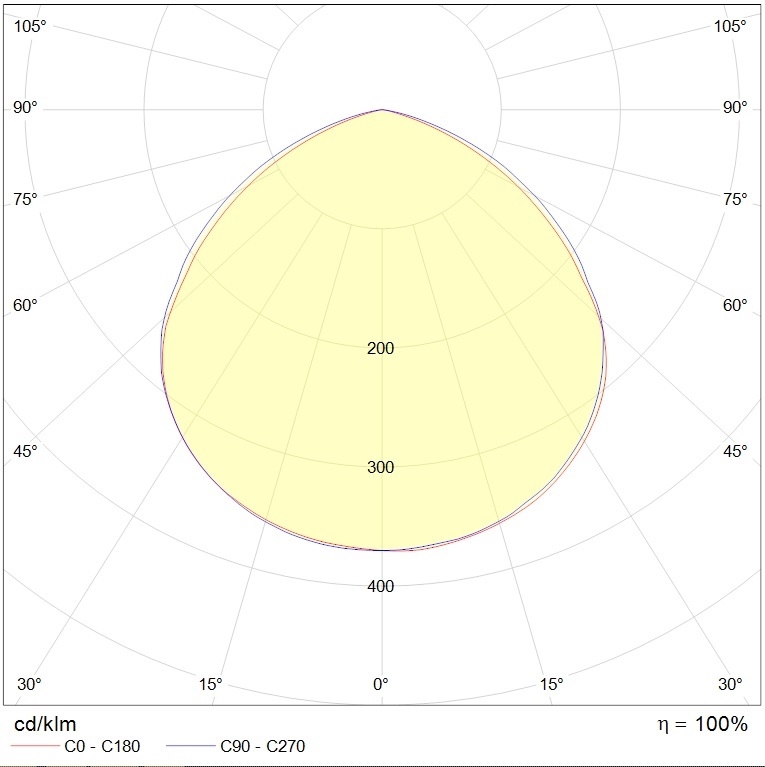

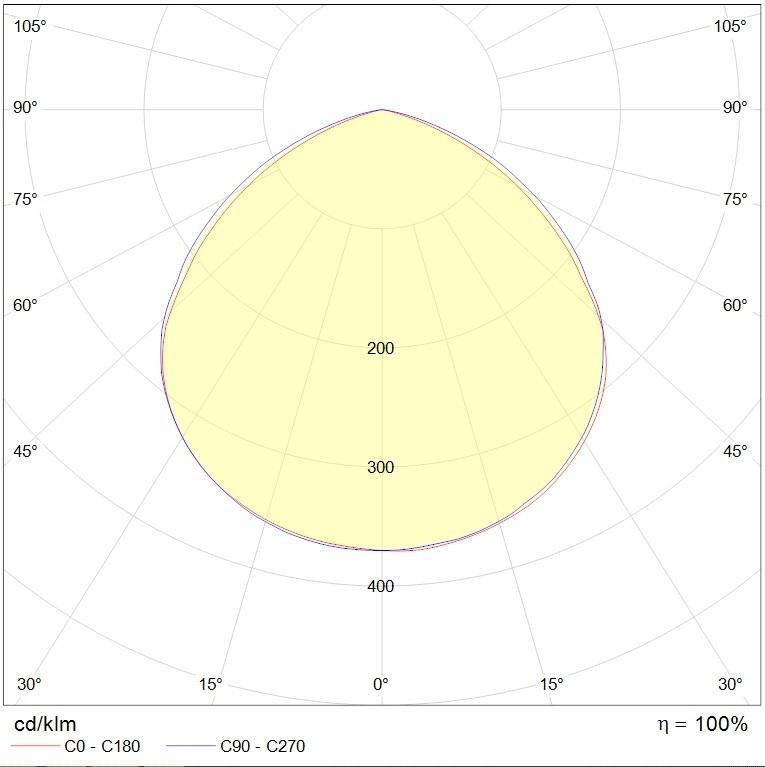

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg76.7 kB
ldt64.4 kB
csv428 B
documents
passport459 kB
сертификаты
Russian origin243.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/2011507.7 kB
Declaration of Conformity EAEU TR 037/2016528.3 kB
Fire Safety Certificate2.5 mB
