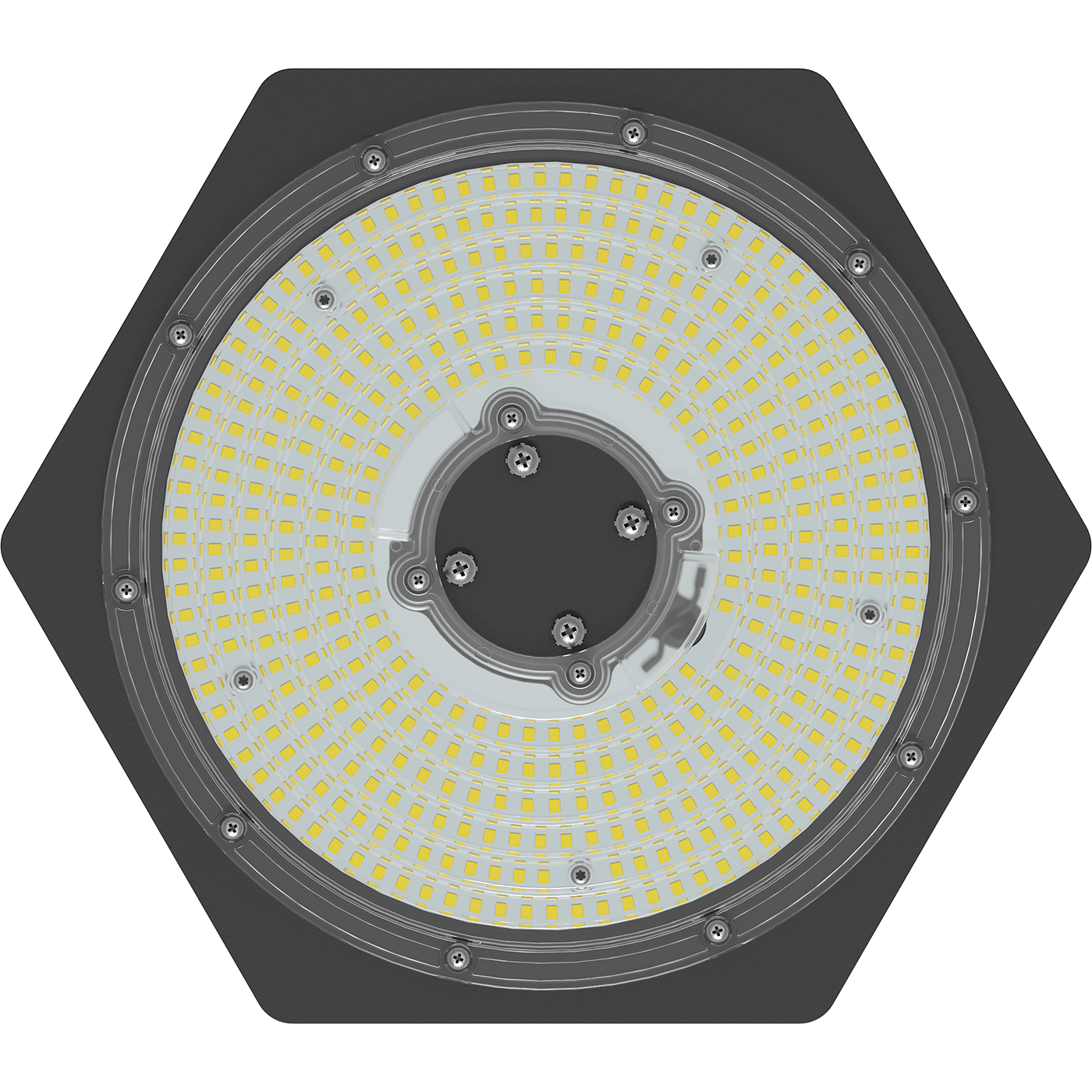

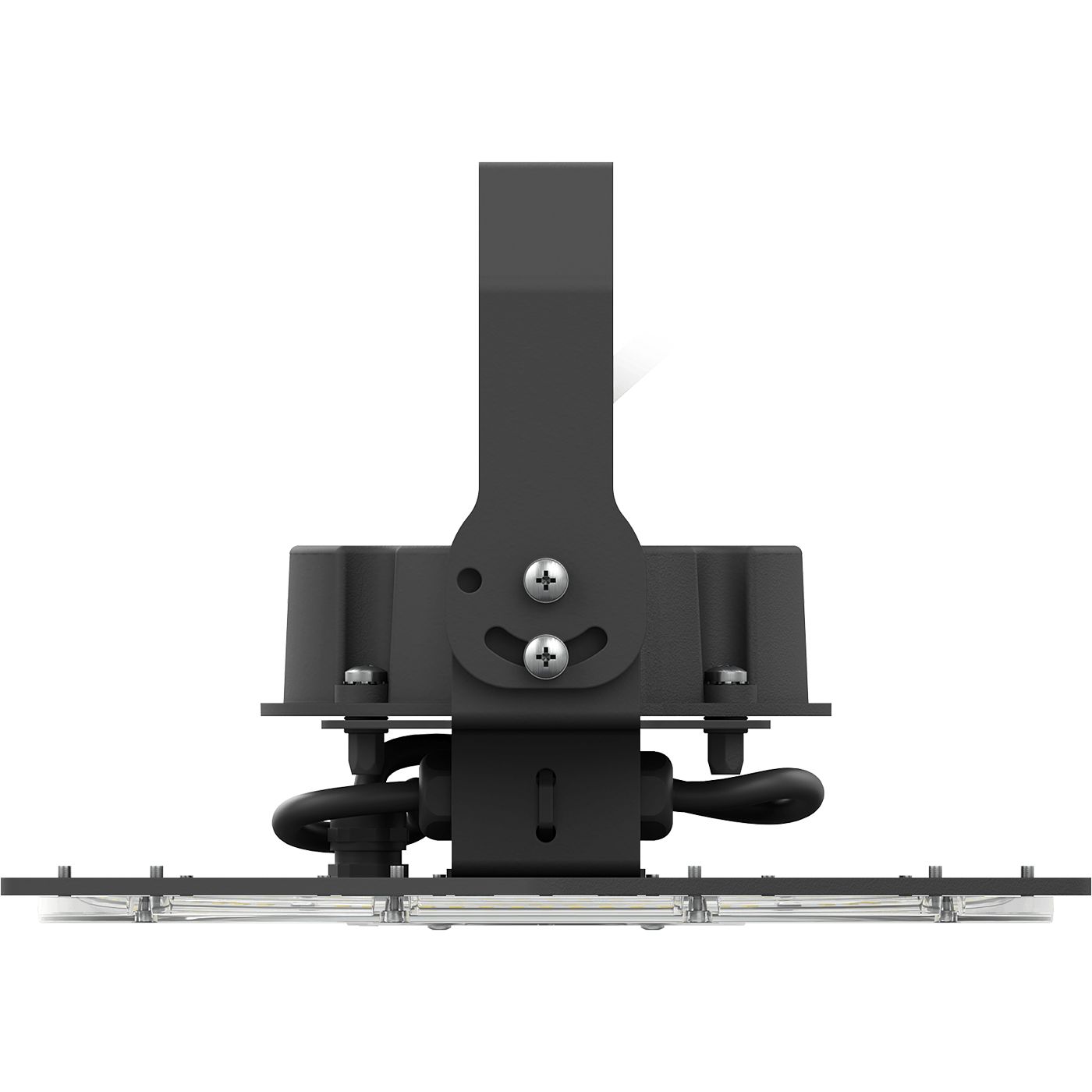

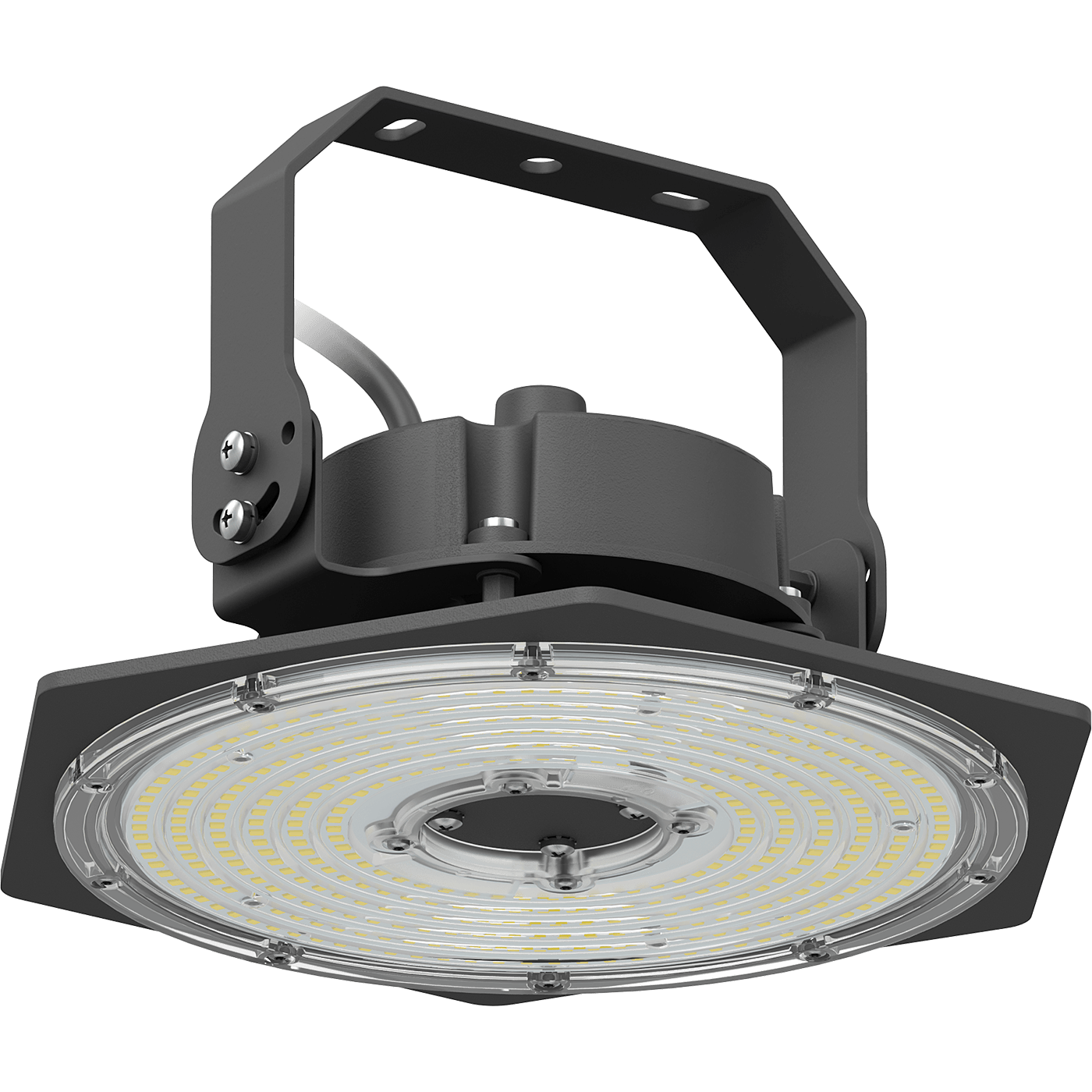

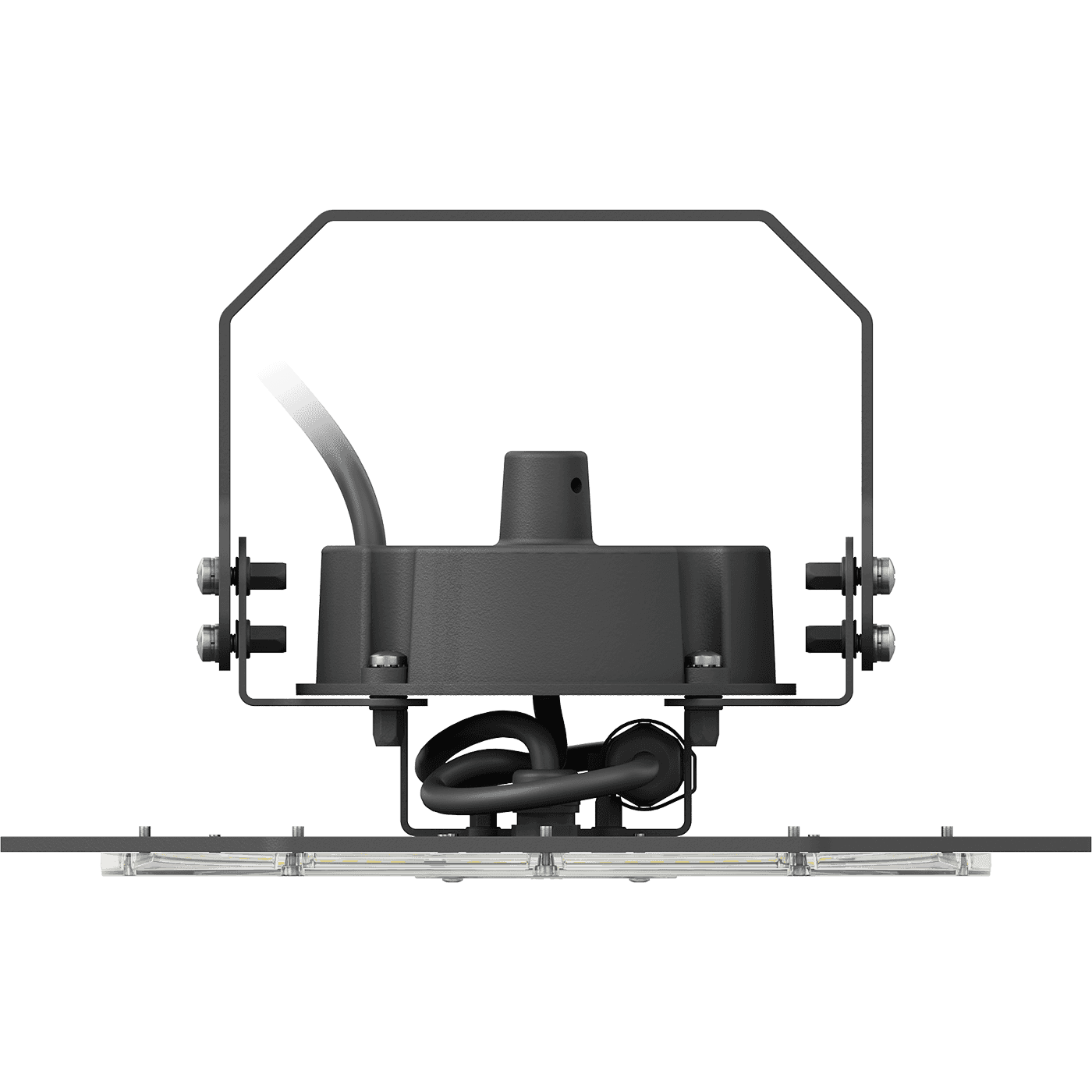

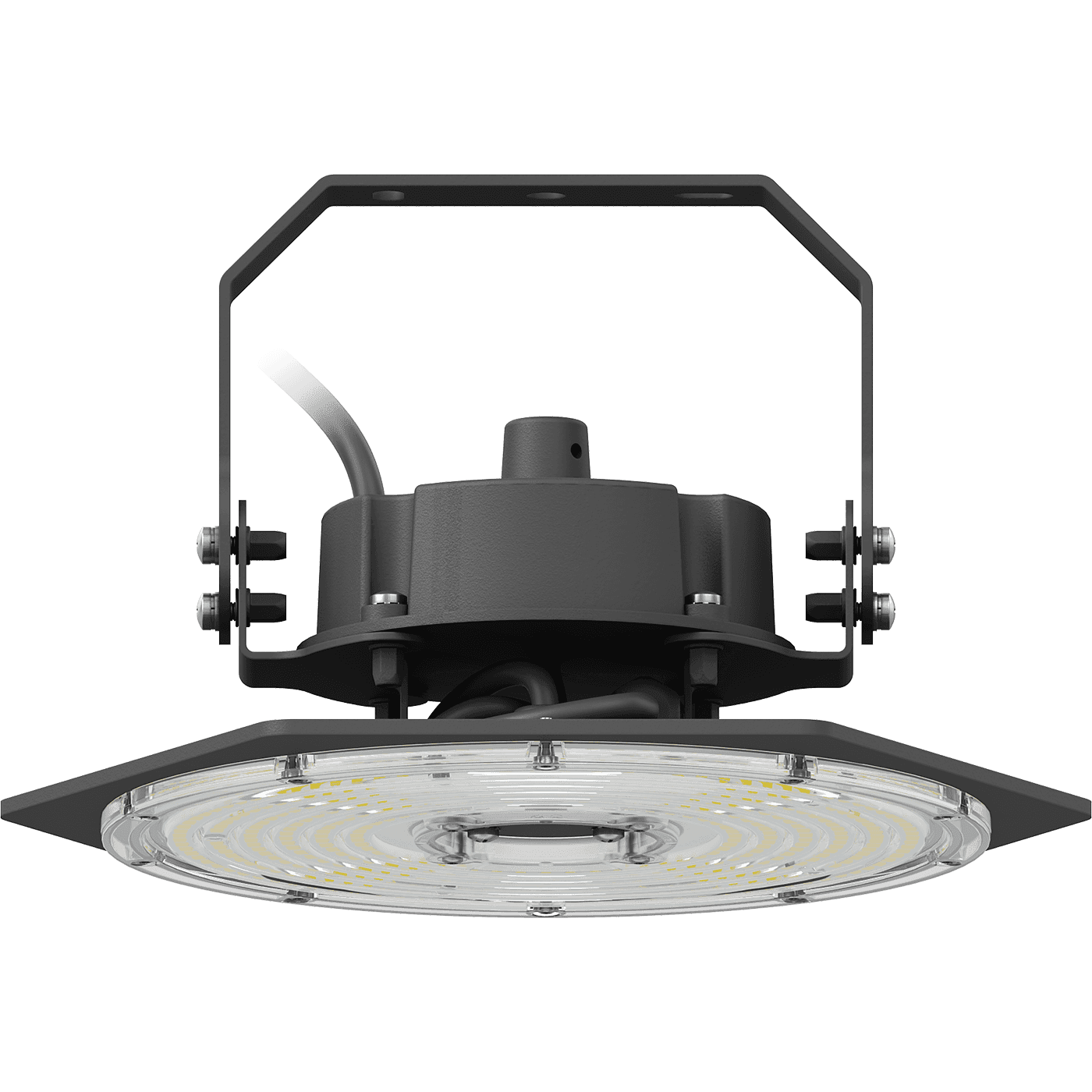

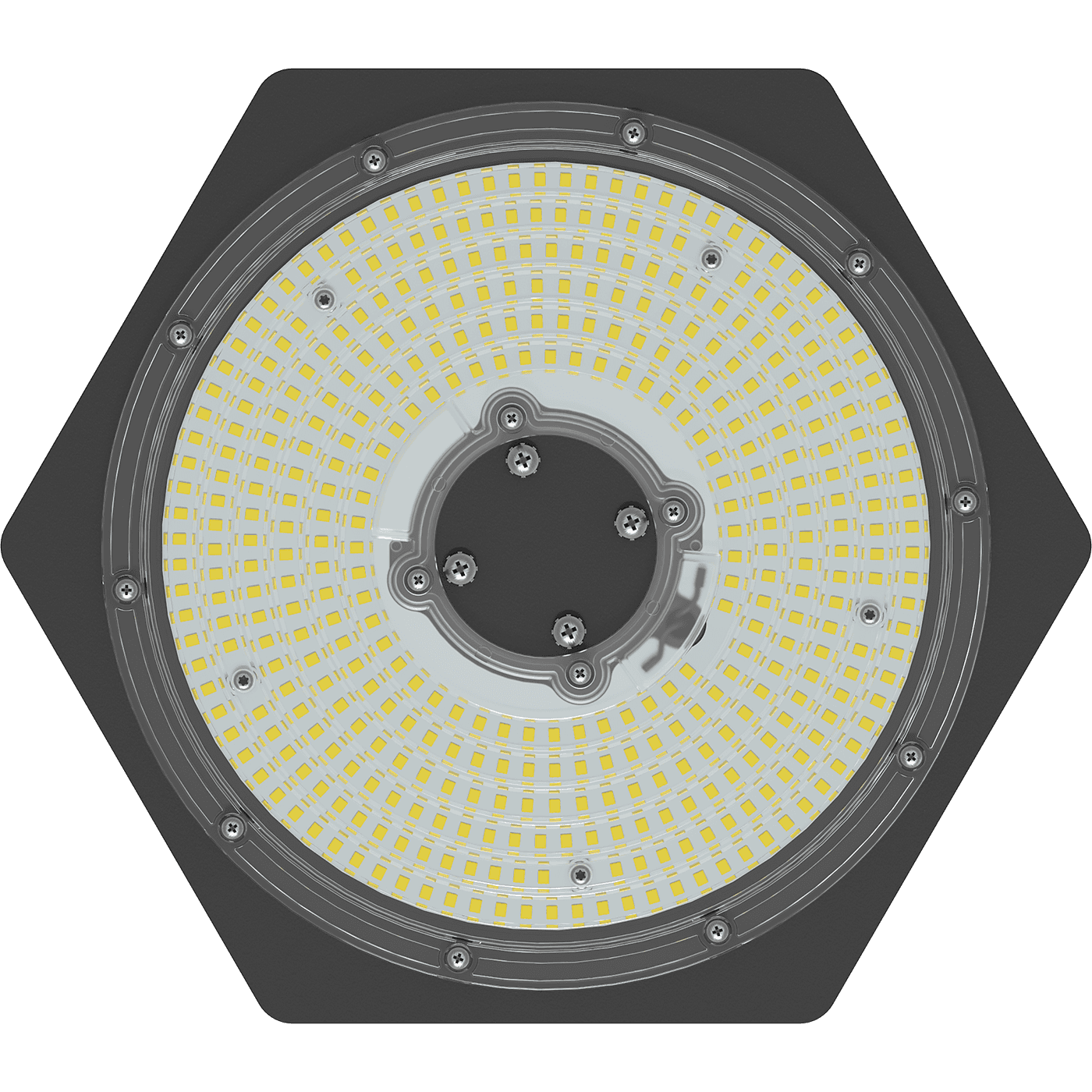

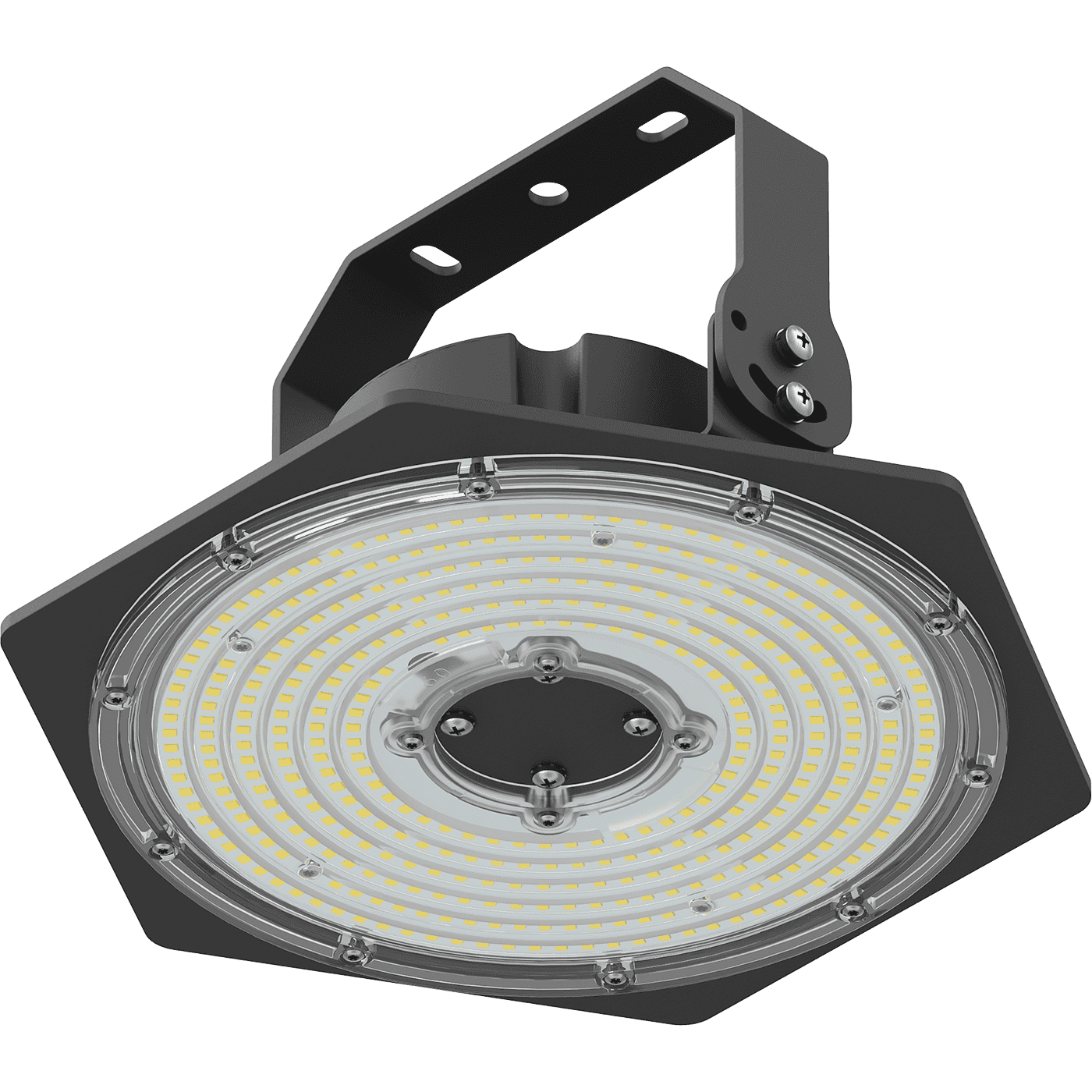

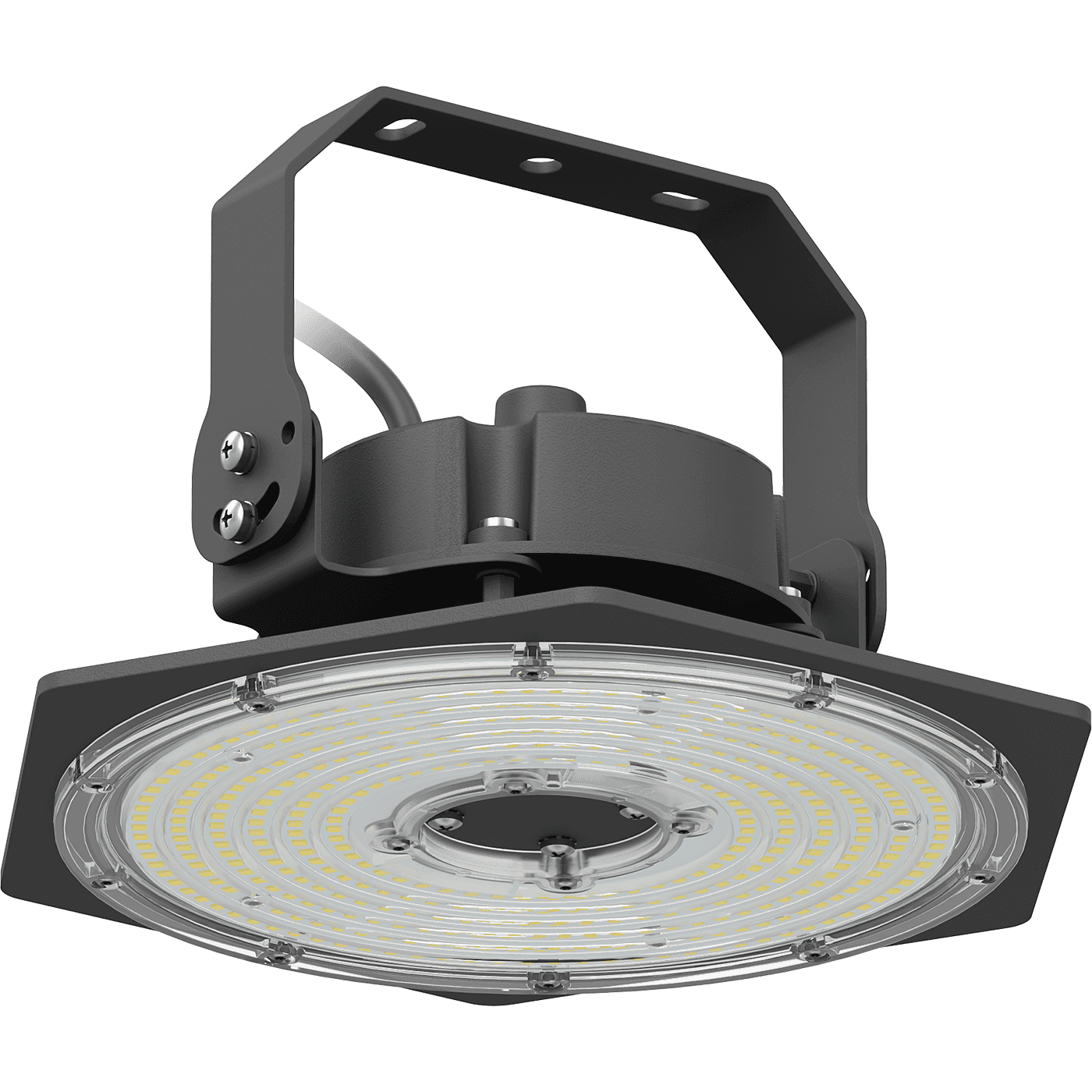

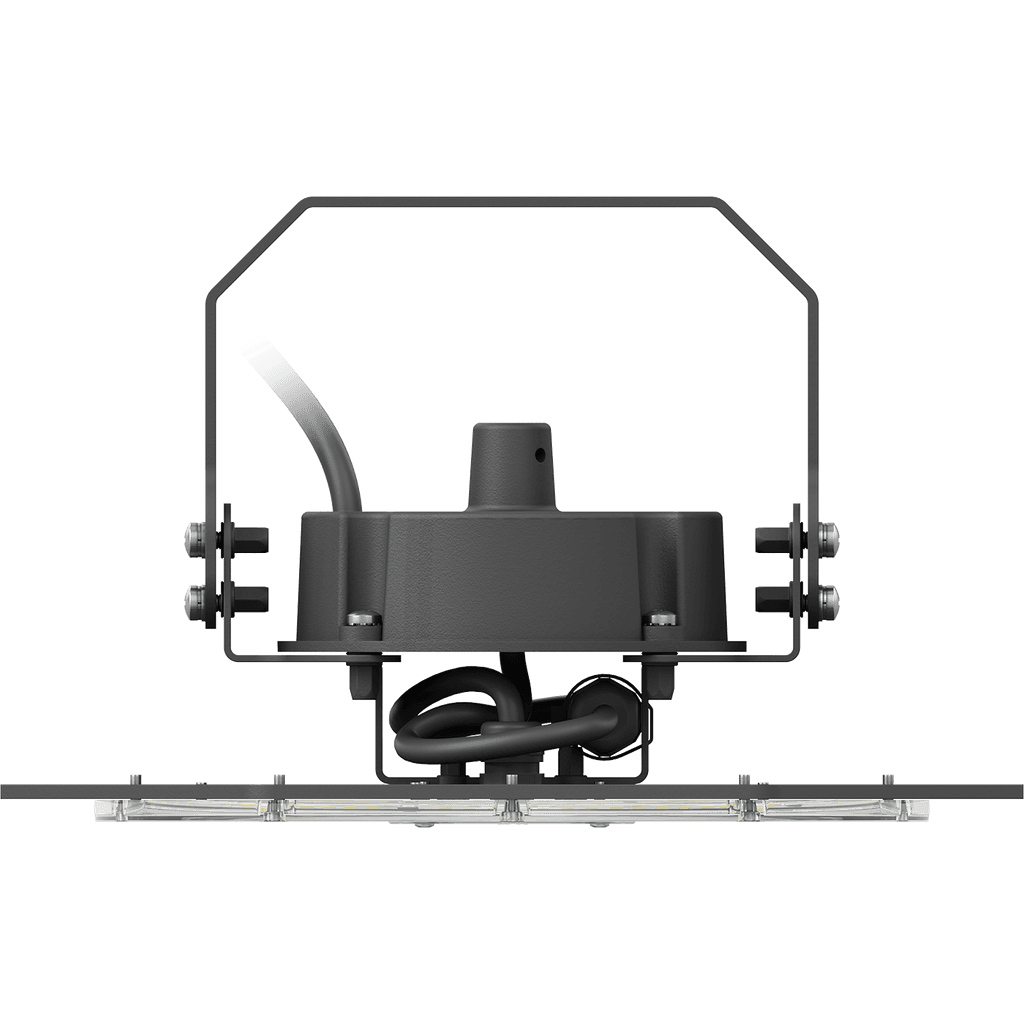

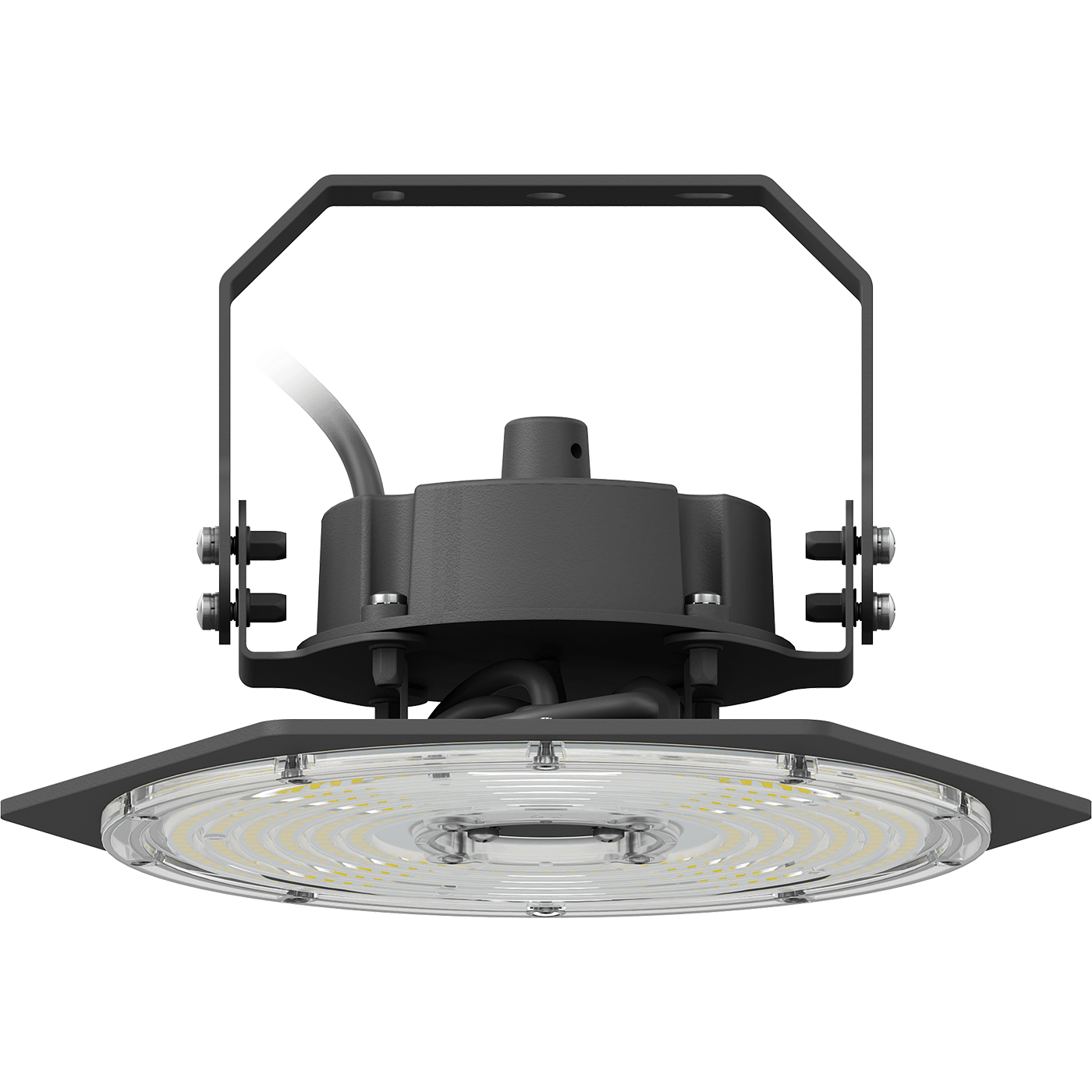

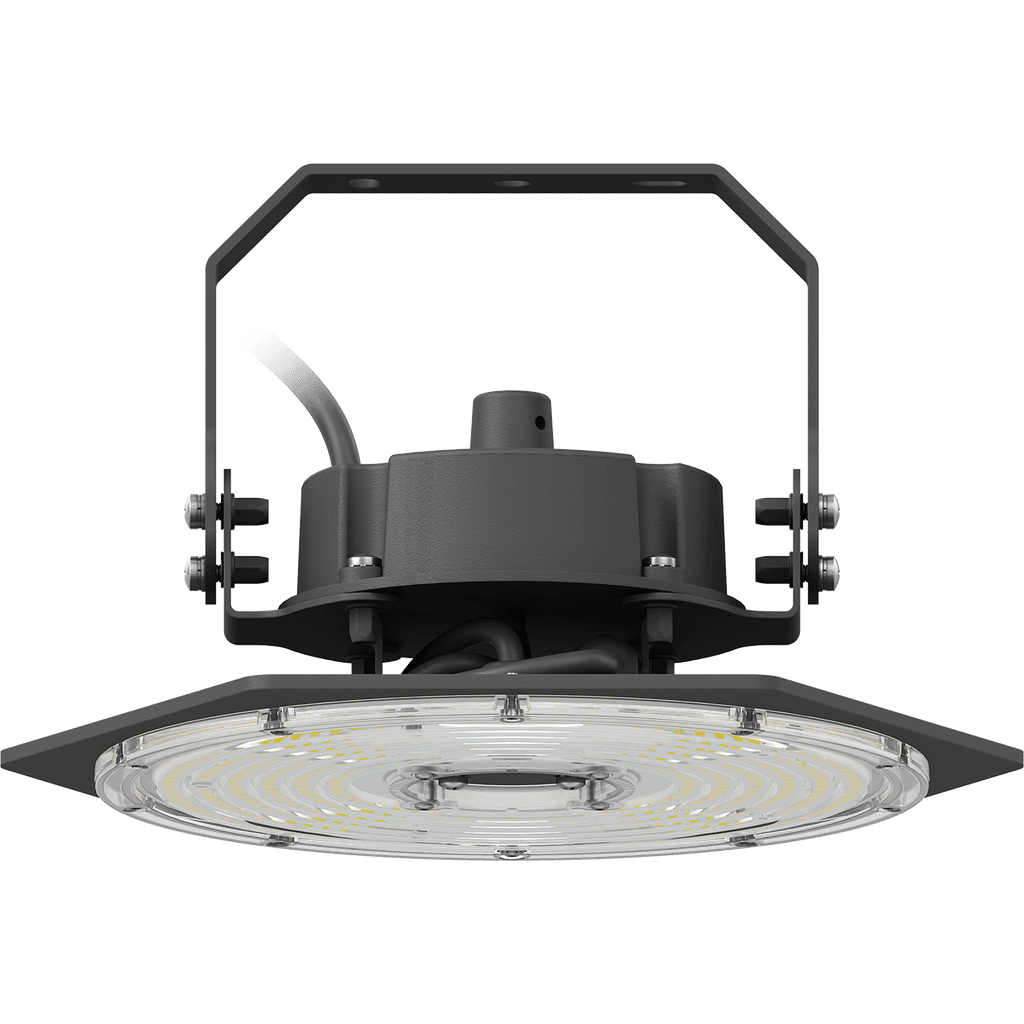

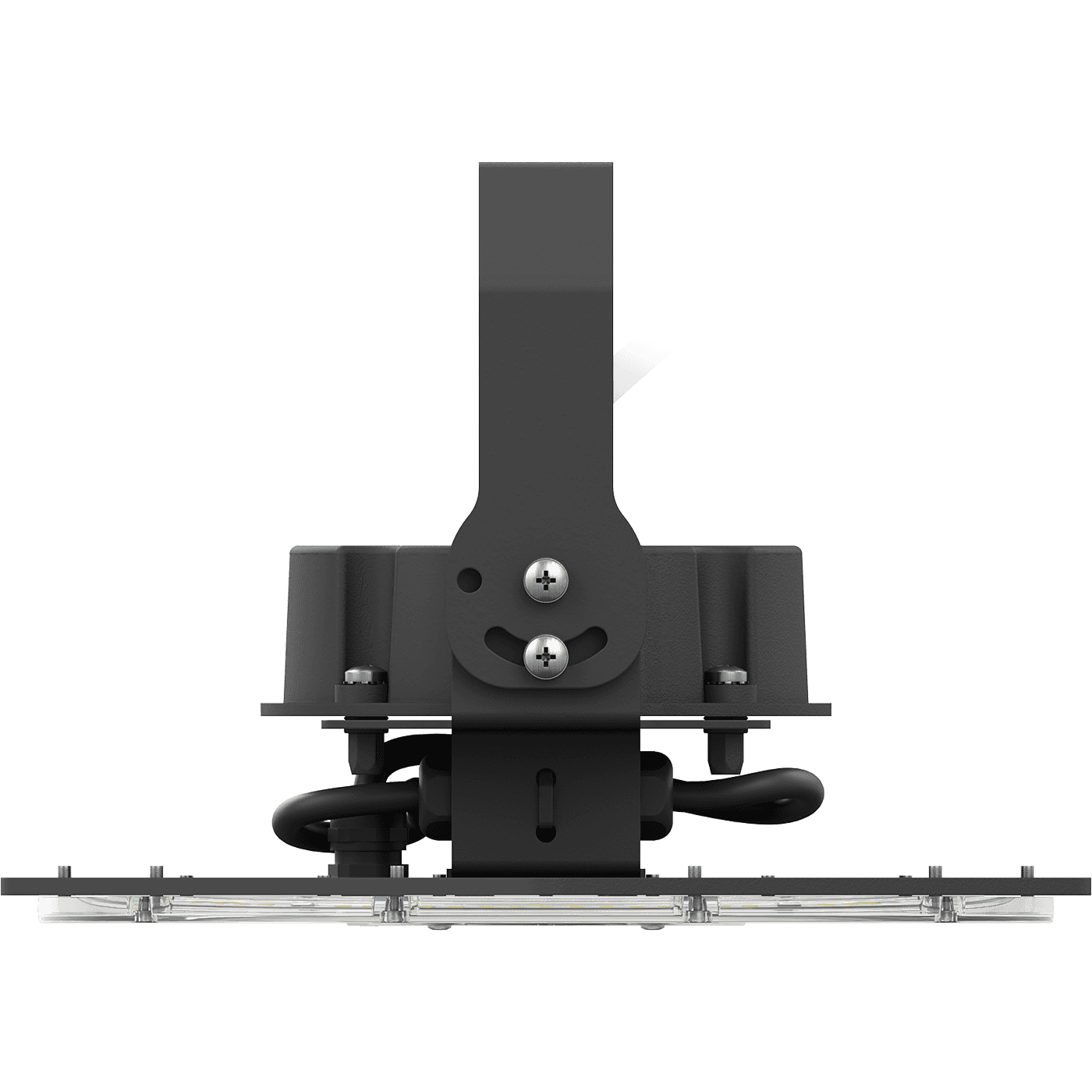

HOOK/RB 100W D60 750 BK
HOOK/RB 100W D60 750 BK
98 Wluminaire power
15800 lmlight flow
161 lm/Wenergy efficiency
code1944000670
color temperature5000 K

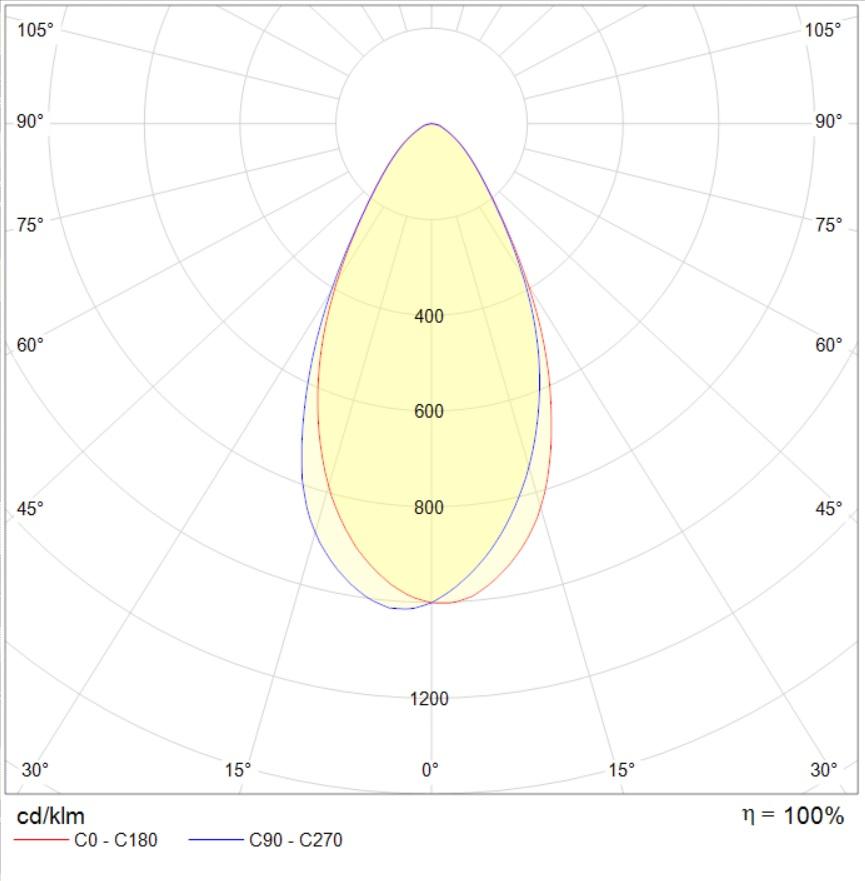

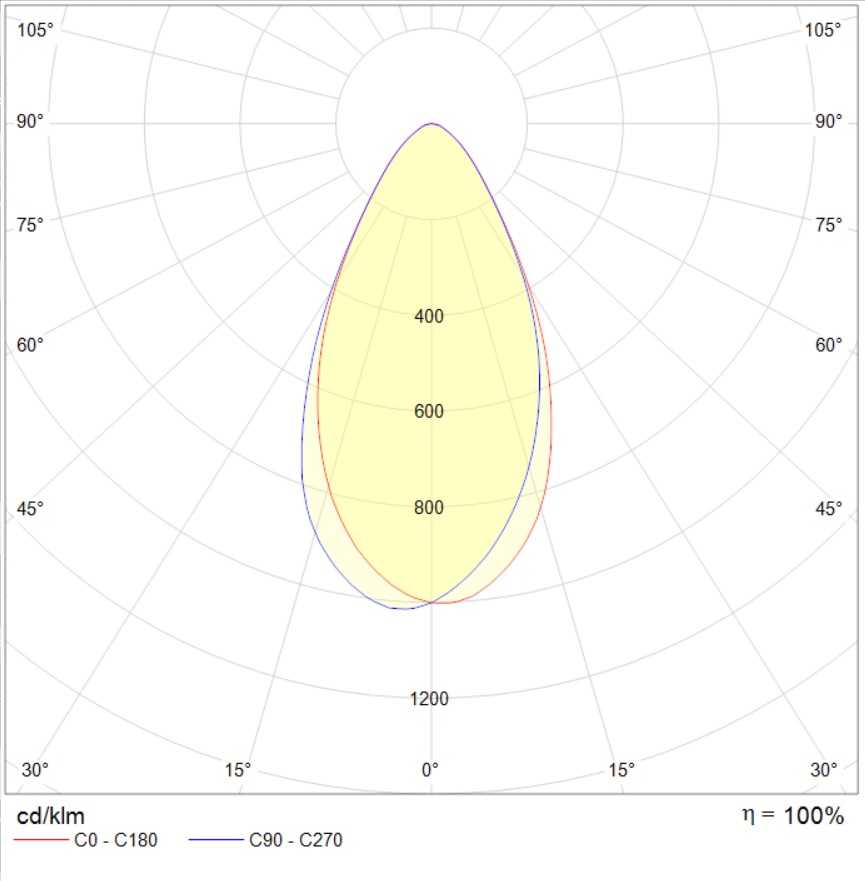

beam angleD60
performance factor100
weight2.3 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
161 lm/Wcolor rendition index (CRI)
>70light flow
15800 lmflickering factor
<1%beam angle
D60color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
161 lm/W
color rendition index (CRI)
>70
light flow
15800 lm
flickering factor
<1%
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
300 µs
electric shock protection
I
luminaire power
98 W
supply voltage
230 V
power factor
> 0,96
rated supply voltage, alternating current
120 V
starting current
80 A
constructional
length
277 mm
width
243 mm
height
170 mm
installation length
80 mm
weight
2.3 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +50 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1944000670
model files
model files
photometric files
documents
сертификаты

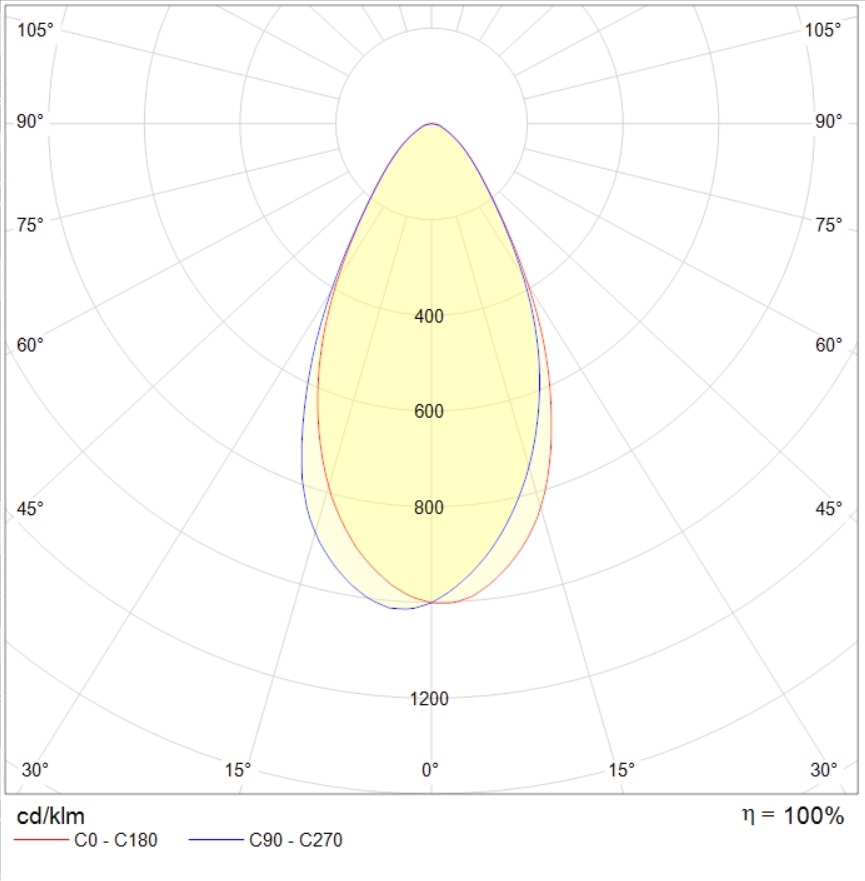

photometric files
ies107 kB
jpg84.7 kB
ldt71.3 kB
documents
passport2.4 mB
сертификаты
Russian origin239.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
accessories
3-pole I-shape connector for Industrial luminaires0.03kgarticle: 2909004330
