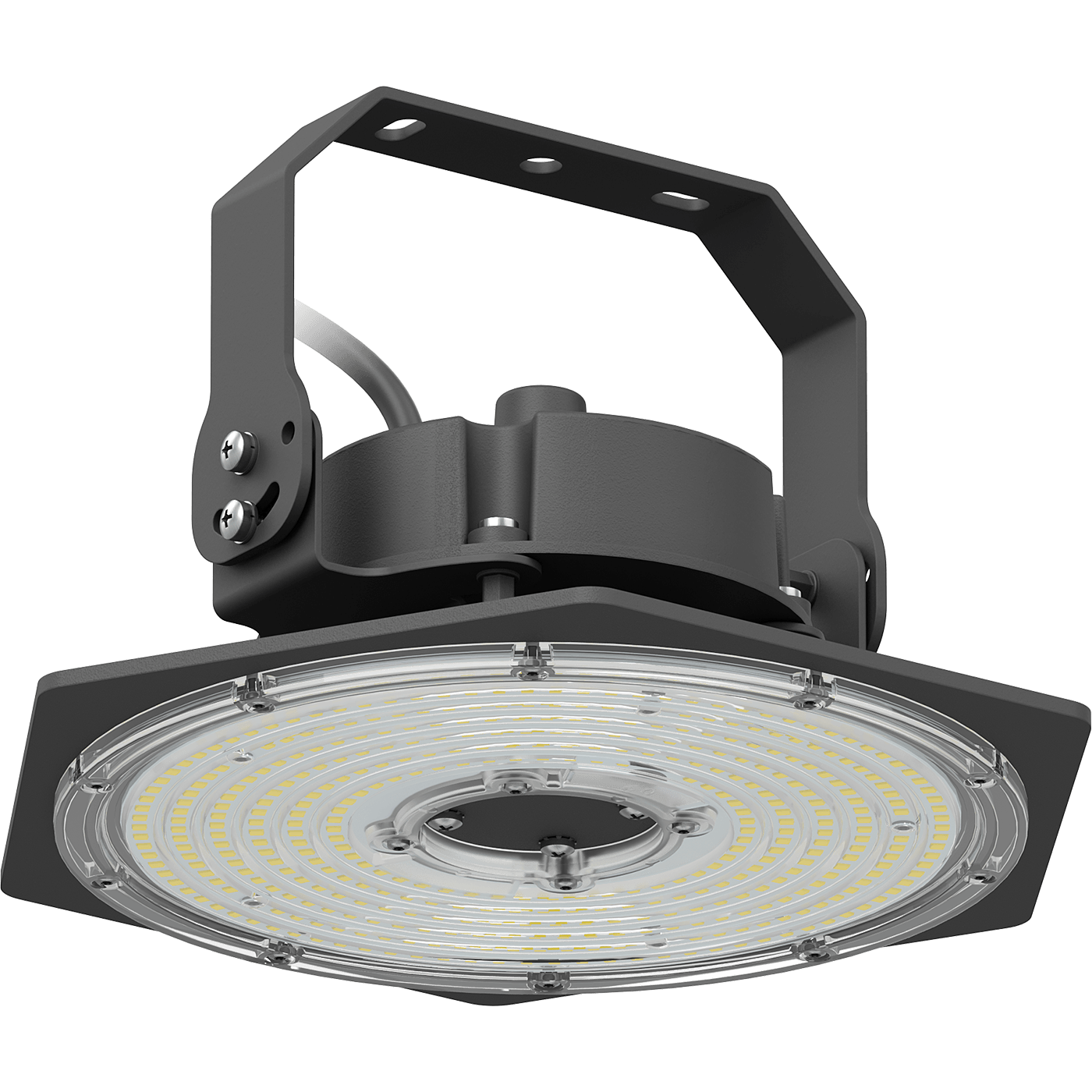

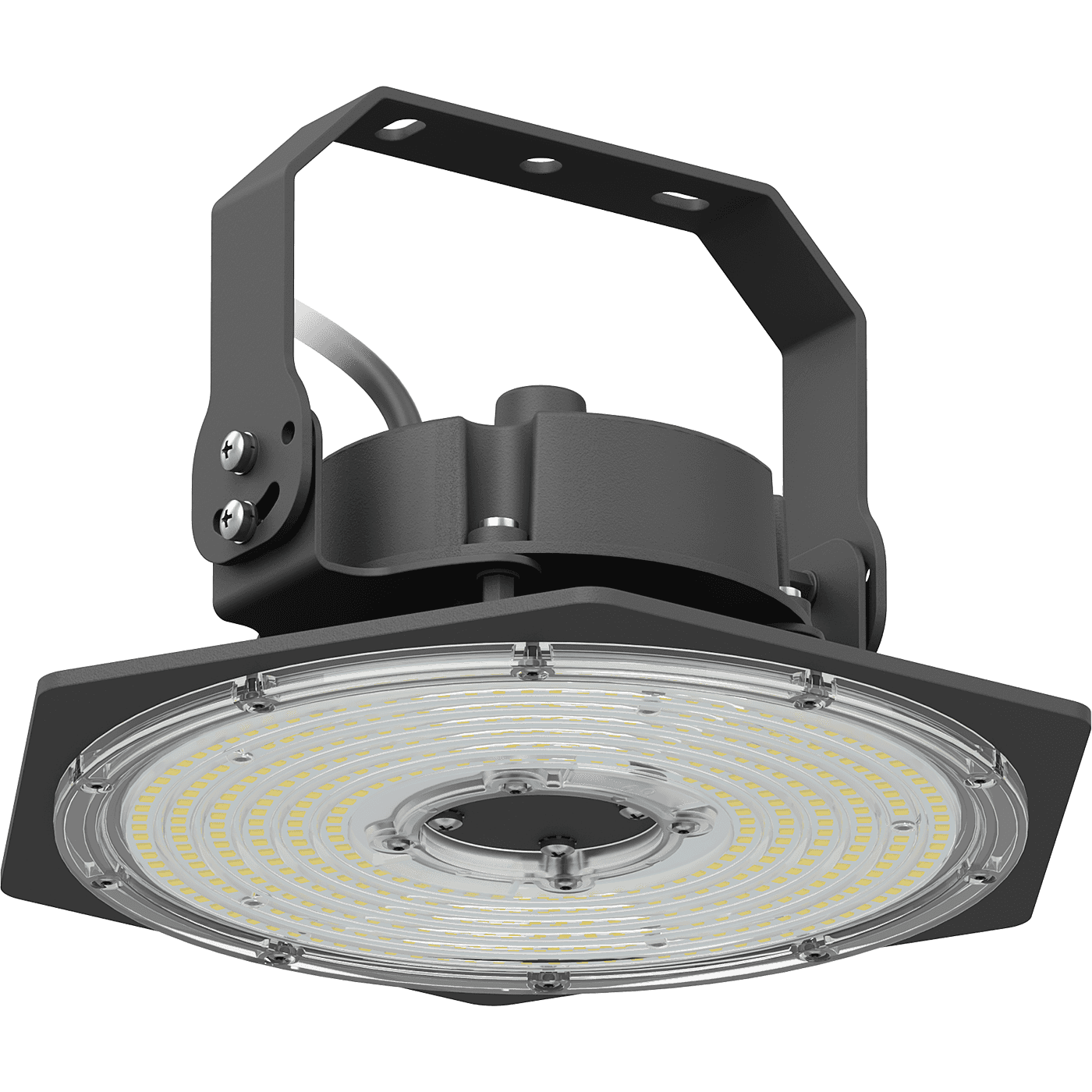

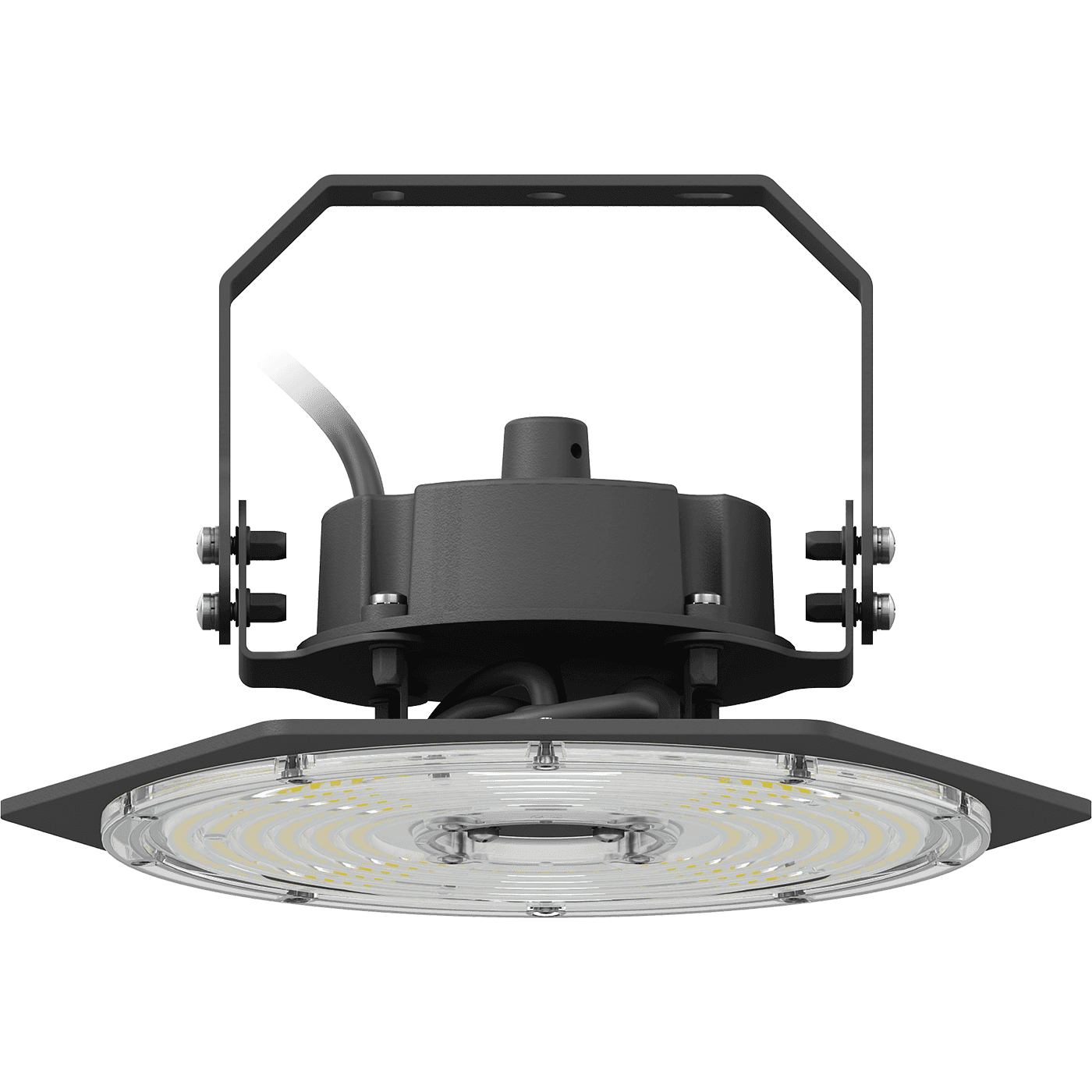

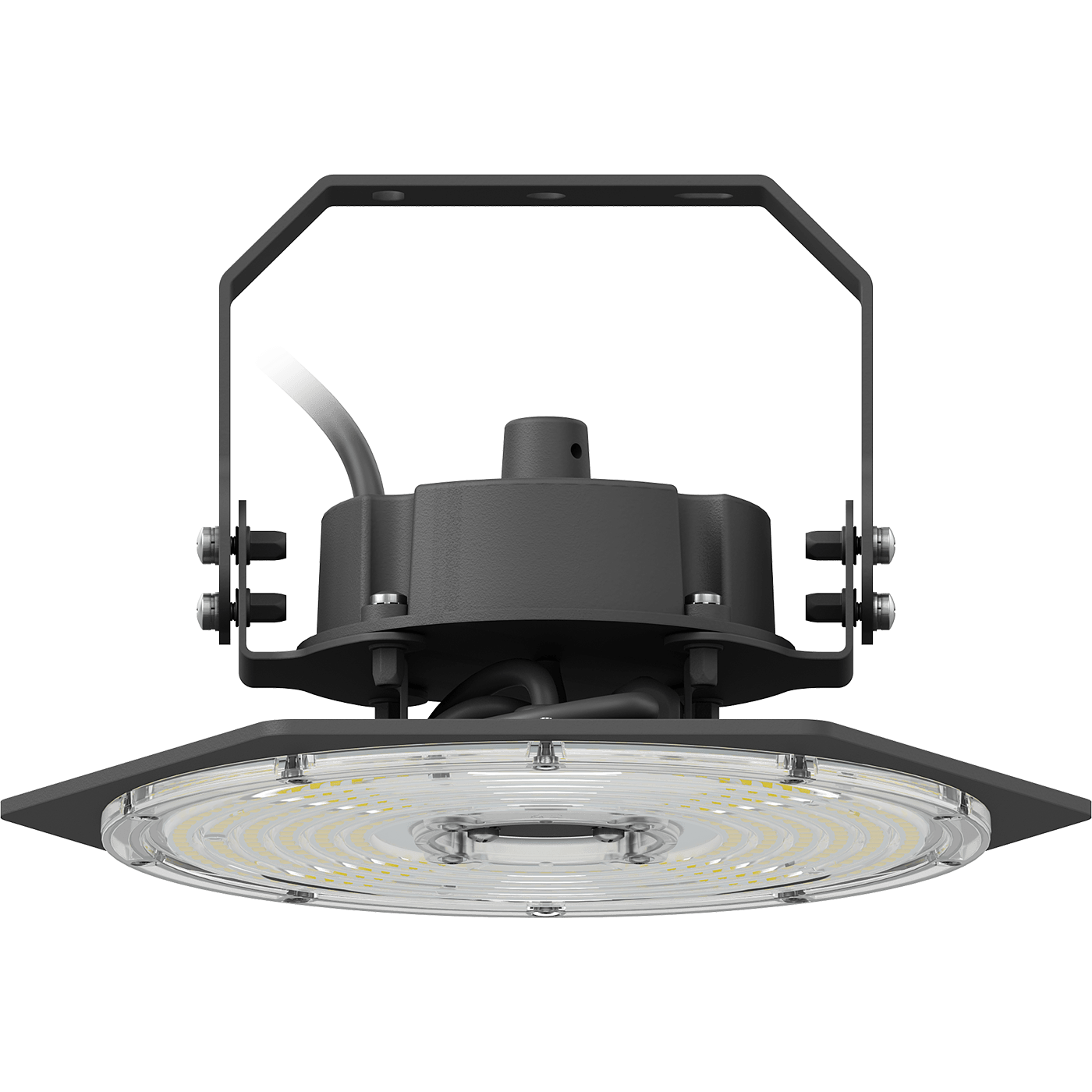

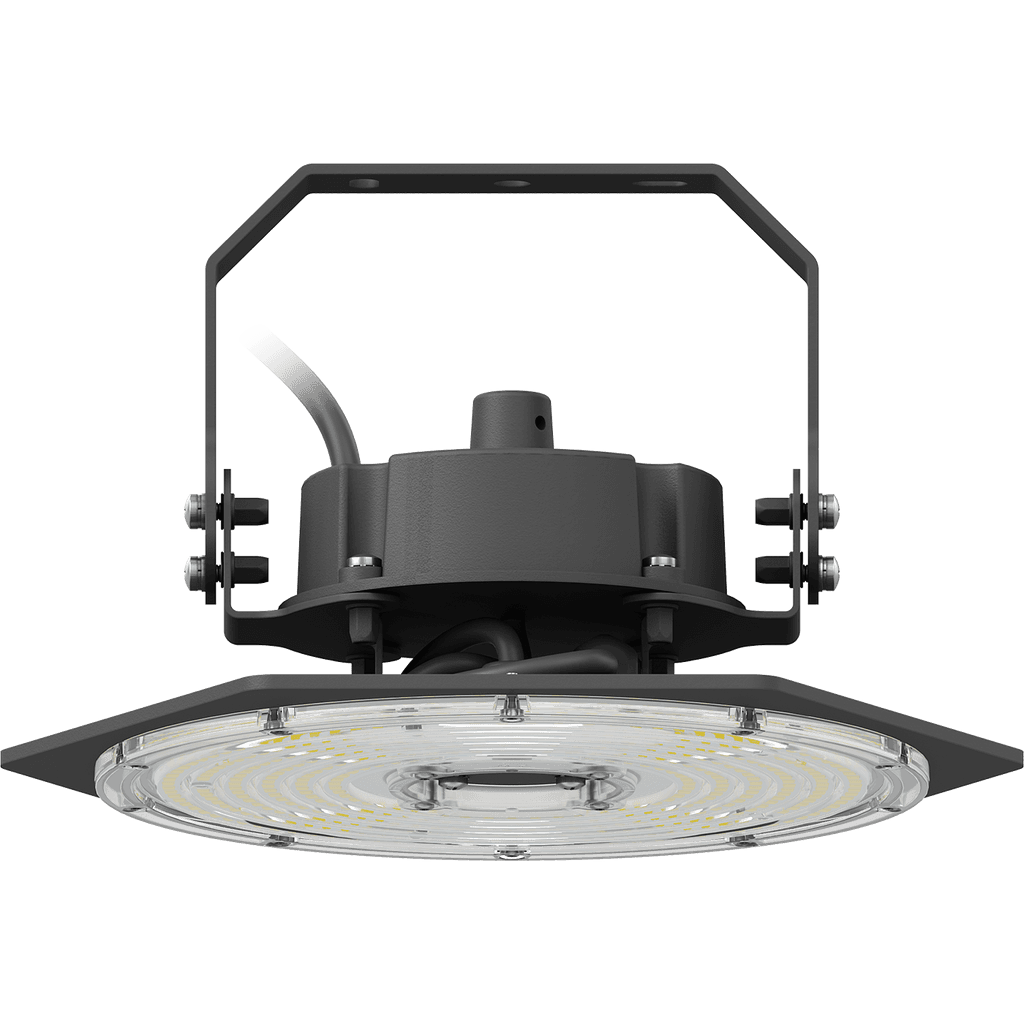

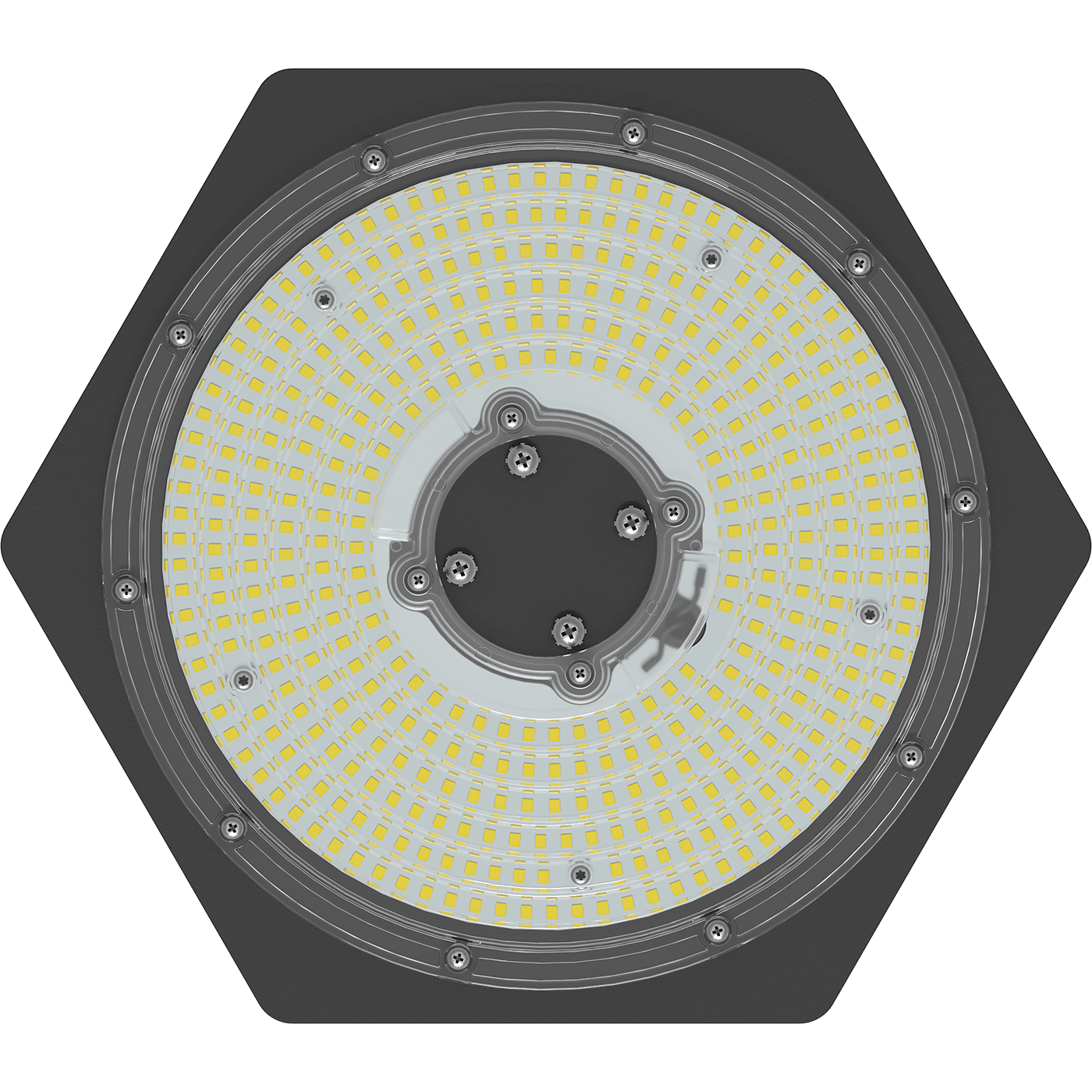

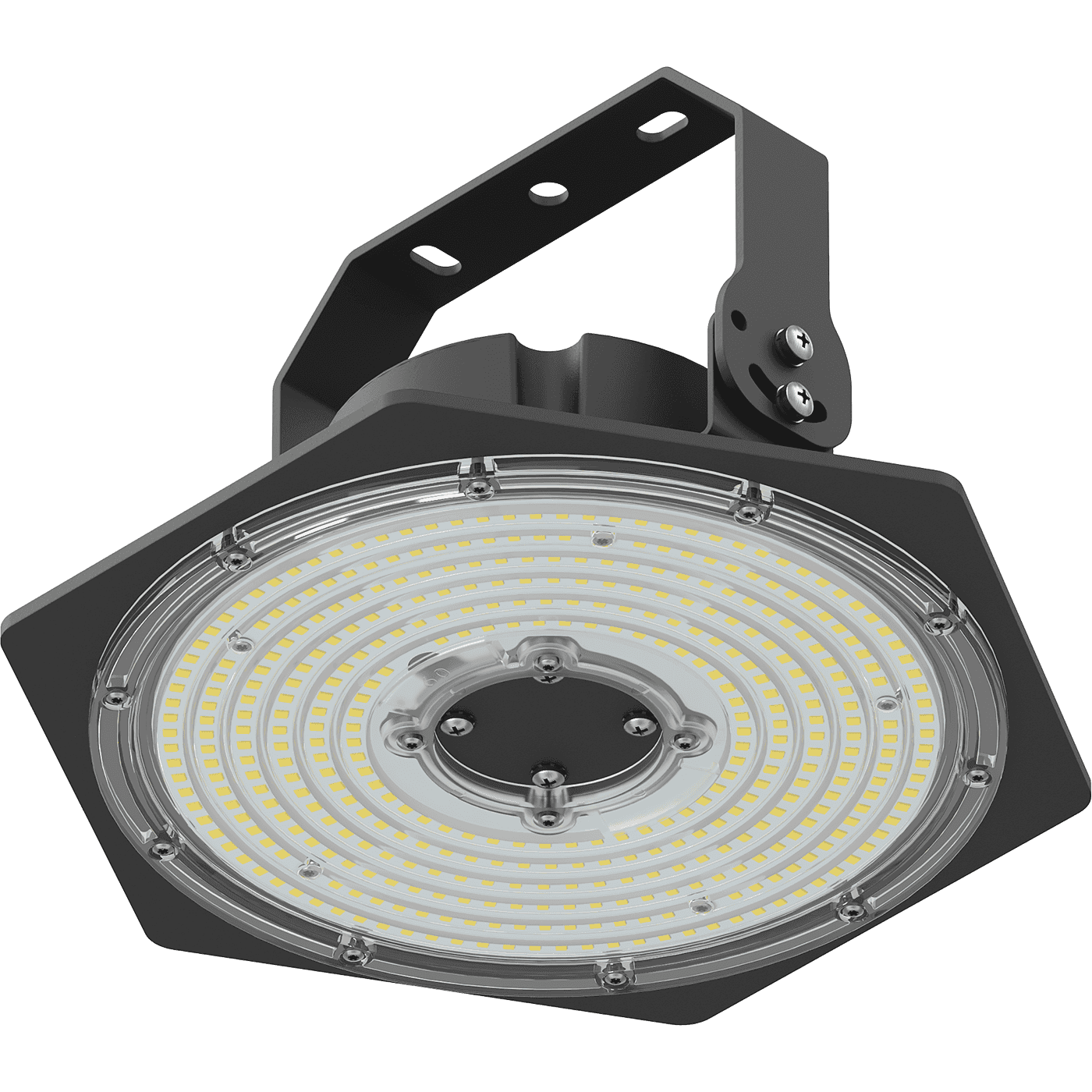

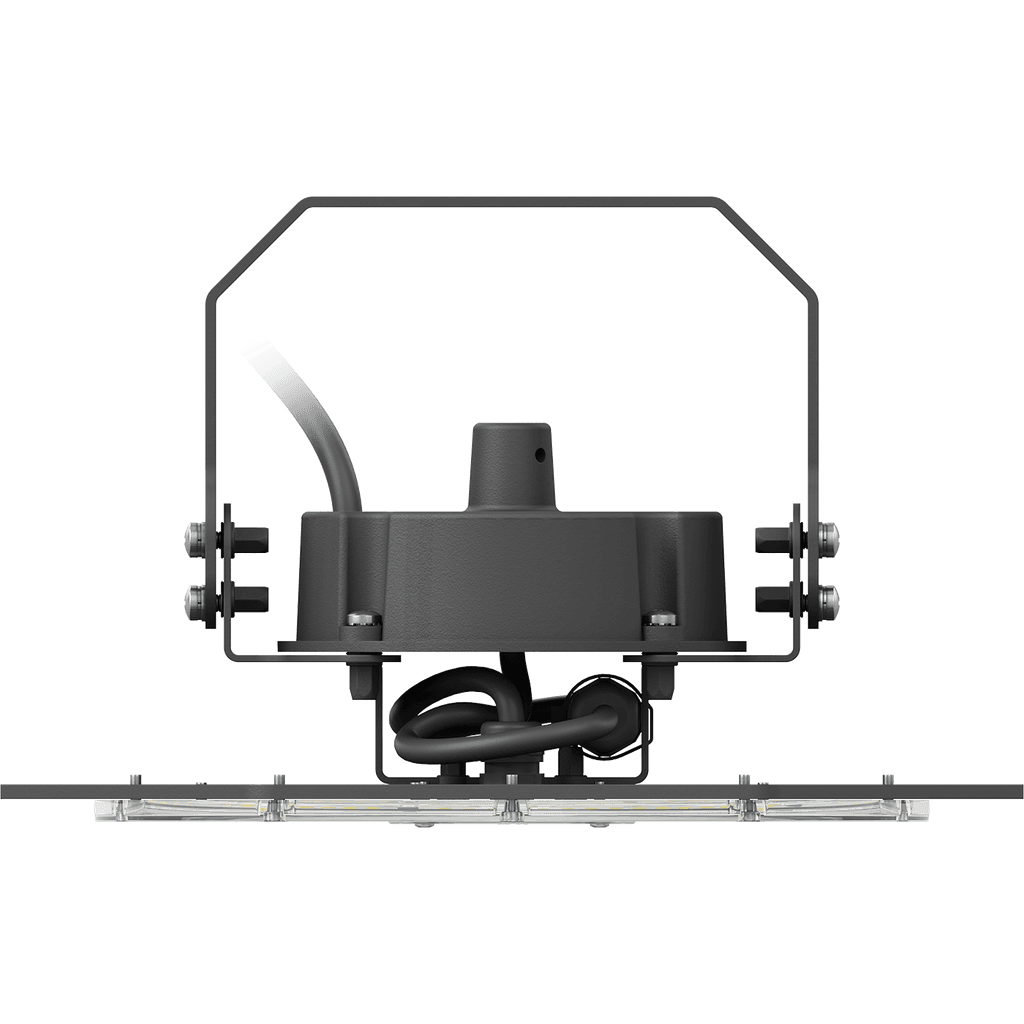

HOOK/RB 100W D110 750 BK
HOOK/RB 100W D110 750 BK
98 Wluminaire power
16600 lmlight flow
169 lm/Wenergy efficiency
code1944000690
color temperature5000 K
beam angleD110
weight2.2 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
16600 lmflickering factor
<1%energy efficiency
169 lm/Wbeam angle
D110color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
16600 lm
flickering factor
<1%
energy efficiency
169 lm/W
beam angle
D110
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
98 W
electric shock protection
I
rated supply voltage, alternating current
230 V
supply voltage
230 V
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
2.2 kg
length
277 mm
width
243 mm
height
210 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +50 C
code
1944000690
model files
model files

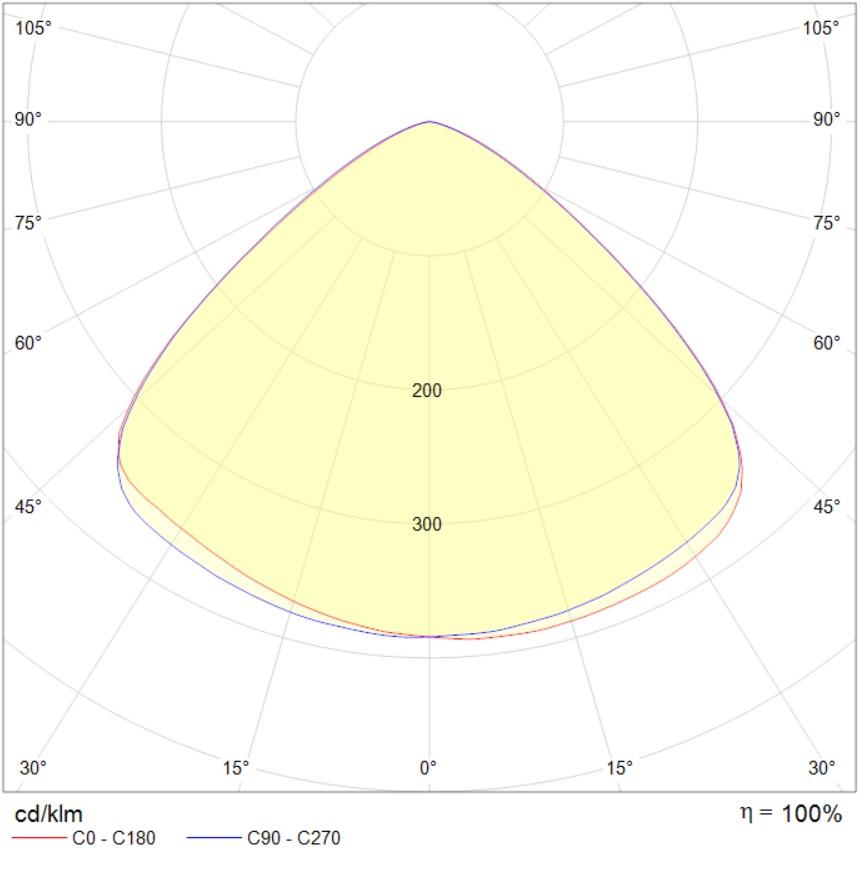

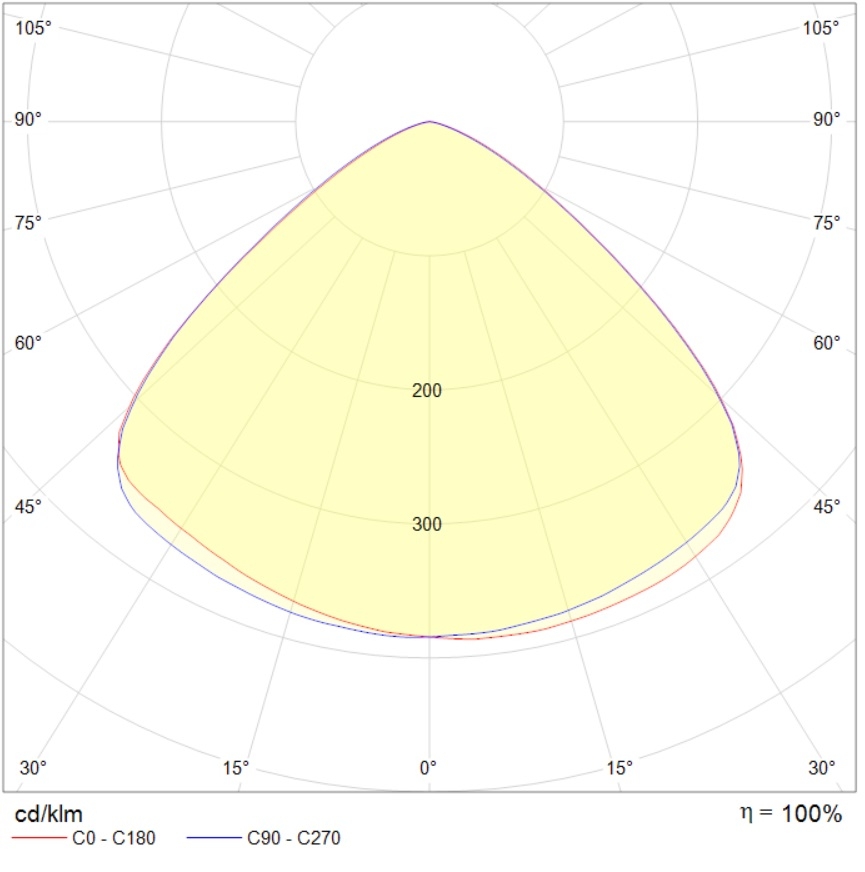

photometric files
сертификаты
photometric files
ies107 kB
jpg82.9 kB
ldt71.1 kB
сертификаты
Russian origin239.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
accessories
3-pole I-shape connector for Industrial luminaires0.03kgarticle: 2909004330
