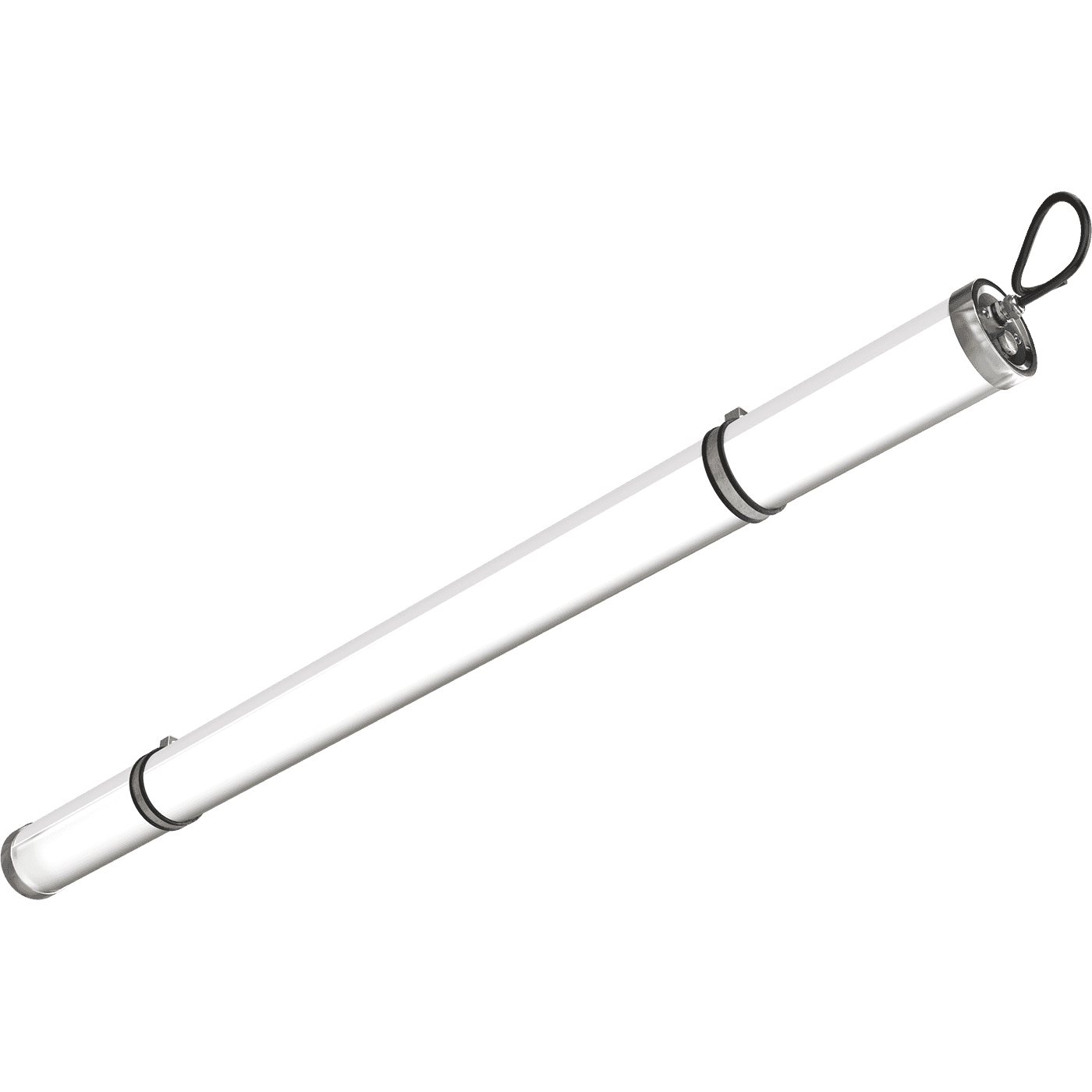

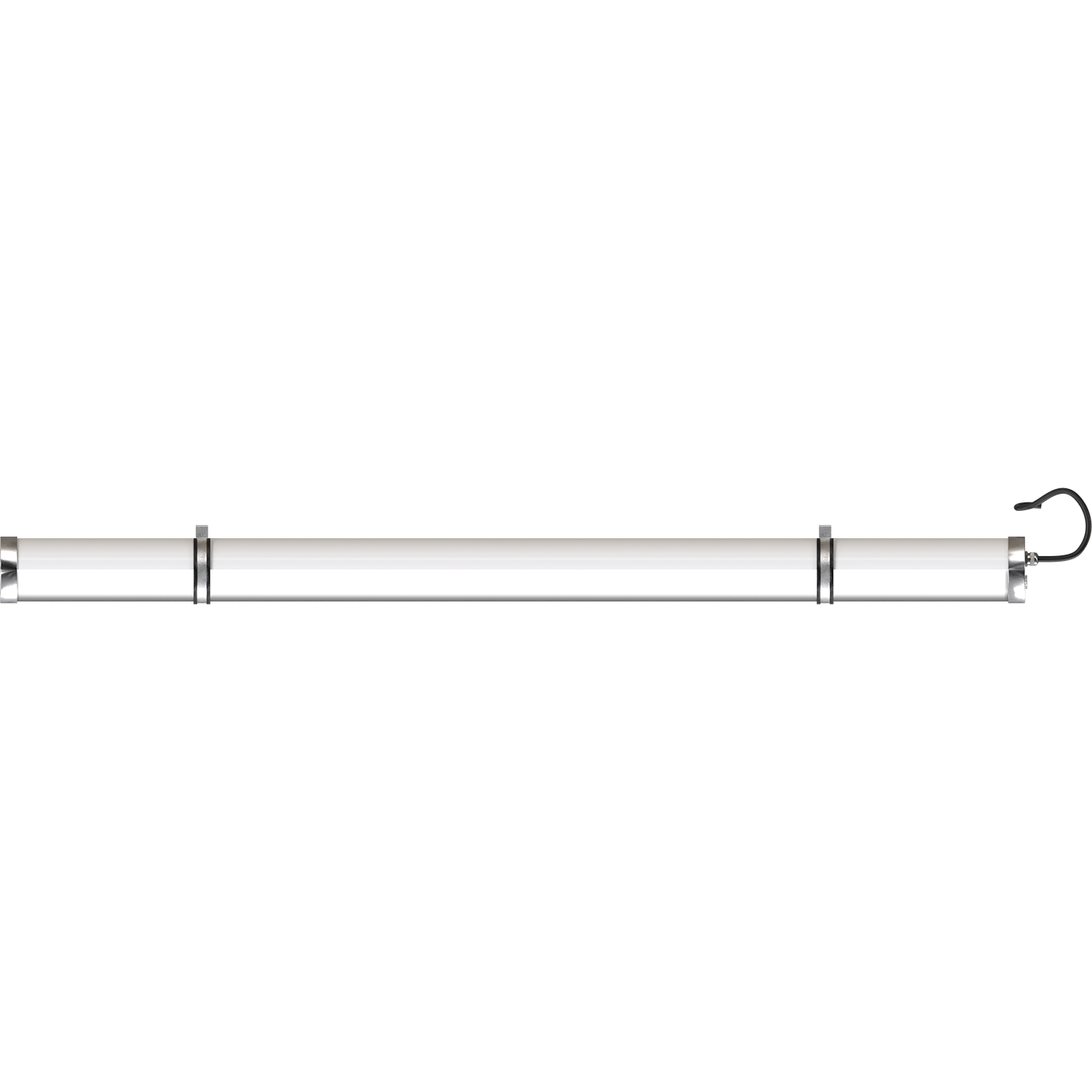

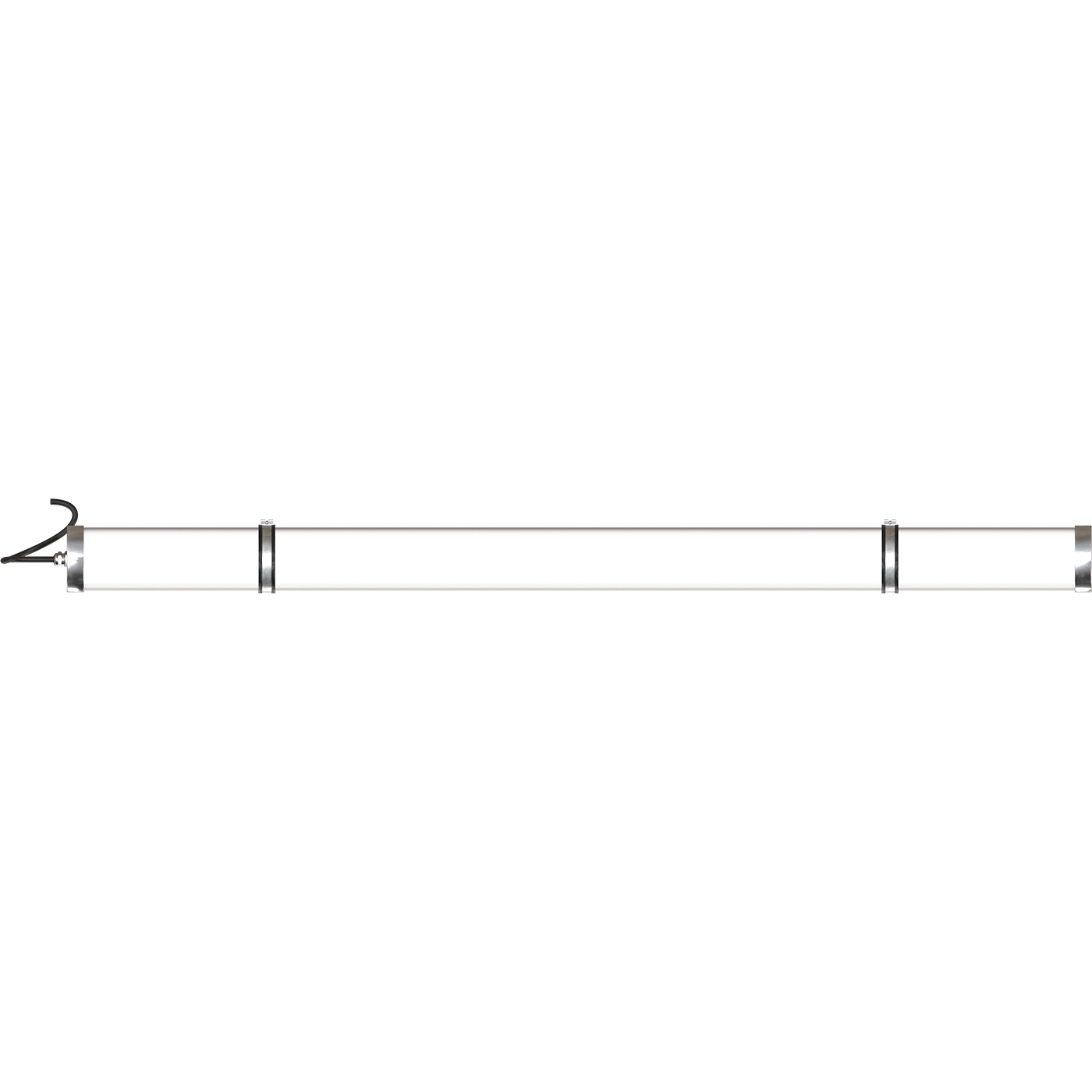

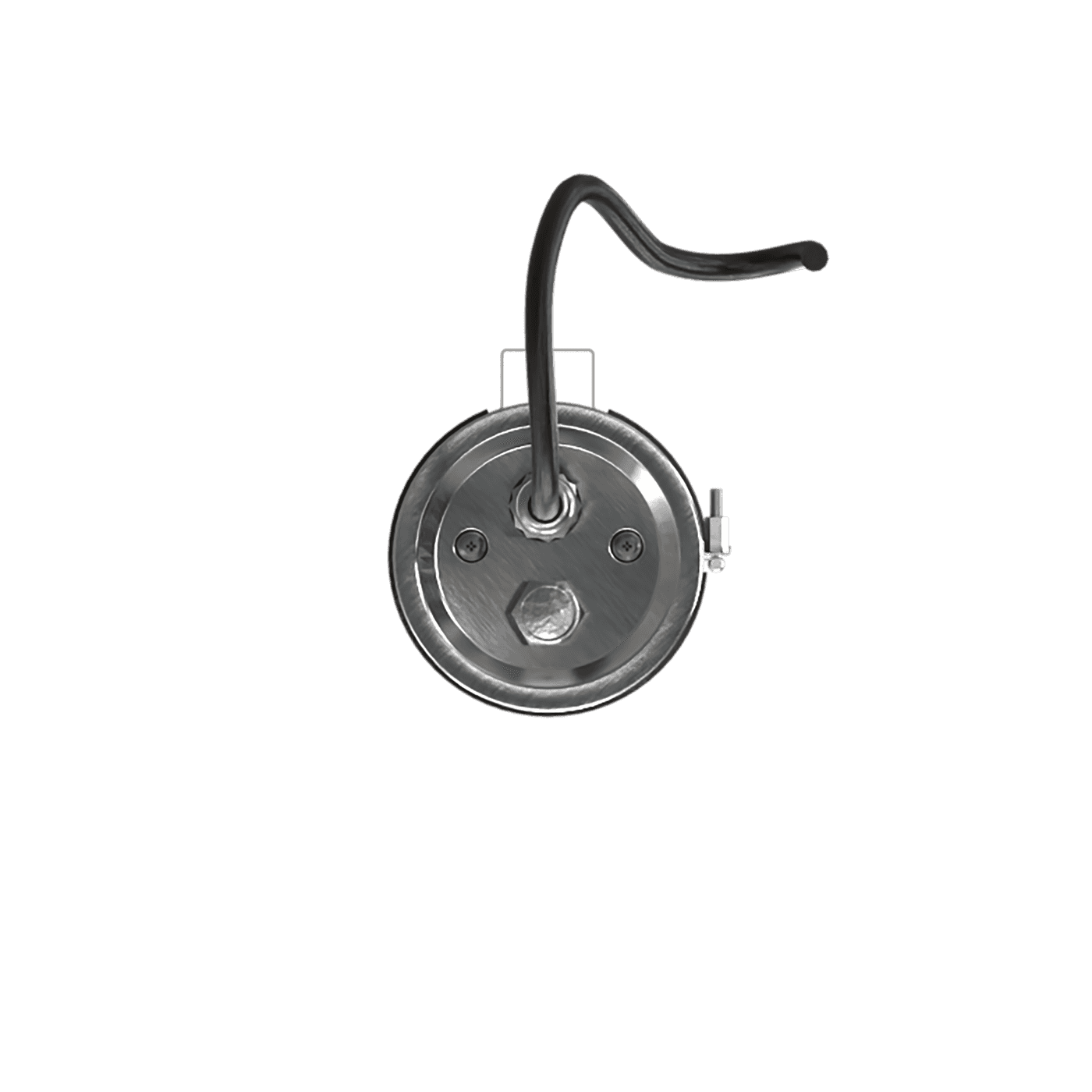

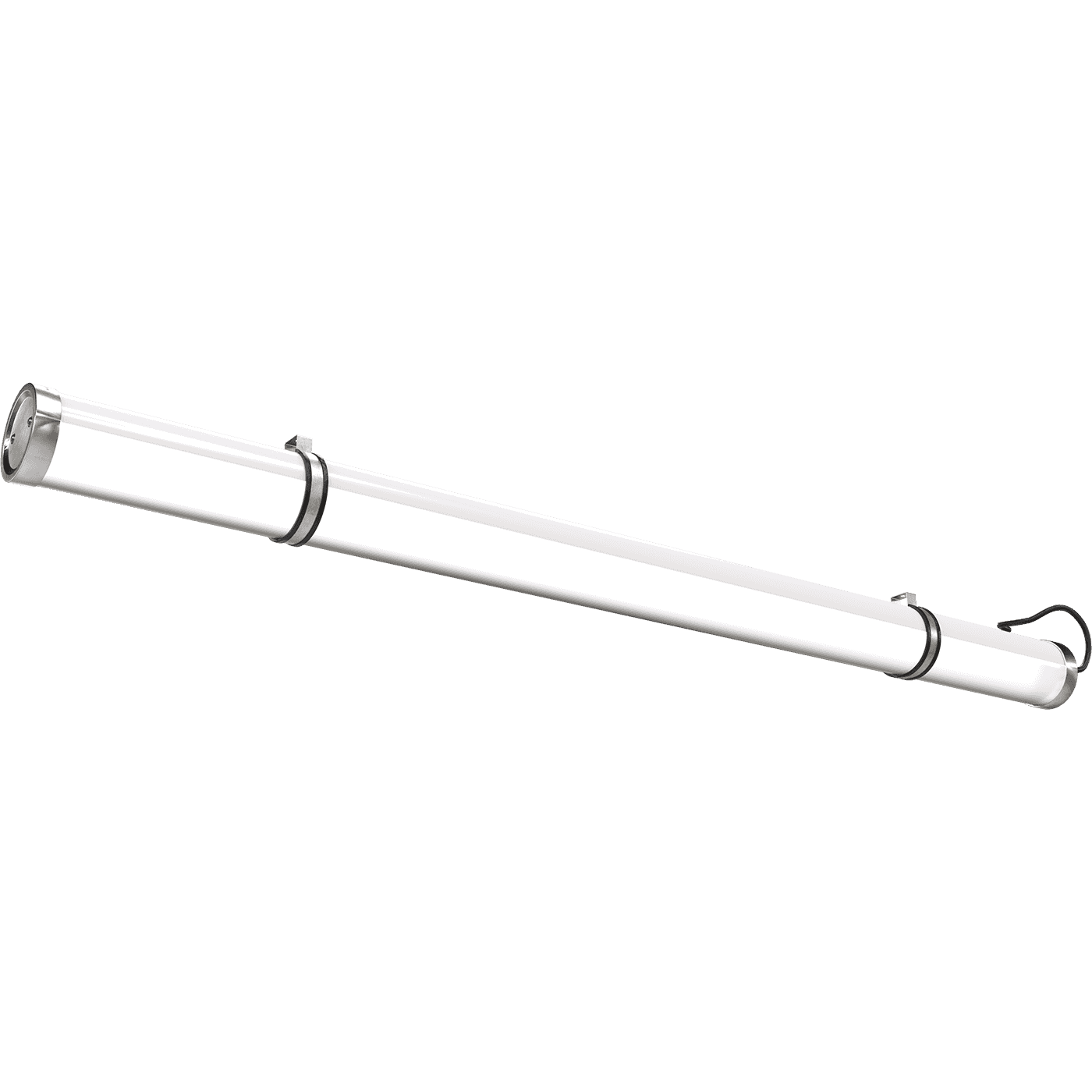

HELEN.OPL LED 60 5000K
HELEN.OPL LED 60 5000K
56 Wluminaire power
8000 lmlight flow
143 lm/Wenergy efficiency
code1496000060
color temperature5000
beam angleD120
weight1.85 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
220-240 Vluminaire power
56 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
220-240 V
luminaire power
56 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66/IP69
fire safety class
П-ІІ
material
Поликарбонат, пластик
weight
1.85 kg
housing color
Белый
climatic performance
УХЛ2*
length, mm
1500 mm
width, mm
95 mm
height, mm
90 mm
shock resistance (IK)
IK10/20 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
1380 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -20 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1496000060
illuminating
light flow
8000 lm
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

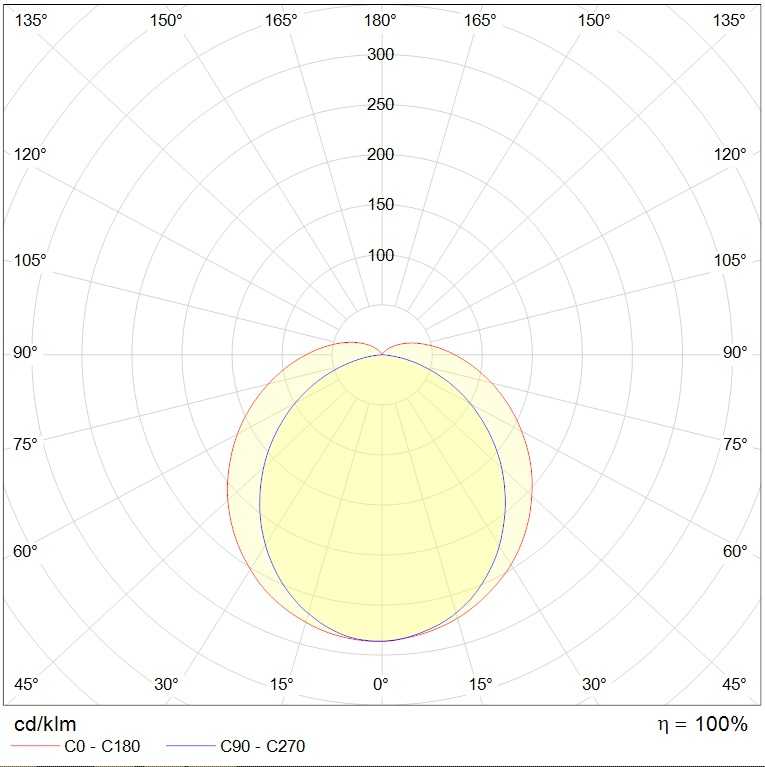

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg111.3 kB
ldt84.3 kB
documents
passport791.4 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
