HELEN.OPL LED 40 EM 5000K
HELEN.OPL LED 40 EM 5000K
40 Wluminaire power
5500 lmlight flow
138 lm/Wenergy efficiency
code1496000170
color temperature5000
beam angleD120
weight1.55 kg
options
свернуть все
electricalilluminatingconstructionalemergencycommon
supply voltage, alternating current
220-240 Velectric shock protection
Iluminaire power
40 Wrated supply voltage, alternating current
230 Vpower factor
> 0,96supply voltage
230 Velectrical
supply voltage, alternating current
220-240 V
electric shock protection
I
luminaire power
40 W
rated supply voltage, alternating current
230 V
power factor
> 0,96
supply voltage
230 V
illuminating
color rendition index (CRI)
>80
light flow
5500 lm
flickering factor
<1%
energy efficiency
138 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP66/IP69
material
Поликарбонат, пластик
housing color
Белый
length, mm
1200 mm
width, mm
95 mm
height, mm
90 mm
weight
1.55 kg
fire safety class
П-ІІ
climatic performance
УХЛ2*
shock resistance (IK)
IK10/20 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
1080 mm
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
400 lm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от 0 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1496000170
model files
model files
photometric files
documents
сертификаты

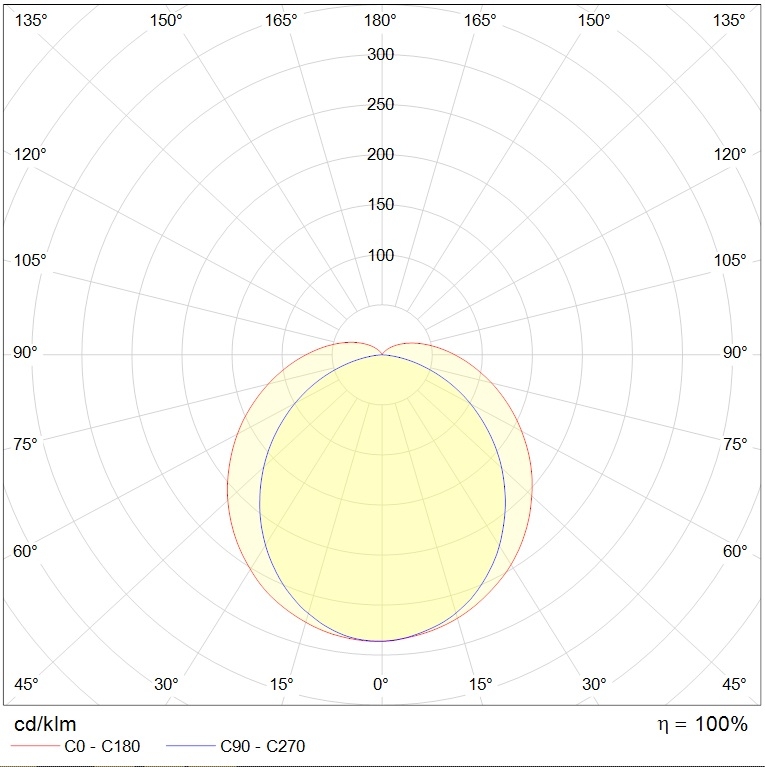

photometric files
ies107 kB
jpg111.3 kB
ldt84.3 kB
documents
passport791.4 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
