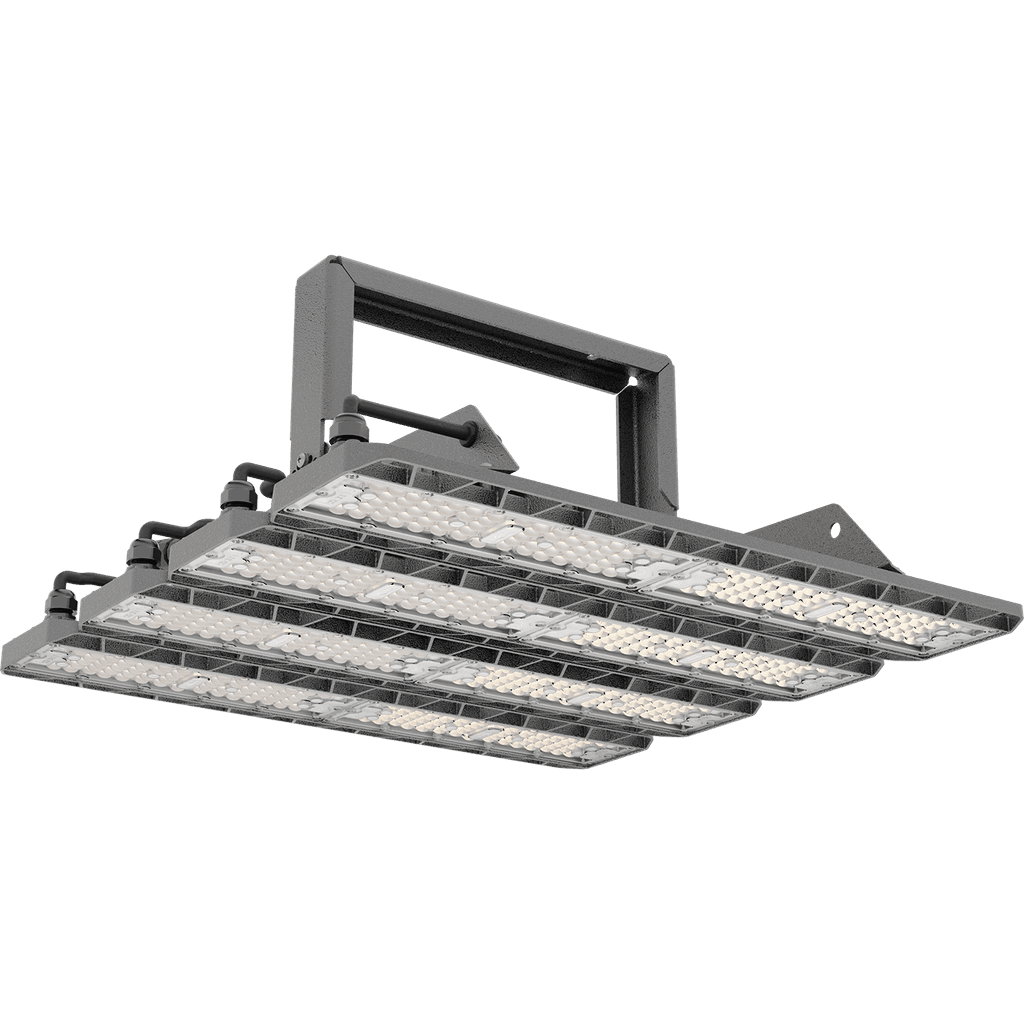

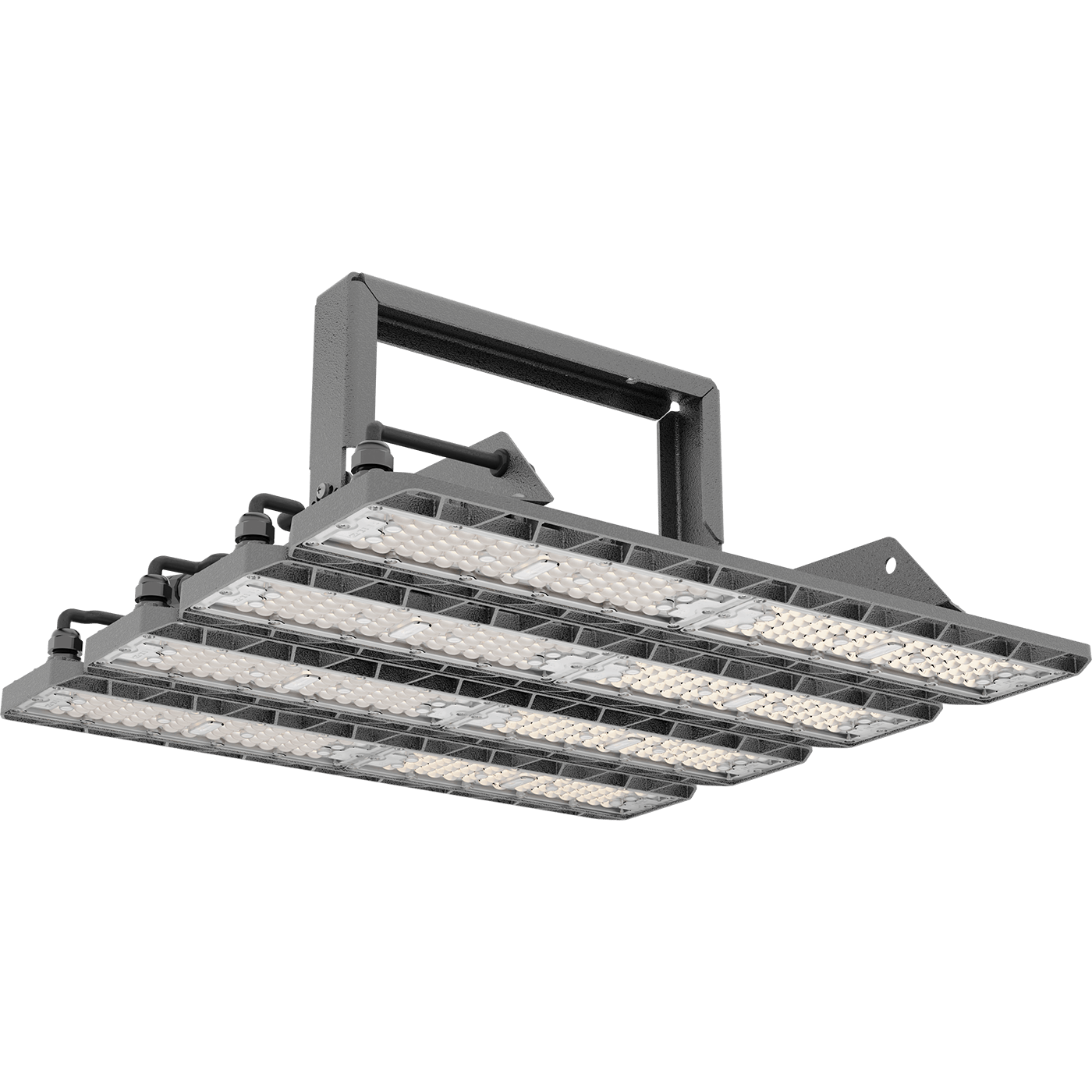

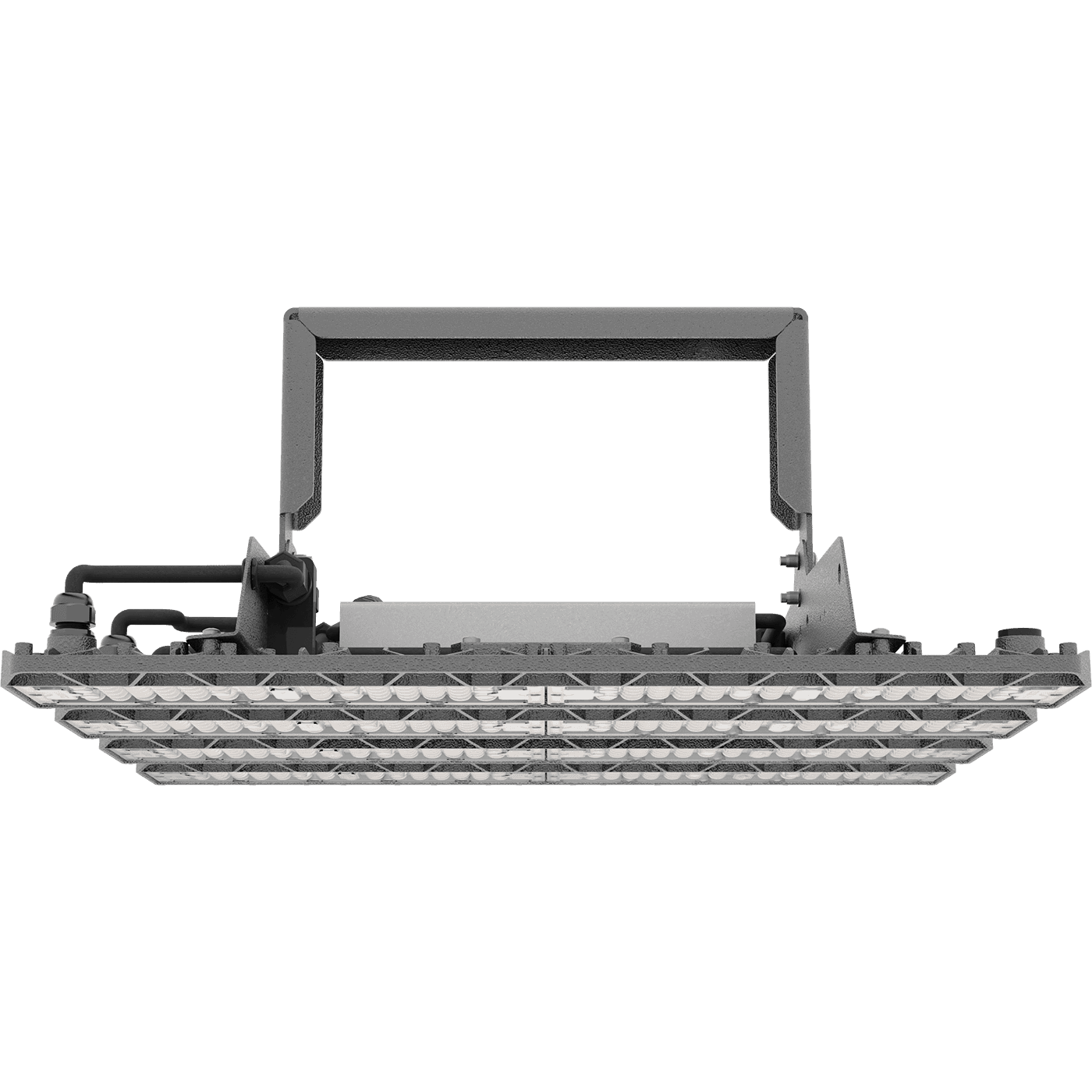

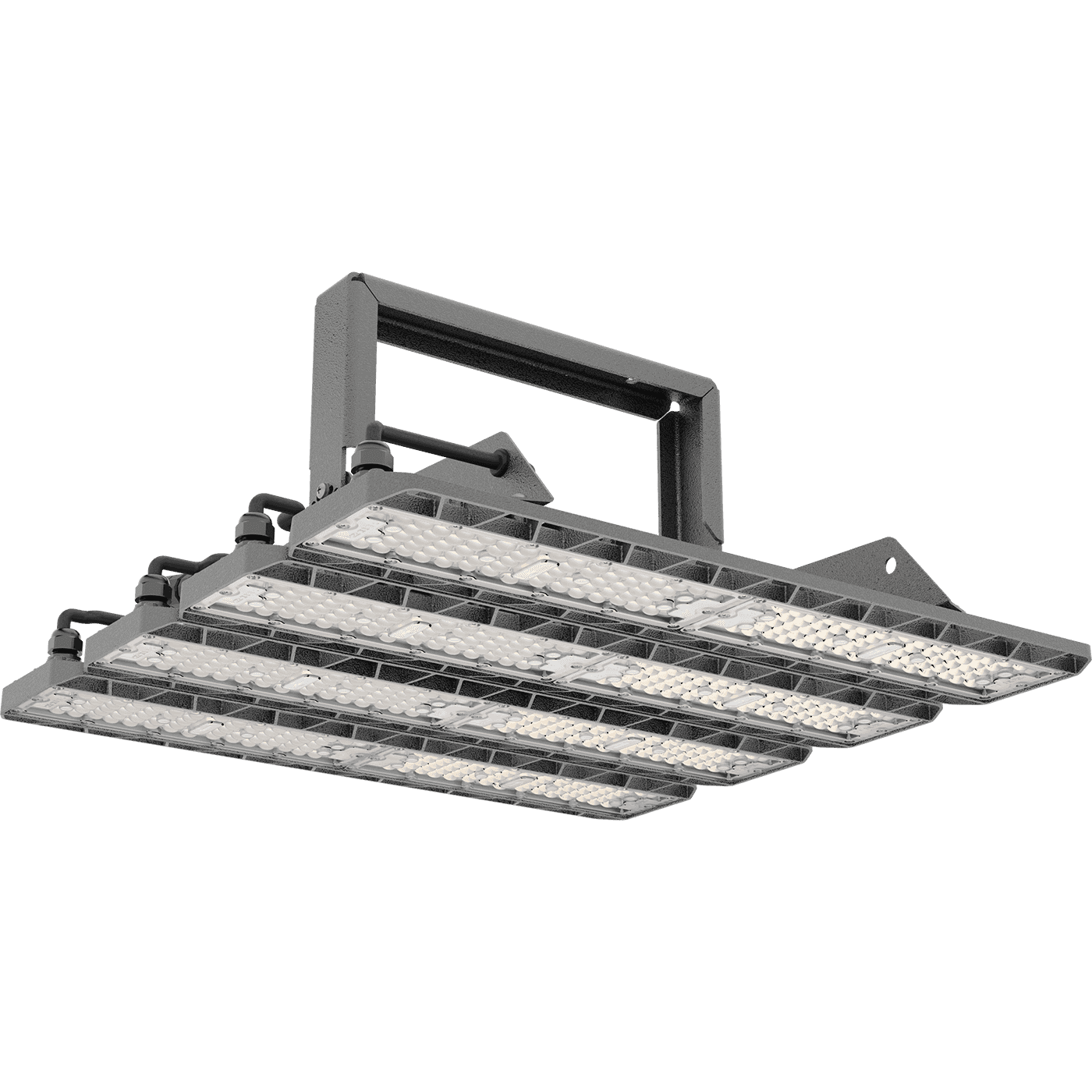

HB LED MARINE 250 D30 4000K G3

HB LED MARINE 250 D30 4000K G3
230 Wluminaire power
38000 lmlight flow
165 lm/Wenergy efficiency
code1837000180
color temperature4000 K
beam angleD30
old nameHB LED MARINE 250 D30 5000K G3
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80
light flow
38000 lm
energy efficiency
165 lm/W
beam angle
D30
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>80
light flow
38000 lm
energy efficiency
165 lm/W
beam angle
D30
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
230 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
material
Алюминий
width
477 mm
height
124 mm
housing color
Металлик
length
480 mm
weight
11.5 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK05/0,7 Дж
climatic performance
ОМ1
common
code
1837000180
ETIM class
Светильник для освещения высоких пролетов (хайбей)
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +45 C
model files
model files

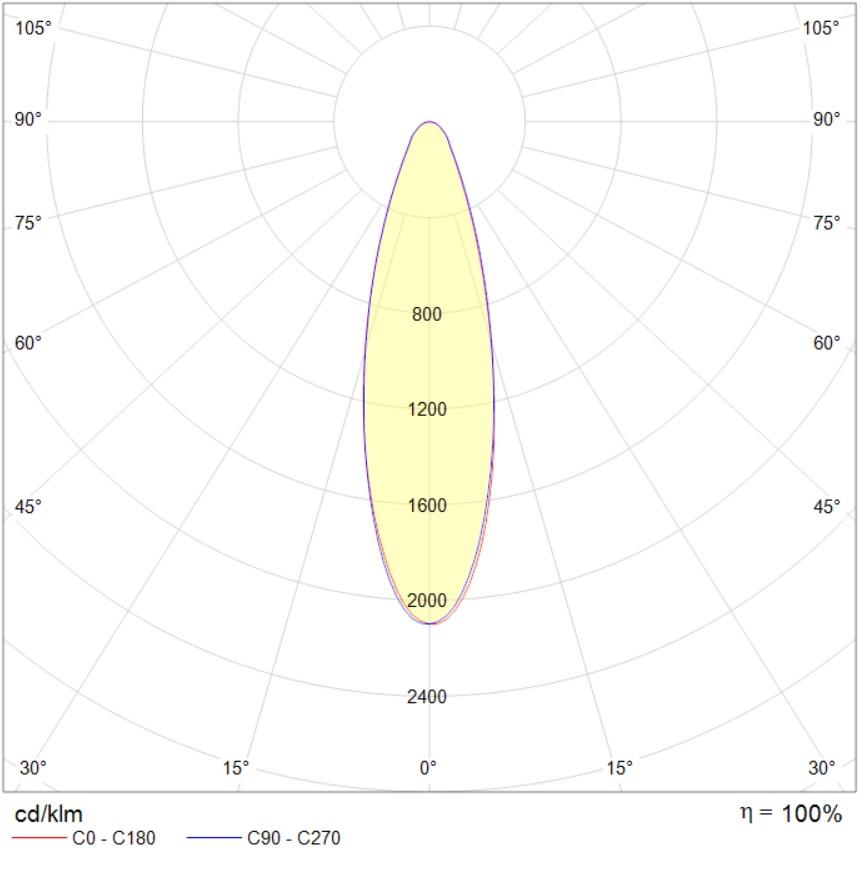

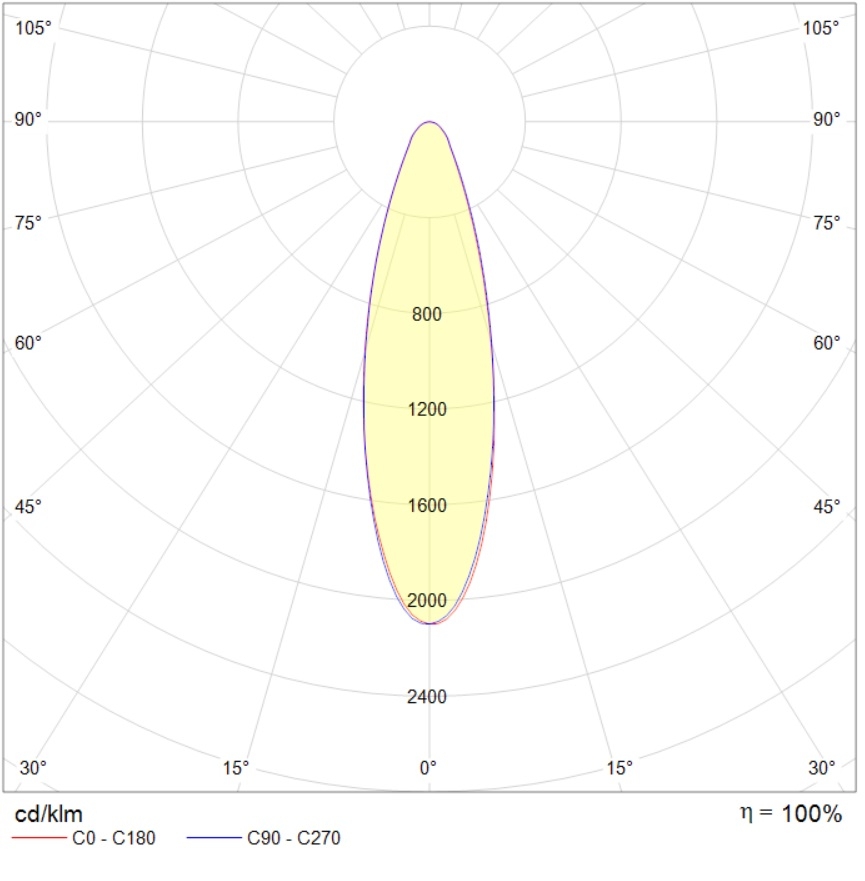

photometric files
ies263.2 kB
jpg84.2 kB
ldt176.3 kB
сертификаты
Russian origin273.8 kB
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011530.5 kB
Declaration of Conformity EAEU TR 037/2016508.2 kB
photometric files
ies263.2 kB
jpg84.2 kB
ldt176.3 kB
сертификаты
Russian origin273.8 kB
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011530.5 kB
Declaration of Conformity EAEU TR 037/2016508.2 kB
