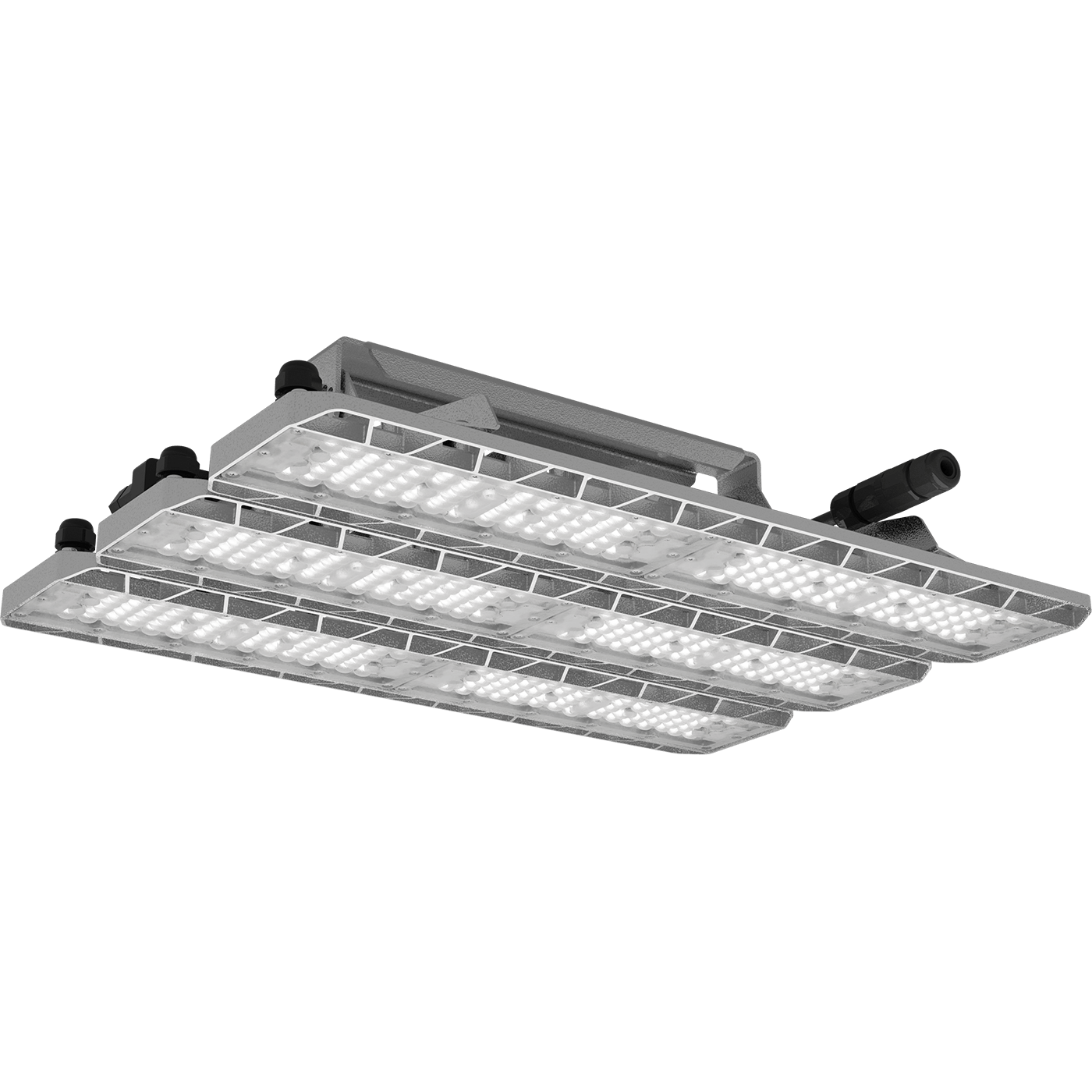

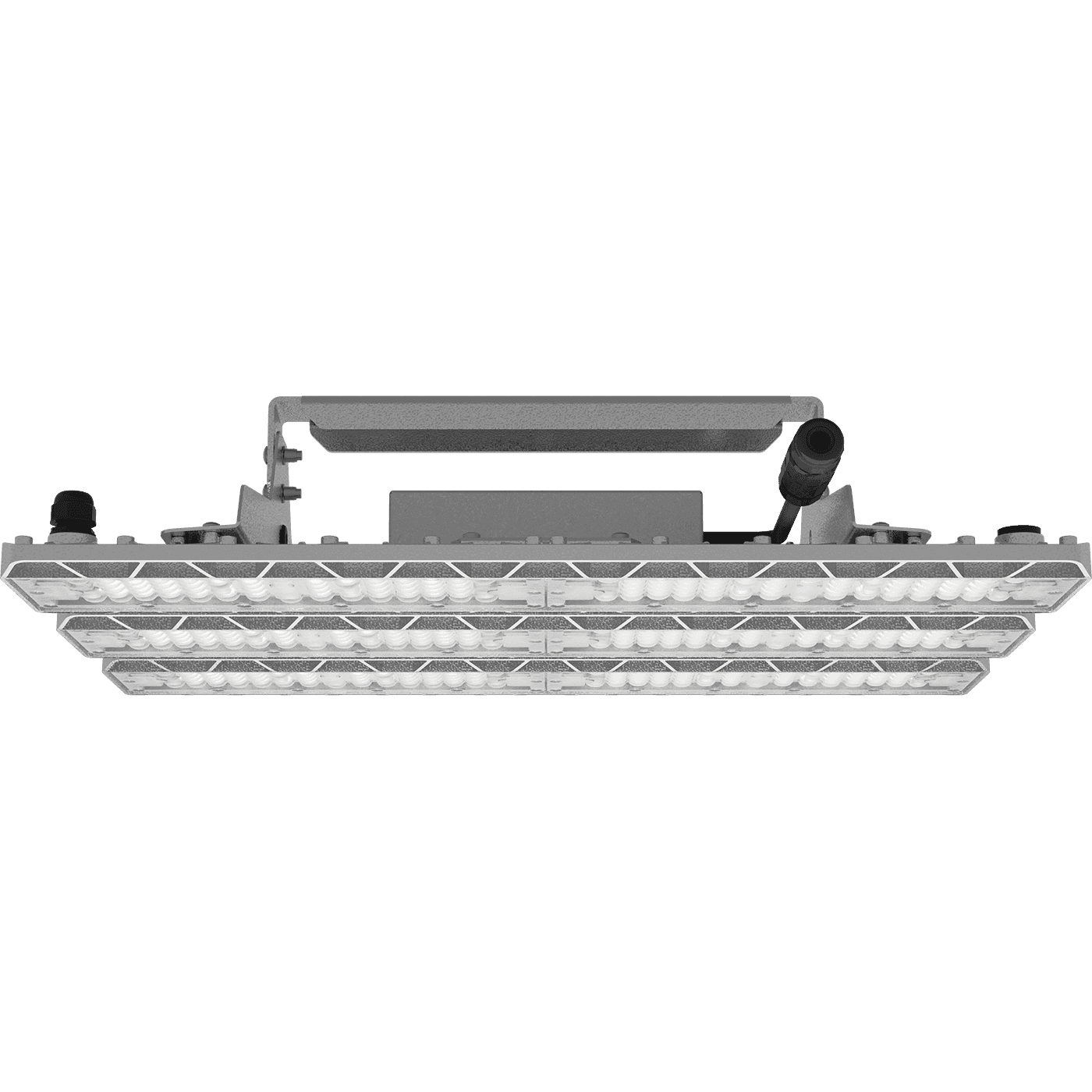

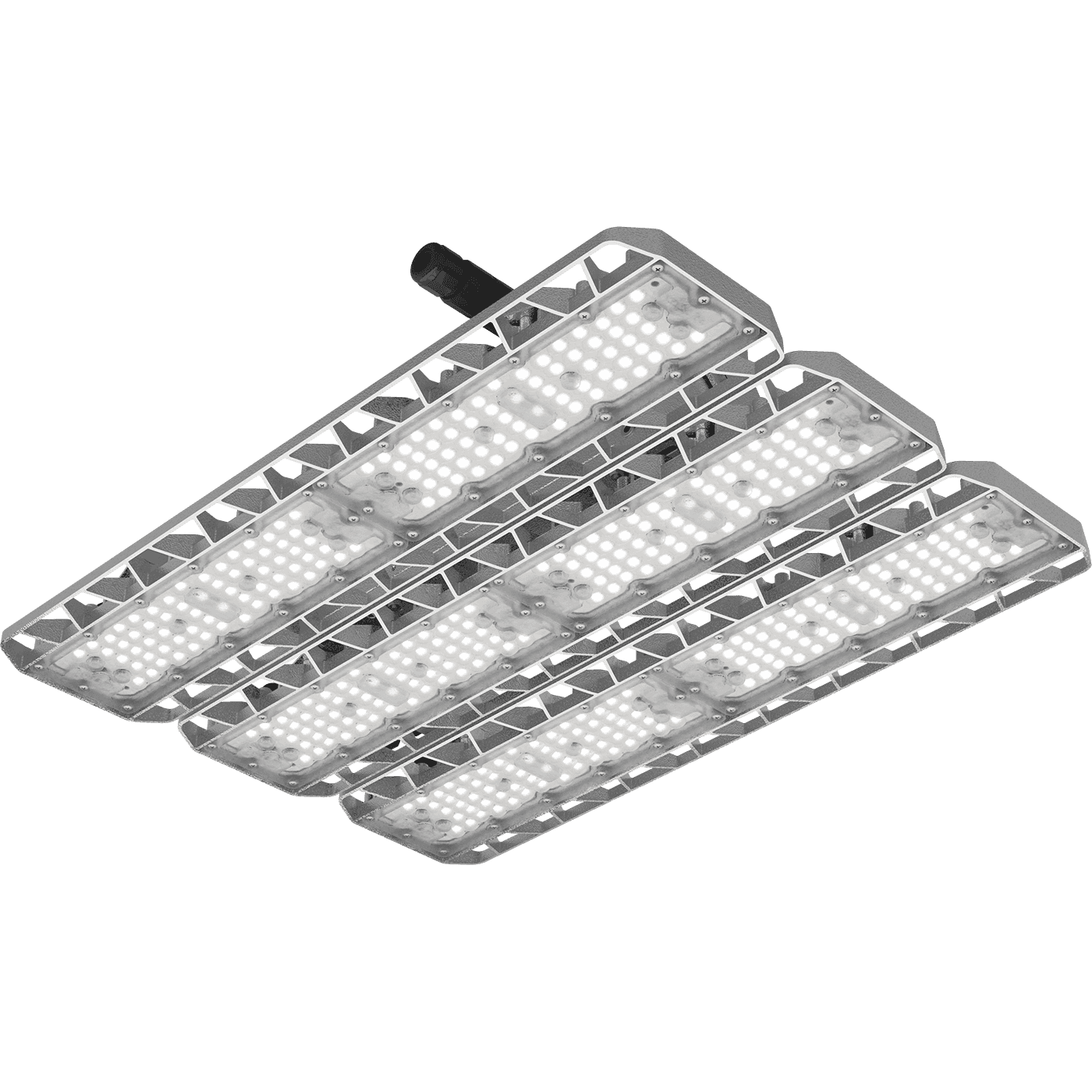

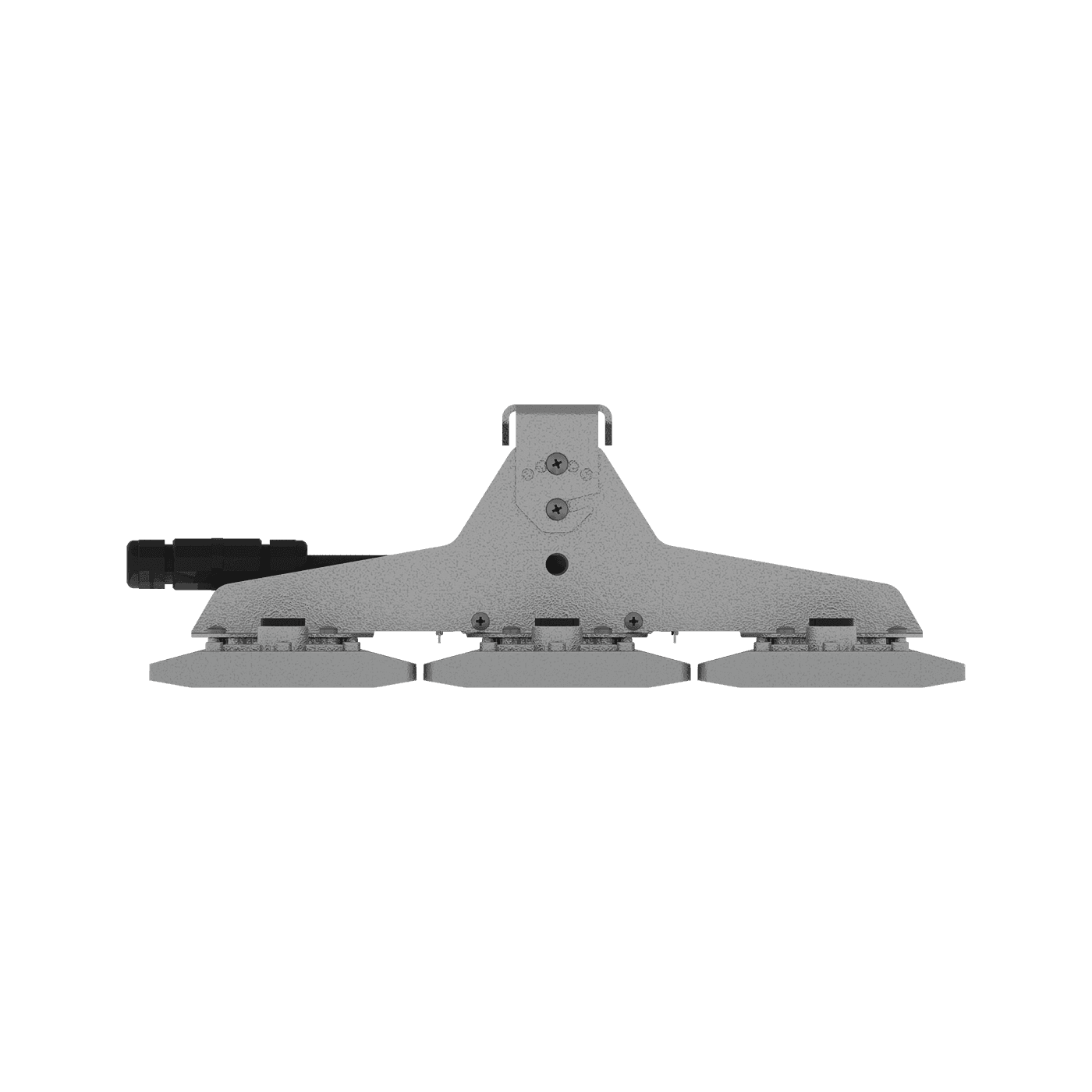

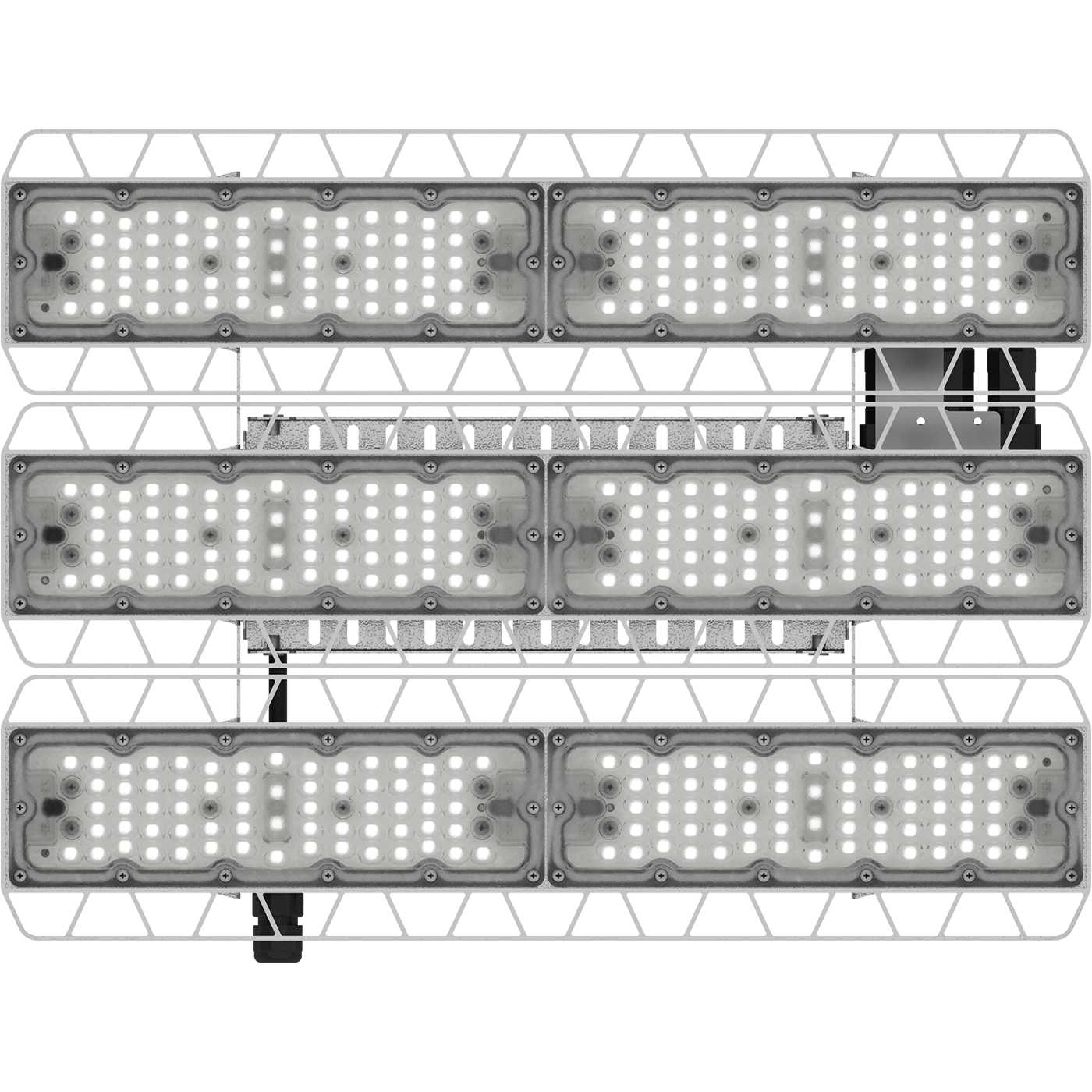

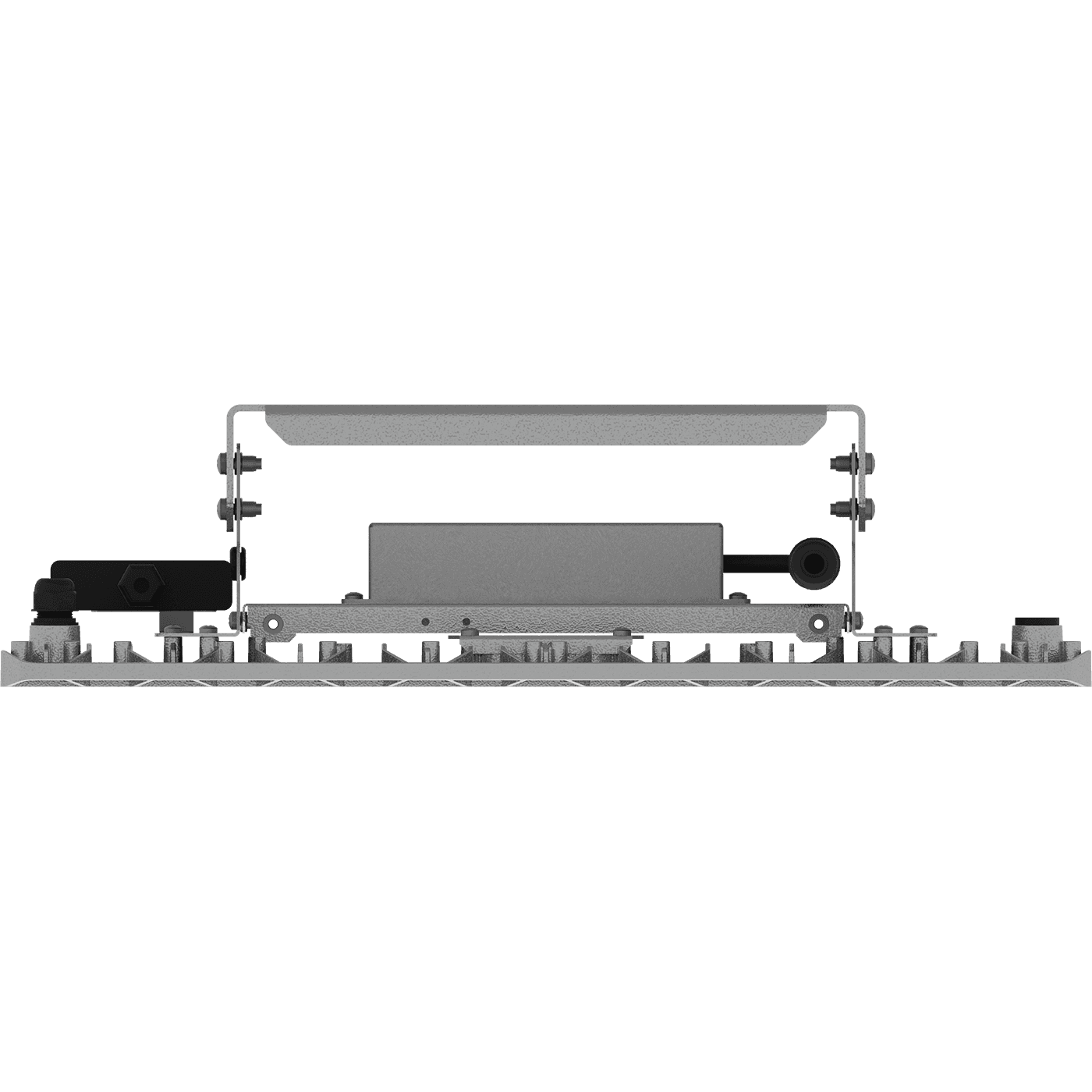

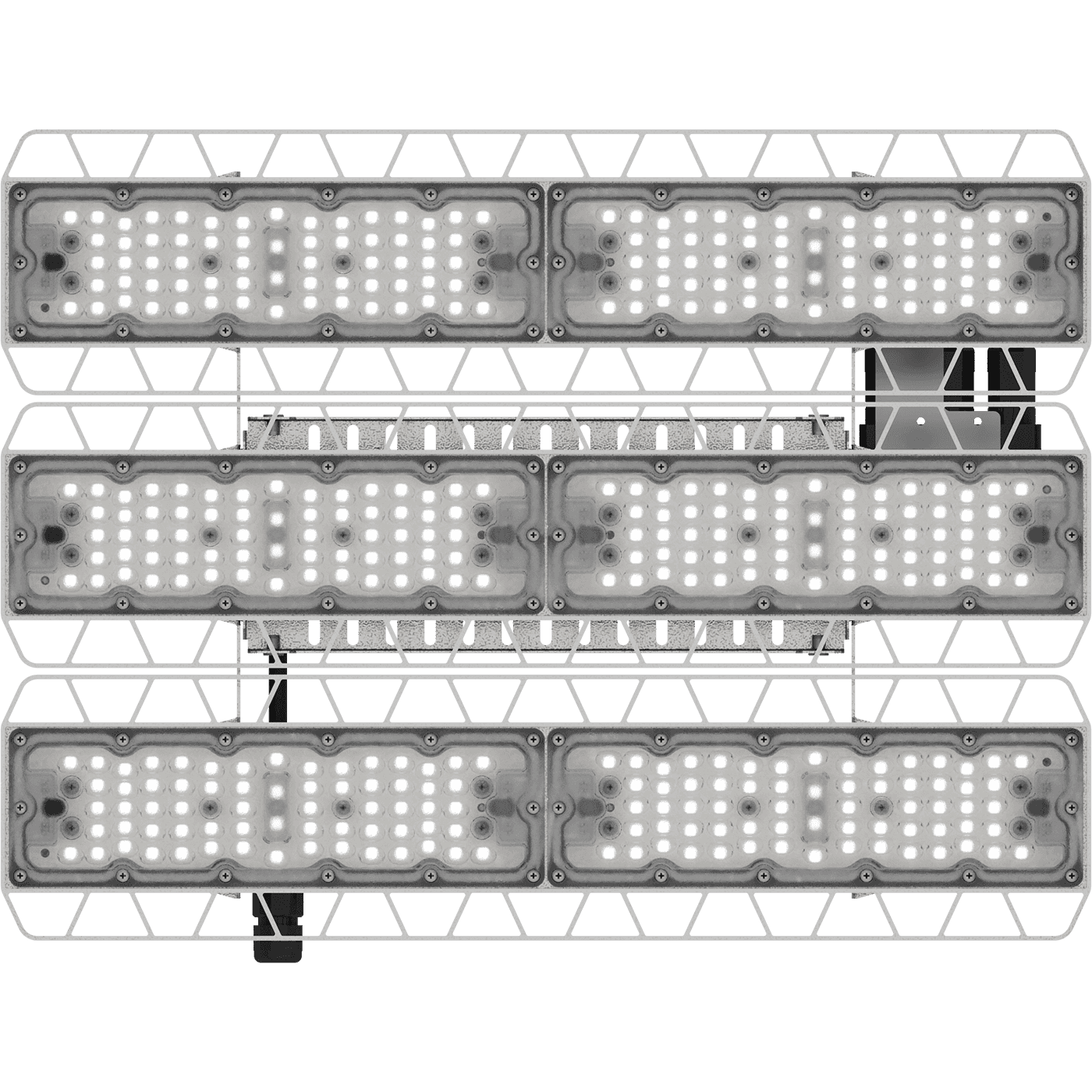

HB LED MARINE 150 D90 4000K G3
HB LED MARINE 150 D90 4000K G3
138 Wluminaire power
22600 lmlight flow
164 lm/Wenergy efficiency
code1837000100
color temperature4000
beam angleD90
old nameHB LED MARINE 150 D90 5000K G3
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
138 Welectric shock protection
Imaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,96supply voltage
230 Velectrical
luminaire power
138 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
7.5 kg
length, mm
480 mm
width, mm
357 mm
height, mm
124 mm
housing color
Металлик
climatic performance
ОМ1
shock resistance (IK)
IK05/0,7 Дж
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
36 month
temperature range
от -40 до +45 C
energy efficiency class
A++
service life, hour
50 000 h
code
1837000100
illuminating
color rendition index (CRI)
>80
light flow
22600 lm
energy efficiency
164 lm/W
beam angle
D90
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
photometric files
сертификаты

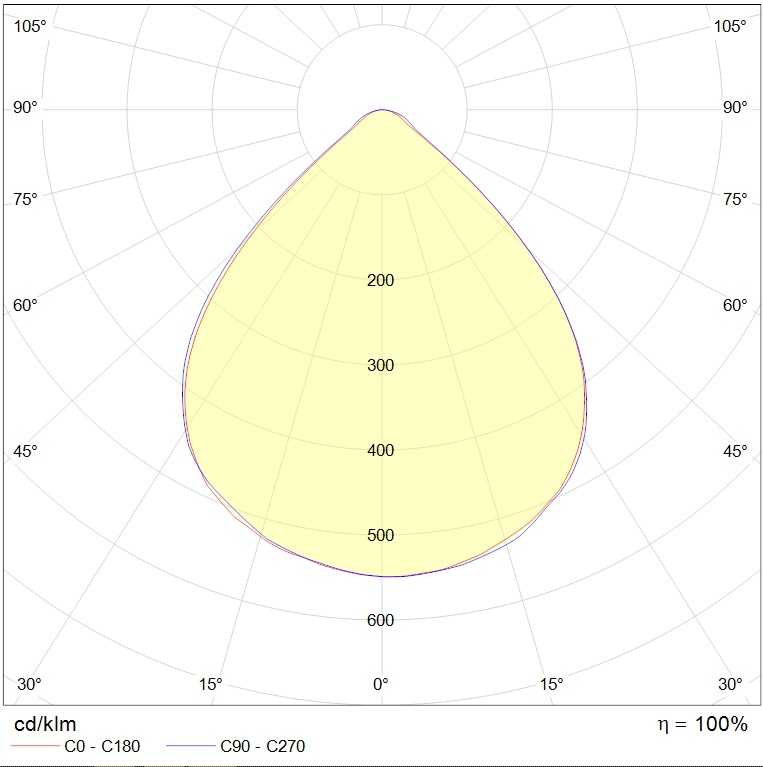

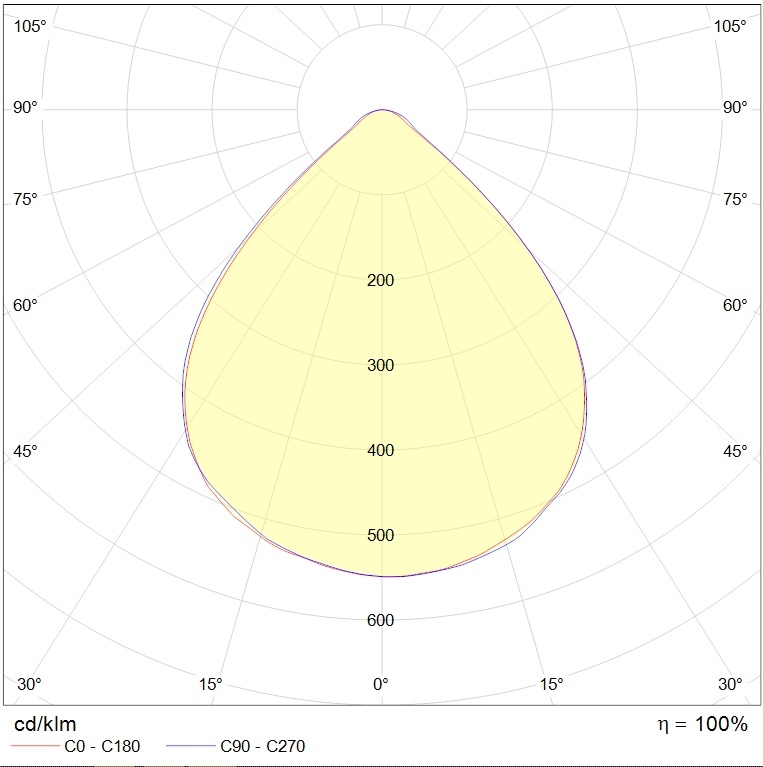

photometric files
ies107 kB
jpg85.3 kB
ldt65.1 kB
сертификаты
Russian origin273.8 kB
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011530.5 kB
Declaration of Conformity EAEU TR 037/2016508.2 kB
