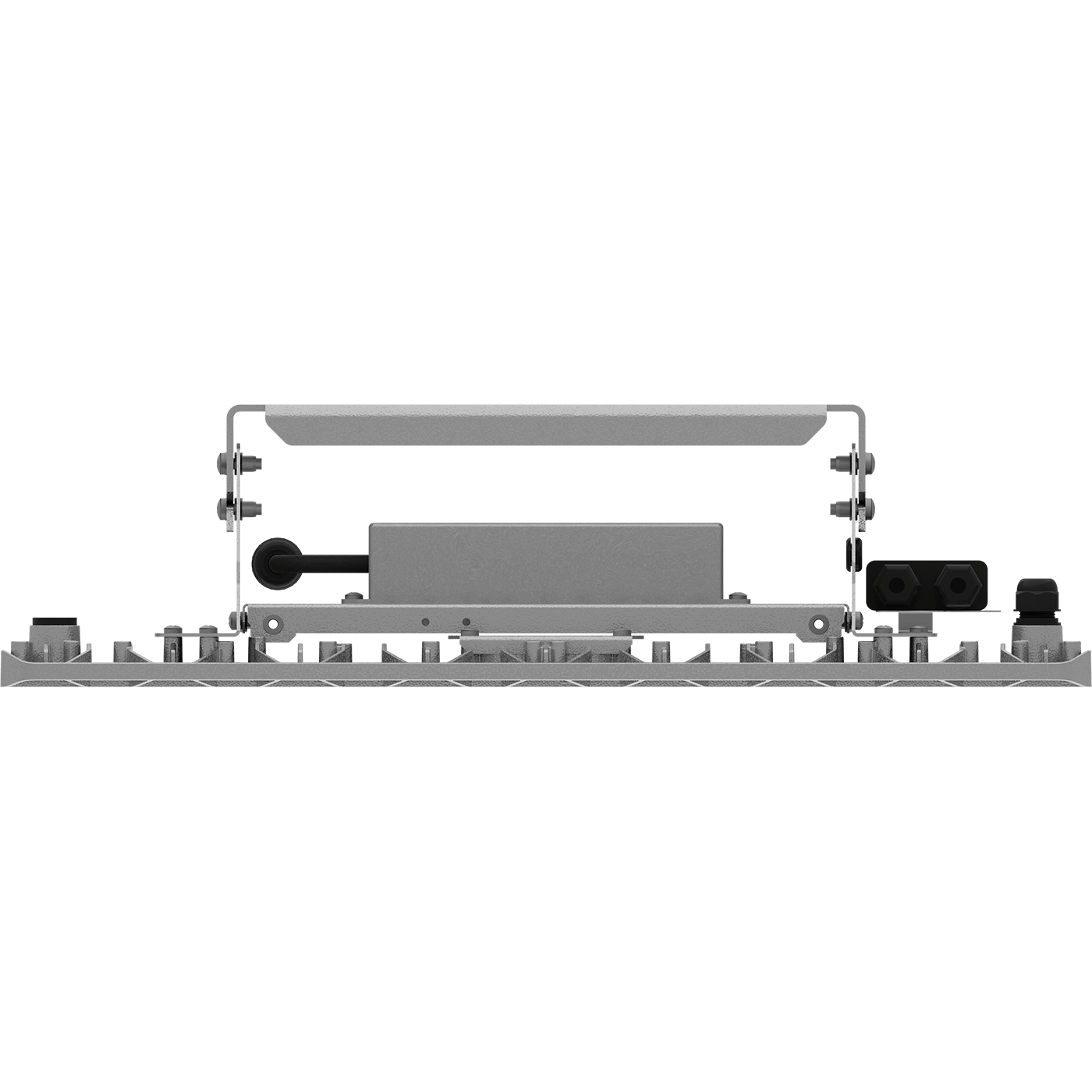

HB LED MARINE 100 D140 4000K G3
HB LED MARINE 100 D140 4000K G3
94 Wluminaire power
14800 lmlight flow
157 lm/Wenergy efficiency
code1837000020
color temperature4000
beam angleD140
old nameHB LED MARINE 100 D140 5000K G3
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
94 Welectric shock protection
Imaximum cross-section of the connected cable, sq. mm
4power factor
> 0,96supply voltage
230 Velectrical
luminaire power
94 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
4
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
3.8 kg
length, mm
480 mm
width, mm
237 mm
height, mm
124 mm
housing color
Металлик
climatic performance
ОМ1
shock resistance (IK)
IK05/0,7 Дж
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
36 month
temperature range
от -40 до +45 C
energy efficiency class
A++
service life, hour
50 000 h
code
1837000020
illuminating
color rendition index (CRI)
>80
light flow
14800 lm
energy efficiency
157 lm/W
beam angle
D140
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

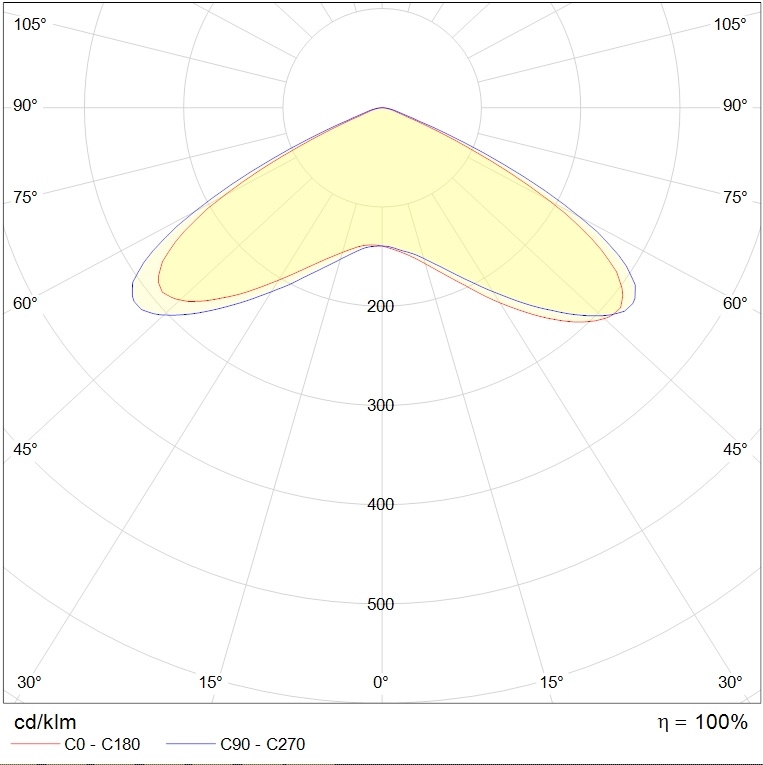

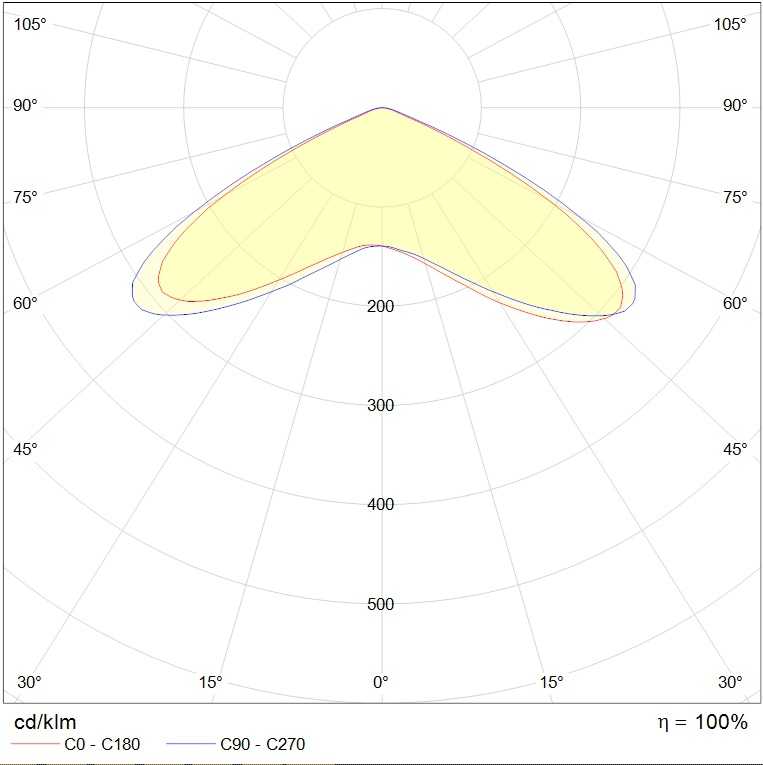

photometric files
сертификаты
photometric files
ies107 kB
jpg82 kB
ldt64.4 kB
сертификаты
Russian origin273.8 kB
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011530.5 kB
Declaration of Conformity EAEU TR 037/2016508.2 kB
