HB LED 100 D50x20 5000K
HB LED 100 D50x20 5000K
100 Wluminaire power
12800 lmlight flow
128 lm/Wenergy efficiency
code1224002520
color temperature5000.0000 K
beam angleD50/20
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
128 lm/Wcolor rendition index (CRI)
>80light flow
12800 lmflickering factor
<2%beam angle
D50/20color temperature
5000.0000 Klight source type
LEDemission color
Whiteilluminating
energy efficiency
128 lm/W
color rendition index (CRI)
>80
light flow
12800 lm
flickering factor
<2%
beam angle
D50/20
color temperature
5000.0000 K
light source type
LED
emission color
White
electrical
starting current pulse time
500 µs
electric shock protection
I
luminaire power
100 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A

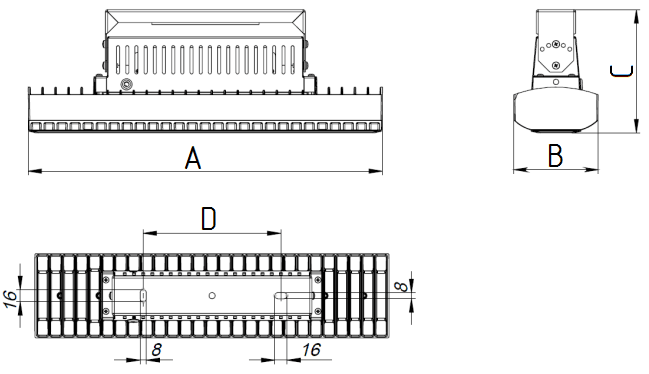

constructional
length
463 mm
width
110 mm
height
155 mm
installation length
180 mm
weight
3.2 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK07/2 J
climatic performance
Clm App1
fire safety class
I,II,ІІІ
material
Aluminum
housing color
Metallic
lamp socket
LED
number of lamps
1
ballast
Driver
common
warranty
36 month
temperature range
-40 to +55 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1224002520
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.1 mB
model 3dMax5 mB
photometric files
ies2.1 mB
ldt1.2 mB
documents
passport7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/201119.4 mB
Declaration of Conformity EAEU TR 037/20164.6 mB
Fire Safety Certificate10.4 mB
