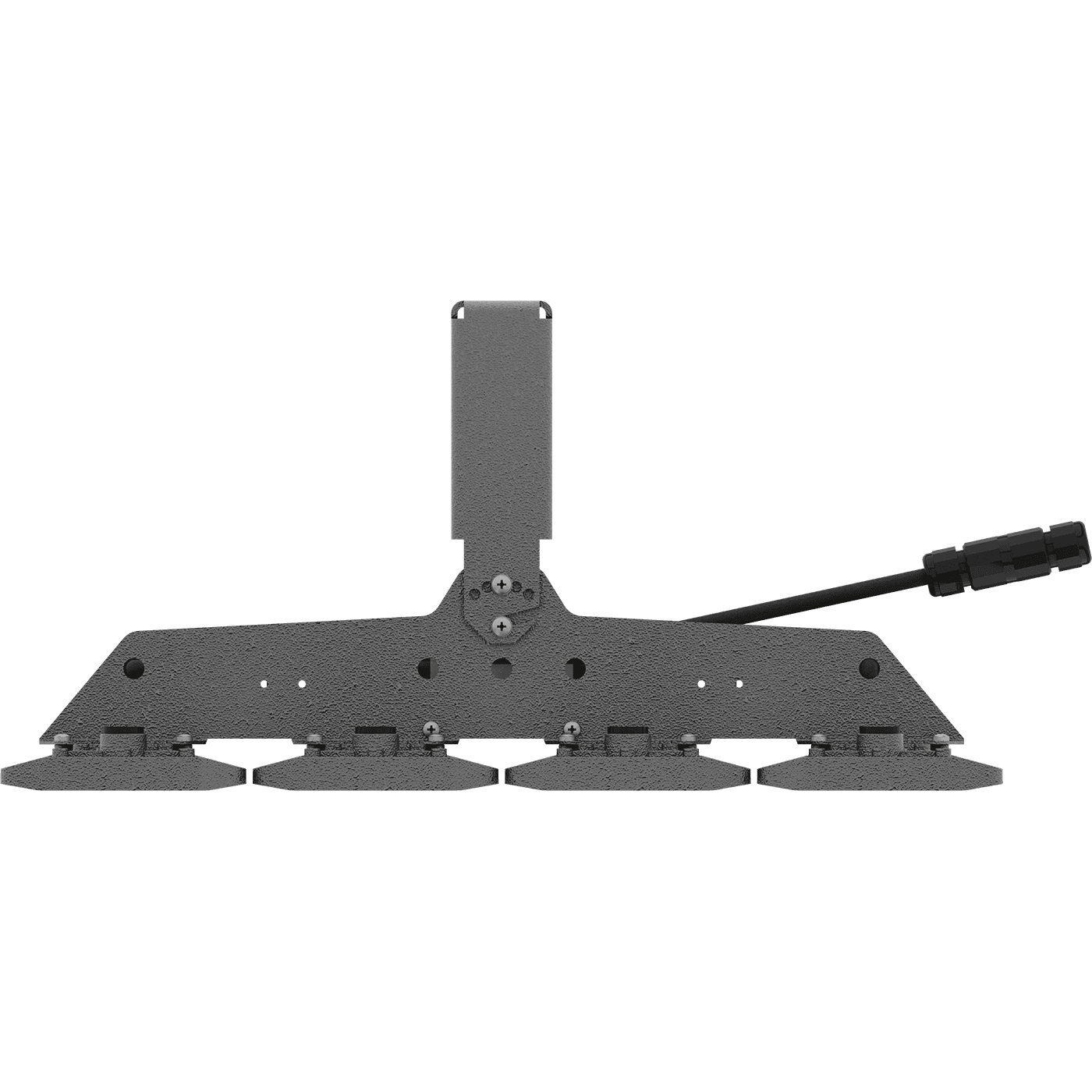

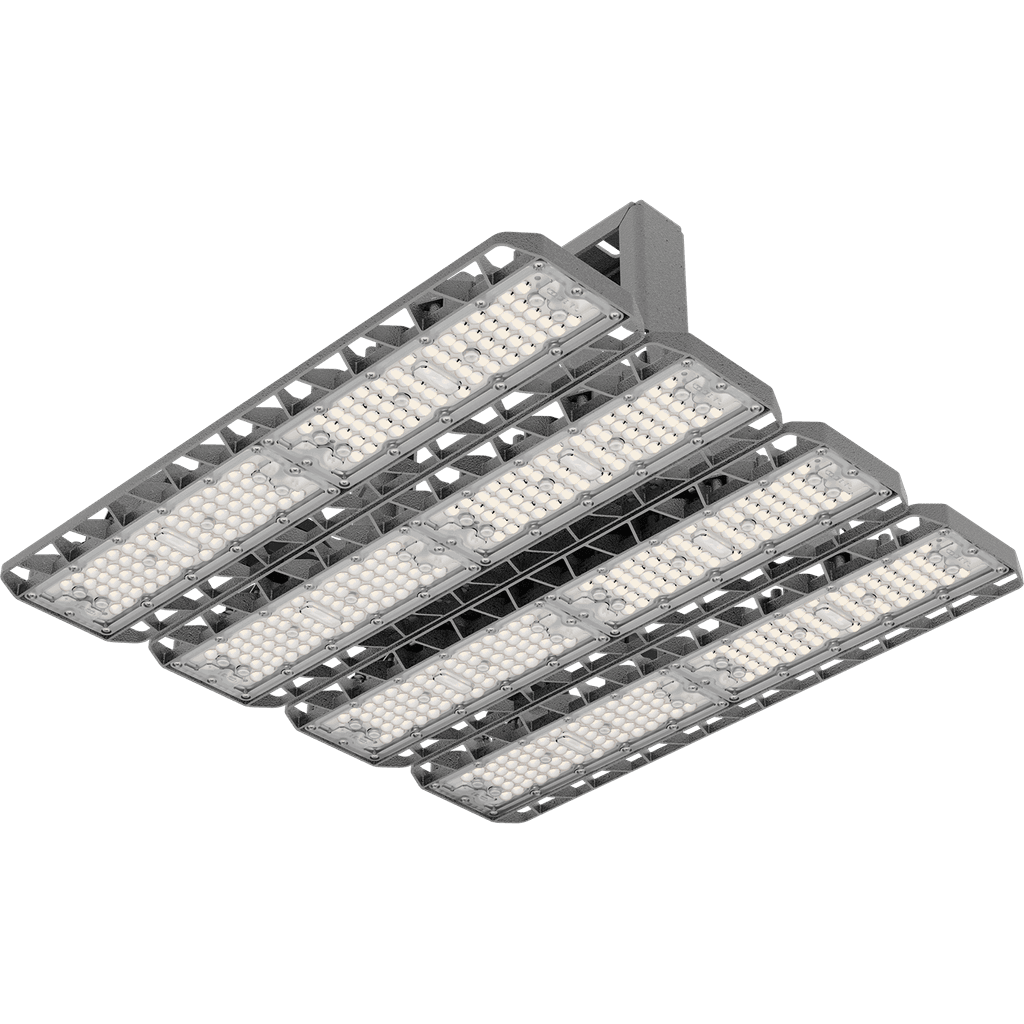

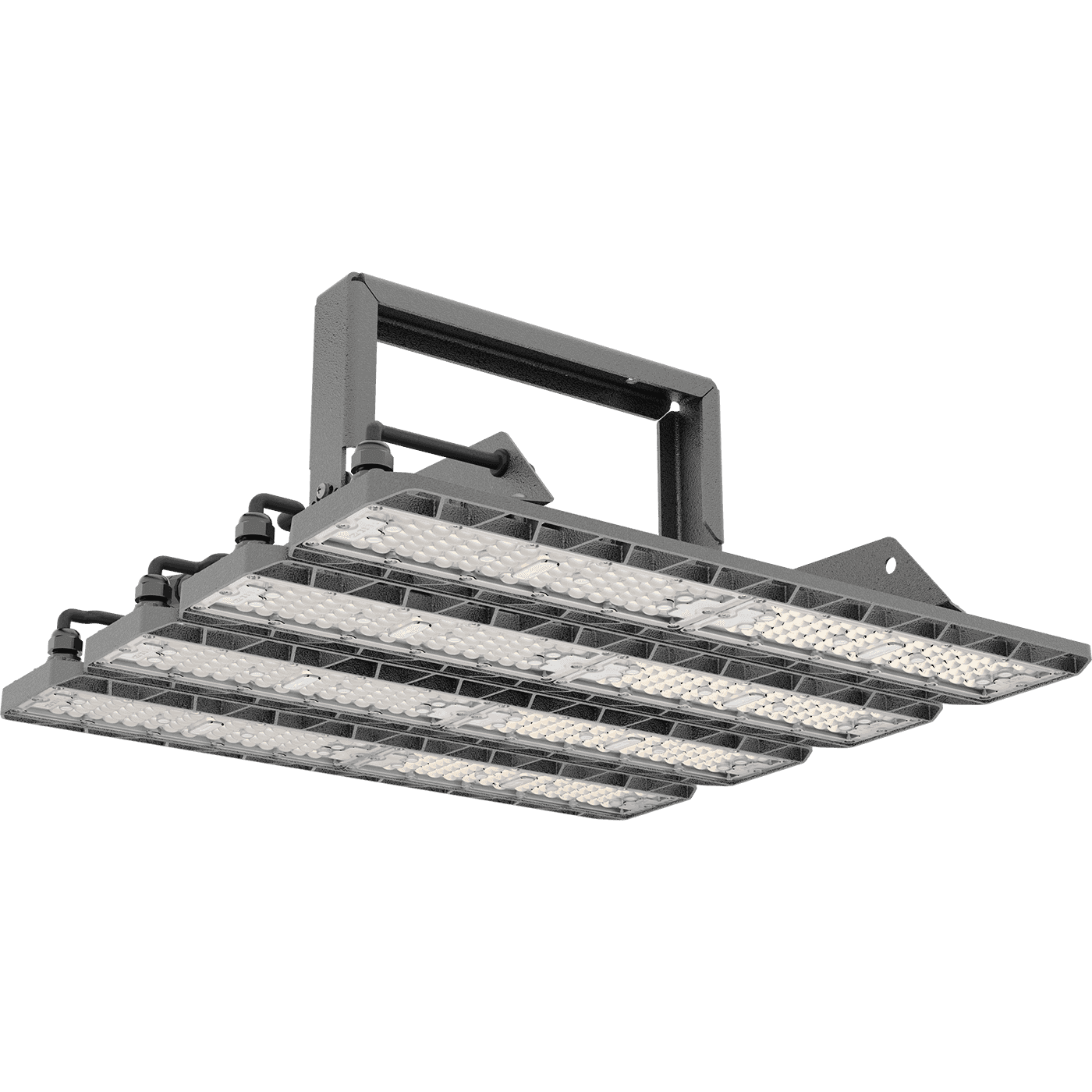

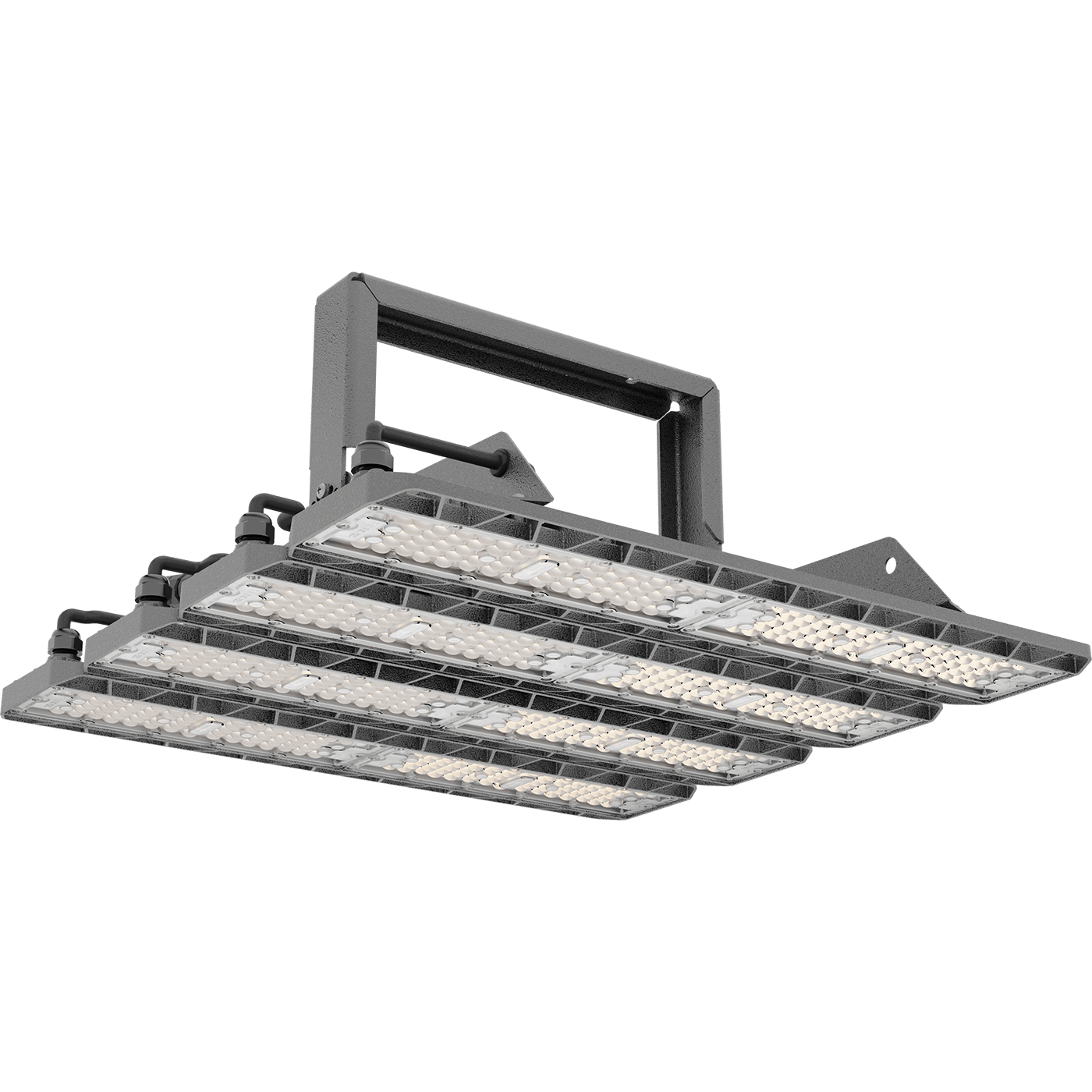

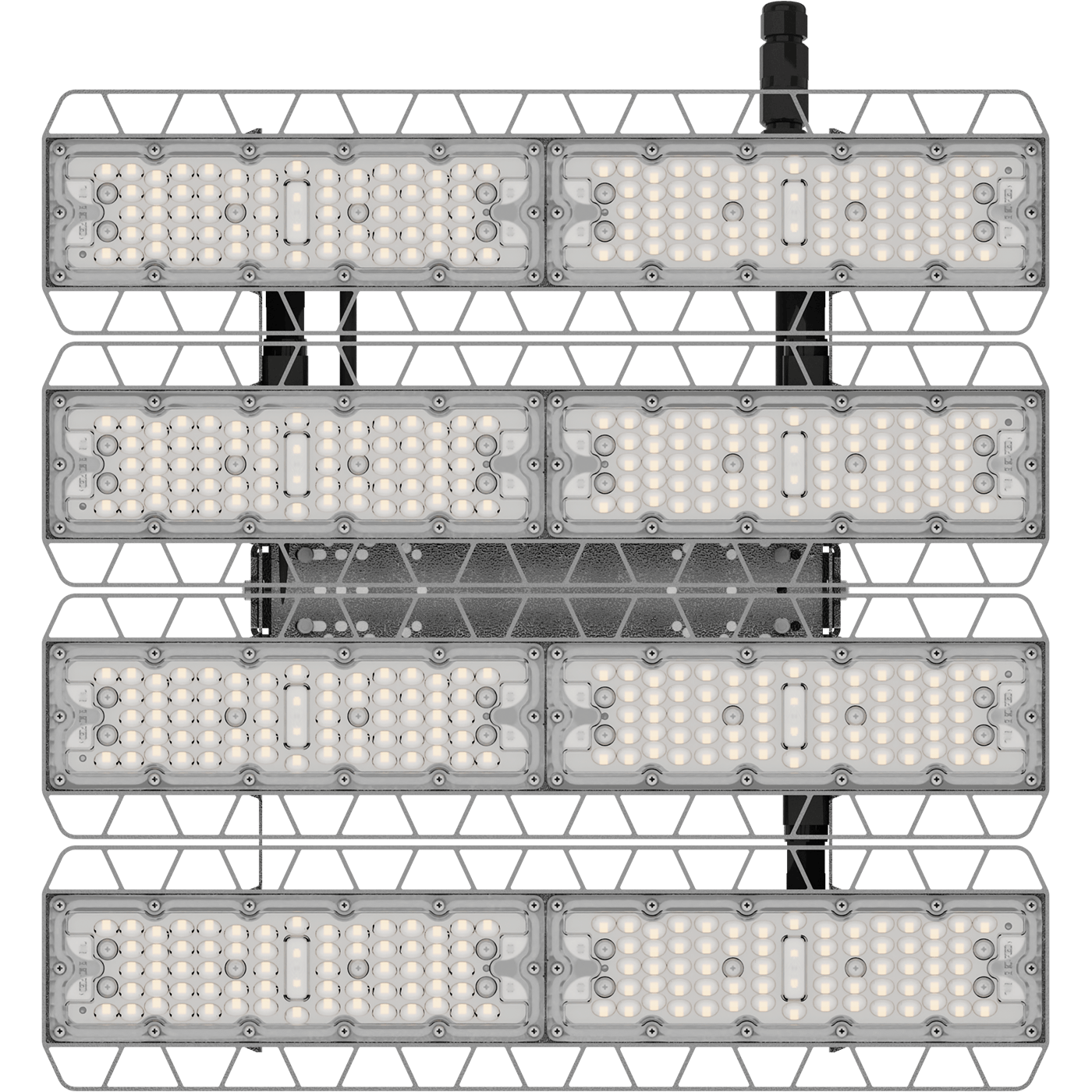

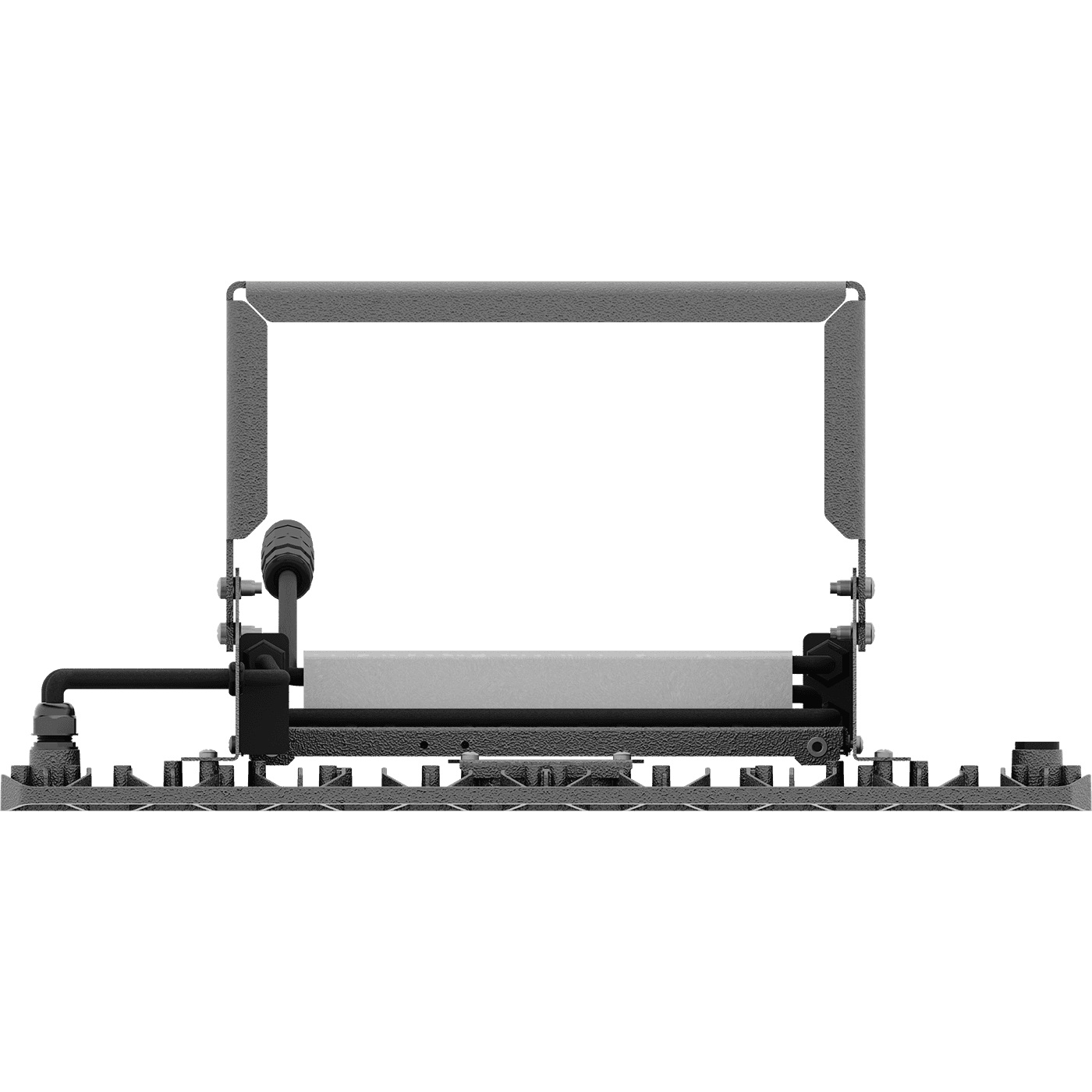

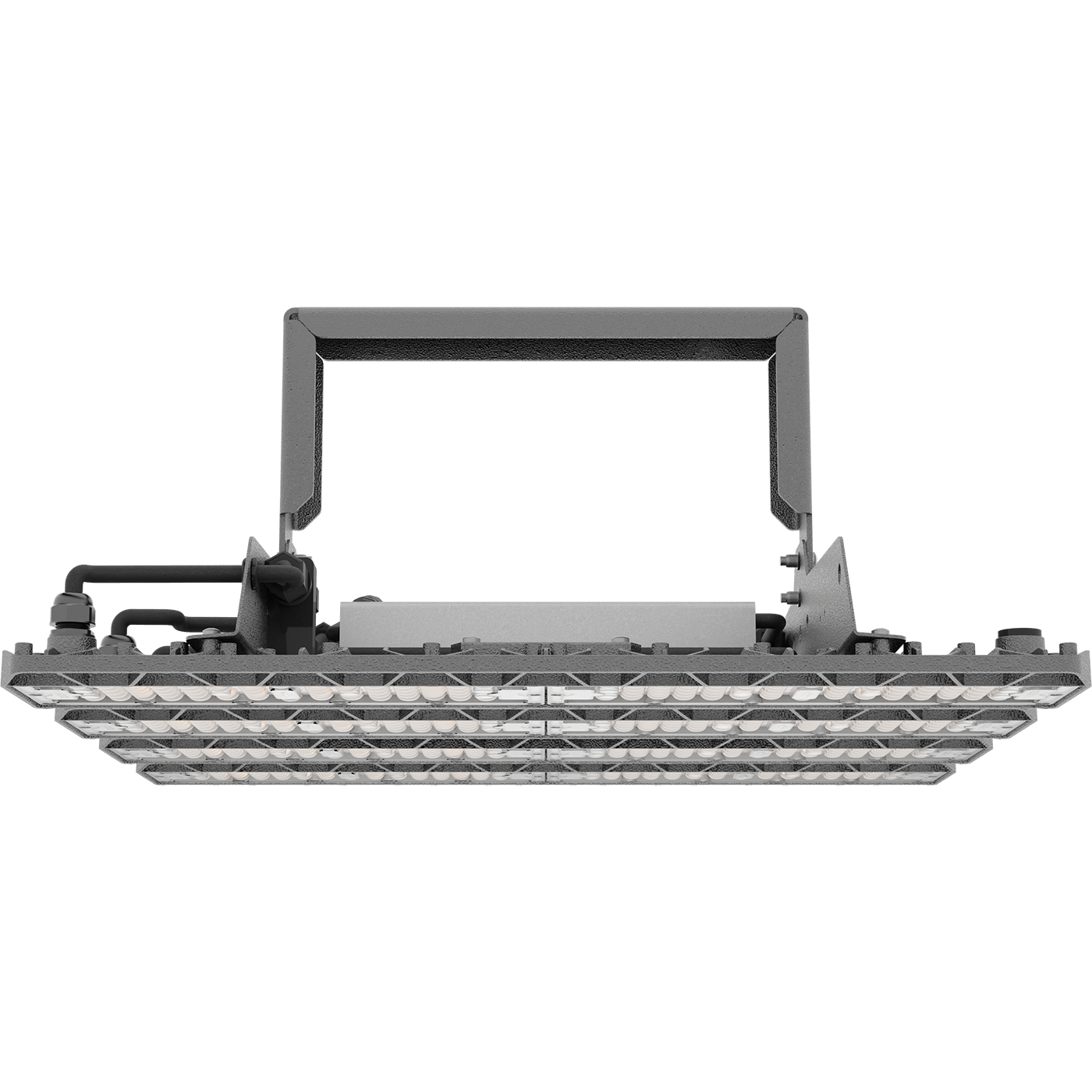

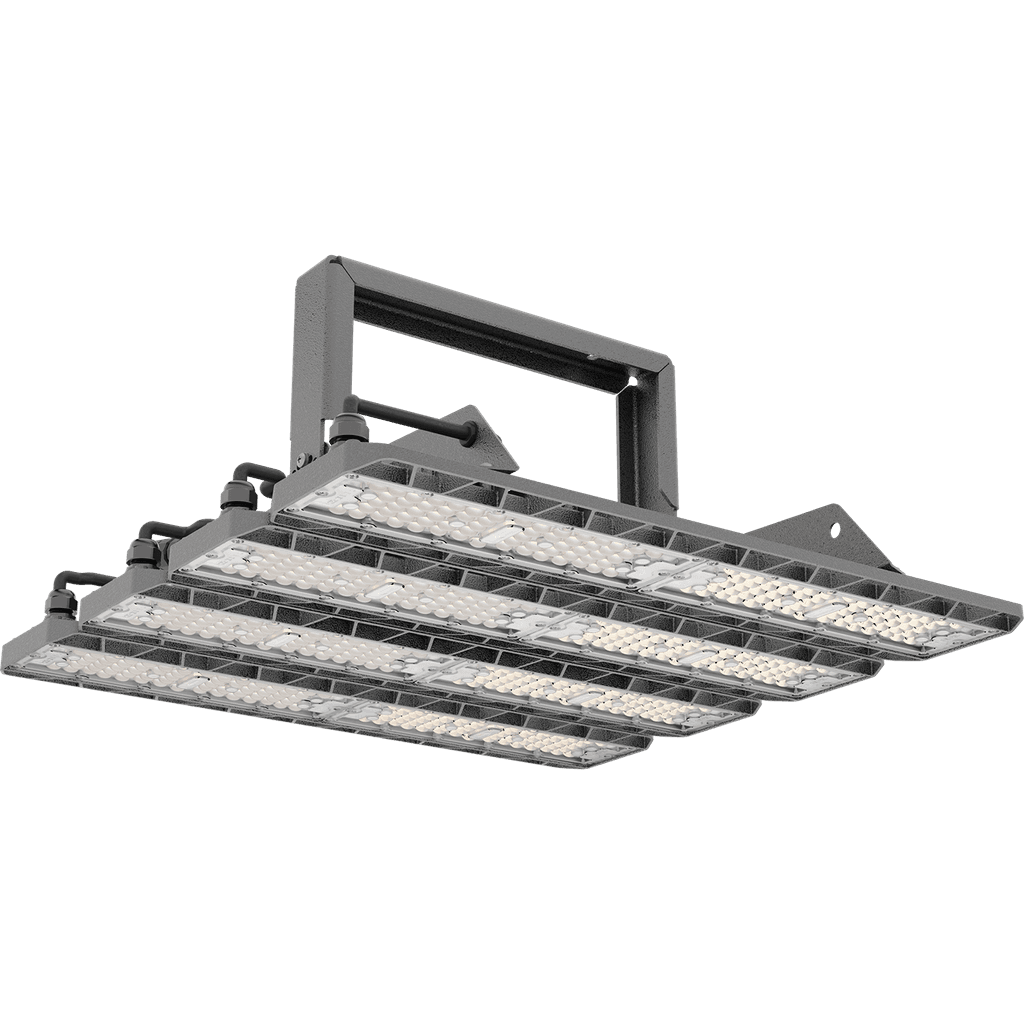

HB LED G3 250W D30 840 HG
HB LED G3 250W D30 840 HG
230 Wluminaire power
35400 lmlight flow
154 lm/Wenergy efficiency
code1224011330
color temperature4000 K
beam angleD30
weight6.71 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
35400 lmflickering factor
<1%energy efficiency
154 lm/Wbeam angle
D30color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
35400 lm
flickering factor
<1%
energy efficiency
154 lm/W
beam angle
D30
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
230 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
52 A
supply voltage
230 V
starting current pulse time
760 µs
constructional
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ1*
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66
weight
6.71 kg
length
480 mm
width
477 mm
height
233 mm
installation length
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +40 C
code
1224011330
model files
model files

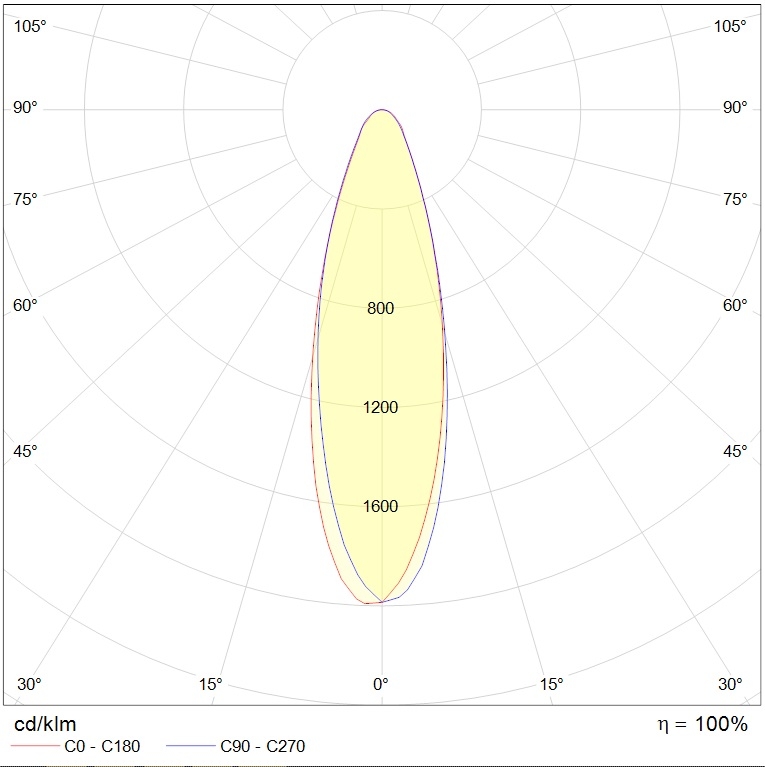

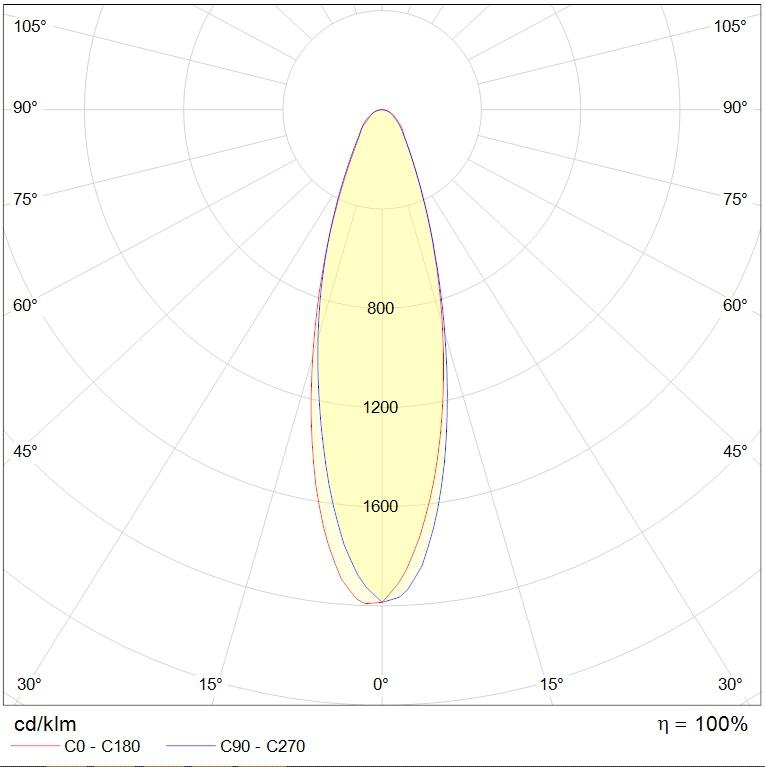

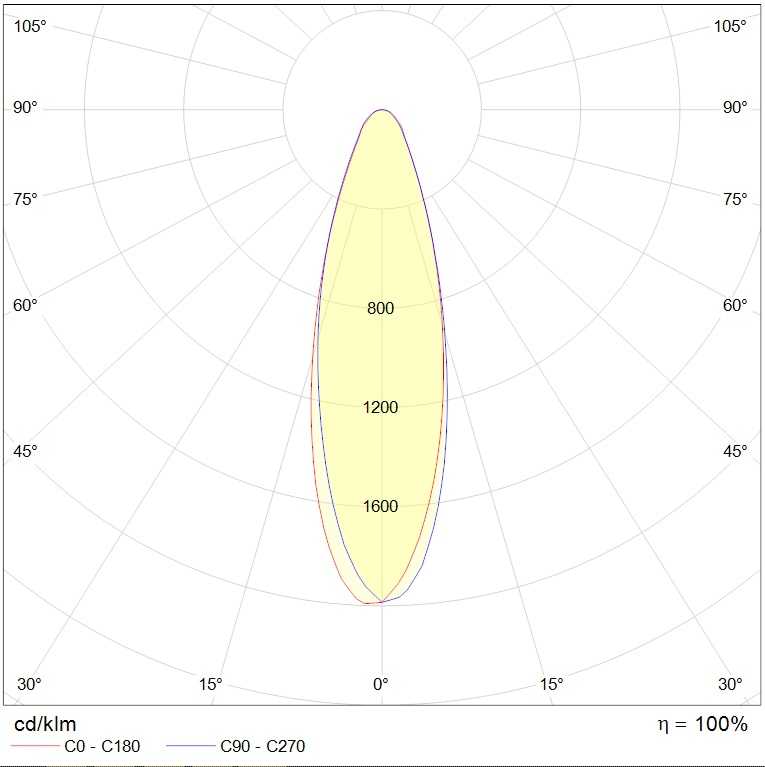

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg81.9 kB
ldt66 kB
documents
passport2.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
