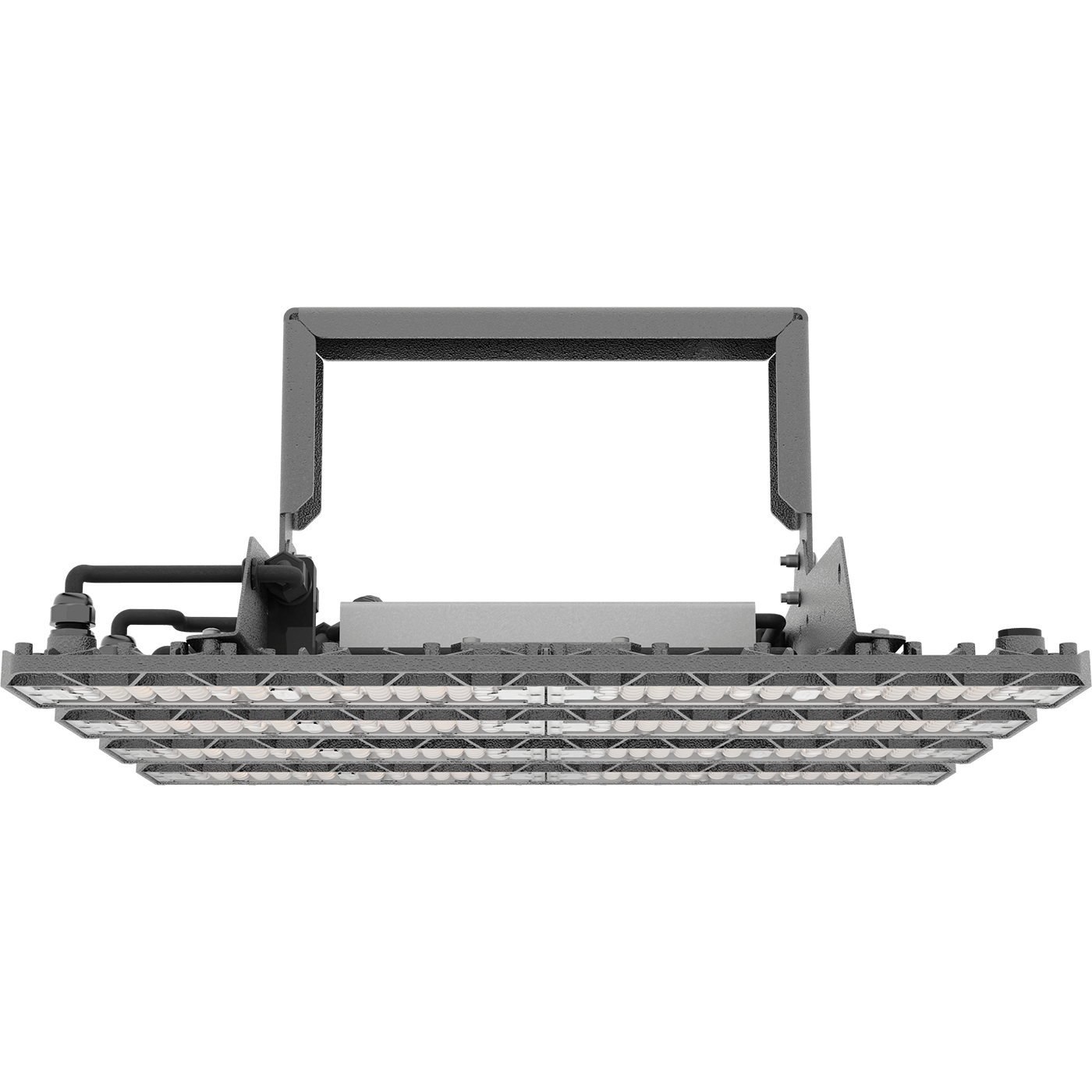

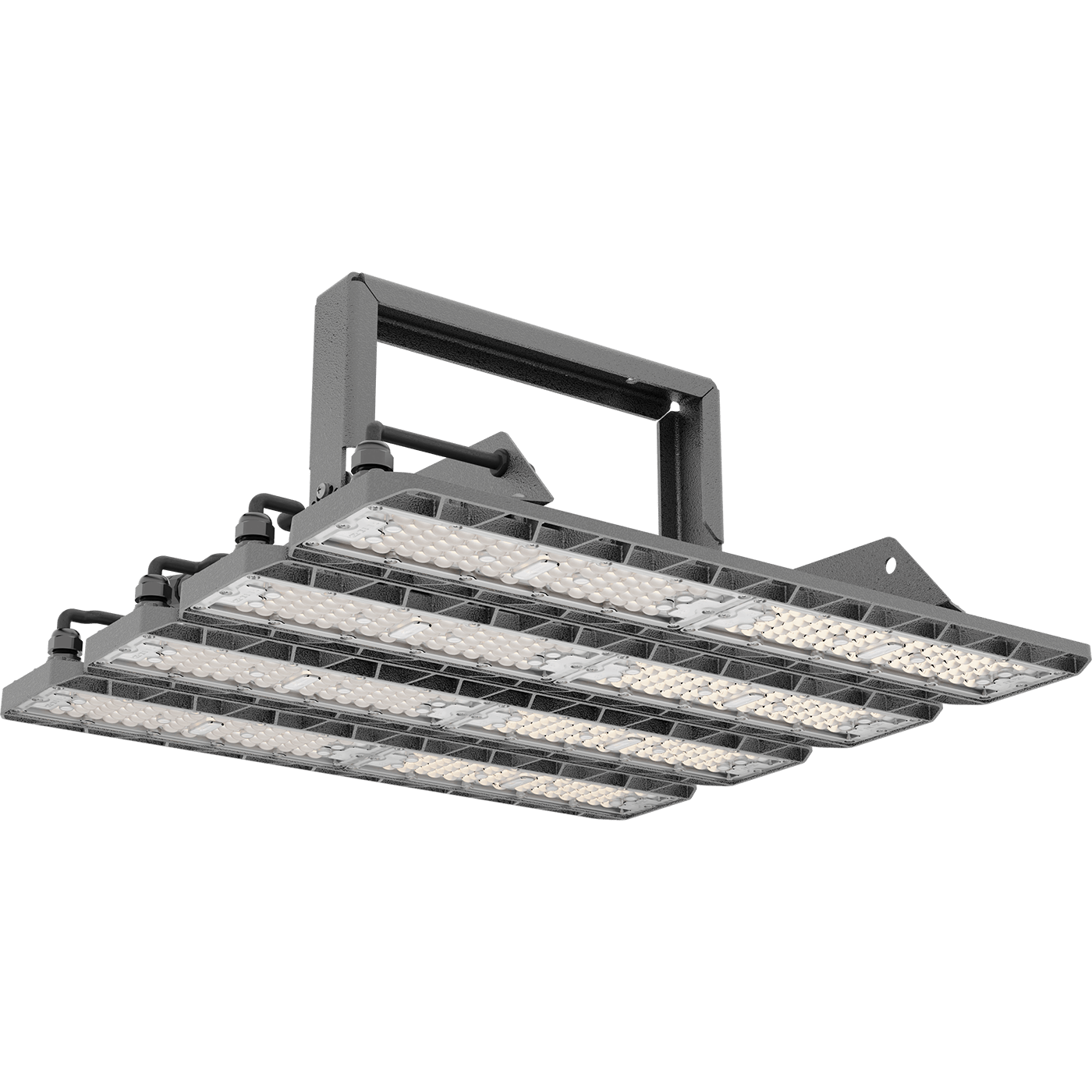

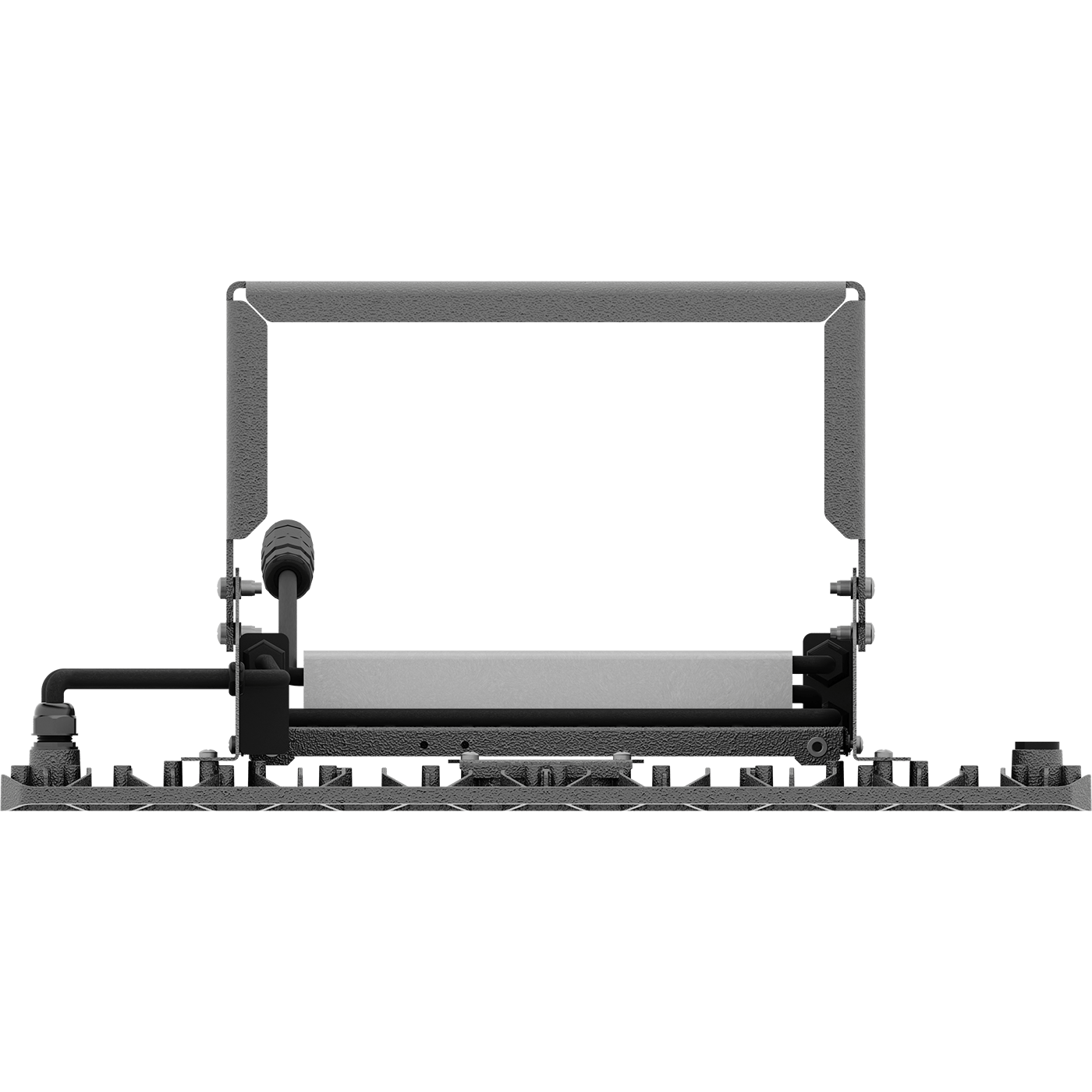

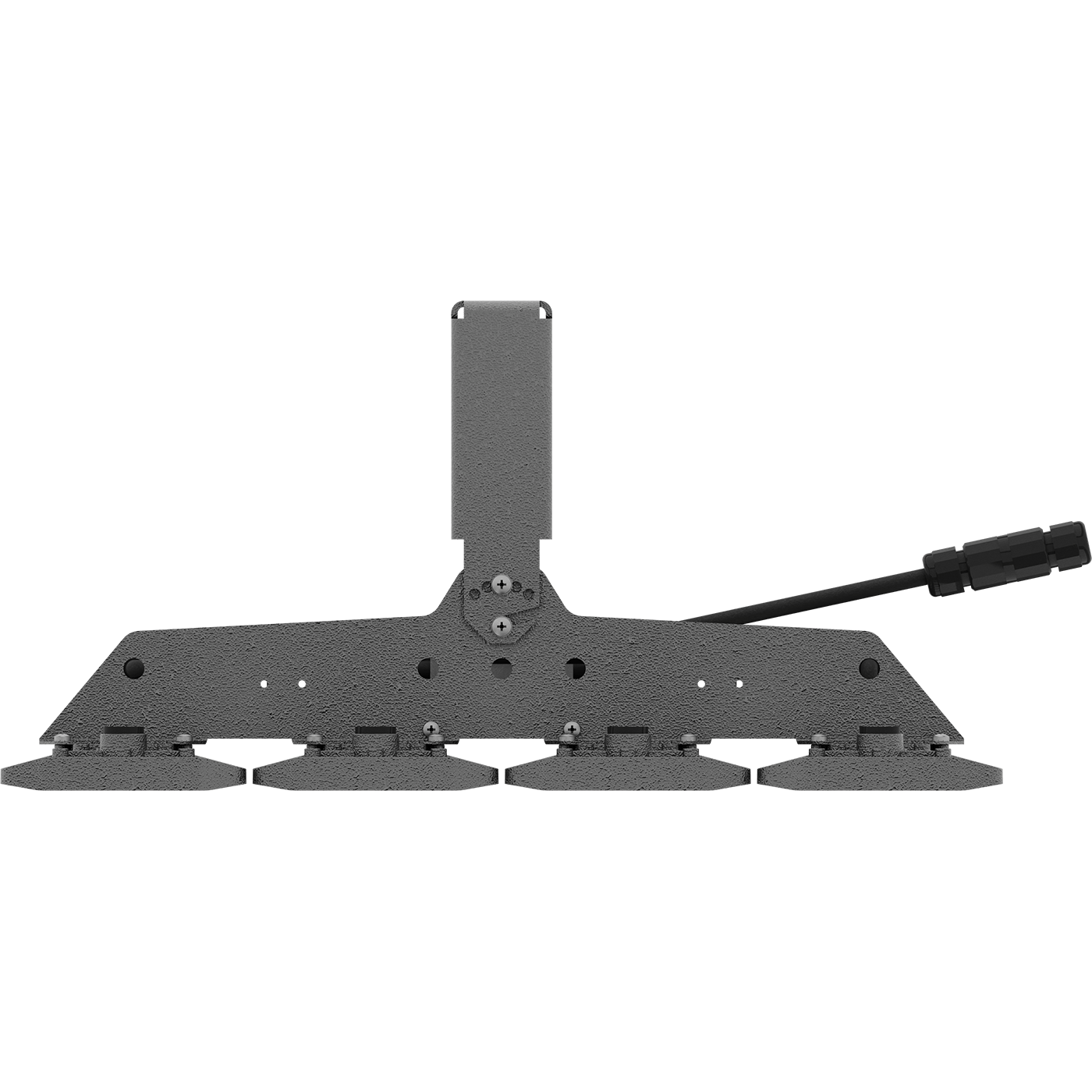

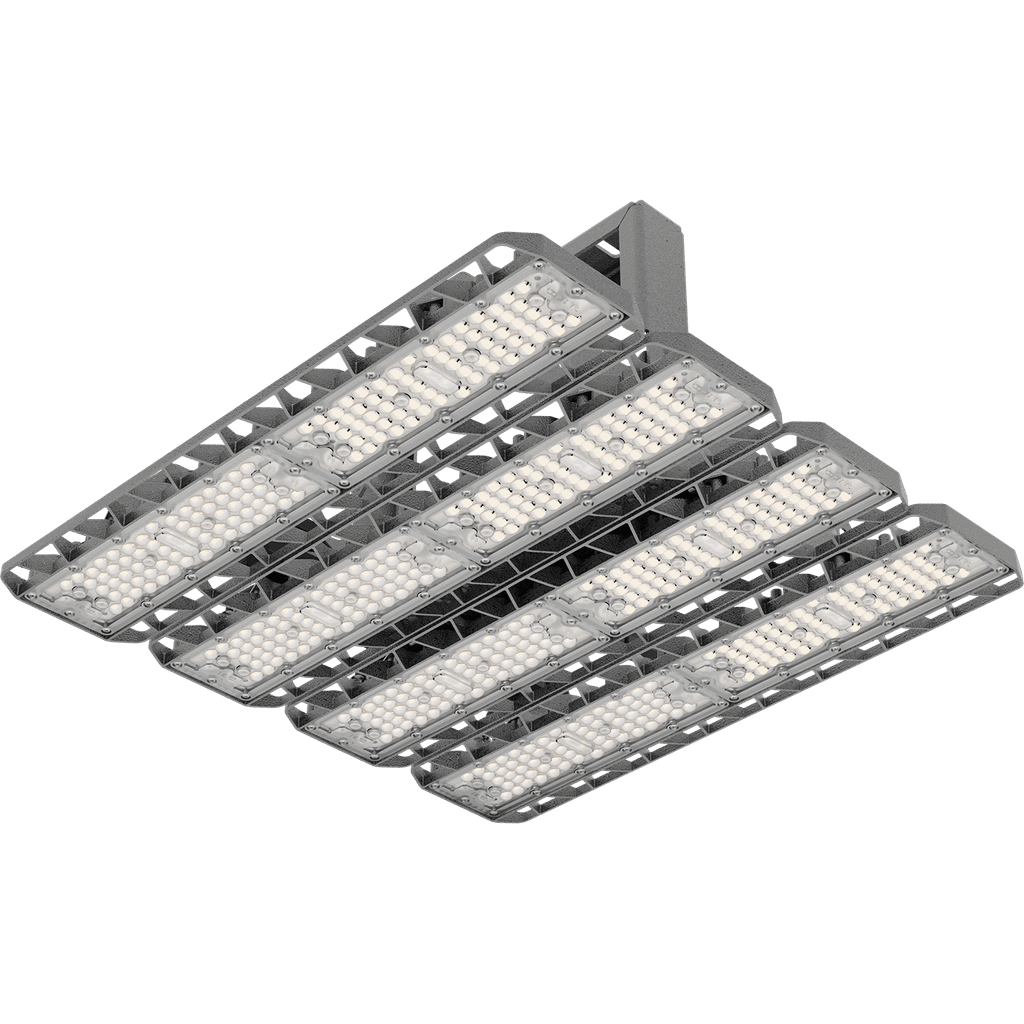

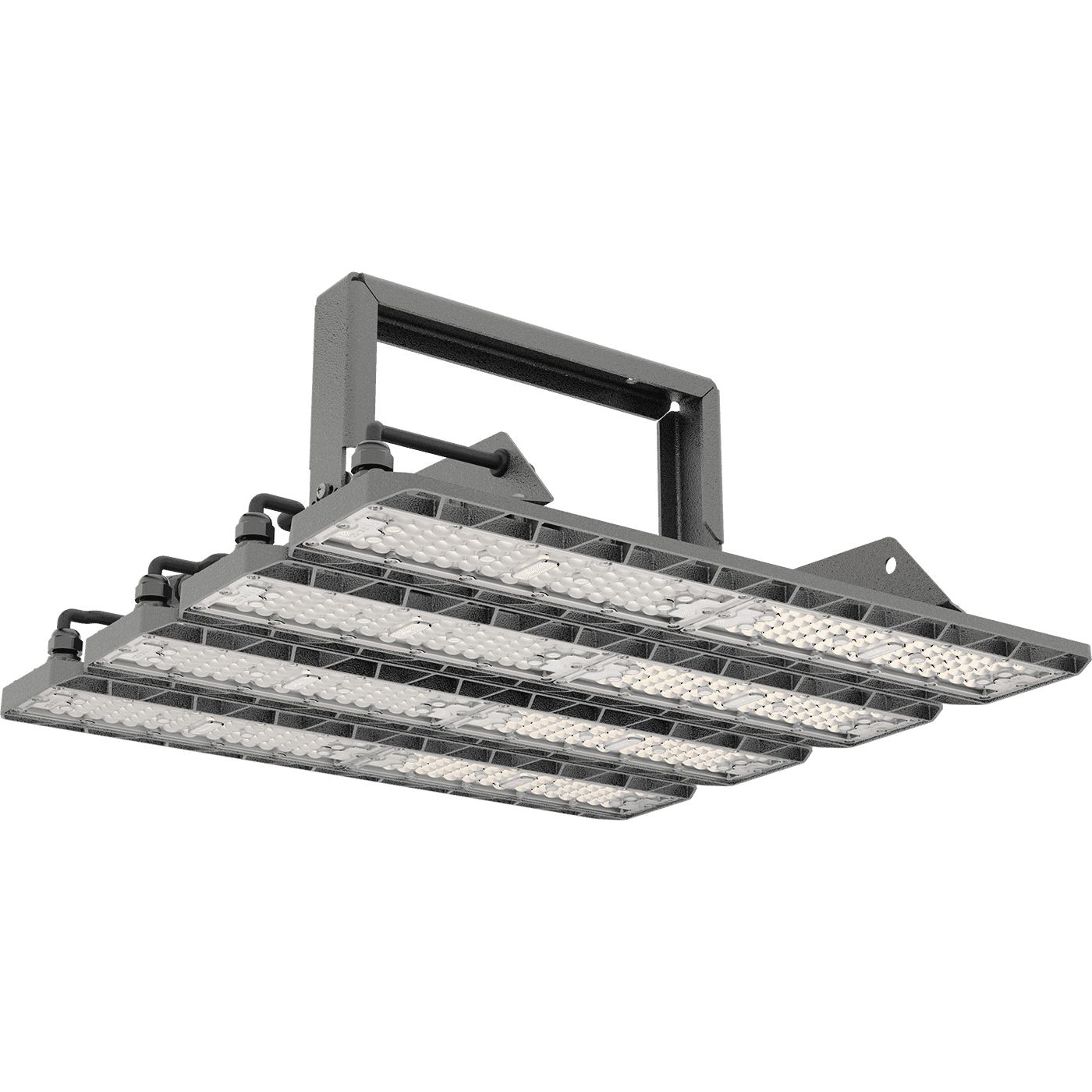

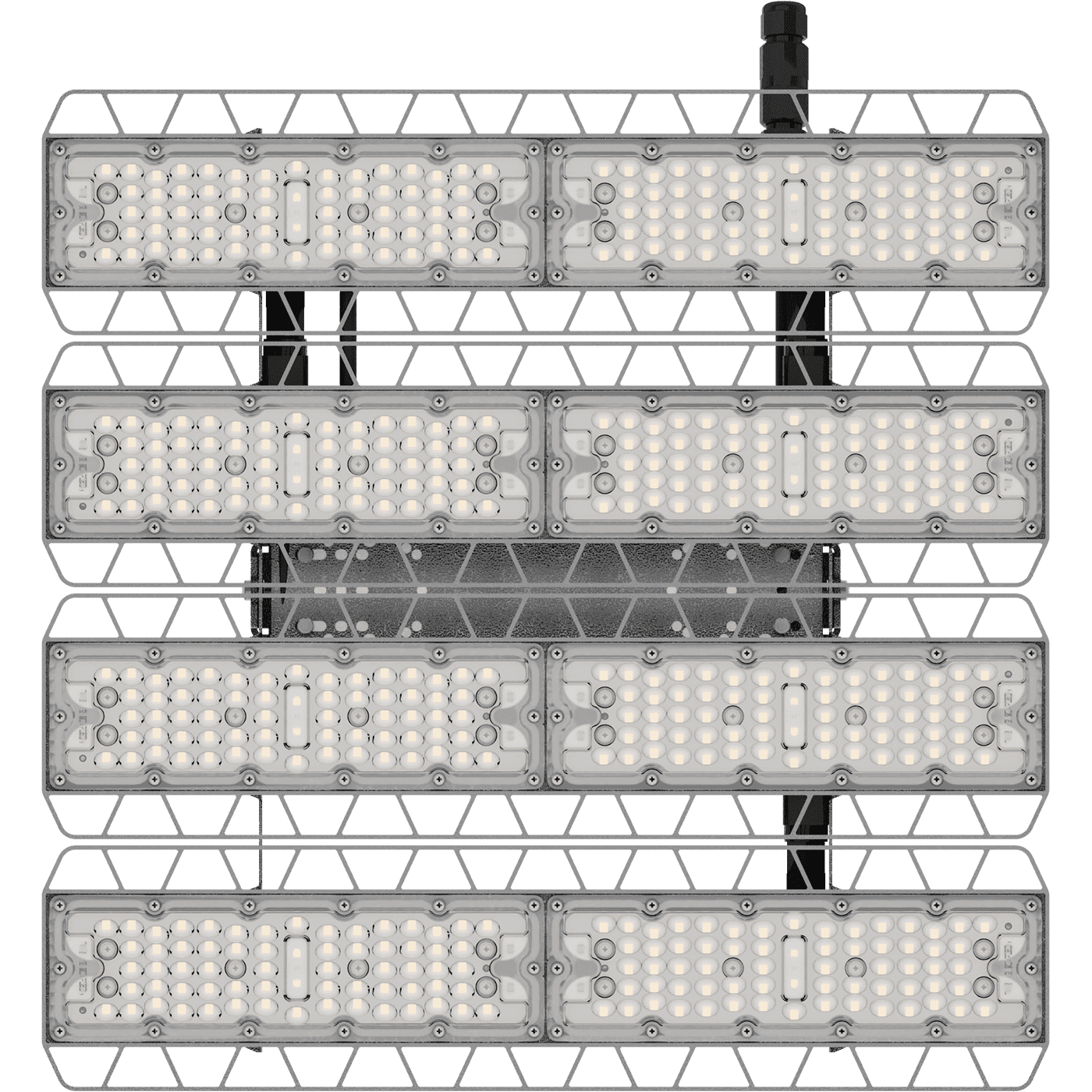

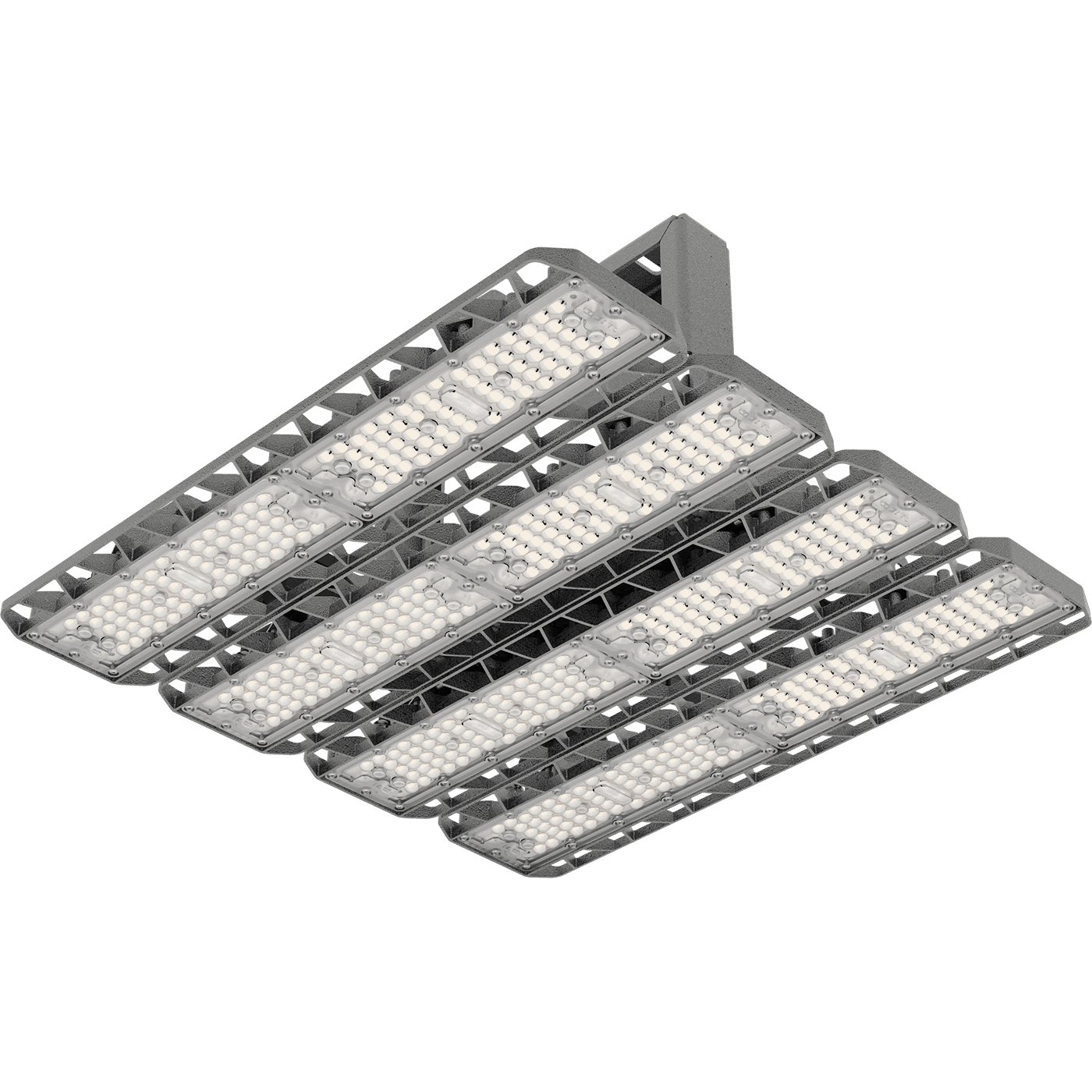

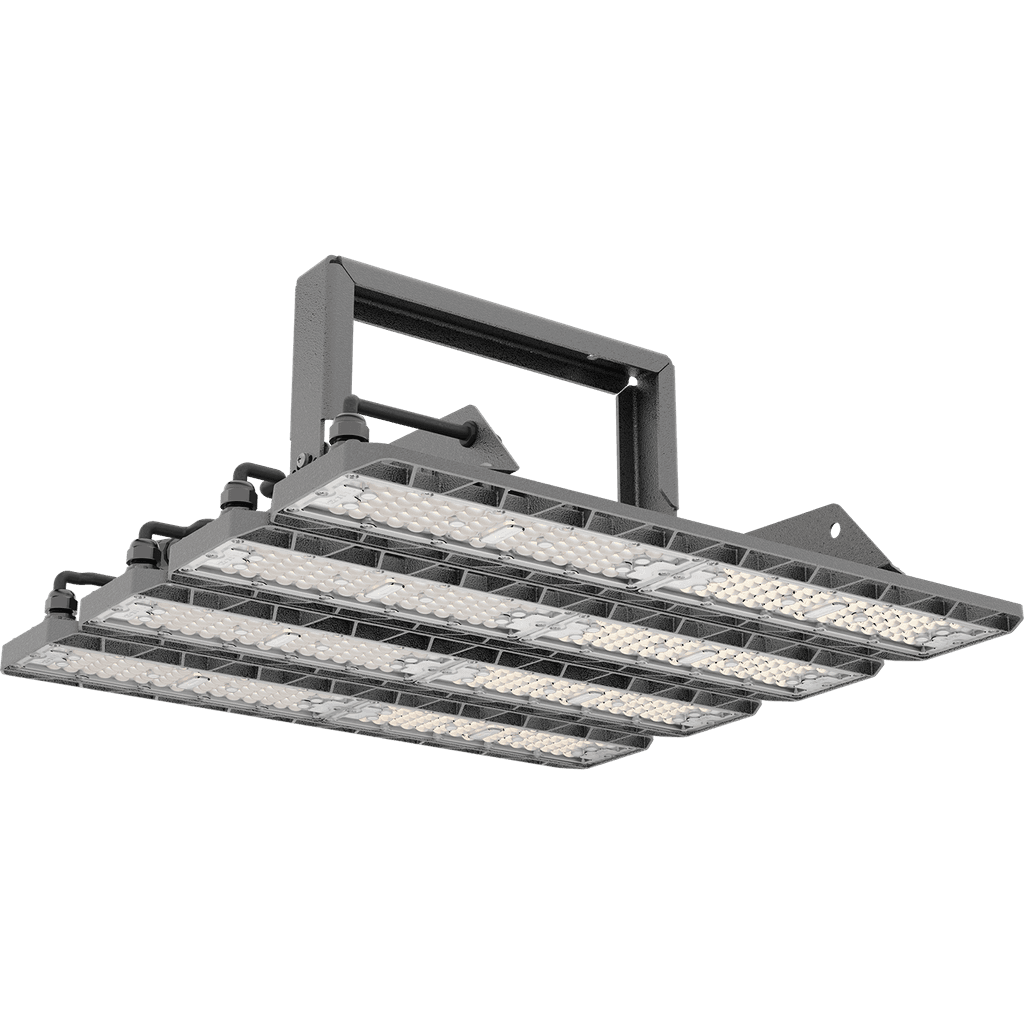

HB LED G3 200W D60 840 HG DALI

HB LED G3 200W D60 840 HG DALI
186 Wluminaire power
31000 lmlight flow
167 lm/Wenergy efficiency
code1224011290
color temperature4000 K
beam angleD60
weight7.5 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>80
light flow
31000 lm
flickering factor
<1%
energy efficiency
167 lm/W
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>80
light flow
31000 lm
flickering factor
<1%
energy efficiency
167 lm/W
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
186 W
electric shock protection
I
supply voltage
230 V
constructional
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
ingress protection (IP)
IP66
weight
7.5 kg
length
480 mm
width
477 mm
height
124 mm
installation length
180 mm
LMS options
dimming
DALI
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +55 C
code
1224011290
model files
model files

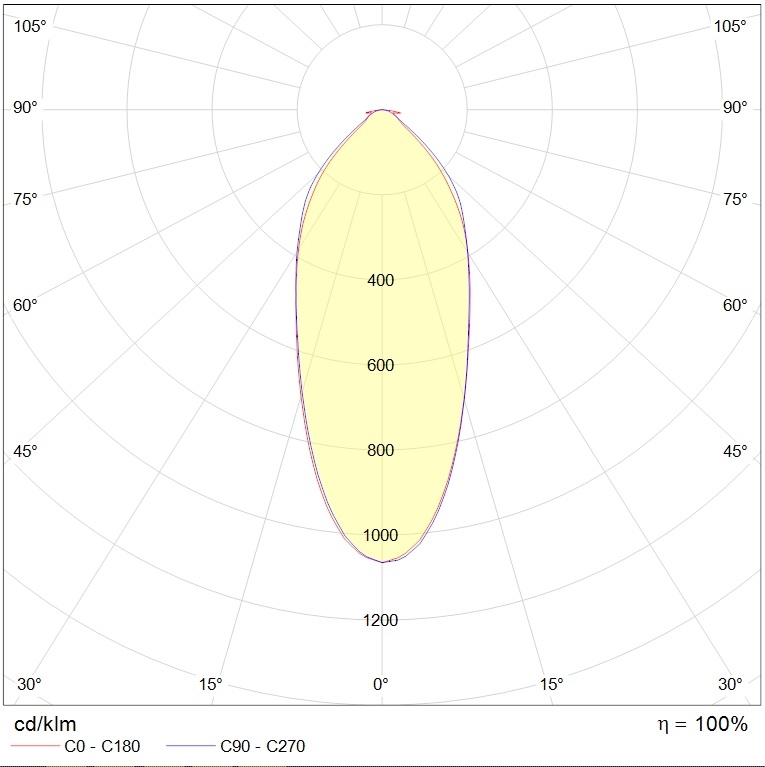

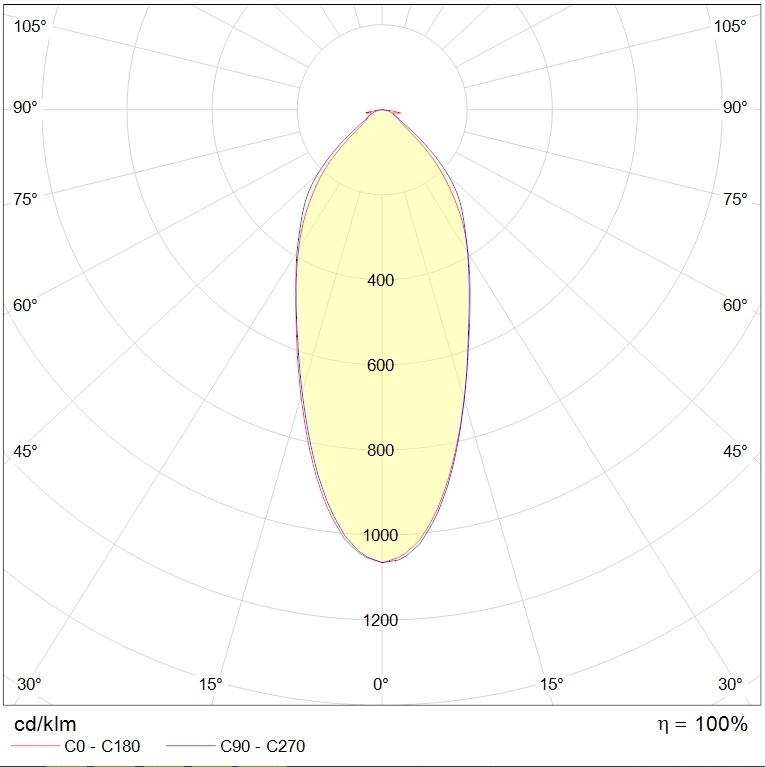

photometric files
ies107 kB
jpg84 kB
ldt62 kB
сертификаты
Russian origin635.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
photometric files
ies107 kB
jpg84 kB
ldt62 kB
сертификаты
Russian origin635.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
