HB LED G3 100W D90 840 HG DALI
HB LED G3 100W D90 840 HG DALI
94 Wluminaire power
14800 lmlight flow
157 lm/Wenergy efficiency
code1224011440
color temperature4000
beam angleD90
weight3.61 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
50 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
94 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
94 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
3.61 kg
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
480 mm
width, mm
237 mm
height, mm
124 mm
shock resistance (IK)
IK05/0,7 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +55 C
energy efficiency class
A++
service life, hour
50 000 h
code
1224011440
illuminating
light flow
14800 lm
flickering factor
<1%
energy efficiency
157 lm/W
beam angle
D90
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
LMS options
dimming
DALI
model files
model files

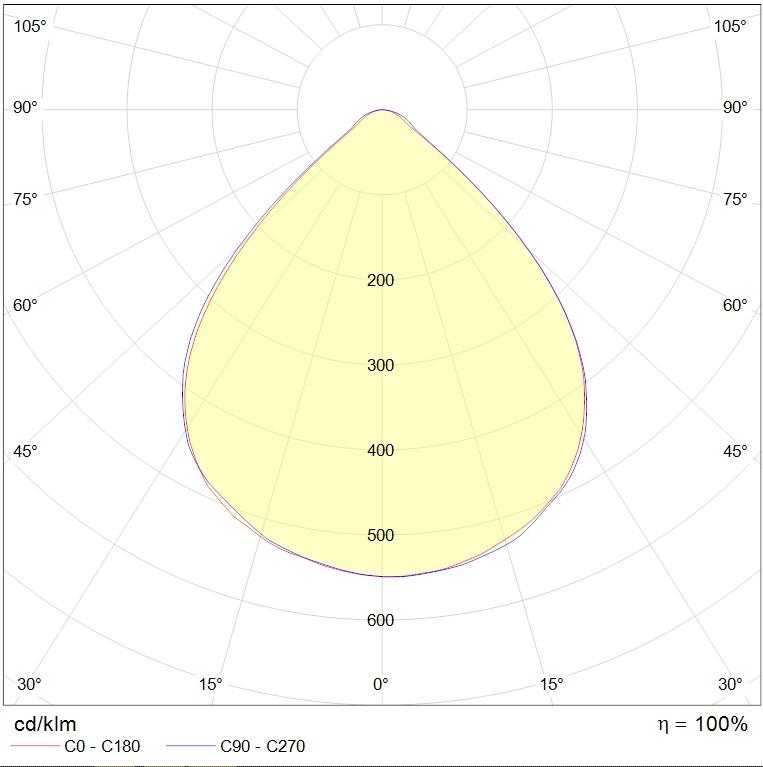

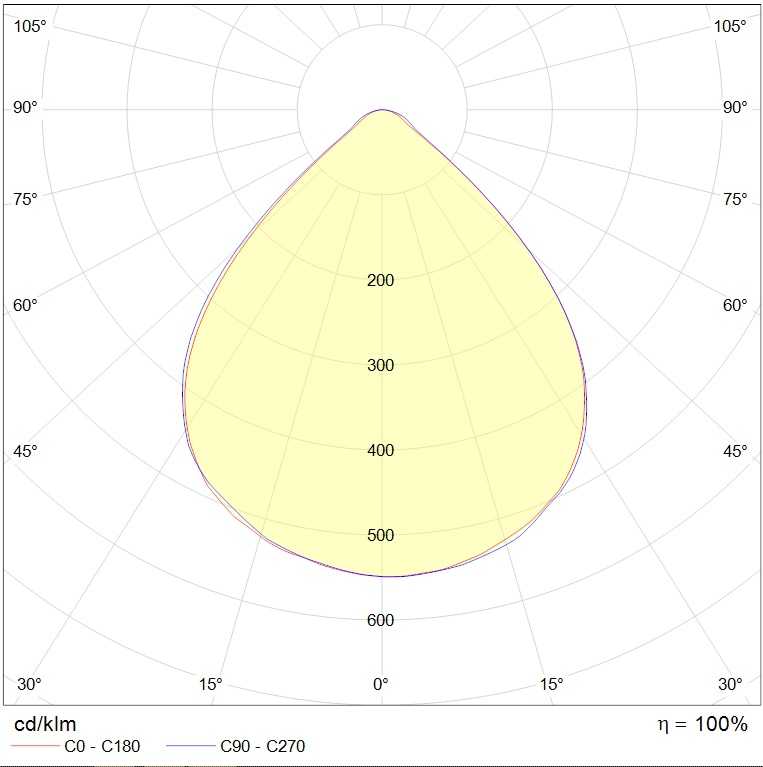

photometric files
сертификаты
photometric files
ies107 kB
jpg85.3 kB
ldt65.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
