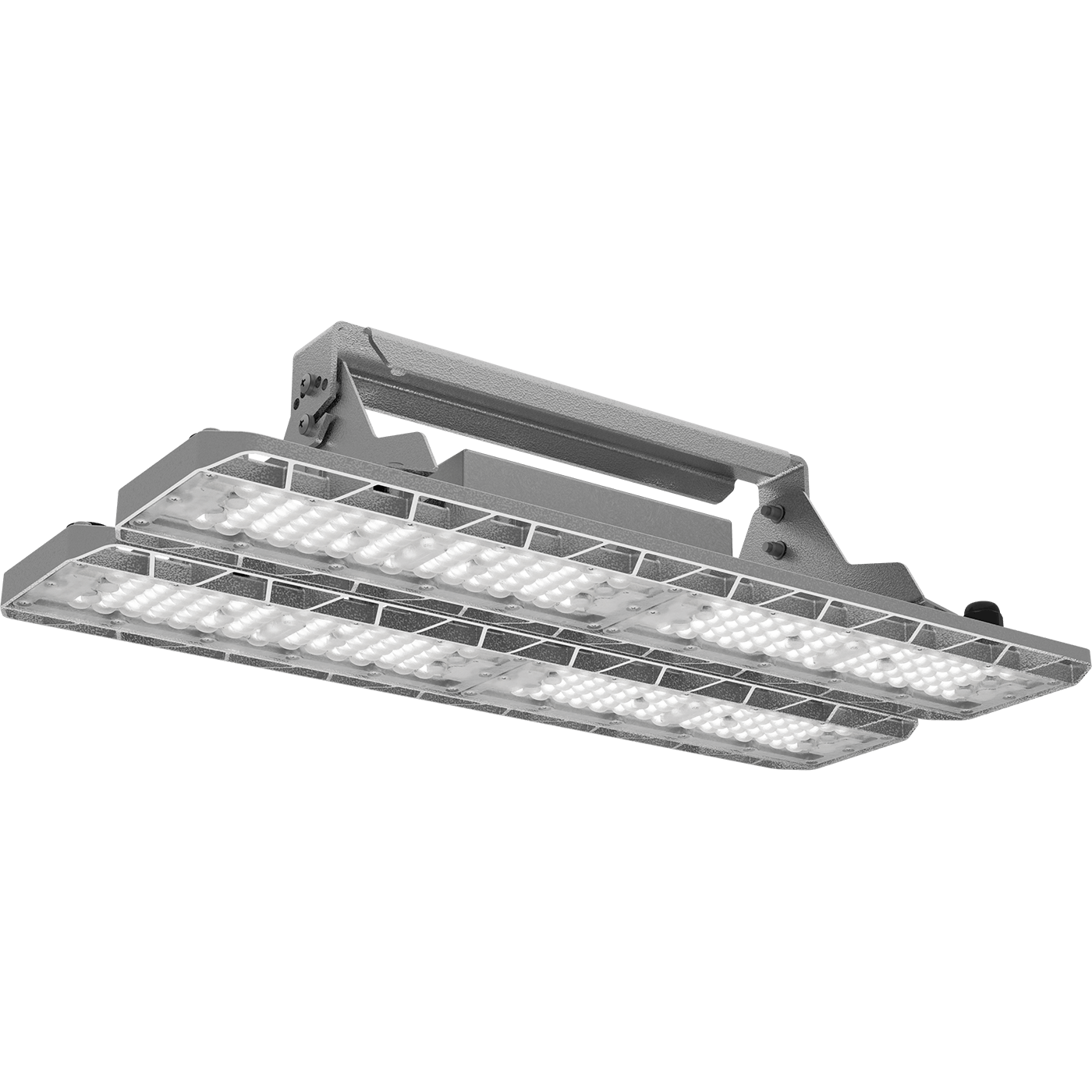

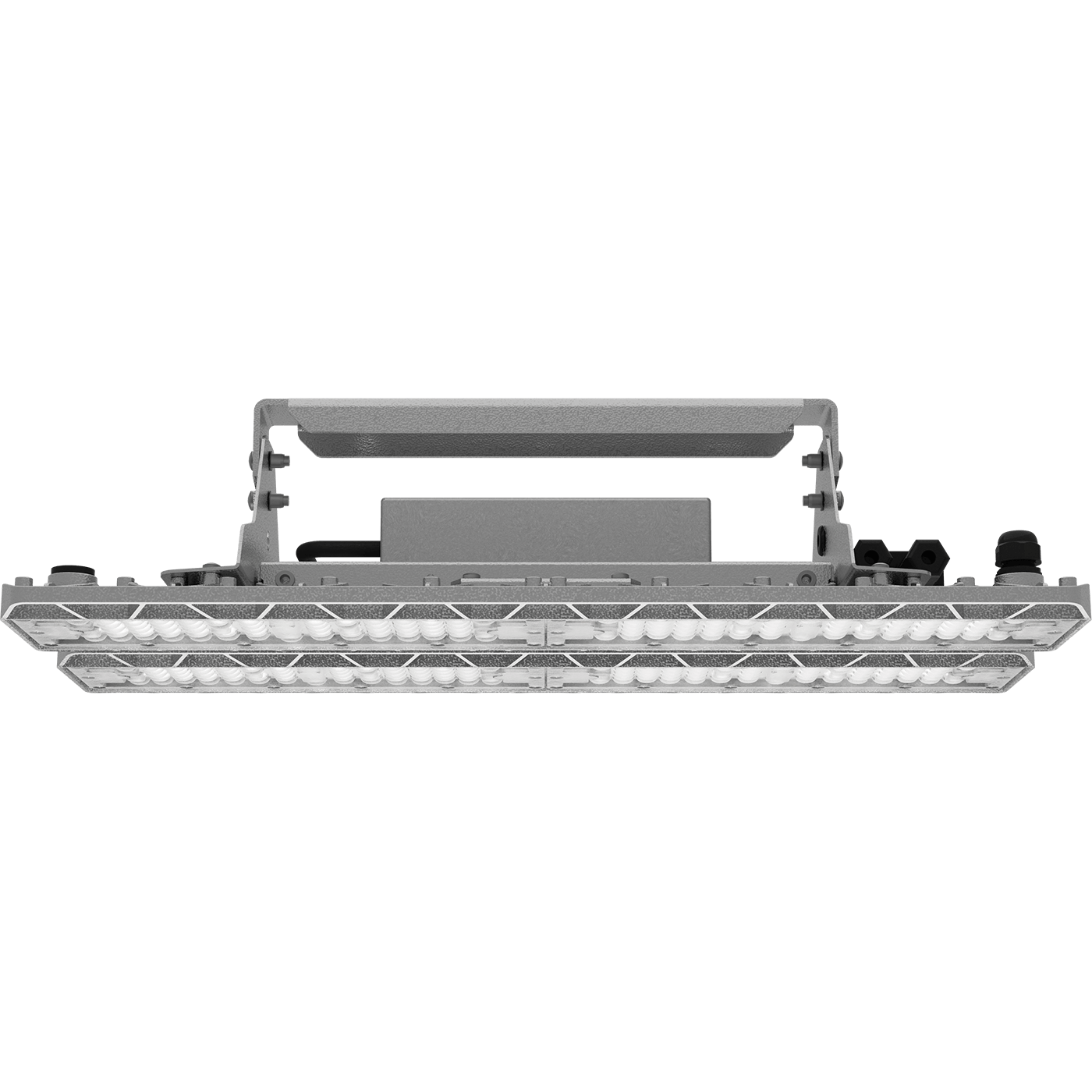

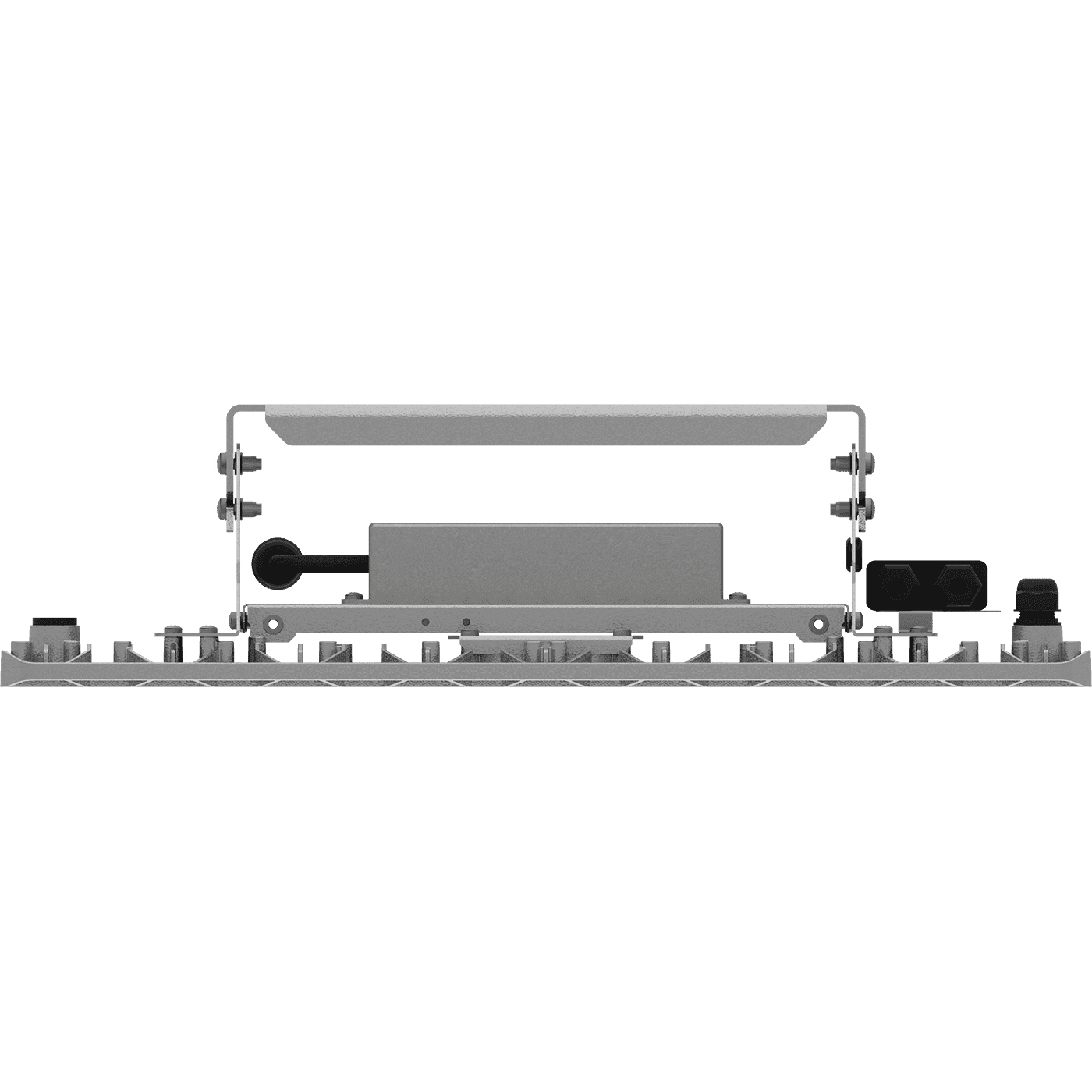

HB LED G3 100W D60 840 HG DALI
HB LED G3 100W D60 840 HG DALI
94 Wluminaire power
14800 lmlight flow
157 lm/Wenergy efficiency
code1224011150
color temperature4000 K
beam angleD60
weight3.61 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>80light flow
14800 lmflickering factor
<1%energy efficiency
157 lm/Wbeam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
14800 lm
flickering factor
<1%
energy efficiency
157 lm/W
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
94 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
ingress protection (IP)
IP66
weight
3.61 kg
length
480 mm
width
237 mm
height
124 mm
installation length
180 mm
LMS options
dimming
DALI
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +55 C
code
1224011150
model files
model files
photometric files
сертификаты

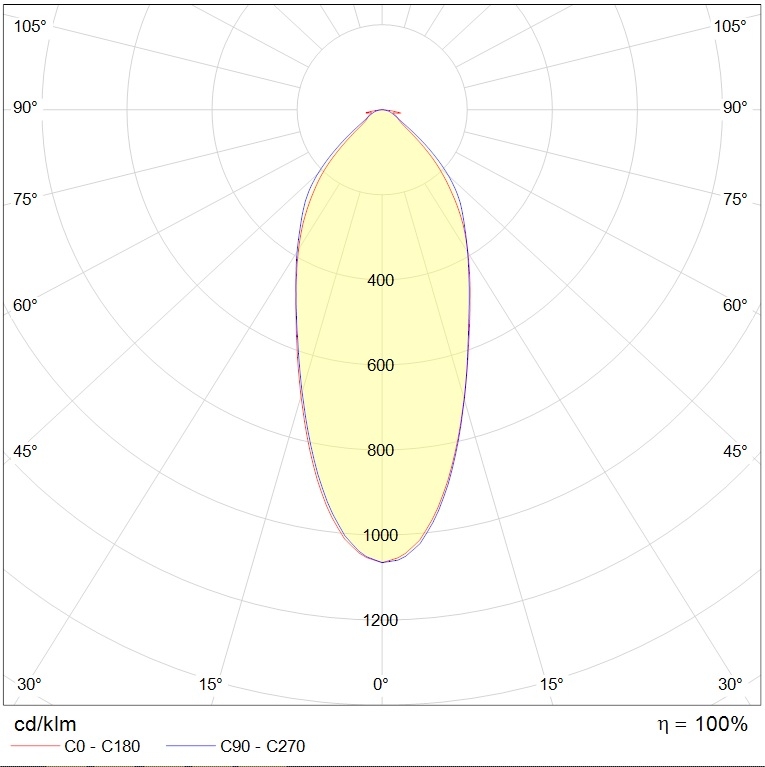

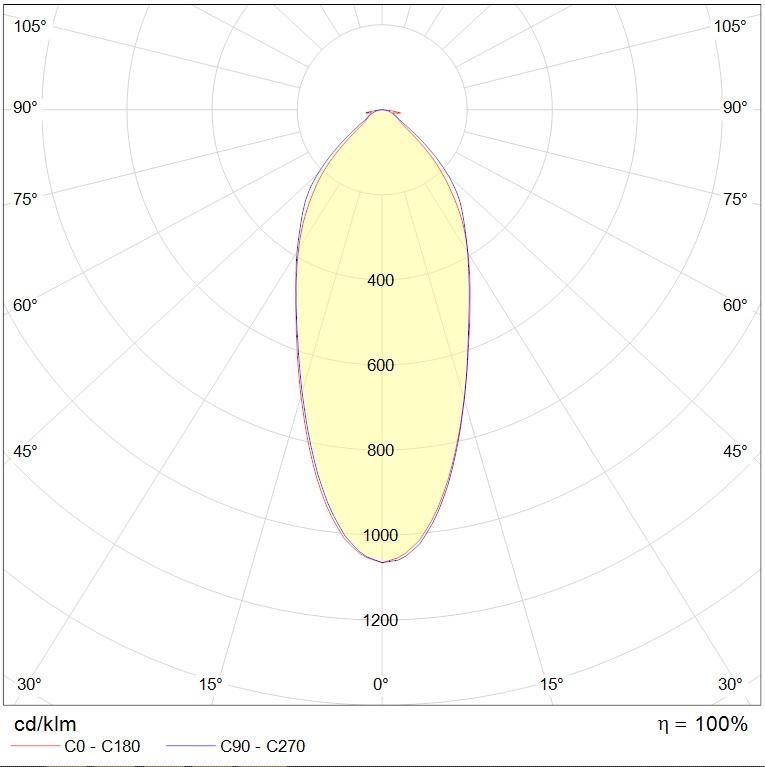

photometric files
ies107 kB
jpg84 kB
ldt62 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
