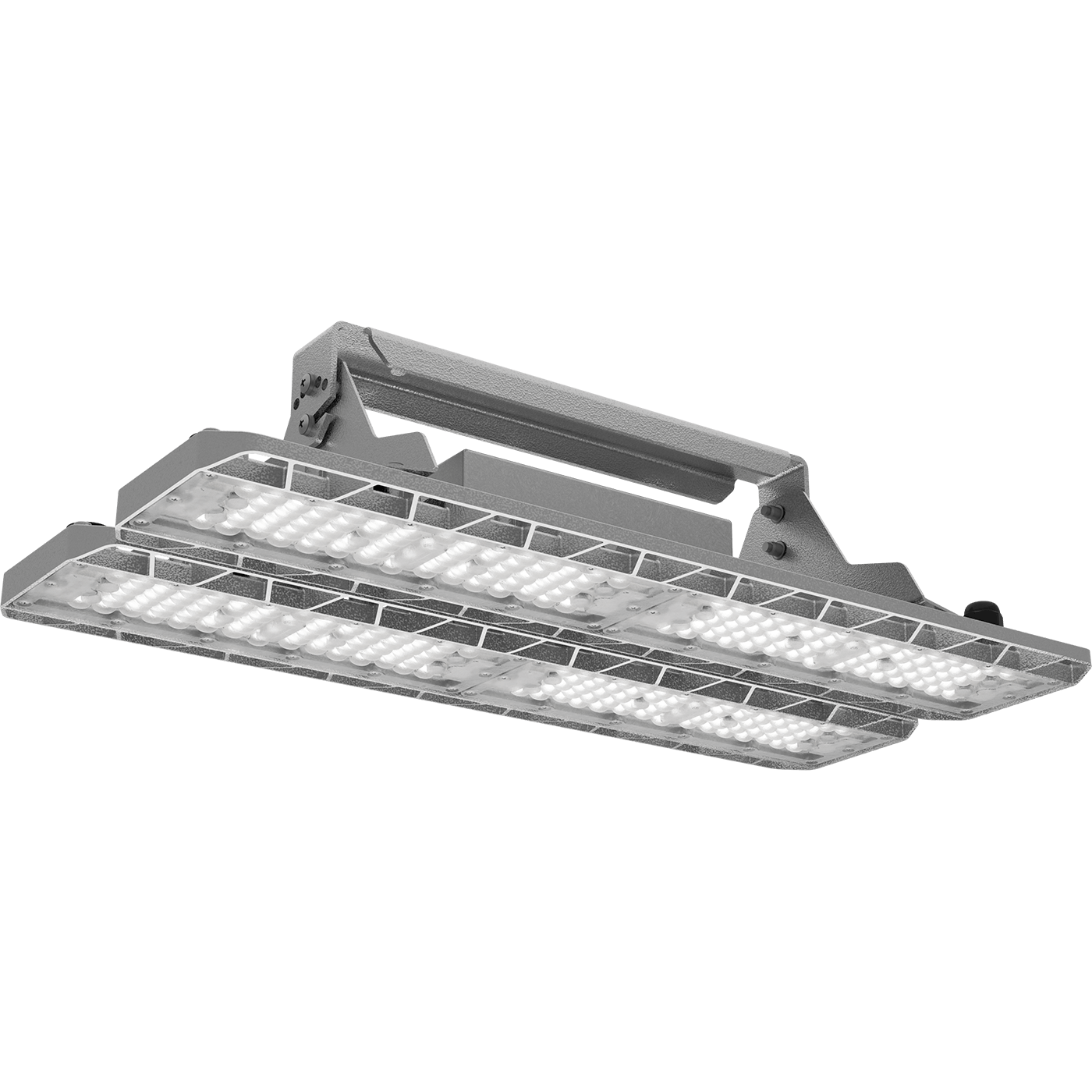

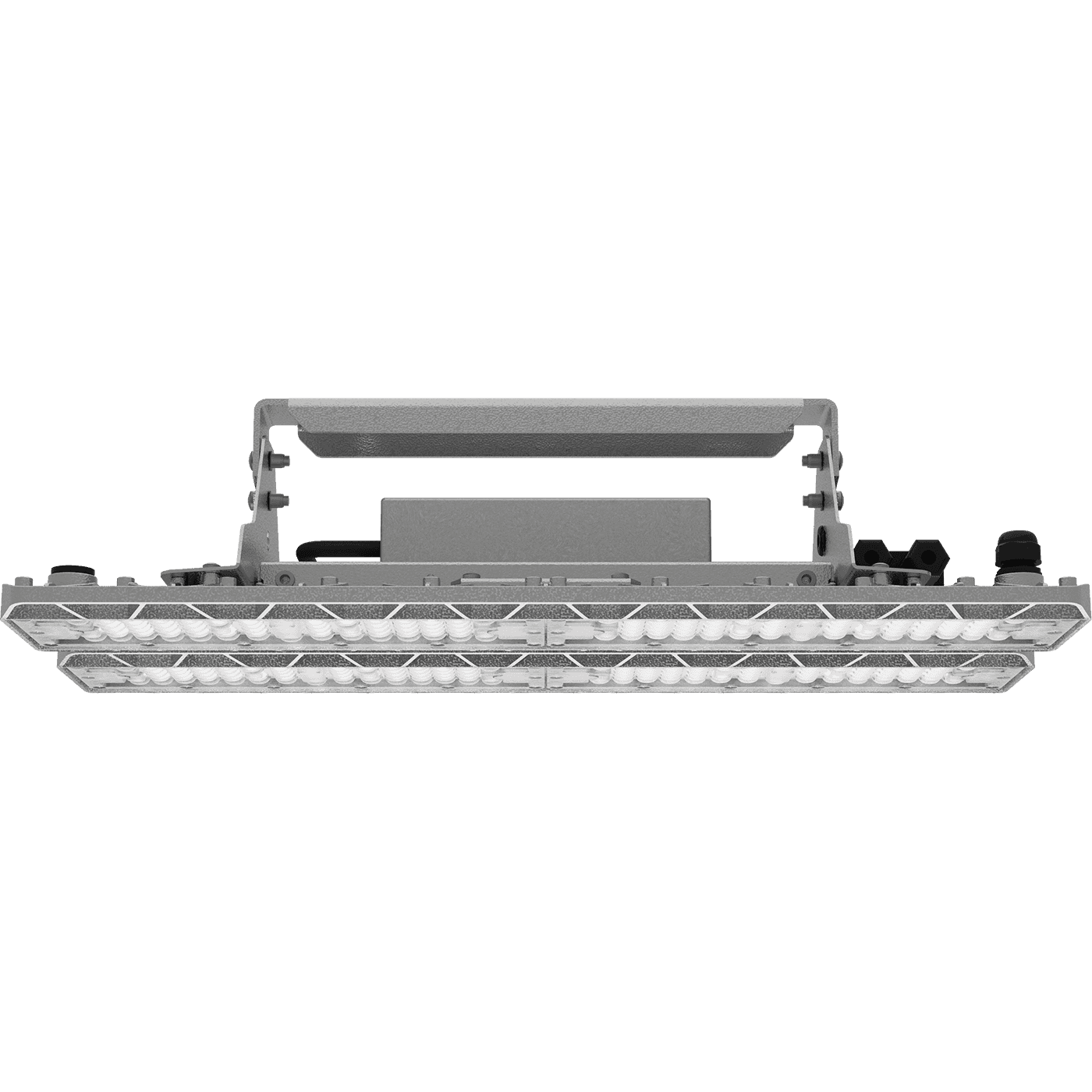

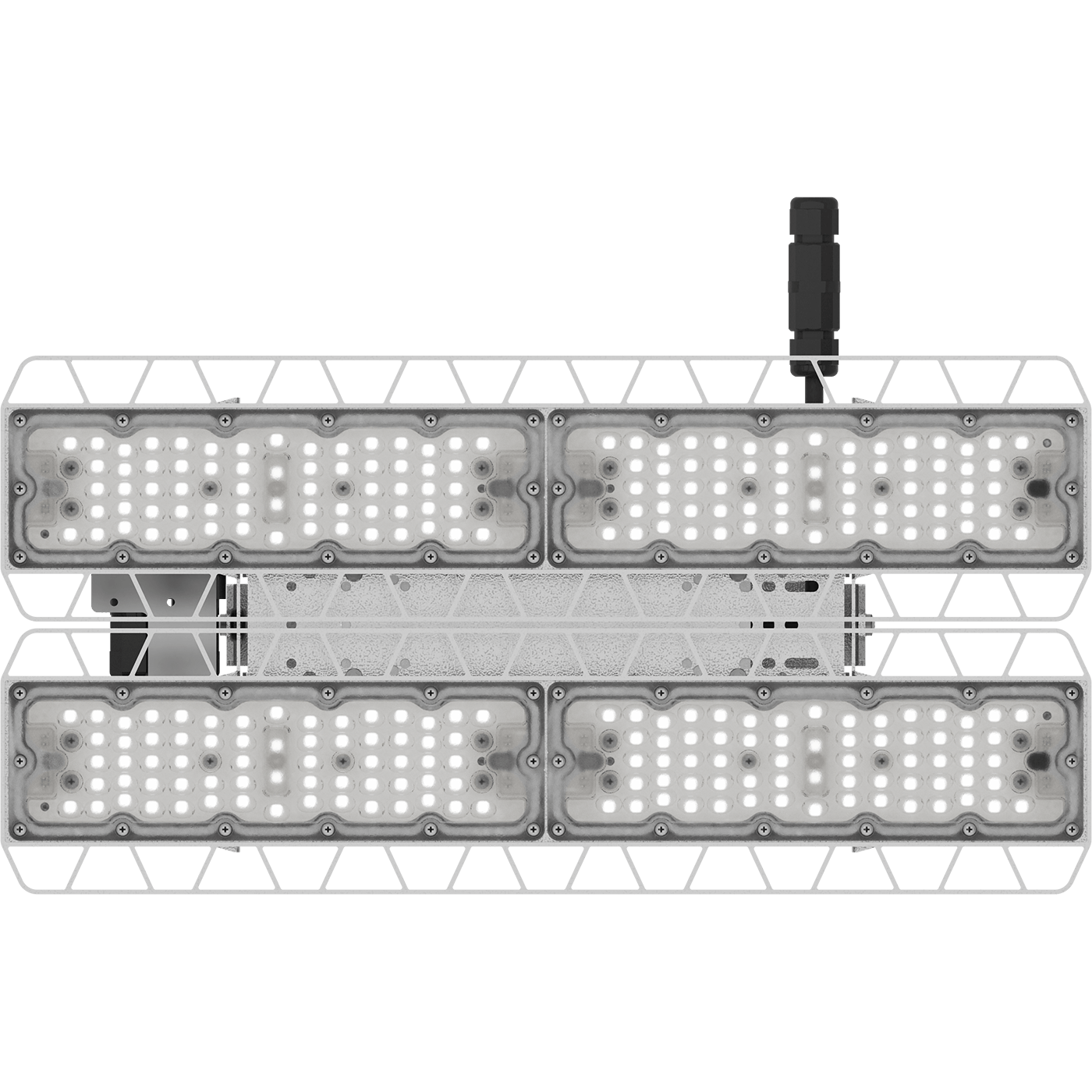

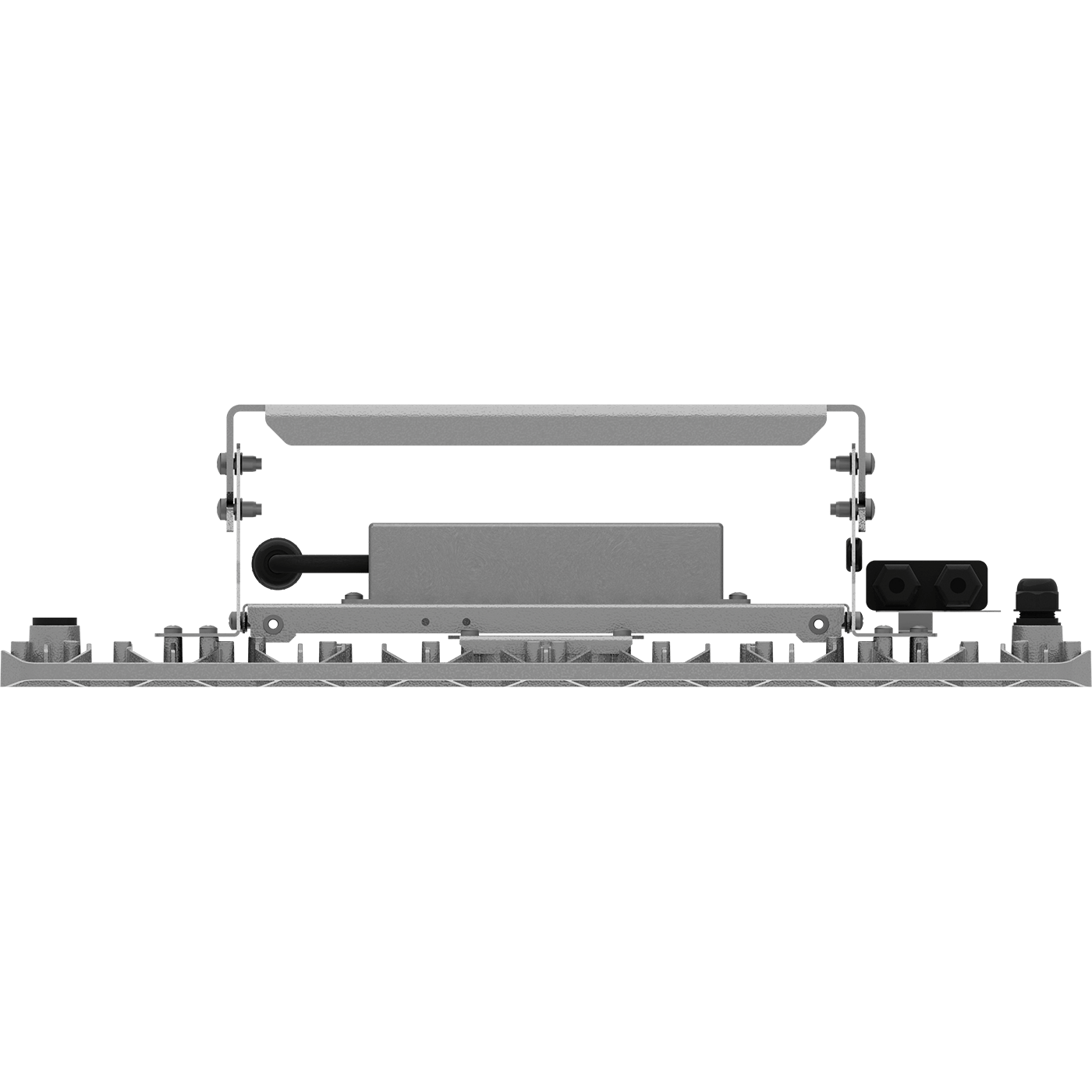

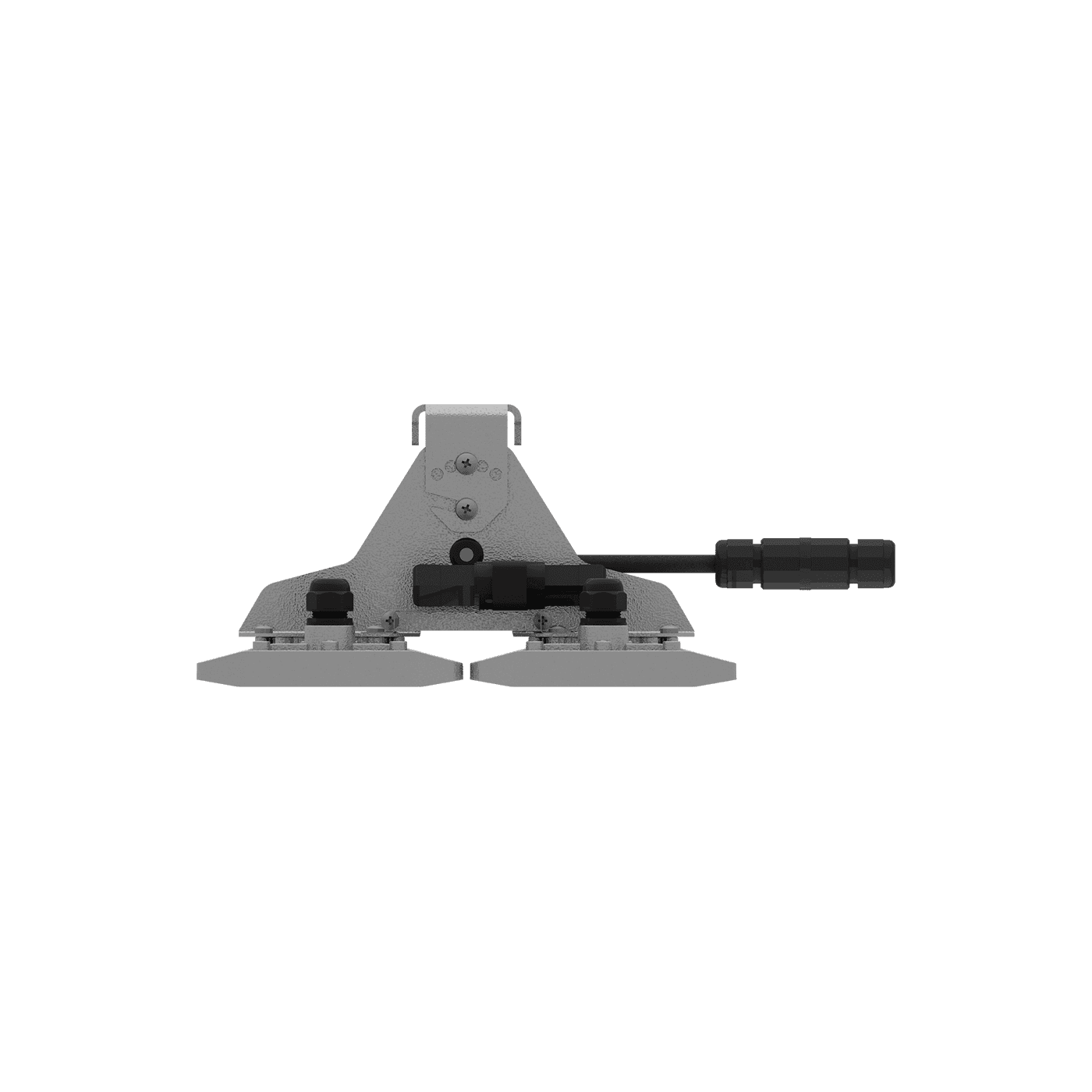

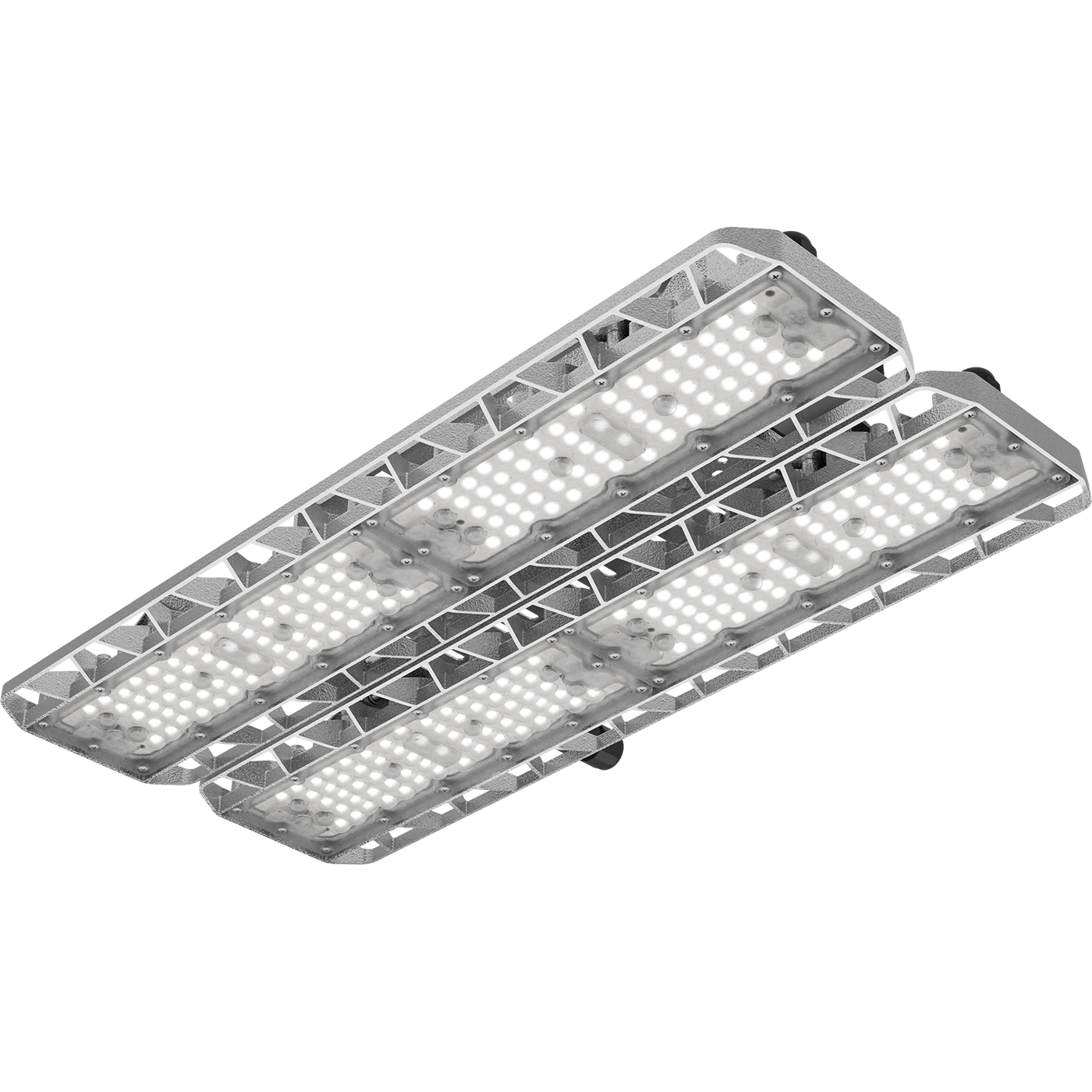

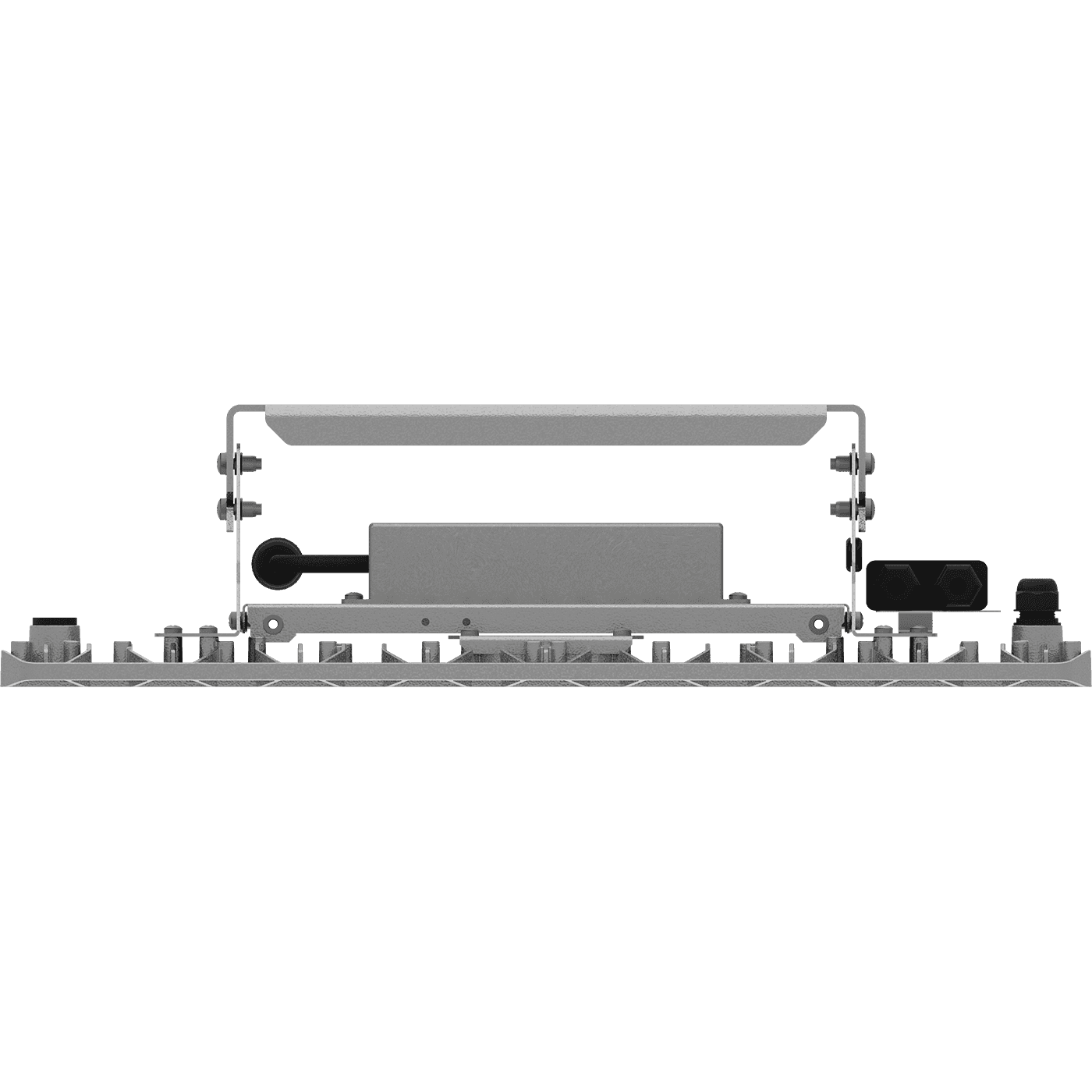

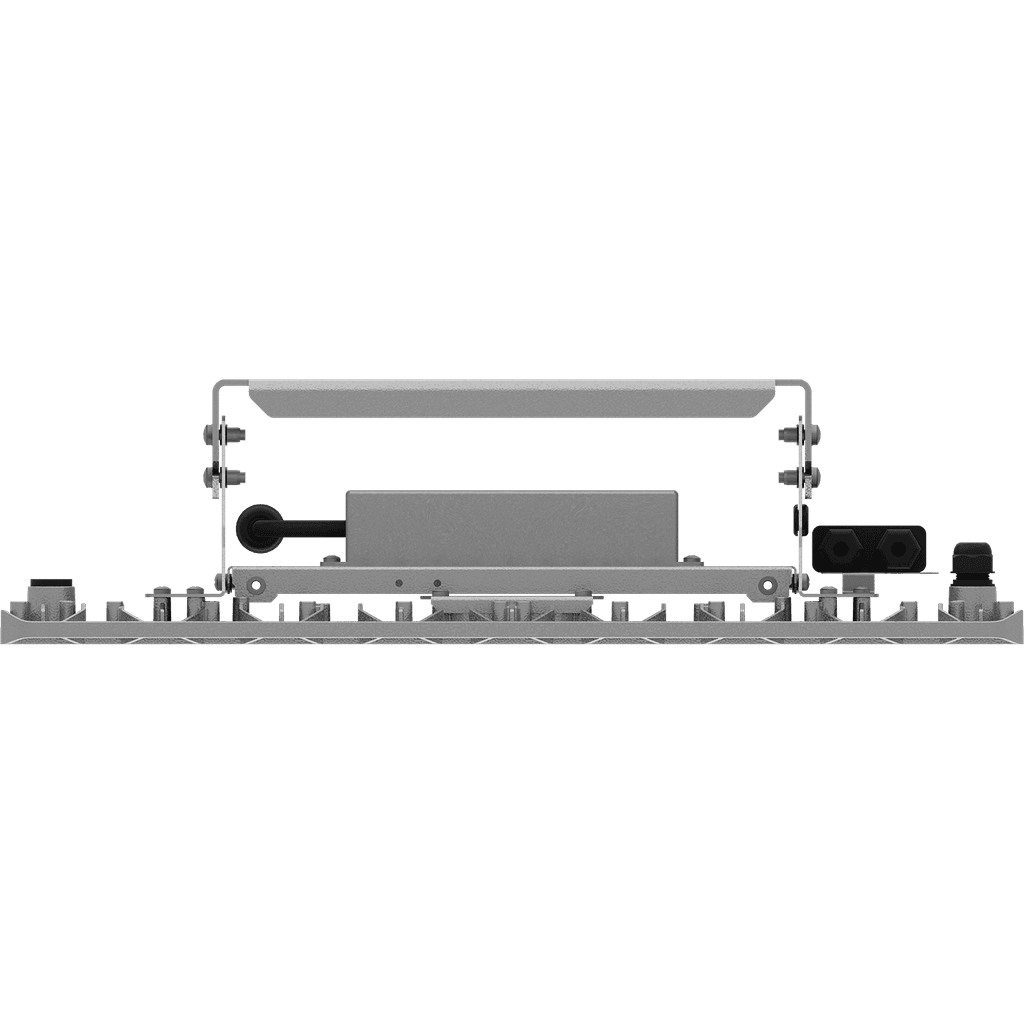

HB LED G3 100W D60 840 HG
HB LED G3 100W D60 840 HG
94 Wluminaire power
14800 lmlight flow
157 lm/Wenergy efficiency
code1224011140
color temperature4000
beam angleD60
weight3.61 kg
options
свернуть все
electricalilluminatingconstructionalcommon
supply voltage, alternating current
90-305 Vsupply voltage, direct current
128-431 Velectric shock protection
Istarting current
75 Astarting current pulse time, µs
375 mksluminaire power
94 Wrated supply voltage, alternating current
230 Vmaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,96supply voltage
230 Velectrical
supply voltage, alternating current
90-305 V
supply voltage, direct current
128-431 V
electric shock protection
I
starting current
75 A
starting current pulse time, µs
375 mks
luminaire power
94 W
rated supply voltage, alternating current
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
supply voltage
230 V
illuminating
color rendition index (CRI)
>80
light flow
14800 lm
flickering factor
<1%
energy efficiency
157 lm/W

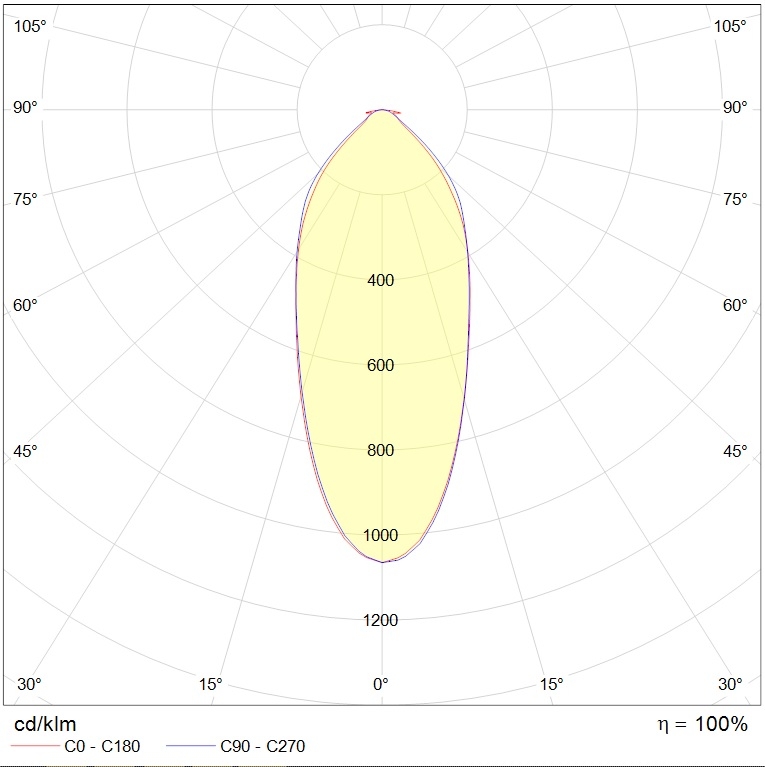

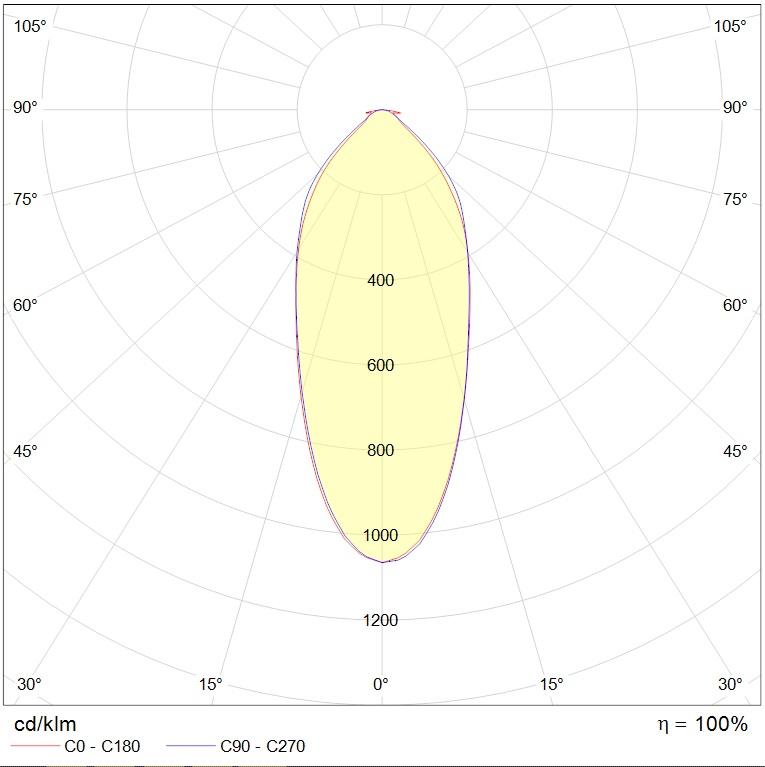

beam angle
D60
color temperature
4000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP66
material
Алюминий
housing color
Металлик
length, mm
480 mm
width, mm
237 mm
height, mm
124 mm
weight
3.61 kg
climatic performance
УХЛ1*
shock resistance (IK)
IK05/0,7 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +55 C
energy efficiency class
A++
service life, hour
50 000 h
code
1224011140
model files
model files
photometric files
сертификаты
photometric files
ies107 kB
jpg84 kB
ldt62 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
