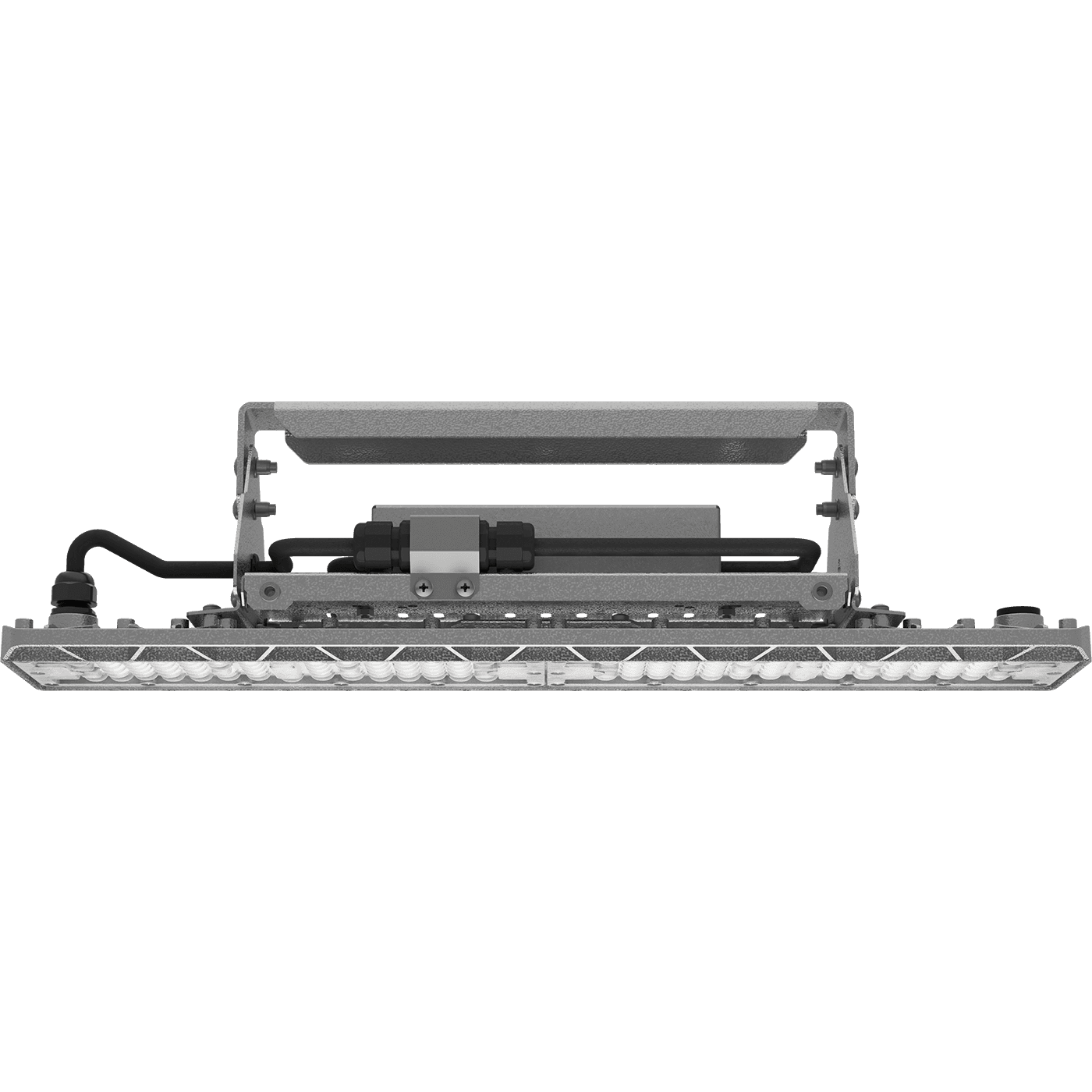

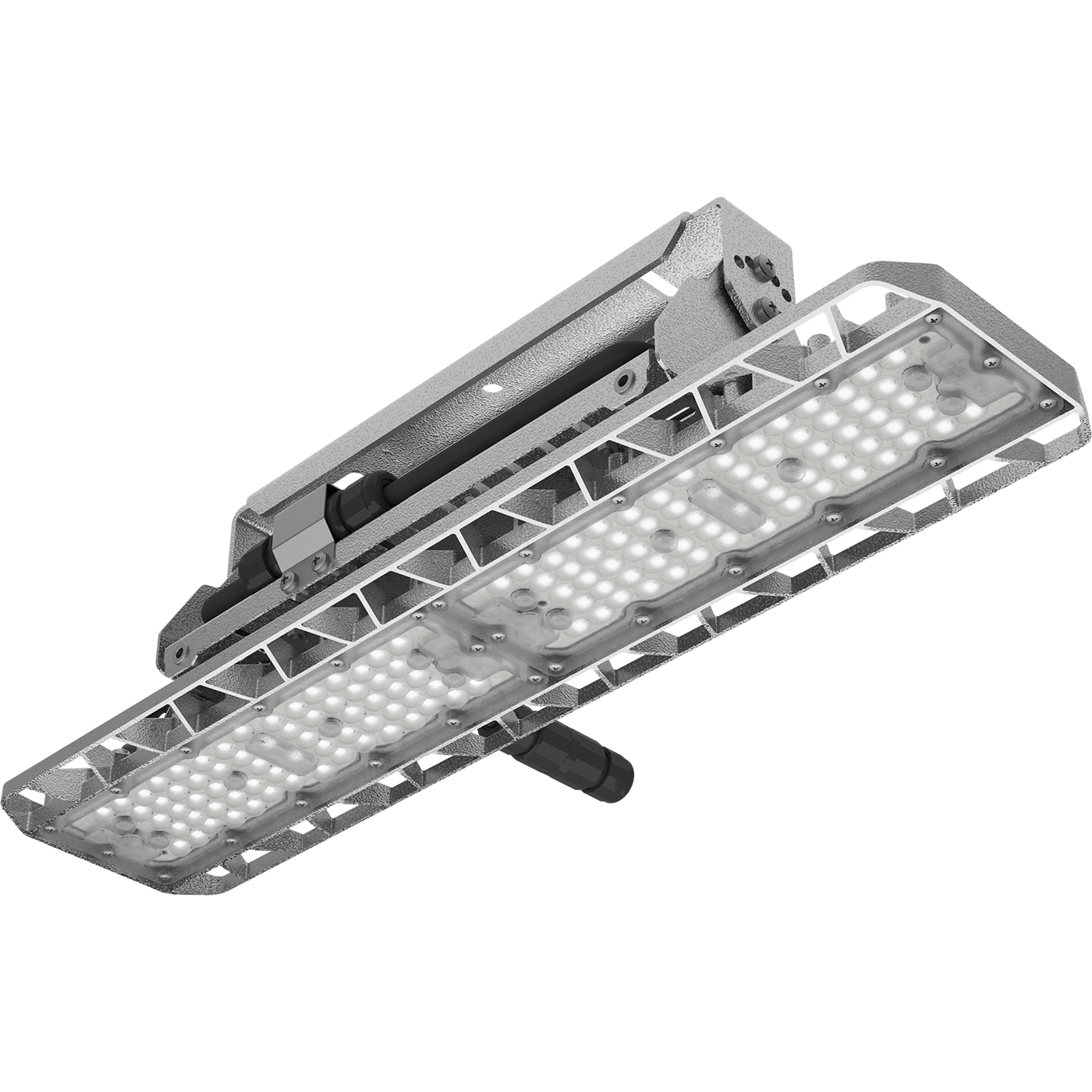

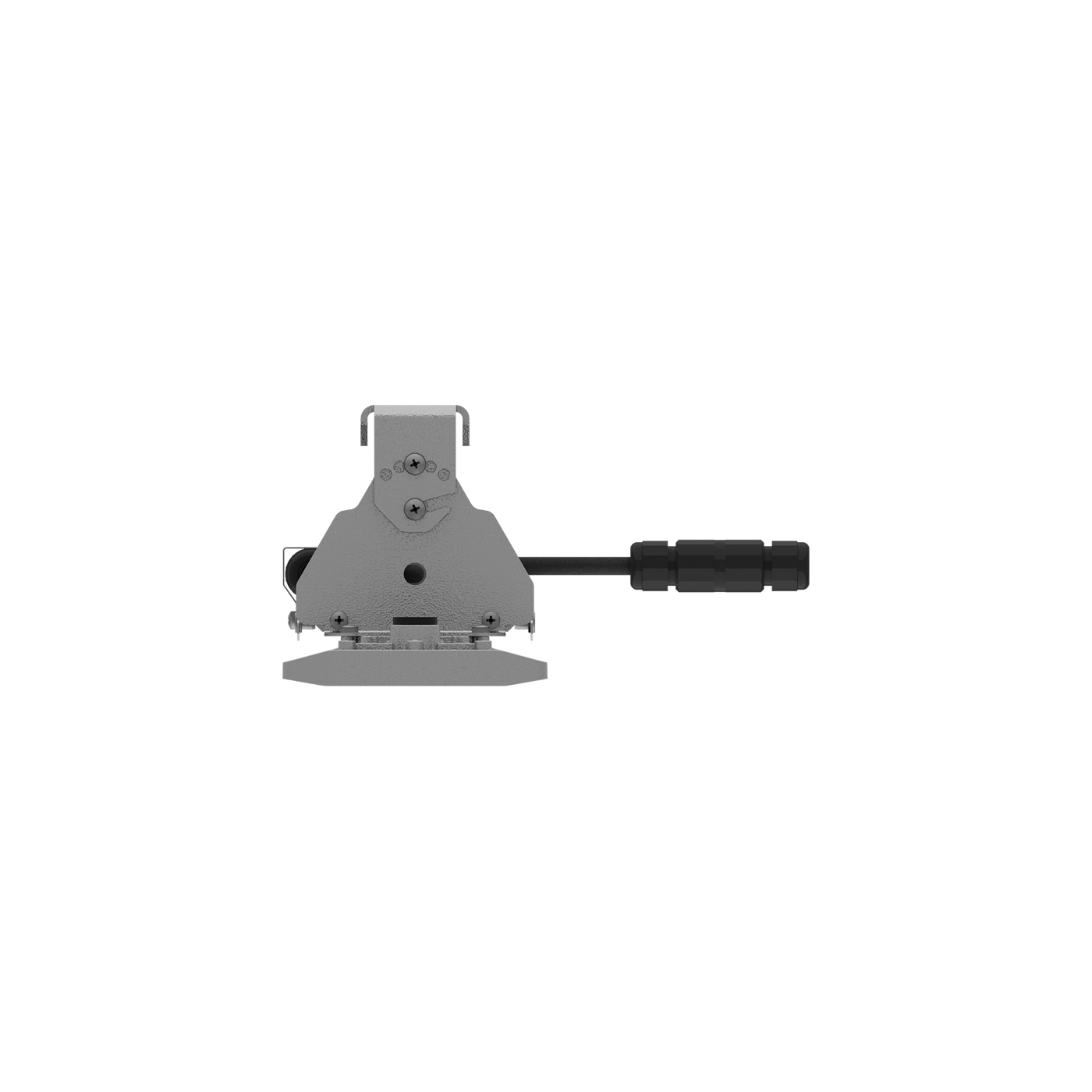

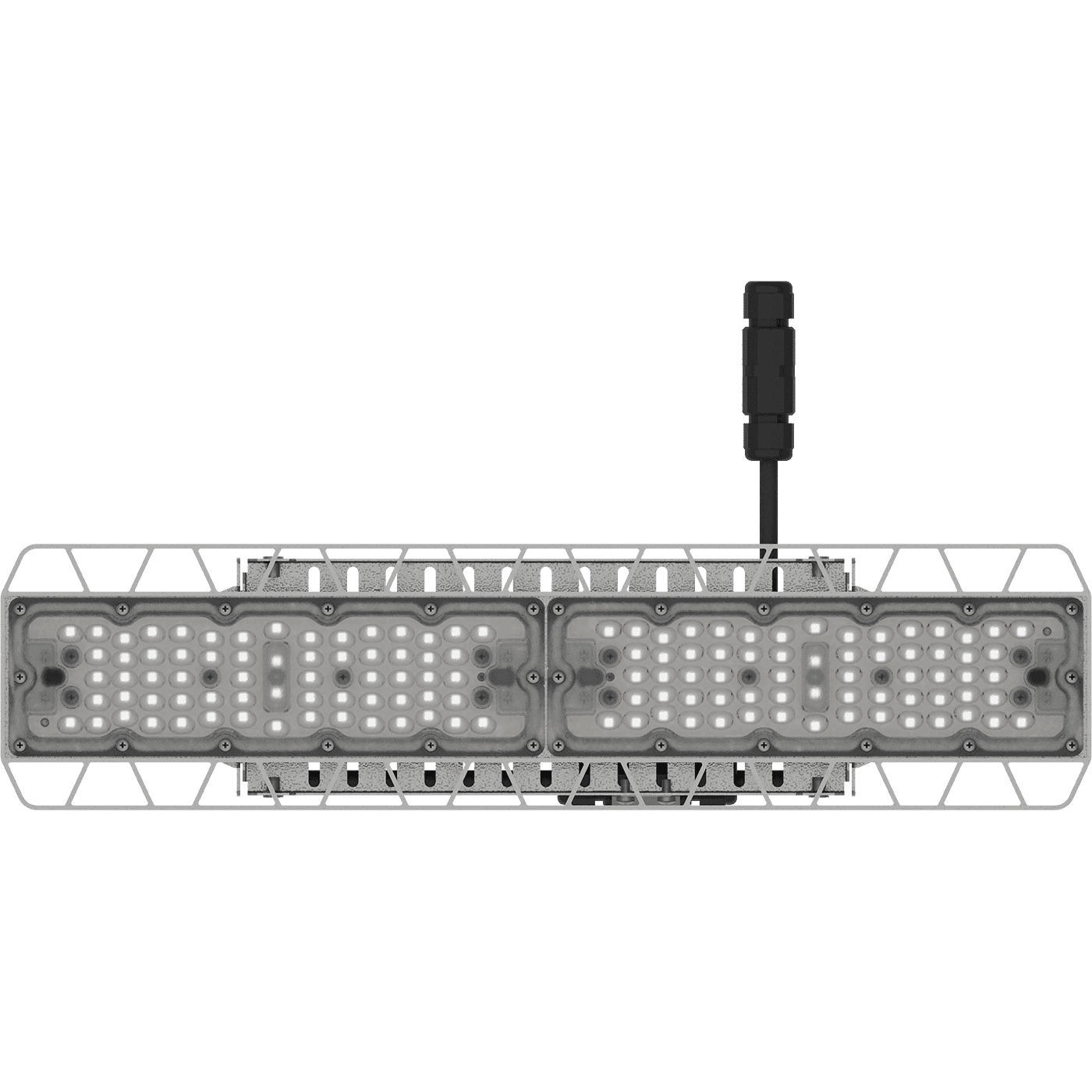

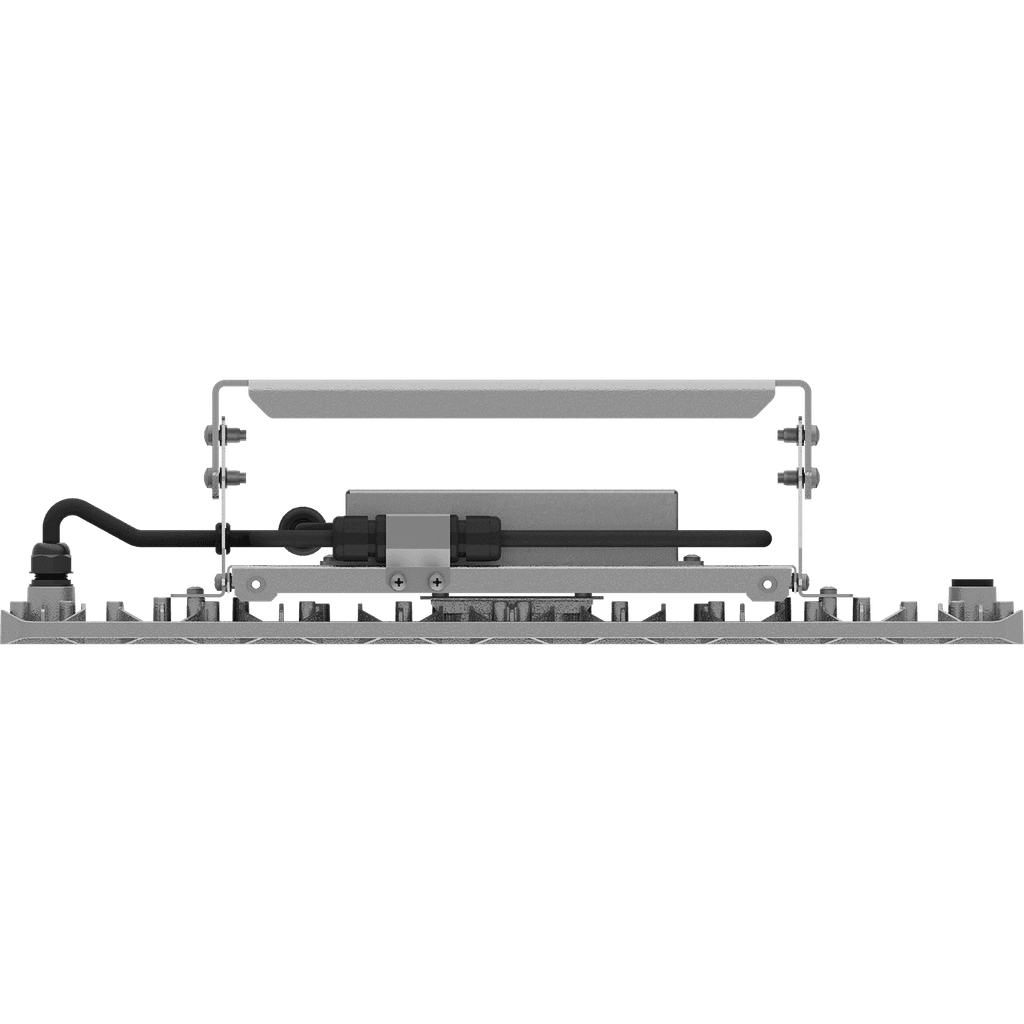

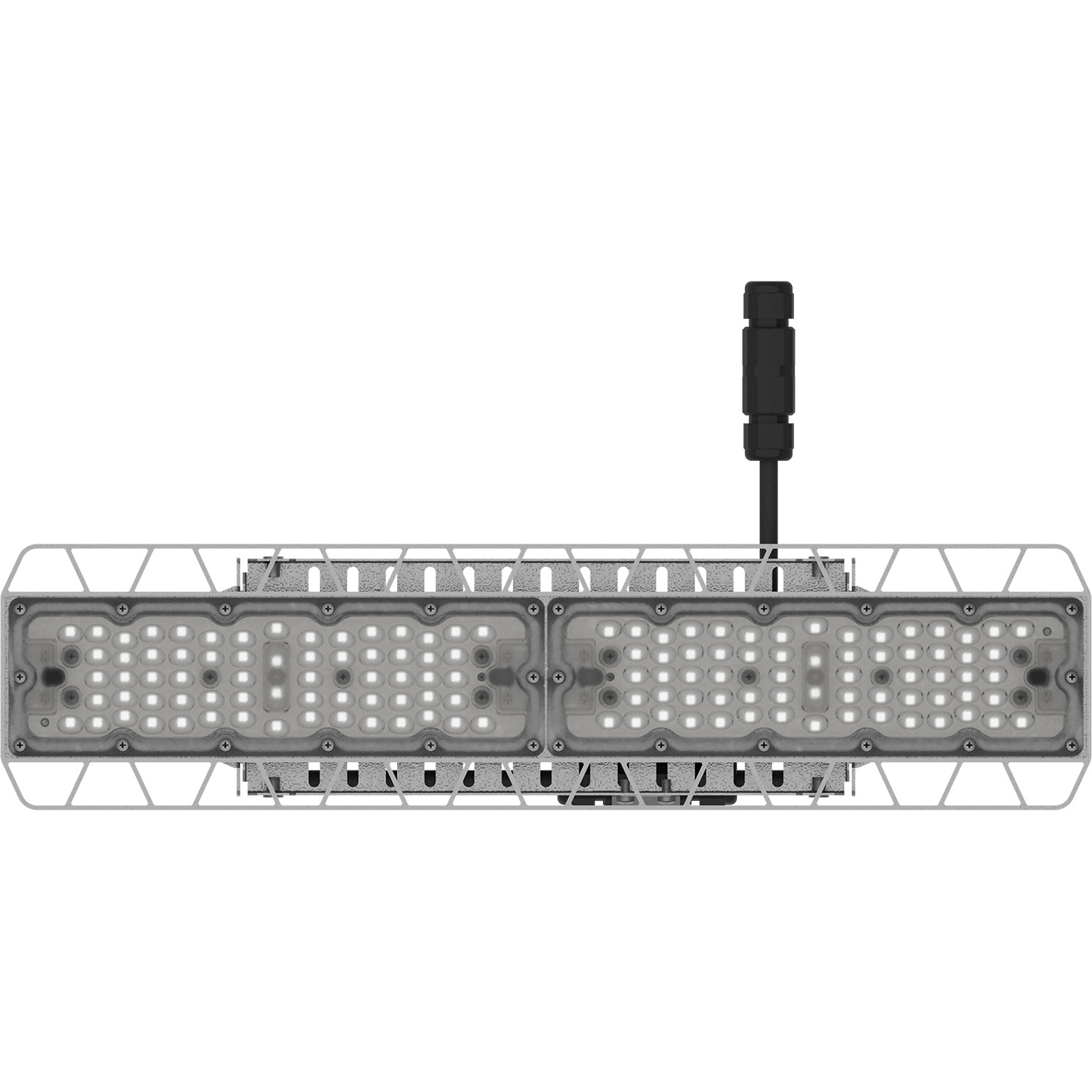

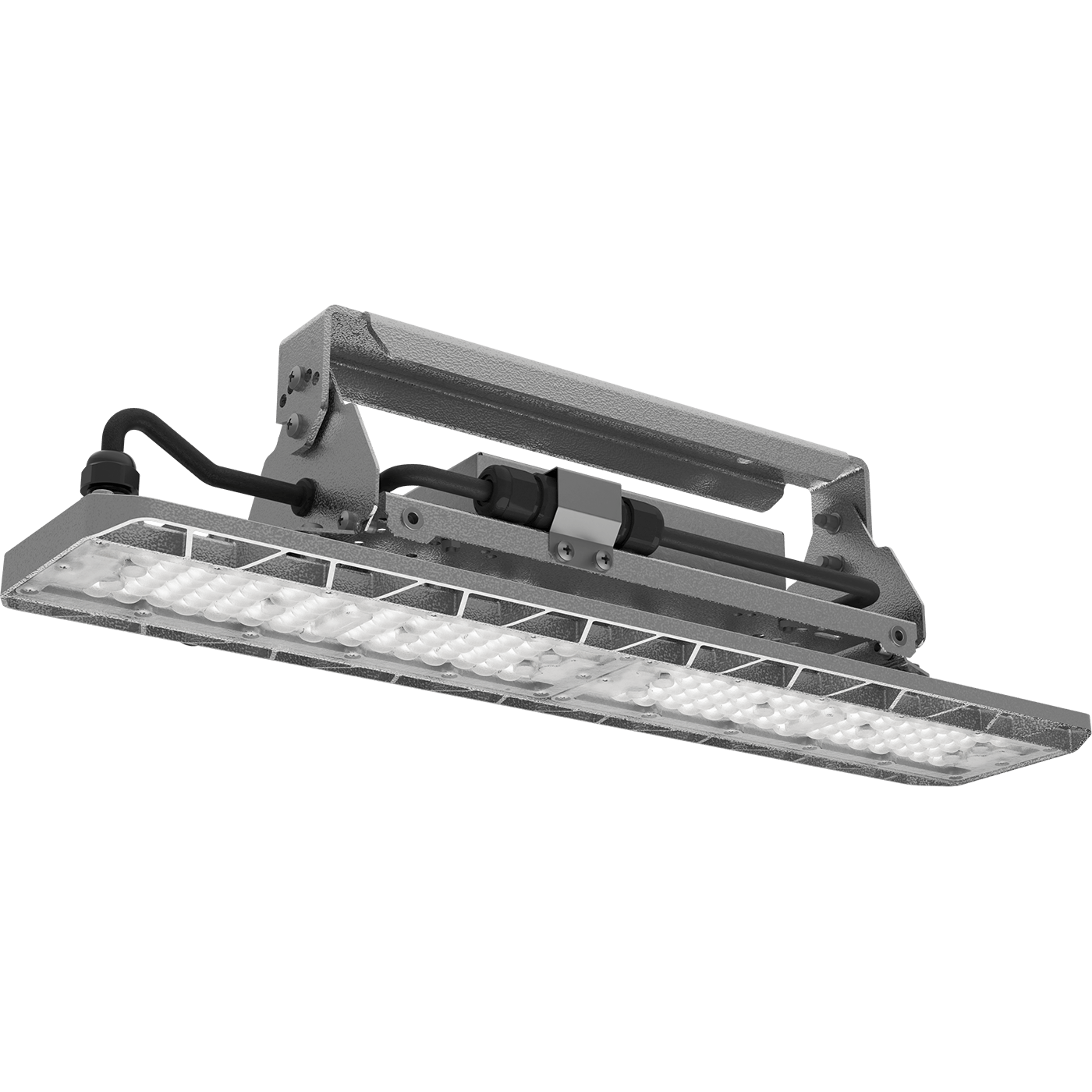

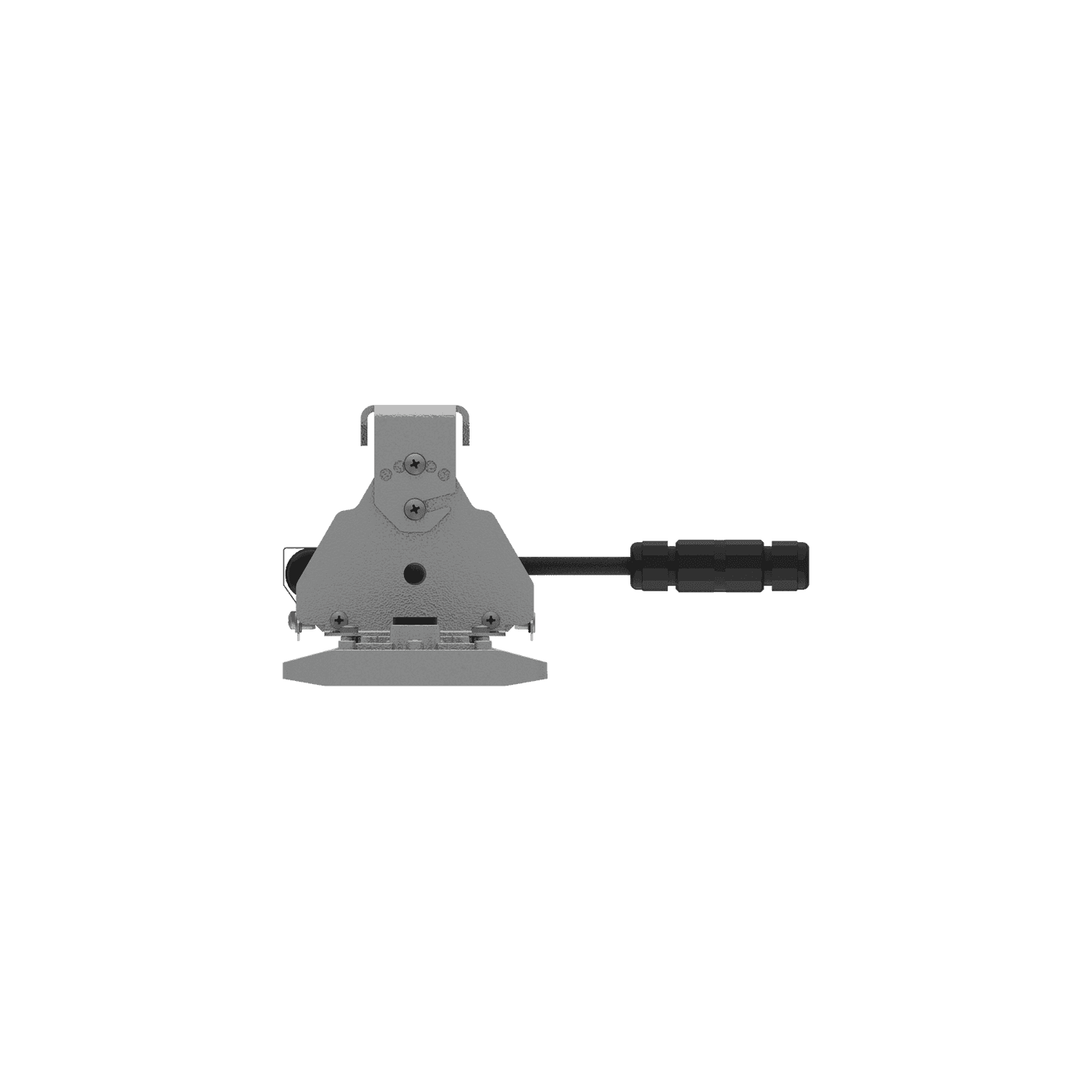

HB LED 50 D90 5000K G3
HB LED 50 D90 5000K G3
48 Wluminaire power
7600 lmlight flow
158 lm/Wenergy efficiency
code1224006800
color temperature5000 K

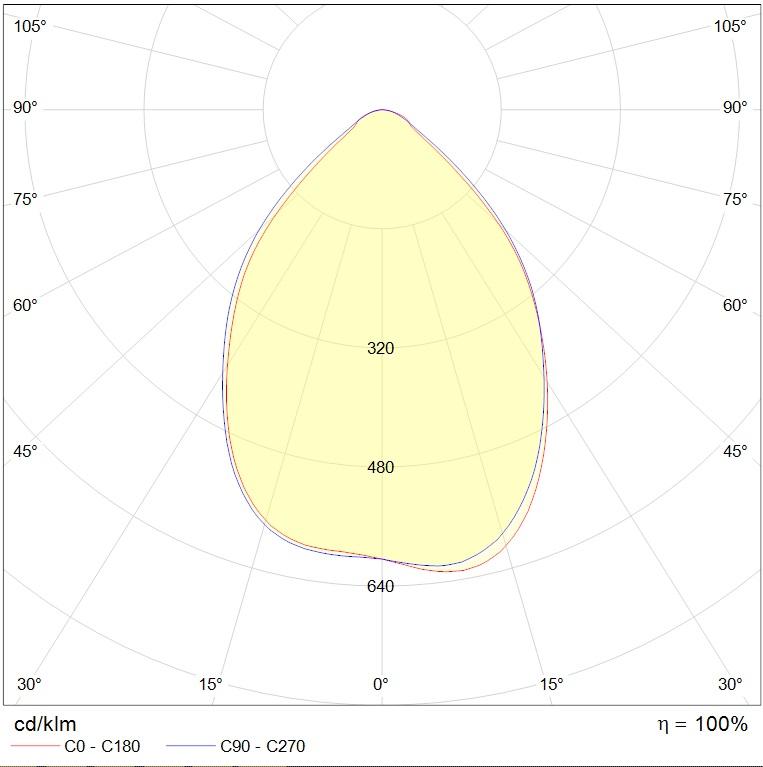

beam angleD90
weight2.9 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
7600 lmflickering factor
<1%energy efficiency
158 lm/Wbeam angle
D90color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
7600 lm
flickering factor
<1%
energy efficiency
158 lm/W
beam angle
D90
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
48 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A
supply voltage
230 V
starting current pulse time
300 µs
constructional
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ1*
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66
weight
2.9 kg
length
480 mm
width
117 mm
height
124 mm
installation length
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +55 C
code
1224006800
model files
model files
photometric files
documents
сертификаты
photometric files
ies107 kB
jpg80.1 kB
ldt64.7 kB
documents
passport2.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
