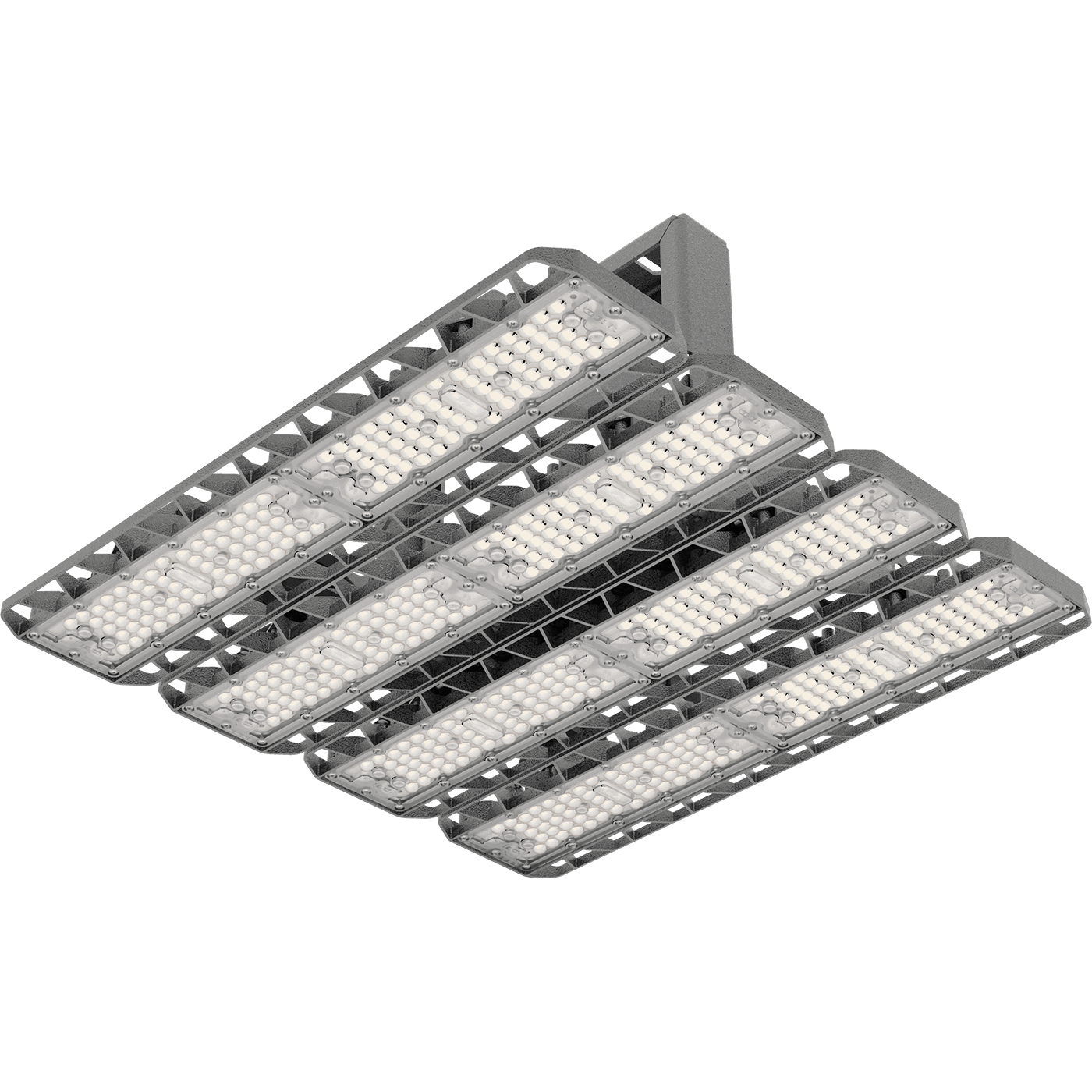

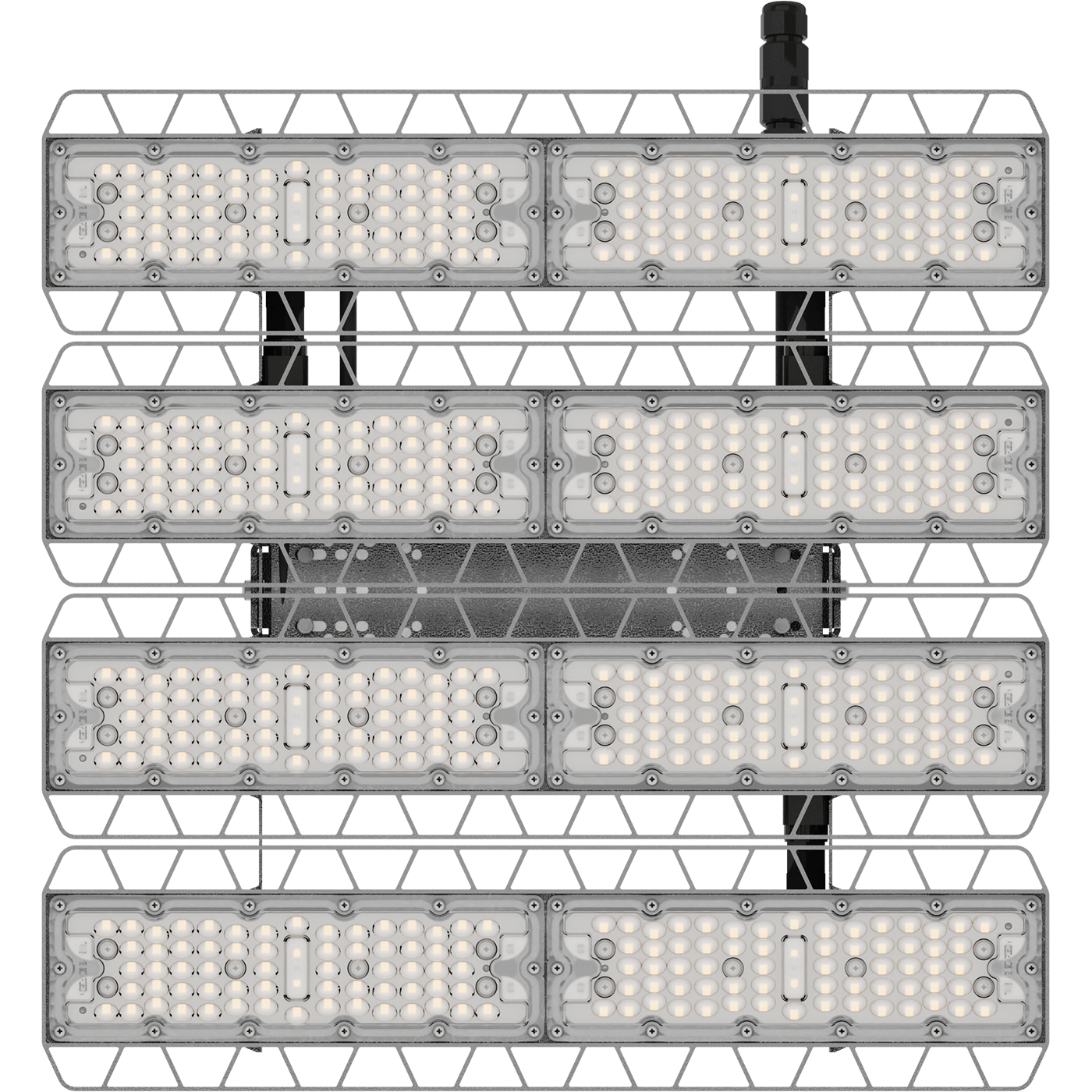

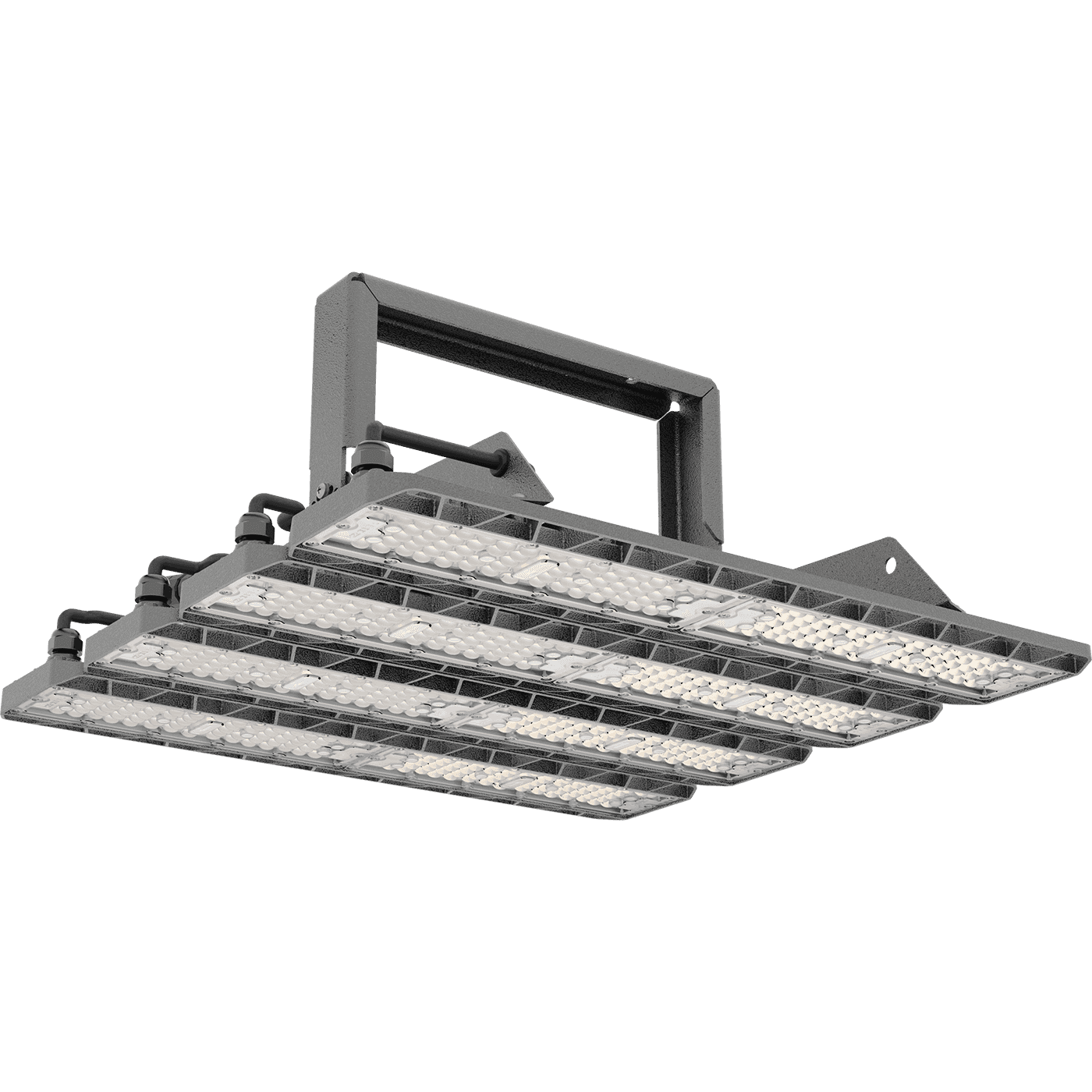

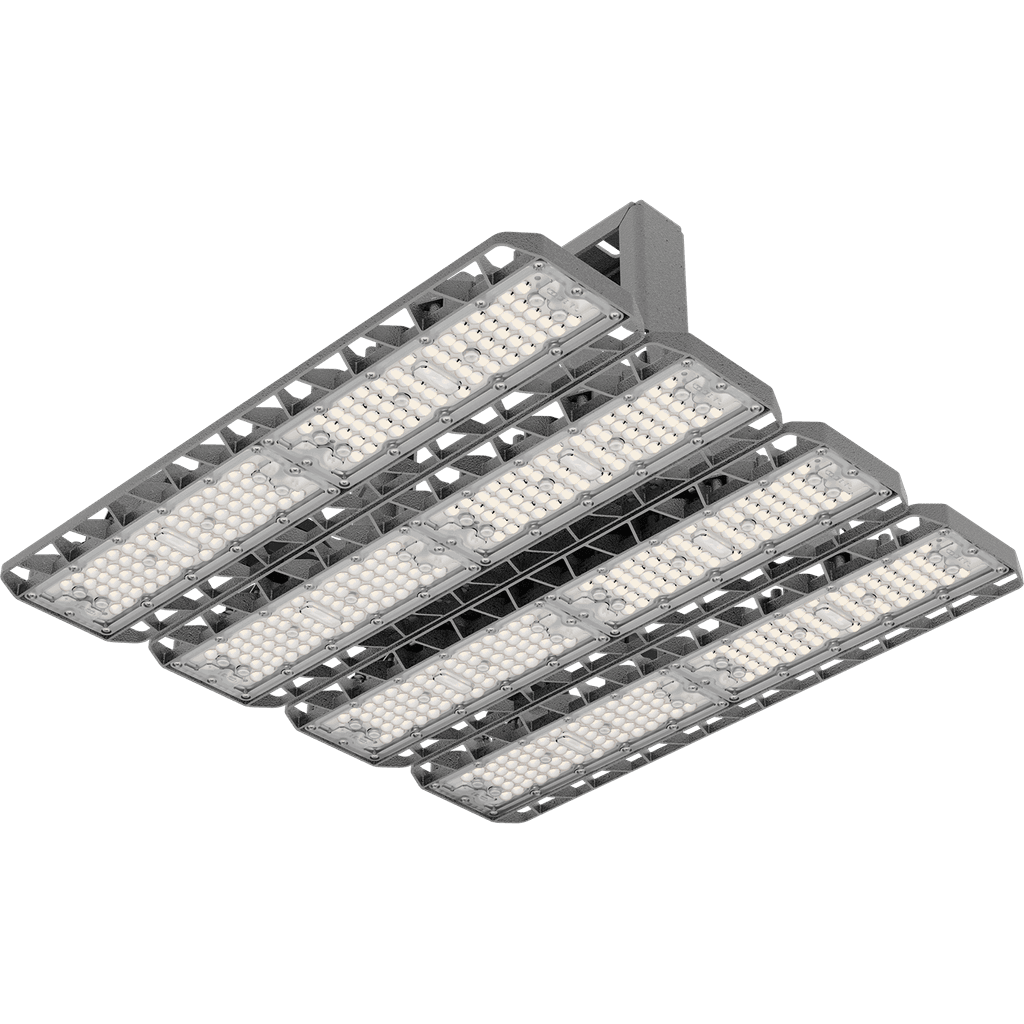

HB LED 250 D60 HFD 5000K G3
HB LED 250 D60 HFD 5000K G3
230 Wluminaire power
35400 lmlight flow
154 lm/Wenergy efficiency
code1224008460
color temperature5000
beam angleD60
weight6.71 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
45 Astarting current pulse time, µs
1200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
230 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
45 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
230 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
material
Алюминий
weight
6.71 kg
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
480 mm
width, mm
477 mm
height, mm
233 mm
shock resistance (IK)
IK05/0,7 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1224008460
illuminating
light flow
35400 lm
flickering factor
<1%
energy efficiency
154 lm/W
beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
LMS options
dimming
DALI
model files
model files

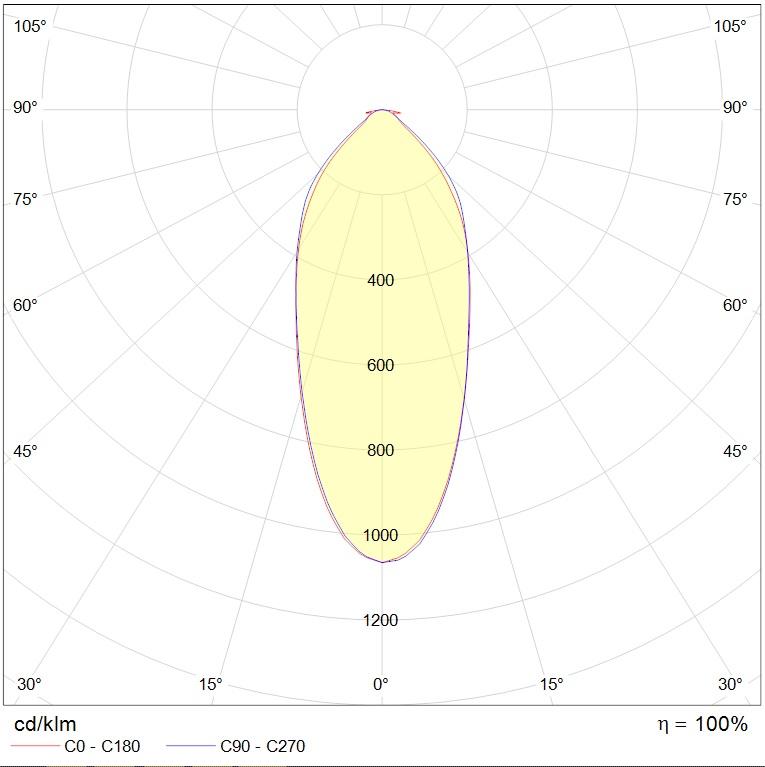

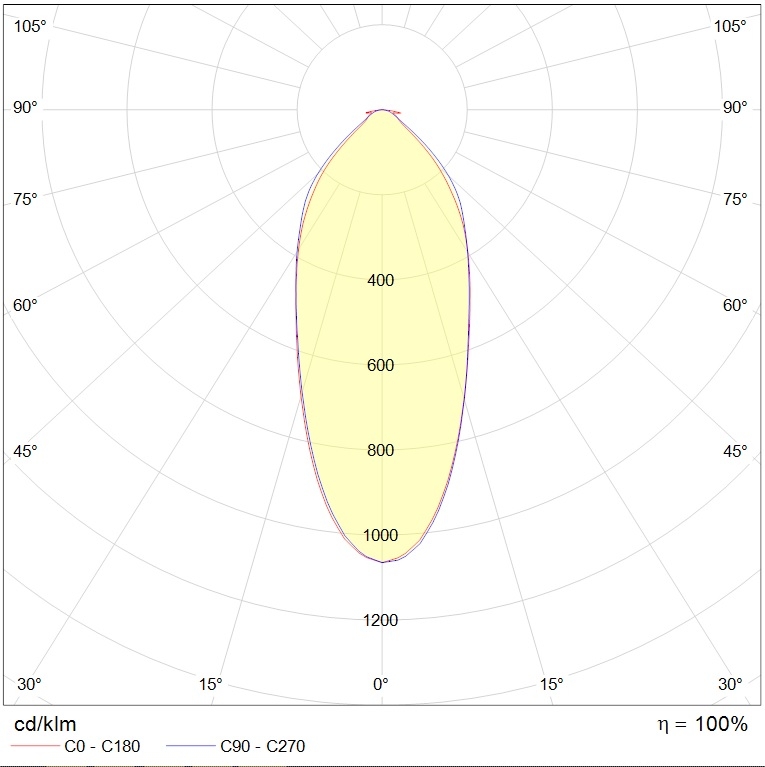

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg84 kB
ldt62 kB
documents
passport2.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
