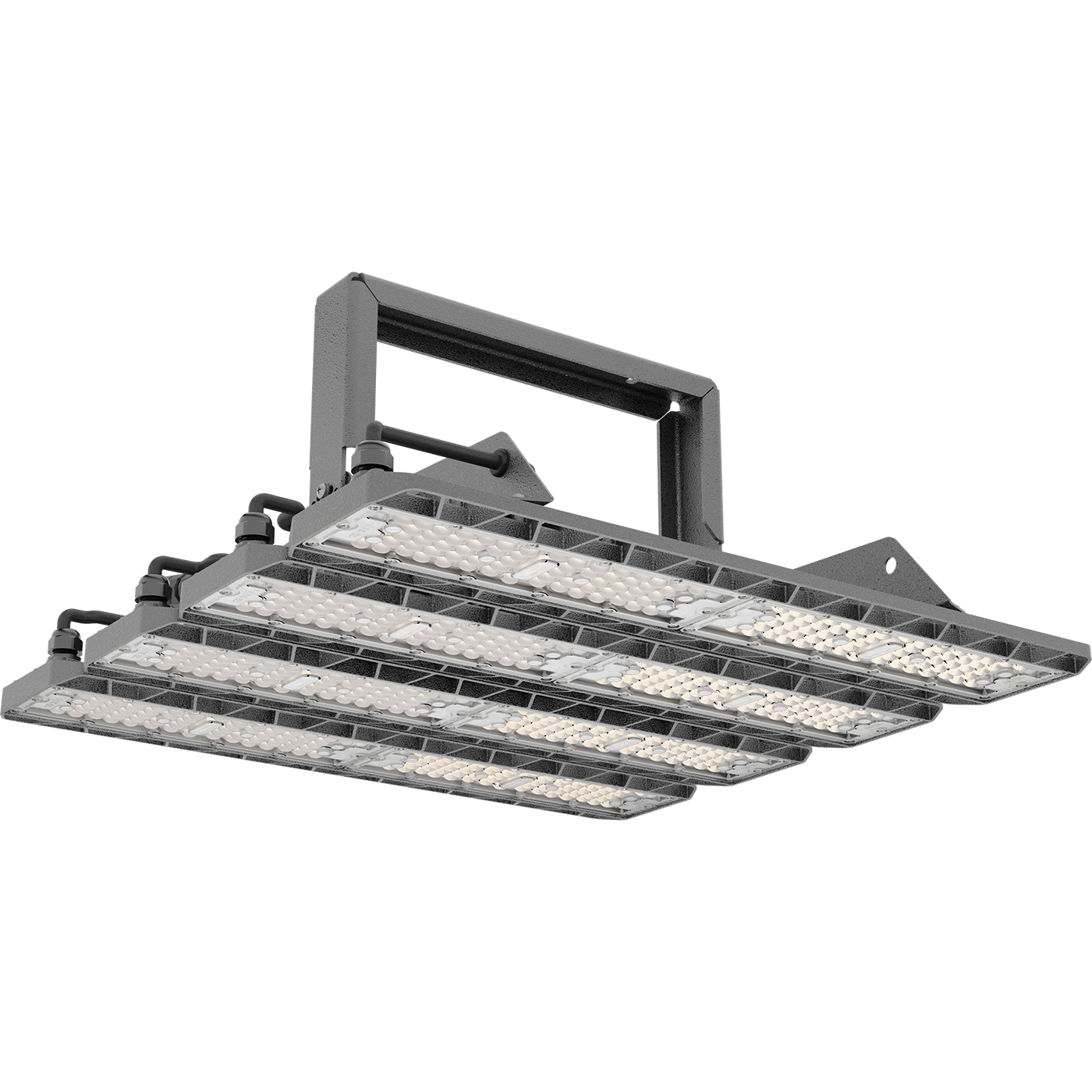

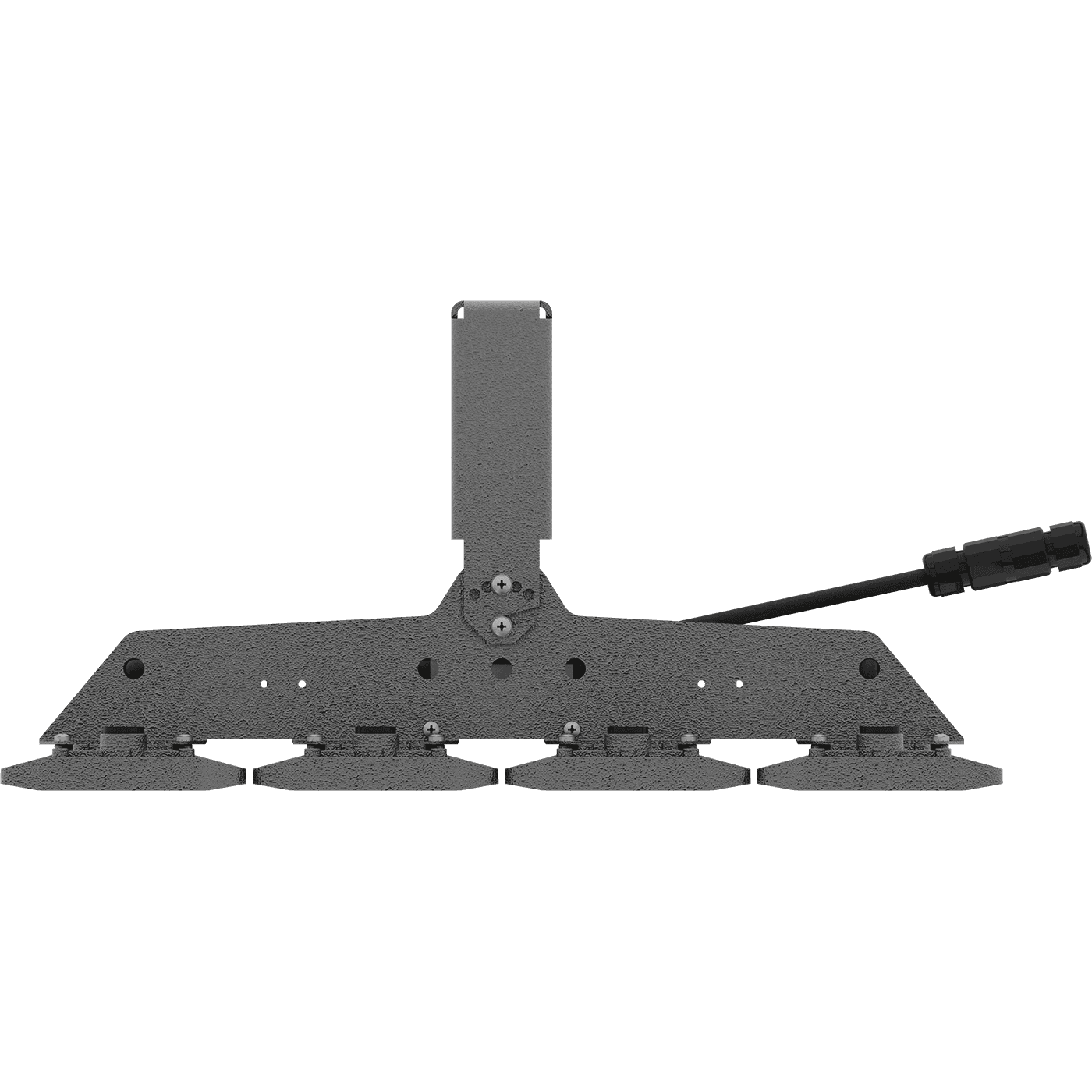

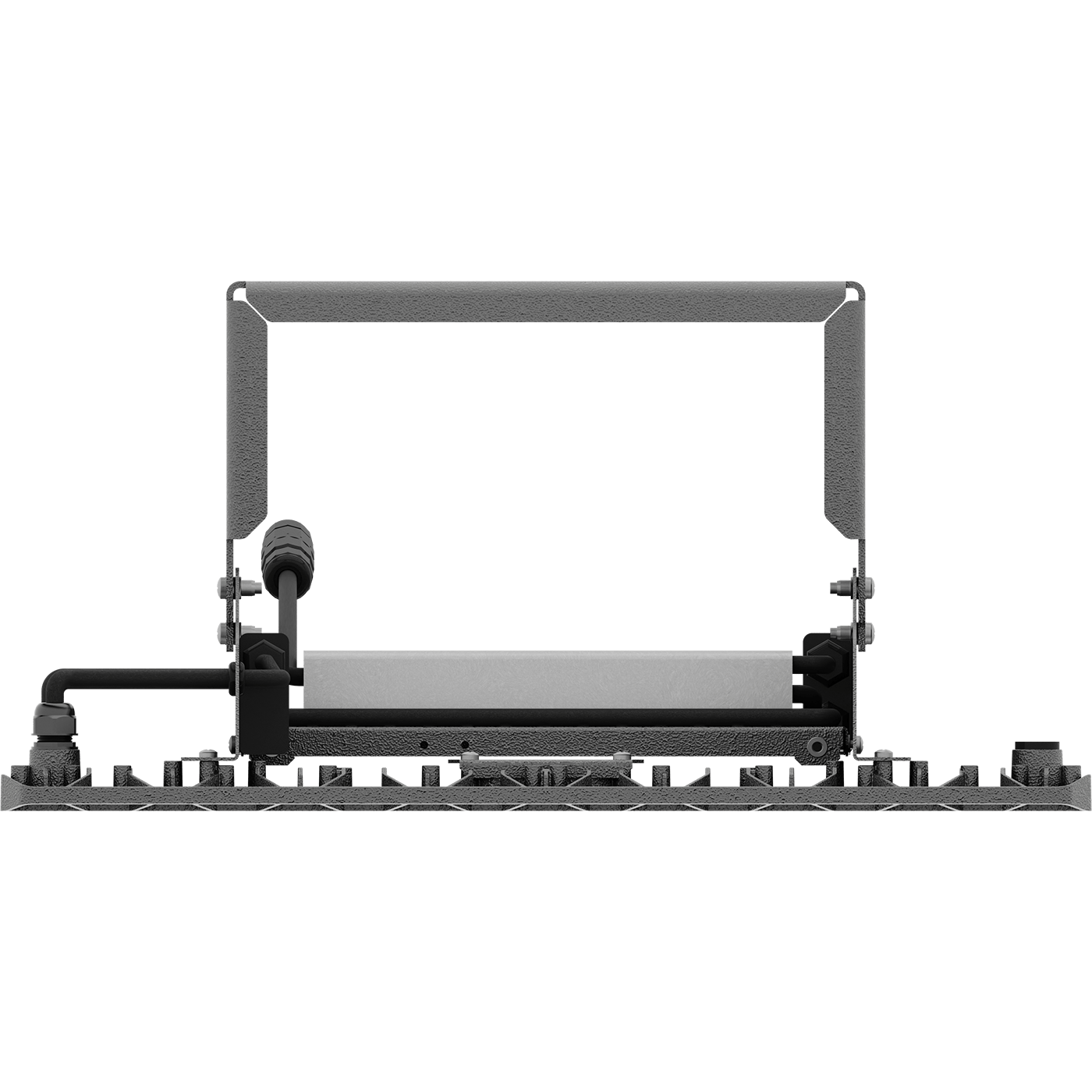

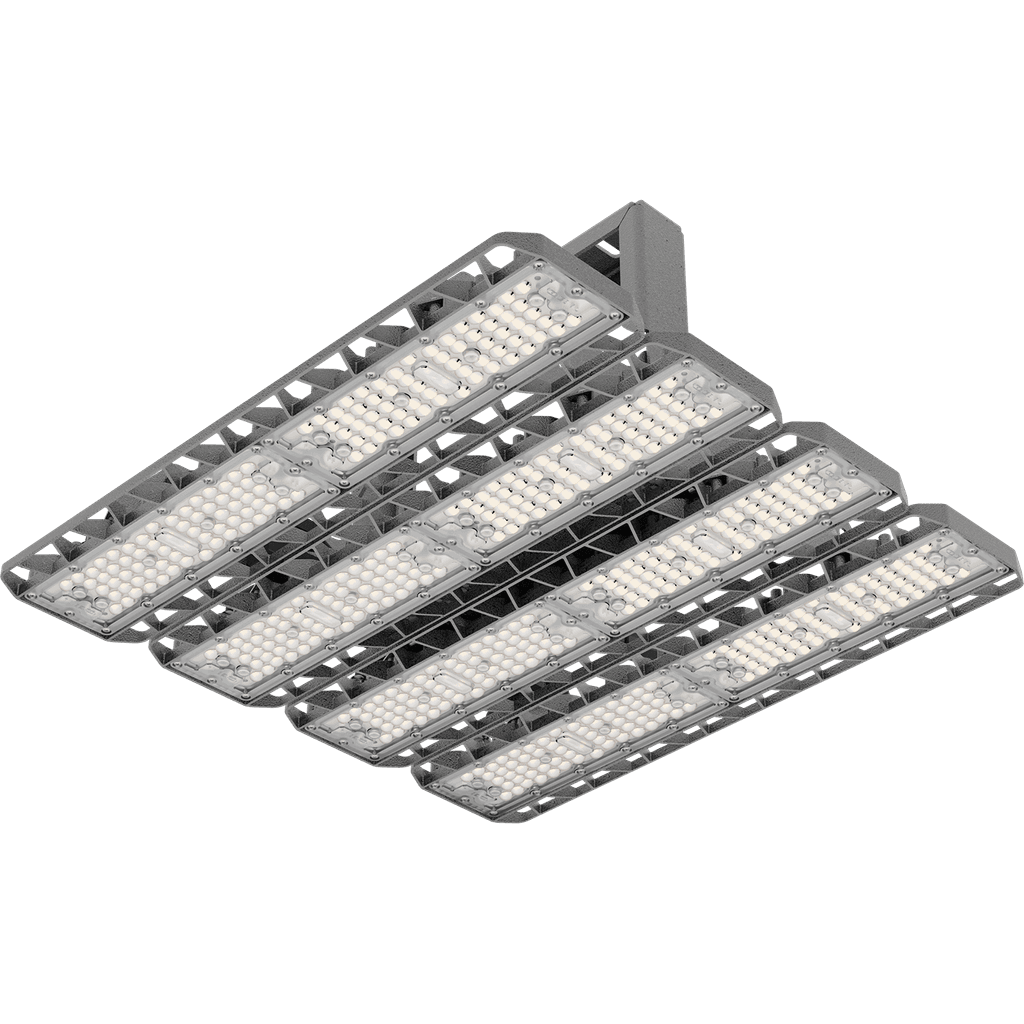

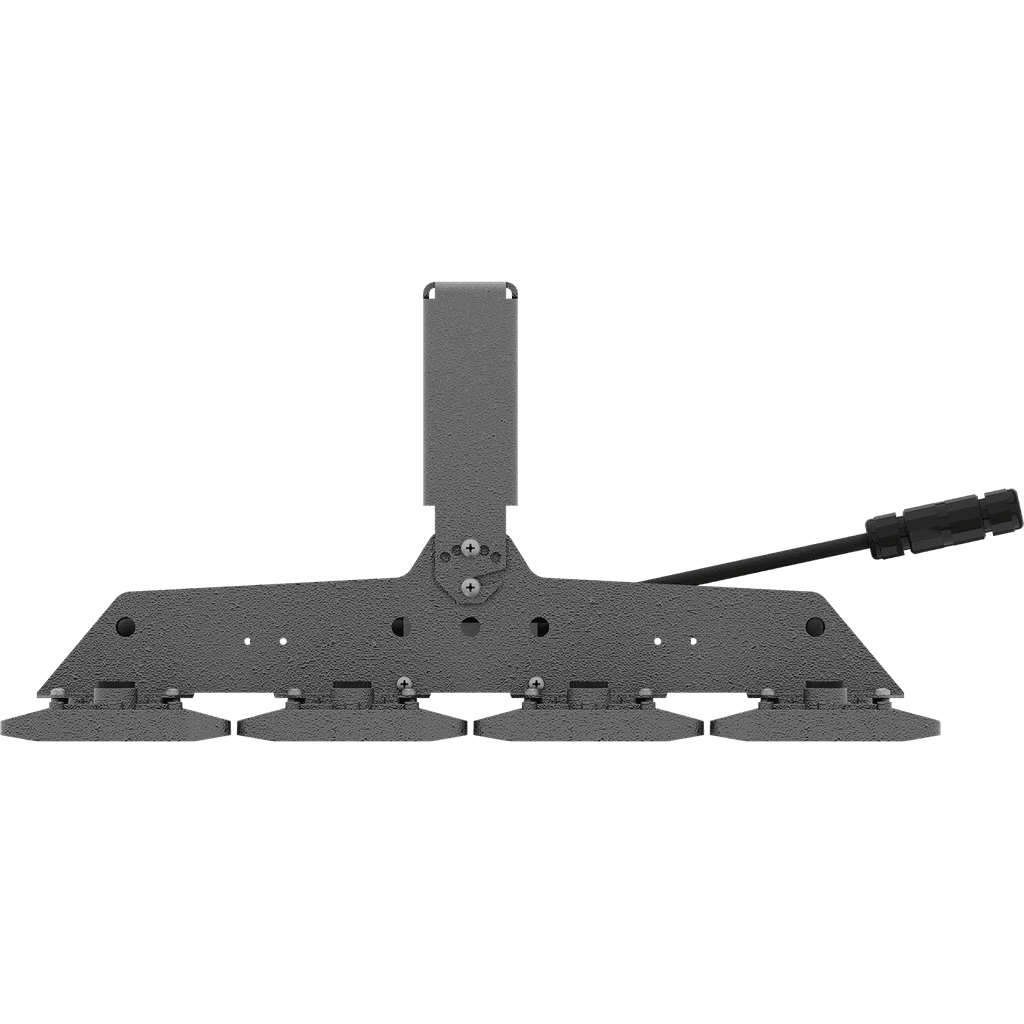

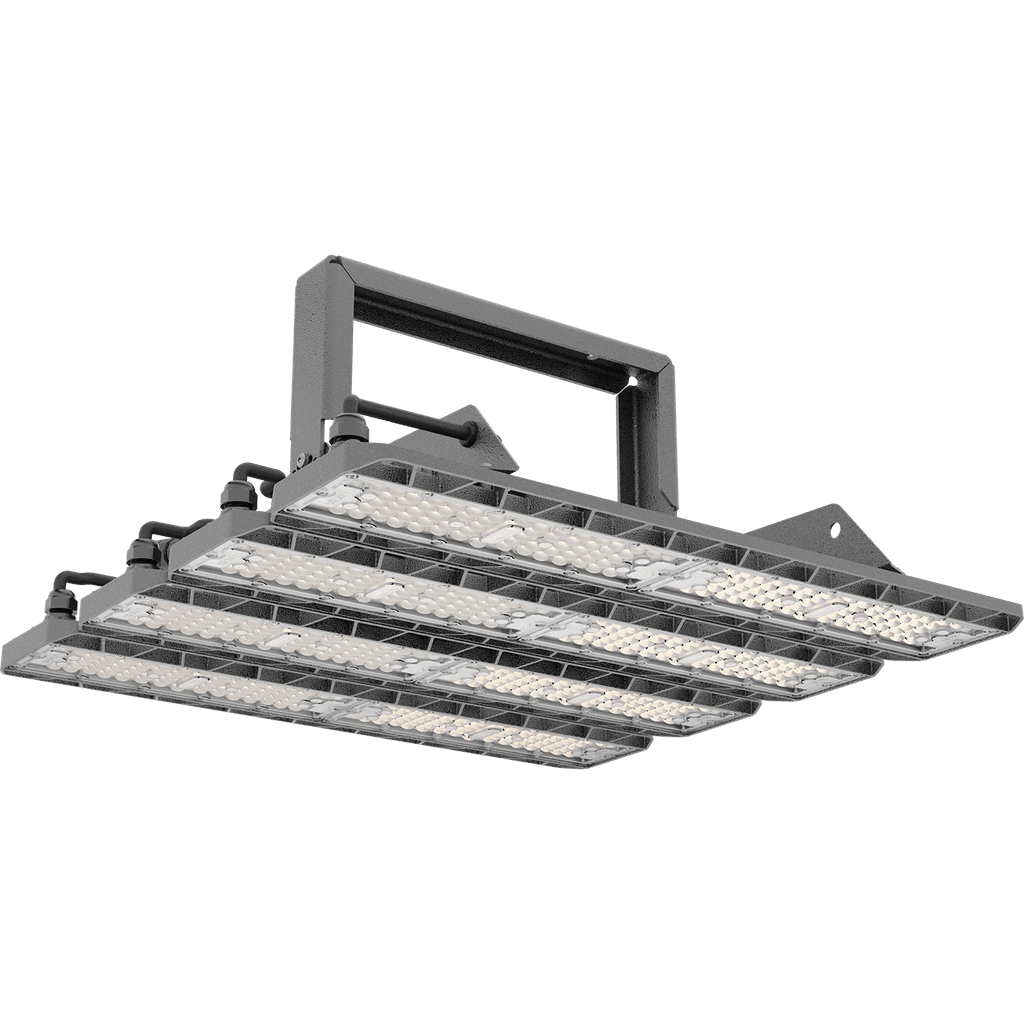

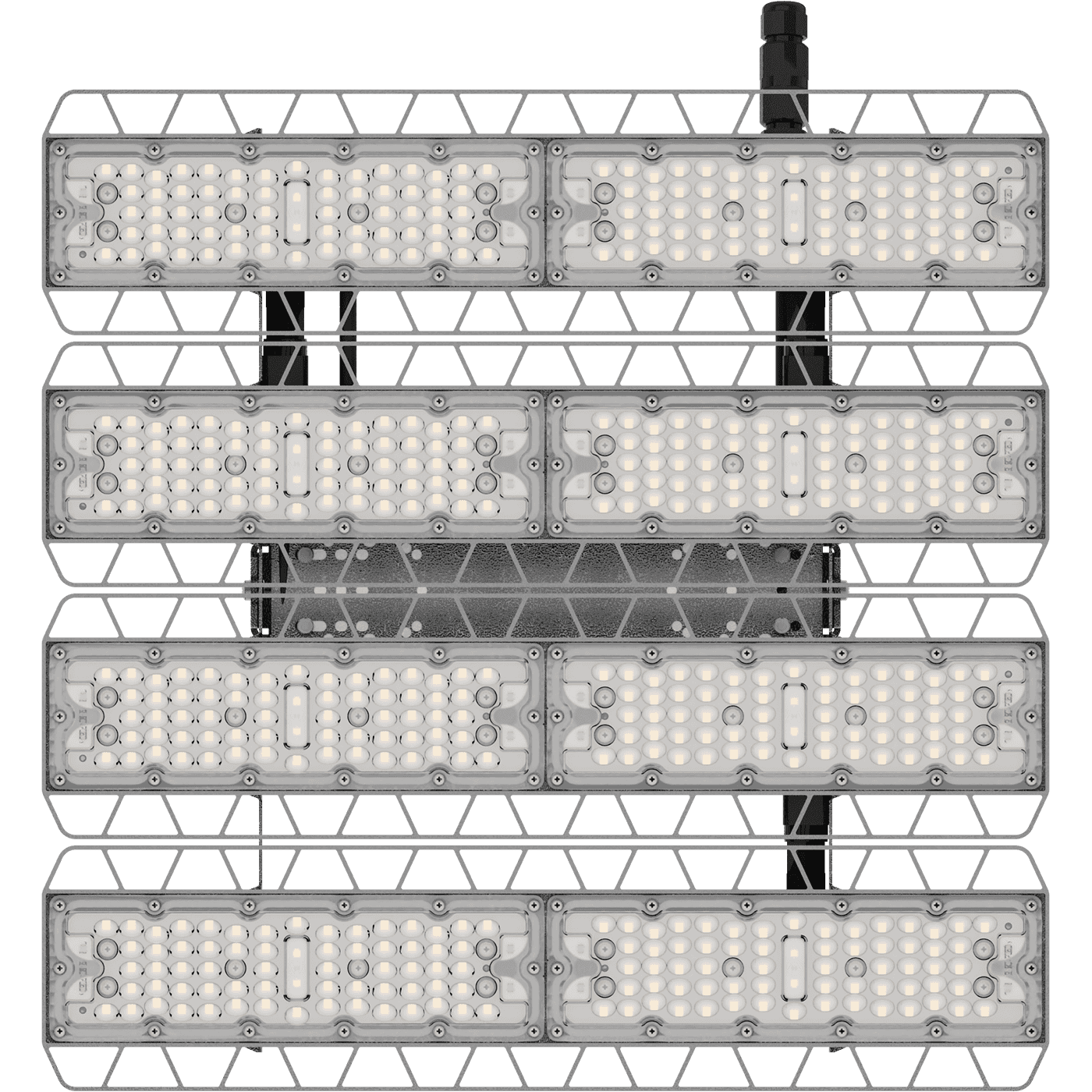

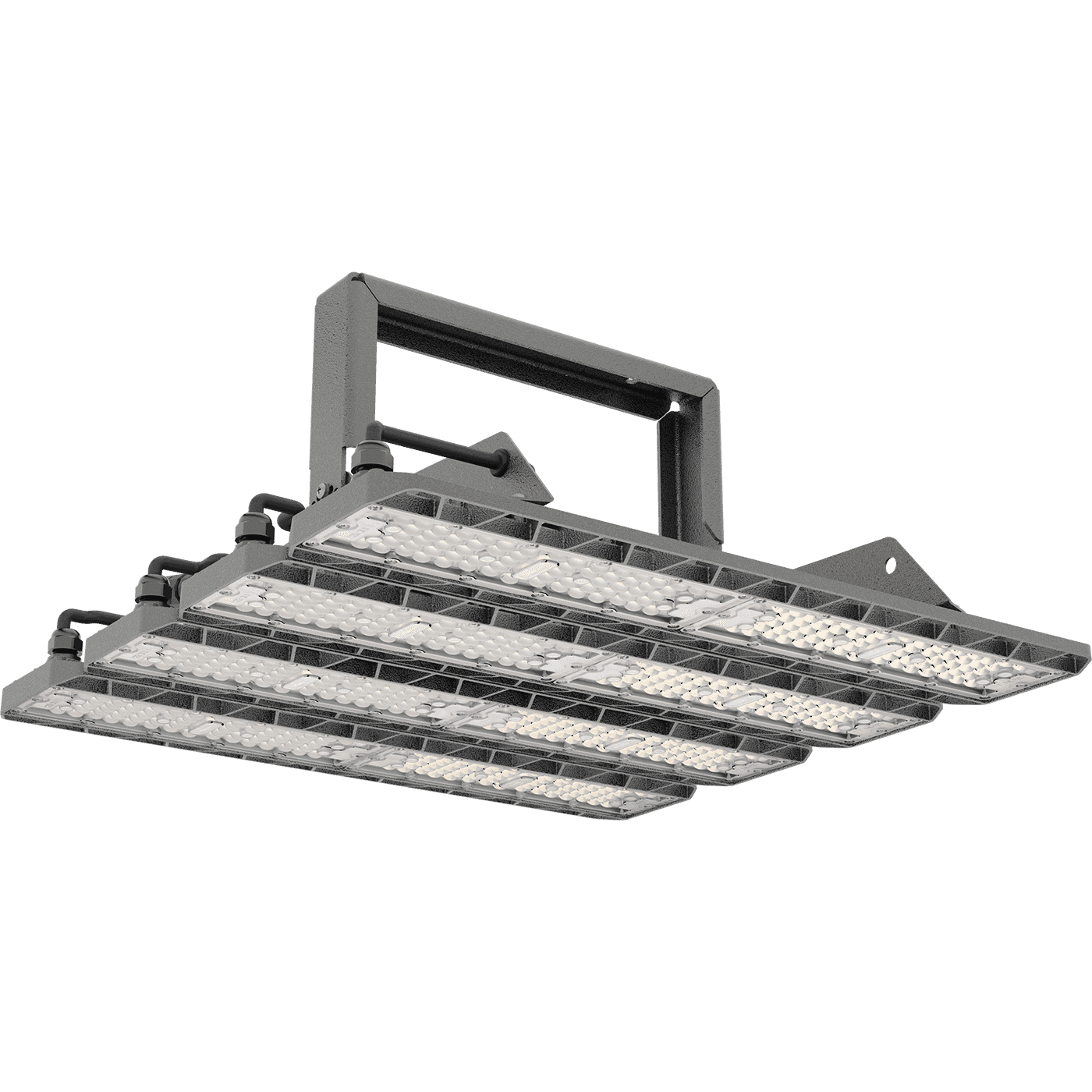

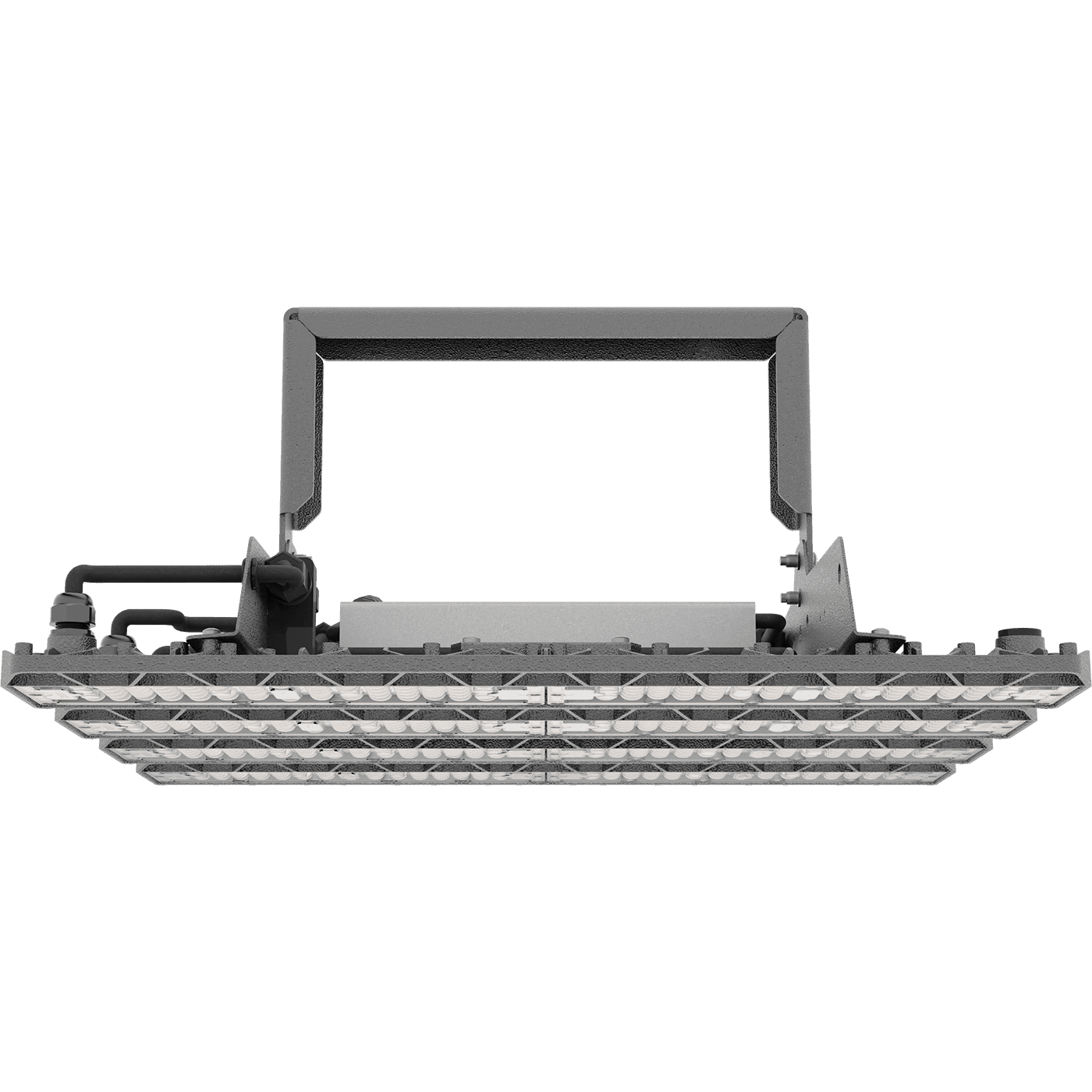

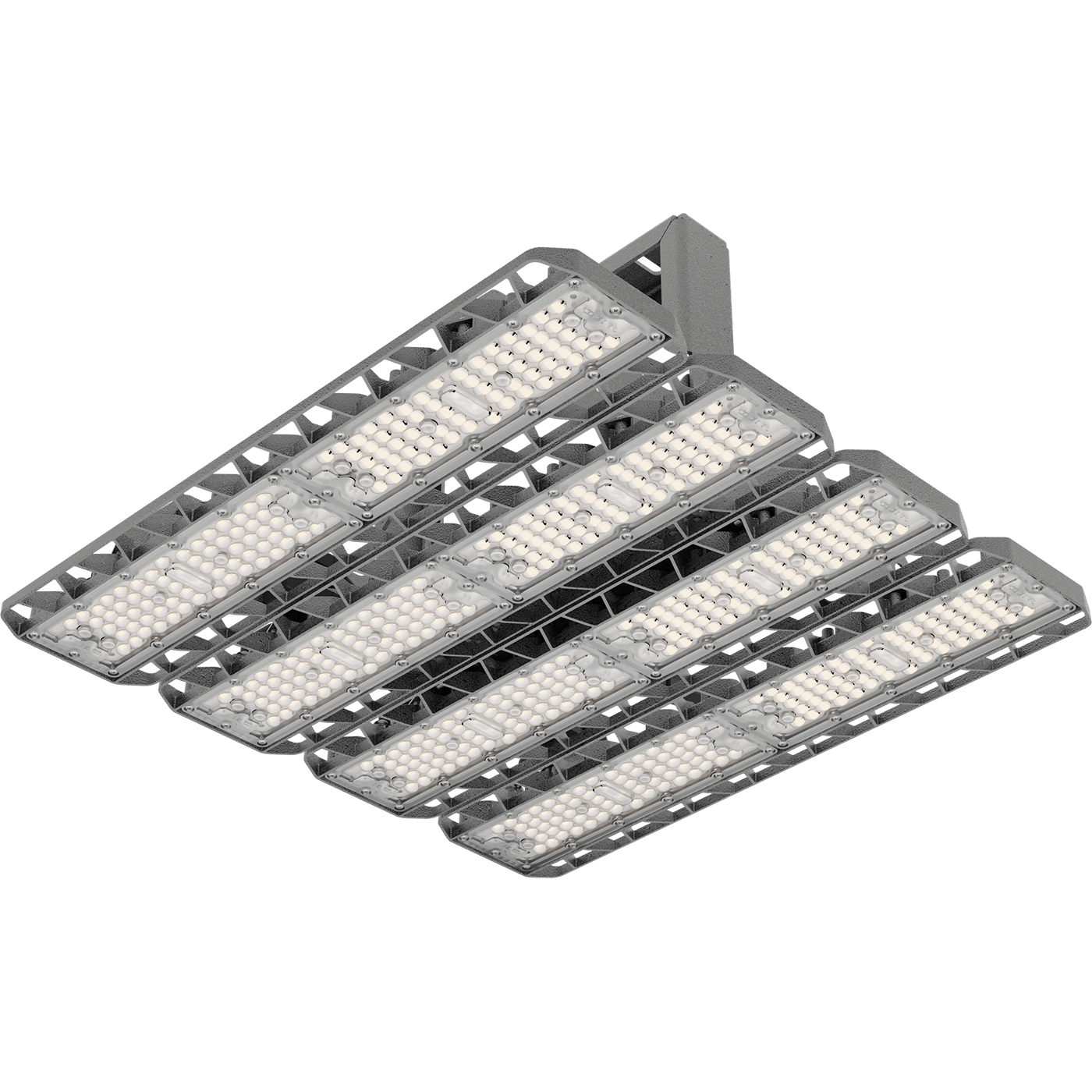

HB LED 250 D60 5000K G3
HB LED 250 D60 5000K G3
230 Wluminaire power
35400 lmlight flow
154 lm/Wenergy efficiency
code1224006990
color temperature5000
beam angleD60
weight6.71 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
35400 lmflickering factor
<1%energy efficiency
154 lm/Wbeam angle
D60color temperature
5000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
35400 lm
flickering factor
<1%
energy efficiency
154 lm/W
beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
230 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
52 A
supply voltage
230 V
starting current pulse time, µs
760 mks
constructional
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ1*
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66
weight
6.71 kg
length, mm
480 mm
width, mm
477 mm
height, mm
233 mm
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life, hour
50 000 h
temperature range
от -40 до +40 C
code
1224006990
model files
model files

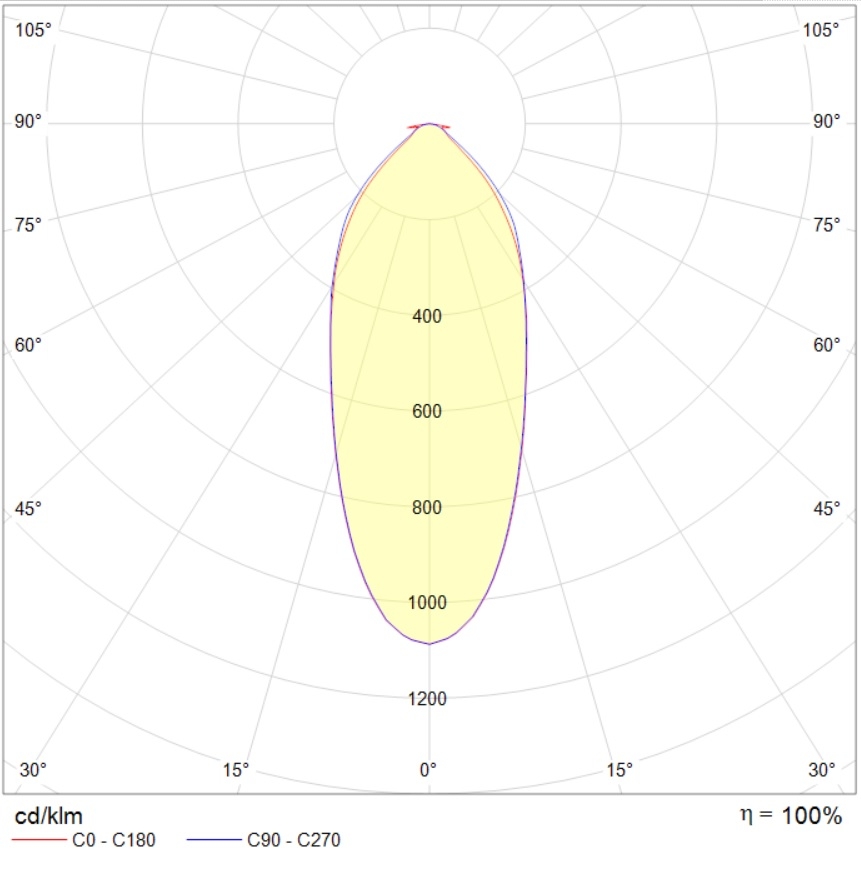

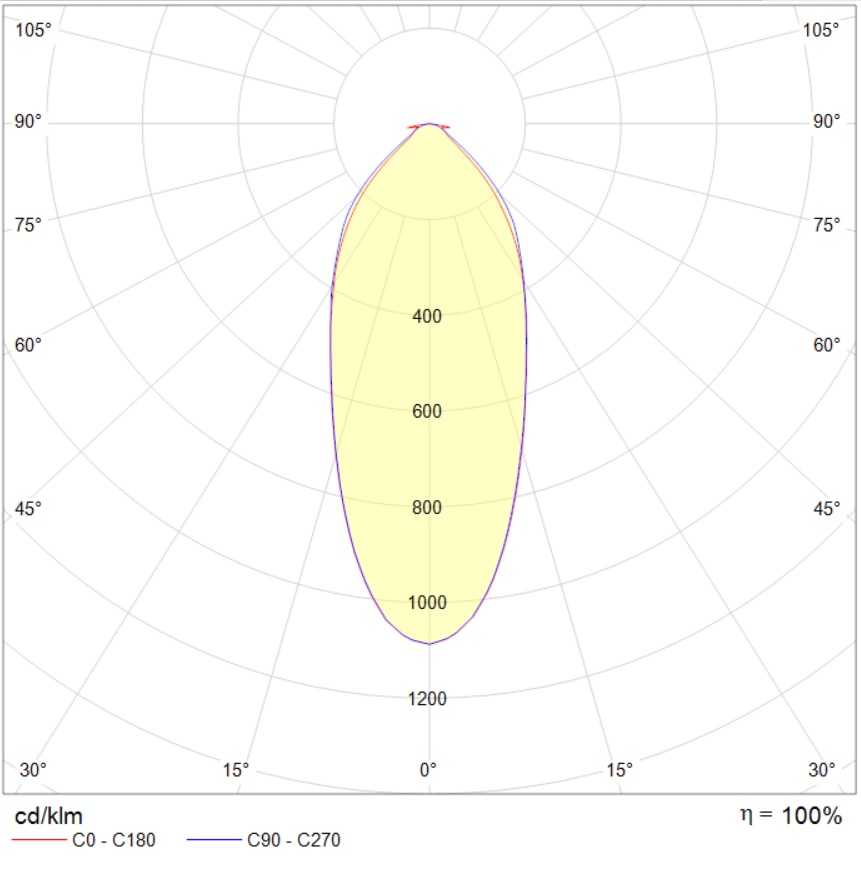

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg82.2 kB
ldt71.5 kB
documents
passport2.4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
