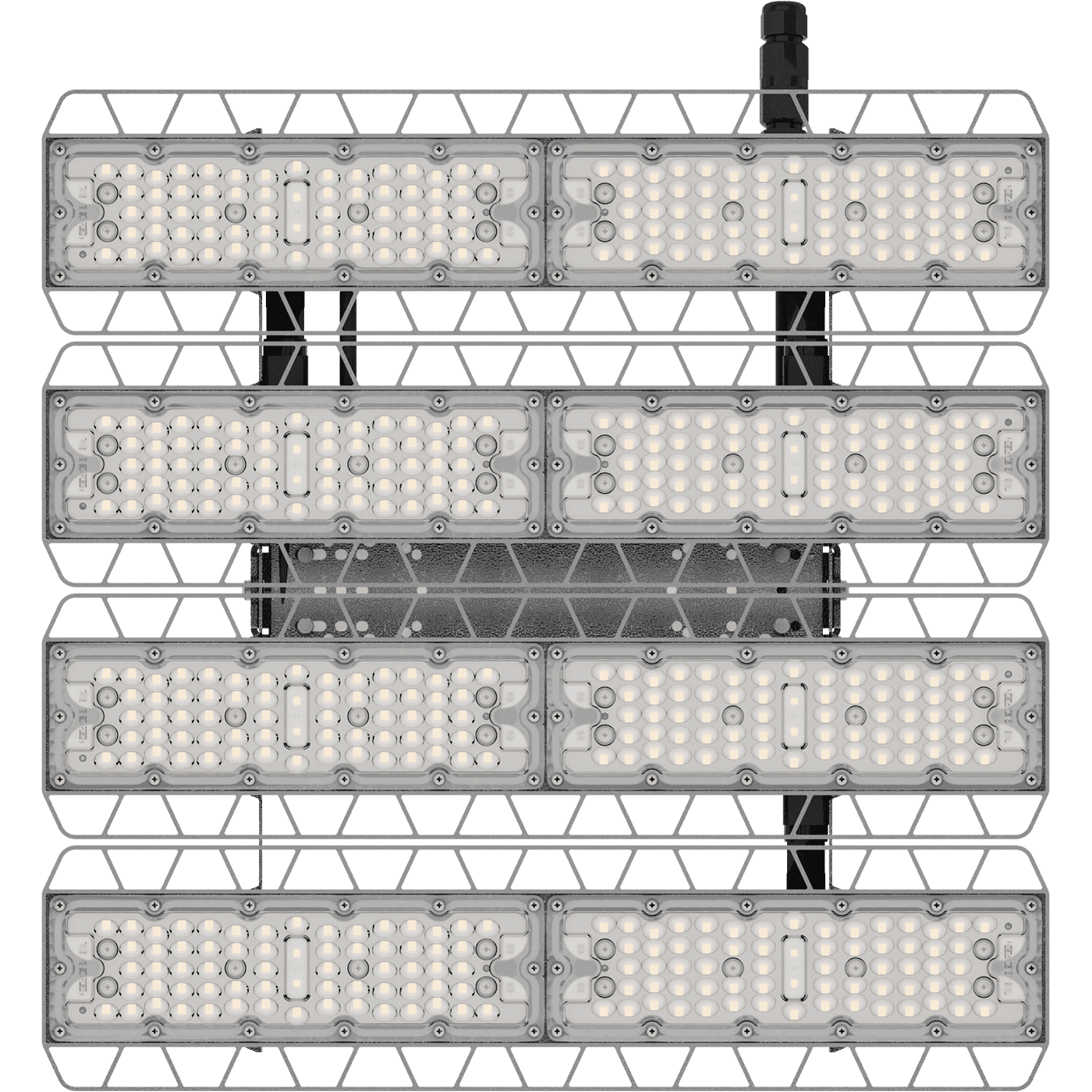

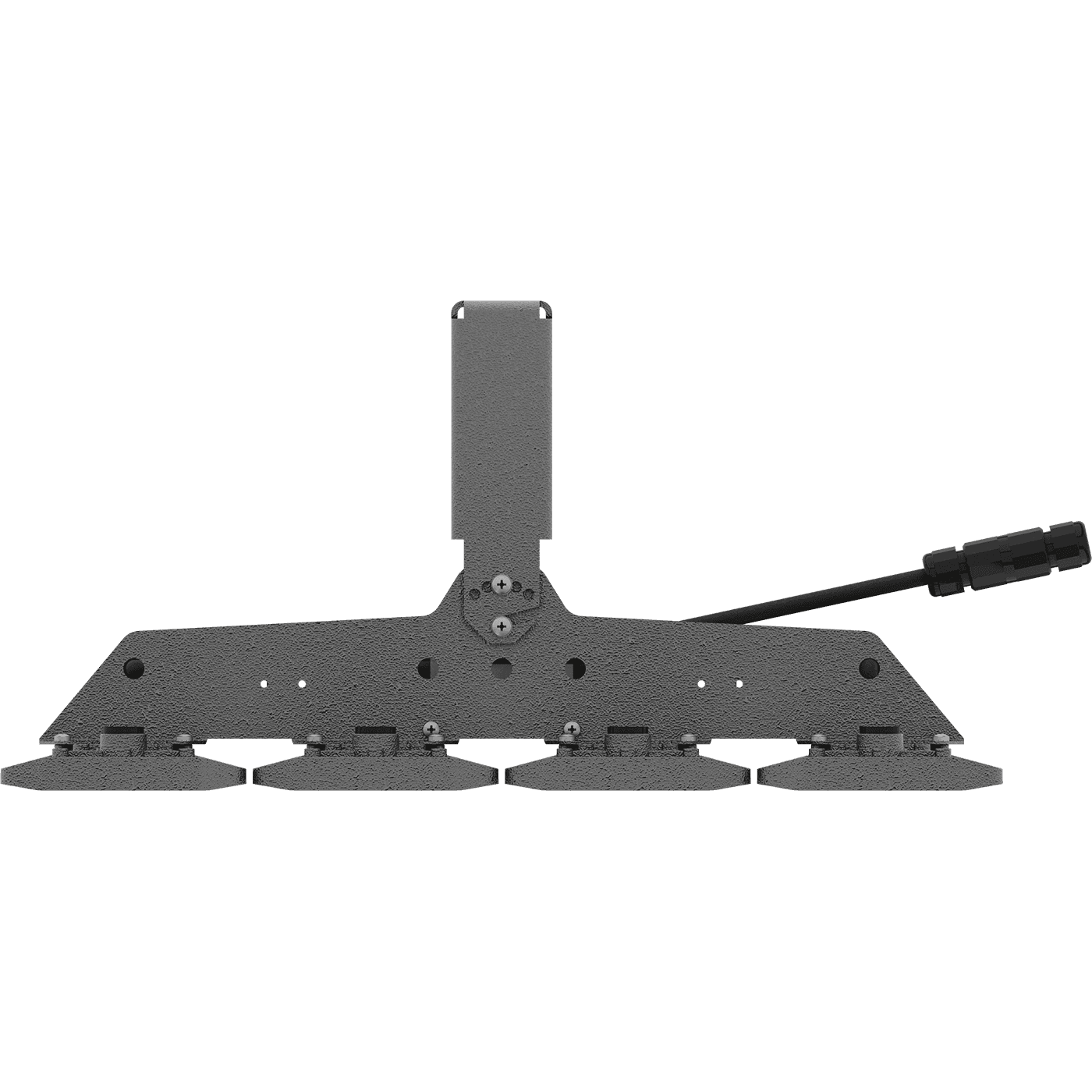

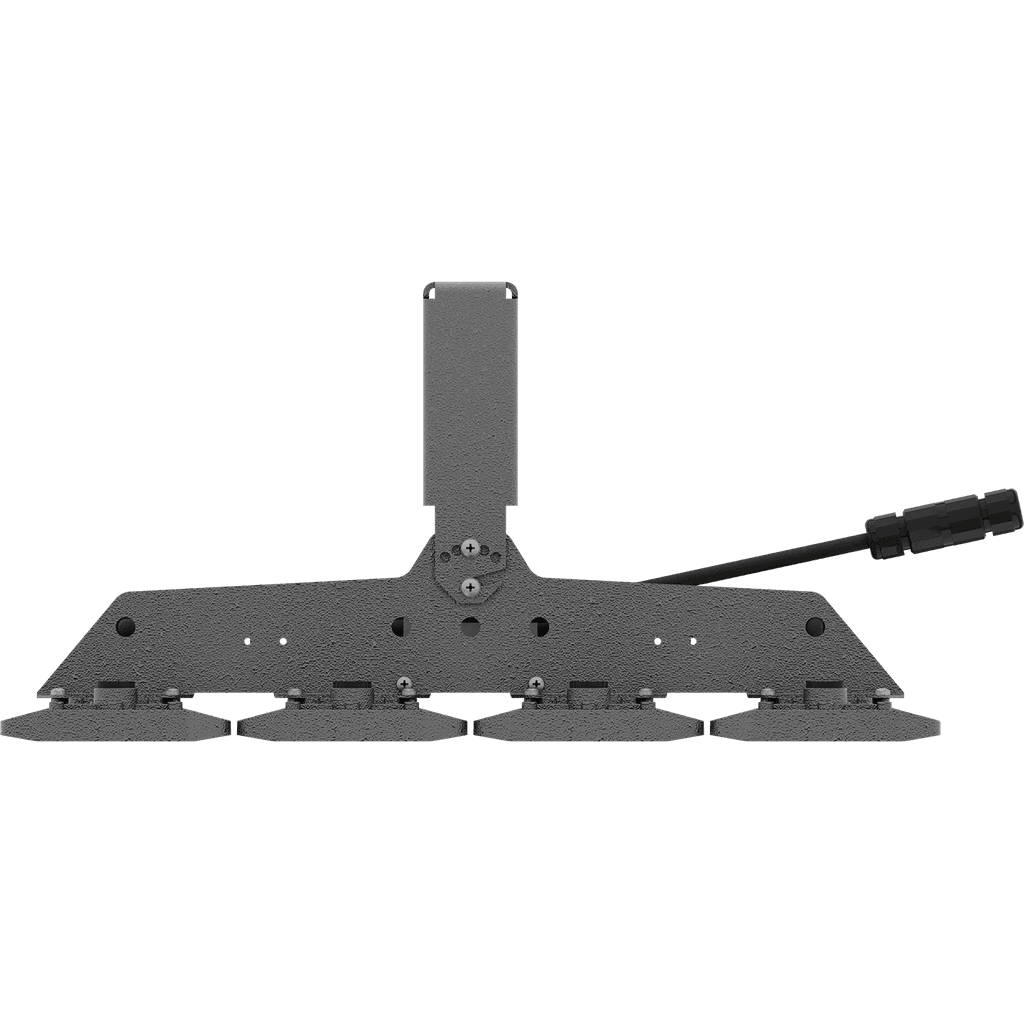

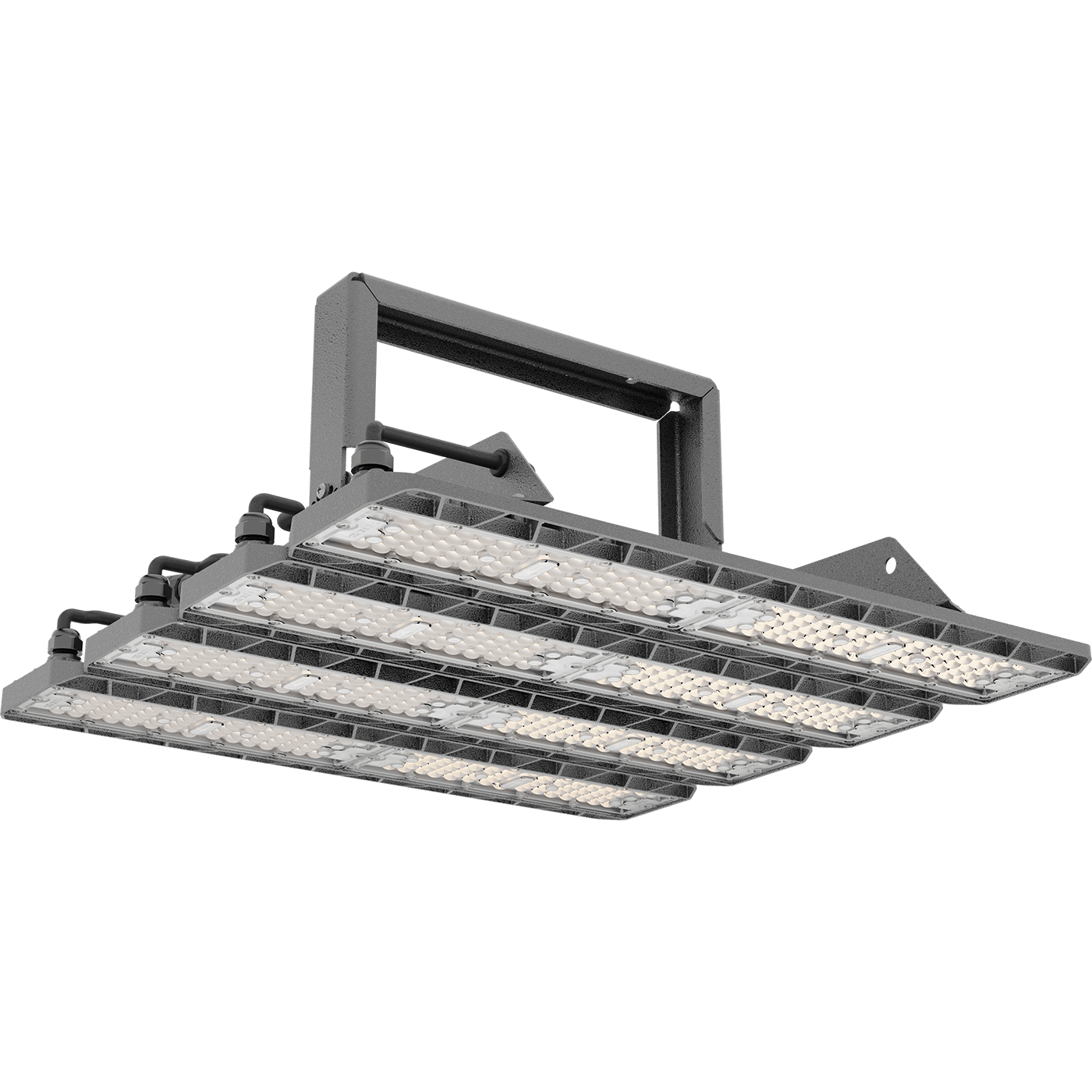

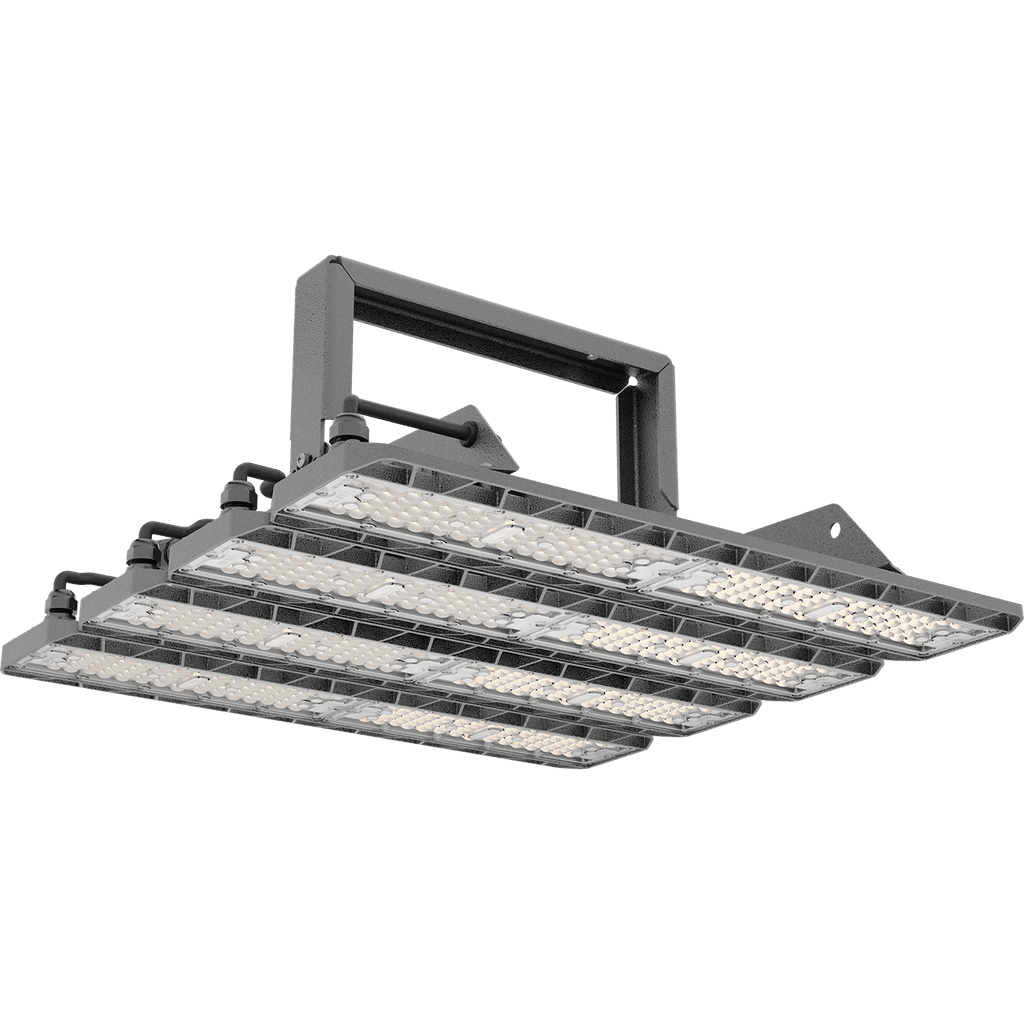

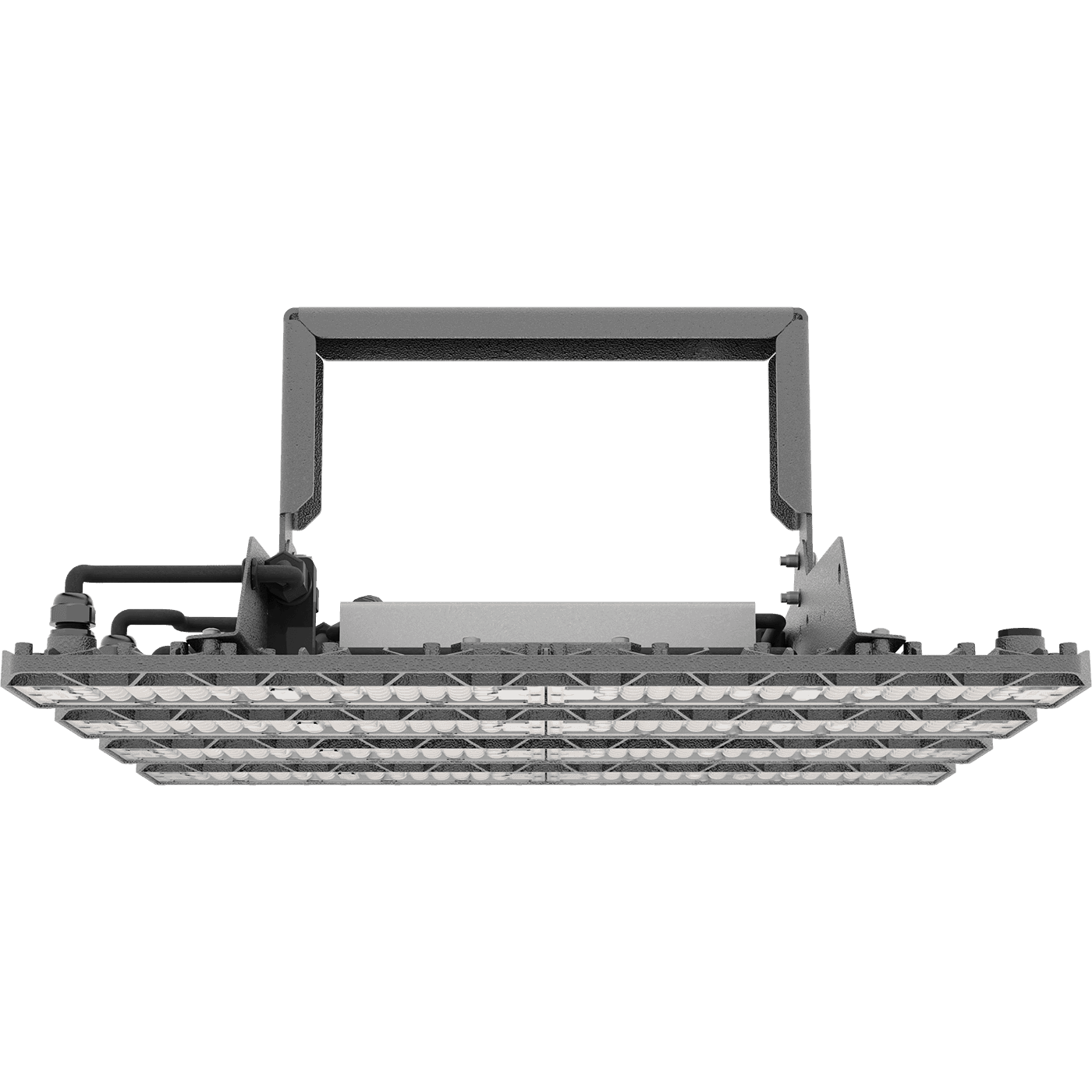

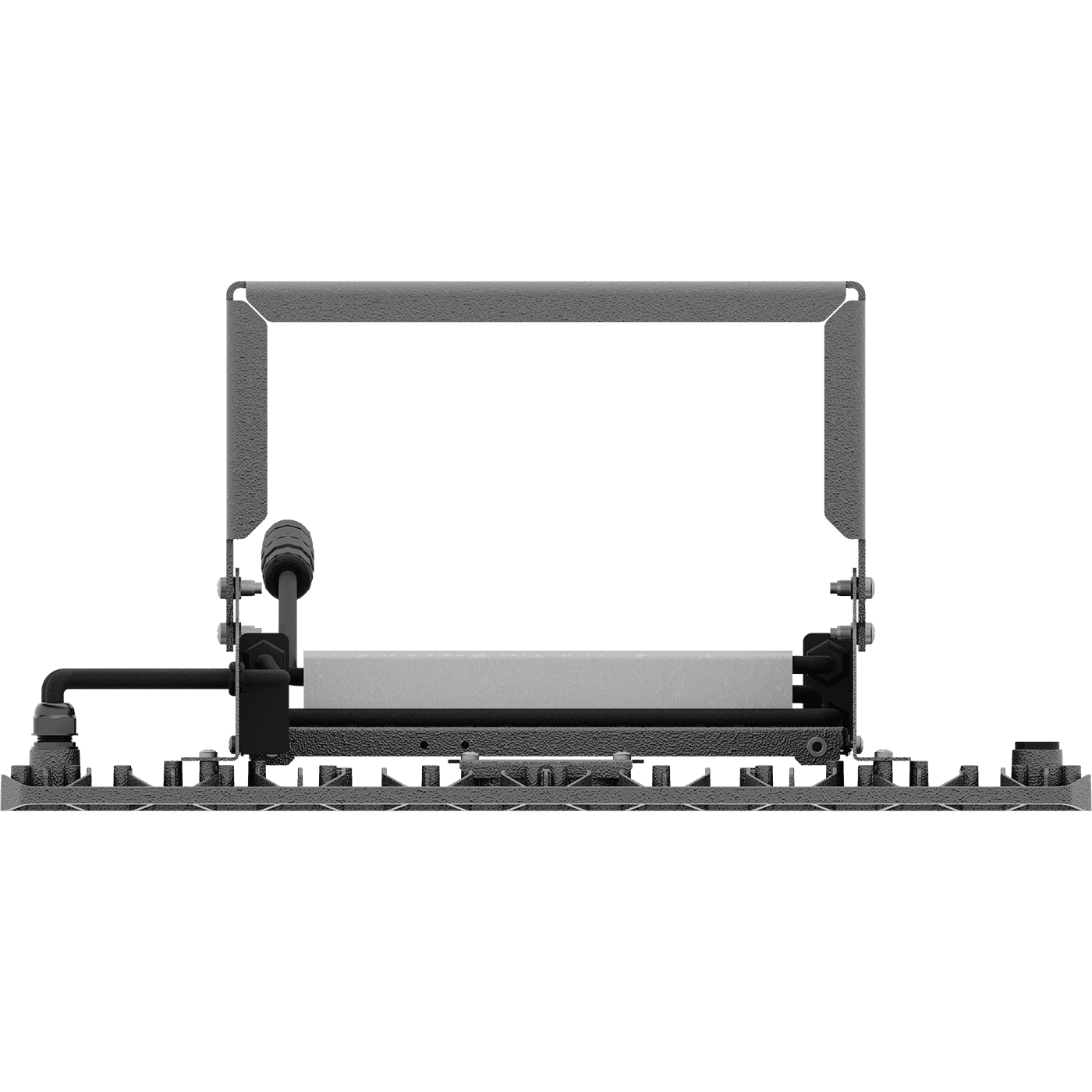

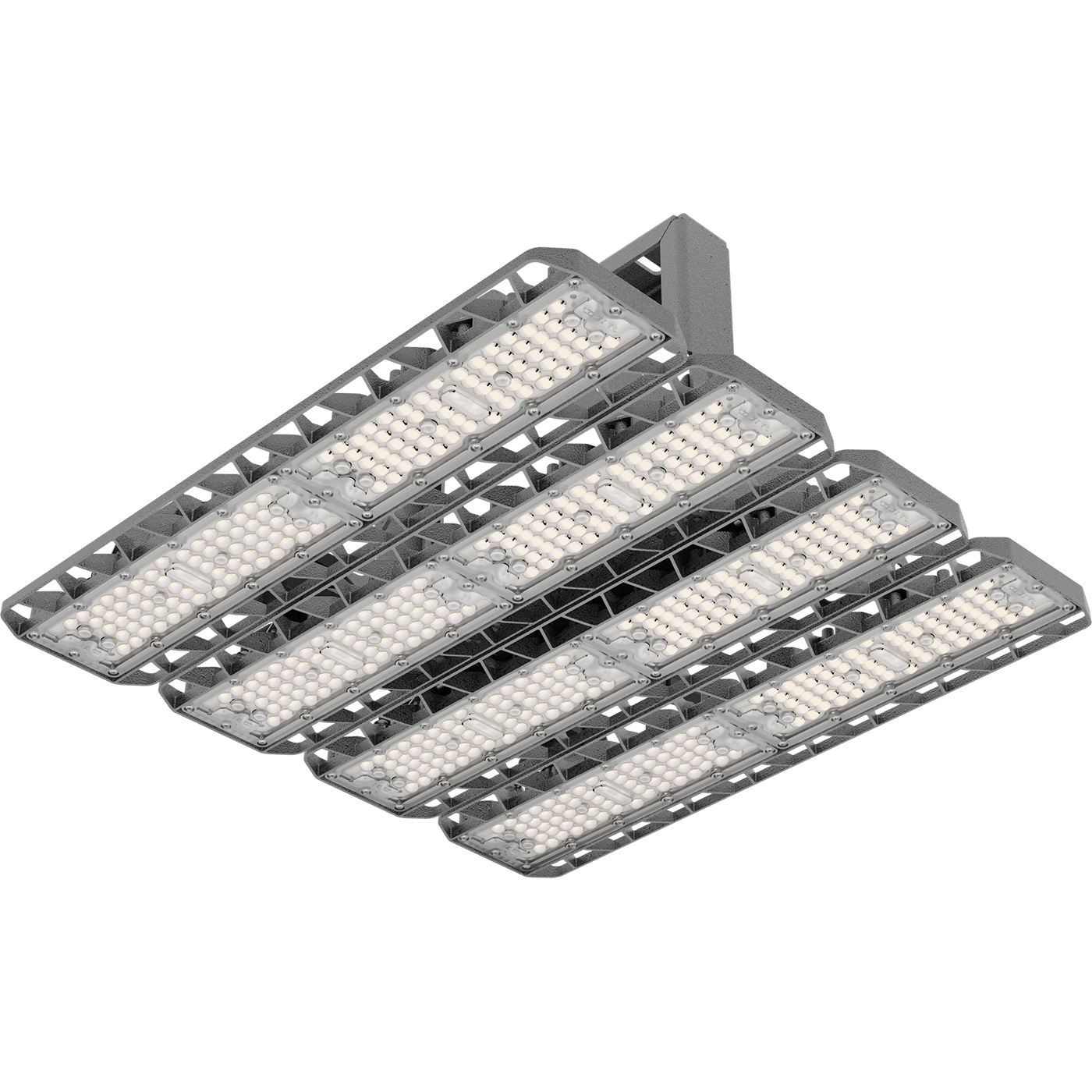

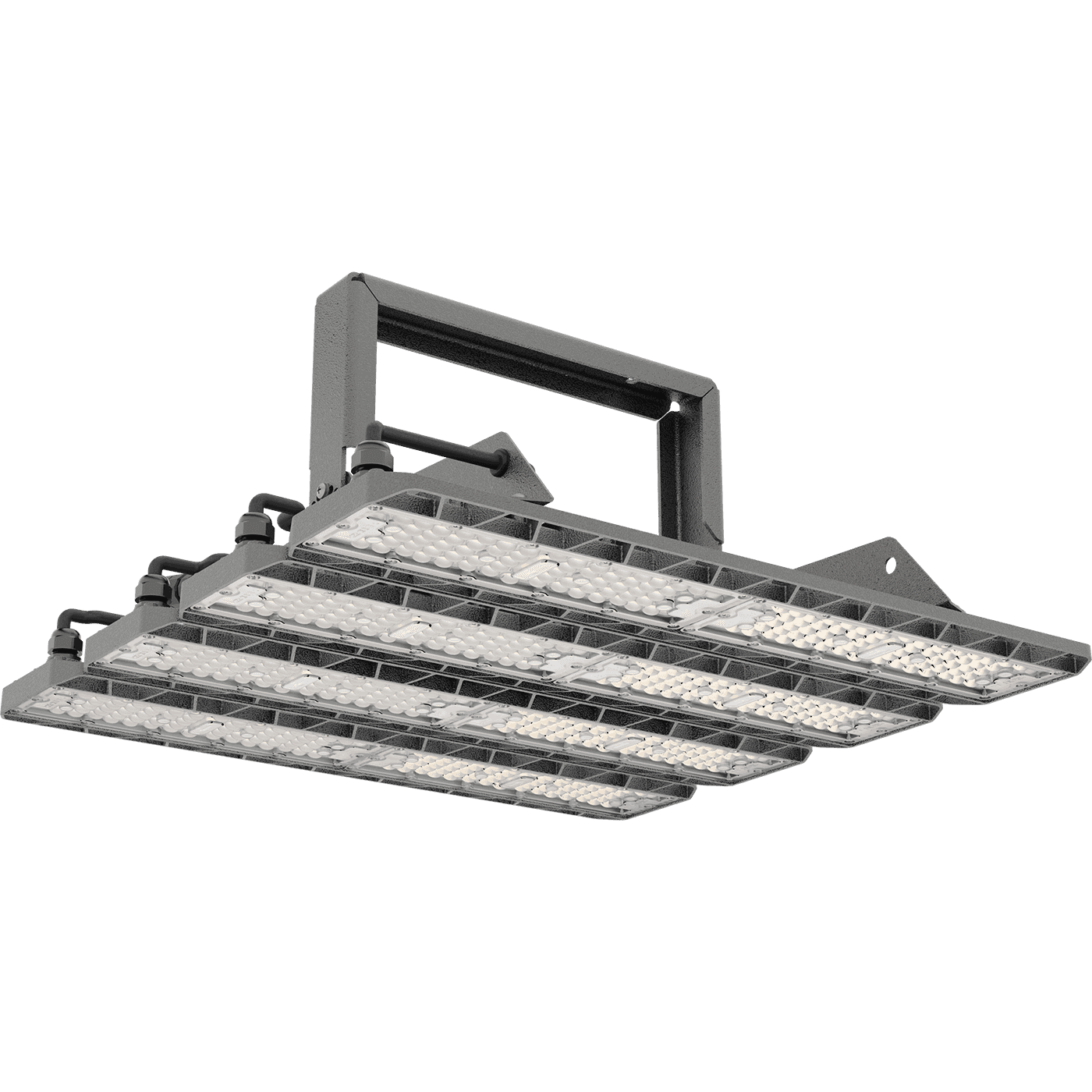

HB LED 250 D120 5000K G3

HB LED 250 D120 5000K G3
add to favorites
230 Wluminaire power
35400 lmlight flow
154 lm/Wenergy efficiency
code
1224007010
color temperature
5000 K
beam angle
D120
weight
6.71 kg
  1. main page
  2. catalog
  3. by product type
  4. industrial lighting
  5. 5-12 meters
  6. свыше 12 метров
  7. HB LED G3
  8. HB LED 250 D120 5000K G3
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80
light flow
35400 lm
flickering factor
<1%
energy efficiency
154 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>80
light flow
35400 lm
flickering factor
<1%
energy efficiency
154 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
230 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
climatic performance
УХЛ1*
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
shock resistance (IK)
IK05/0,7 Дж
weight
6.71 kg
ingress protection (IP)
IP66
length
480 mm
width
477 mm
height
233 mm
installation length
180 mm
emergency
emergency power supply
Нет
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +55 C
code
1224007010
model files
model files

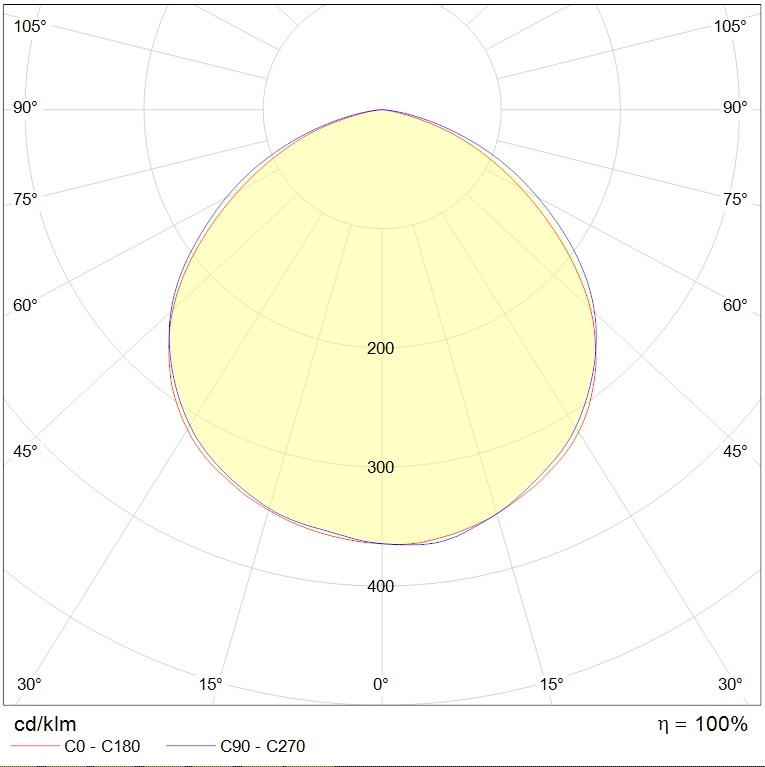

photometric files
ies107 kB
jpg80 kB
ldt66.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011507.7 kB
Declaration of Conformity EAEU TR 037/2016528.3 kB
Fire Safety Certificate2.5 mB
photometric files
ies107 kB
jpg80 kB
ldt66.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011507.7 kB
Declaration of Conformity EAEU TR 037/2016528.3 kB
Fire Safety Certificate2.5 mB
