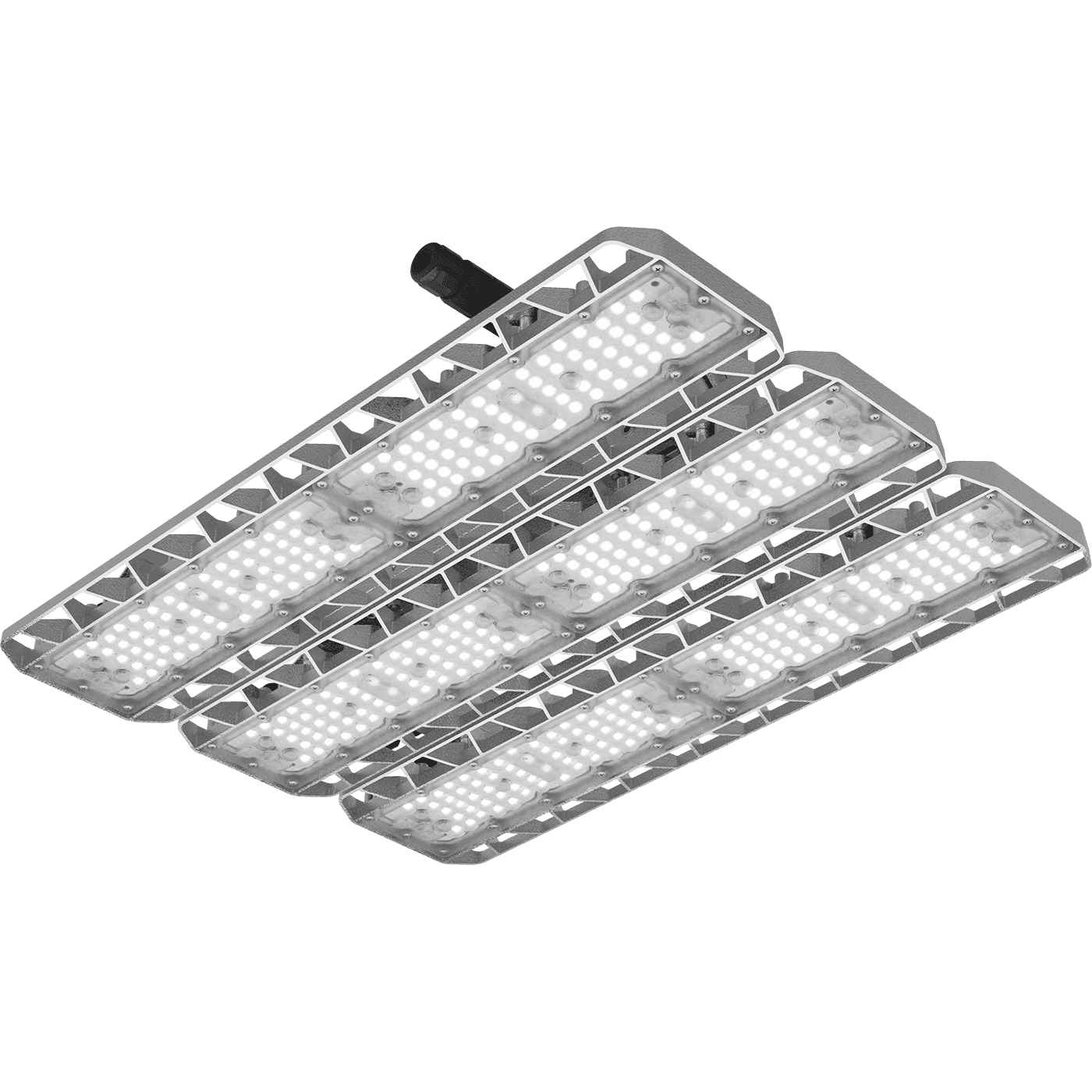

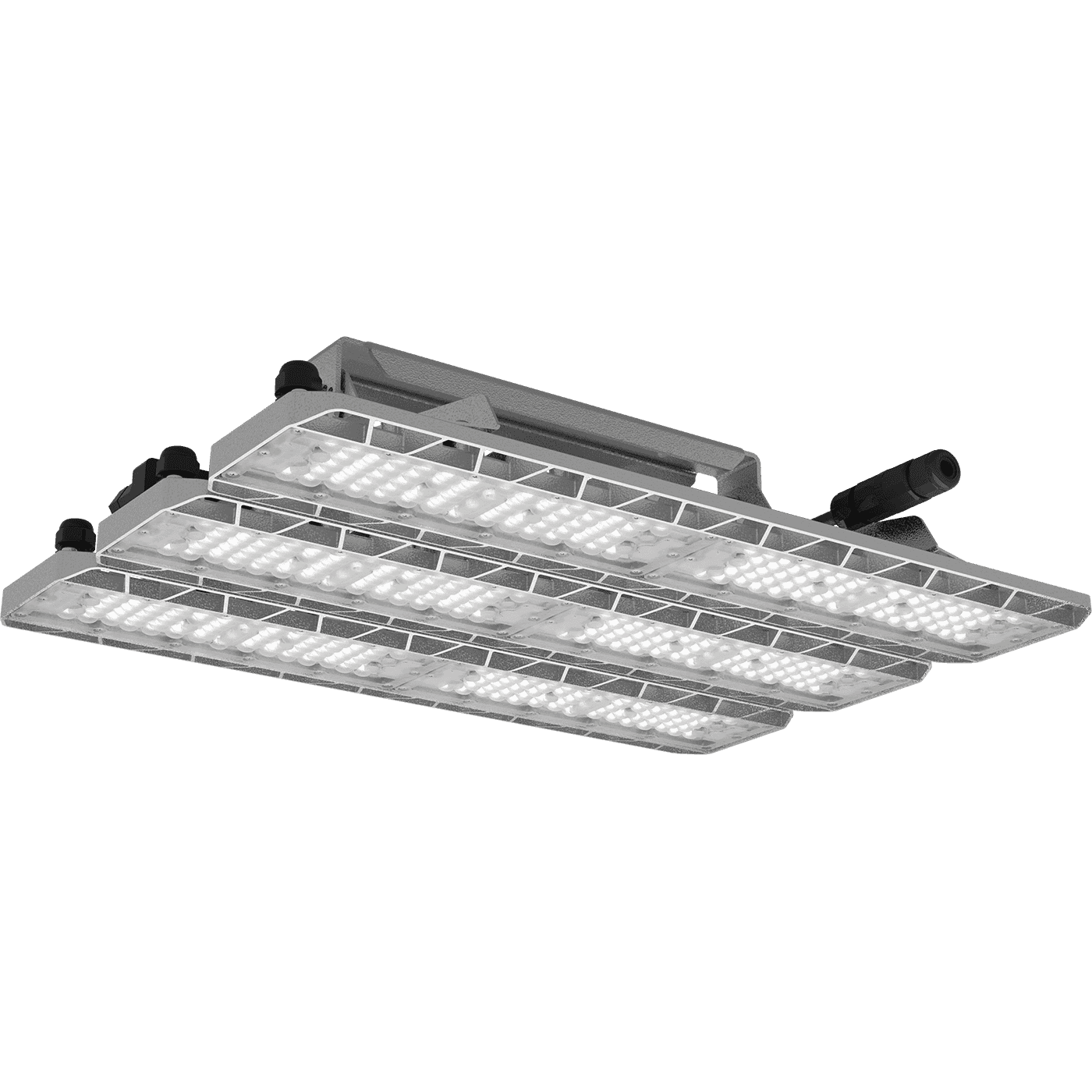

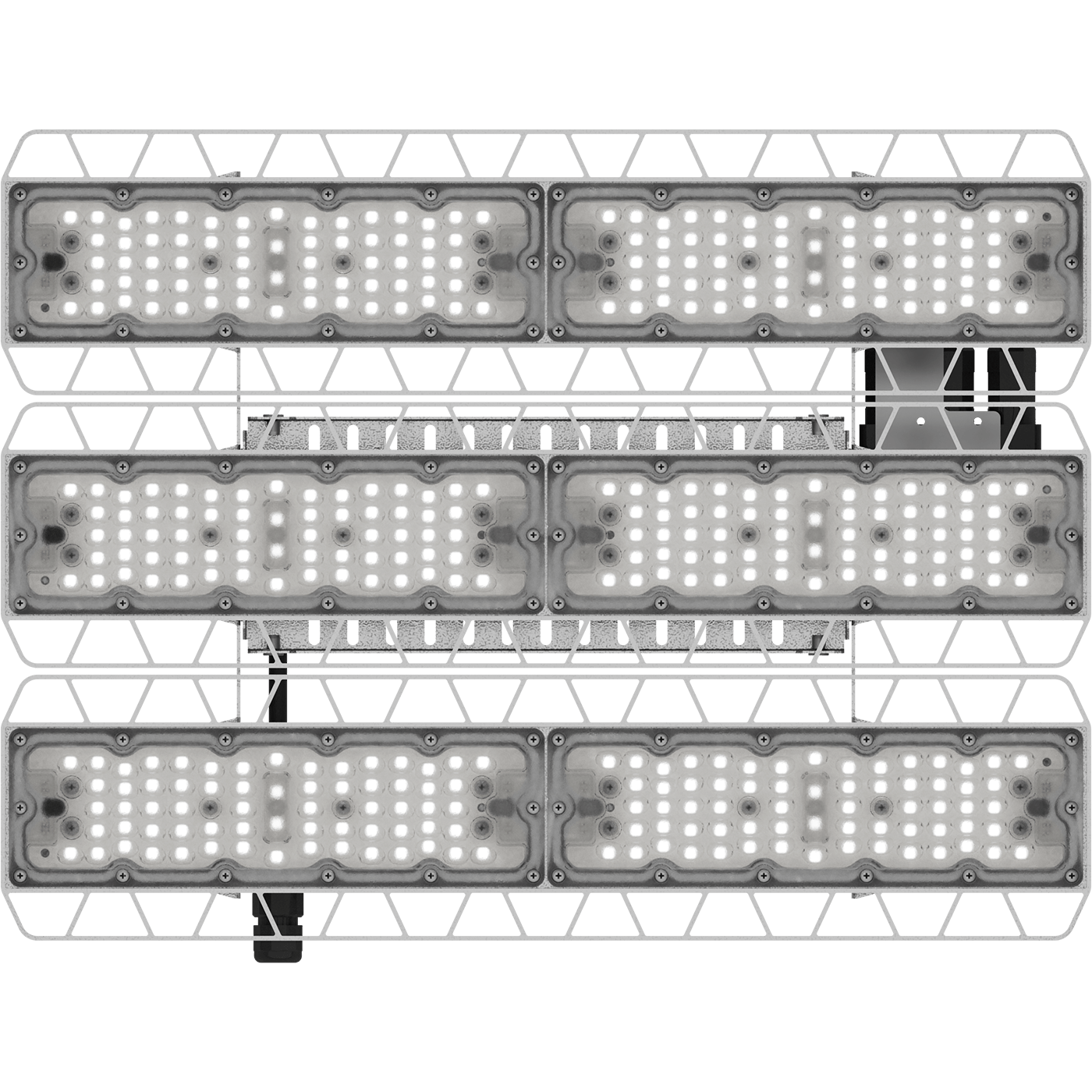

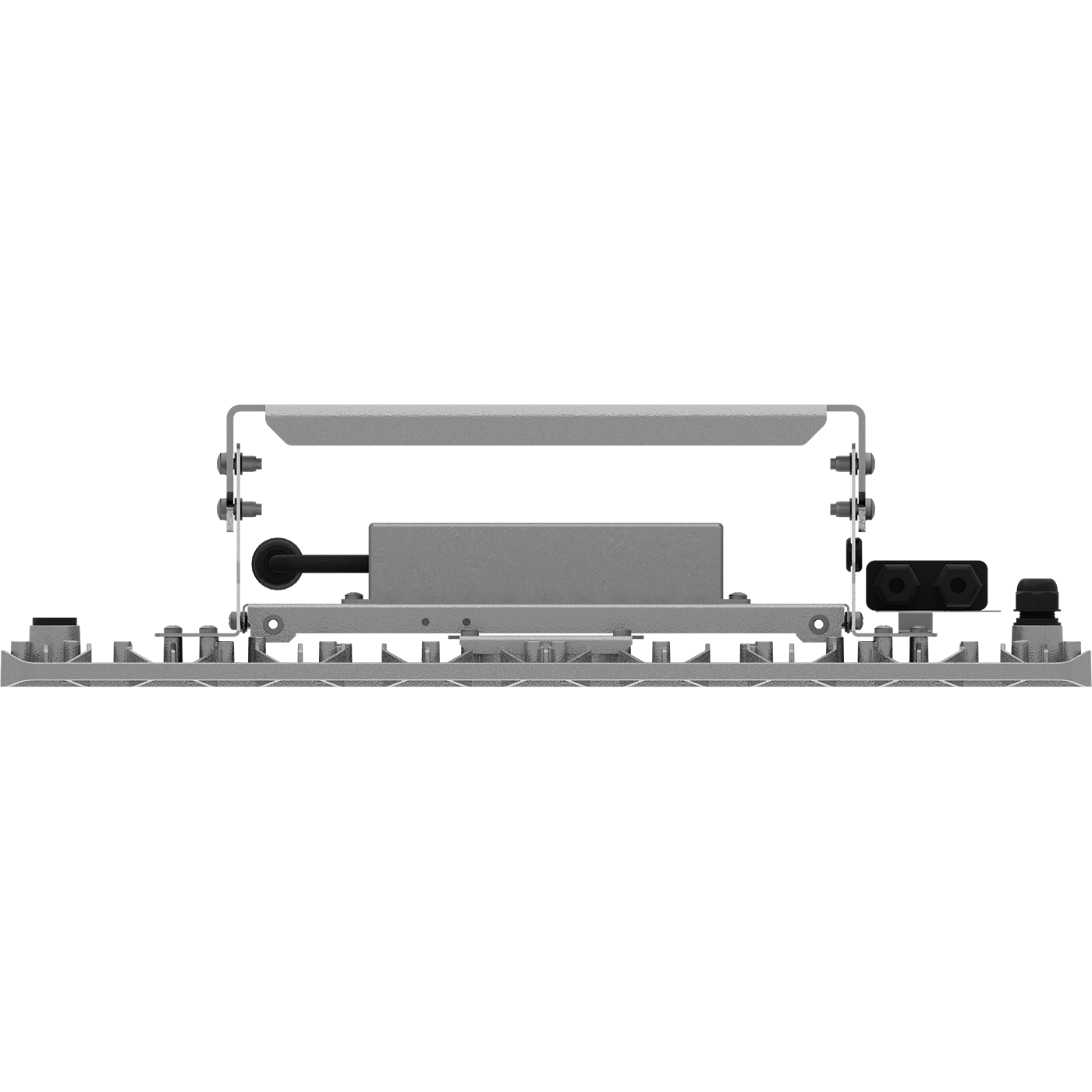

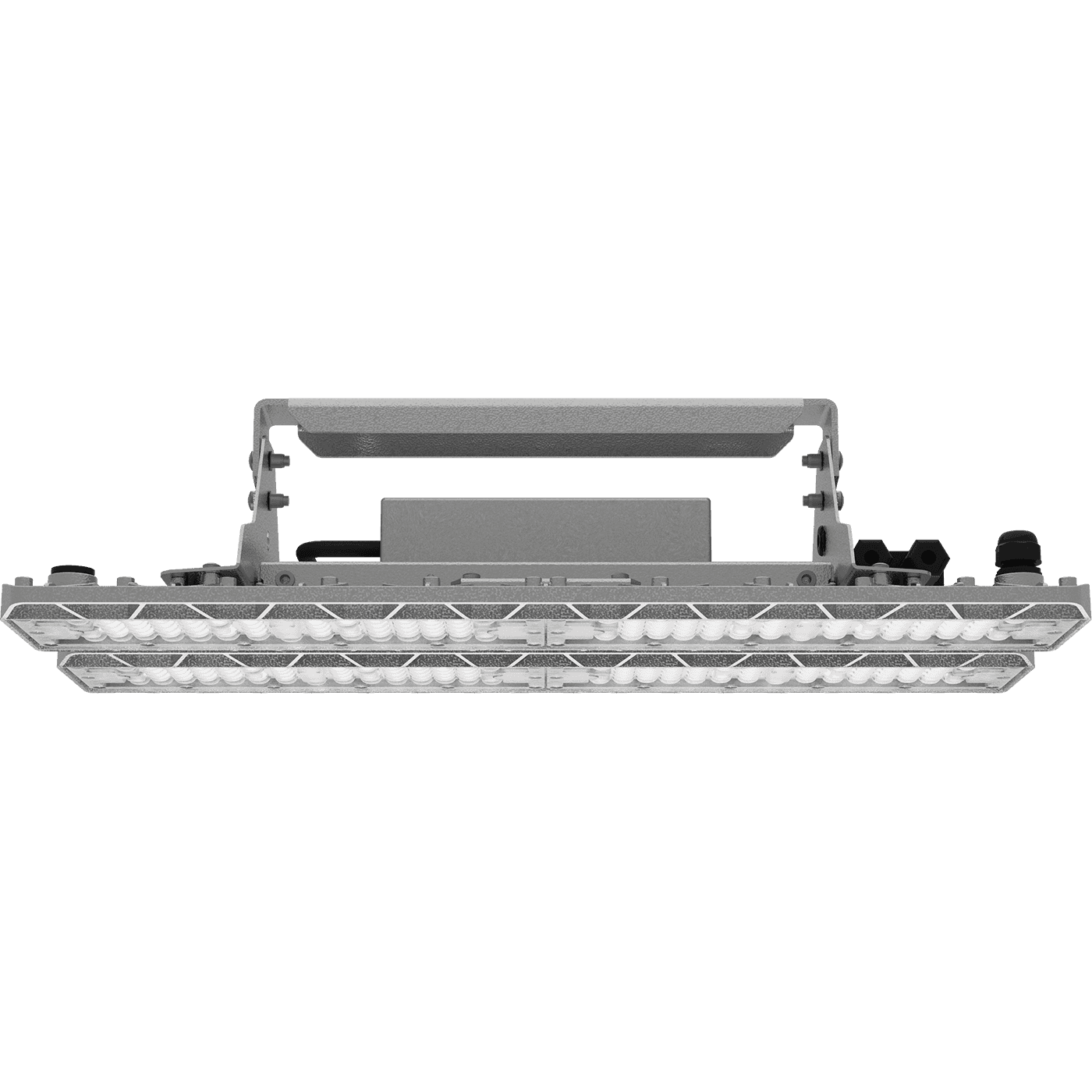

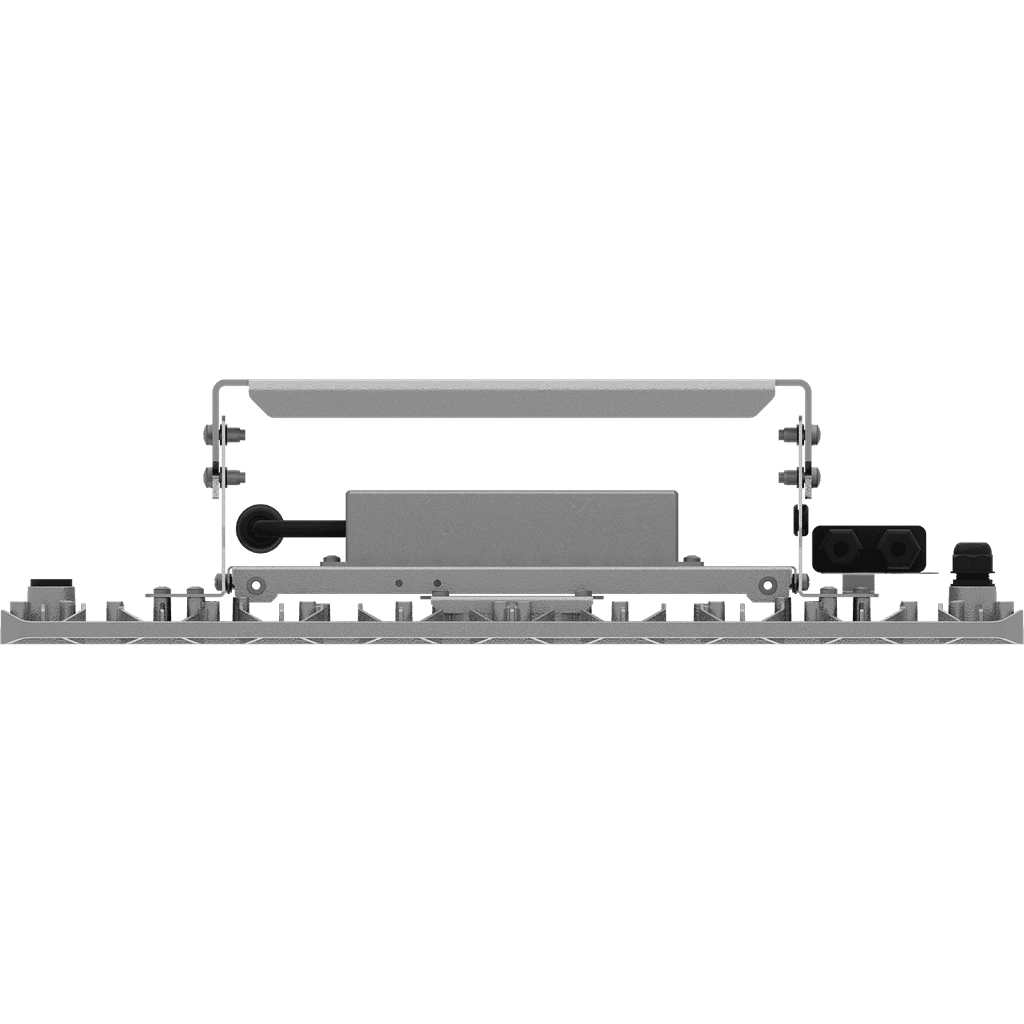

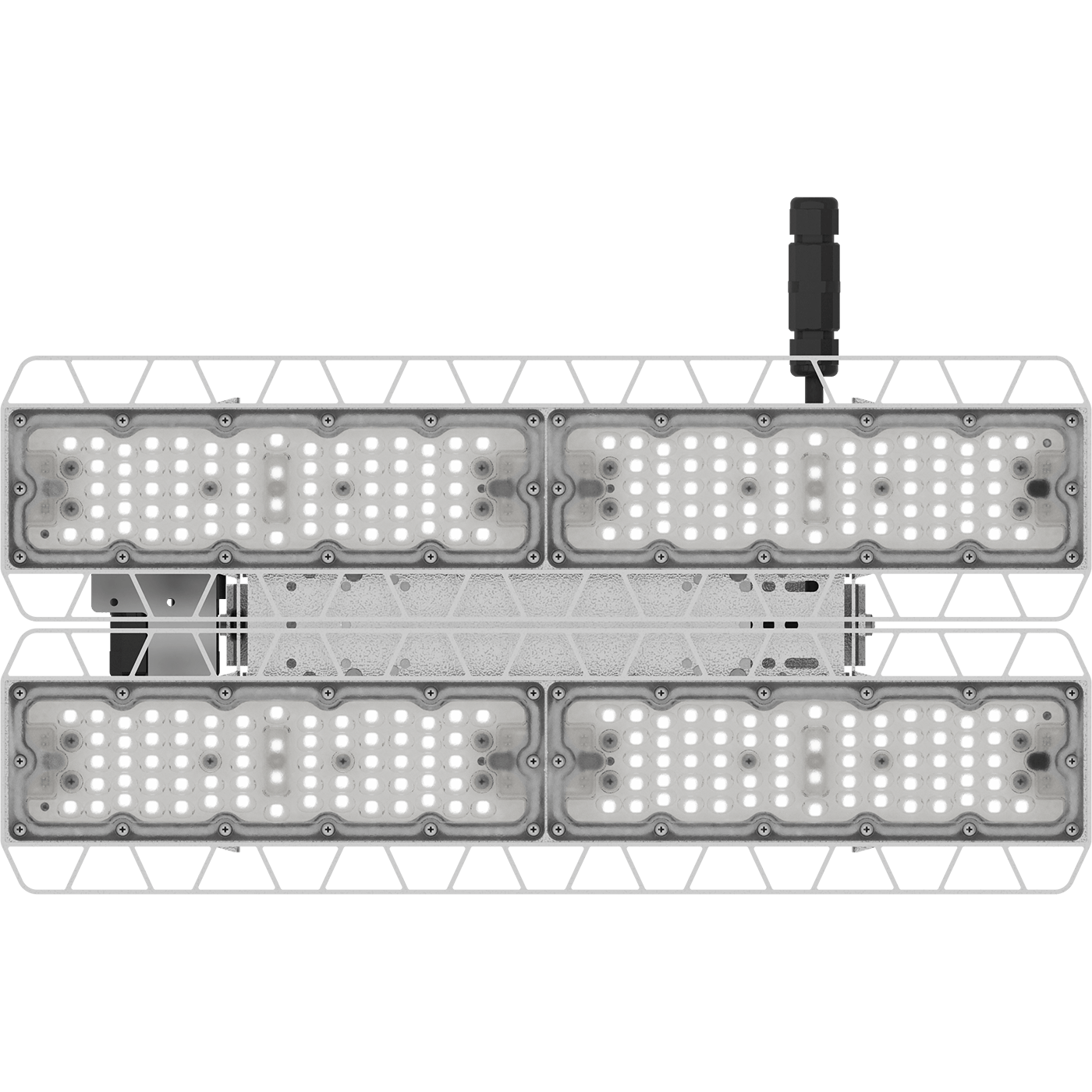

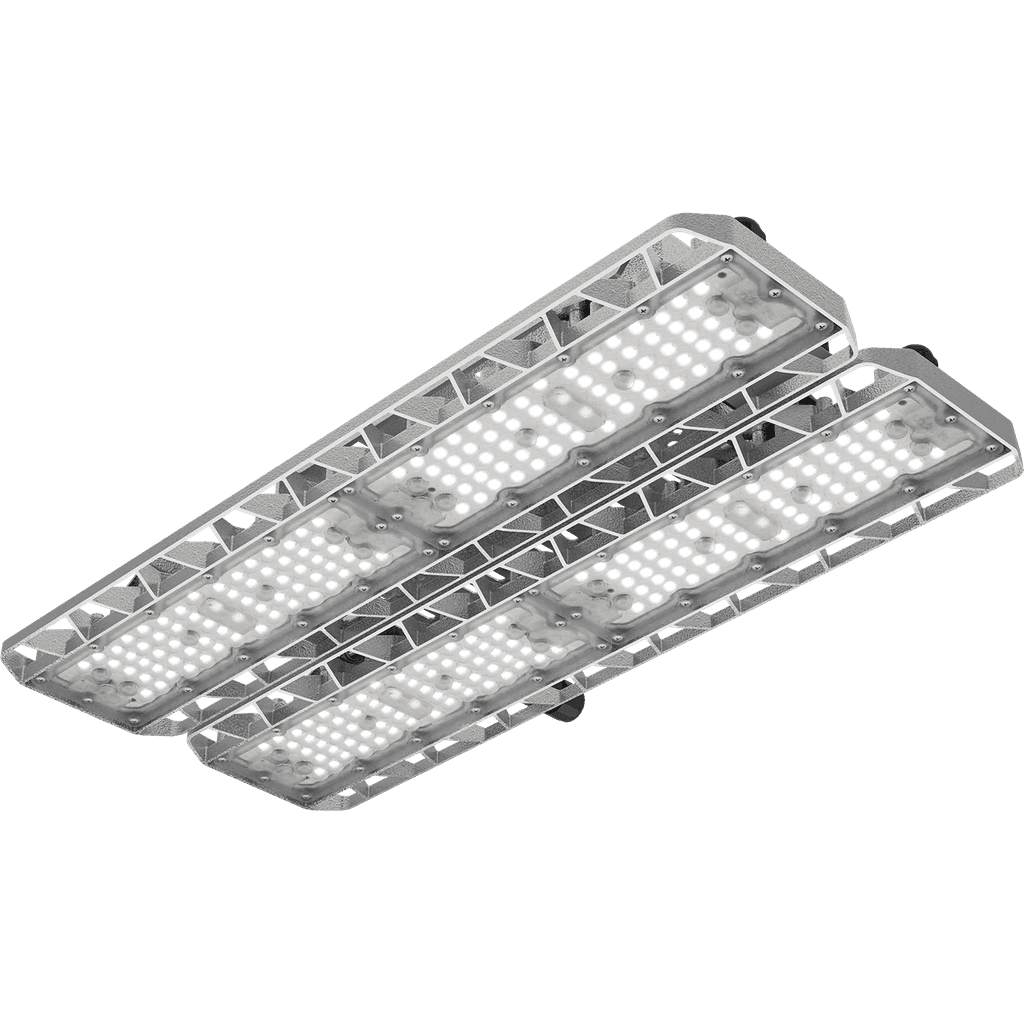

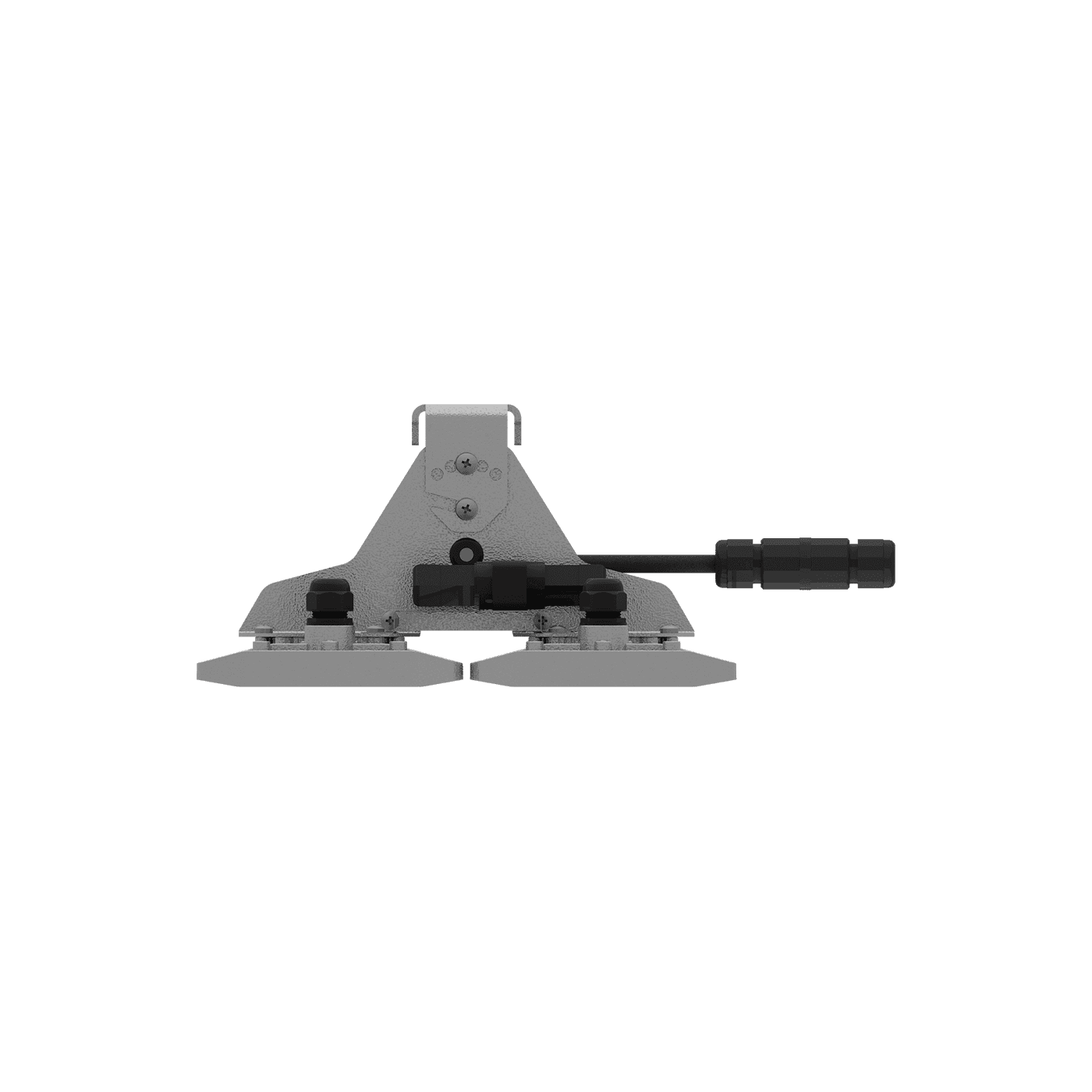

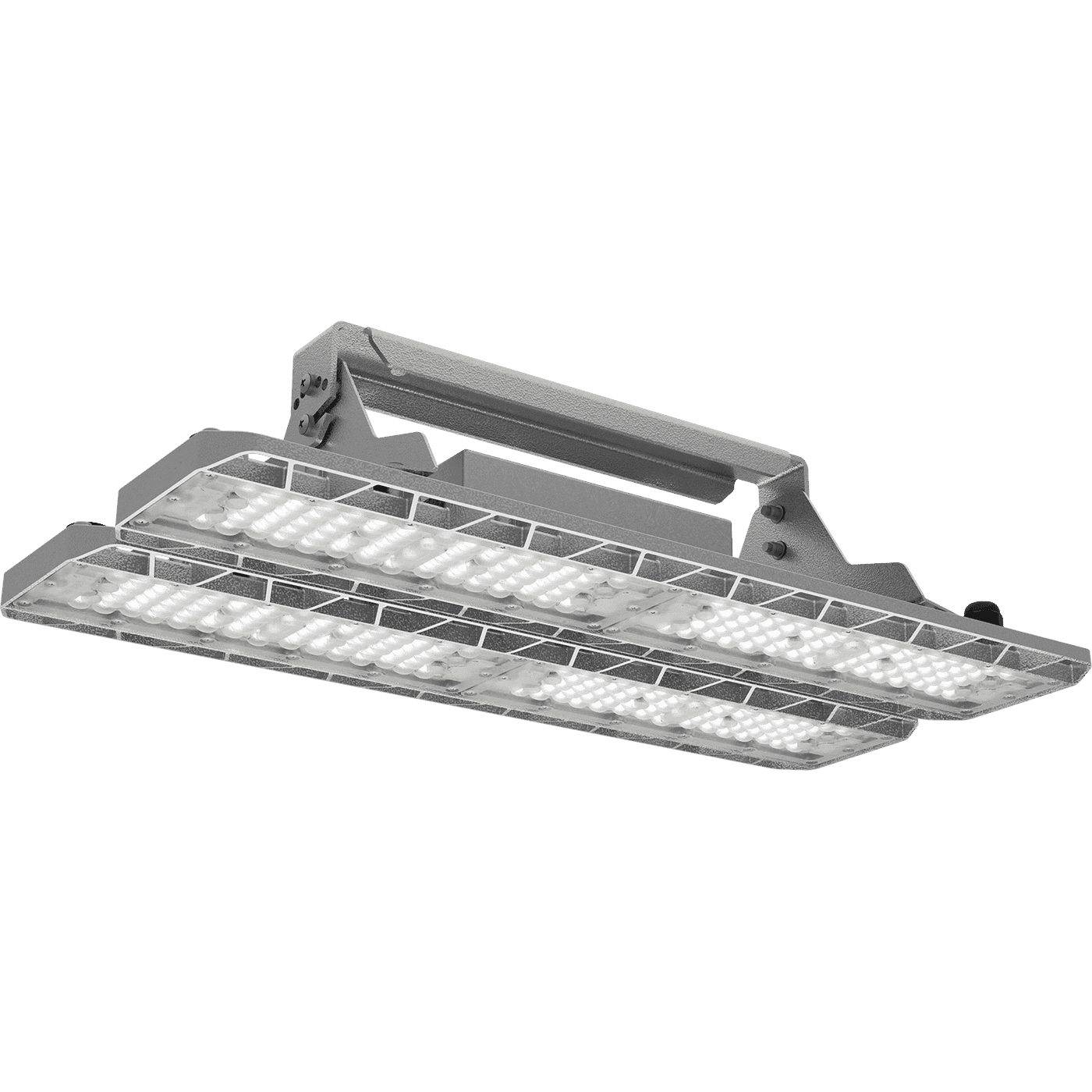

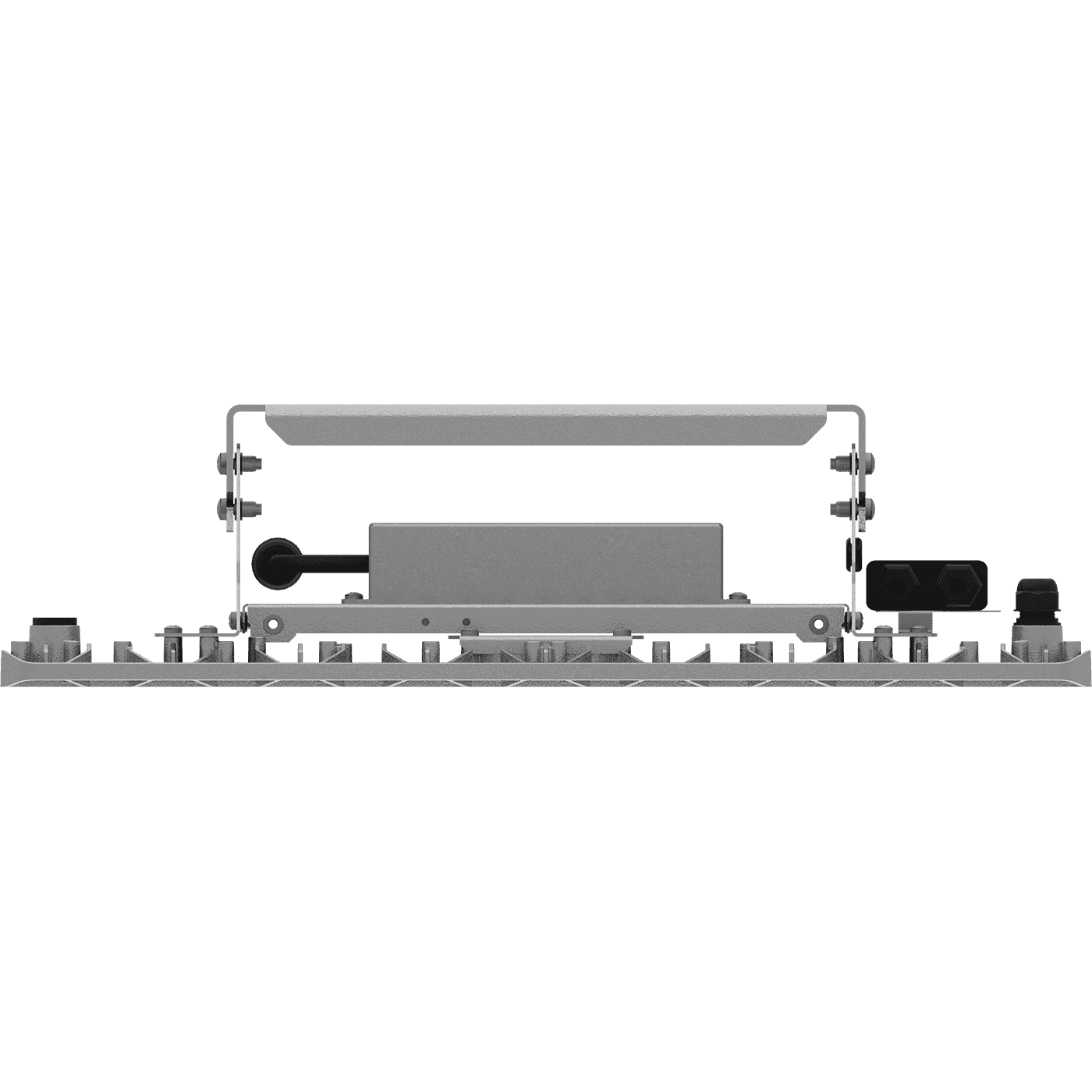

HB LED 150 D60 HFD 5000K G3
HB LED 150 D60 HFD 5000K G3
138 Wluminaire power
22600 lmlight flow
164 lm/Wenergy efficiency
code1224008440
color temperature5000 K
beam angleD60
performance factor100
weight4.61 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
164 lm/Wcolor rendition index (CRI)
>80light flow
22600 lmflickering factor
<1%beam angle
D60color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
164 lm/W
color rendition index (CRI)
>80
light flow
22600 lm
flickering factor
<1%
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
138 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2

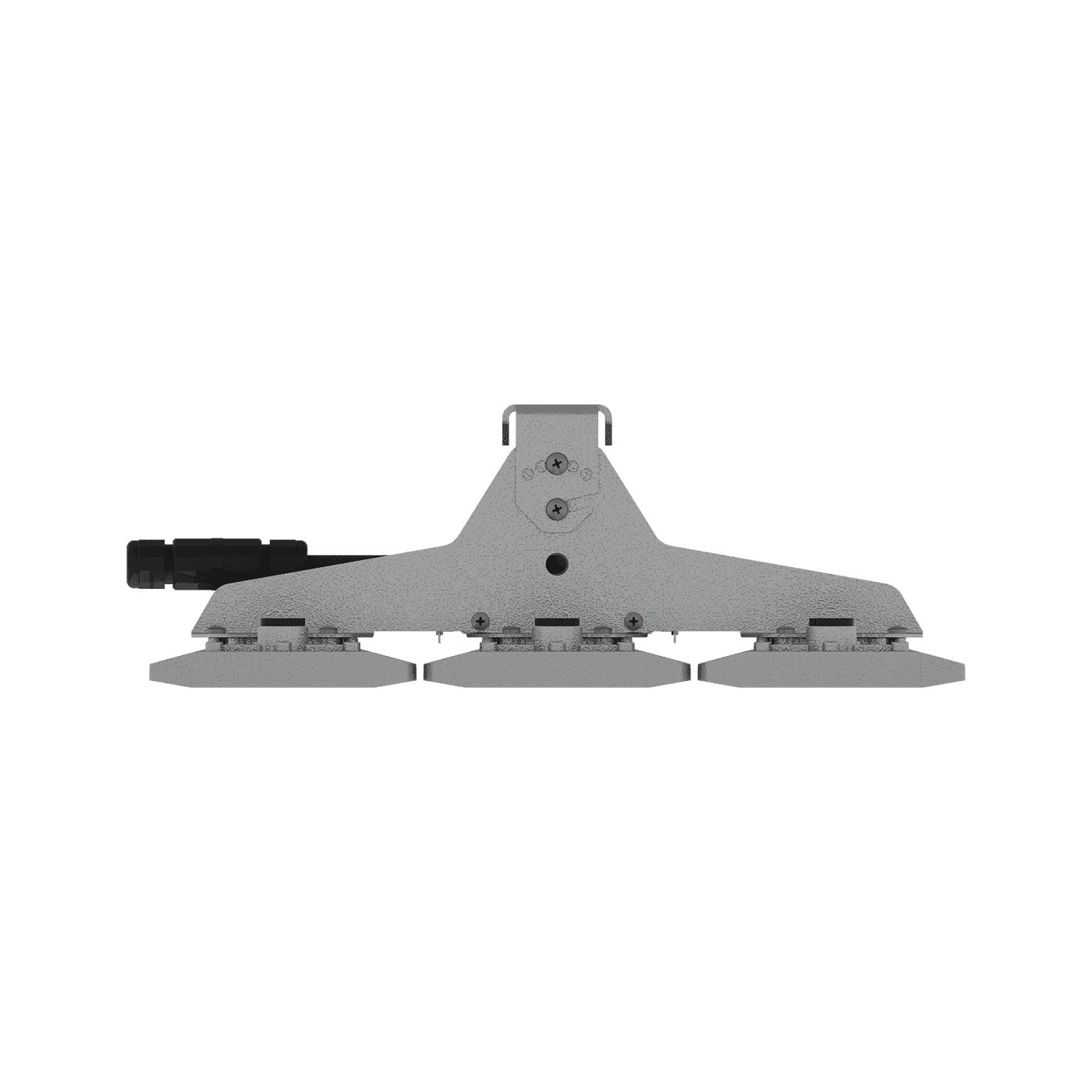

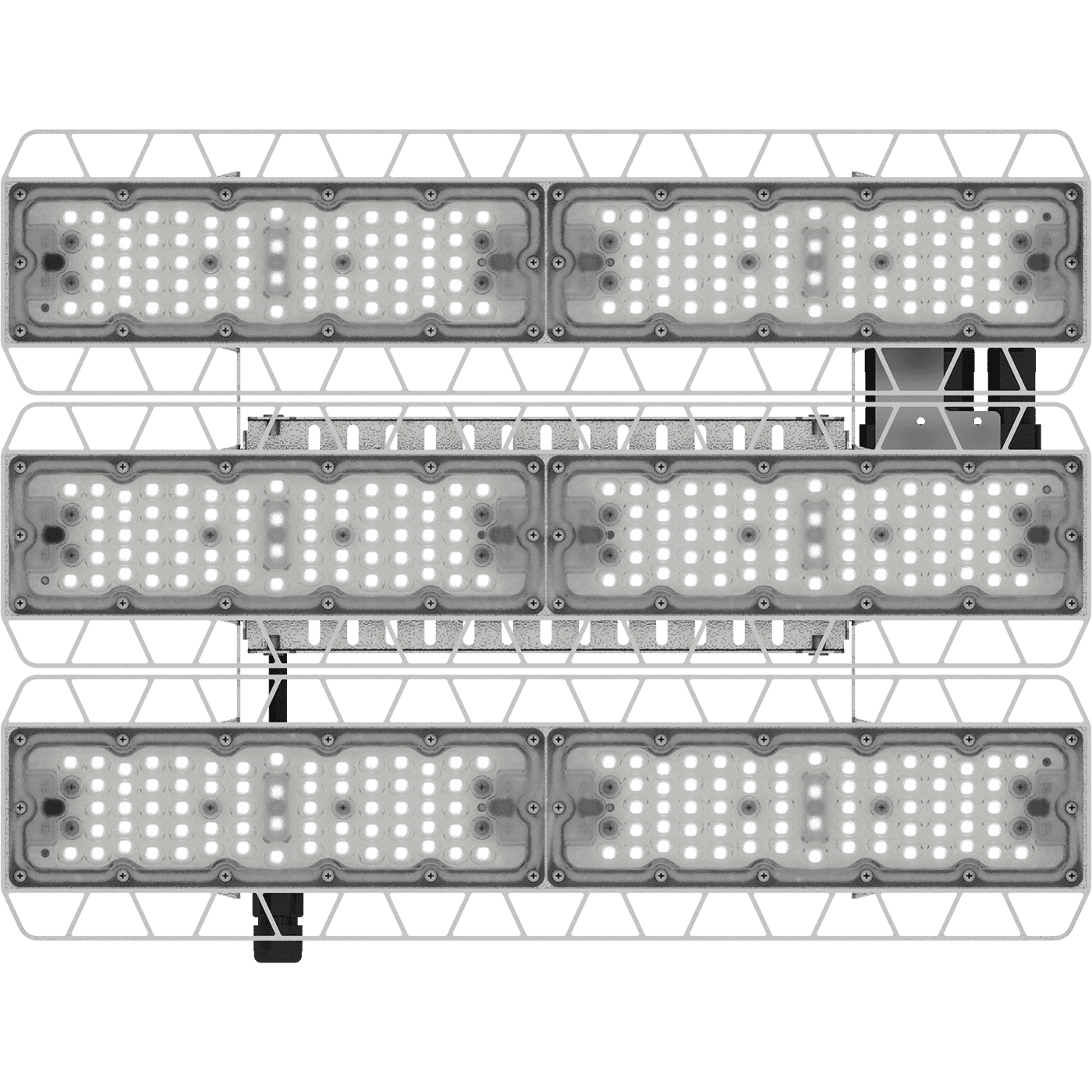

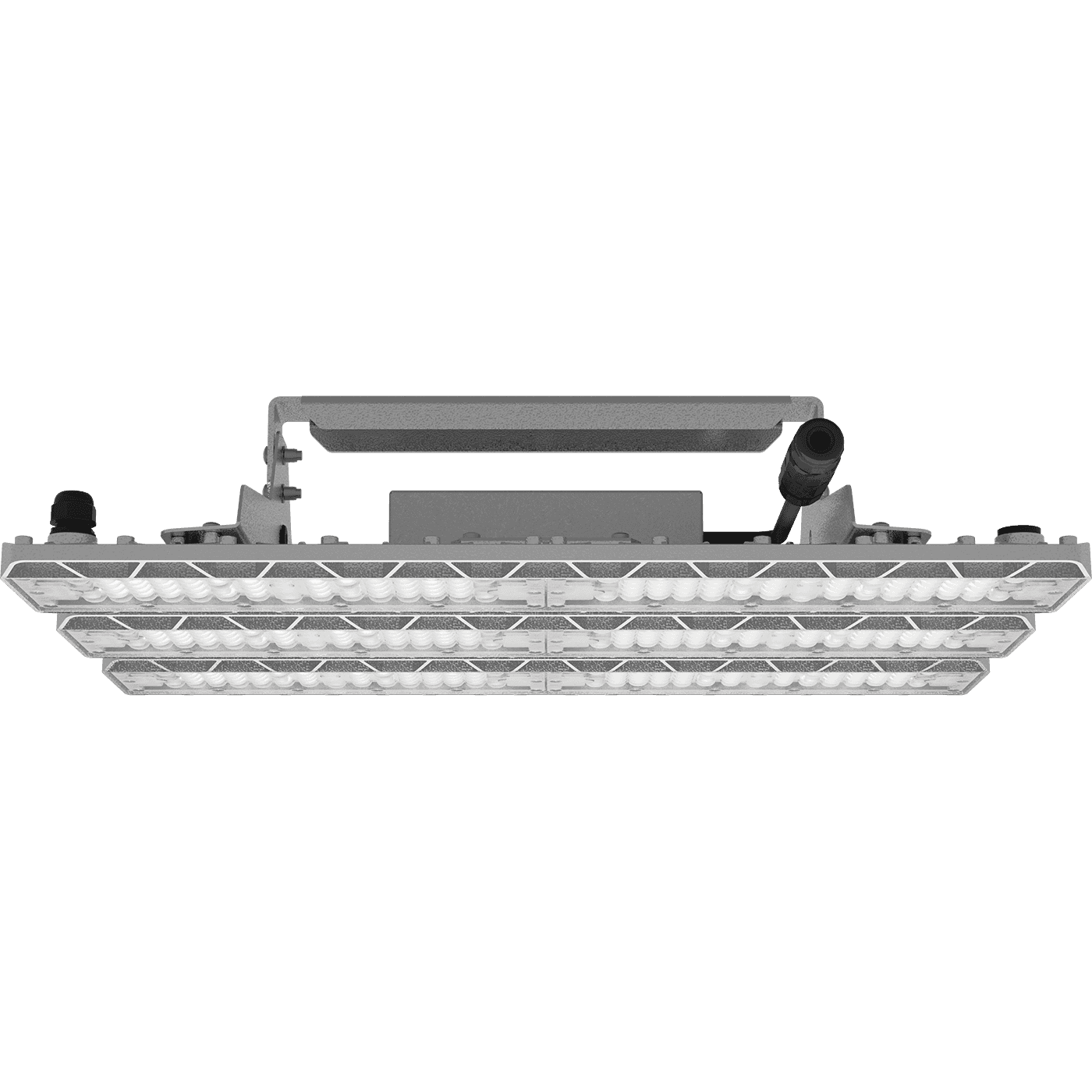

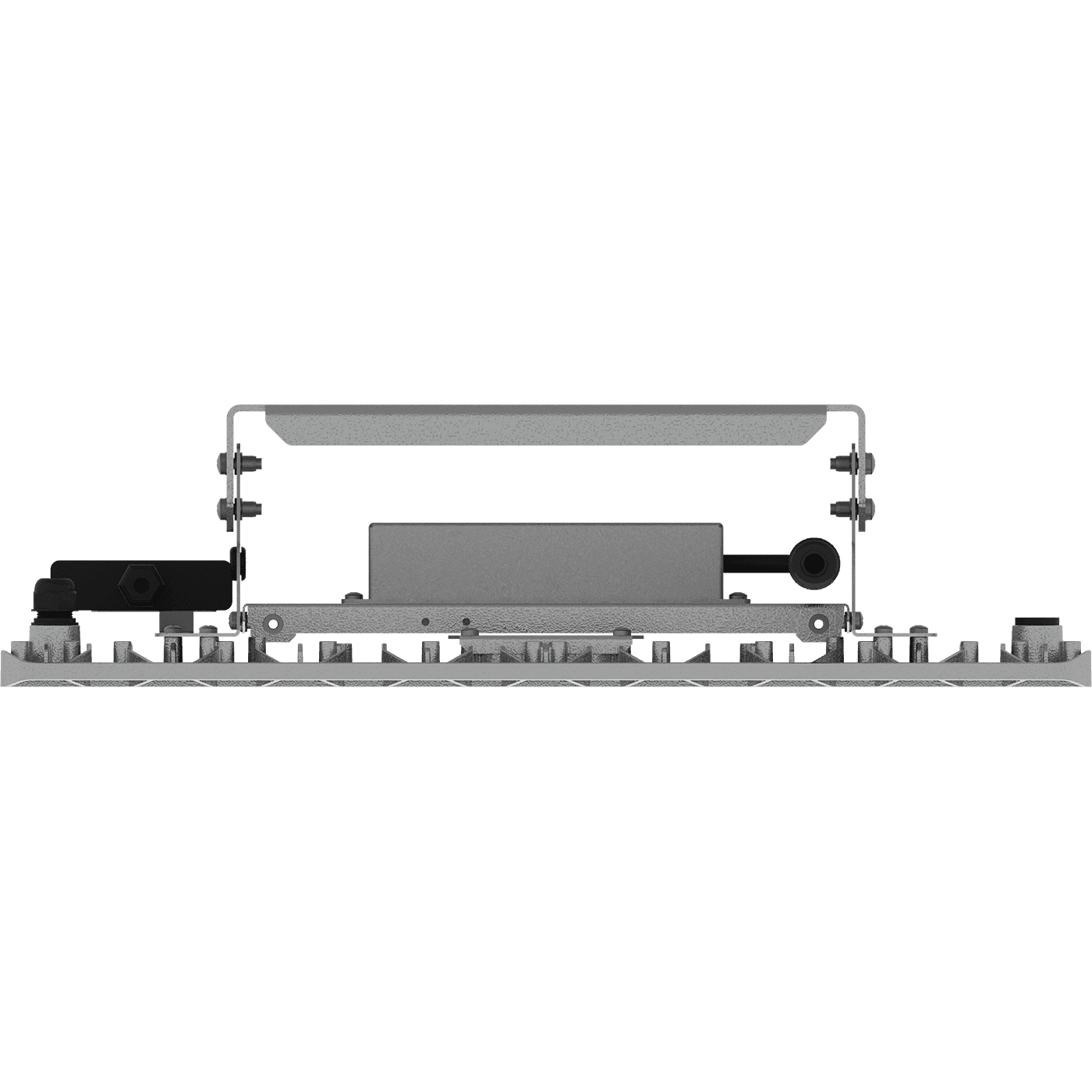

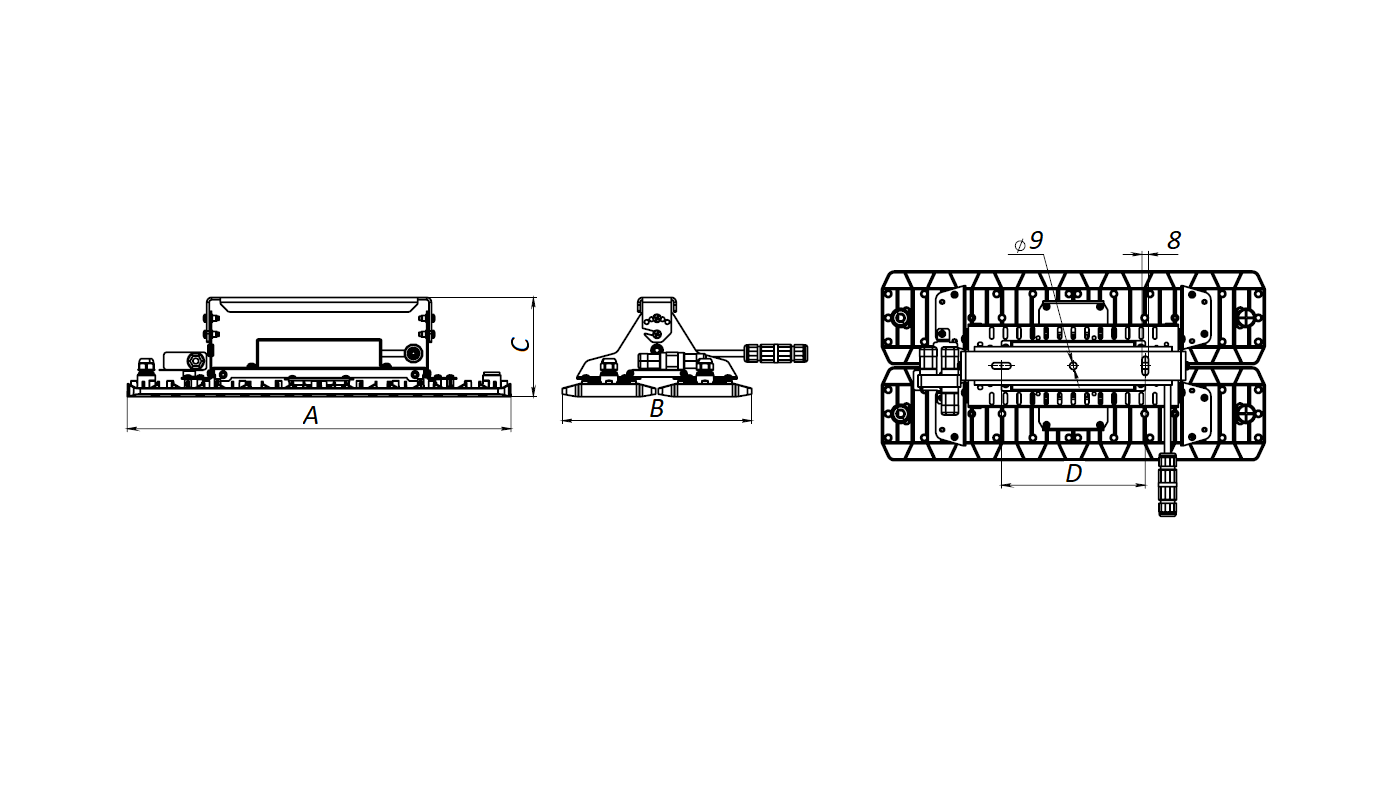

constructional
length
480 mm
width
357 mm
height
124 mm
installation length
180 mm
weight
4.61 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
60 month
temperature range
от -40 до +55 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1224008440
model files
model files

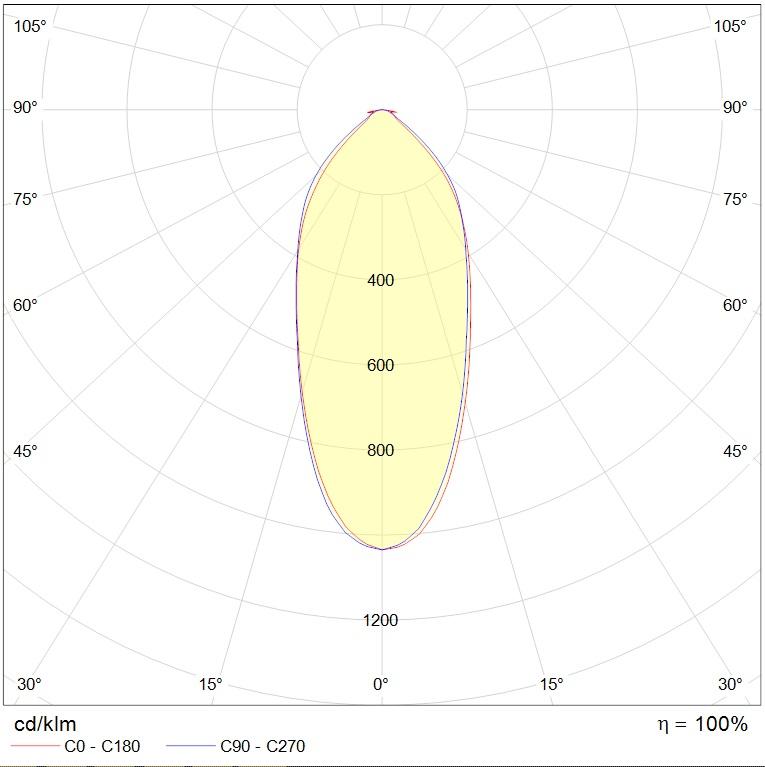

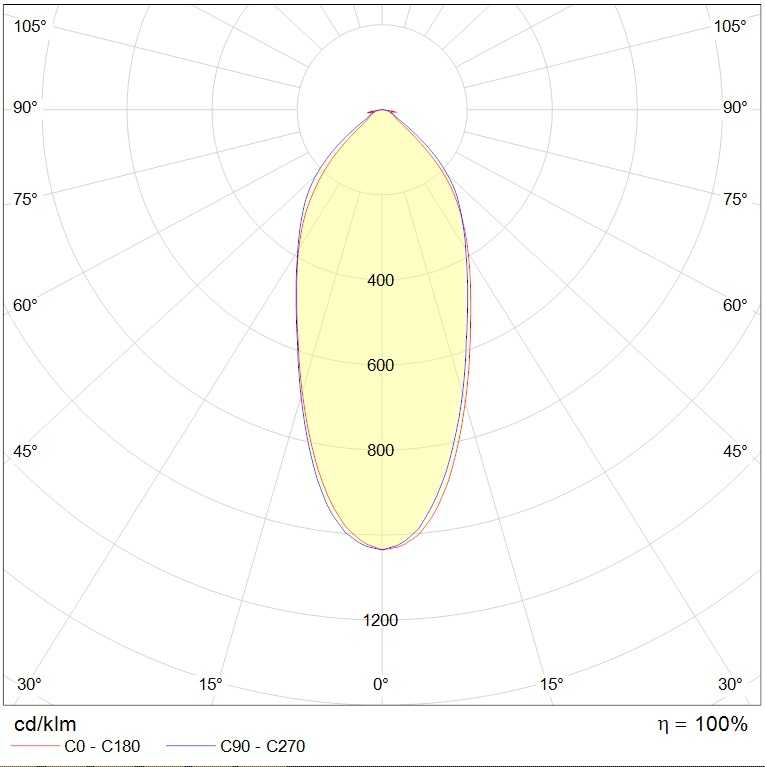

photometric files
сертификаты
photometric files
ies107 kB
jpg85 kB
ldt65.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
