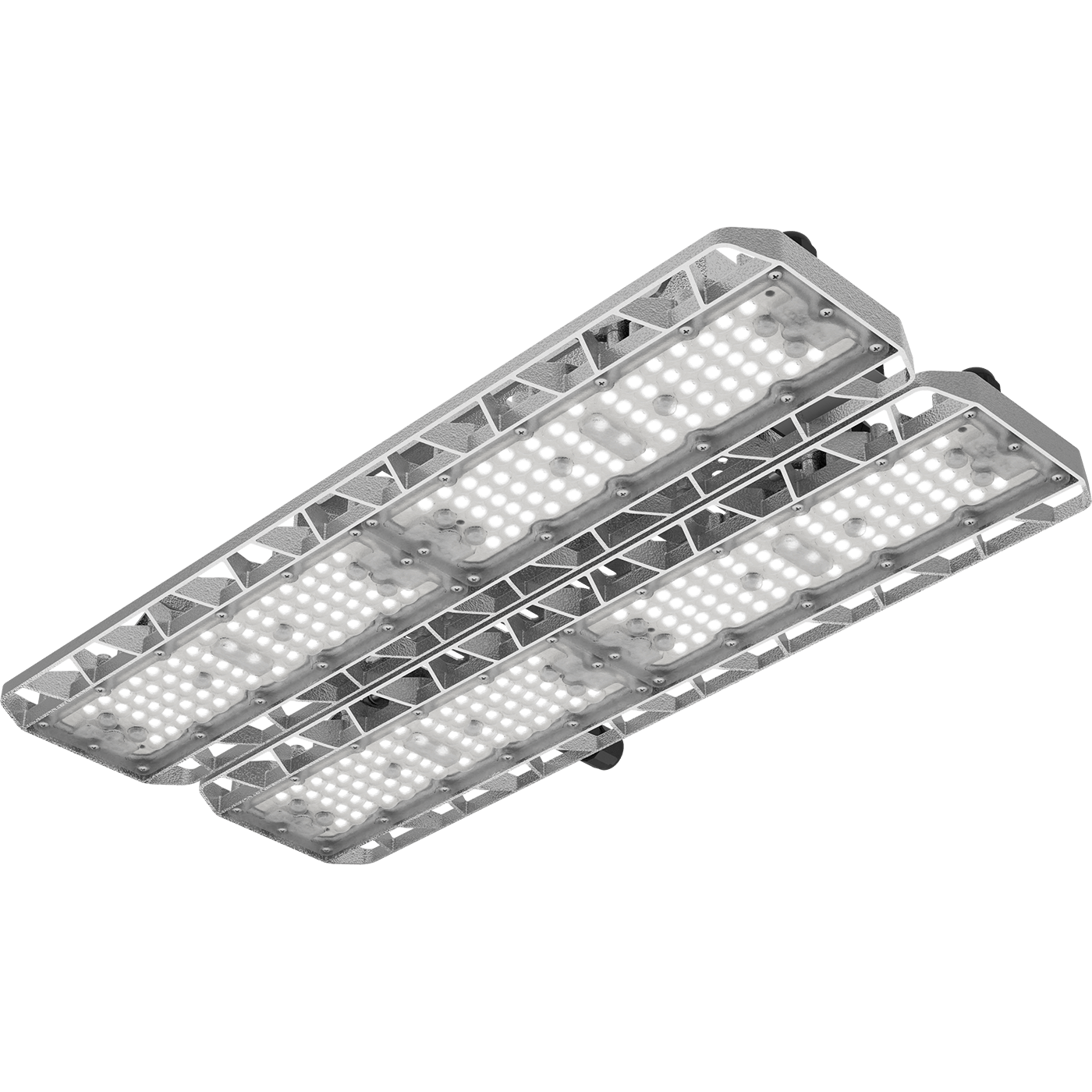

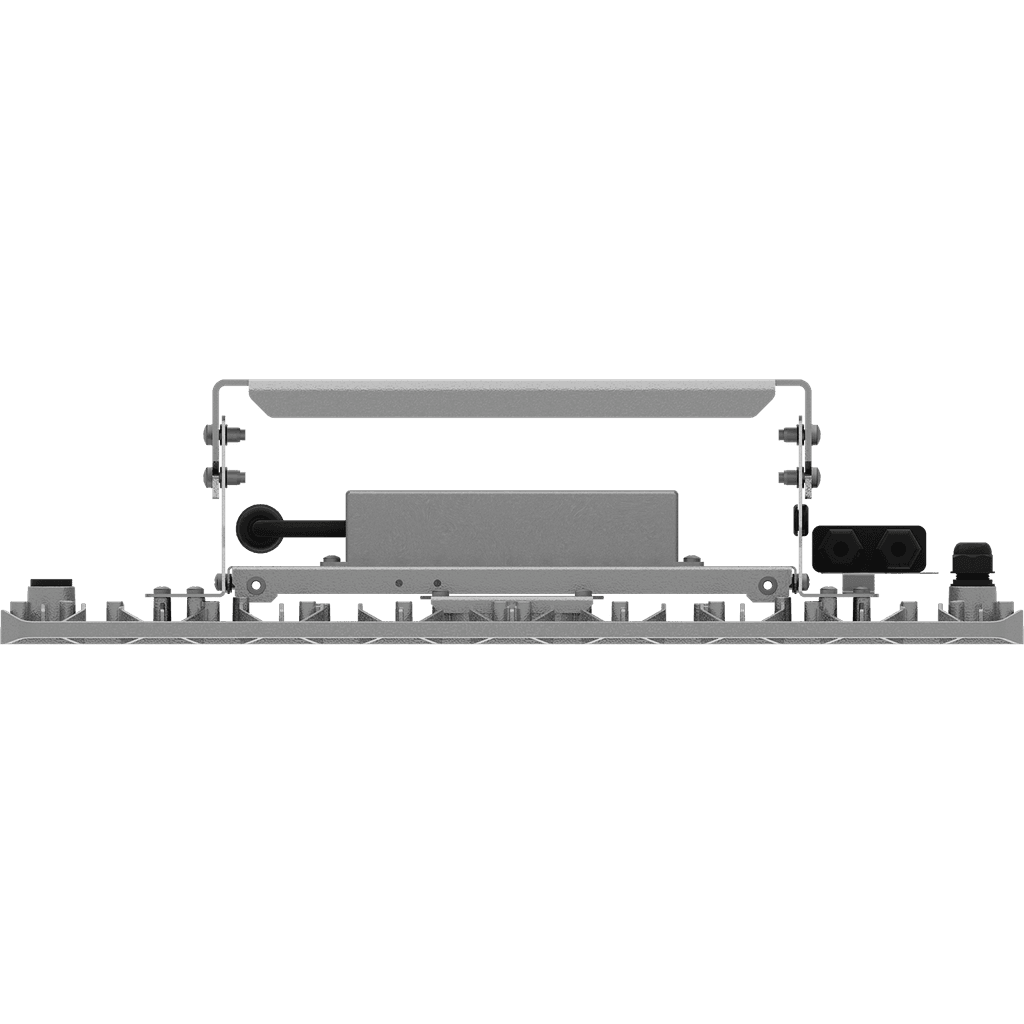

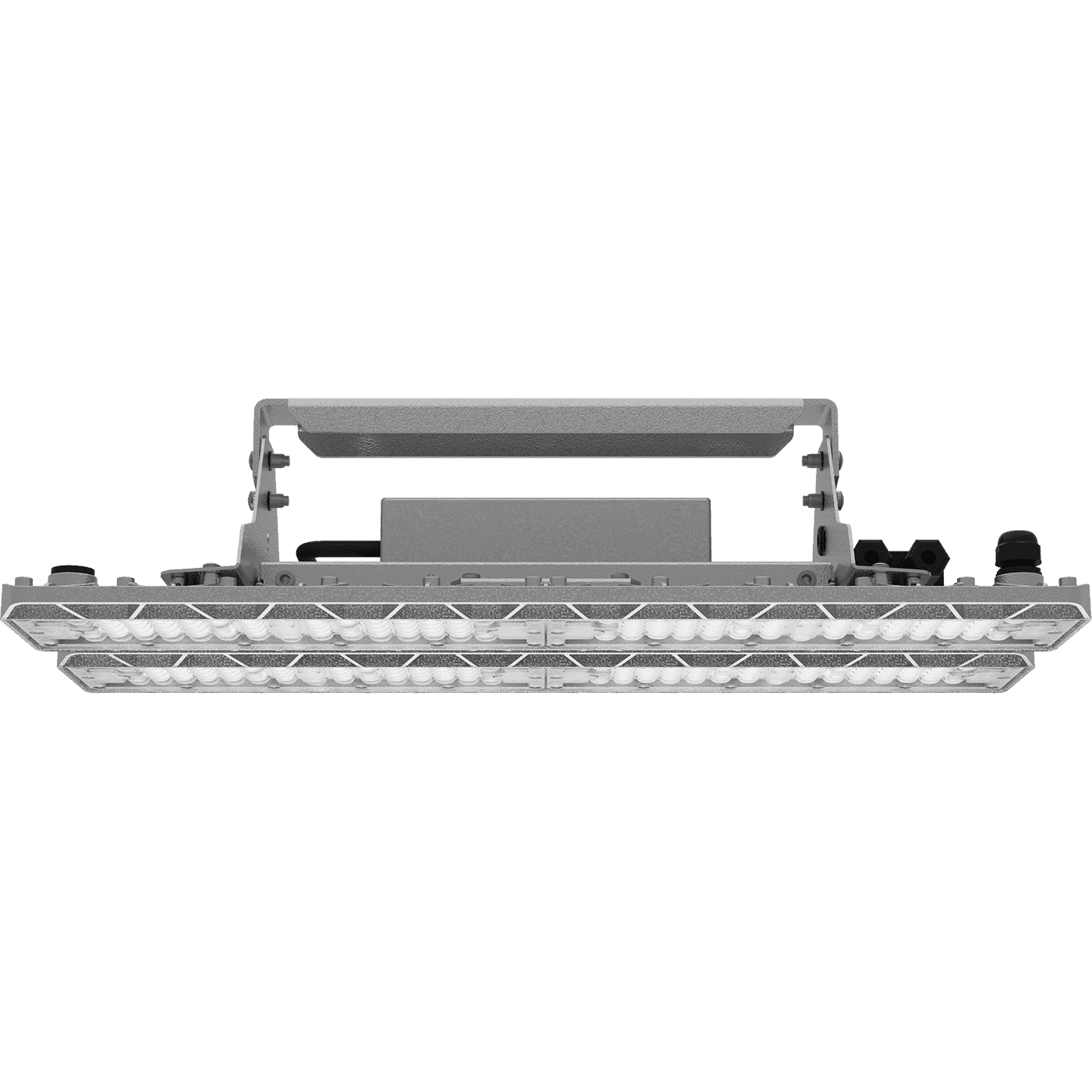

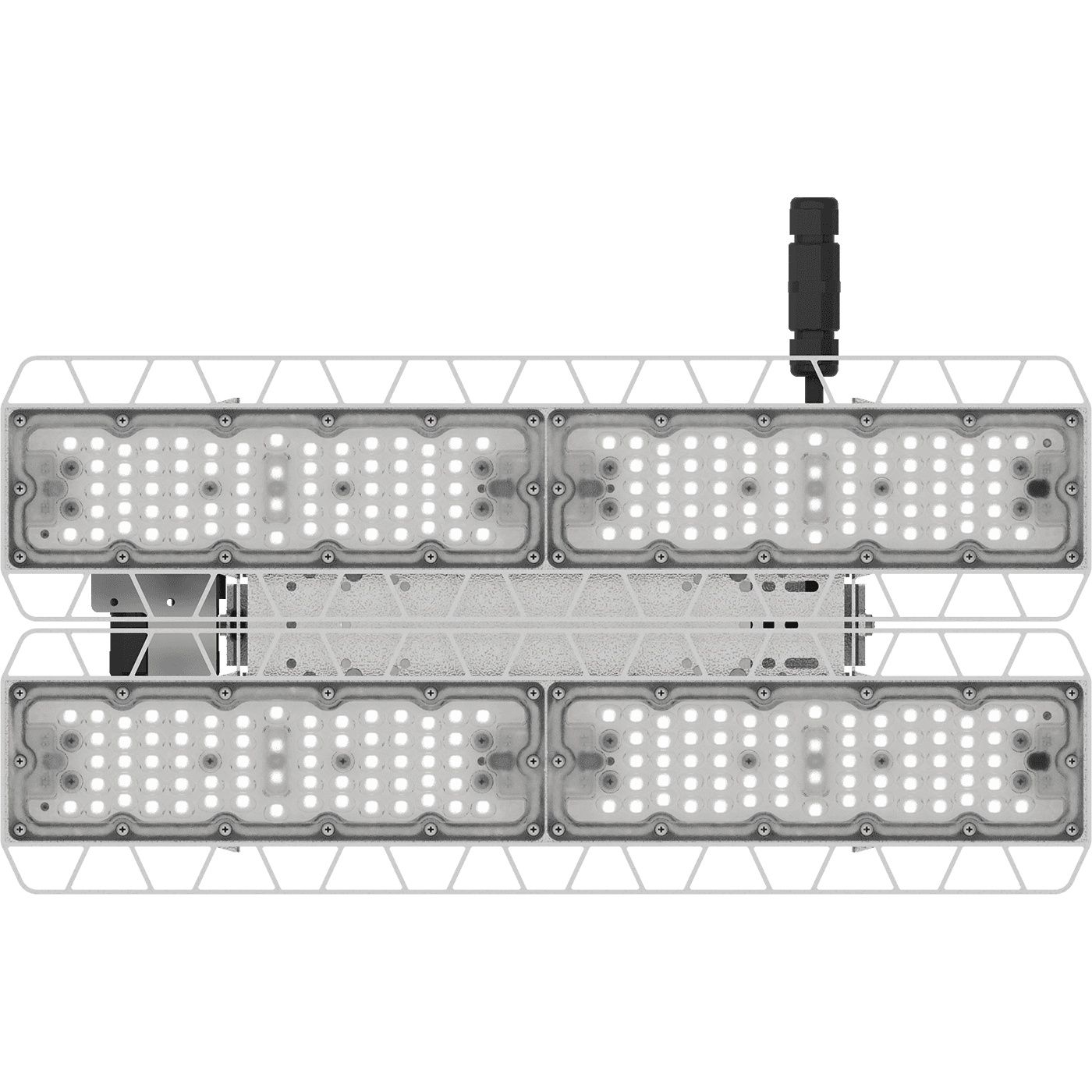

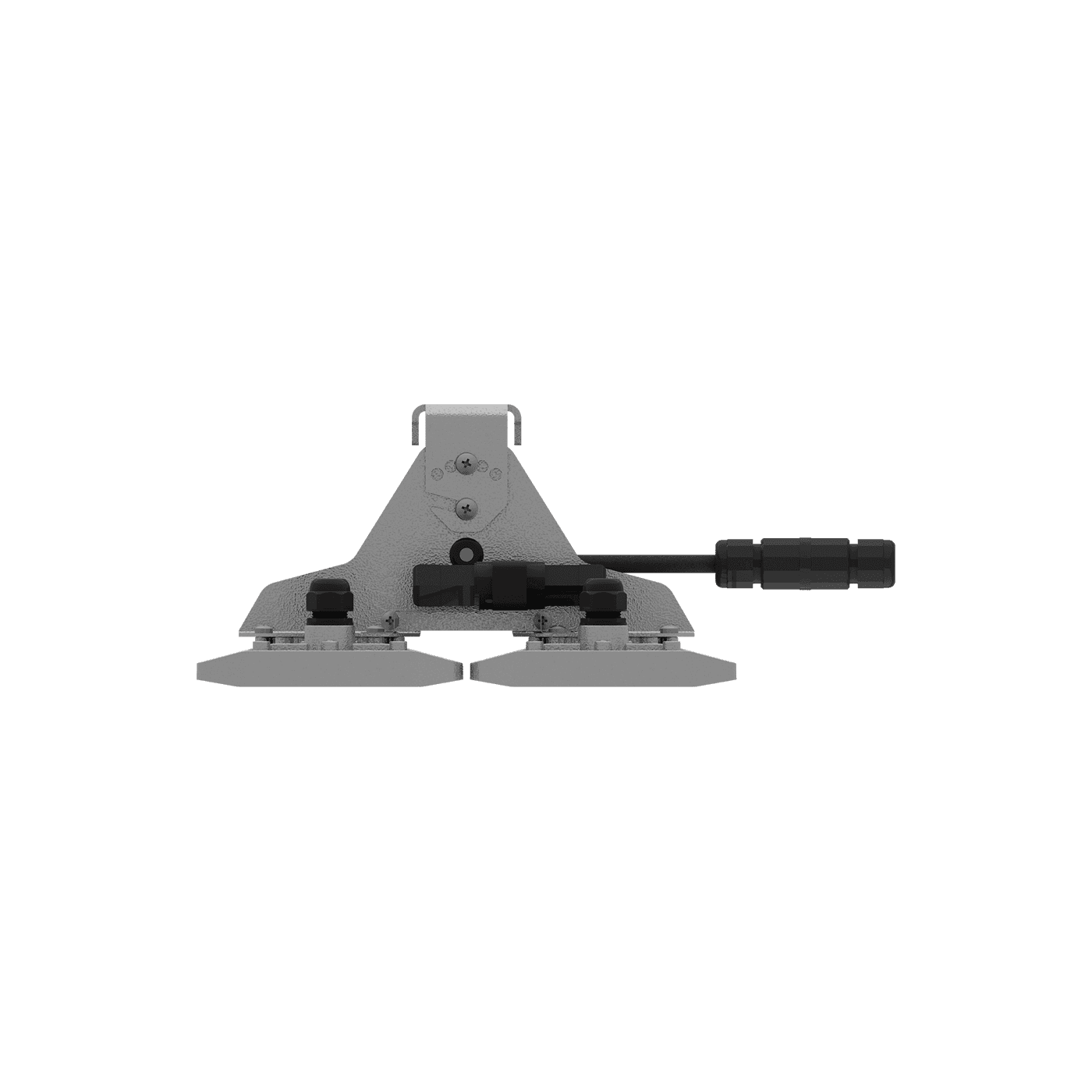

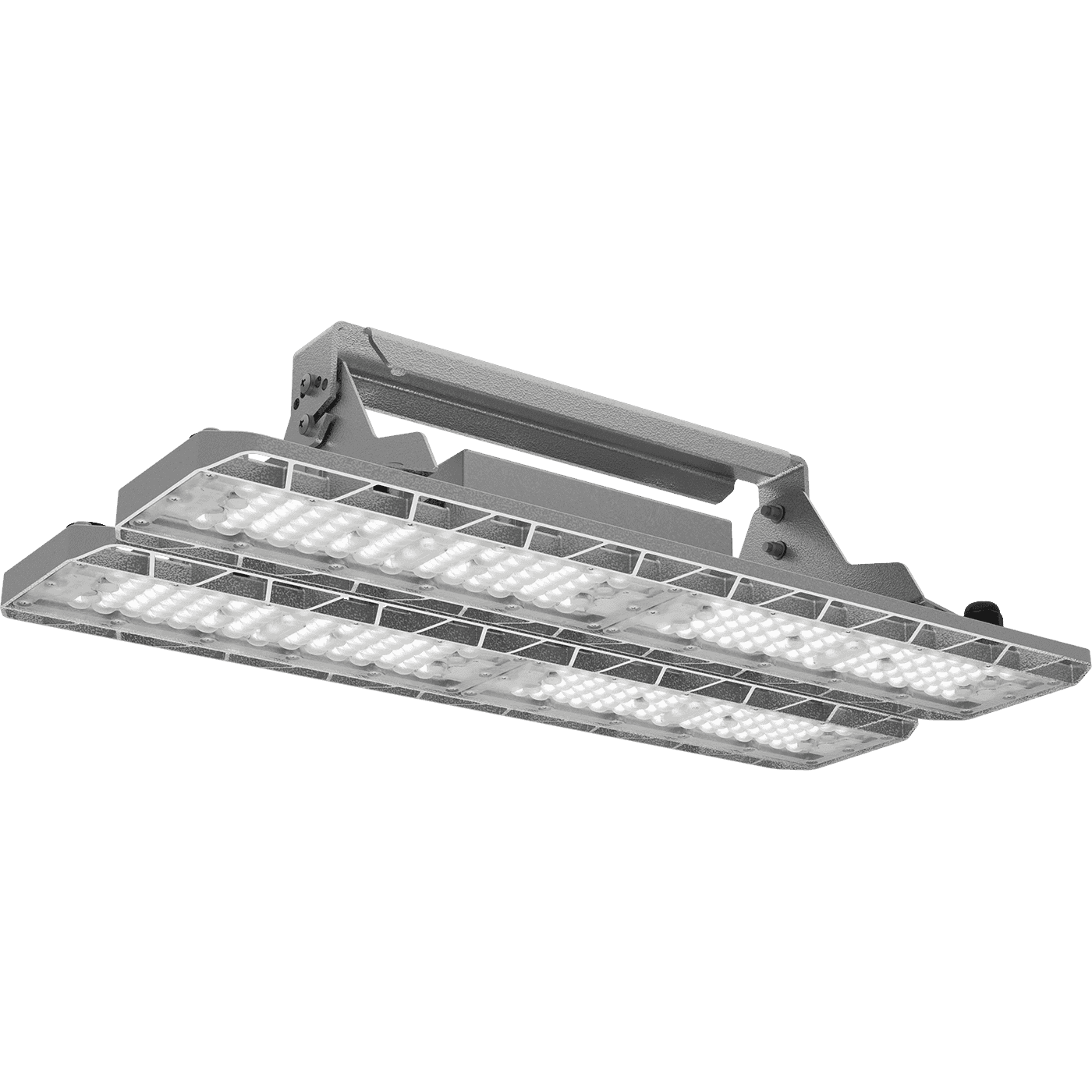

HB LED 100 D60 HFD 5000K G3

HB LED 100 D60 HFD 5000K G3
add to favorites
94 Wluminaire power
14800 lmlight flow
157 lm/Wenergy efficiency
code1224008430
color temperature5000 K
beam angleD60
performance factor100
weight3.61 kg
  1. main page
  2. catalog
  3. by product type
  4. industrial lighting
  5. 5-12 meters
  6. HB LED G3
  7. HB LED 100 D60 HFD 5000K G3
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
157 lm/W
color rendition index (CRI)
>80
light flow
14800 lm
flickering factor
<1%
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
157 lm/W
color rendition index (CRI)
>80
light flow
14800 lm
flickering factor
<1%
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
94 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
constructional
length
480 mm
width
237 mm
height
124 mm
installation length
180 mm
weight
3.61 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
60 month
temperature range
от -40 до +55 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1224008430
model files
model files

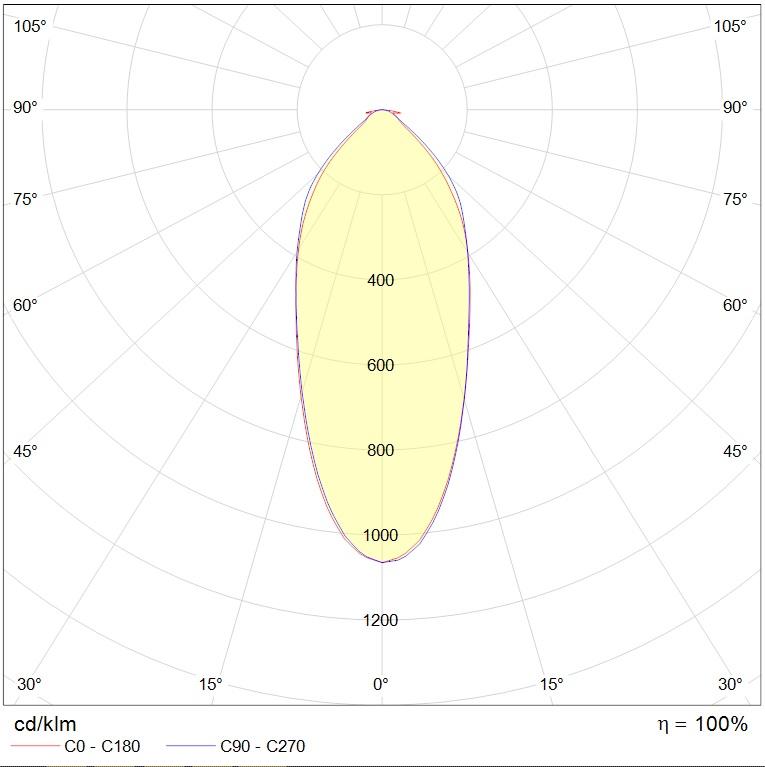

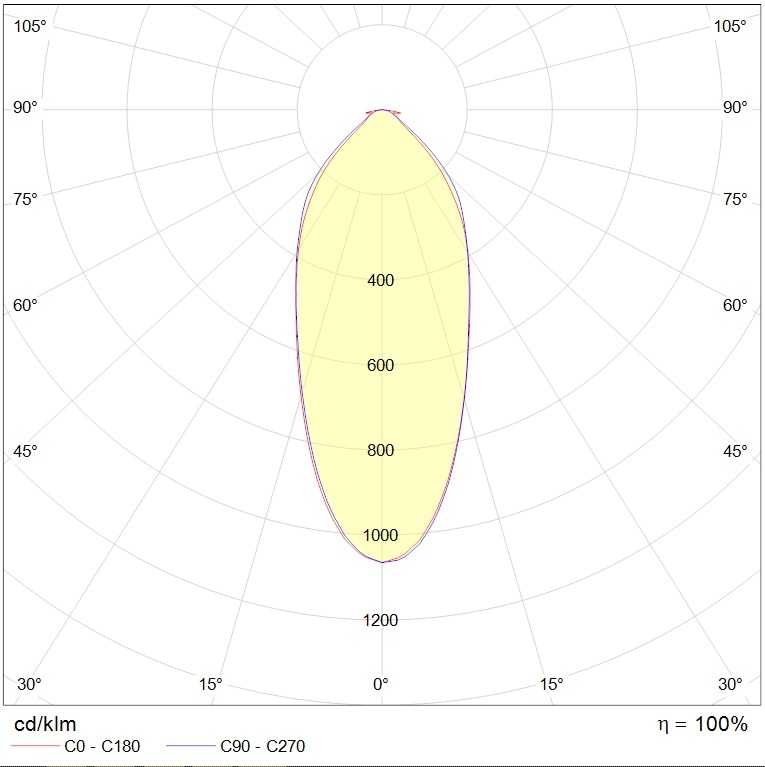

photometric files
ies107.1 kB
jpg84 kB
ldt62 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
photometric files
ies107.1 kB
jpg84 kB
ldt62 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
