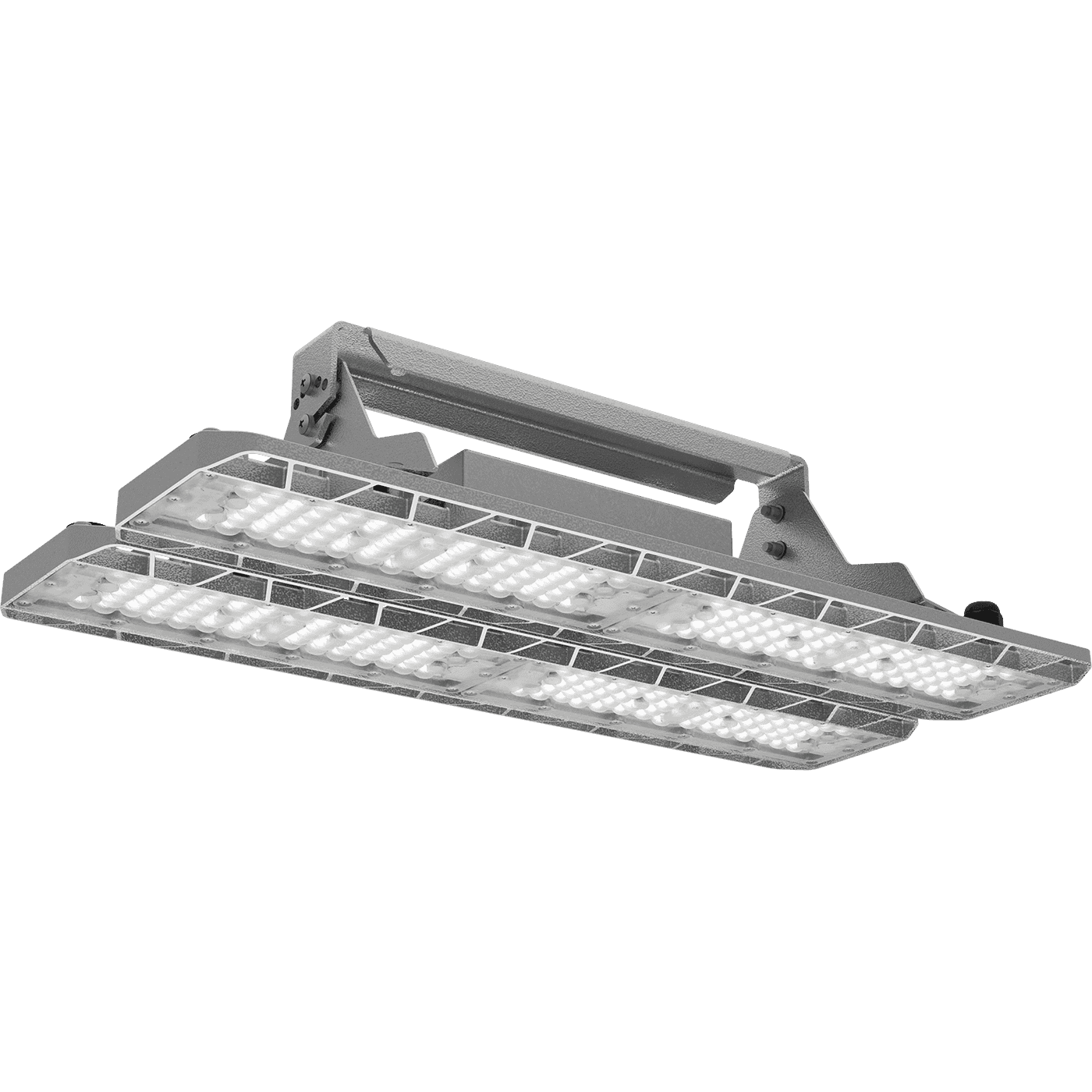

HB LED 100 D120 5000K G3
HB LED 100 D120 5000K G3
94 Wluminaire power
14800 lmlight flow
157 lm/Wenergy efficiency
code1224006860
color temperature5000 K
beam angleD120
performance factor100
weight3.61 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
157 lm/Wcolor rendition index (CRI)
>80light flow
14800 lmflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
157 lm/W
color rendition index (CRI)
>80
light flow
14800 lm
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
500 µs
electric shock protection
I
luminaire power
94 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A
constructional
length
480 mm
width
237 mm
height
124 mm
installation length
180 mm
weight
3.61 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ1*
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +55 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1224006860
model files
model files

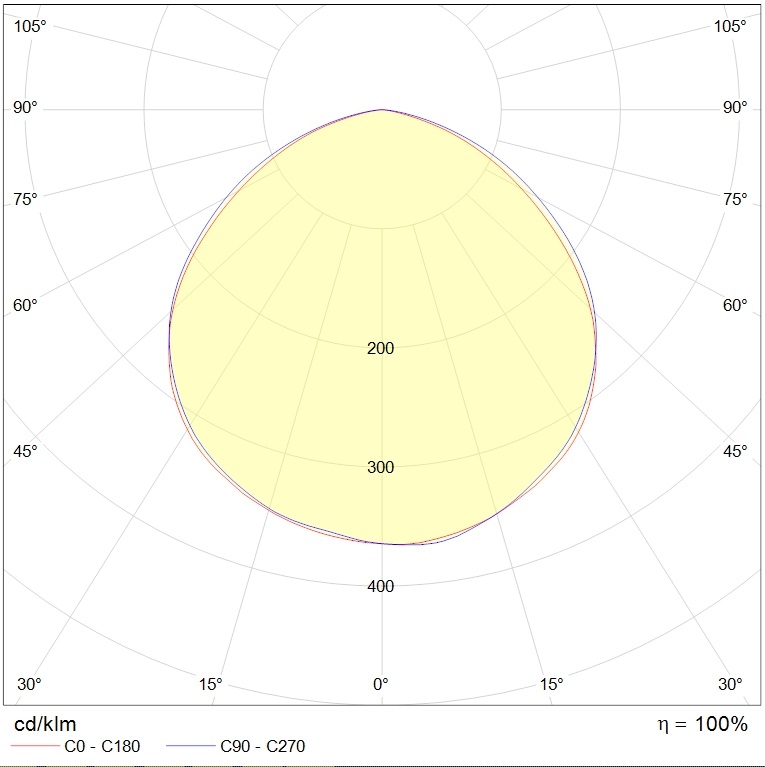

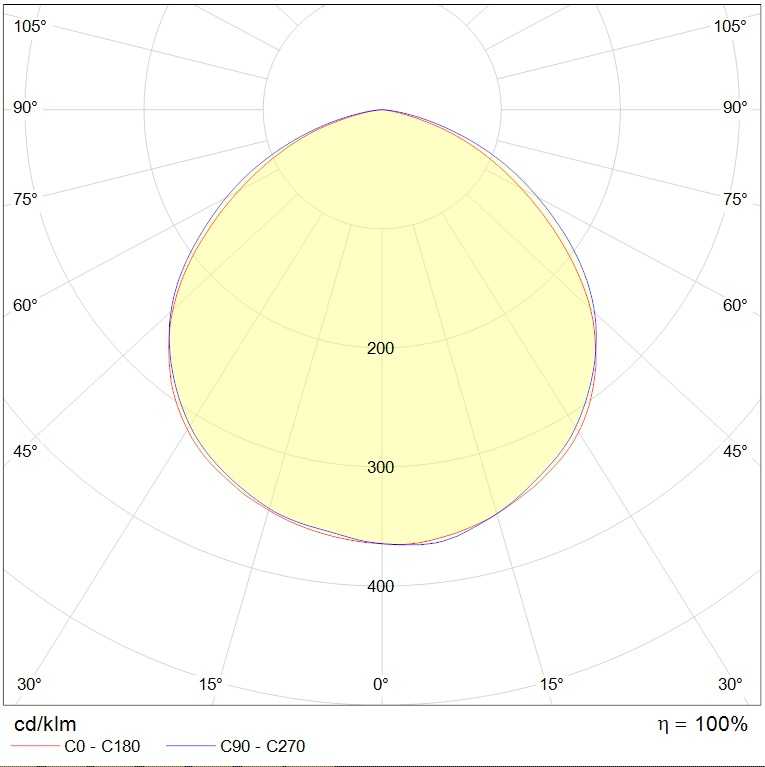

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg80 kB
ldt66.3 kB
documents
passport2.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
