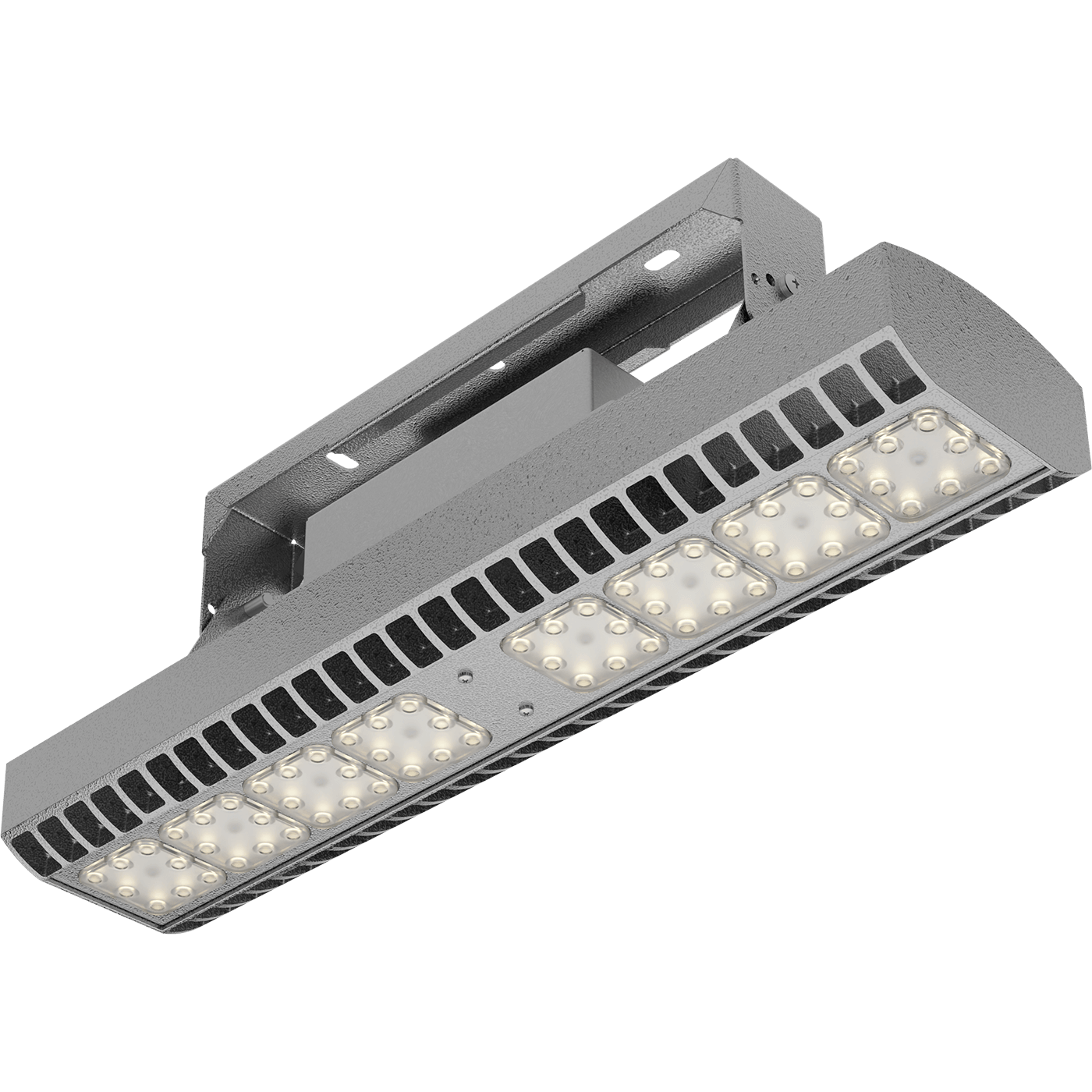

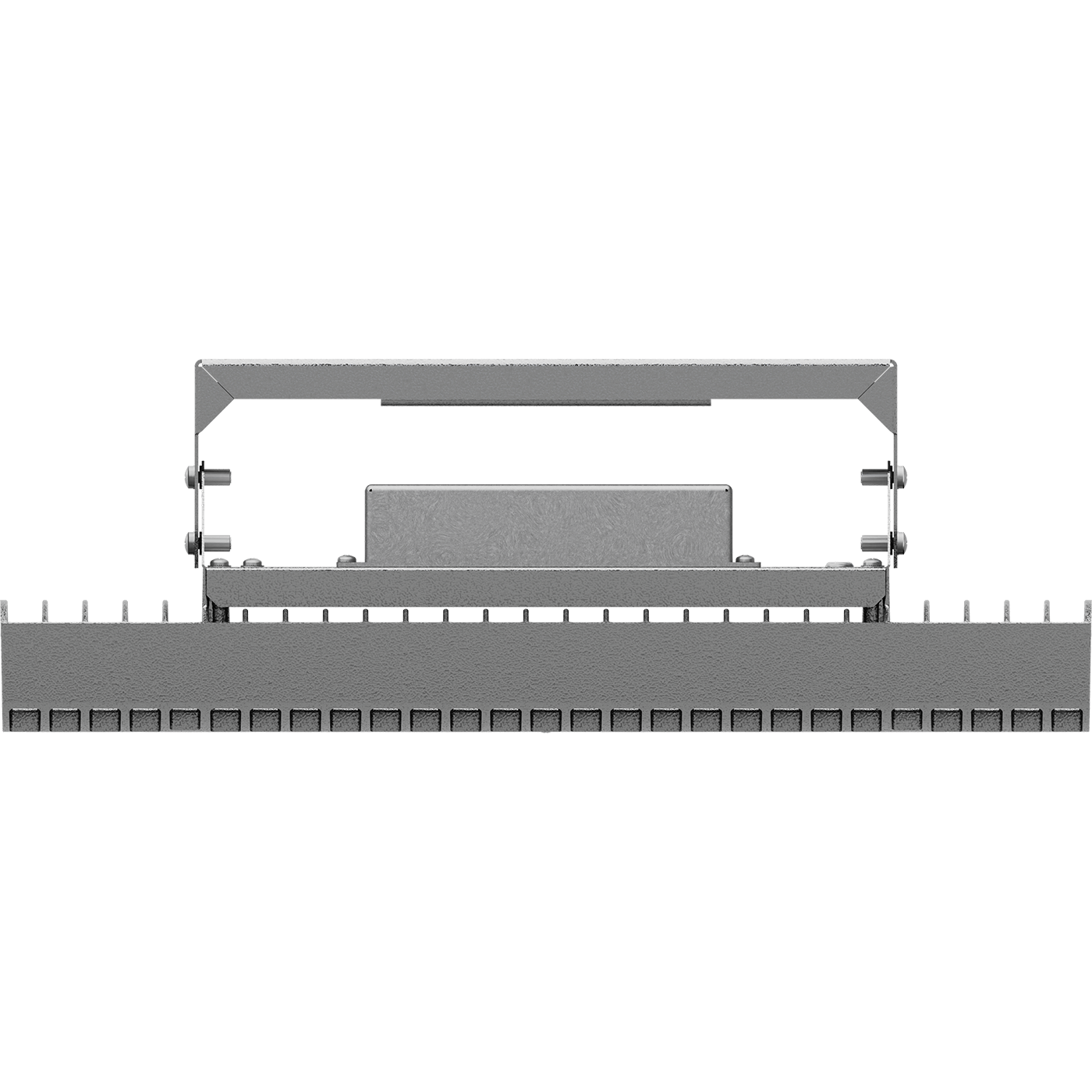

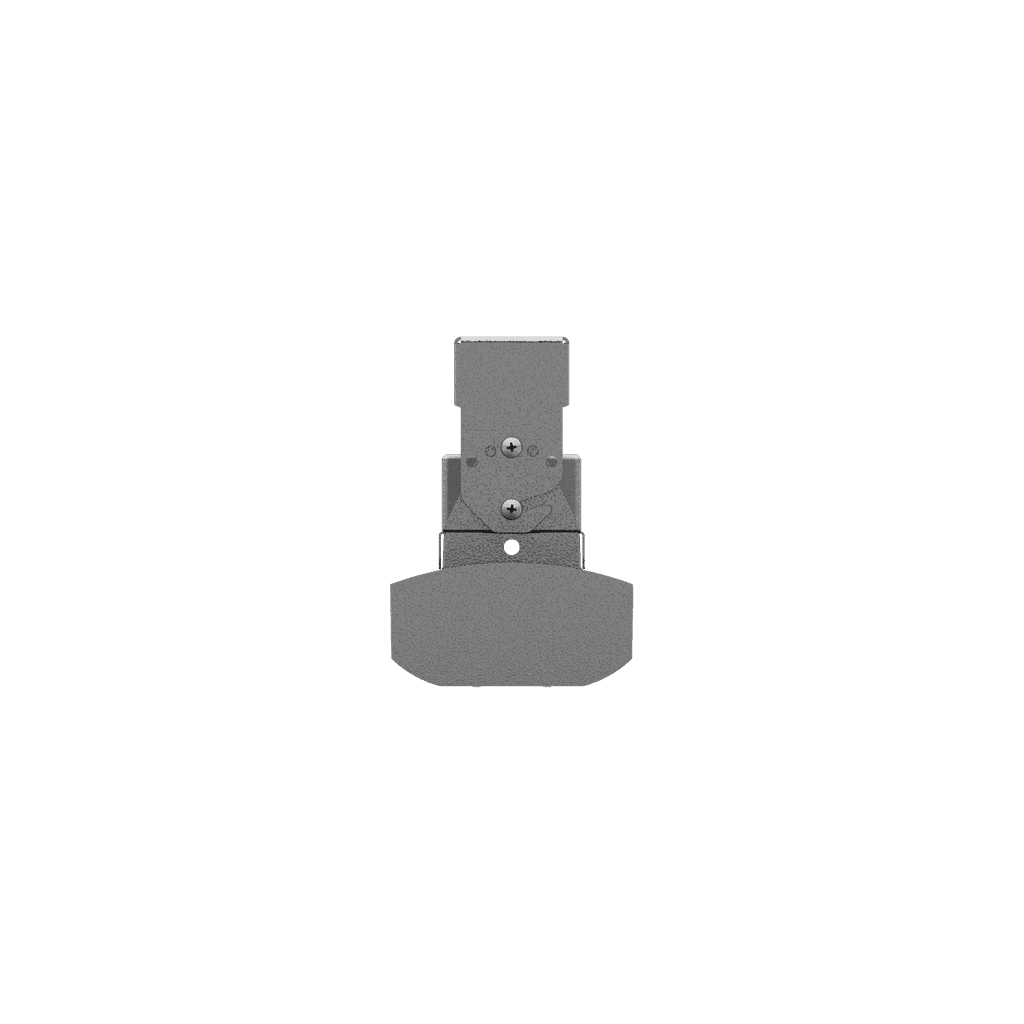

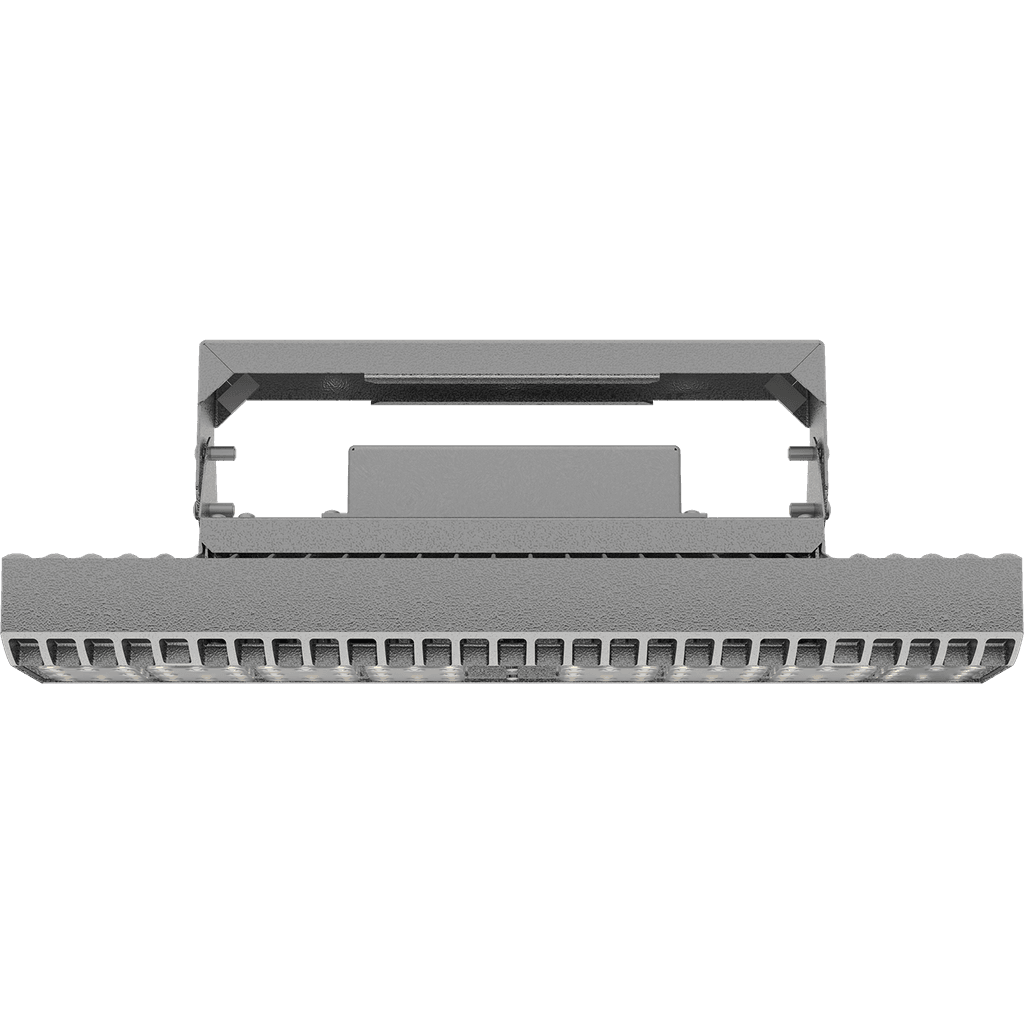

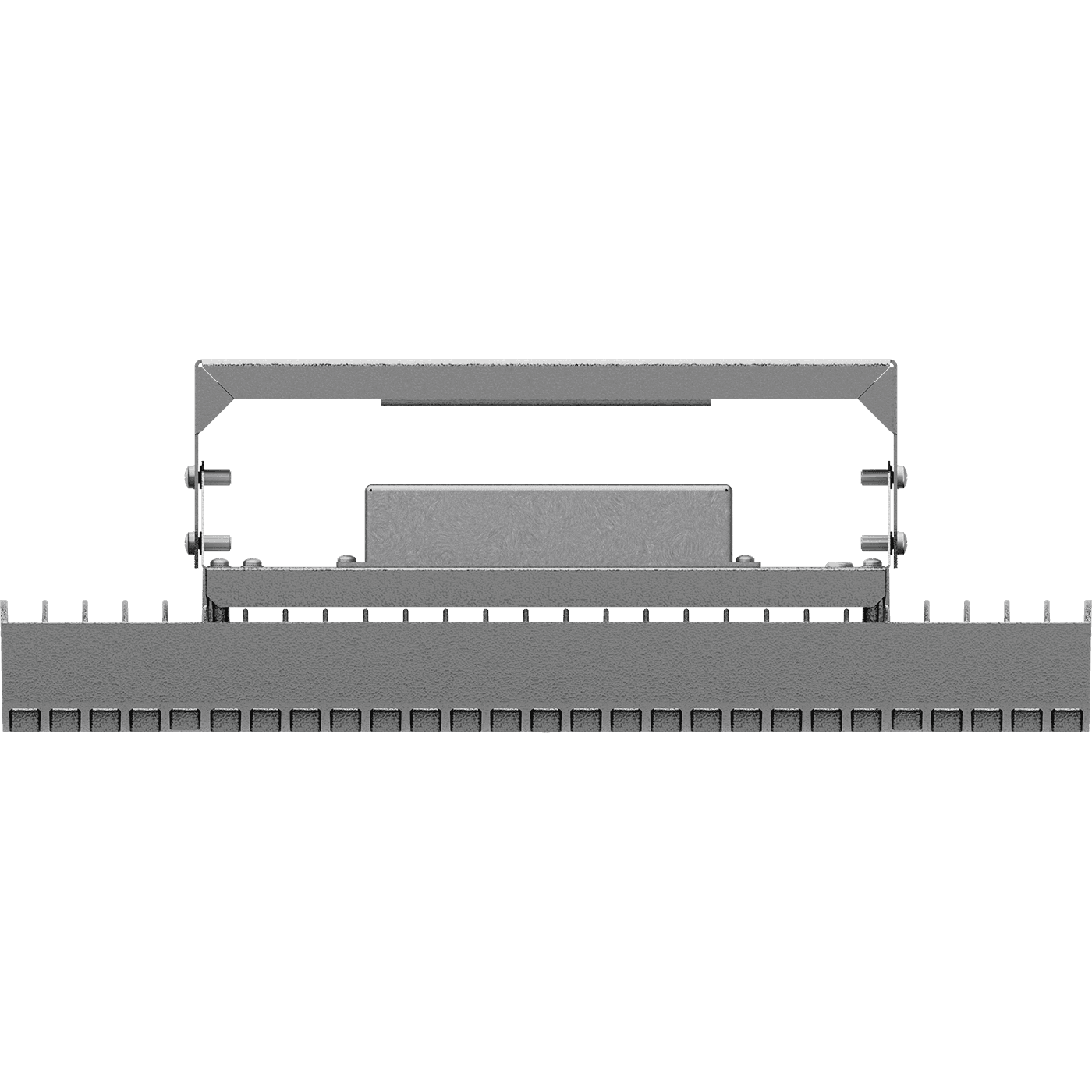

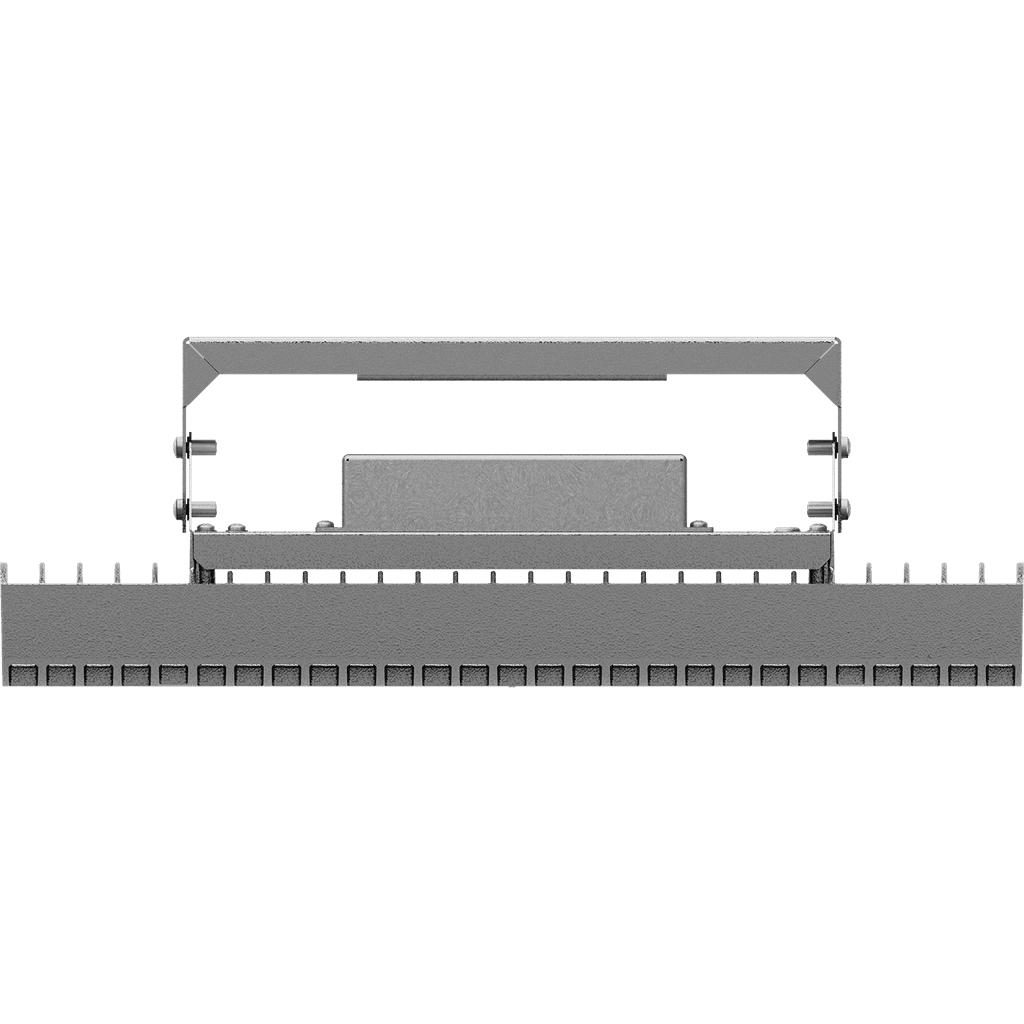

HB LED G2 75W D80 840 HG EM
.png&w=1920&q=100)
.png&w=1024&q=75)
HB LED G2 75W D80 840 HG EM
70 Wluminaire power
8400 lmlight flow
120 lm/Wenergy efficiency
code1224011080
color temperature4000 K
beam angleD80
weight6.1 kg
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
color rendition index (CRI)
>80light flow
8400 lmflickering factor
<1%energy efficiency
120 lm/Wbeam angle
D80color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
8400 lm
flickering factor
<1%
energy efficiency
120 lm/W
beam angle
D80
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
70 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
57 A
supply voltage
230 V
starting current pulse time
160 µs
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
shock resistance (IK)
IK07/2 Дж
weight
6.1 kg
ingress protection (IP)
IP66
length
463 mm
width
150 mm
height
250 mm
installation length
180 mm
emergency
operating time in emergency mode
1 h
luminous flux in emergency mode
2300 lm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от 0 до +55 C
code
1224011080
model files
model files

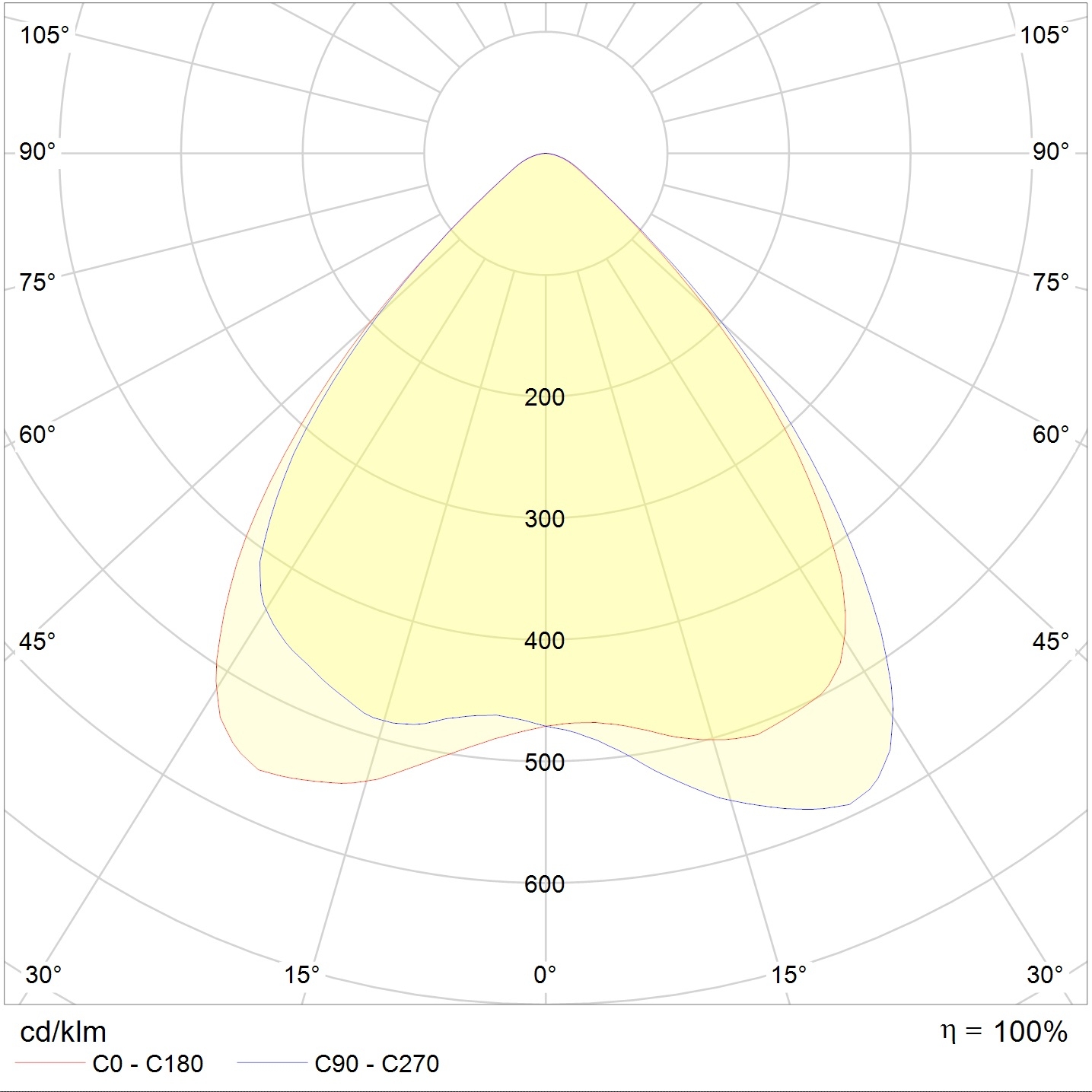

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg219.8 kB
ldt71 kB
documents
passport8.2 mB
сертификаты
Russian origin329.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
