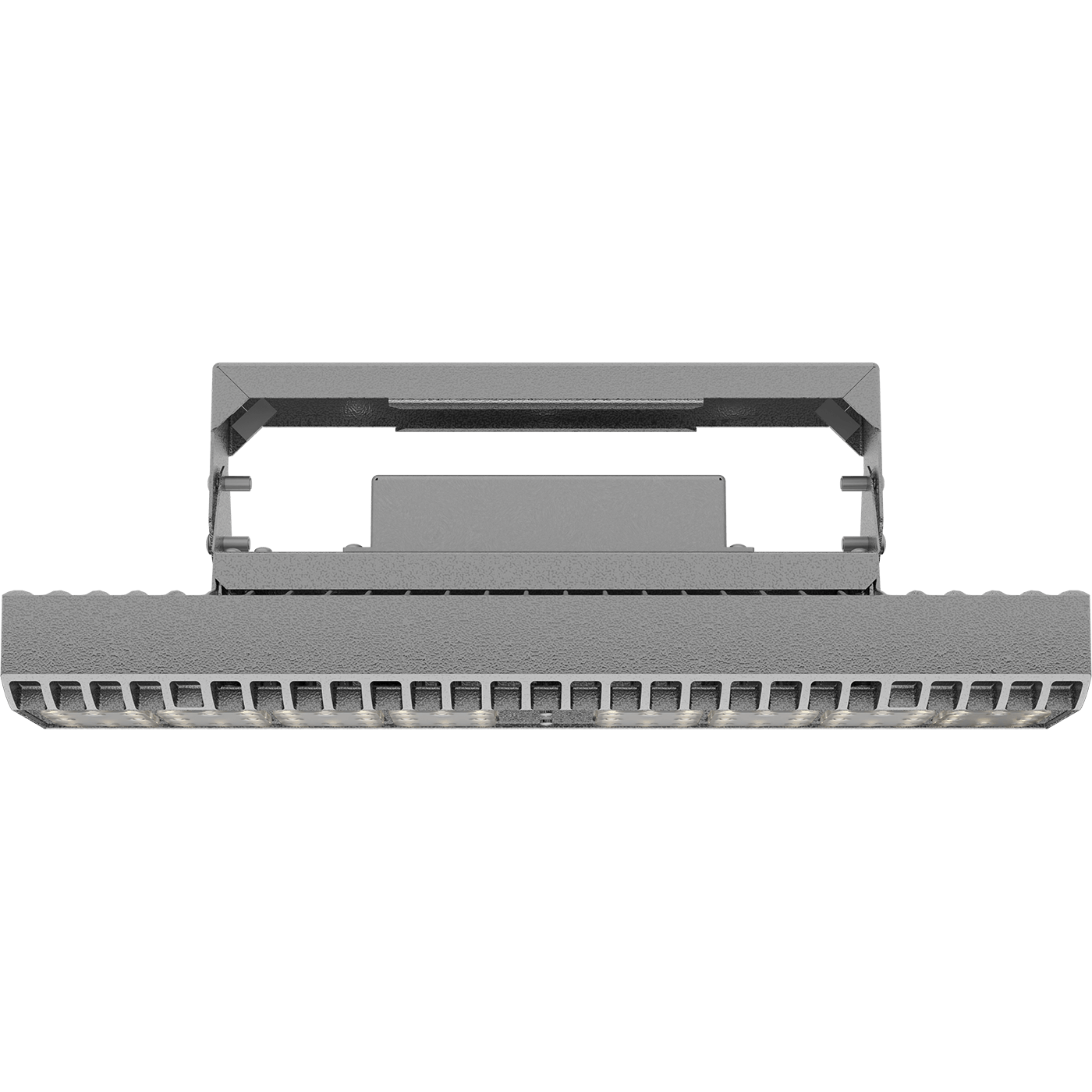

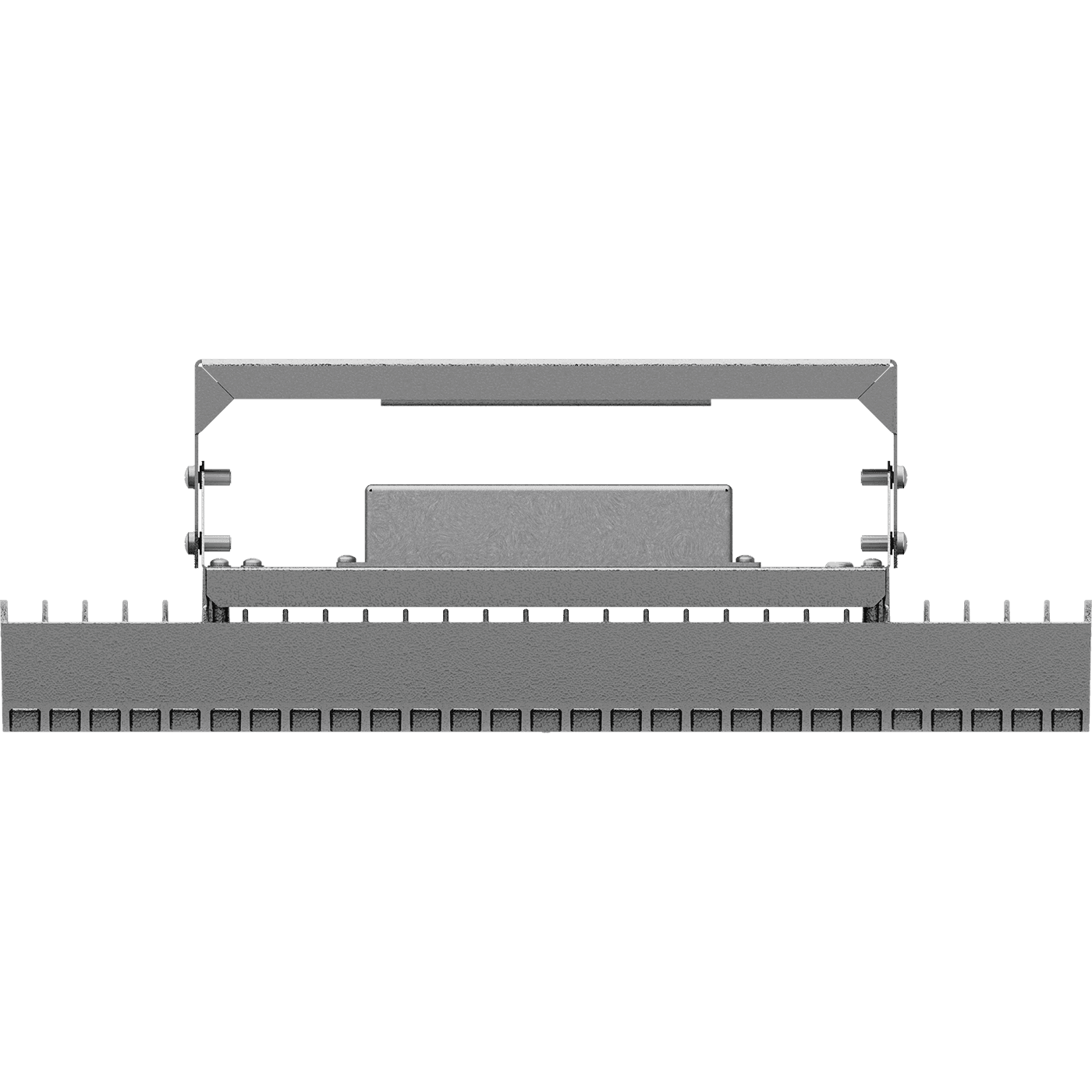

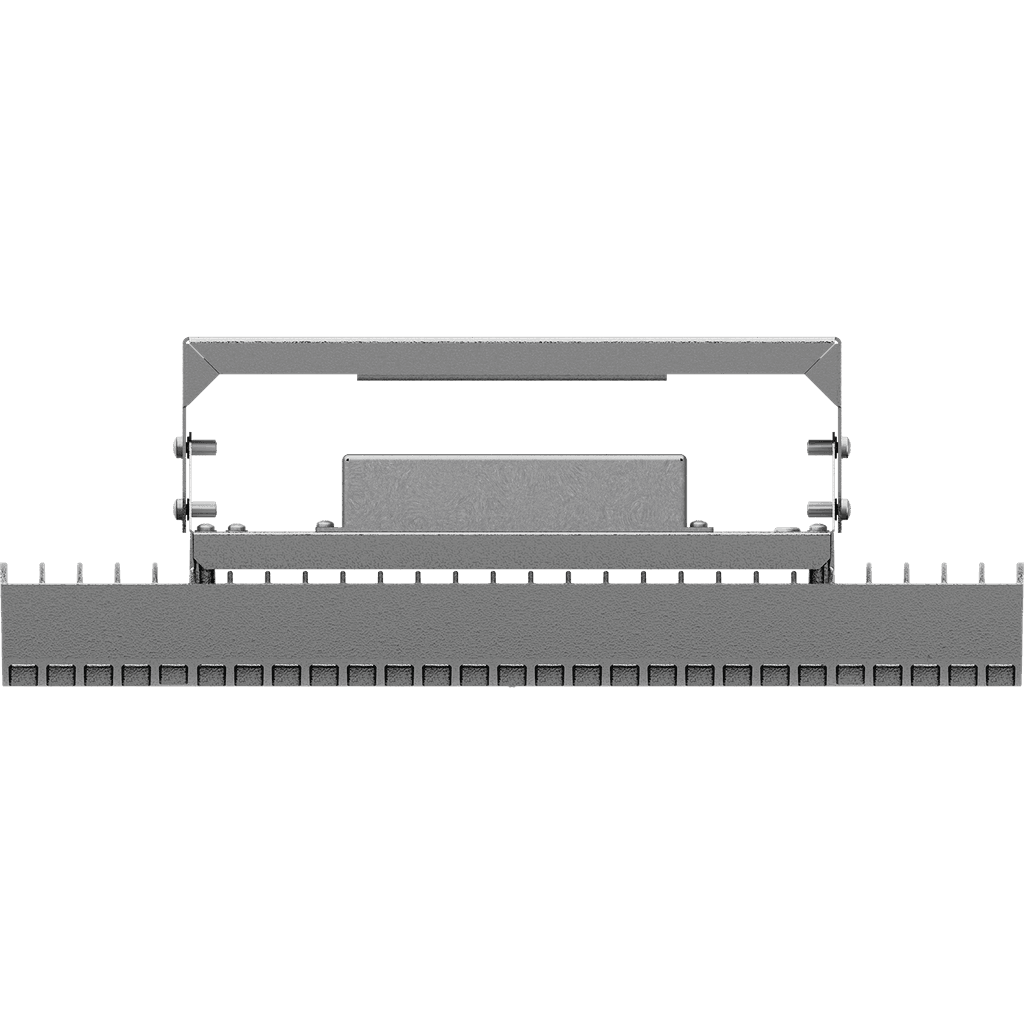

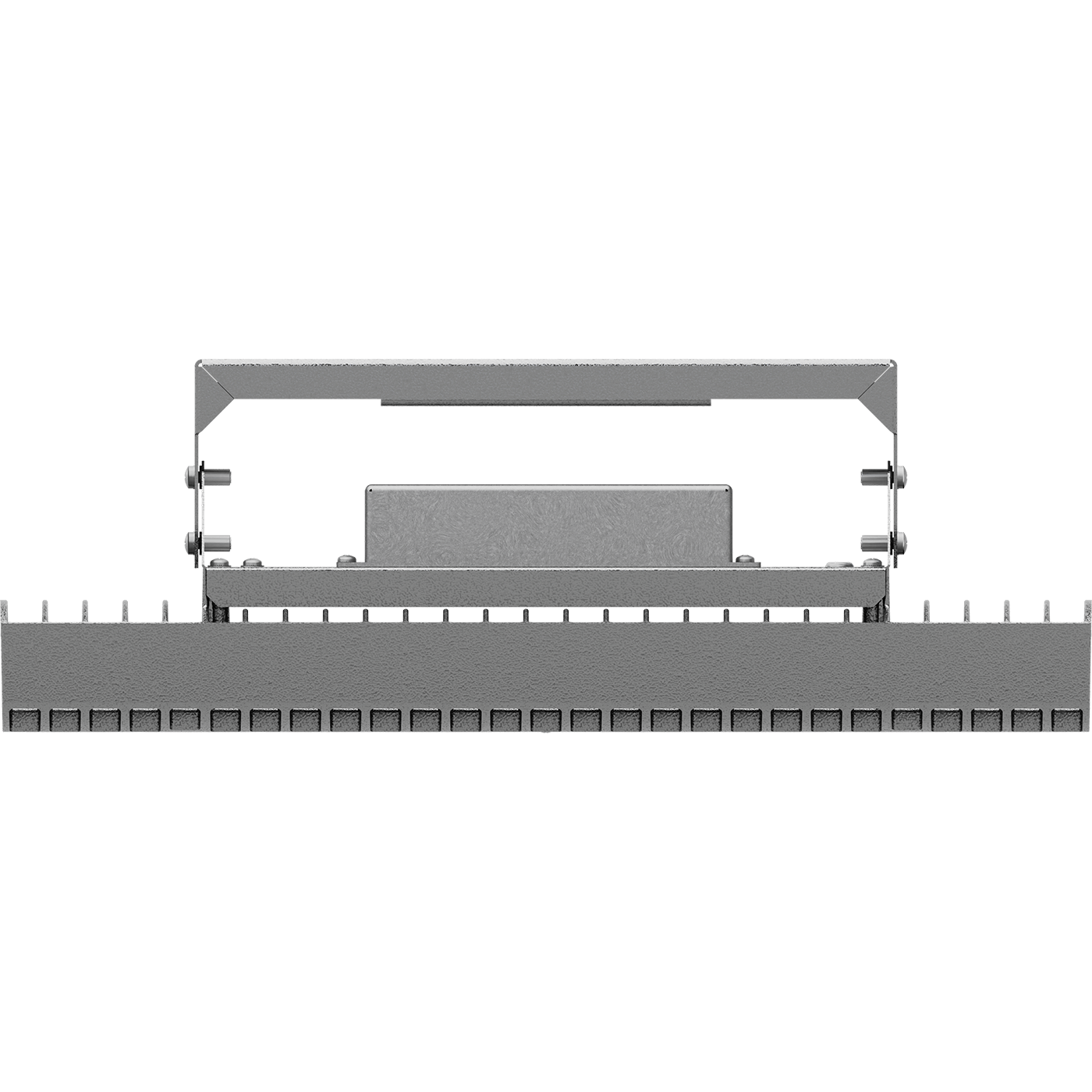

HB LED G2 50W D15 850 HG
.png&w=1920&q=100)
.png&w=1024&q=75)

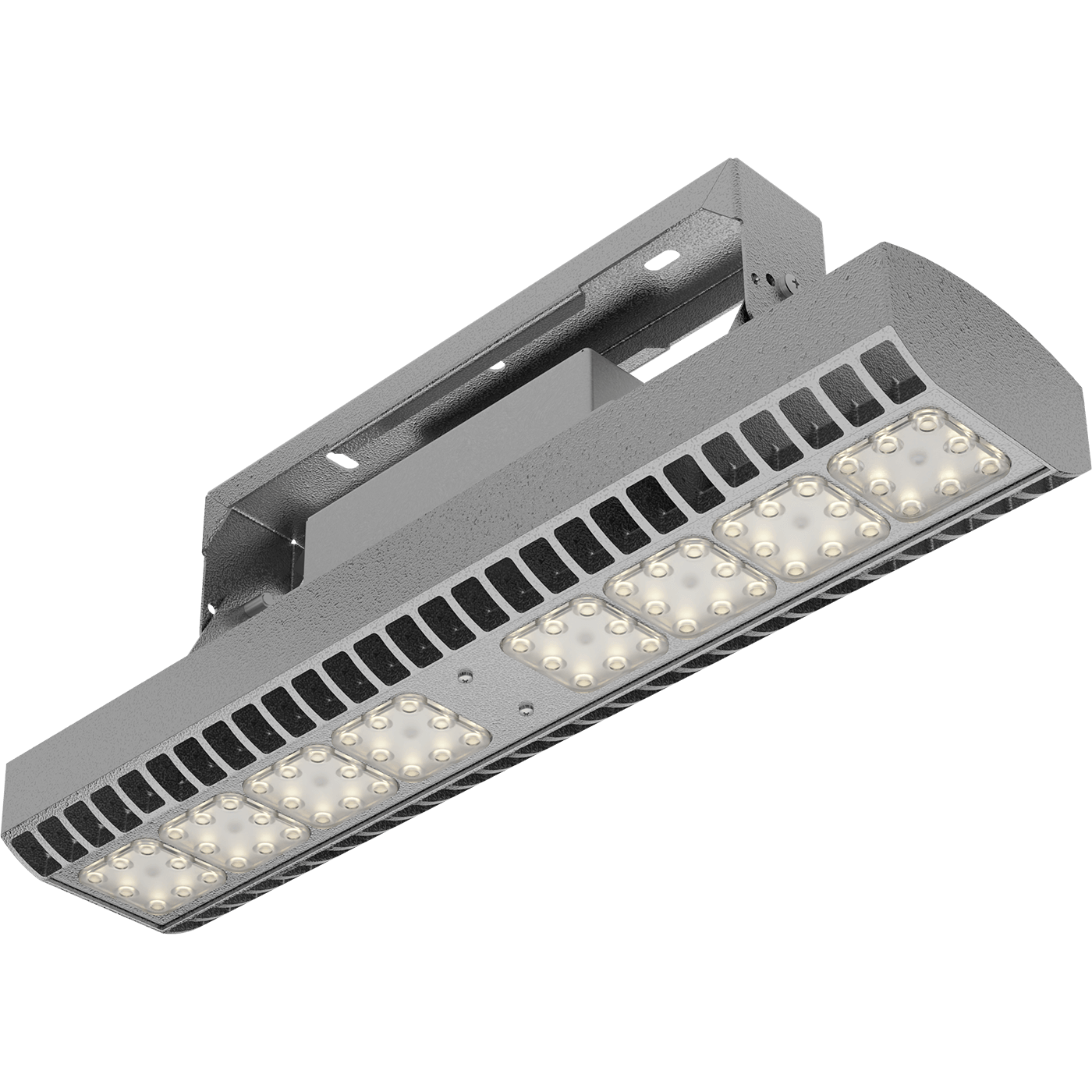

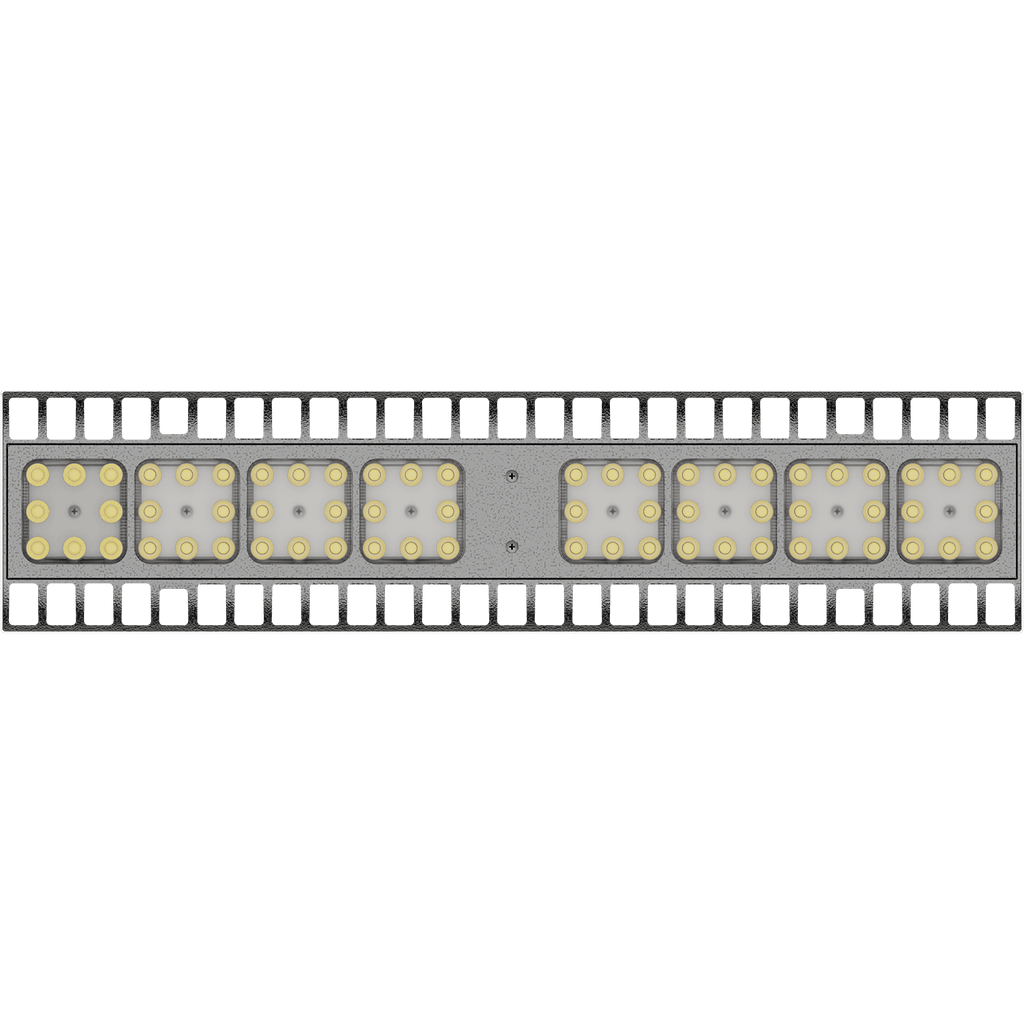

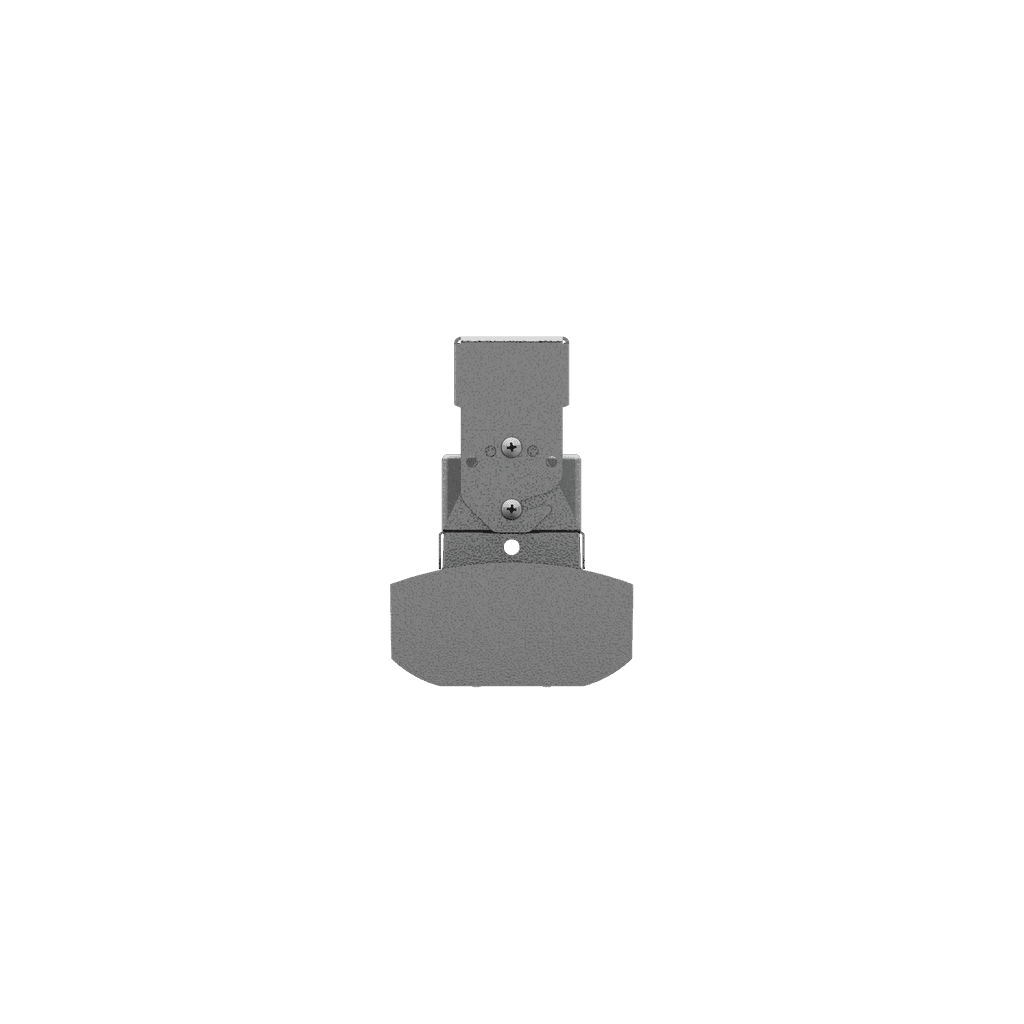

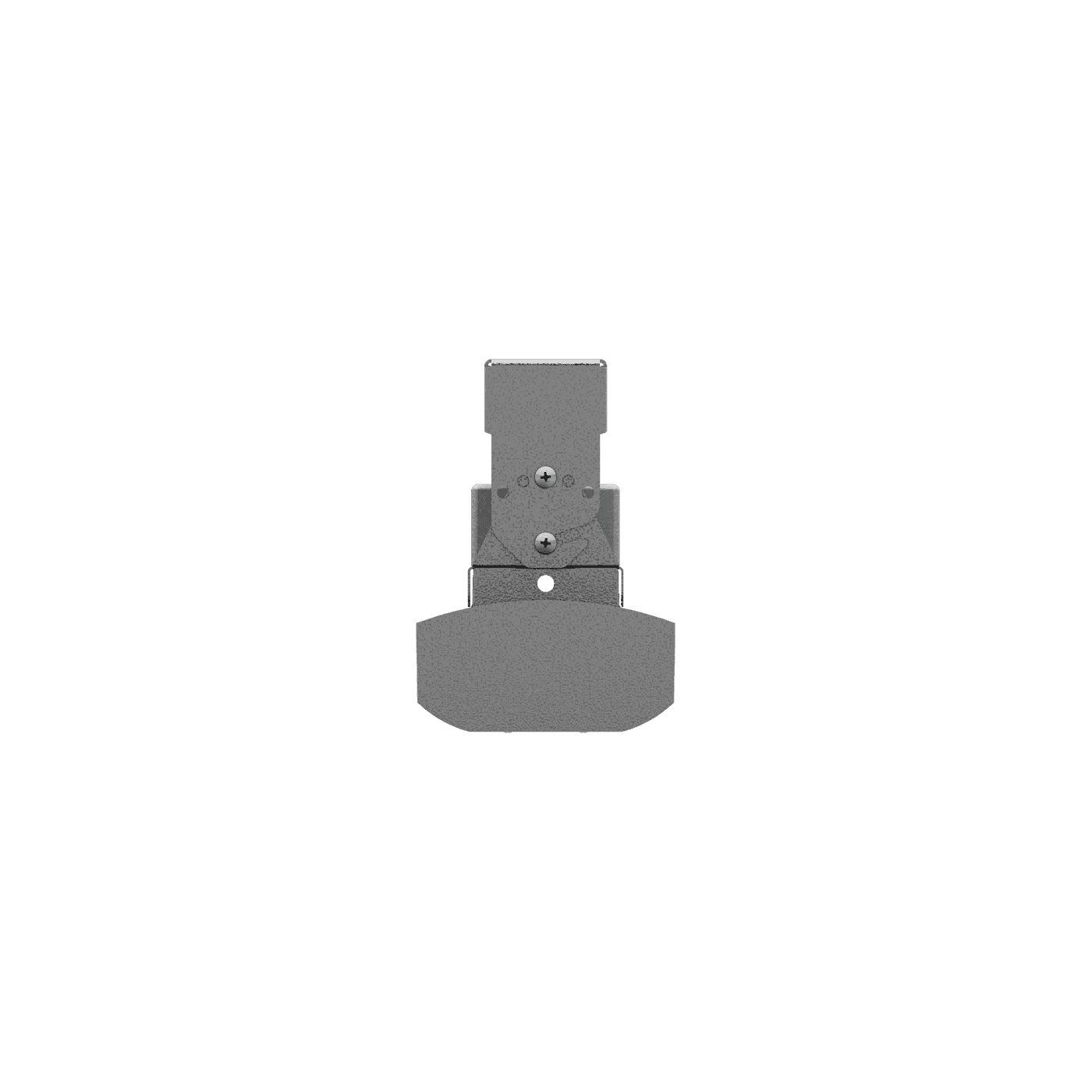

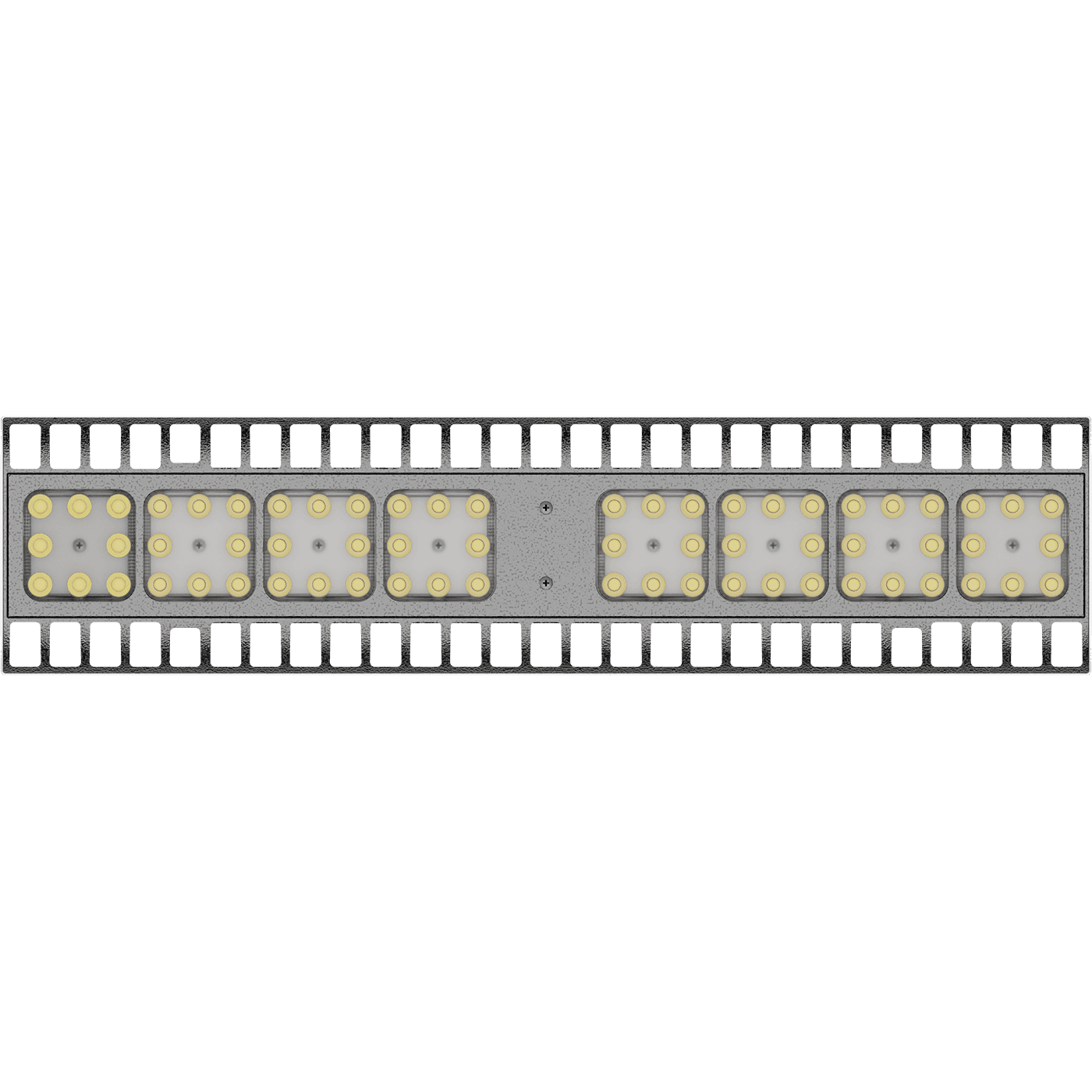

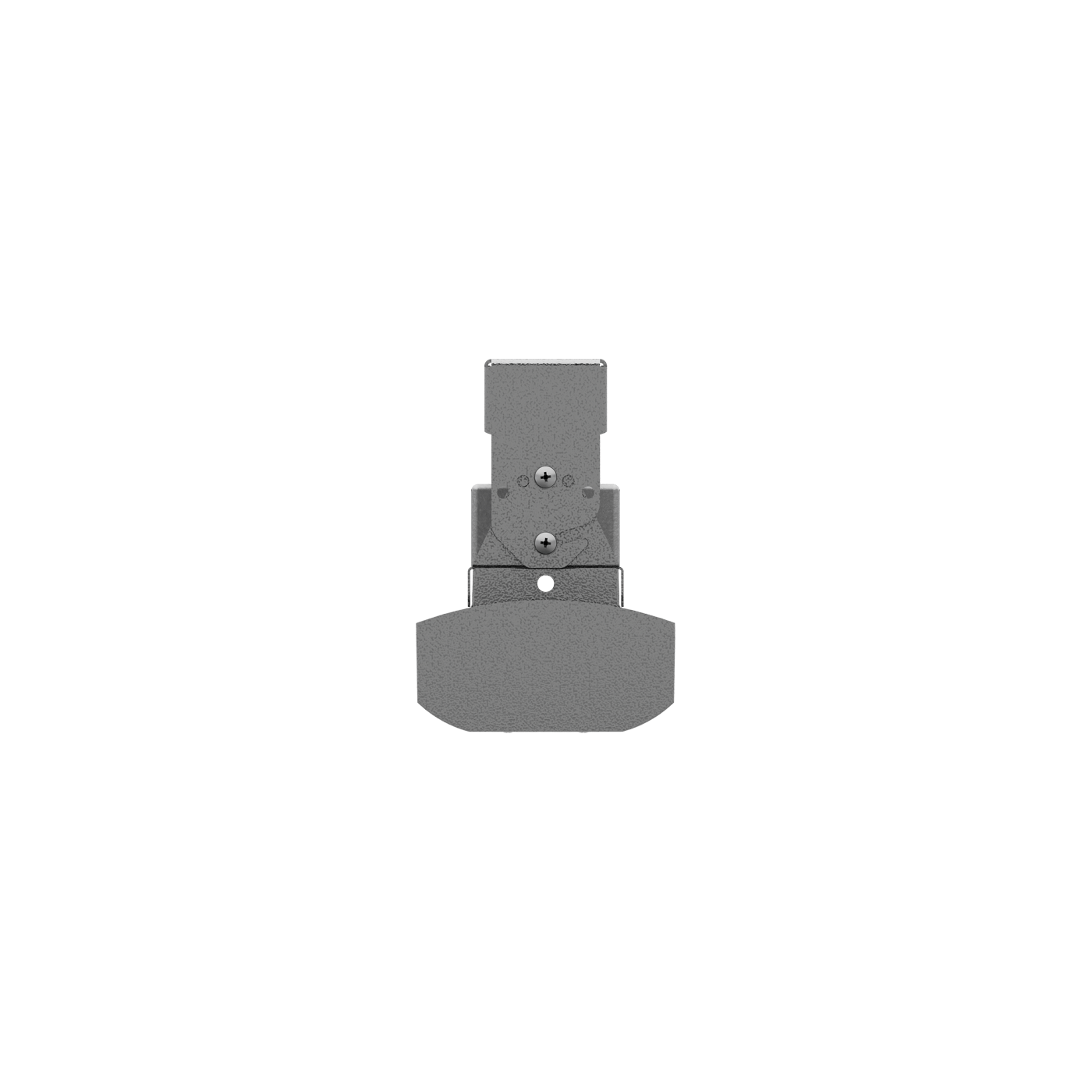

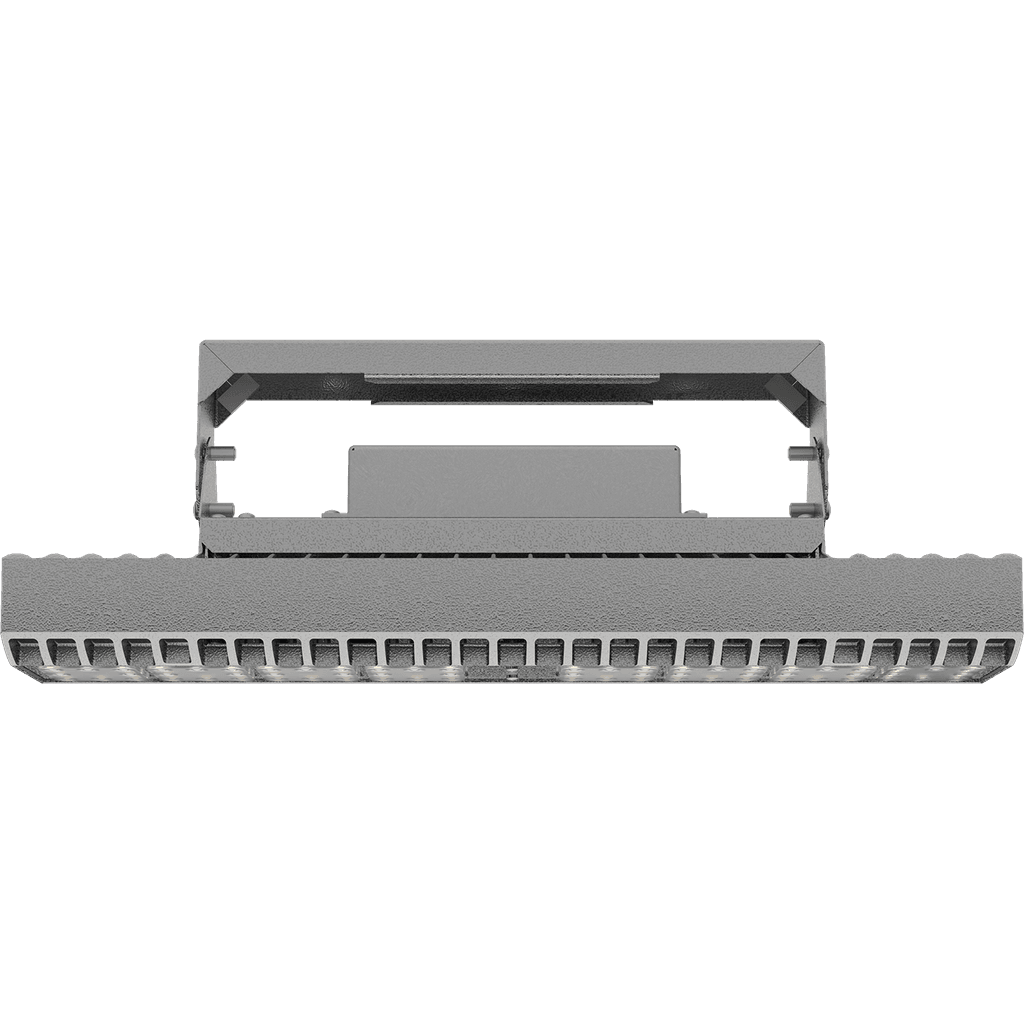

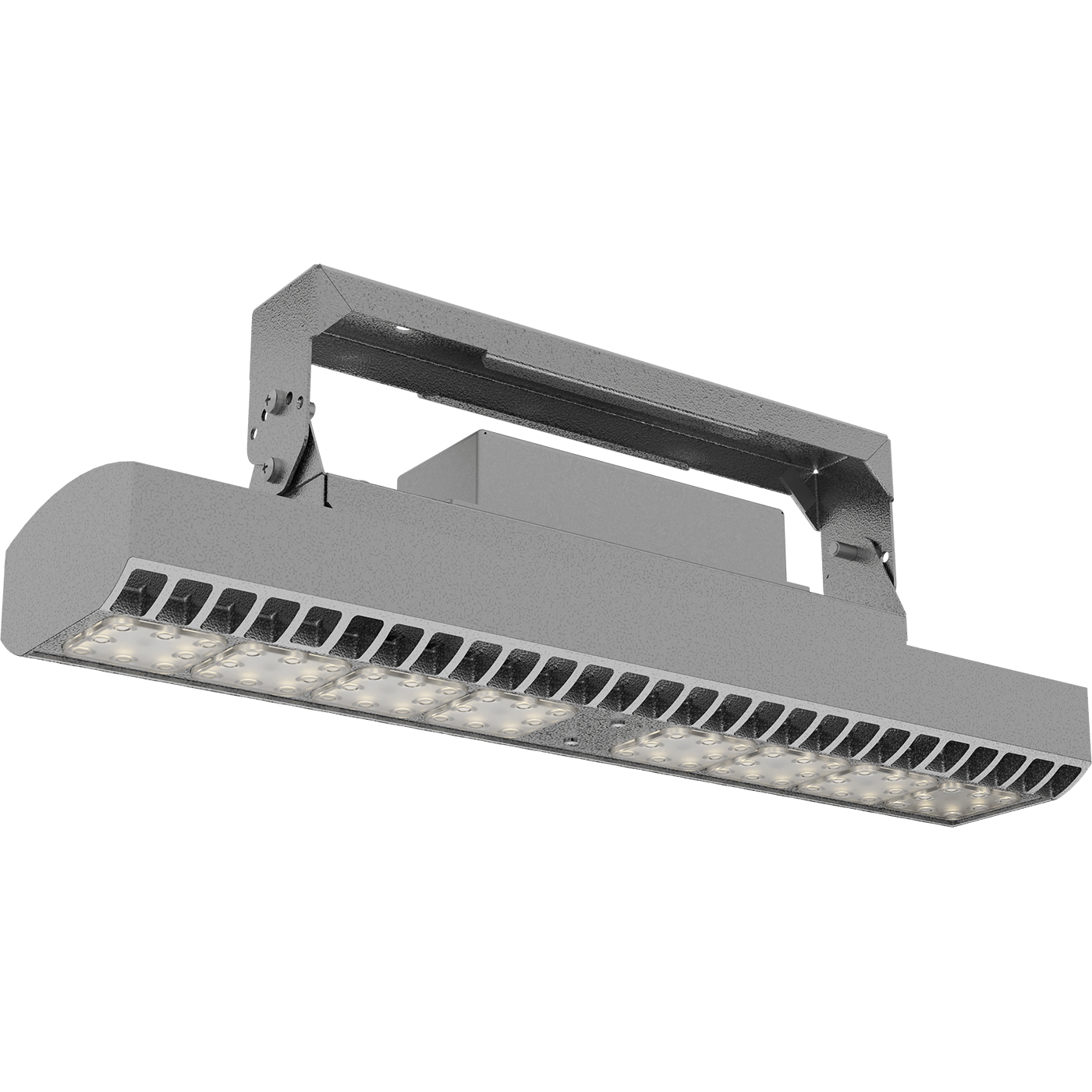

HB LED G2 50W D15 850 HG
50 Wluminaire power
7000 lmlight flow
140 lm/Wenergy efficiency
code1224009800
color temperature5000 K
beam angleD15
weight3.2 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
7000 lmflickering factor
<1%energy efficiency
140 lm/Wbeam angle
D15color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
7000 lm
flickering factor
<1%
energy efficiency
140 lm/W
beam angle
D15
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
50 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A
supply voltage
230 V
starting current pulse time
300 µs
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
shock resistance (IK)
IK07/2 Дж
weight
3.2 kg
ingress protection (IP)
IP66
length
463 mm
width
110 mm
height
155 mm
installation length
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +50 C
code
1224009800
model files
model files

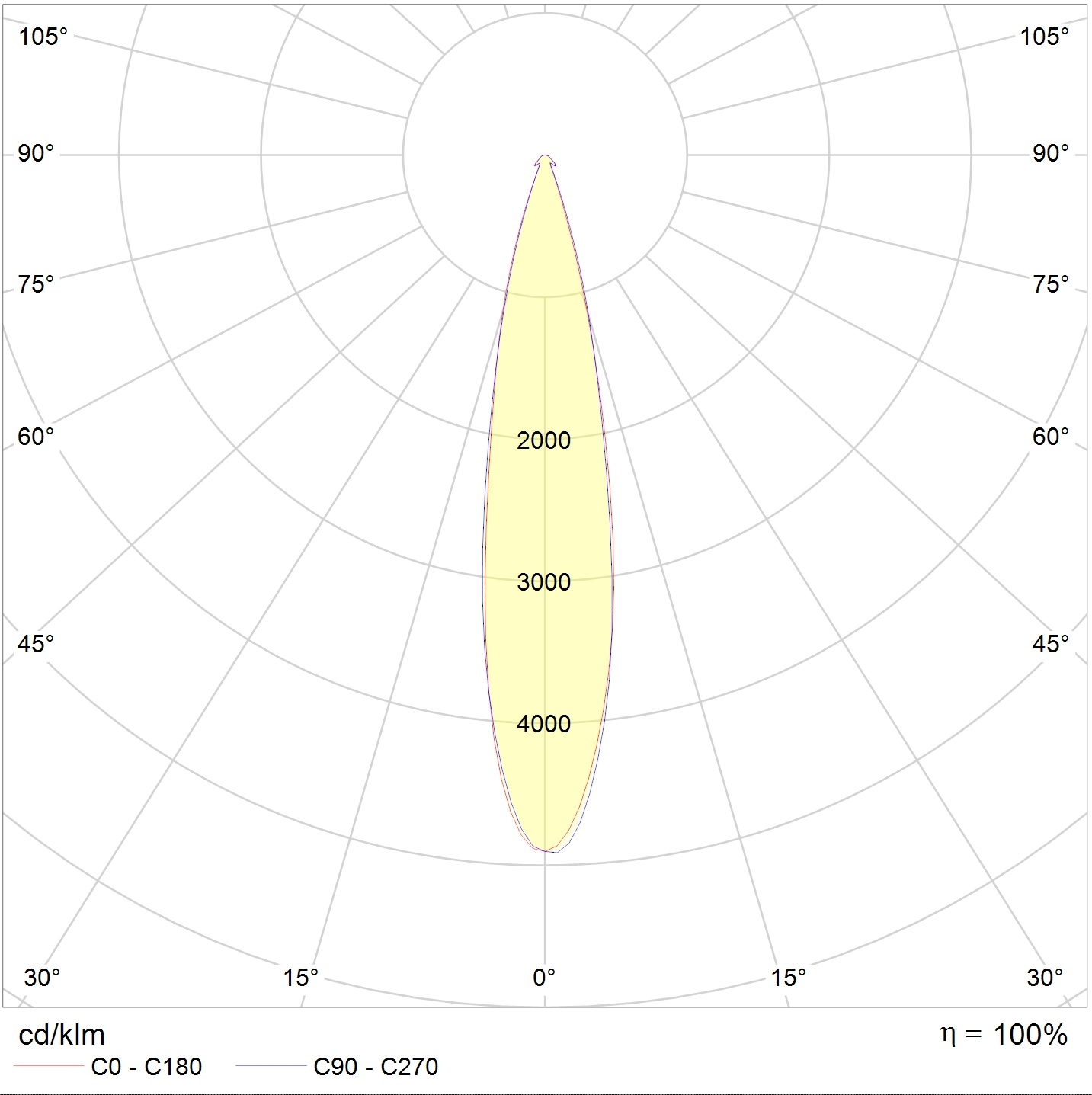

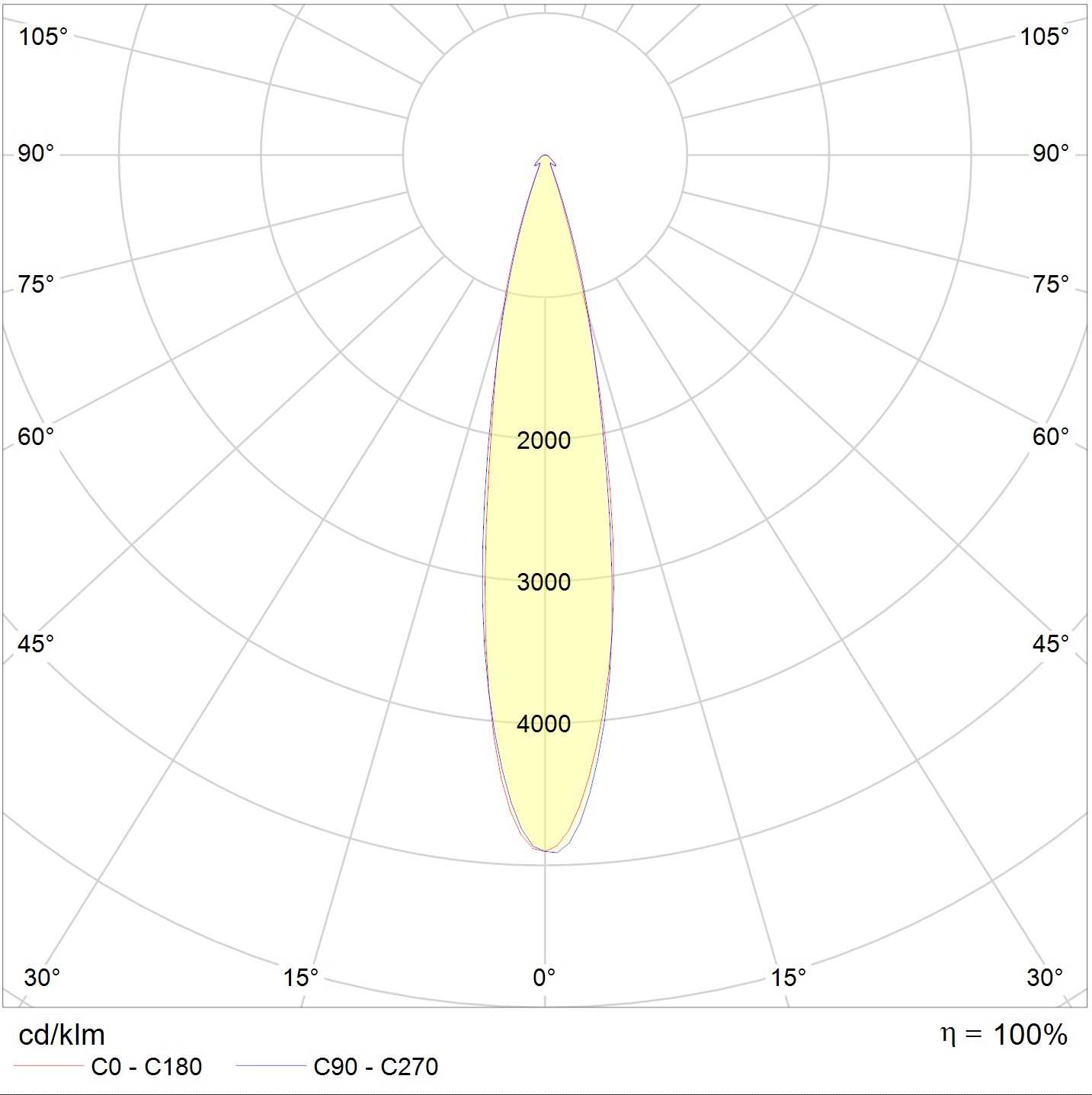

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg188 kB
ldt173.5 kB
documents
passport8.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
