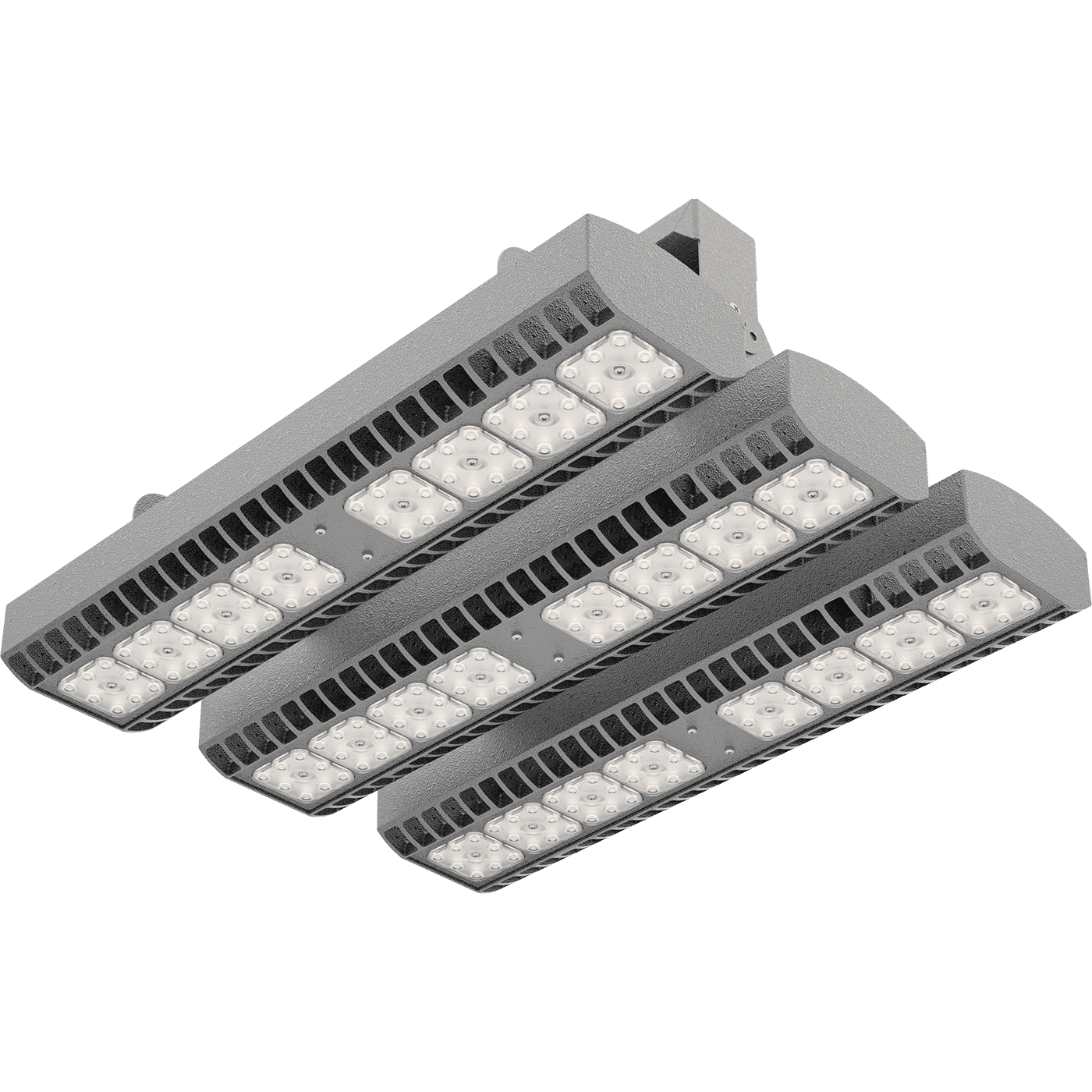

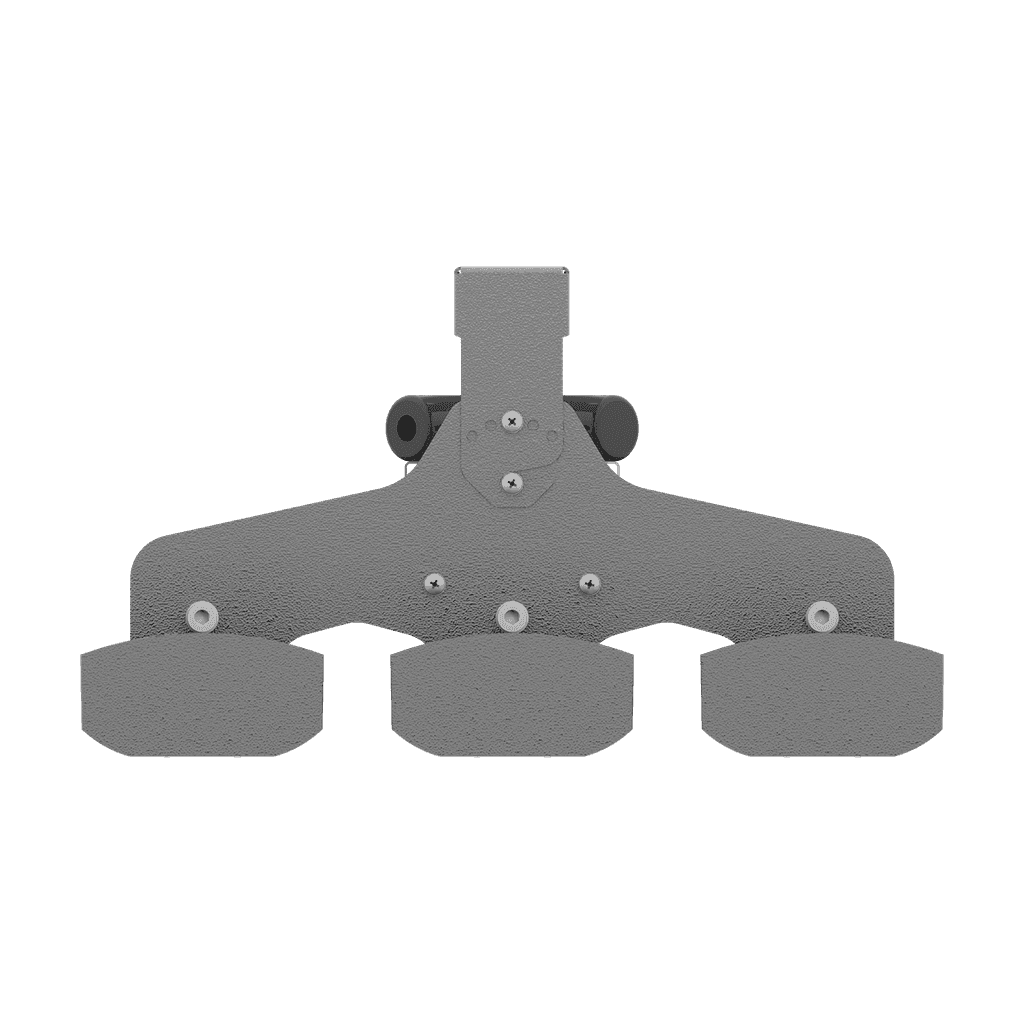

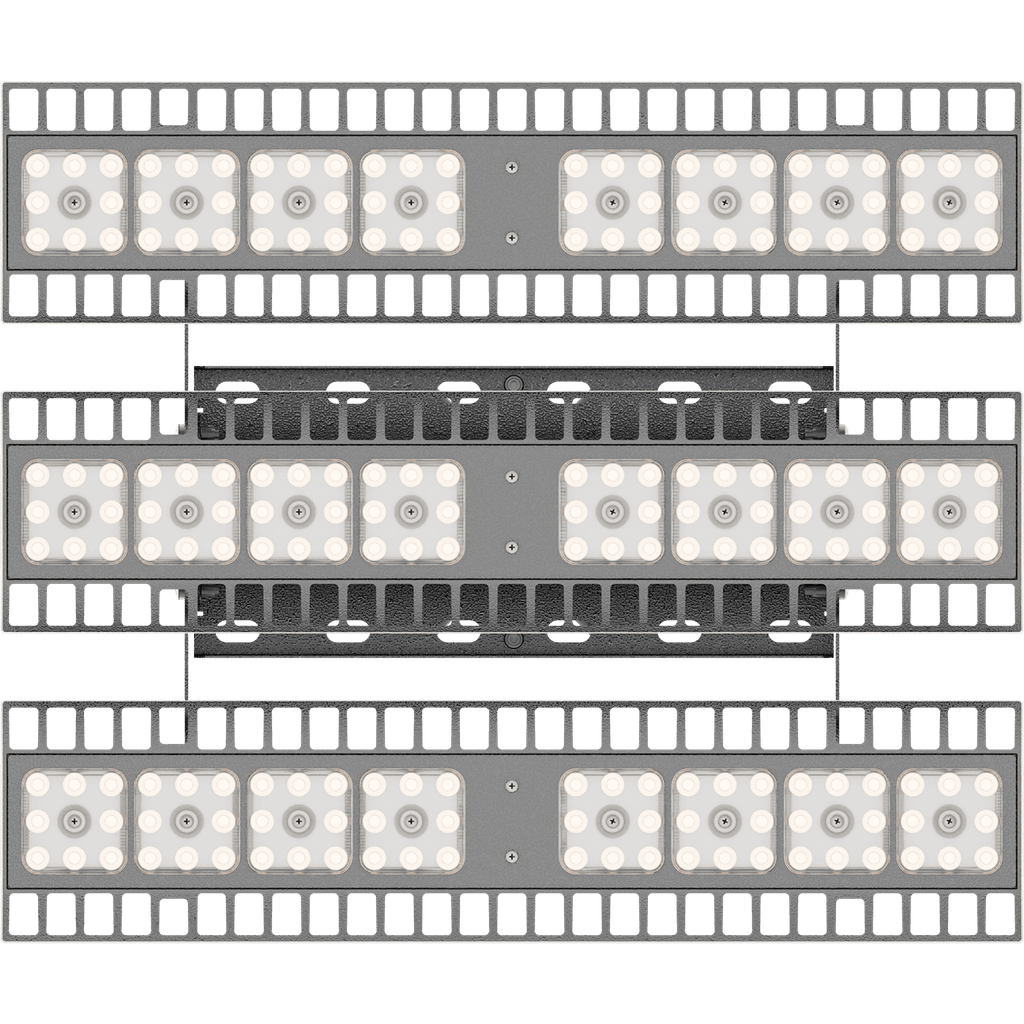

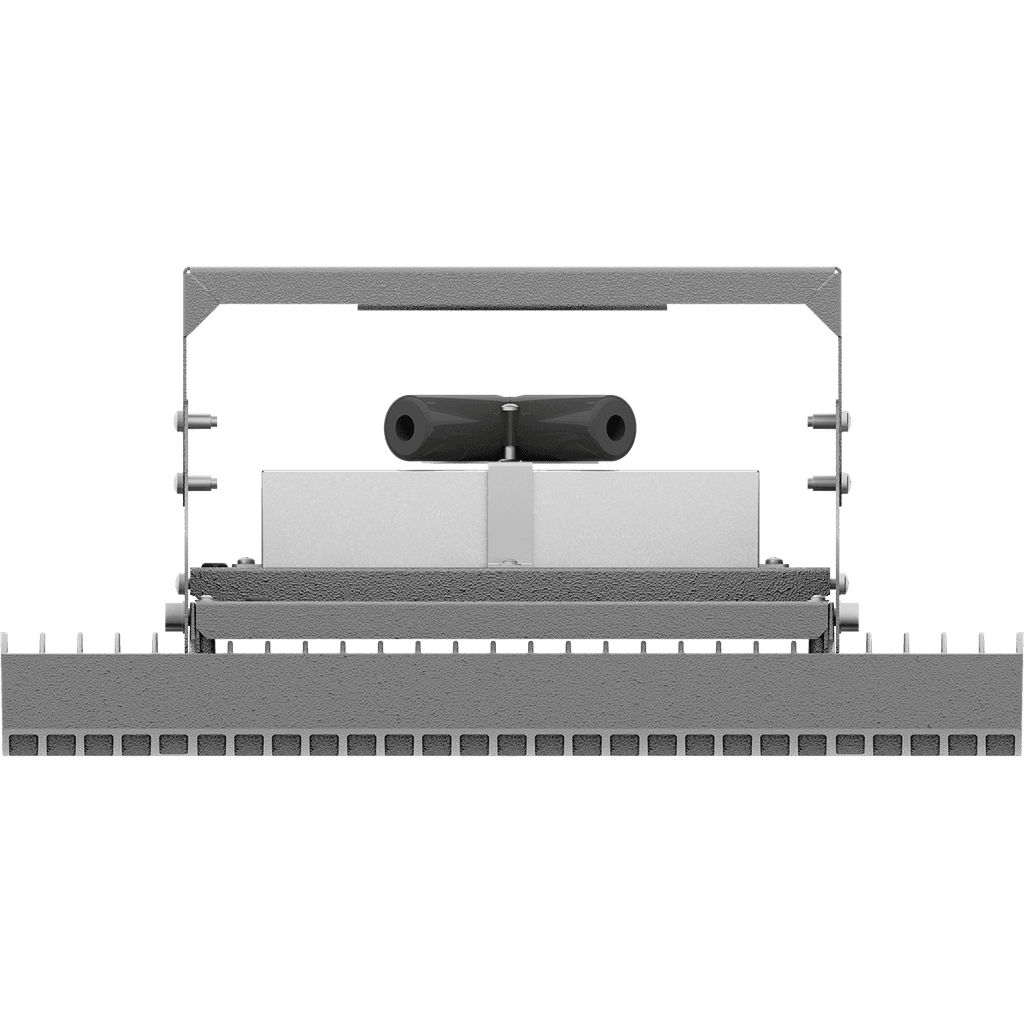

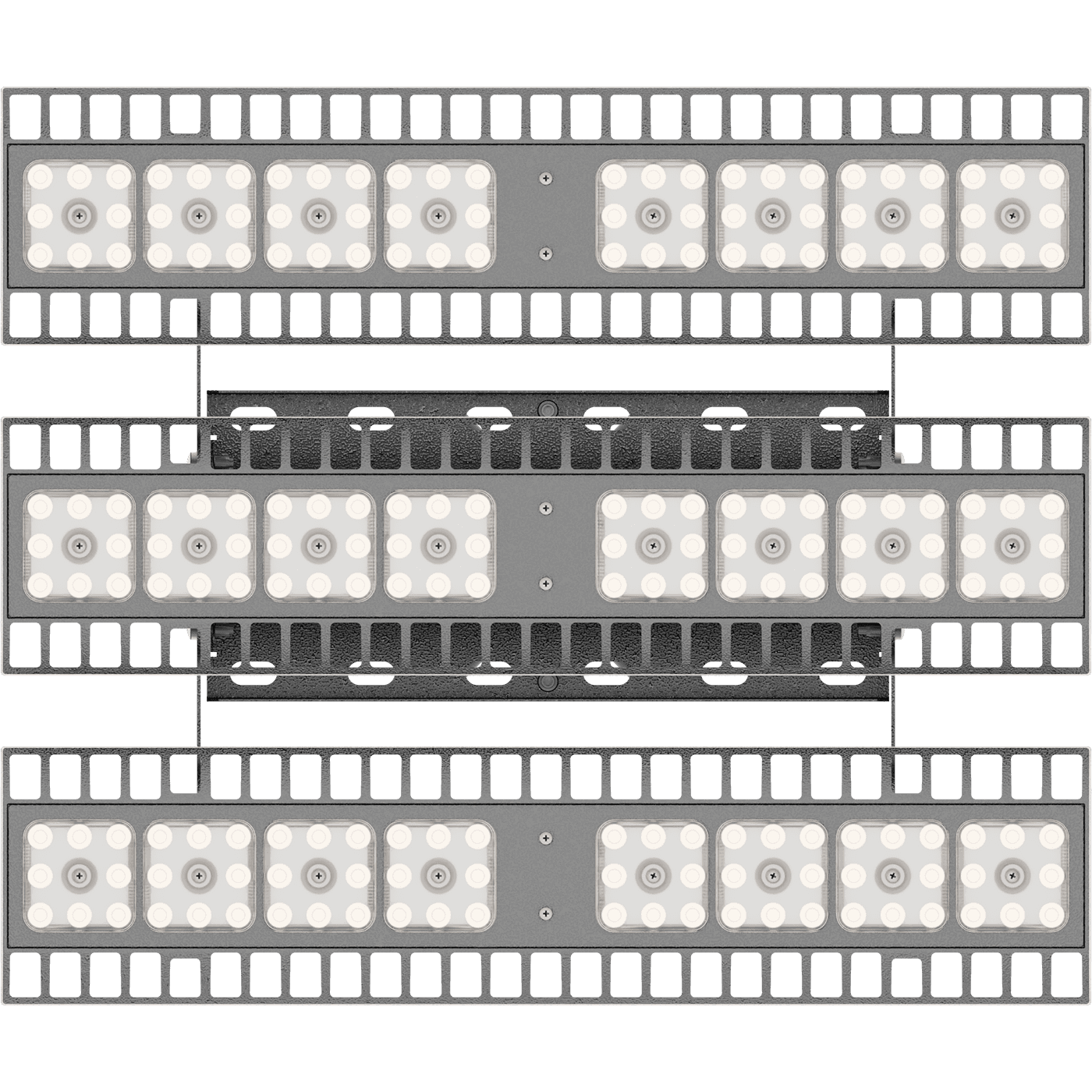

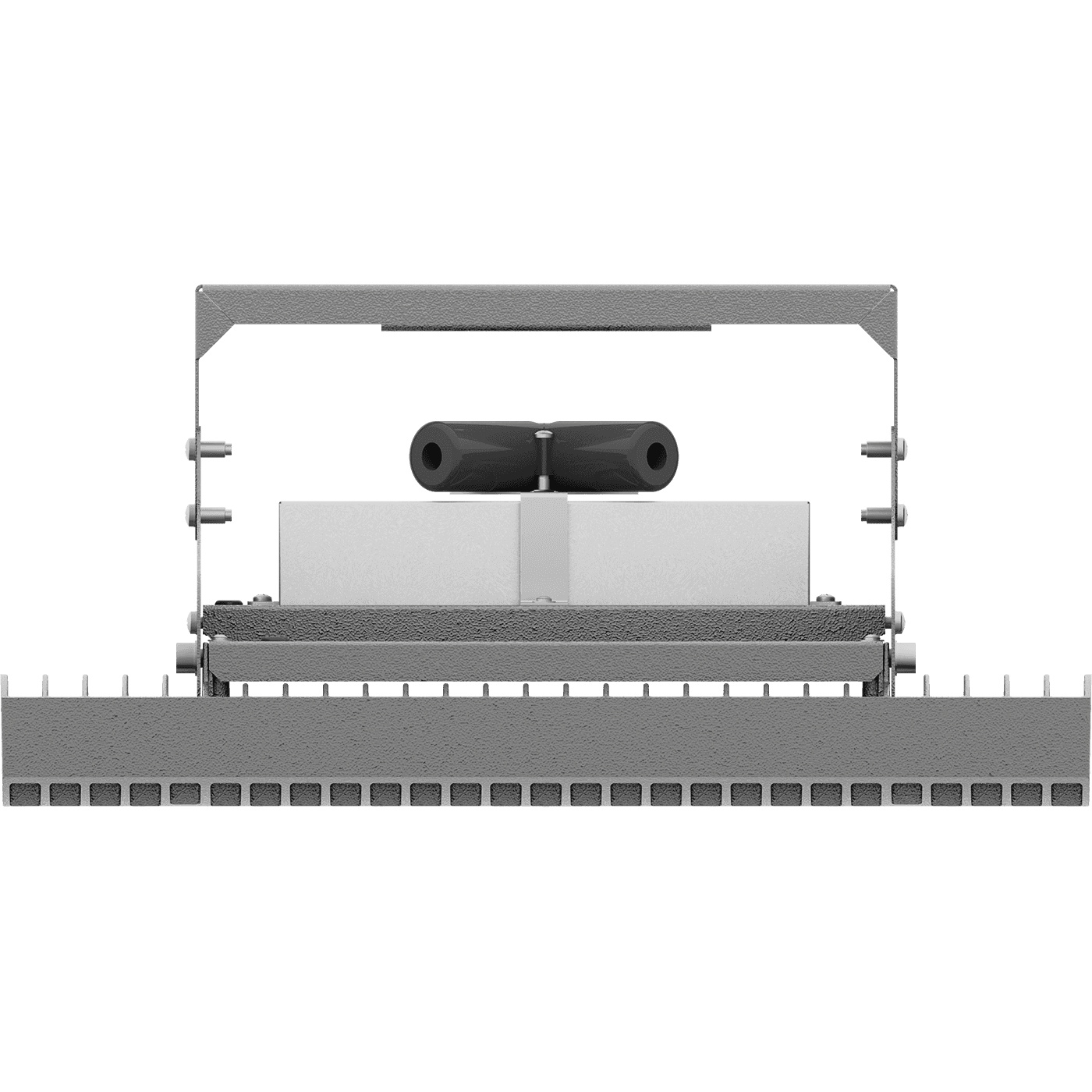

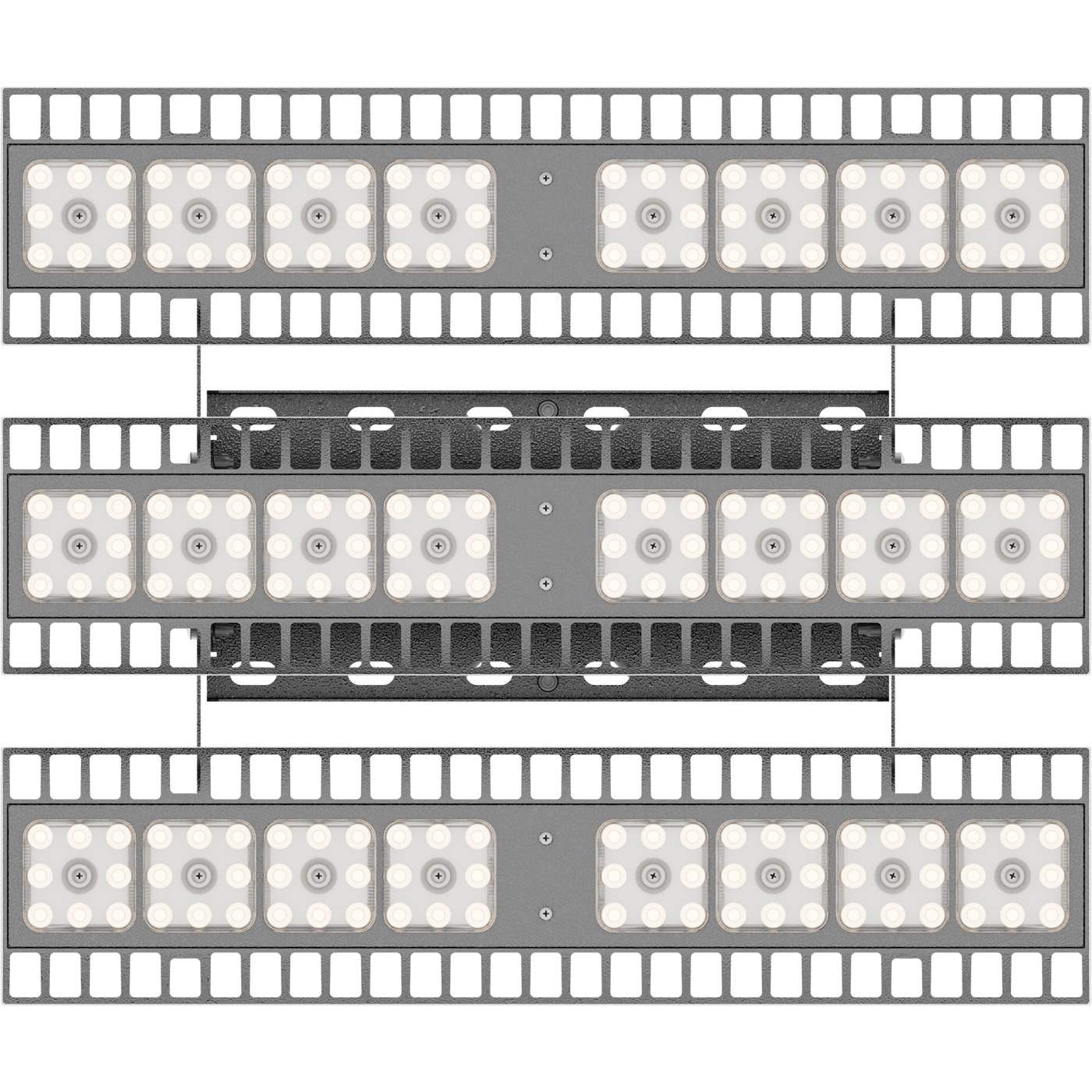

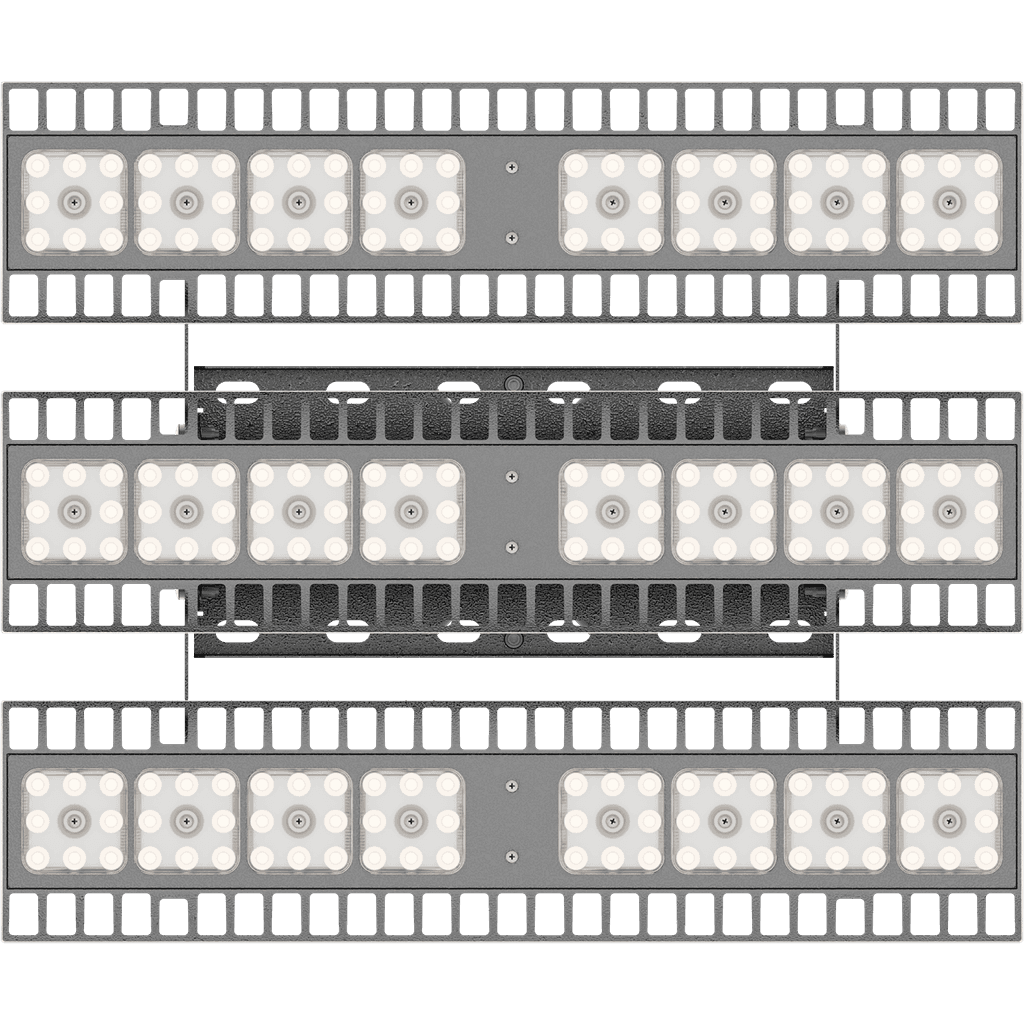

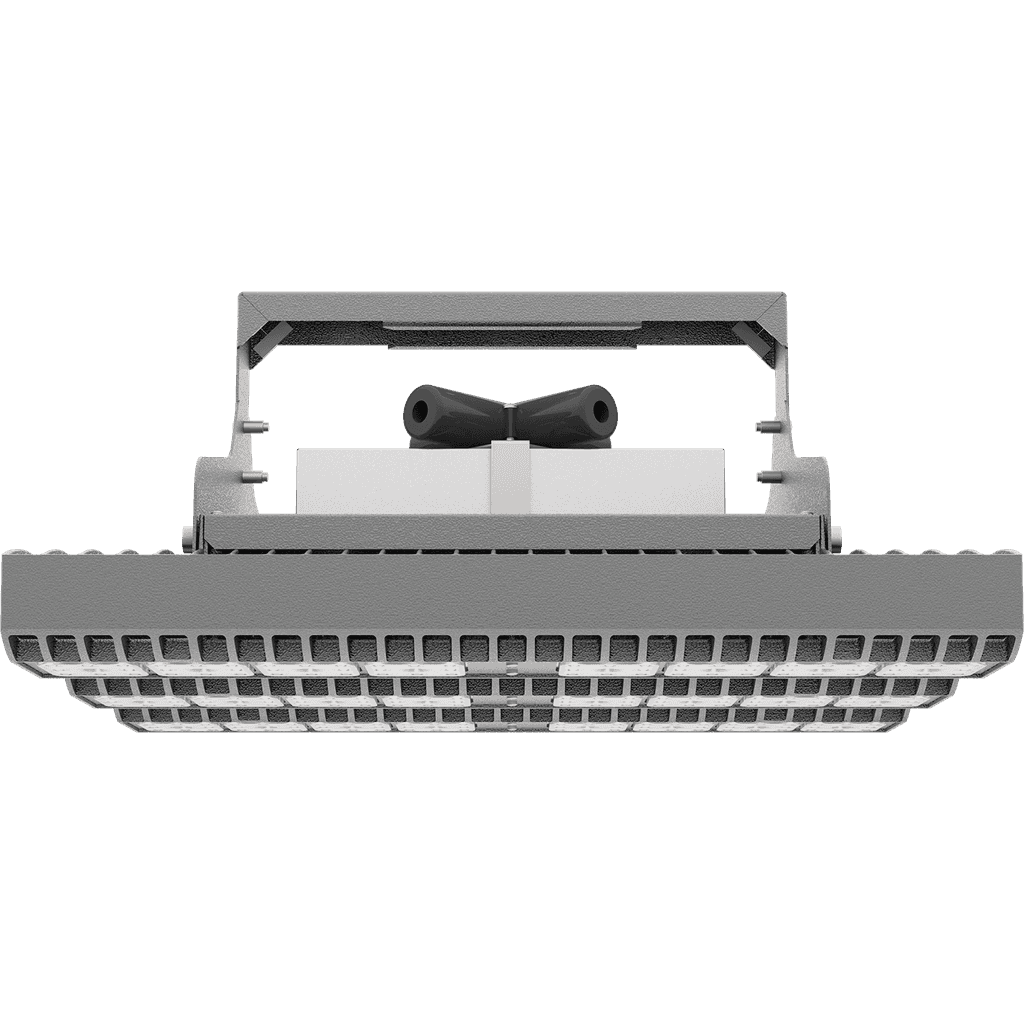

HB LED G2 225W D60 840 HG
.png&w=1920&q=50)
.png&w=1024&q=50)
HB LED G2 225W D60 840 HG
200 Wluminaire power
29000 lmlight flow
145 lm/Wenergy efficiency
code1224011020
color temperature4000
beam angleD60
weight11 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
29000 lmflickering factor
<1%energy efficiency
145 lm/Wbeam angle
D60color temperature
4000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
29000 lm
flickering factor
<1%
energy efficiency
145 lm/W

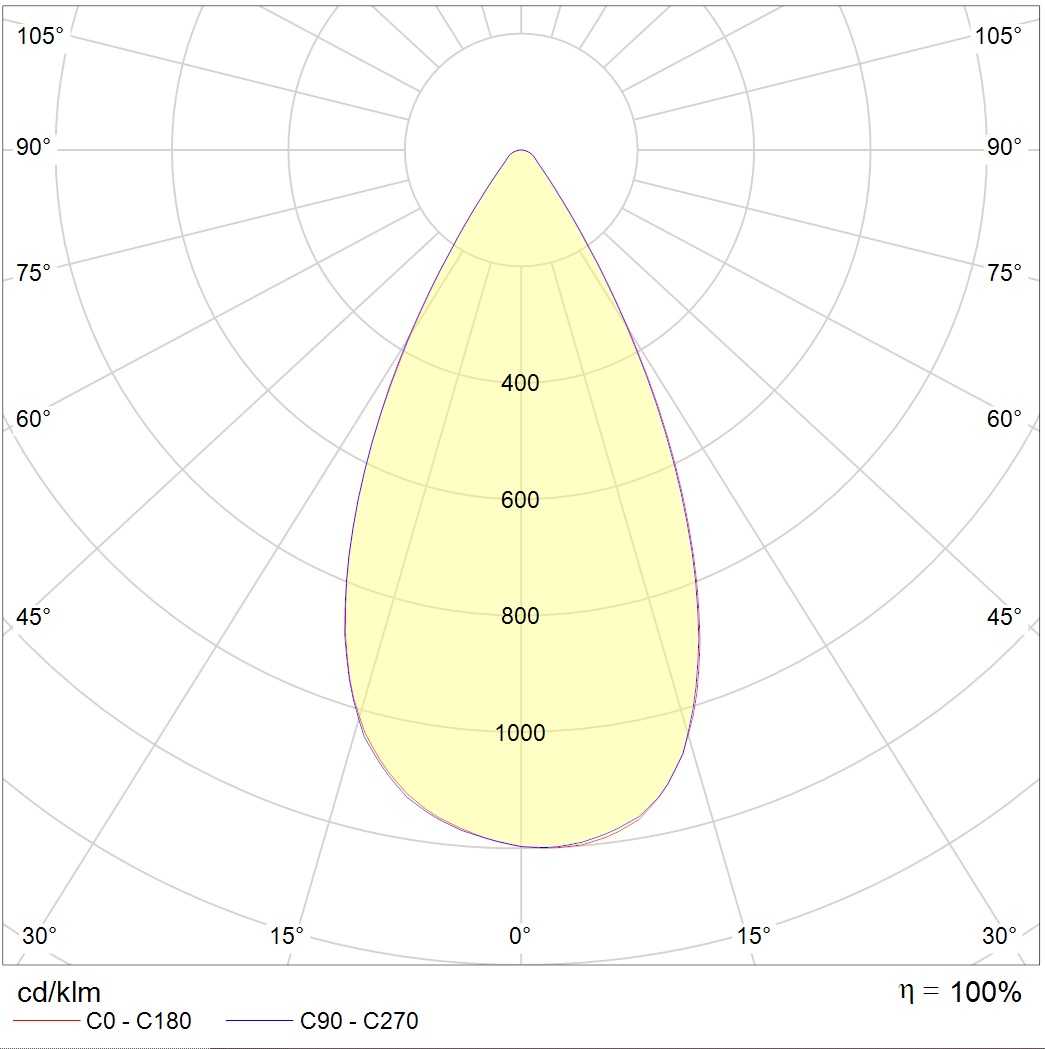

beam angle
D60
color temperature
4000
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
200 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
75 A
supply voltage
230 V
starting current pulse time, µs
500 mks
constructional
shock resistance (IK)
IK07/2 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66
weight
11 kg

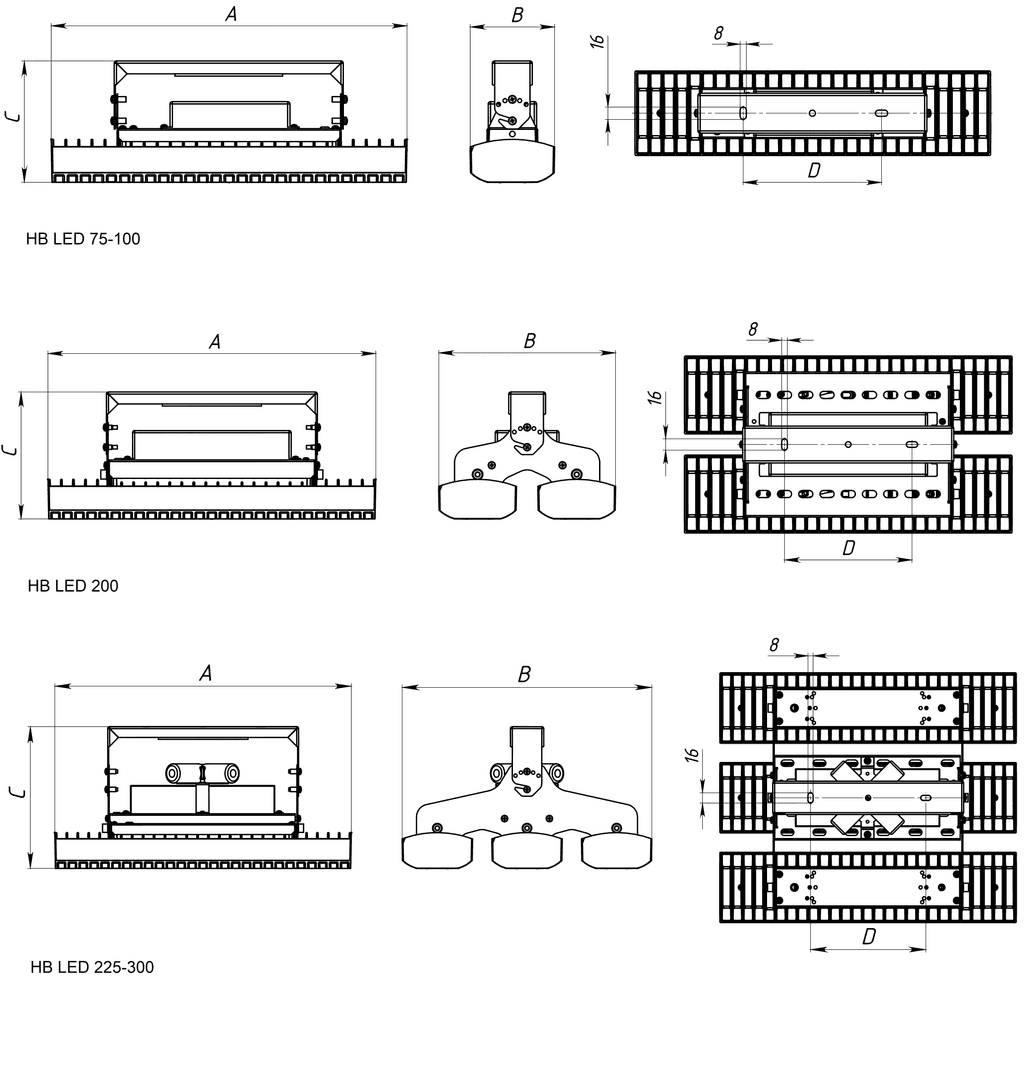

length, mm
463 mm
width, mm
389 mm
height, mm
245 mm
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life, hour
50 000 h
temperature range
от -40 до +55 C
code
1224011020
model files
model files
photometric files
сертификаты
photometric files
ies107 kB
jpg131.6 kB
ldt64.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
