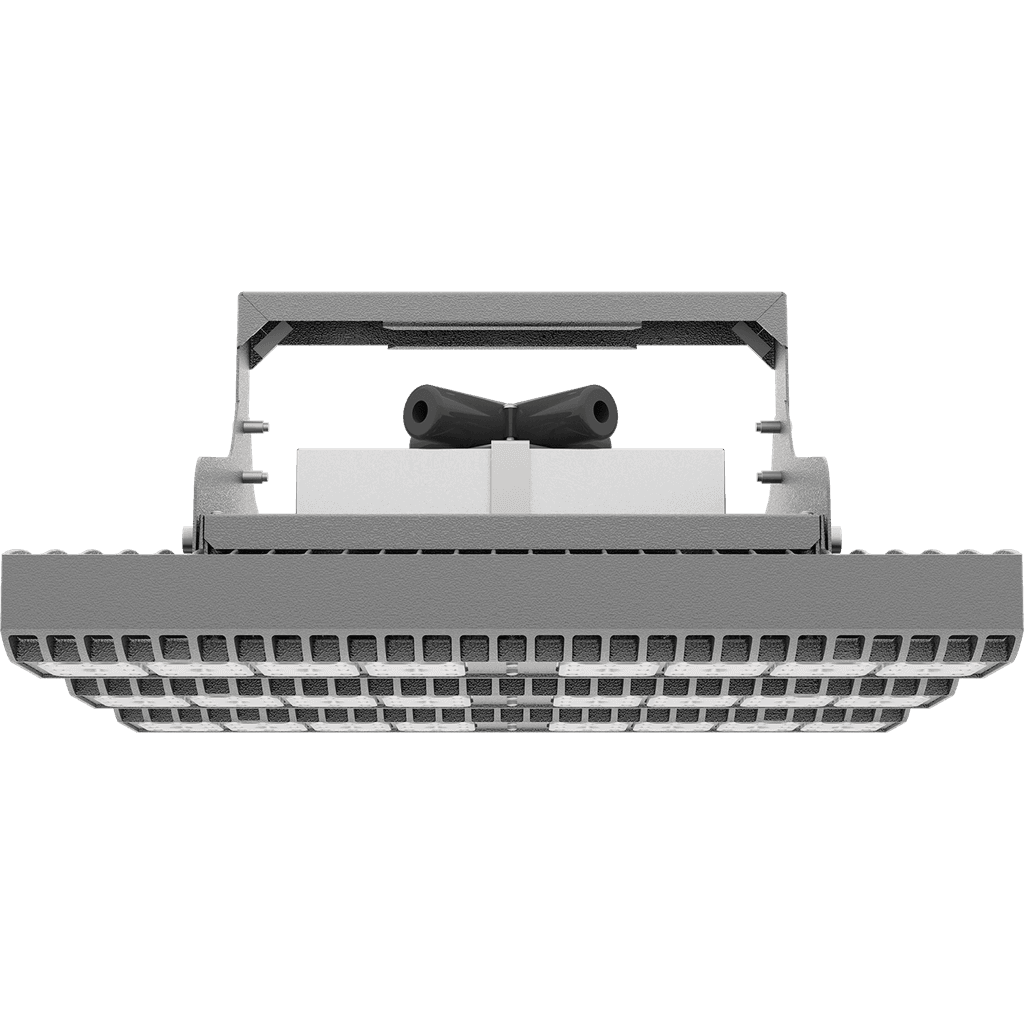

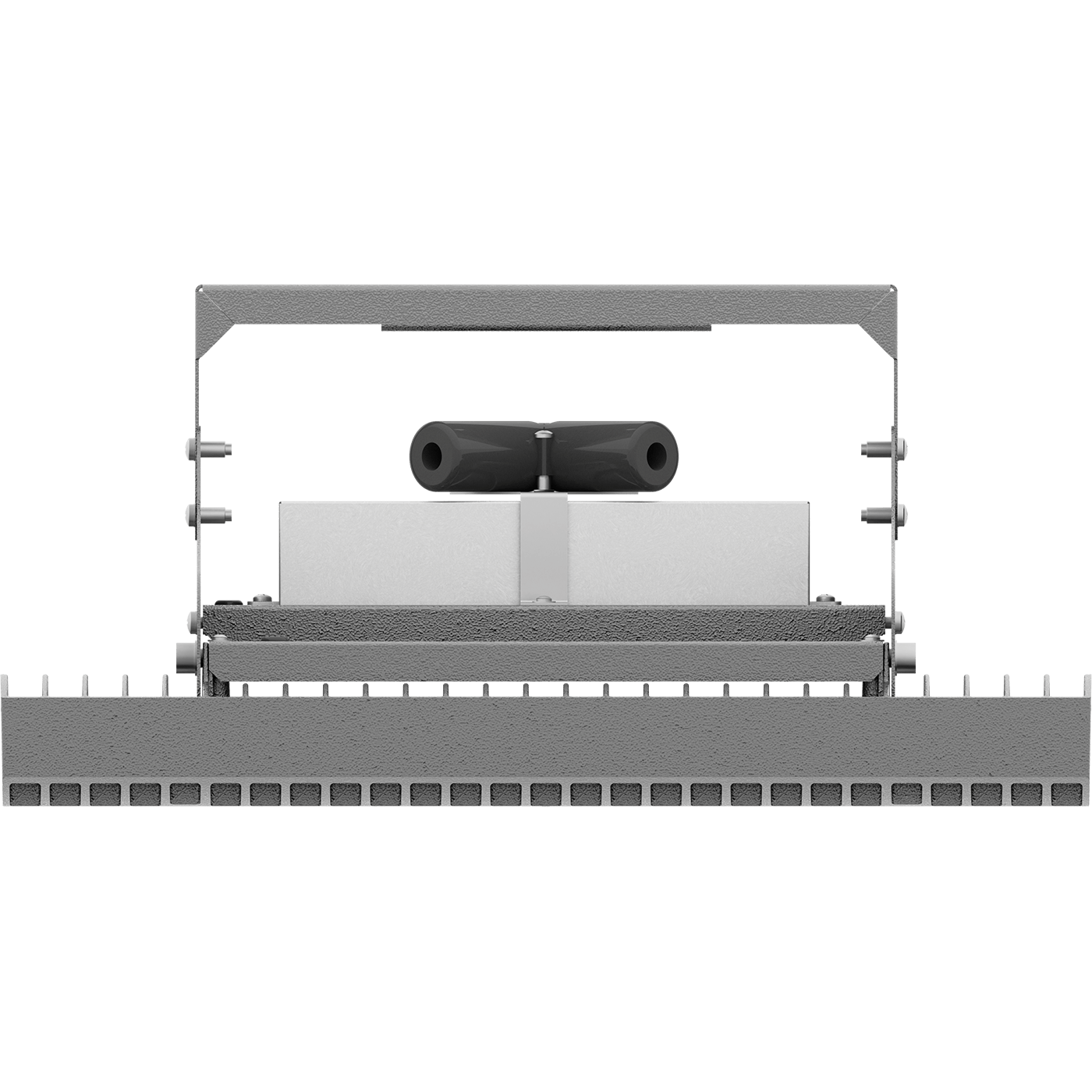

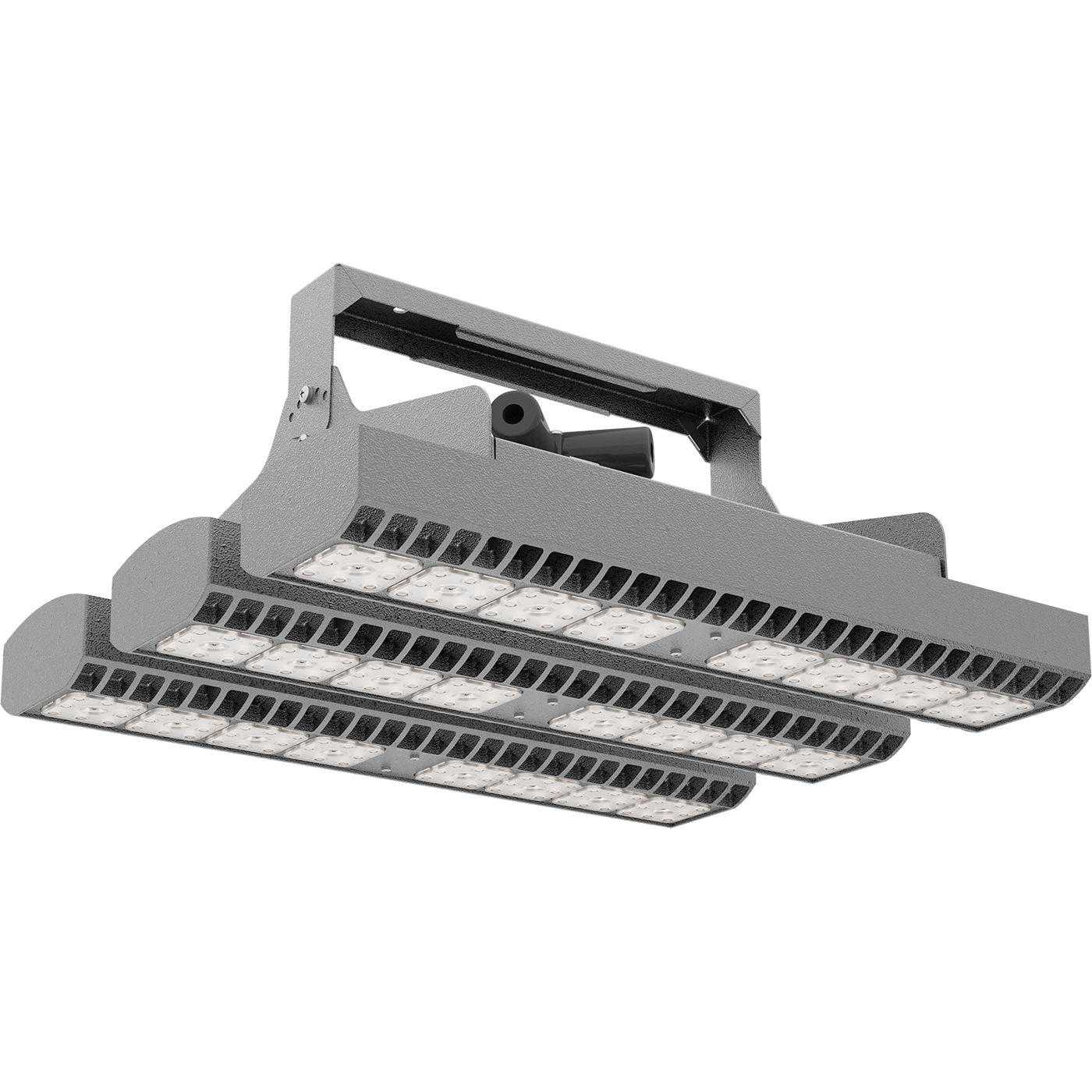

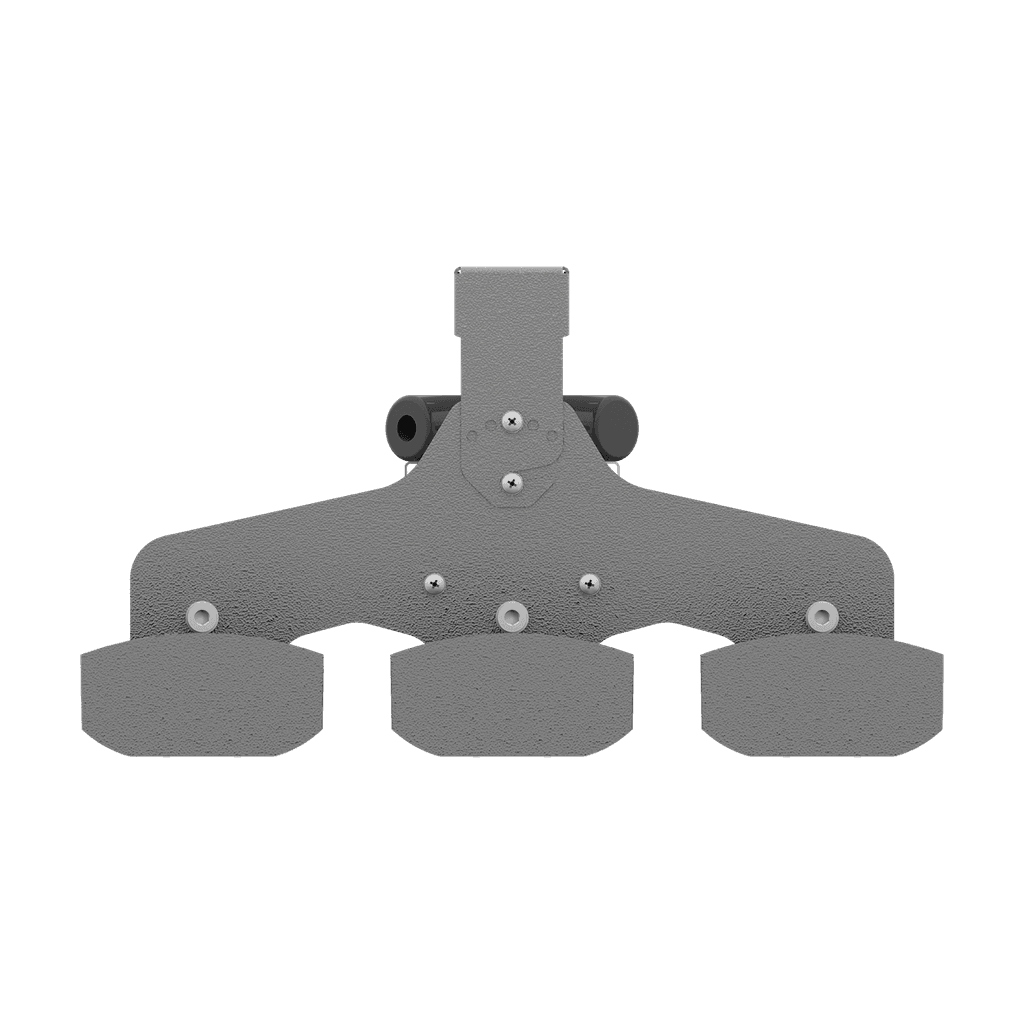

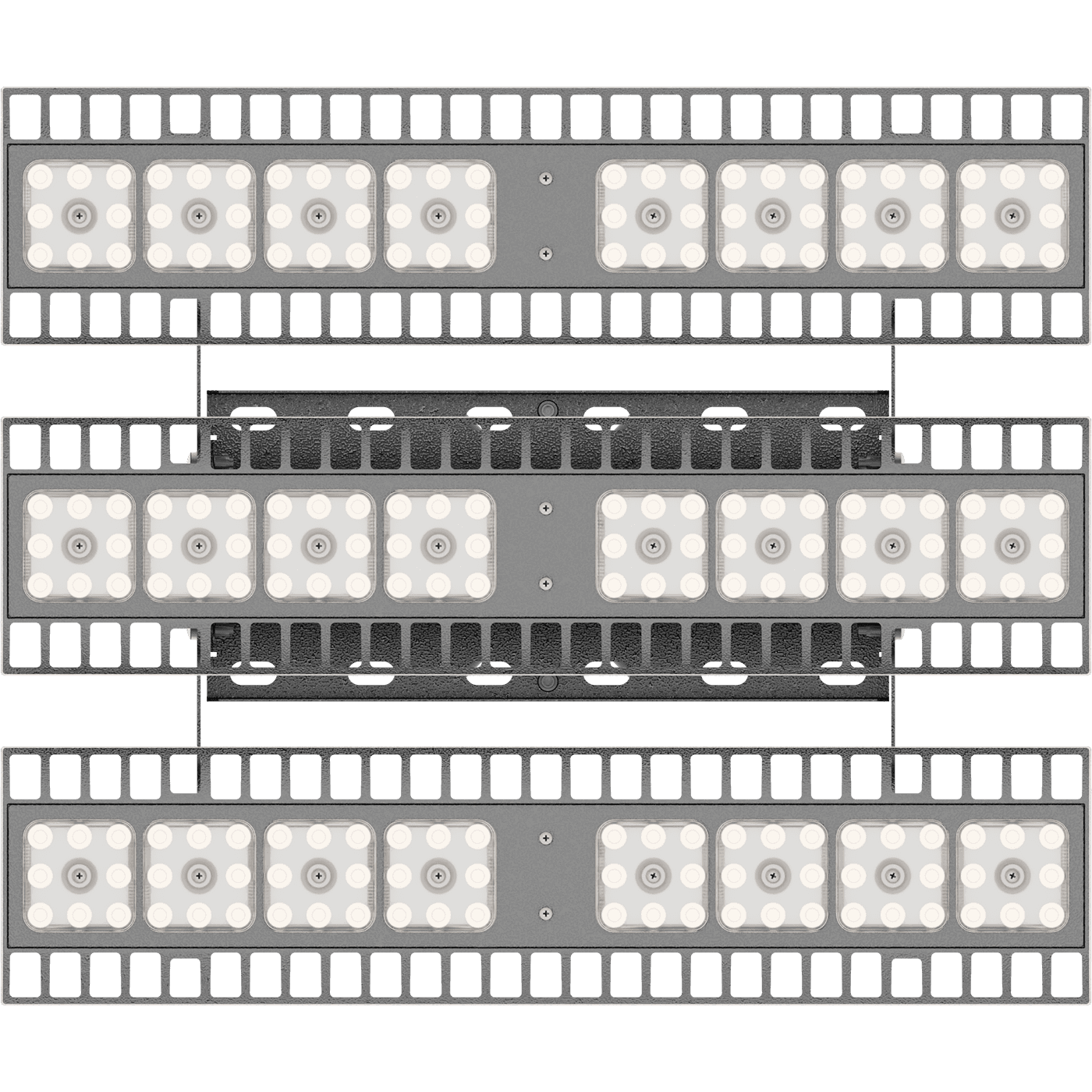

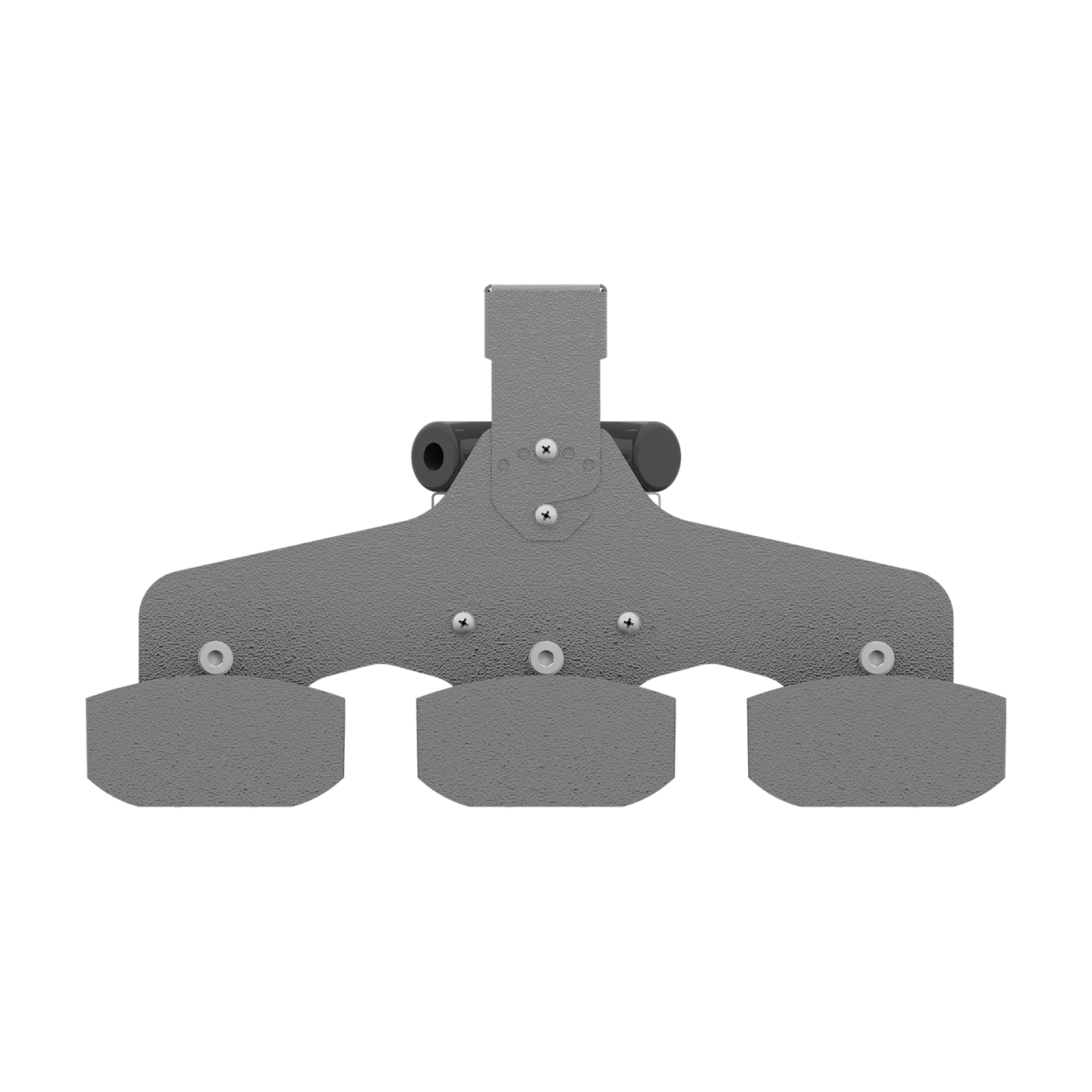

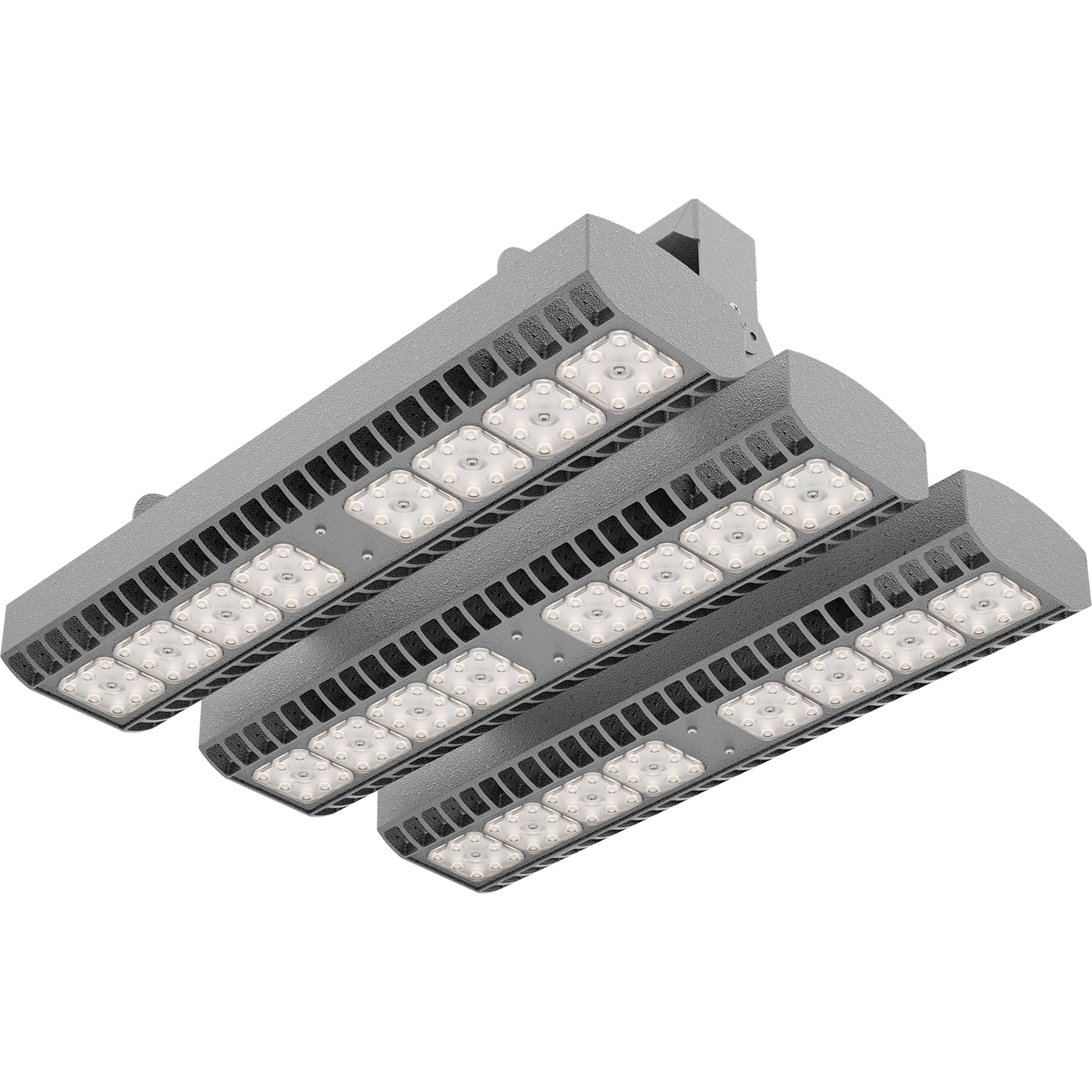

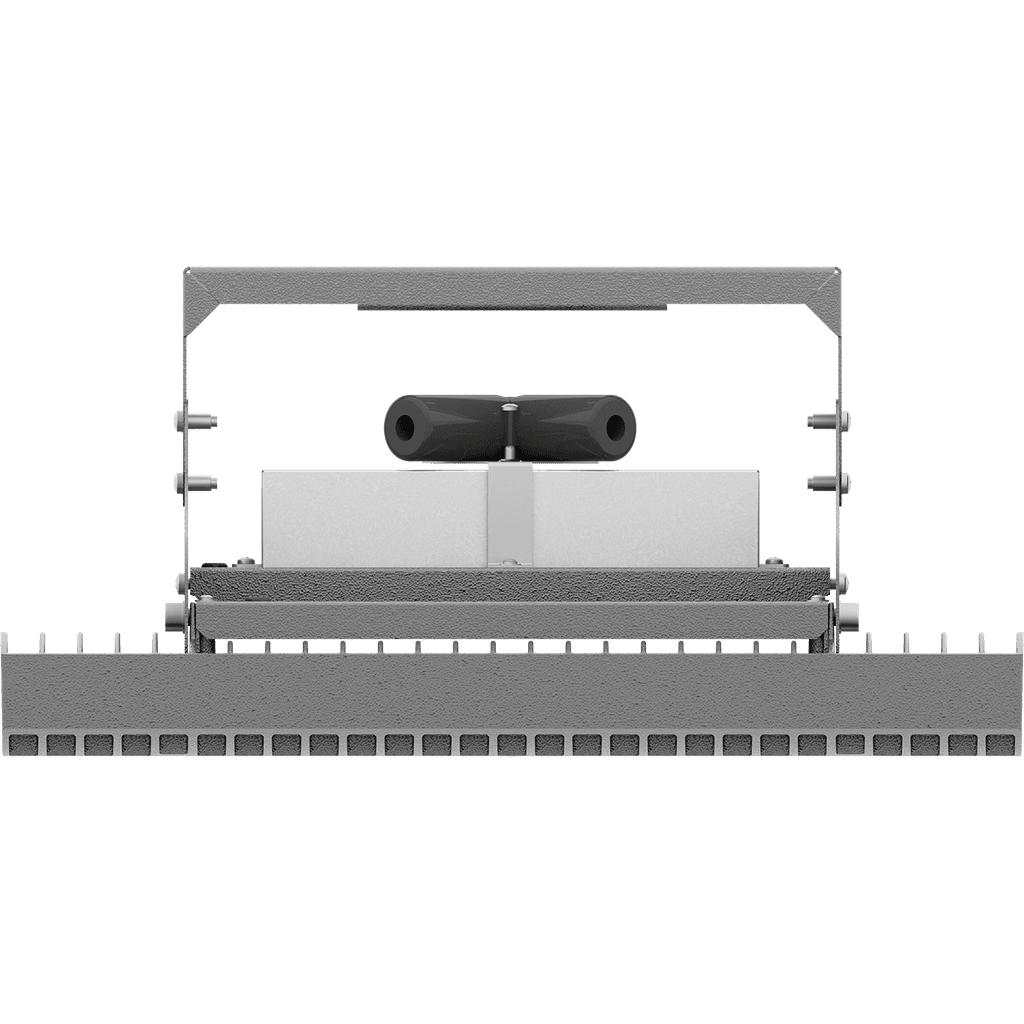

HB LED G2 225W D50x20 850 HG DALI
.png&w=1920&q=50)
.png&w=1024&q=50)
HB LED G2 225W D50x20 850 HG DALI
200 Wluminaire power
29000 lmlight flow
145 lm/Wenergy efficiency
code1224008620
color temperature5000
beam angleD50/20
weight11.5 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
luminaire power
200 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
luminaire power
200 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІ
material
Алюминий
weight
11.5 kg
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
463 mm
width, mm
389 mm
height, mm
248 mm
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +45 C
energy efficiency class
A++
service life, hour
50 000 h
code
1224008620
illuminating
light flow
29000 lm
flickering factor
<1%
energy efficiency
145 lm/W

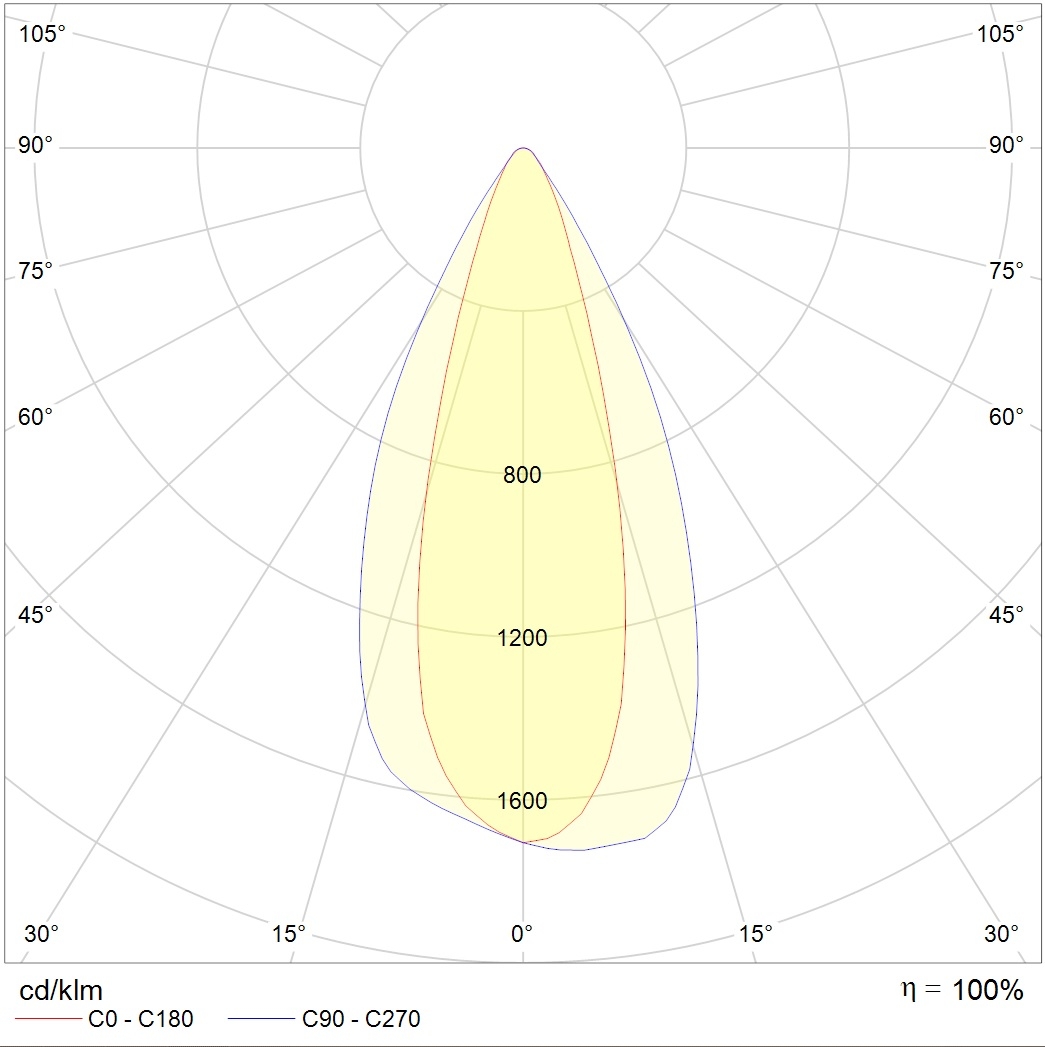

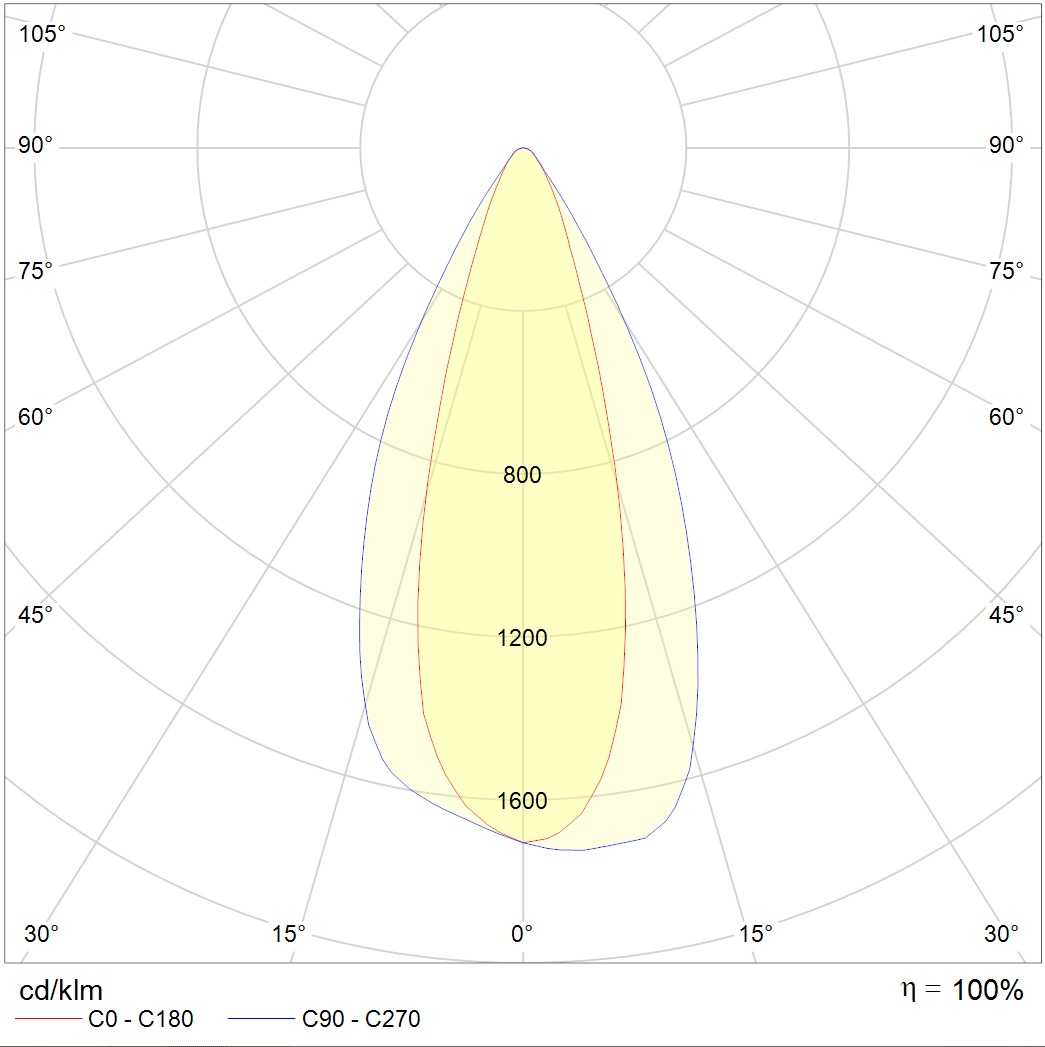

beam angle
D50/20
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
LMS options
dimming
DALI
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
