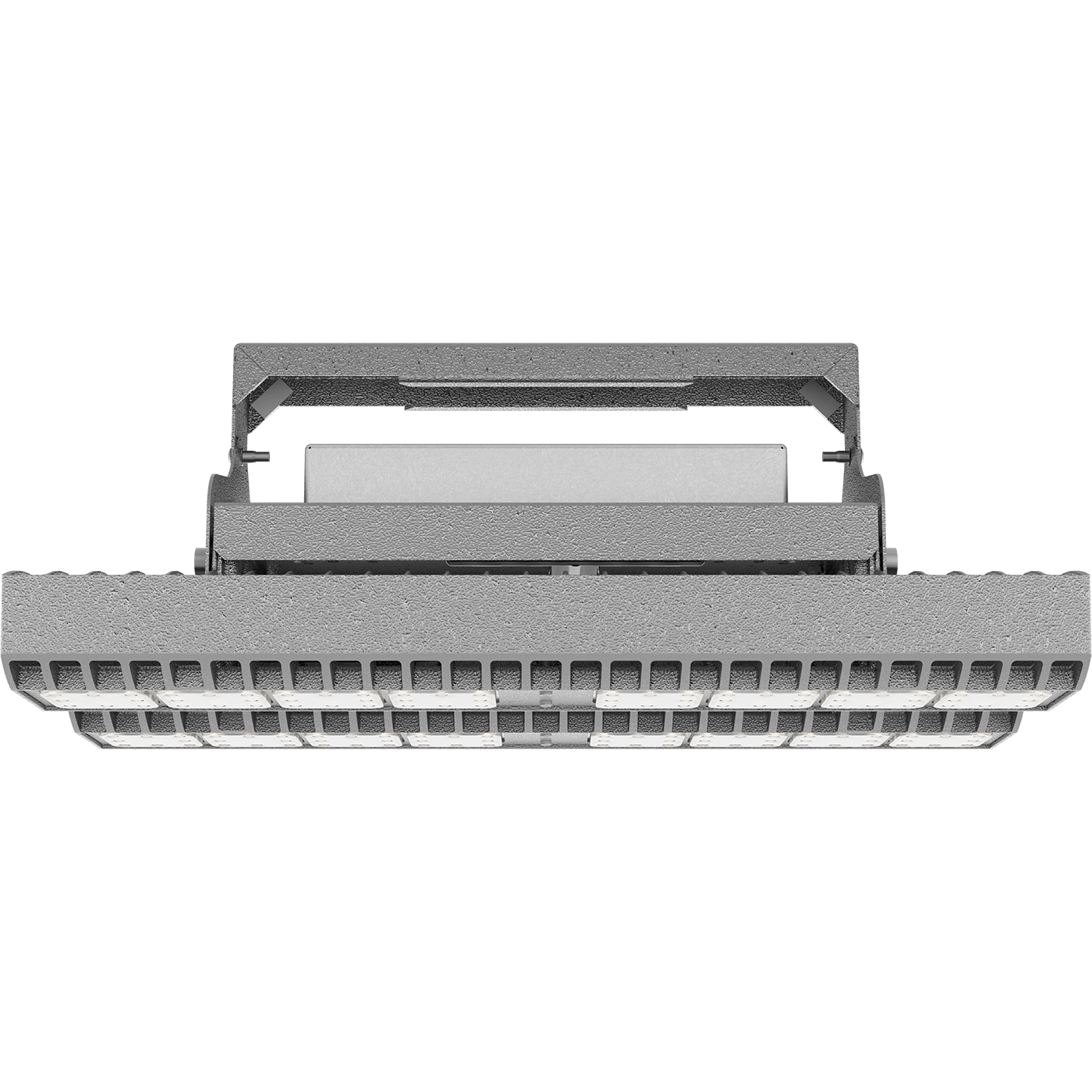

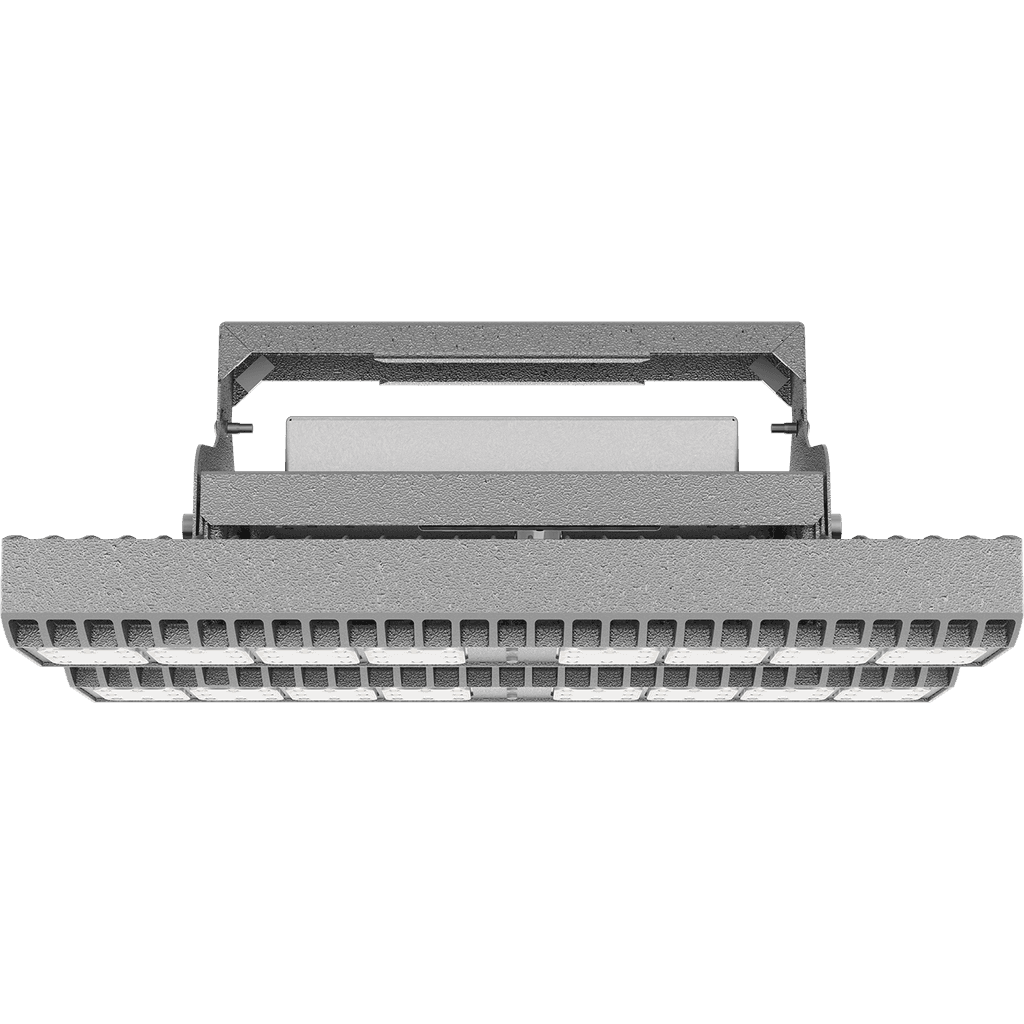

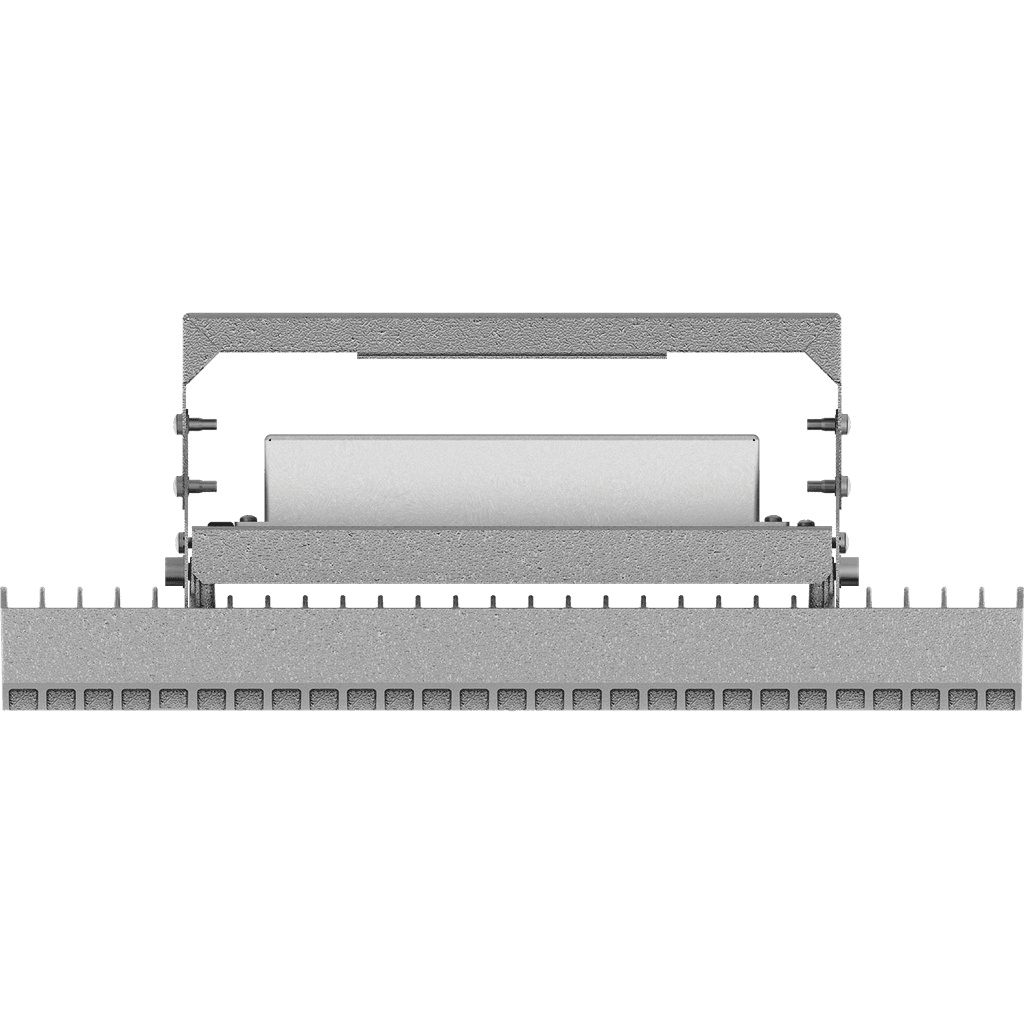

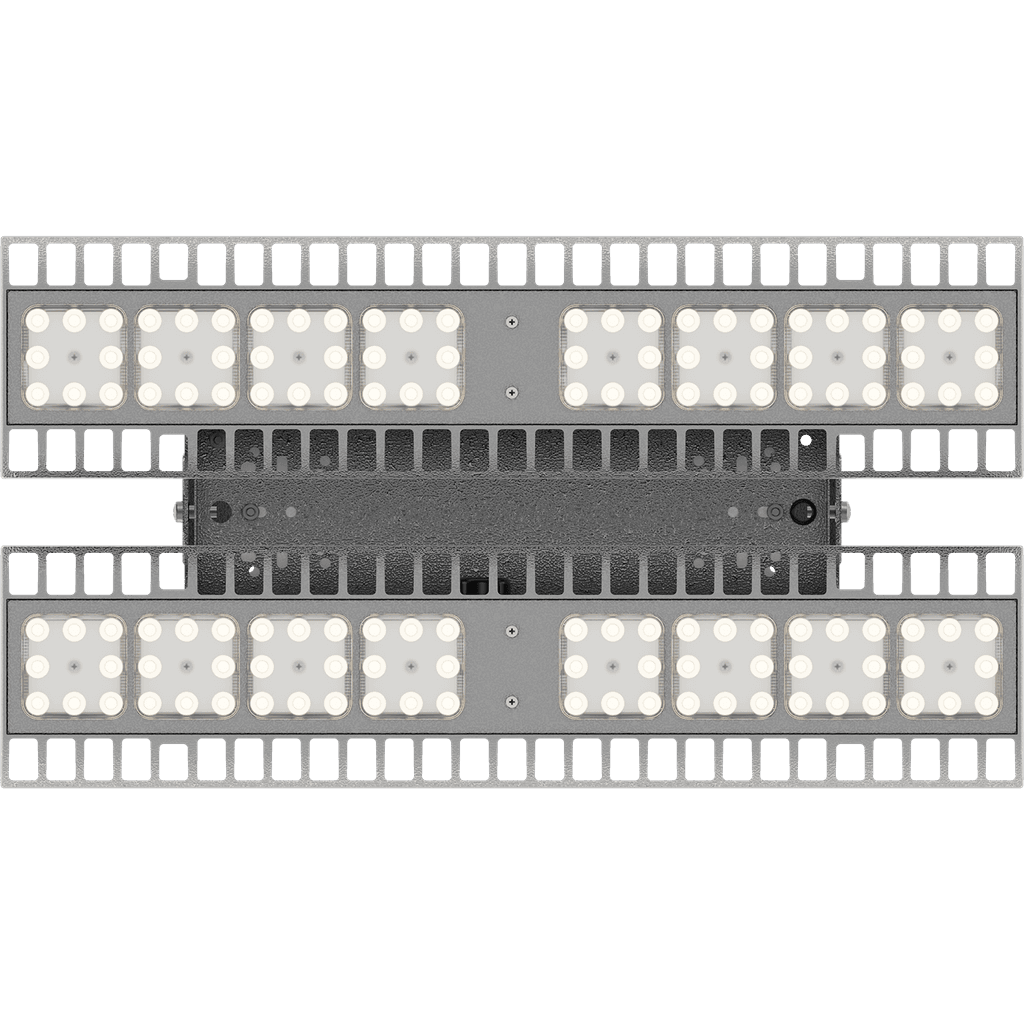

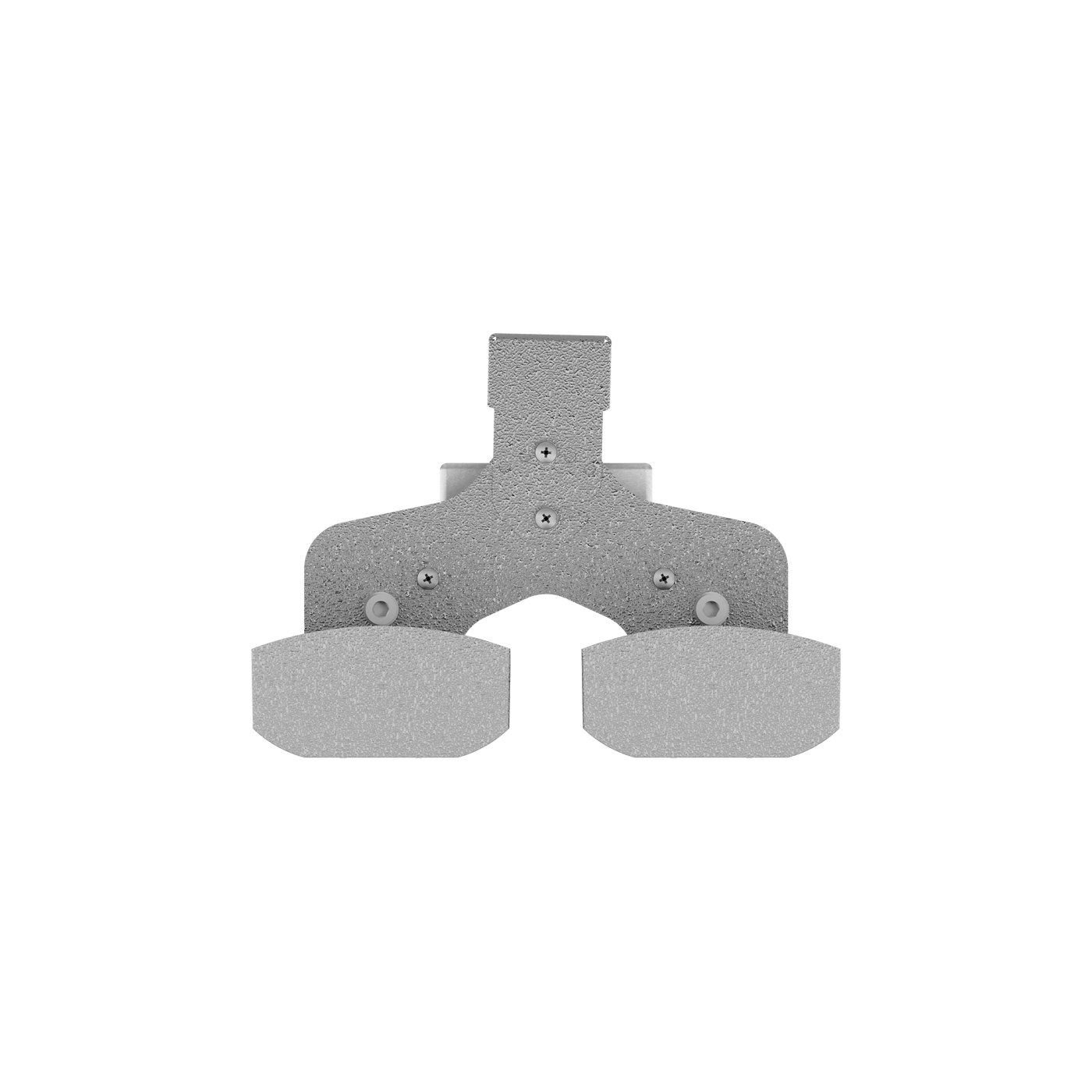

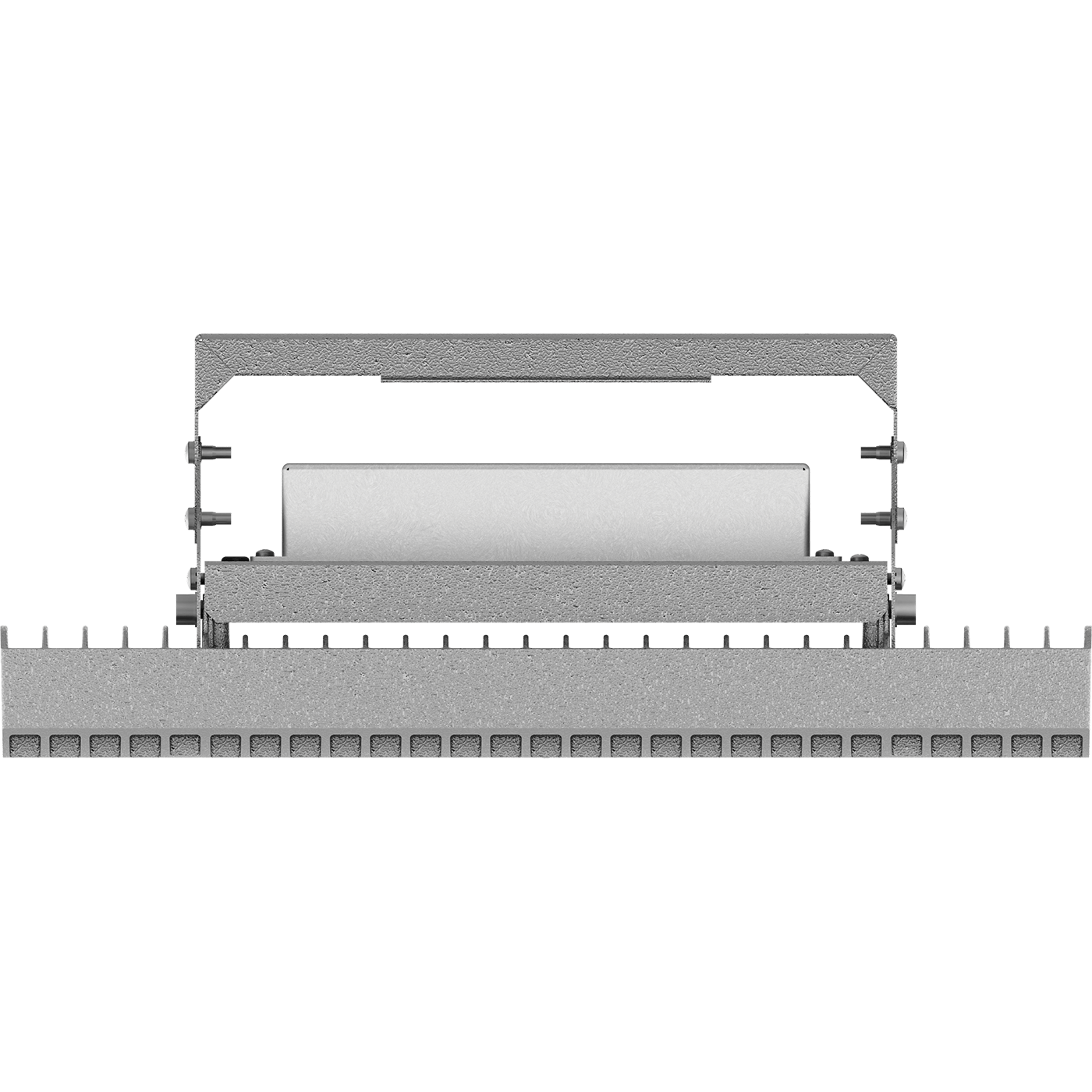

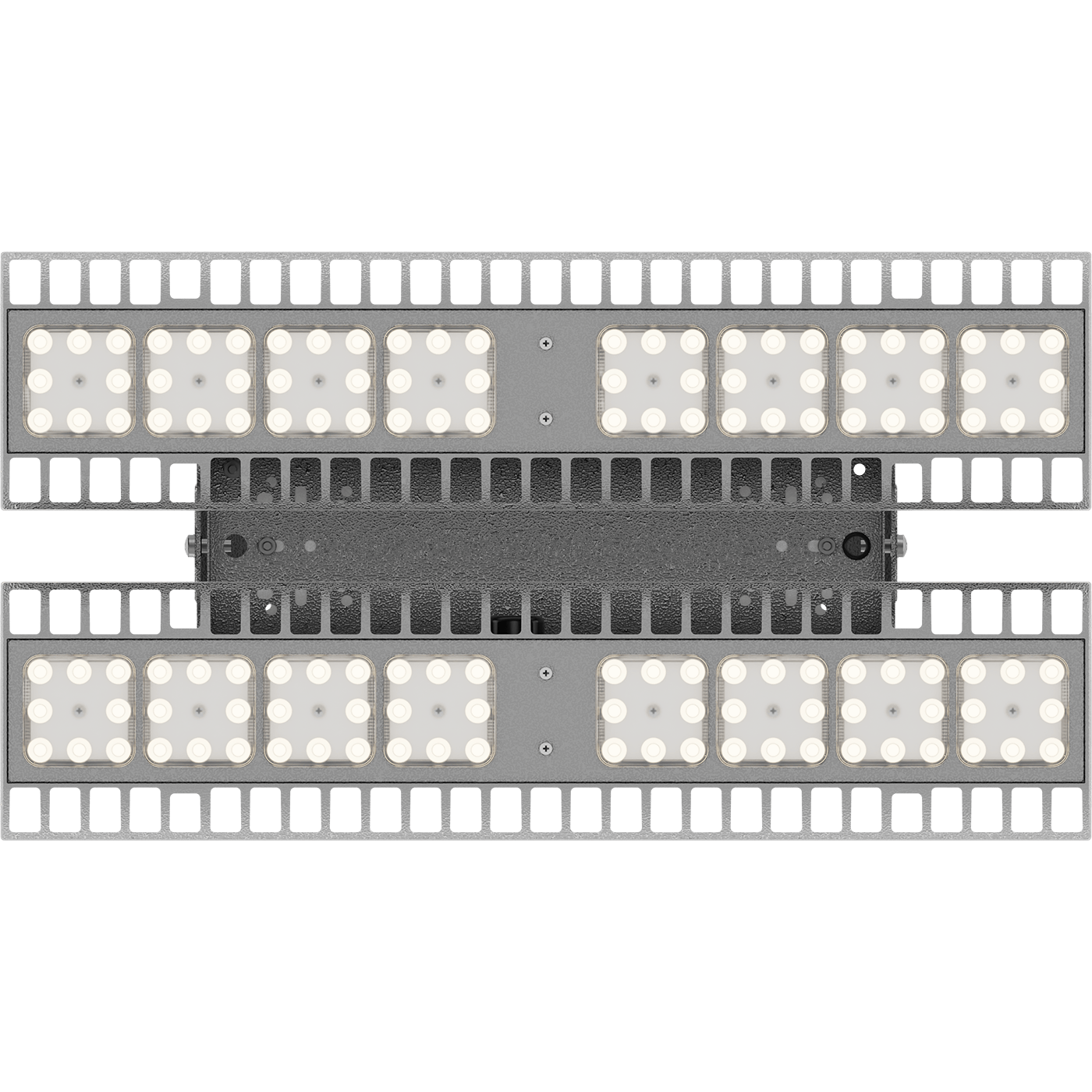

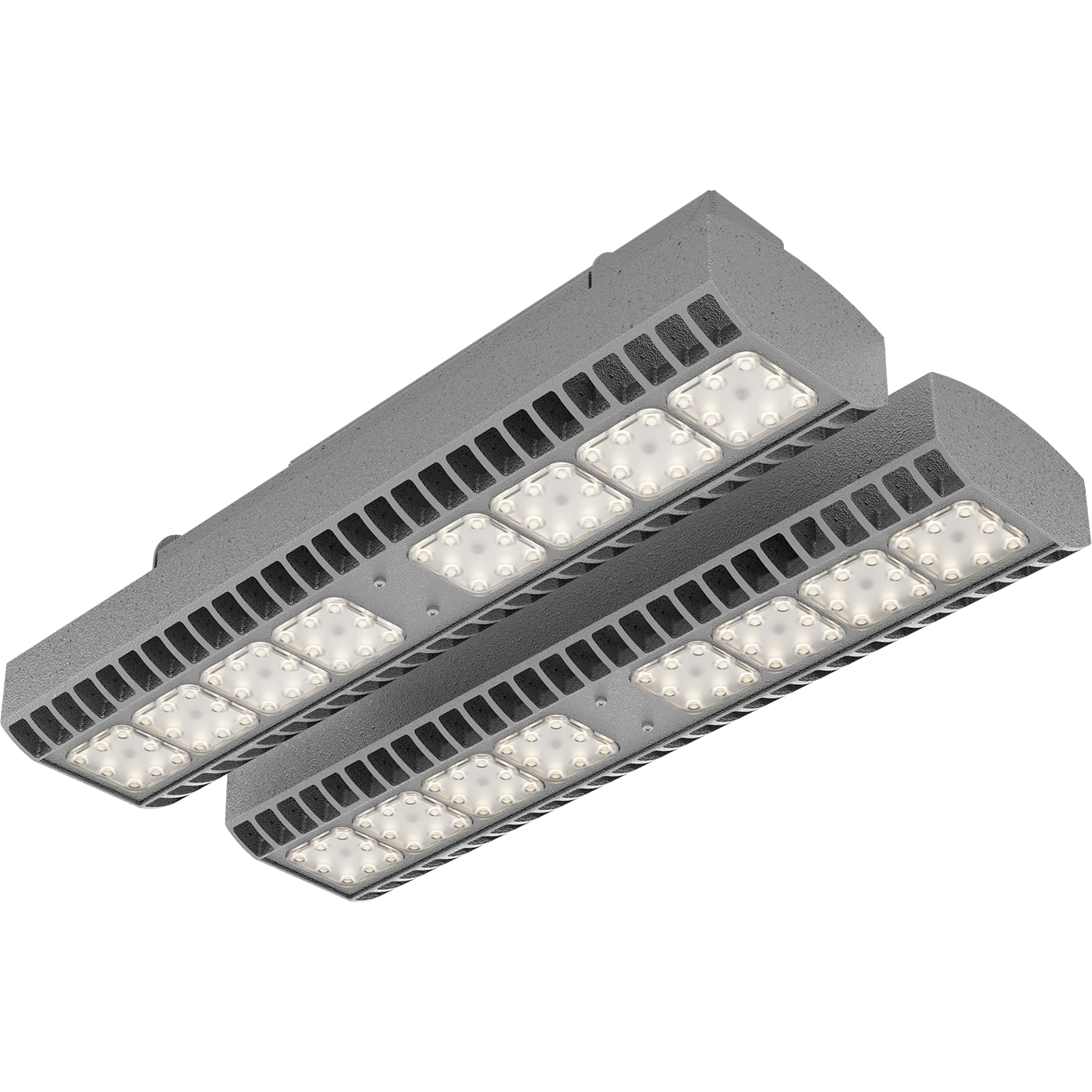

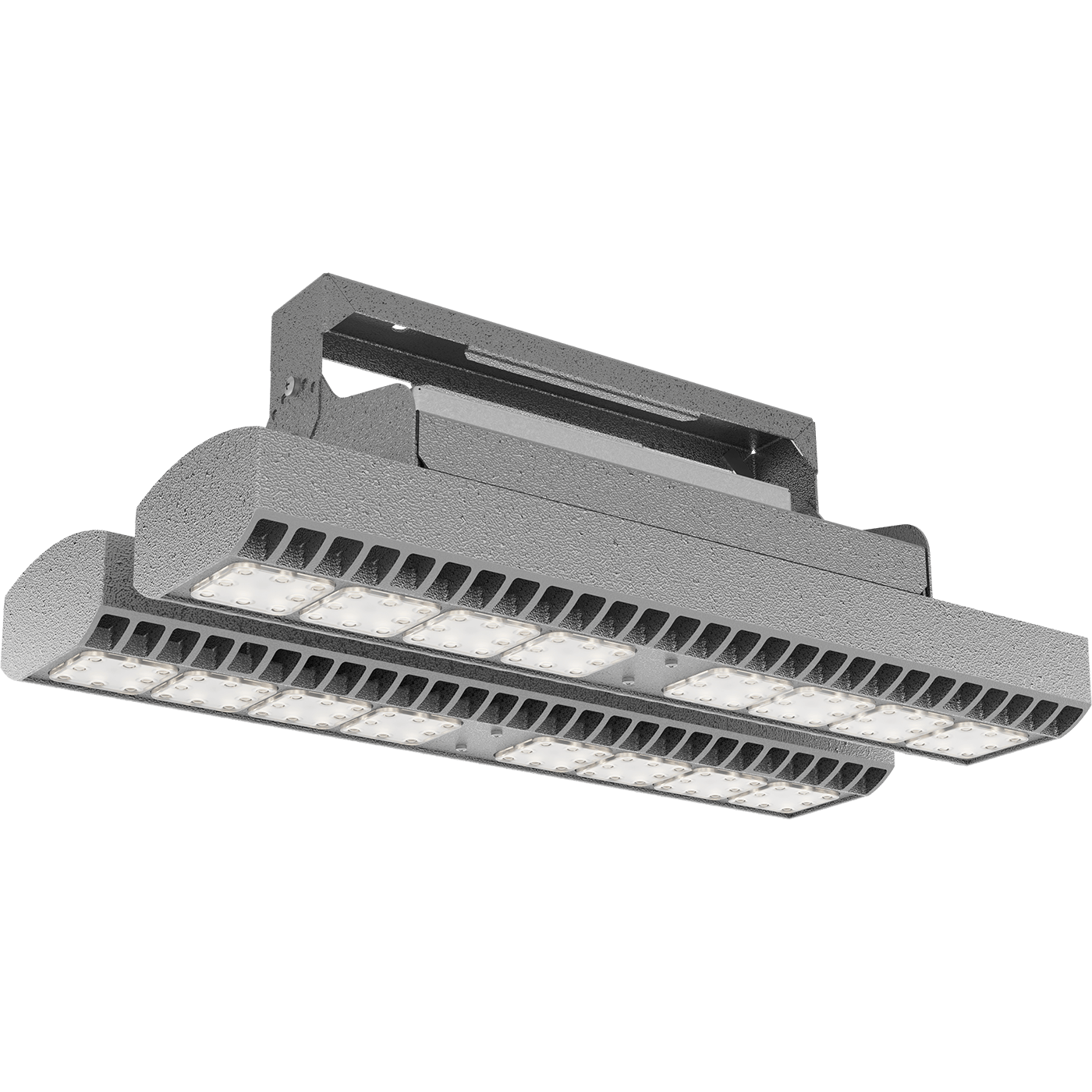

HB LED G2 200W D80 840 HG 1-10V
.png&w=1920&q=100)
.png&w=1024&q=75)
HB LED G2 200W D80 840 HG 1-10V
215 Wluminaire power
29200 lmlight flow
136 lm/Wenergy efficiency
code1224010970
color temperature4000 K
beam angleD80
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>80light flow
29200 lmflickering factor
<1%energy efficiency
136 lm/Wbeam angle
D80color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
29200 lm
flickering factor
<1%
energy efficiency
136 lm/W
beam angle
D80
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
215 W
electric shock protection
I
maximum cross-section of the connected cable
4 mm2
supply voltage
230 V
constructional
shock resistance (IK)
IK07/2 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер 1-10В
ingress protection (IP)
IP66
weight
7 kg
length
463 mm
width
249 mm
height
180 mm
installation length
180 mm
LMS options
dimming
1-10 V
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +55 C
code
1224010970
model files
model files

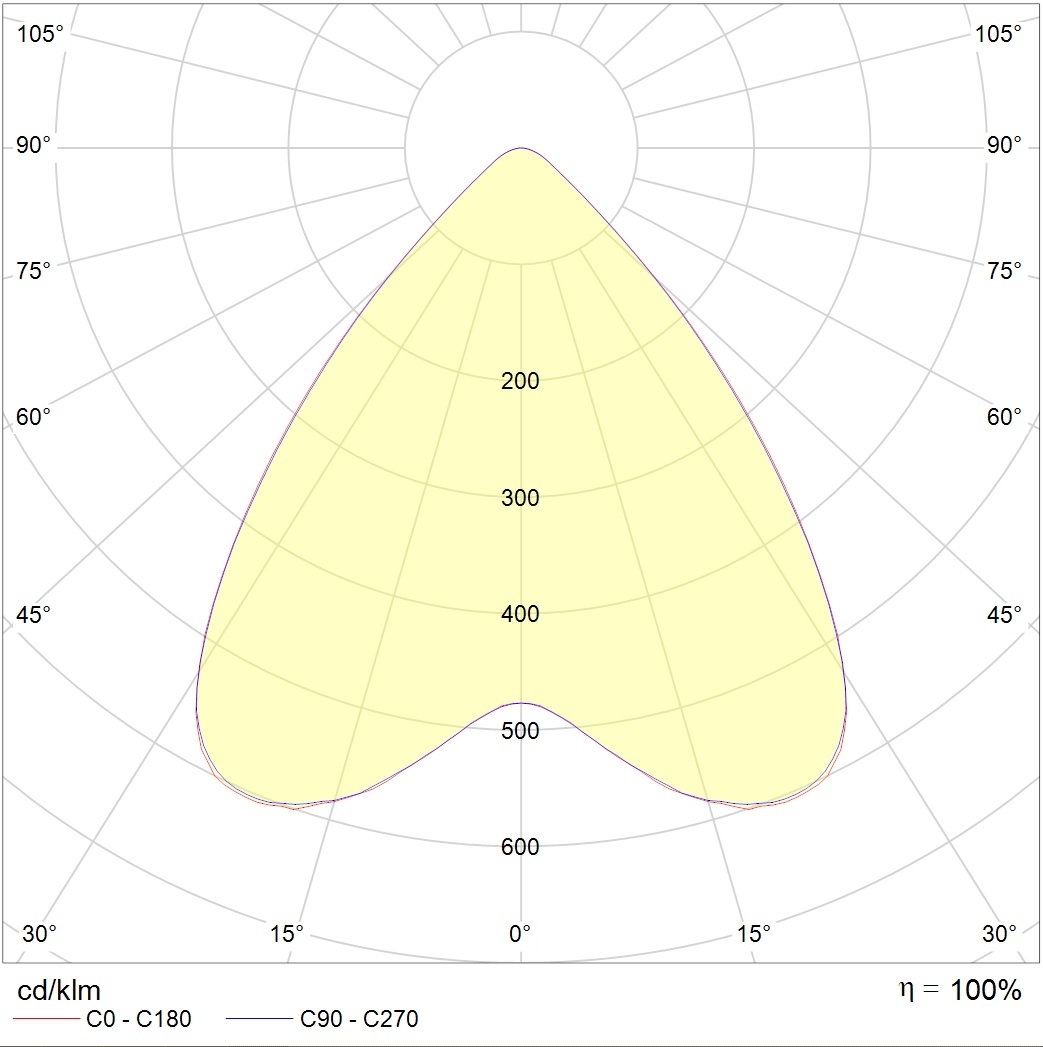

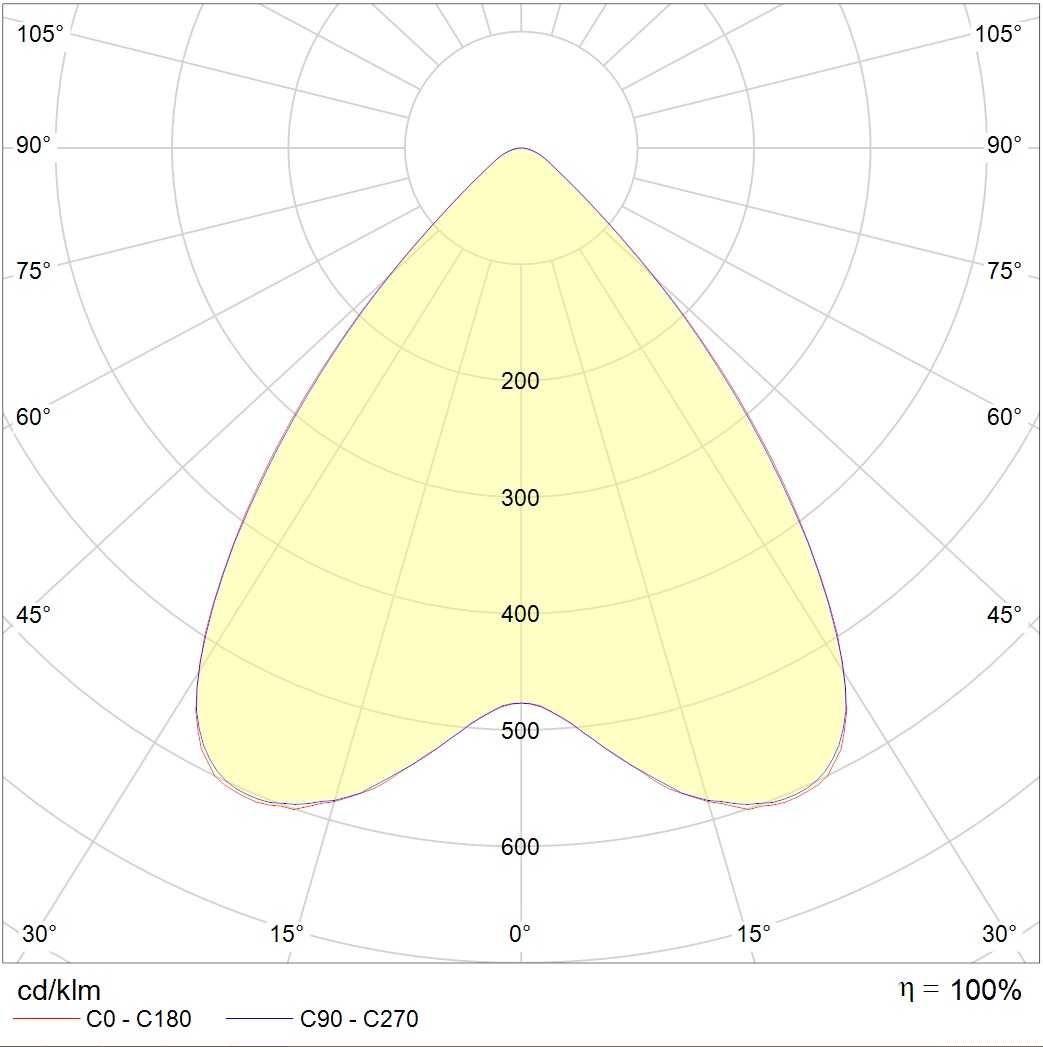

photometric files
сертификаты
photometric files
ies134.1 kB
jpg134.6 kB
ldt79 kB
сертификаты
Russian origin635.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
