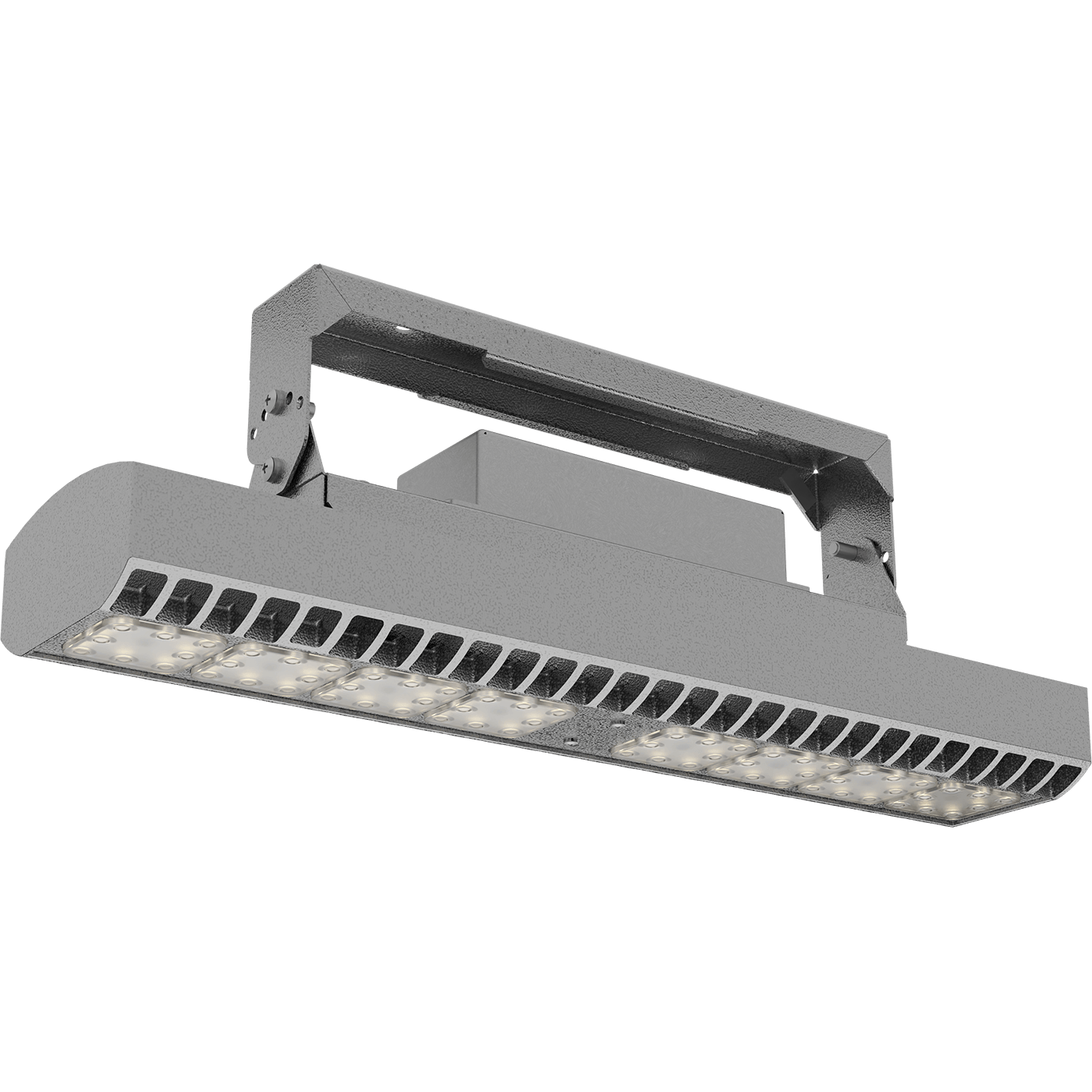

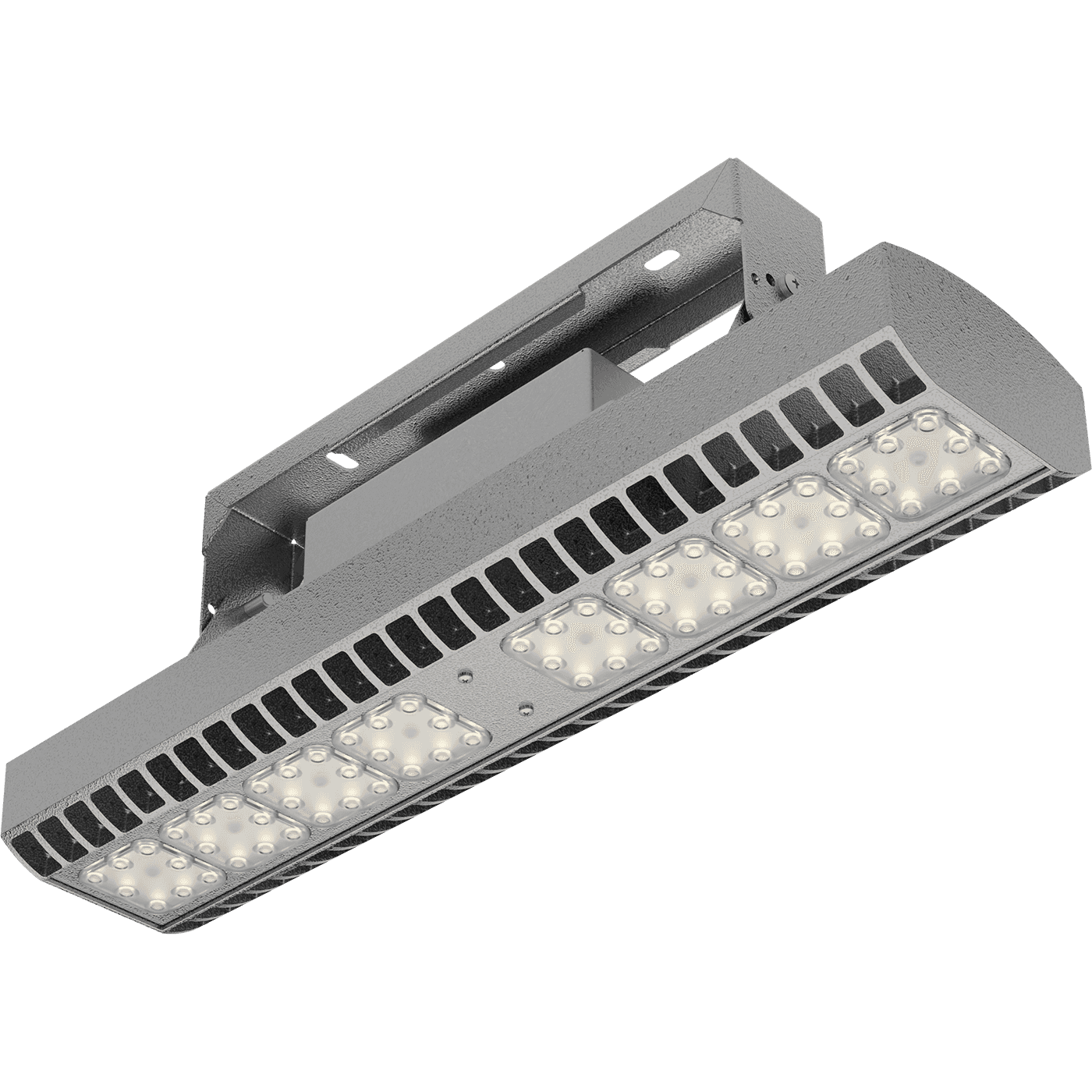

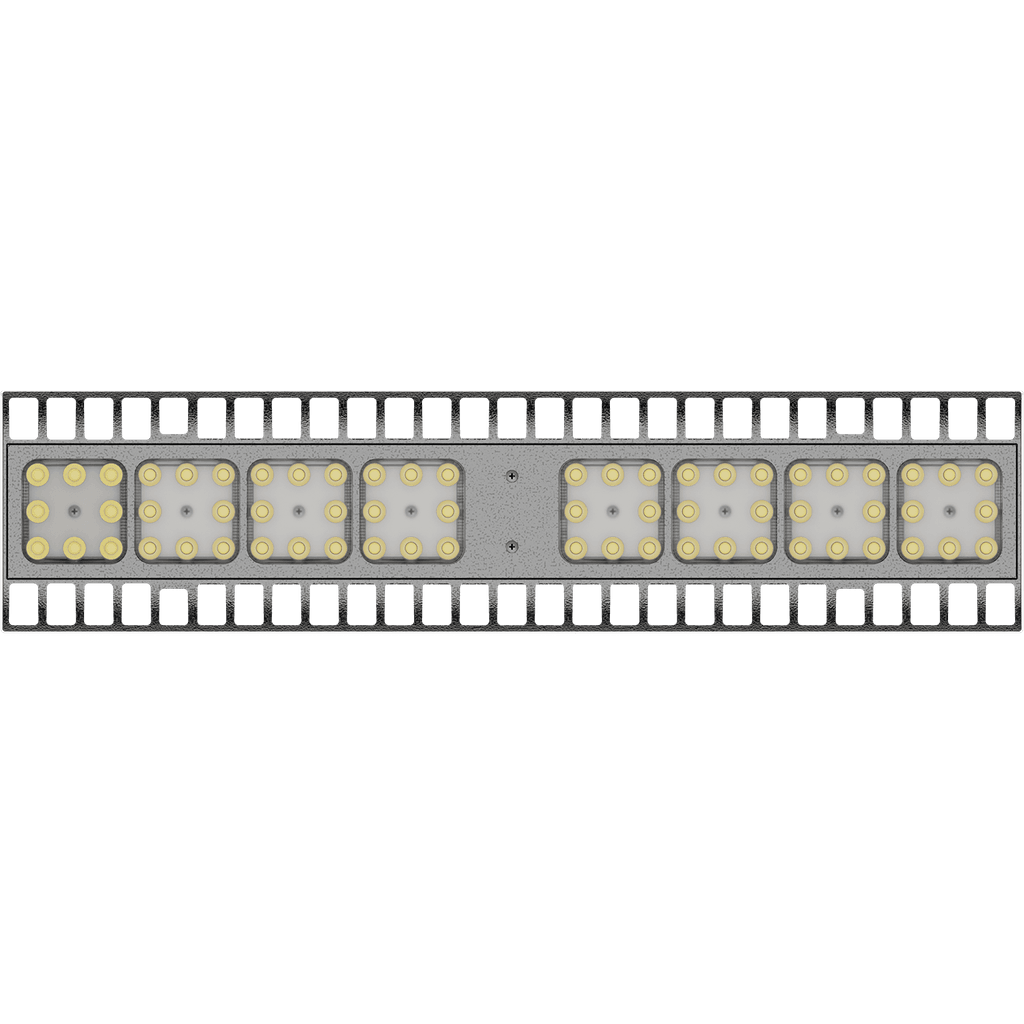

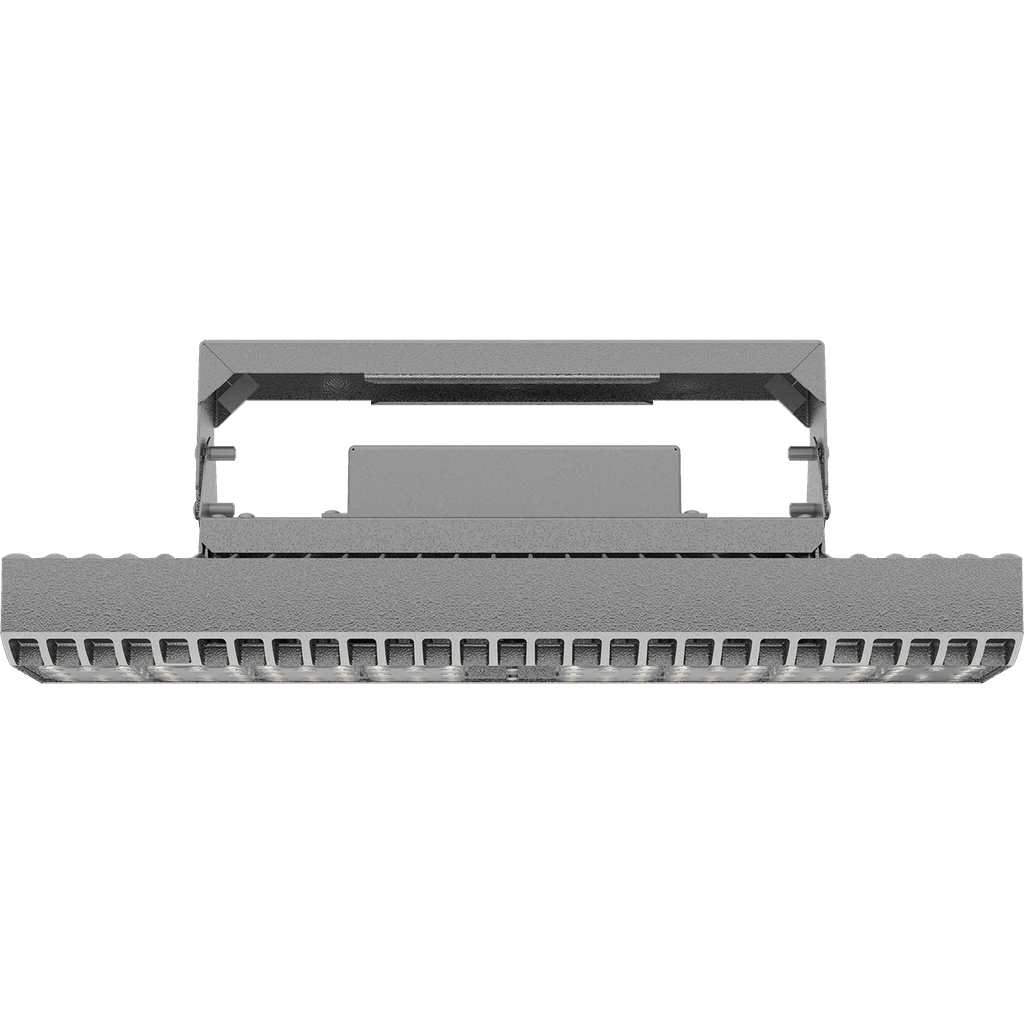

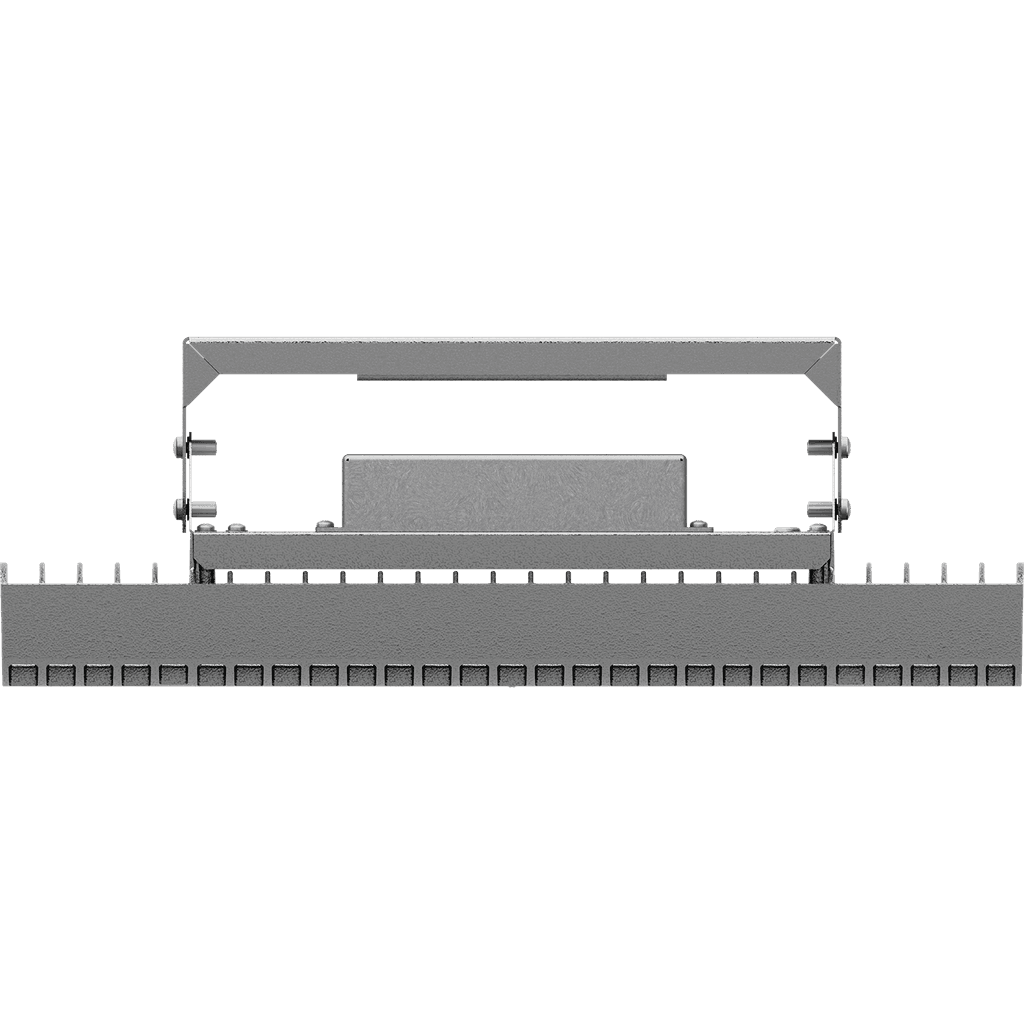

HB LED 75 D60 HFD 5000K G2
.png&w=1920&q=100)
.png&w=1024&q=75)
HB LED 75 D60 HFD 5000K G2
70 Wluminaire power
10000 lmlight flow
143 lm/Wenergy efficiency
code1224005060
color temperature5000 K
beam angleD60
weight4 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>70light flow
10000 lmflickering factor
<1%energy efficiency
143 lm/Wbeam angle
D60color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
10000 lm
flickering factor
<1%
energy efficiency
143 lm/W
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
70 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
shock resistance (IK)
IK07/2 Дж
weight
4 kg
ingress protection (IP)
IP66
length
463 mm
width
110 mm
height
170 mm
installation length
180 mm
LMS options
dimming
DALI
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +55 C
code
1224005060
model files
model files

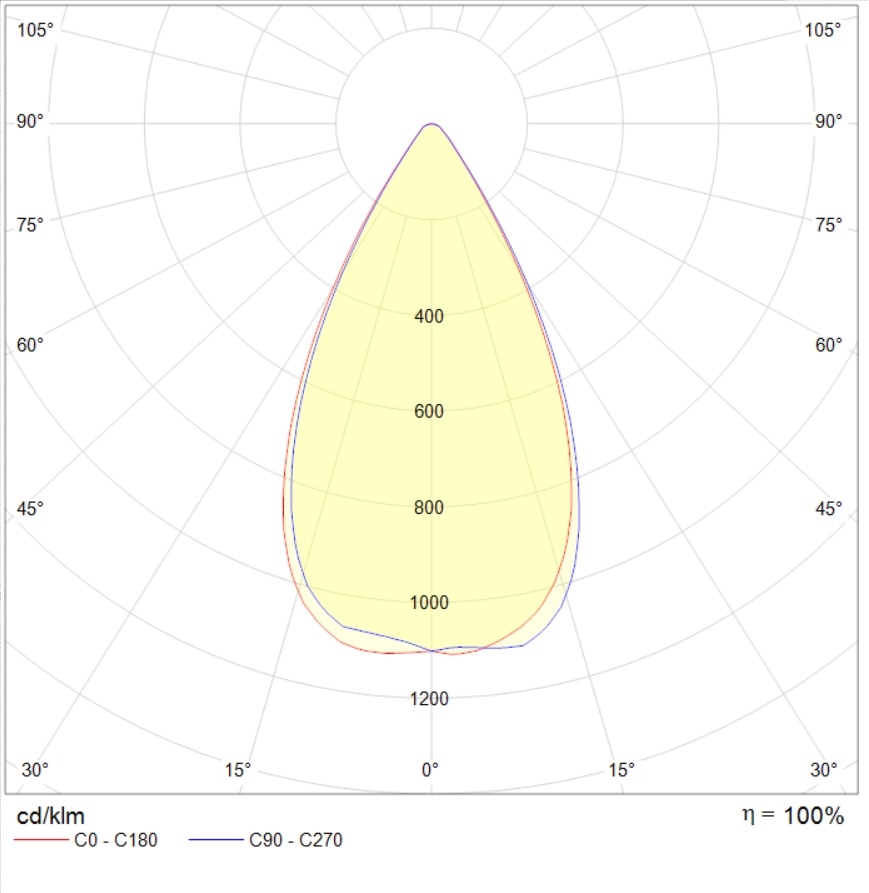

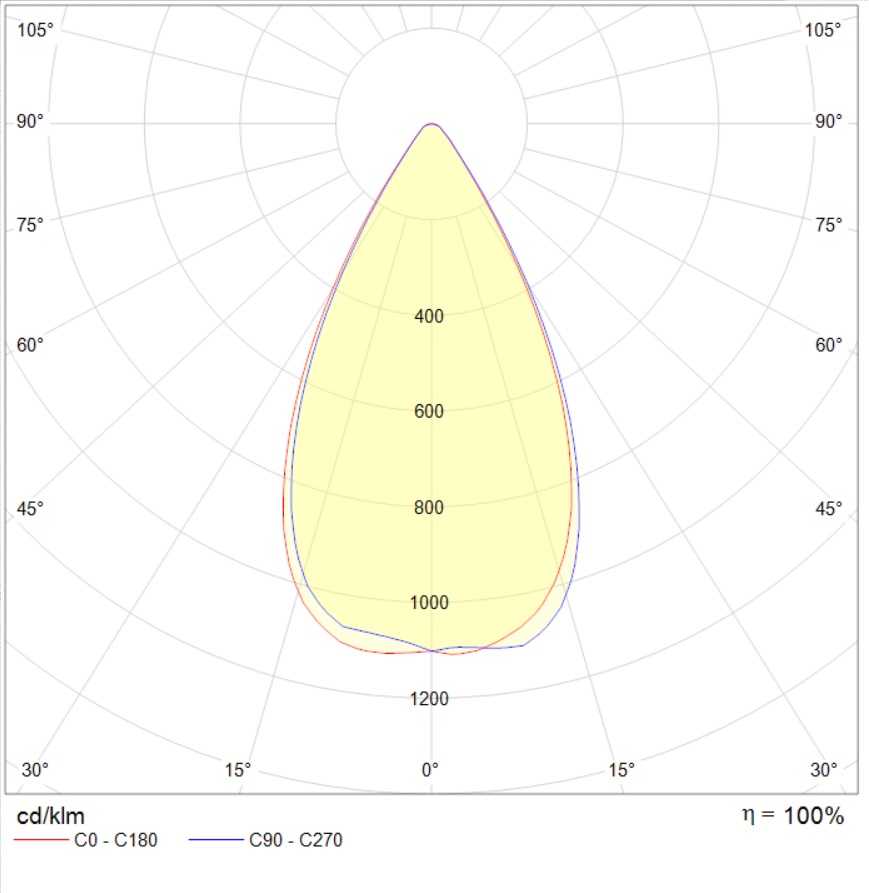

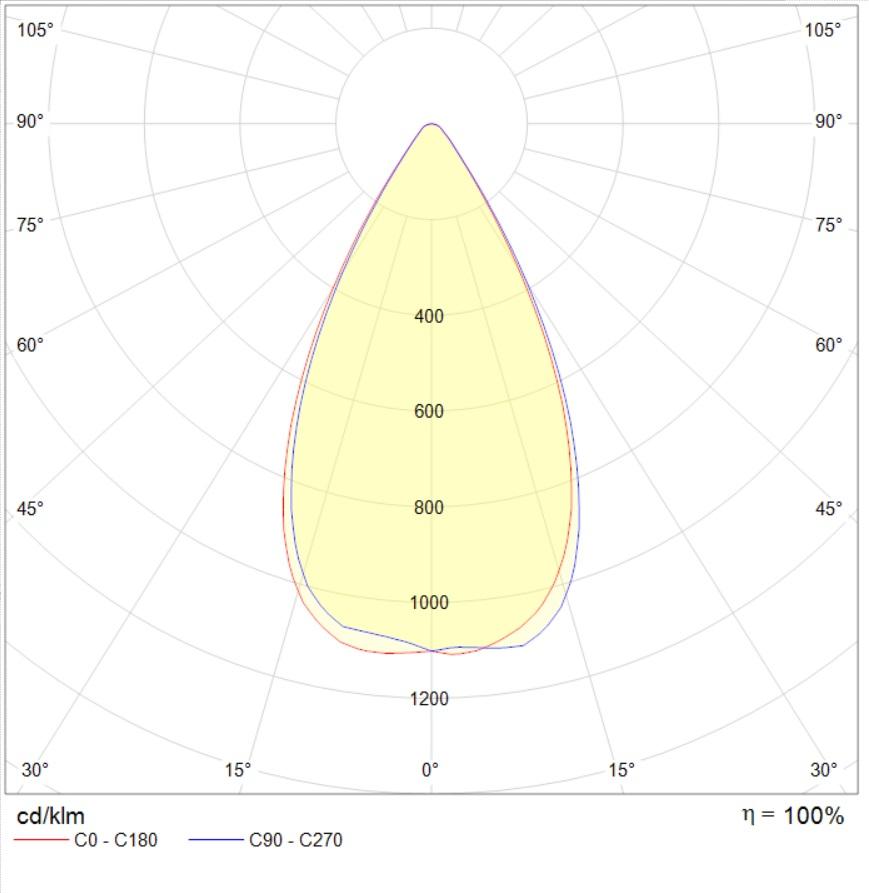

photometric files
сертификаты
photometric files
ies107.1 kB
jpg88.5 kB
ldt71.4 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
