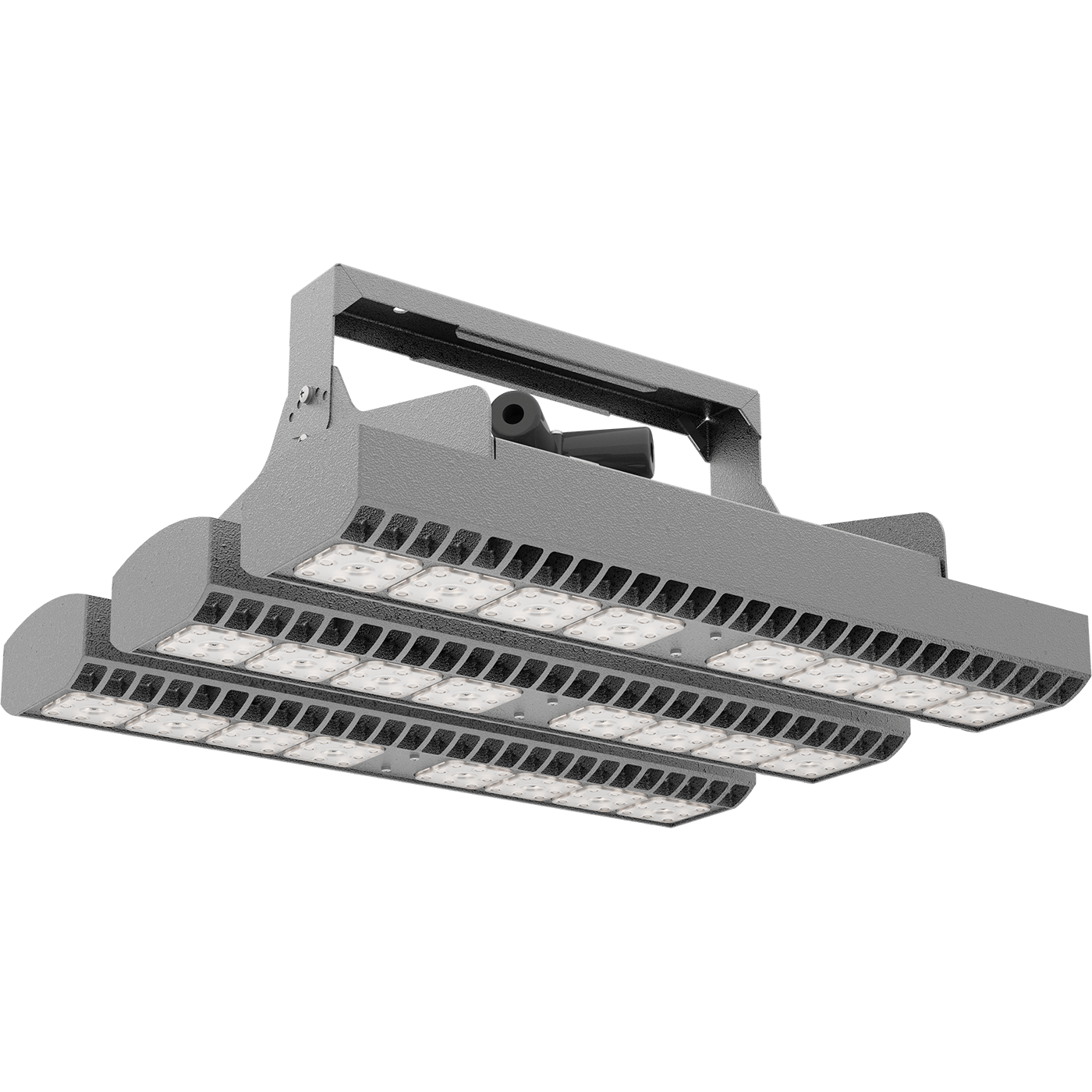

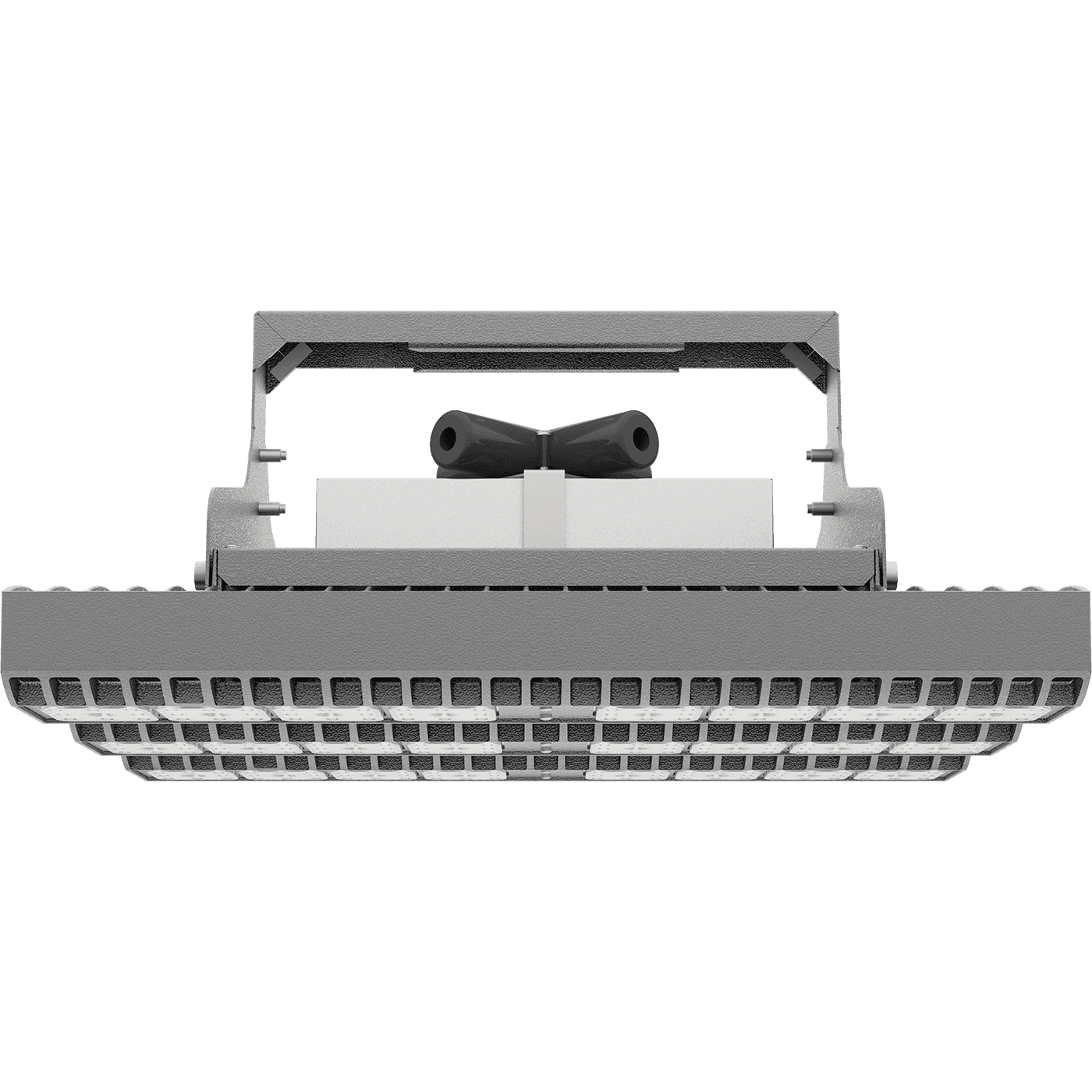

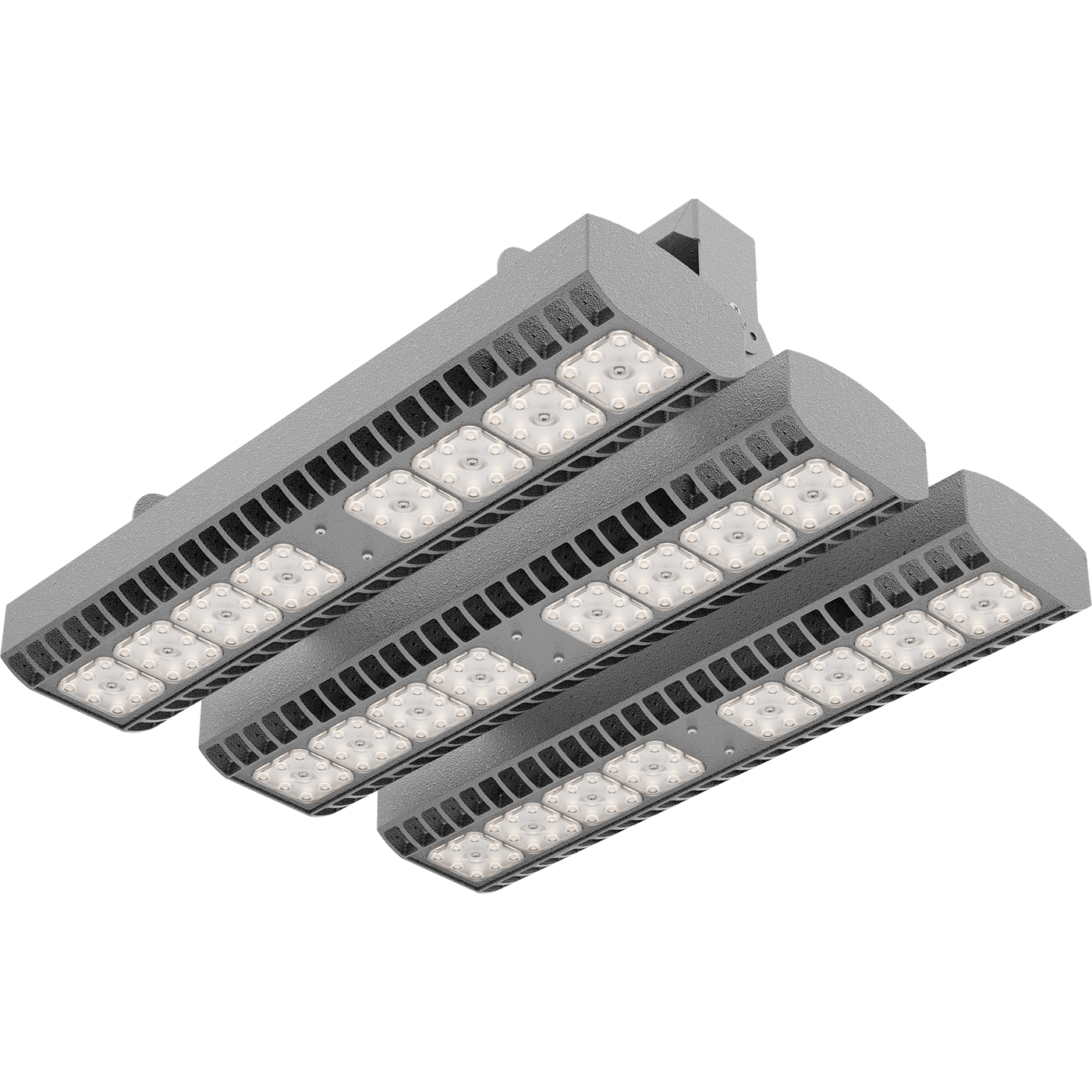

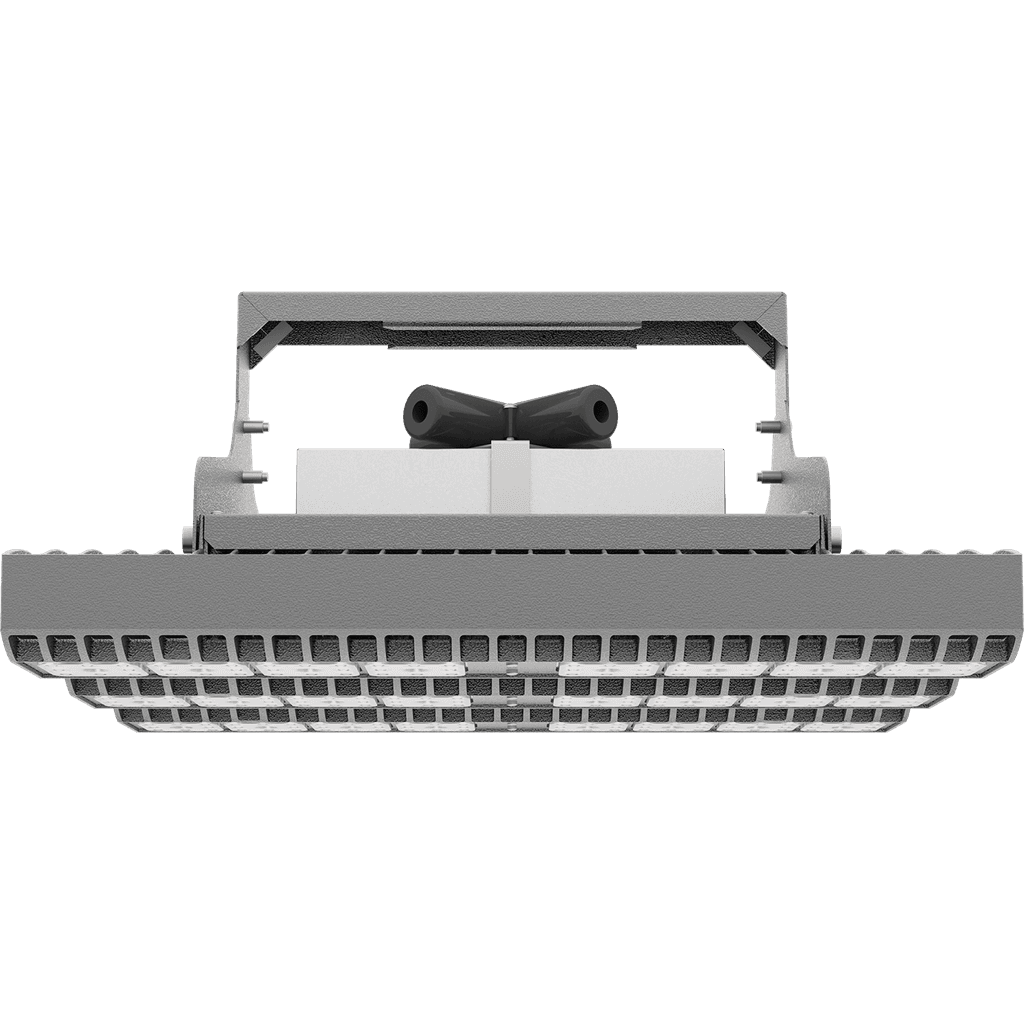

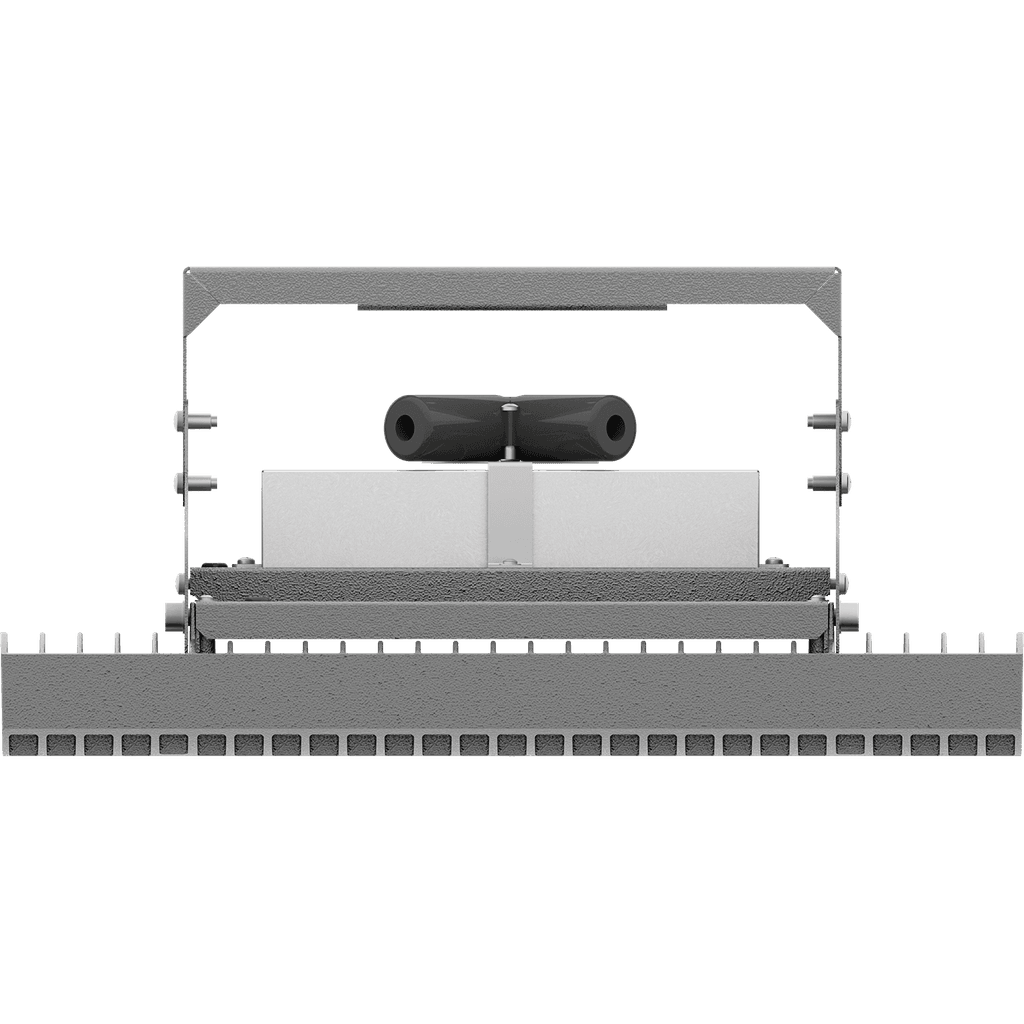

HB LED 300 D80 HFD 5000K G2 (CRI 90)
model is discontinued
.png&w=1920&q=100)
.png&w=1024&q=75)
model is discontinued
HB LED 300 D80 HFD 5000K G2 (CRI 90)
300 Wluminaire power
40600 lmlight flow
135 lm/Wenergy efficiency
code1224004780
color temperature5000 K
beam angleD80
weight11.5 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>90light flow
40600 lmflickering factor
<1%energy efficiency
135 lm/Wbeam angle
D80color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>90
light flow
40600 lm
flickering factor
<1%
energy efficiency
135 lm/W
beam angle
D80
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
300 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
climatic performance
УХЛ1
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
shock resistance (IK)
IK07/2 Дж
weight
11.5 kg
ingress protection (IP)
IP65
length
463 mm
width
389 mm
height
248 mm
installation length
180 mm
LMS options
dimming
DALI
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +55 C
code
1224004780
