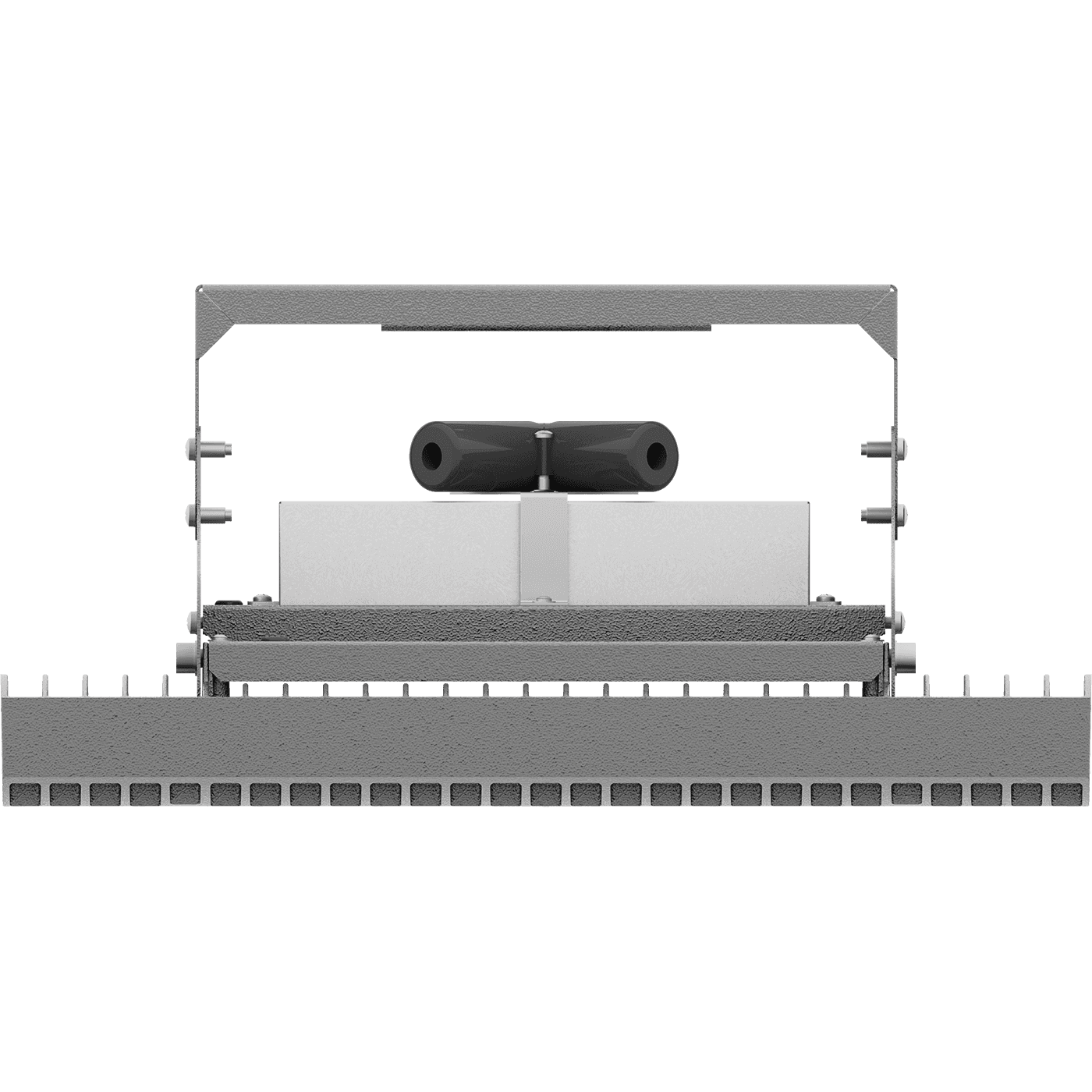

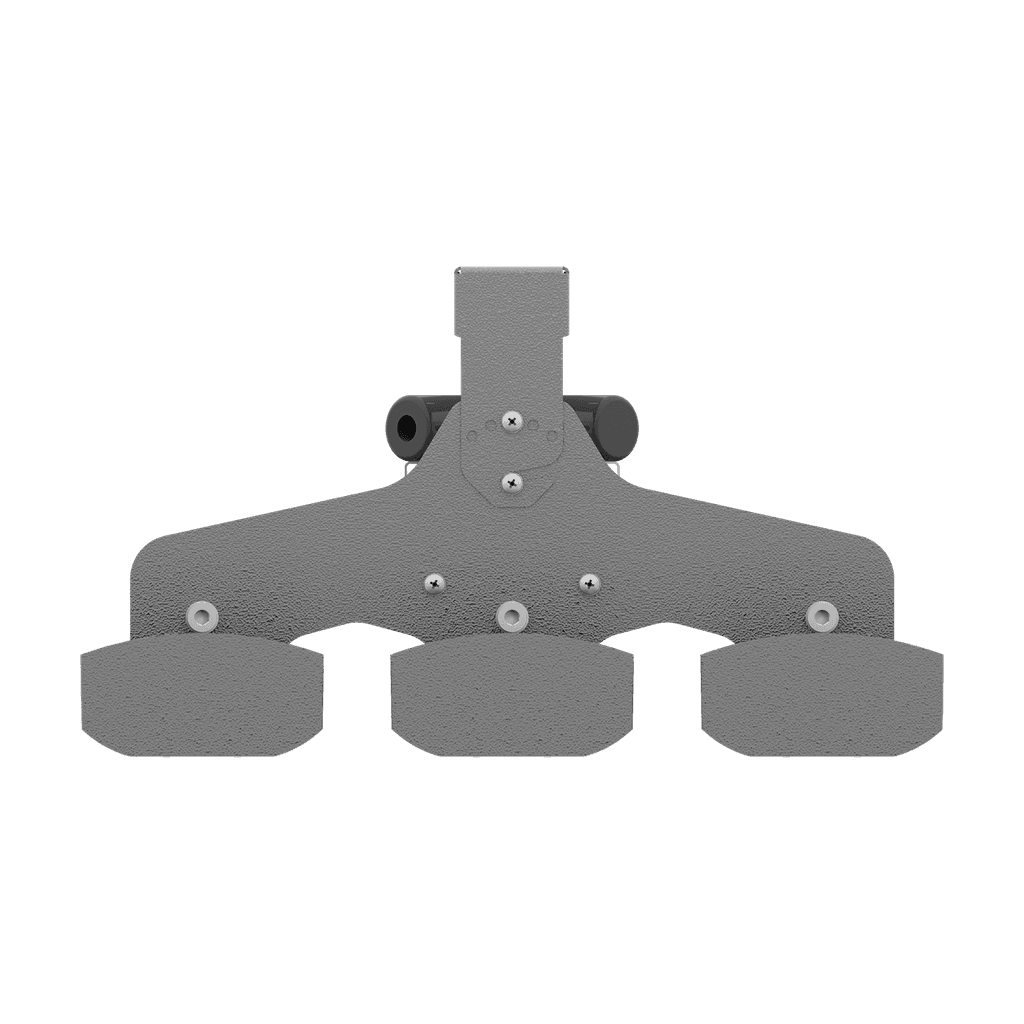

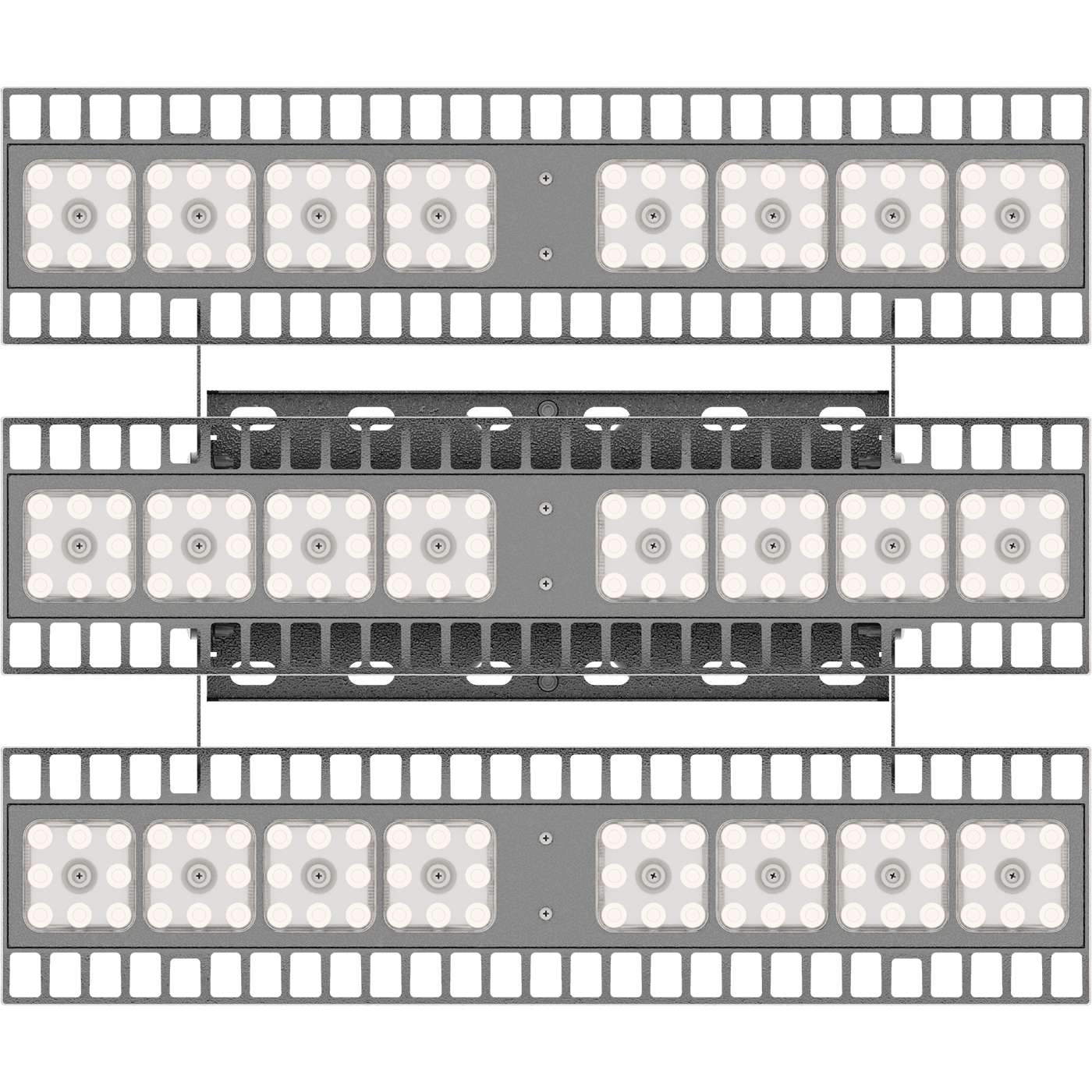

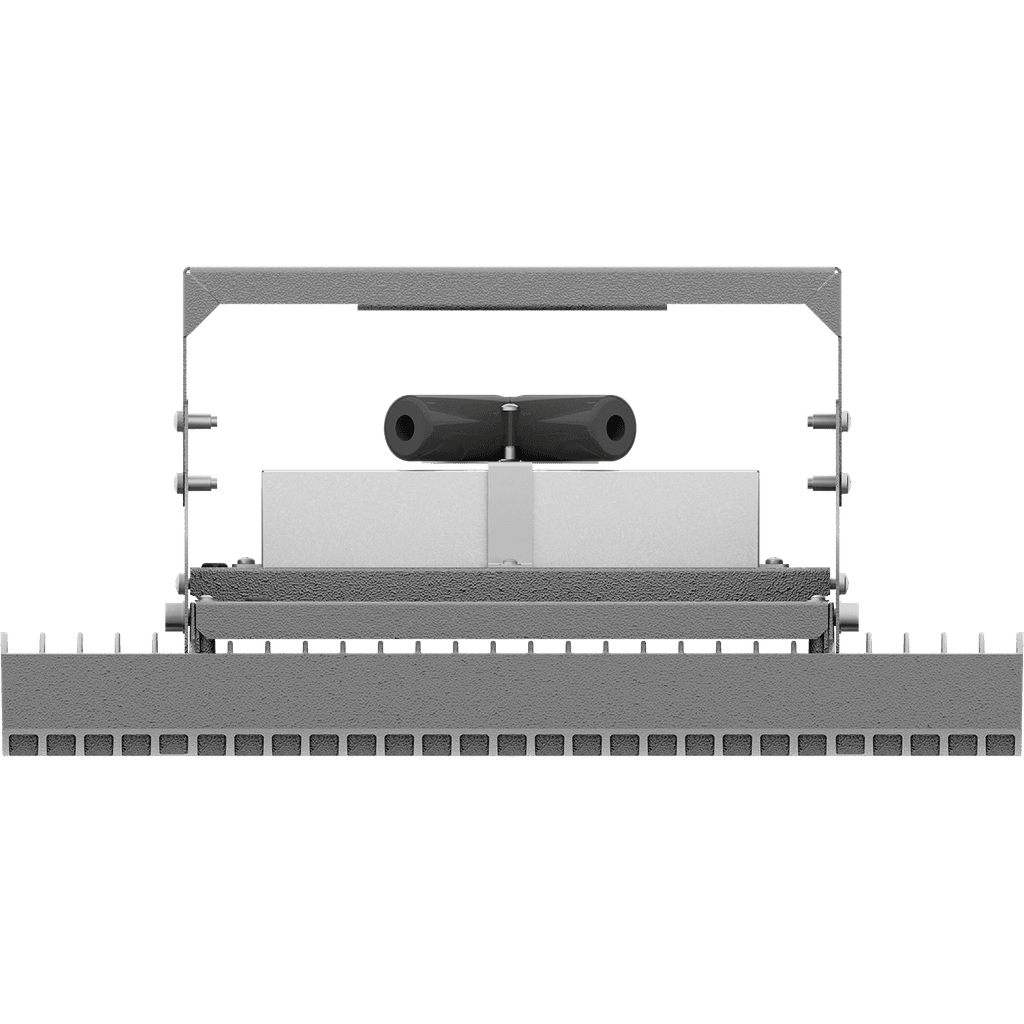

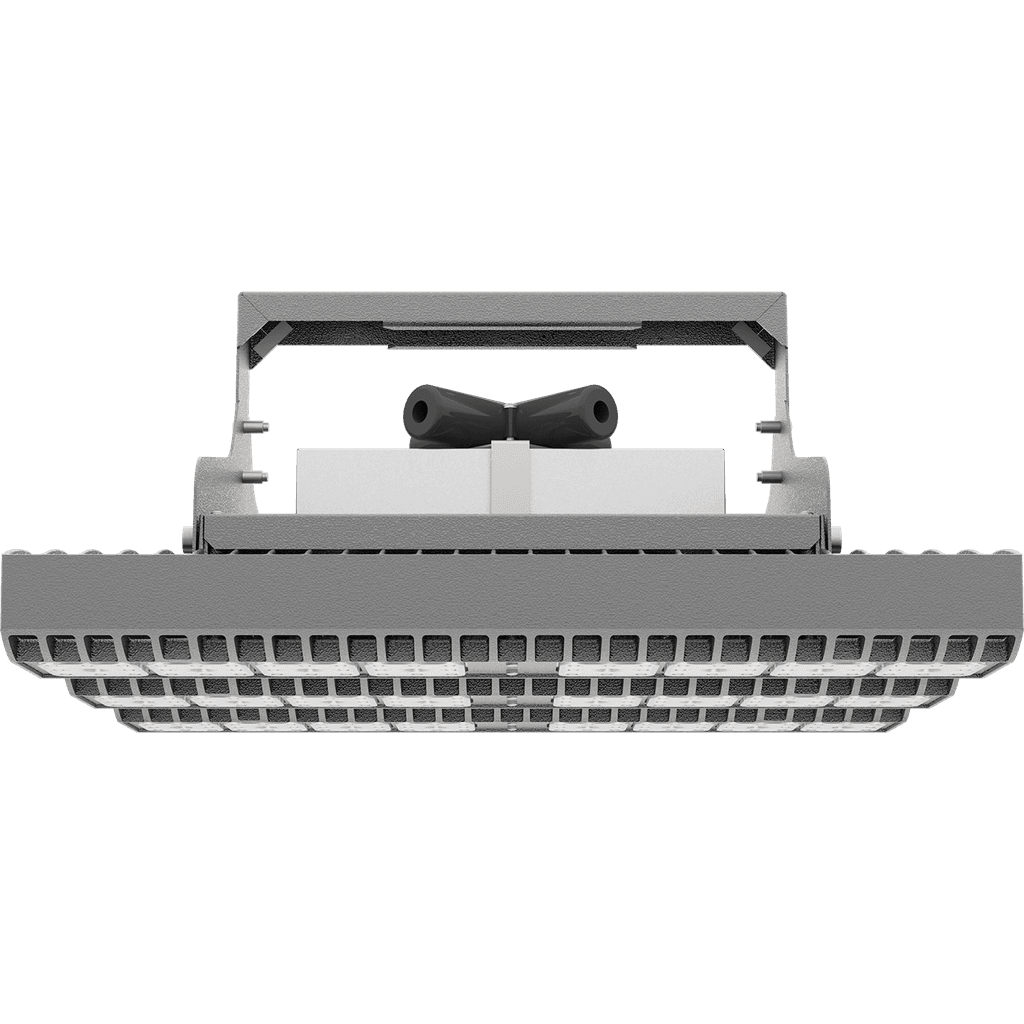

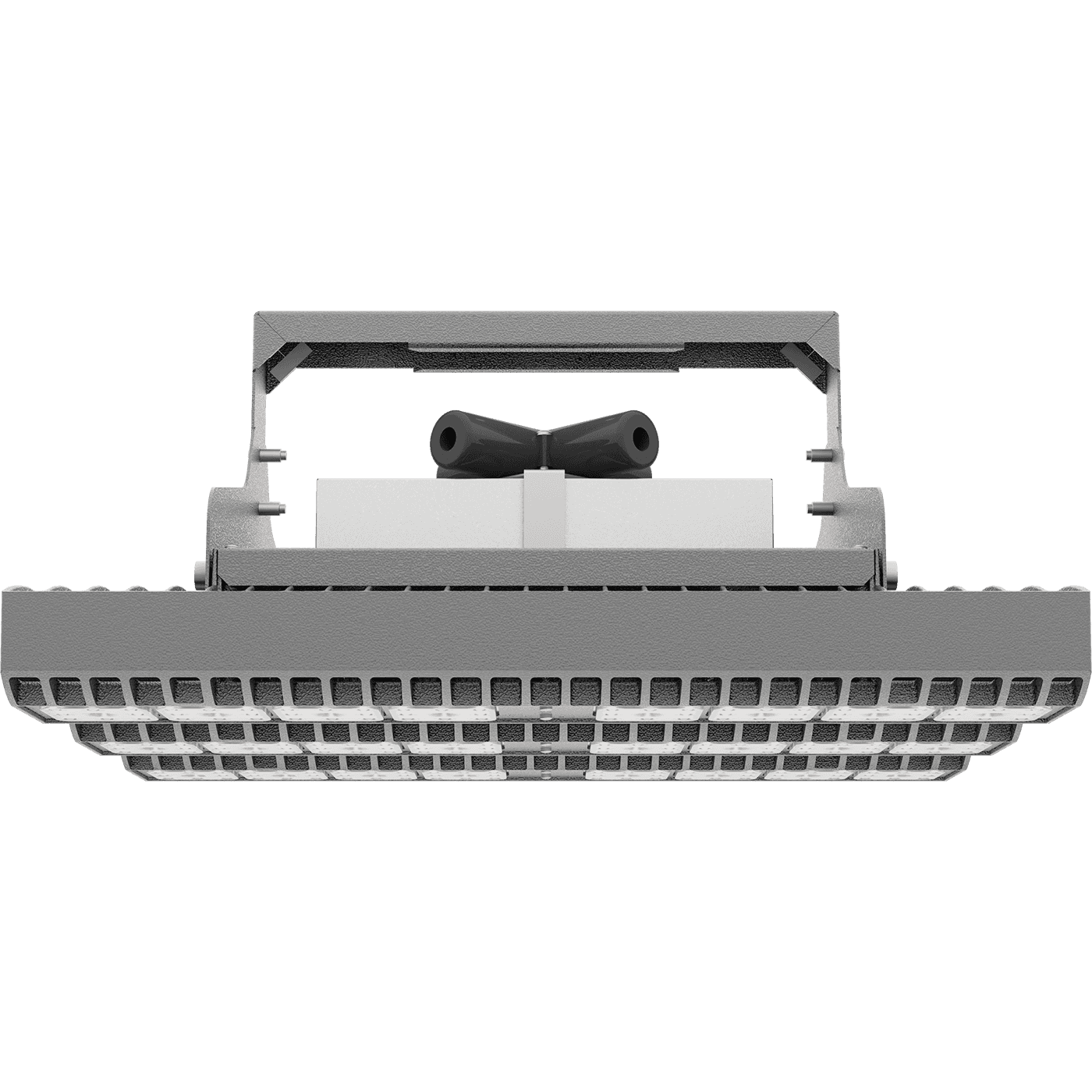

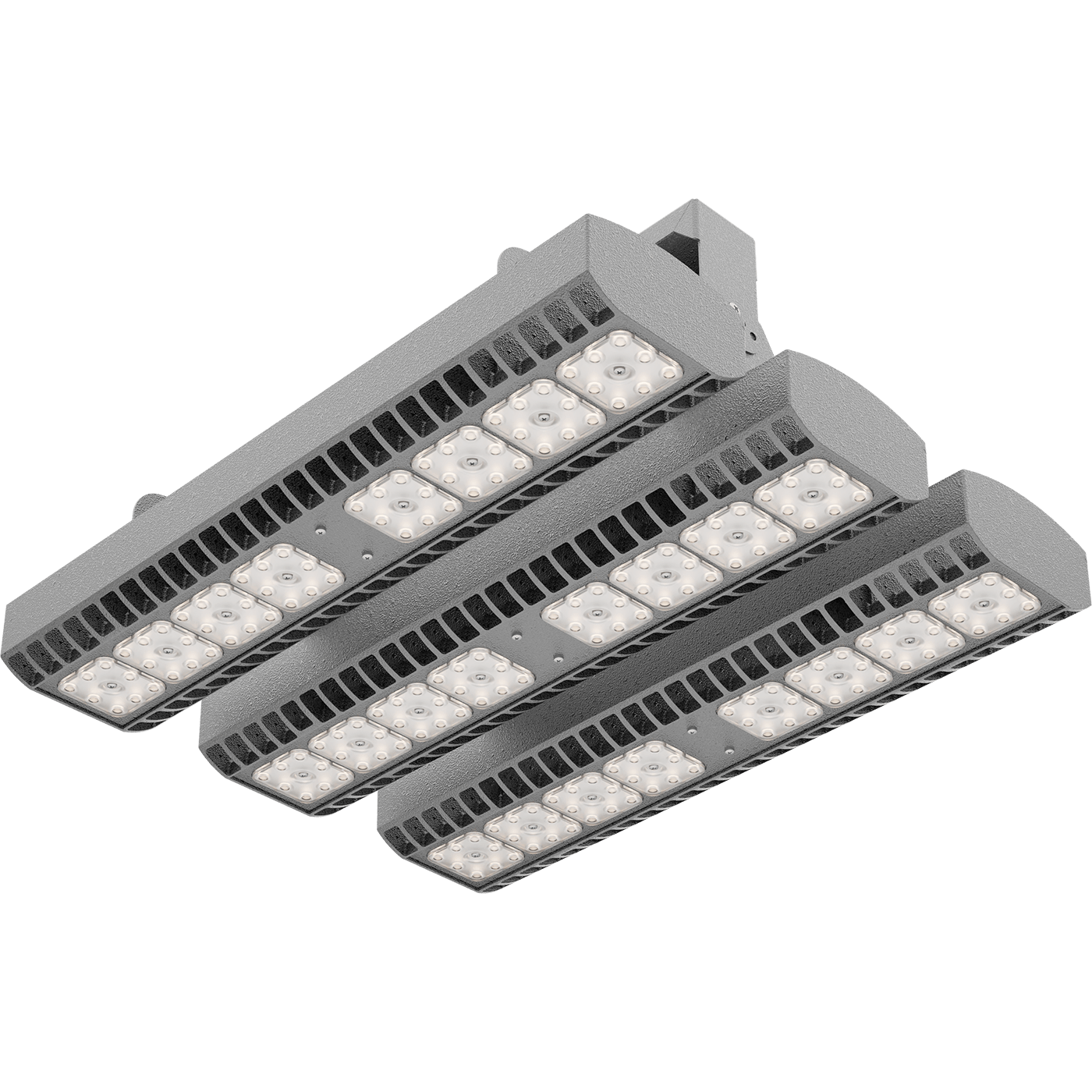

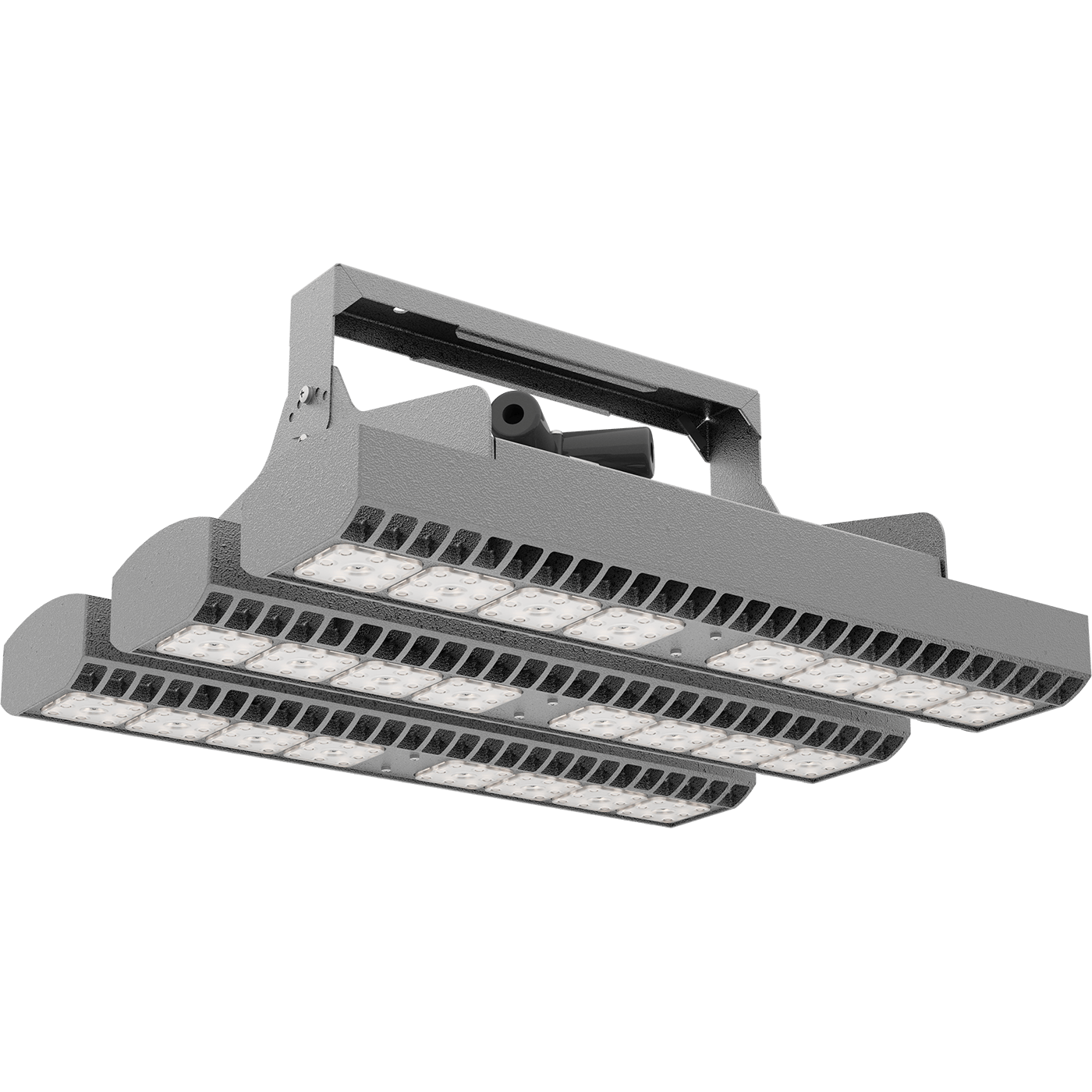

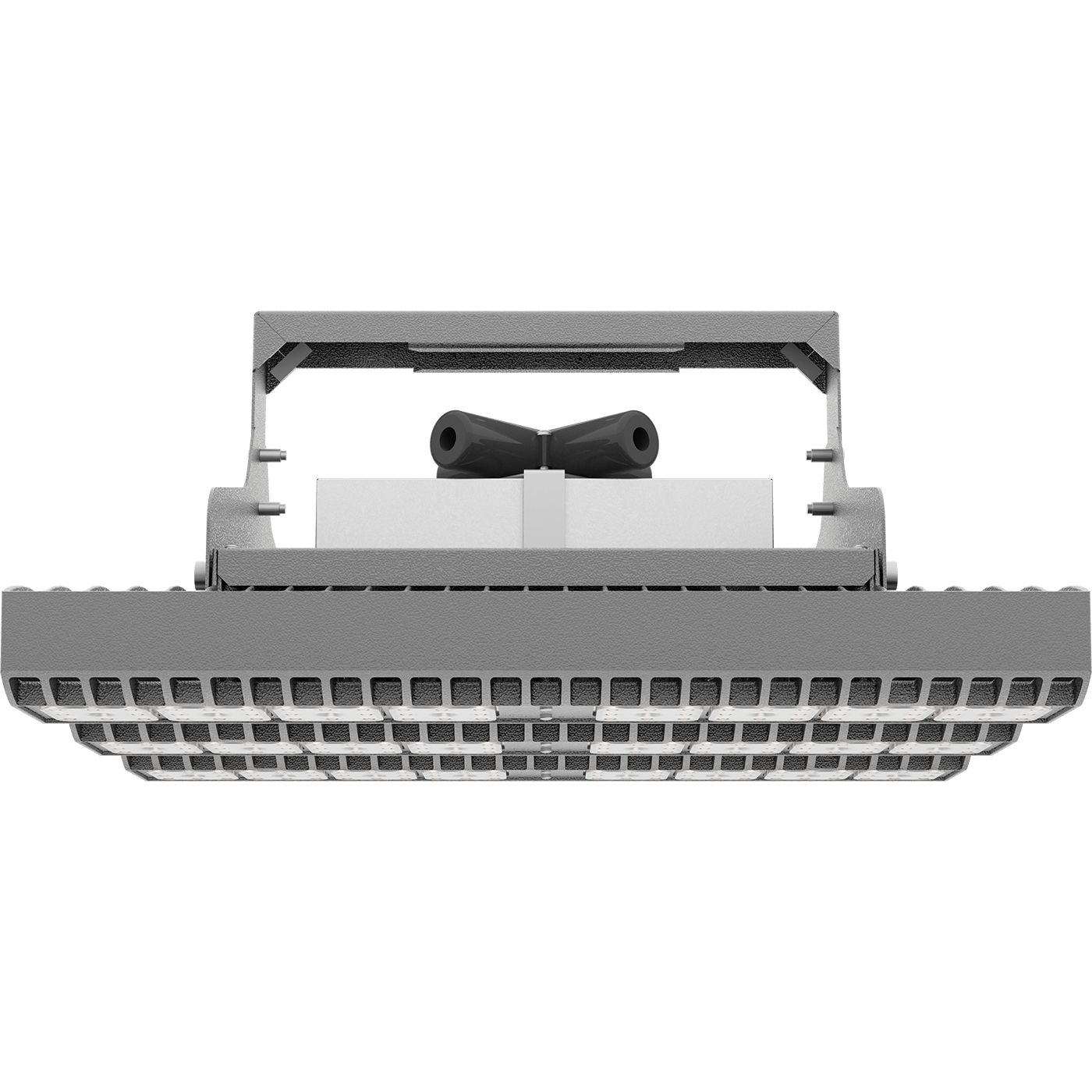

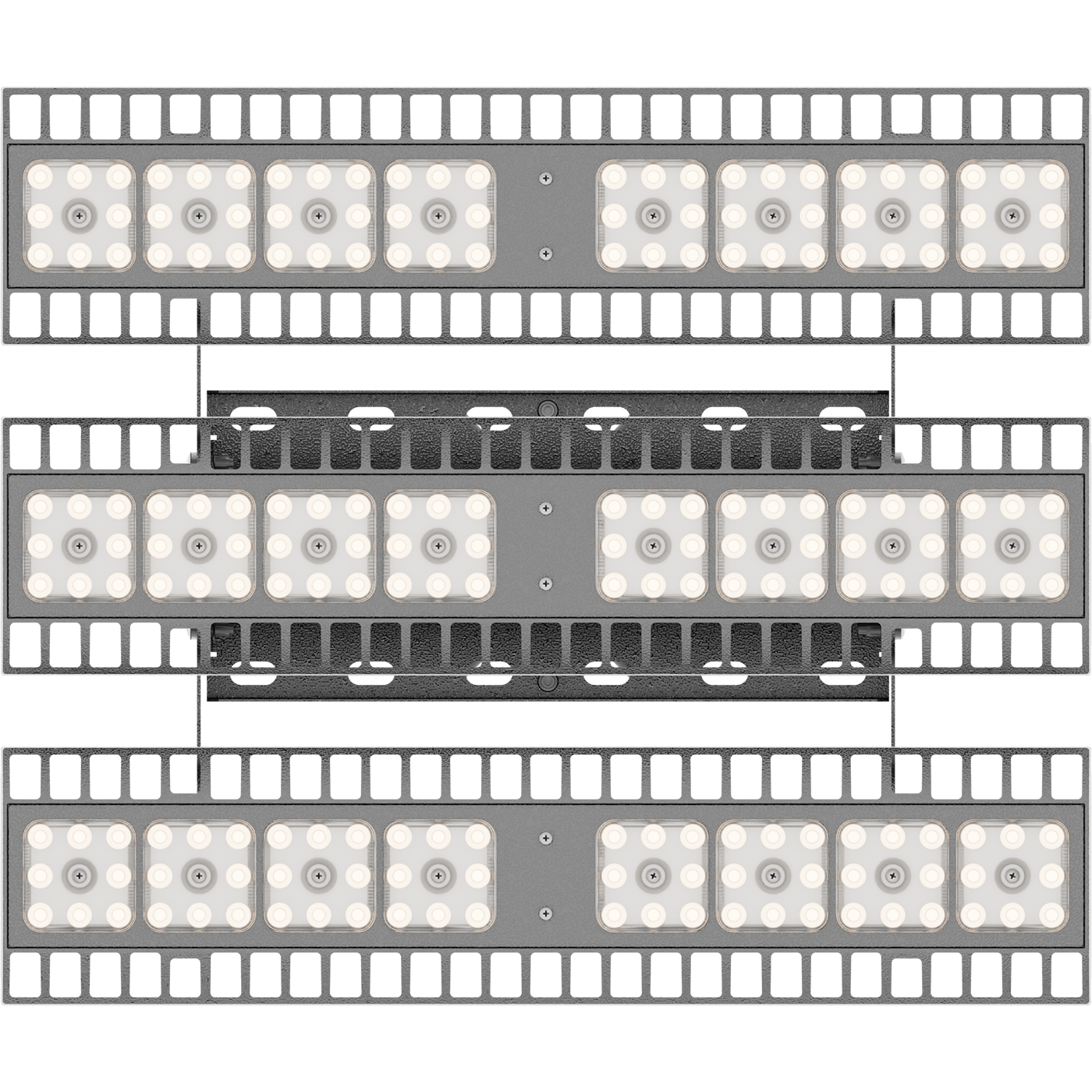

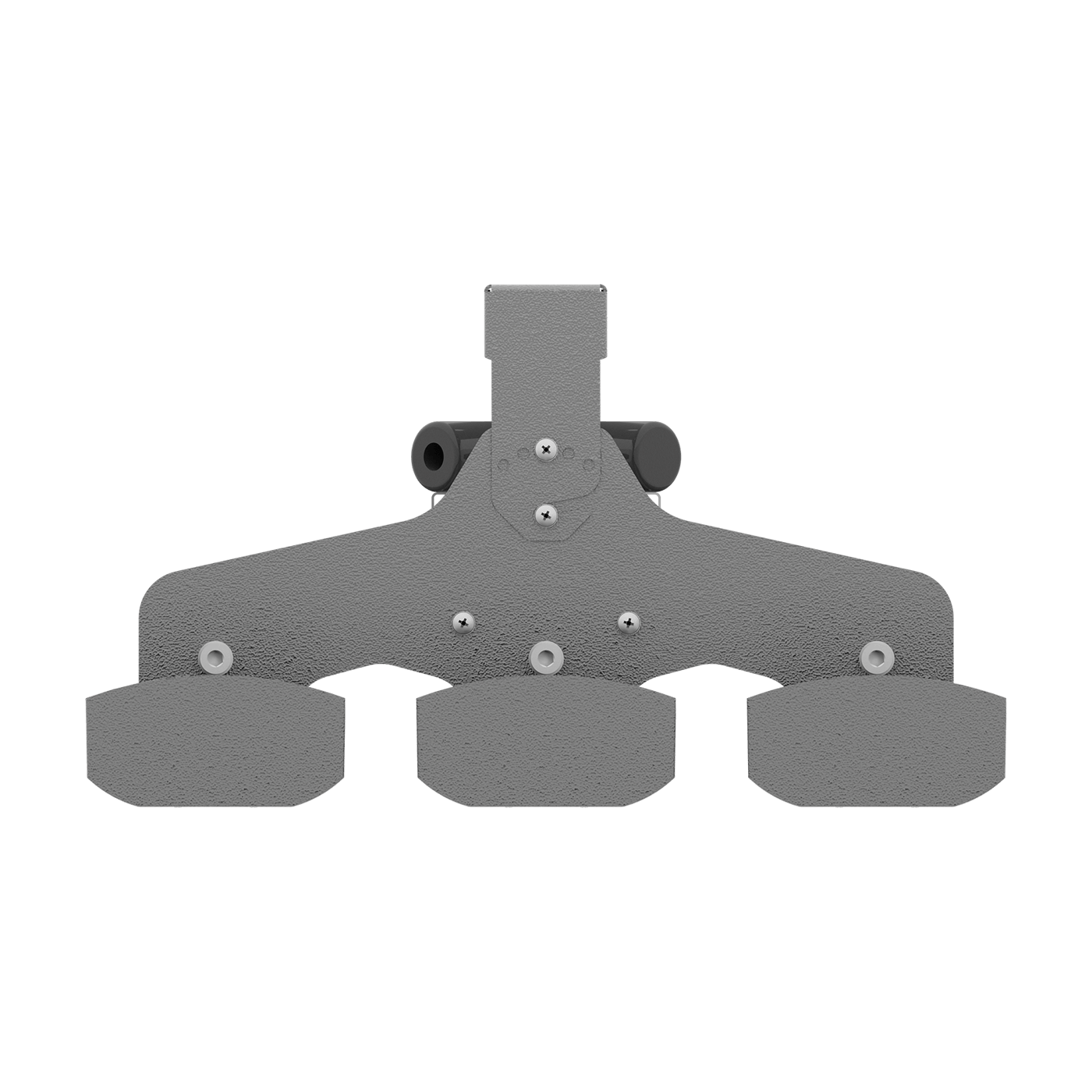

HB LED 300 A30 5000K G1.5
model is discontinued
.png&w=1920&q=100)
.png&w=1024&q=75)
model is discontinued
HB LED 300 A30 5000K G1.5
270 Wluminaire power
35100 lmlight flow
130 lm/Wenergy efficiency
code1224006180
color temperature5000 K
beam angleA30
weight11 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
35100 lmflickering factor
<1%energy efficiency
130 lm/Wbeam angle
A30color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
35100 lm
flickering factor
<1%
energy efficiency
130 lm/W
beam angle
A30
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
270 W
electric shock protection
I
maximum cross-section of the connected cable
4 mm2
supply voltage
230 V
constructional
climatic performance
УХЛ1
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
shock resistance (IK)
IK07/2 Дж
weight
11 kg
ingress protection (IP)
IP65
length
463 mm
width
389 mm
height
245 mm
installation length
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +55 C
code
1224006180
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
