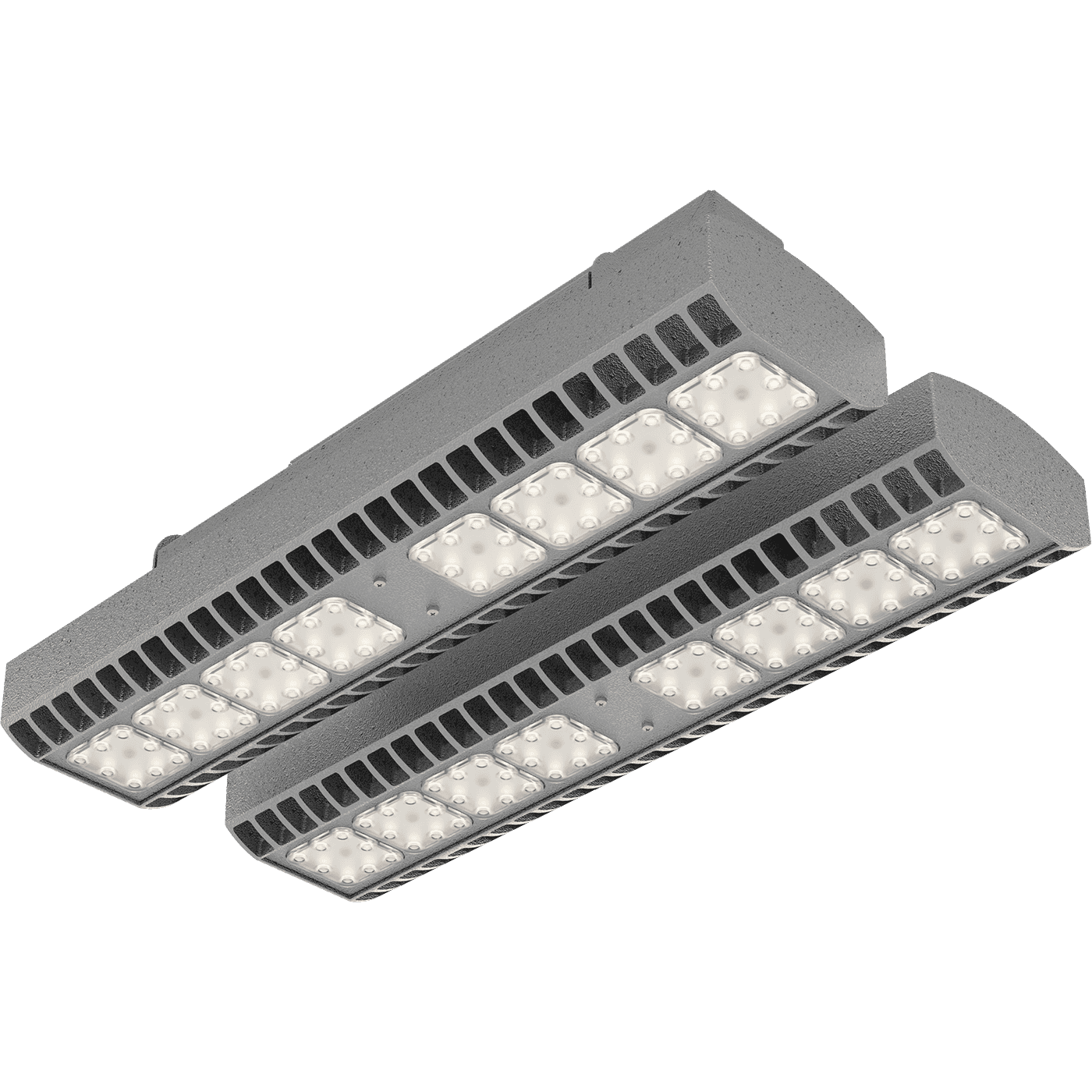

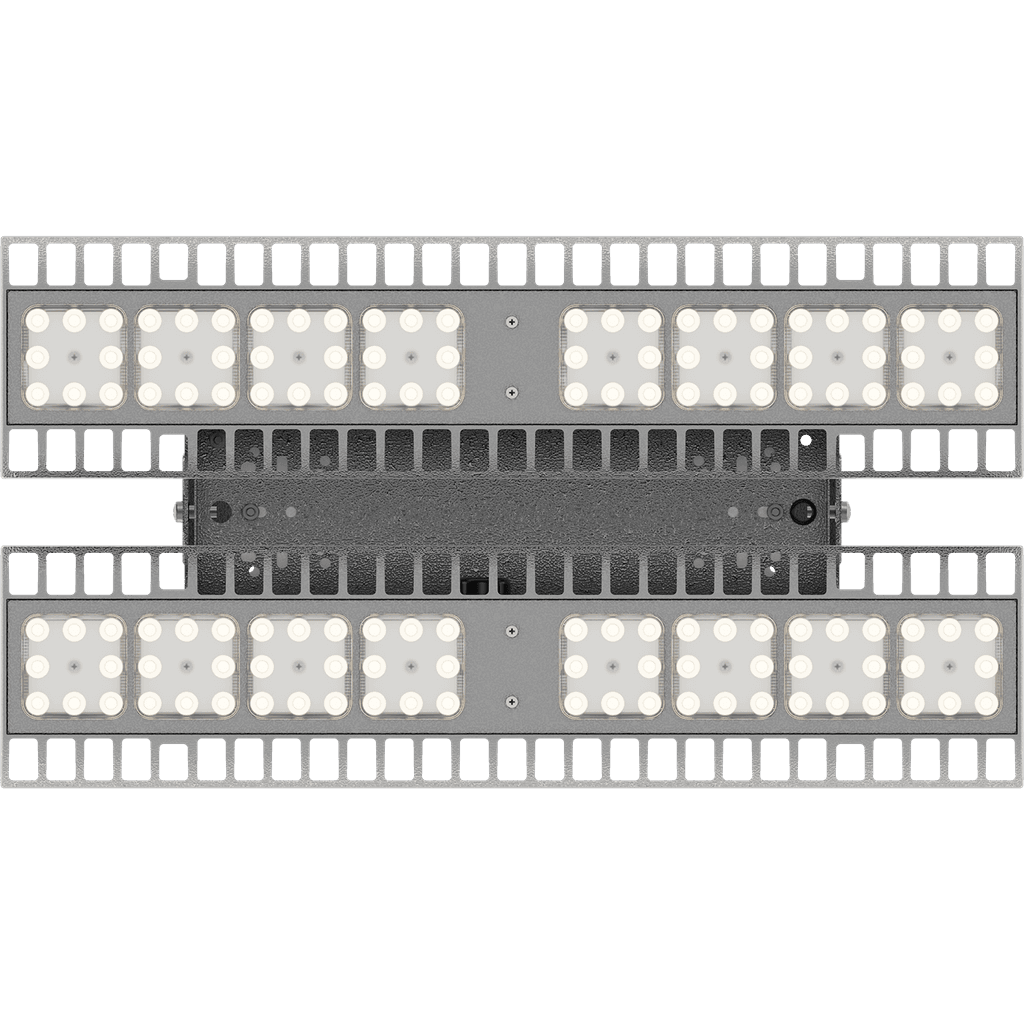

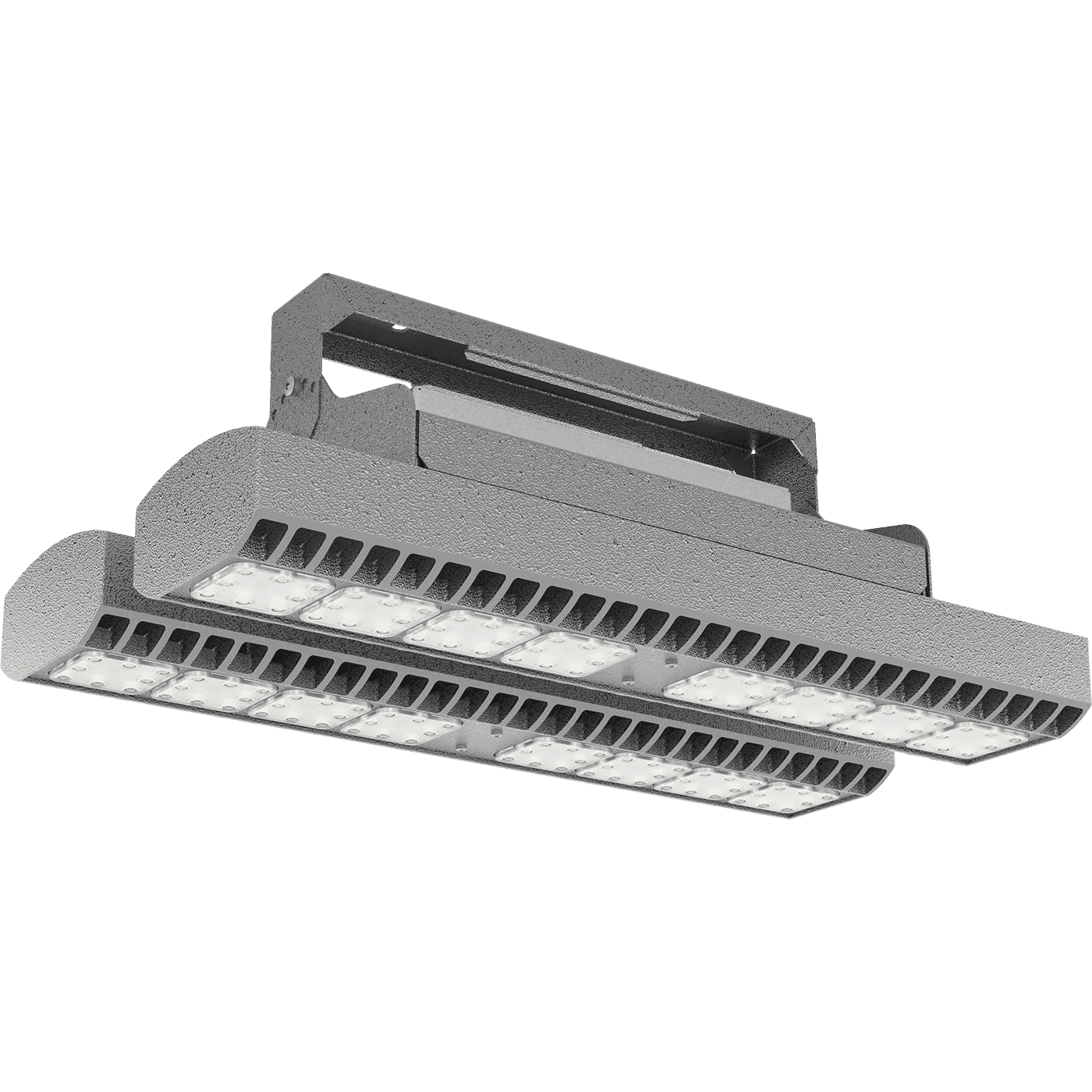

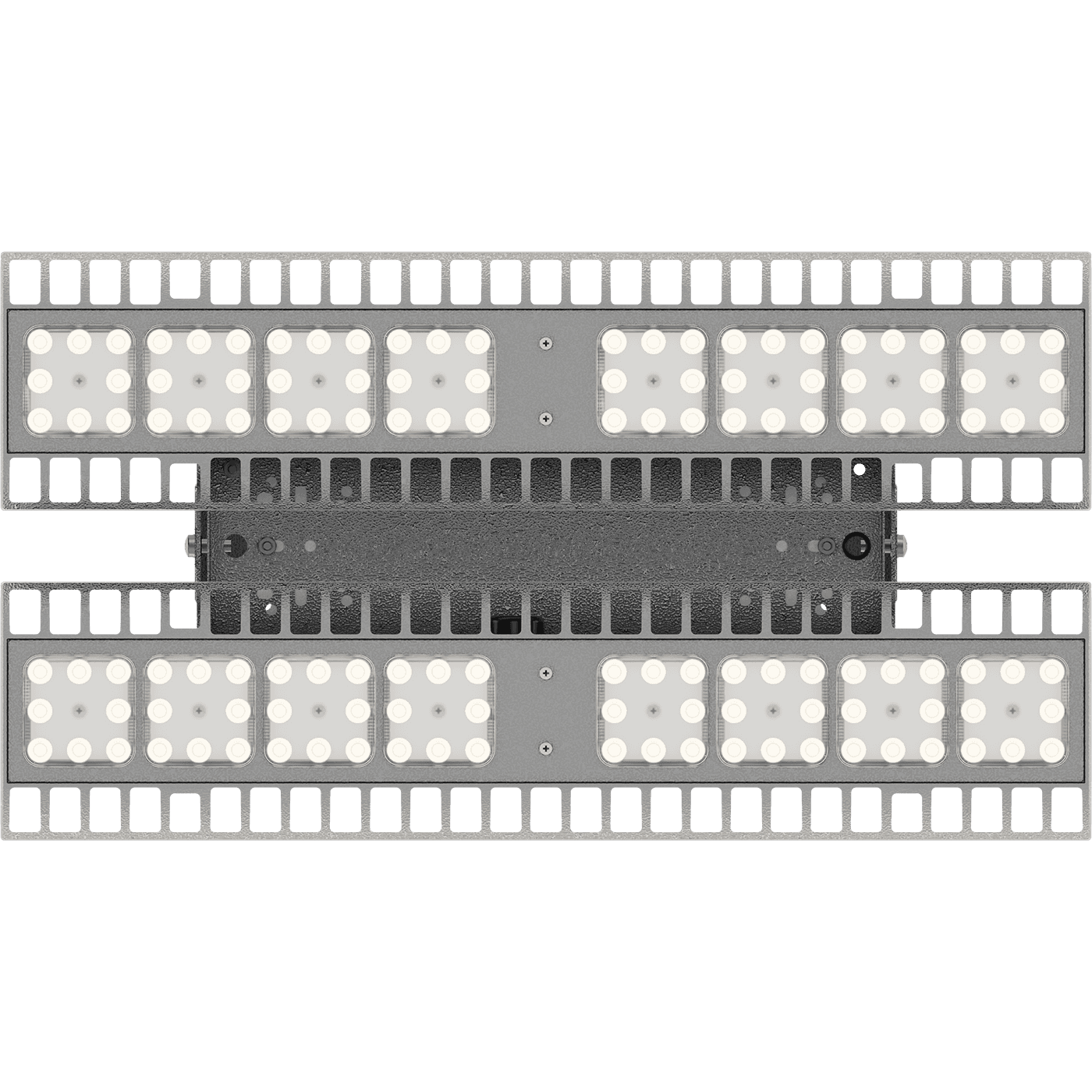

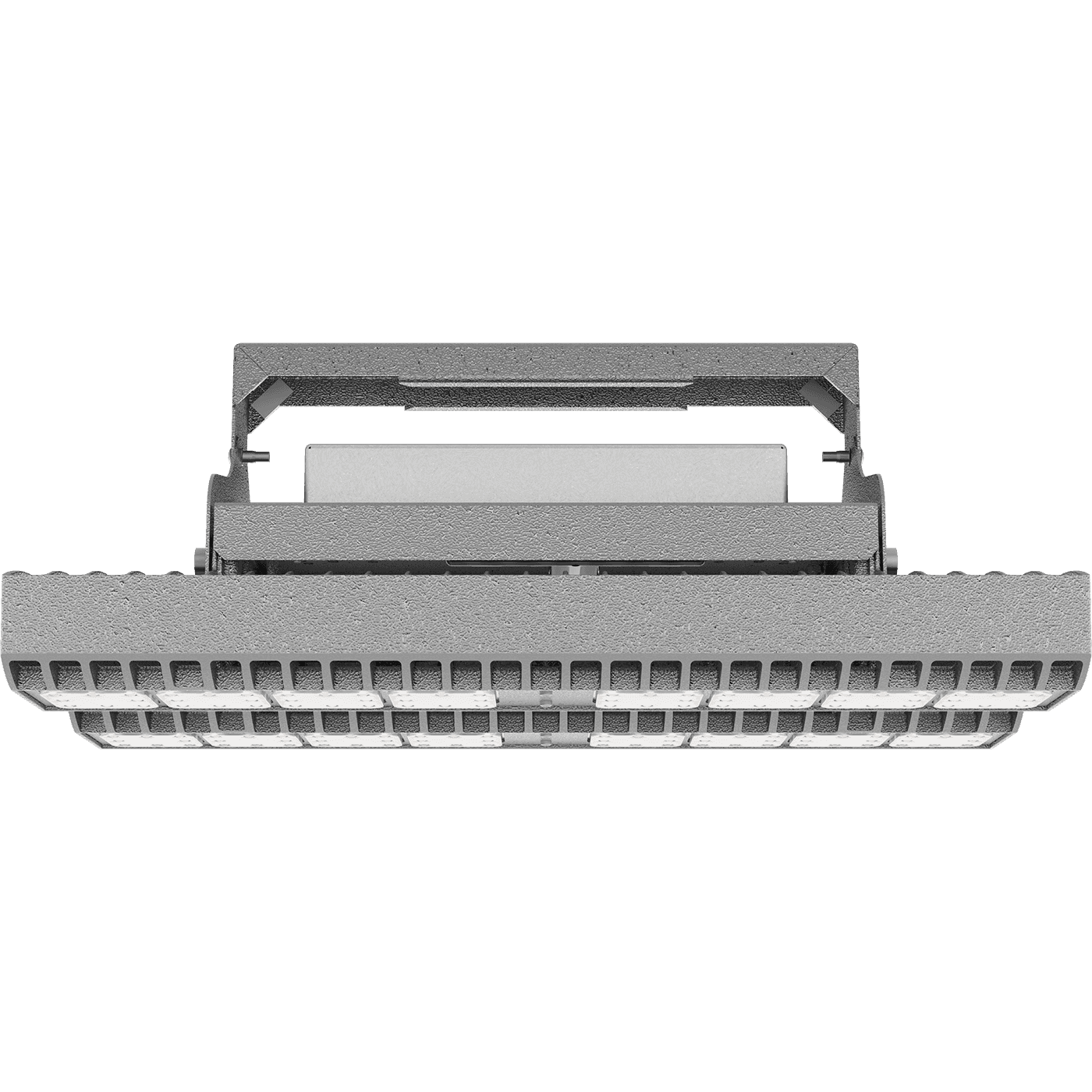

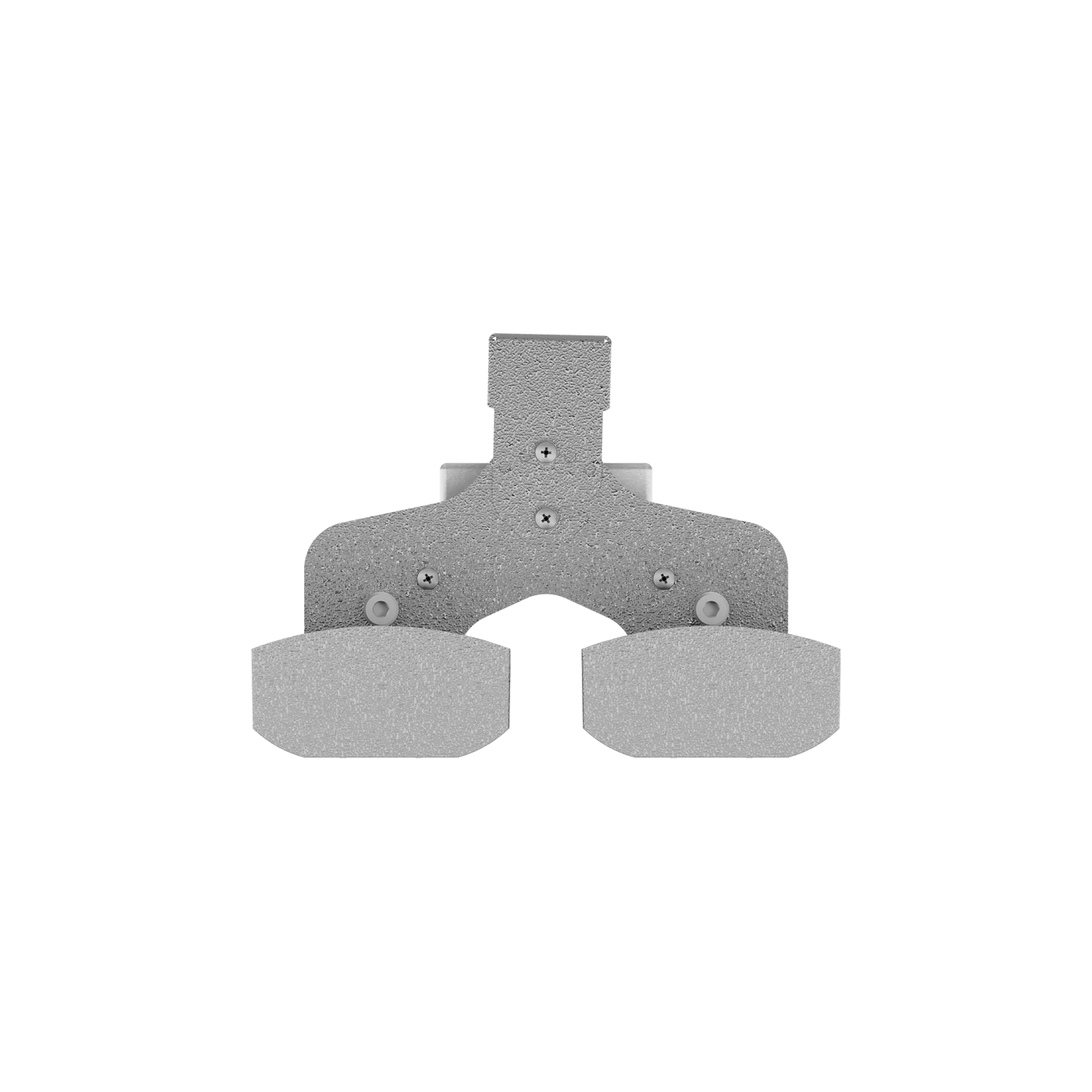

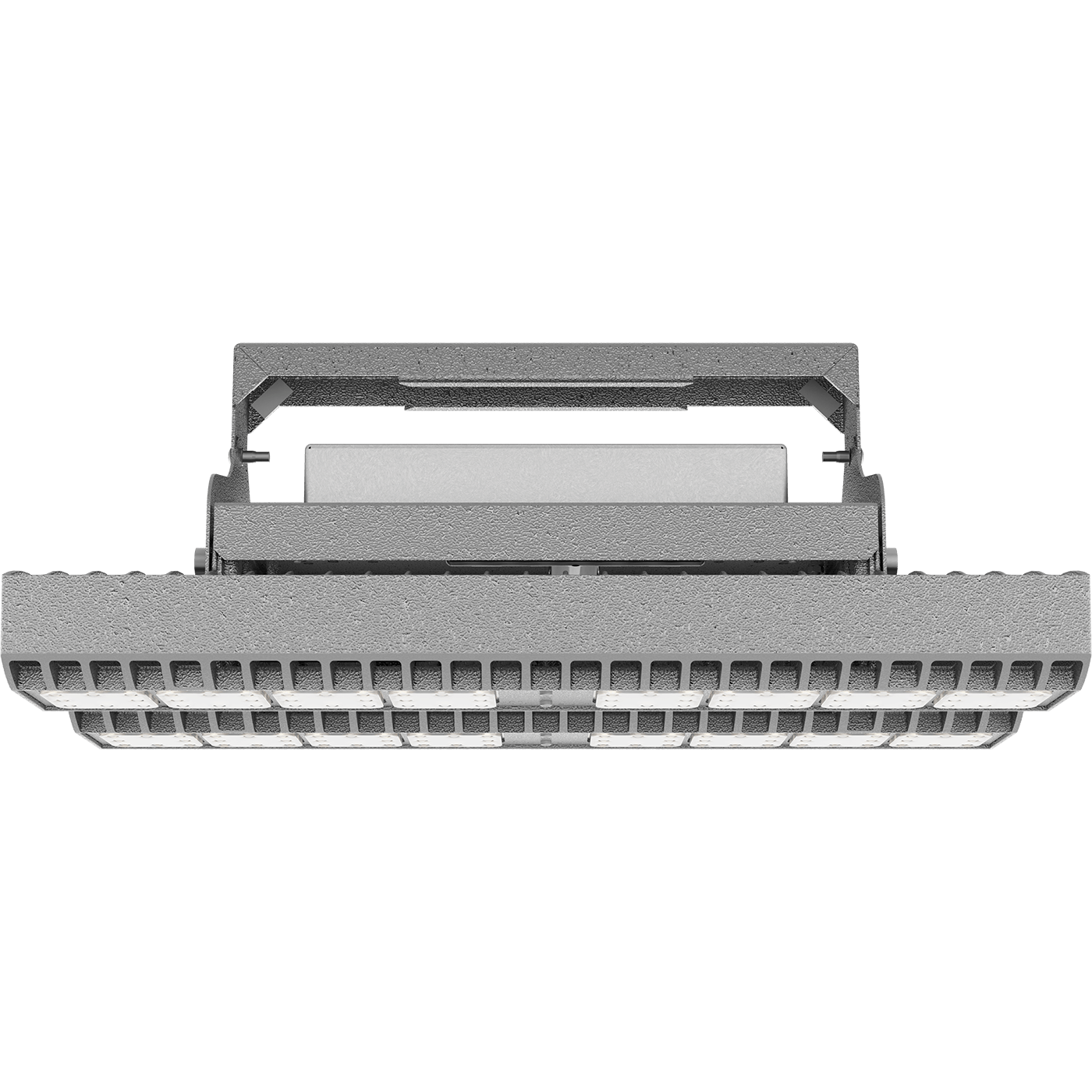

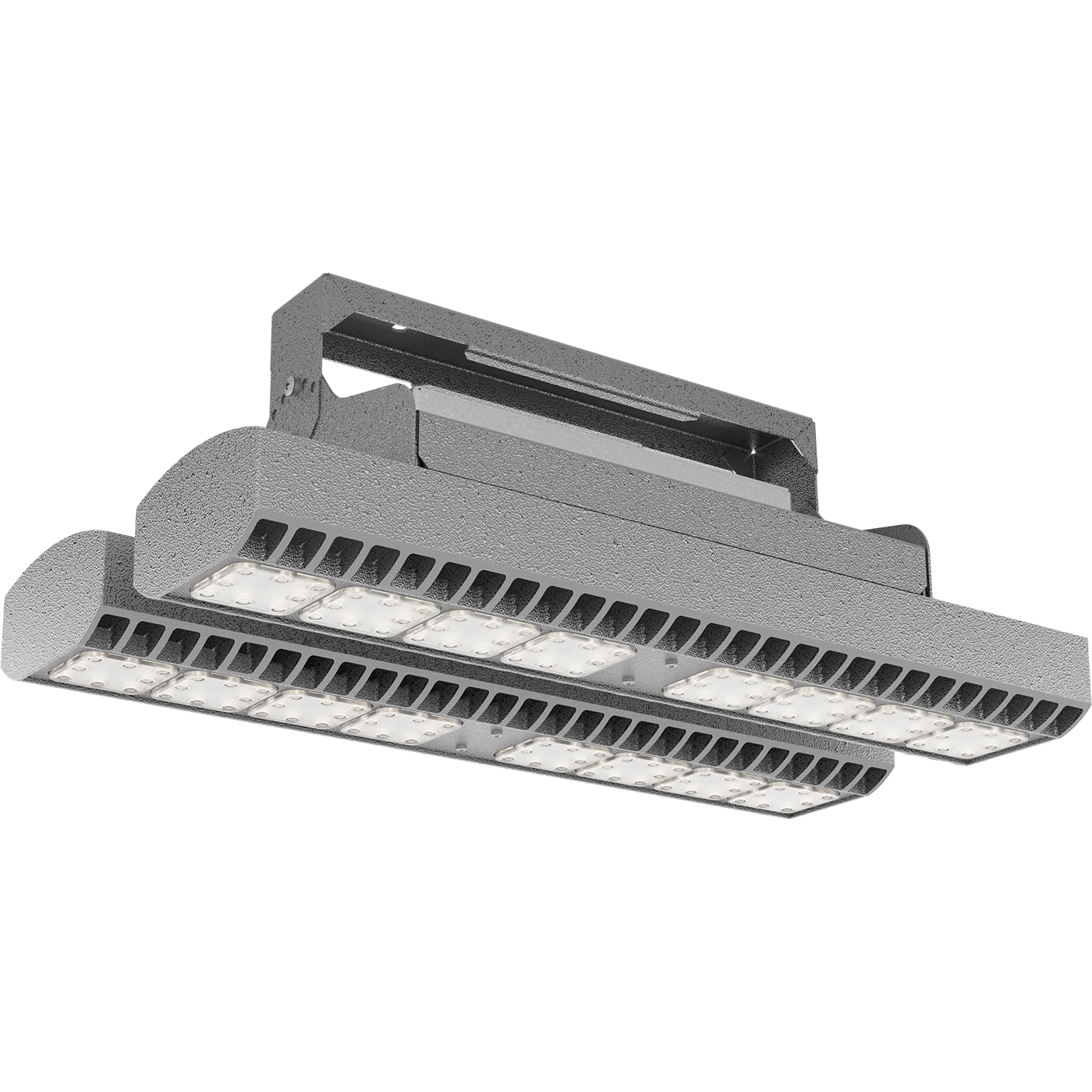

HB LED 200 D30 5000K G2
.png&w=1920&q=50)
.png&w=1024&q=50)
HB LED 200 D30 5000K G2
215 Wluminaire power
29200 lmlight flow
136 lm/Wenergy efficiency
code1224002960
color temperature5000
beam angleD30
weight7.5 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
54 Astarting current pulse time, µs
600 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-420 Vluminaire power
215 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
54 A
starting current pulse time, µs
600 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
luminaire power
215 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,ІІІ
material
Алюминий
weight
7.5 kg
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
463 mm
width, mm
248 mm
height, mm
215 mm
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
code
1224002960
illuminating
light flow
29200 lm
flickering factor
<1%
energy efficiency
136 lm/W

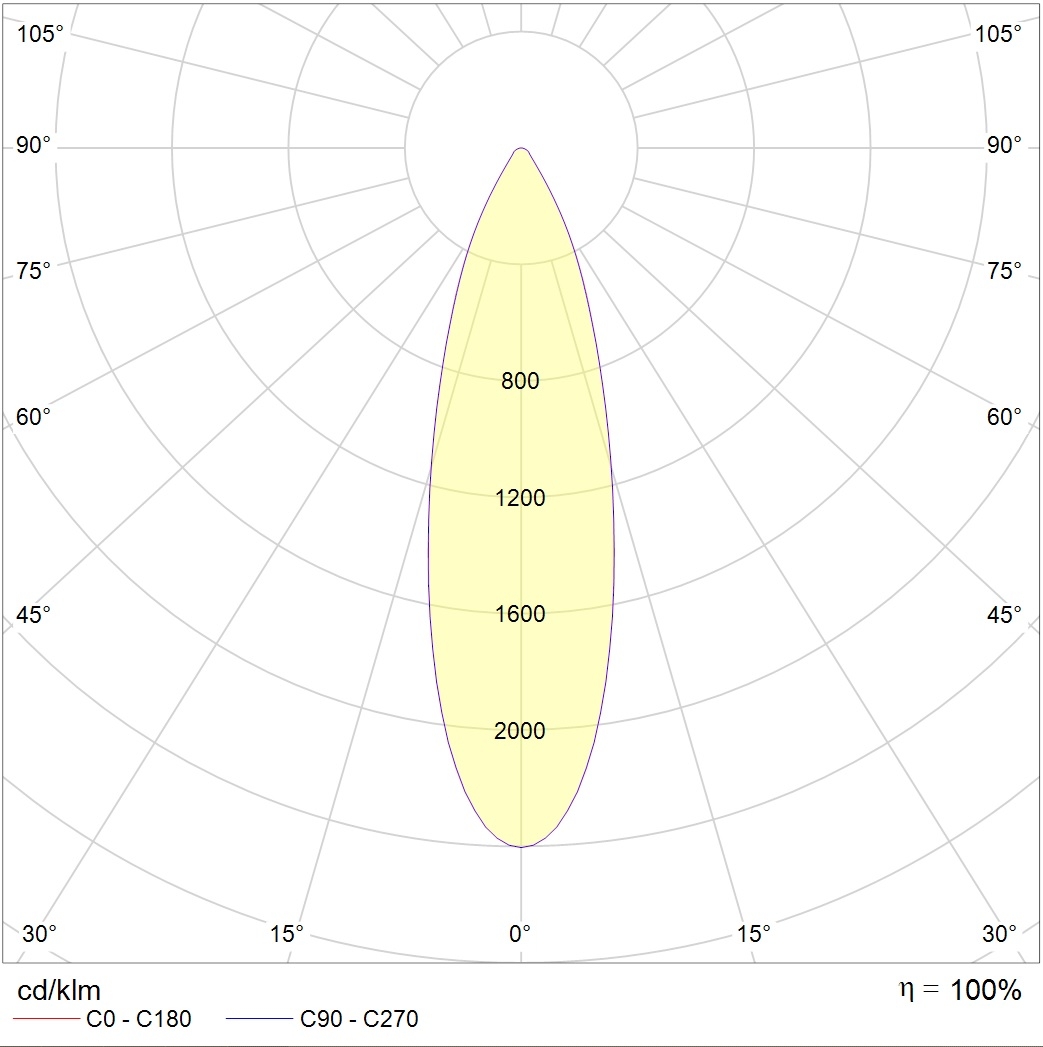

beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
