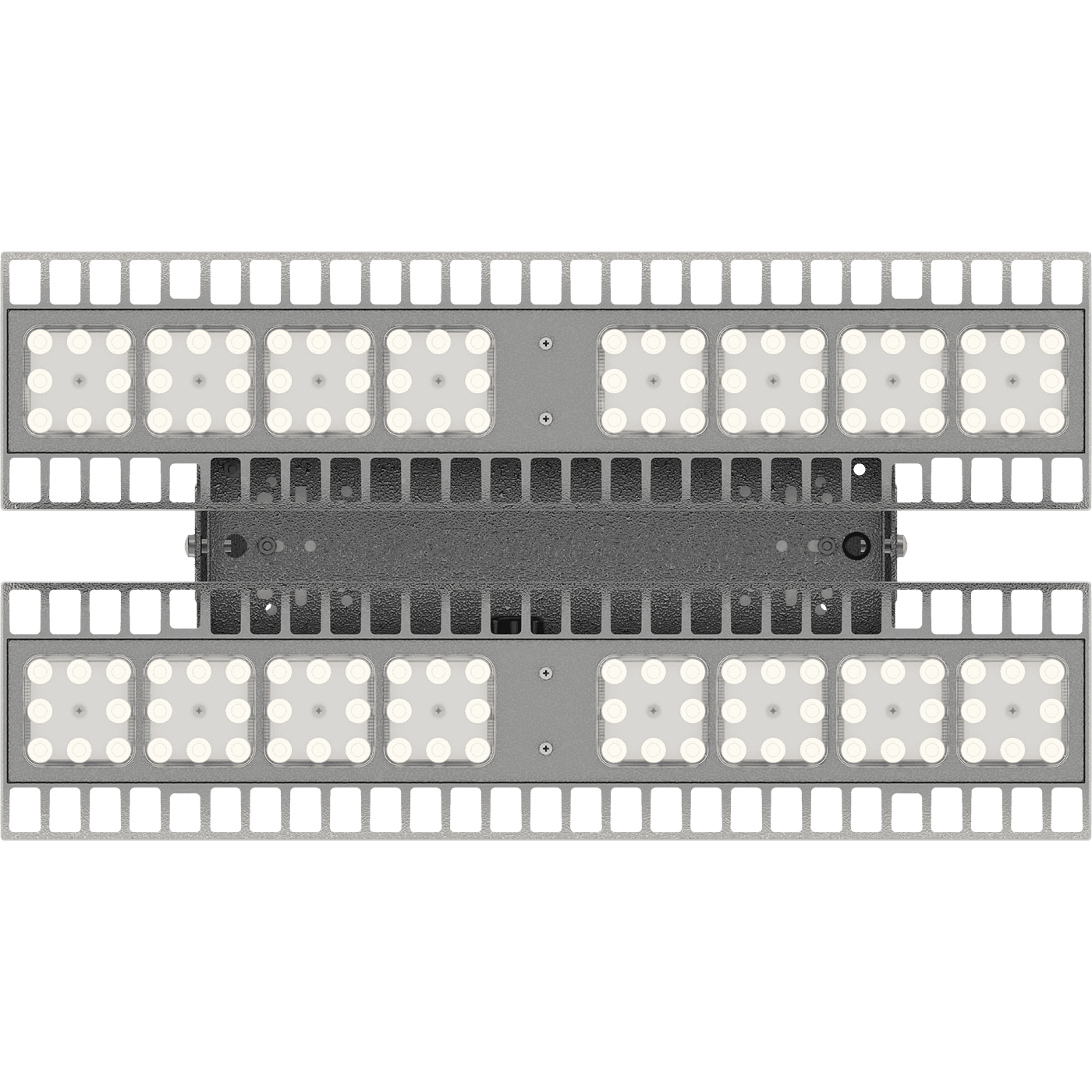

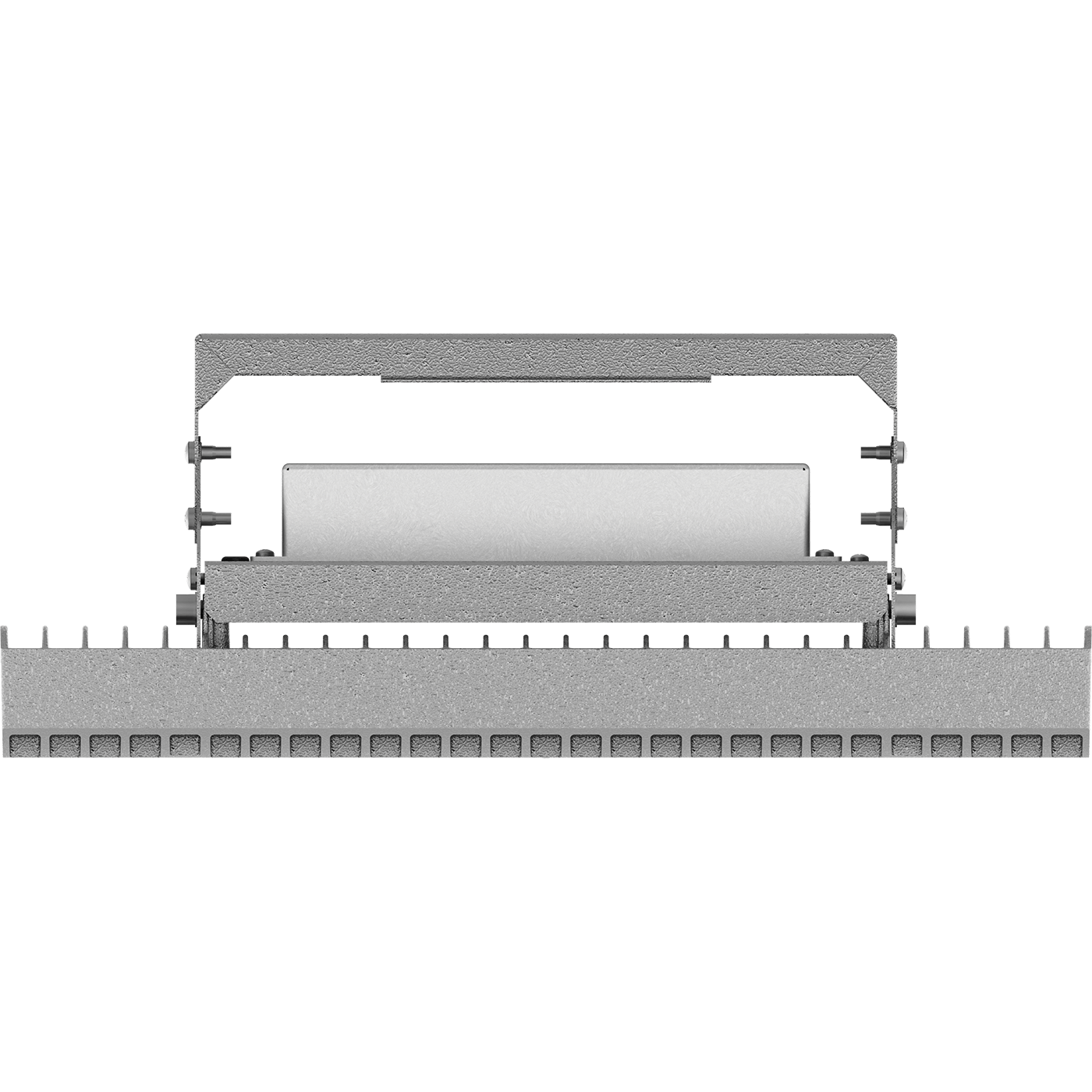

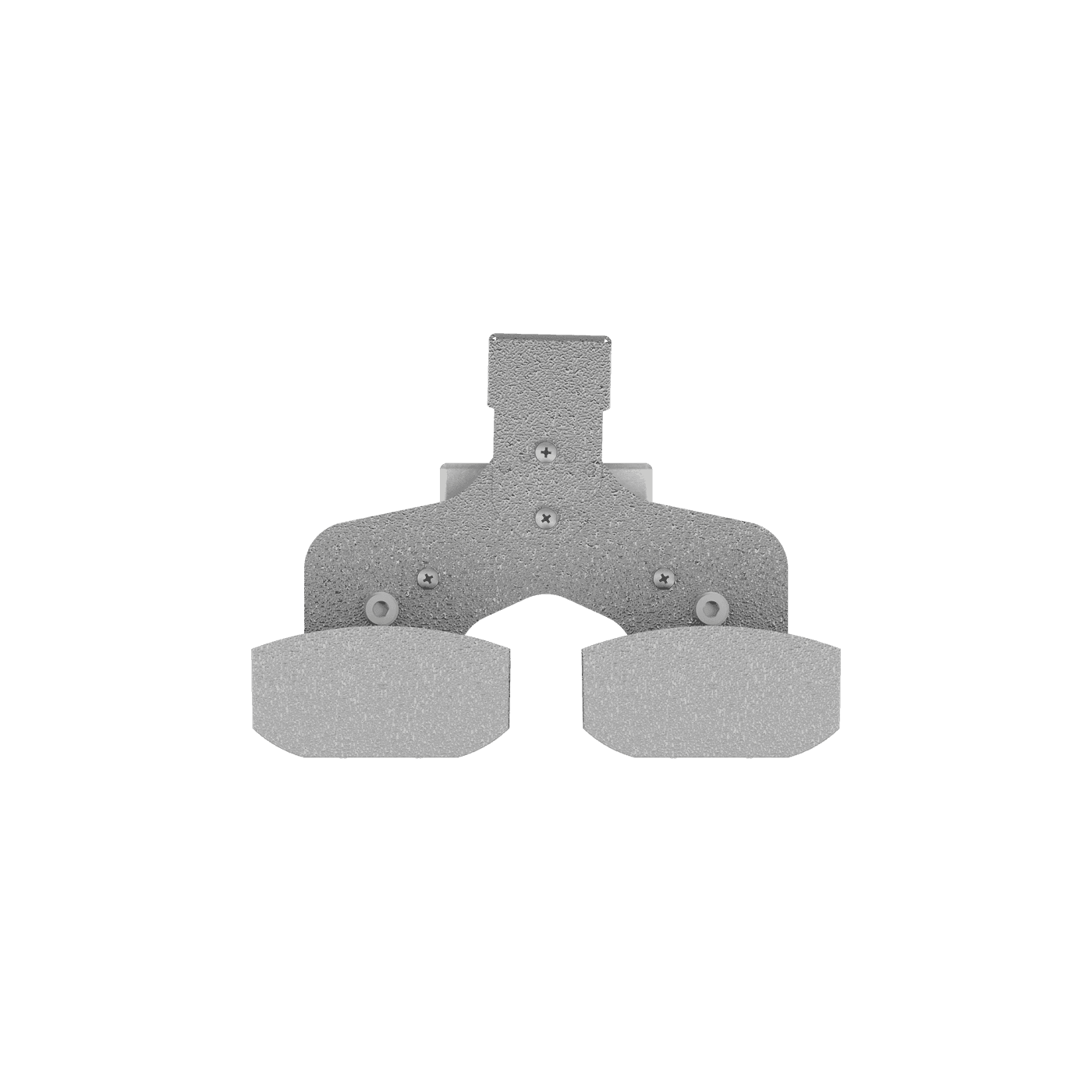

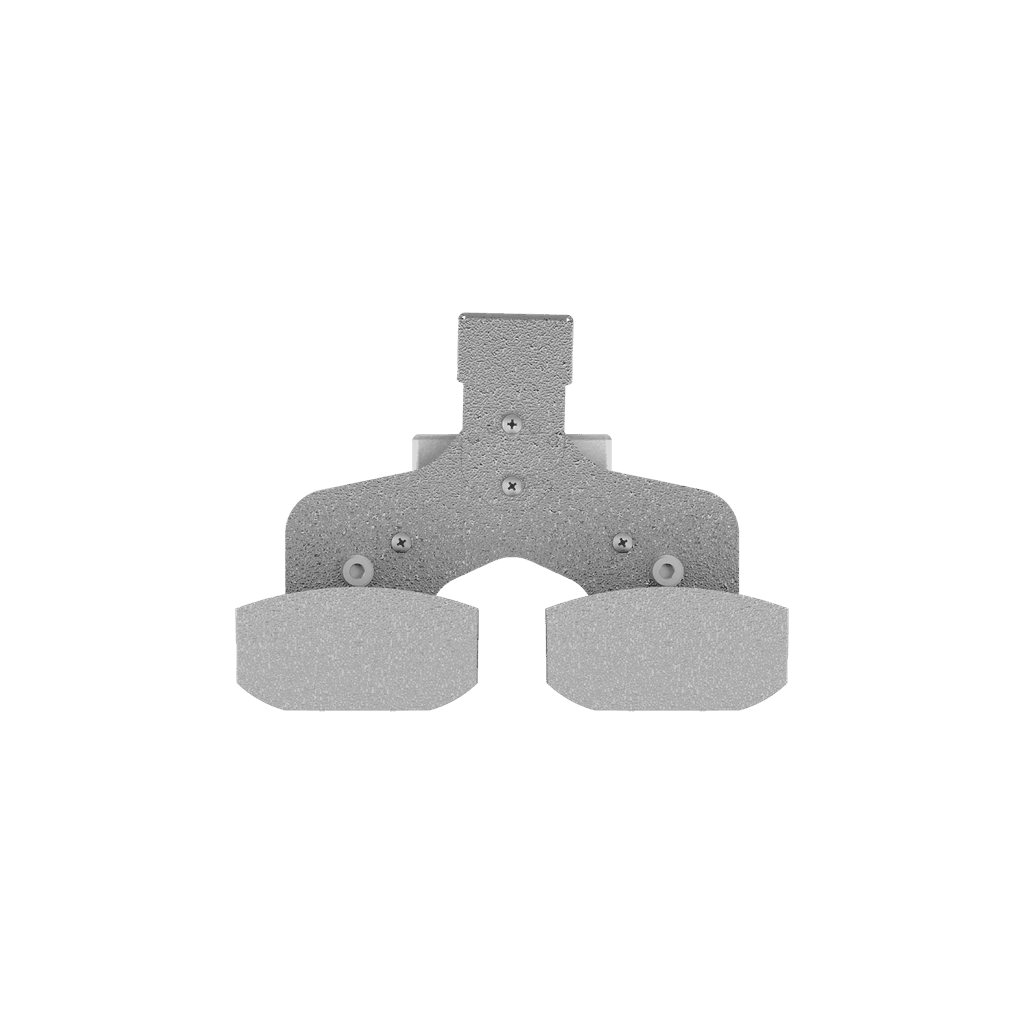

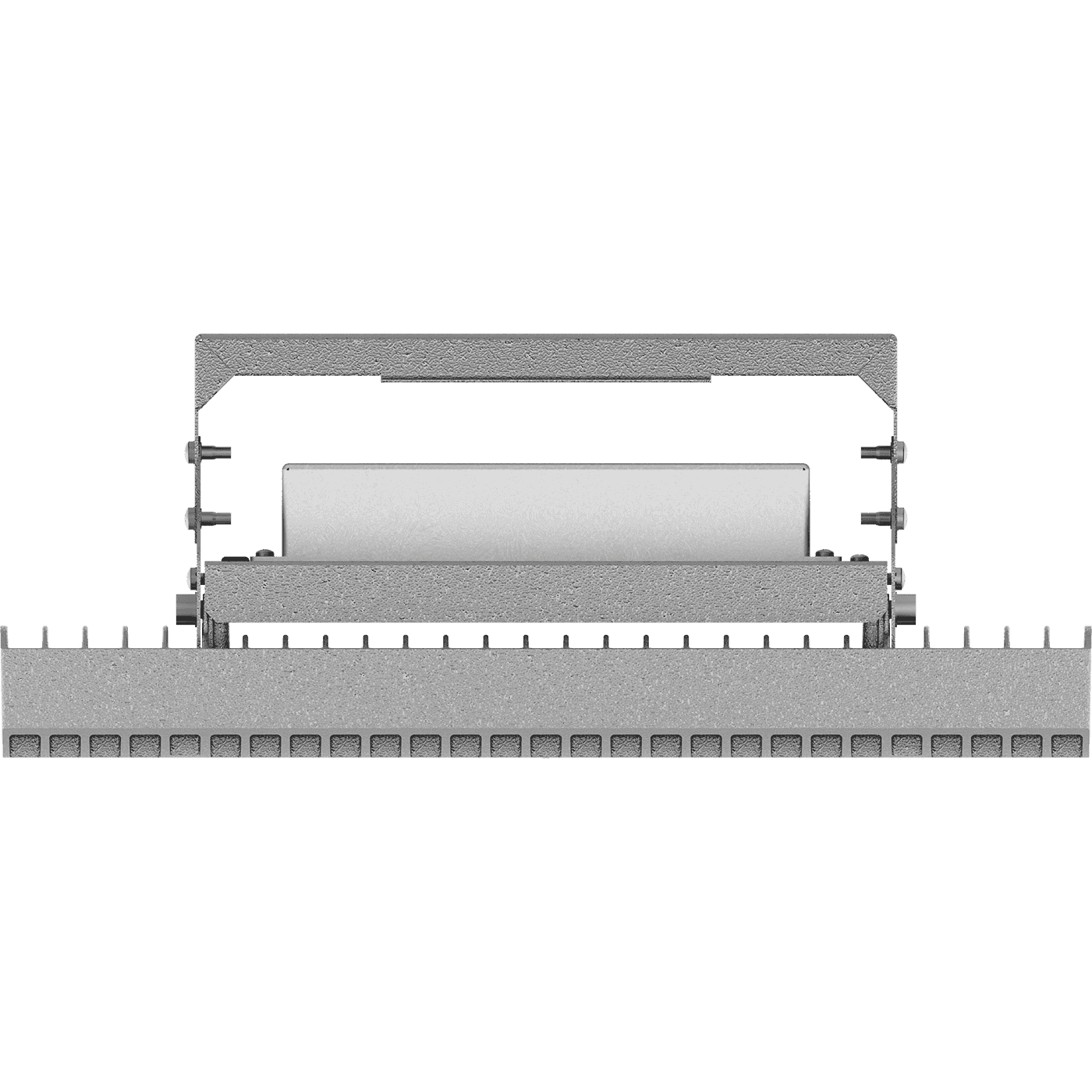

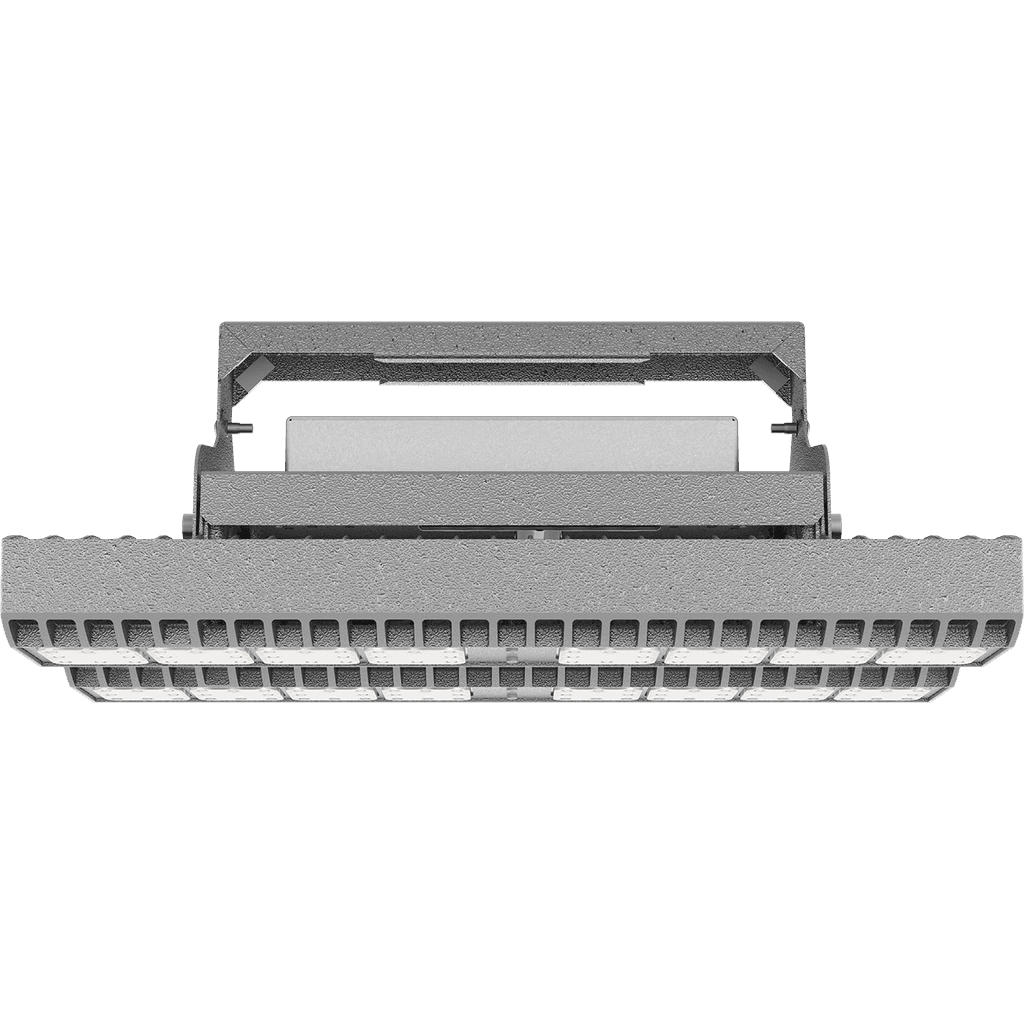

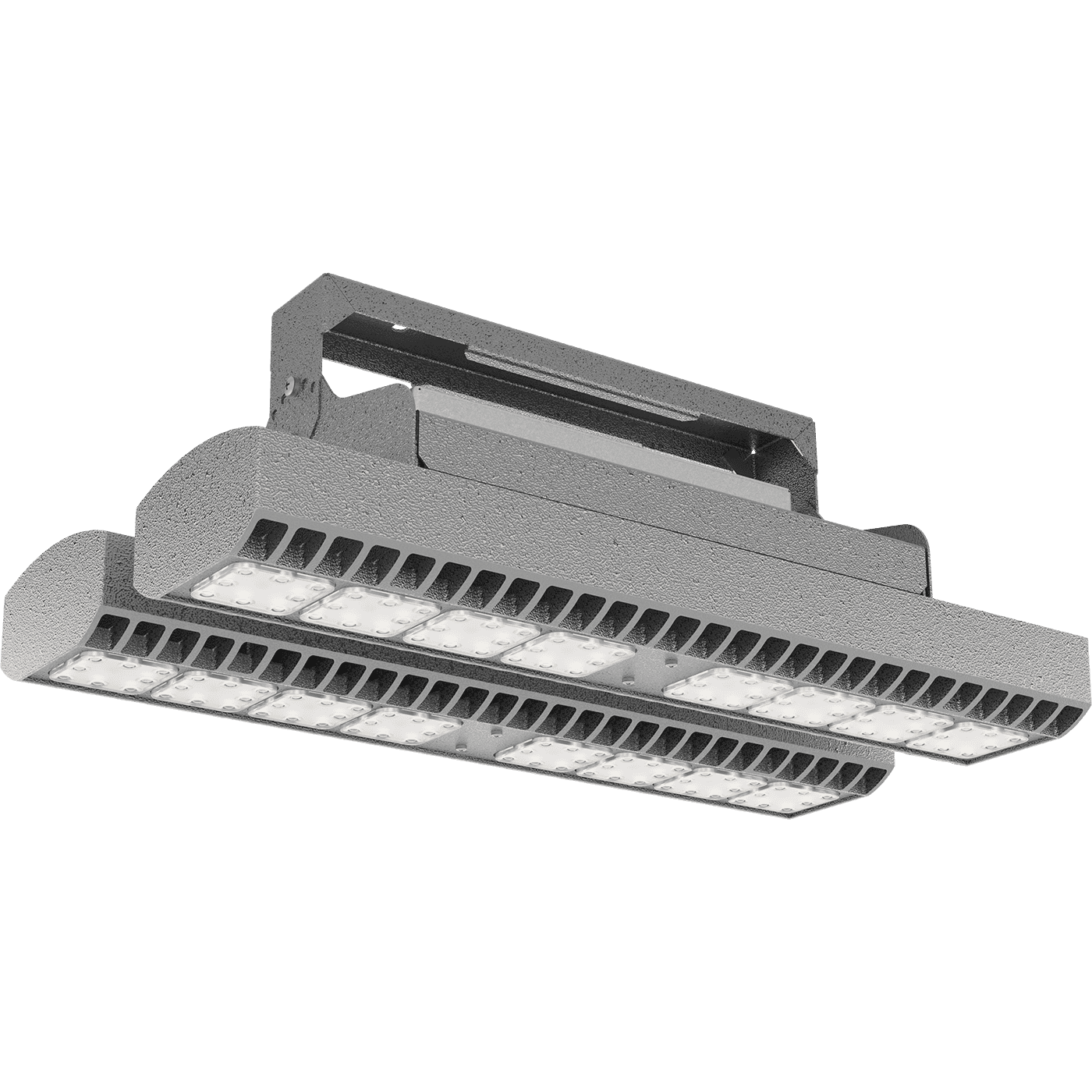

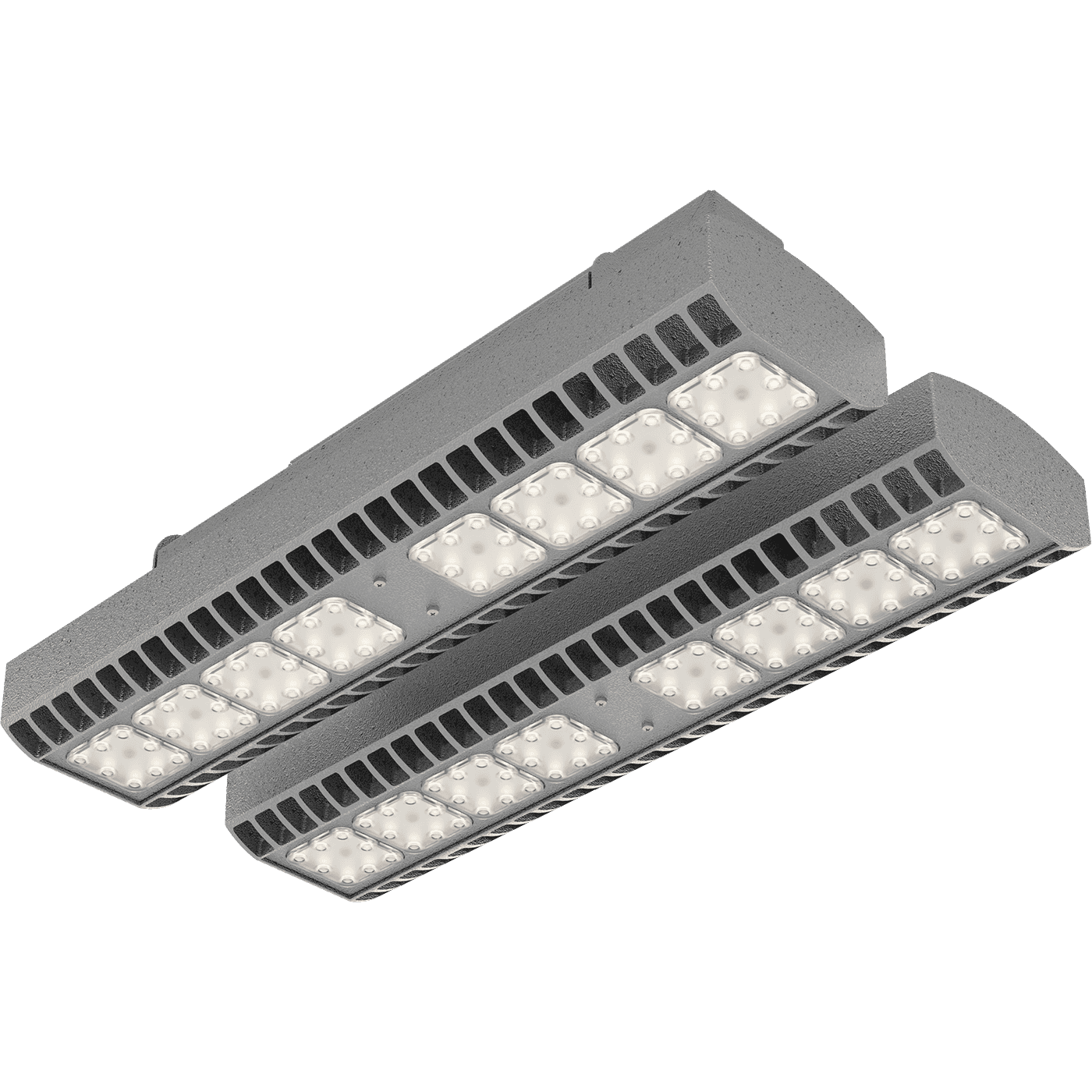

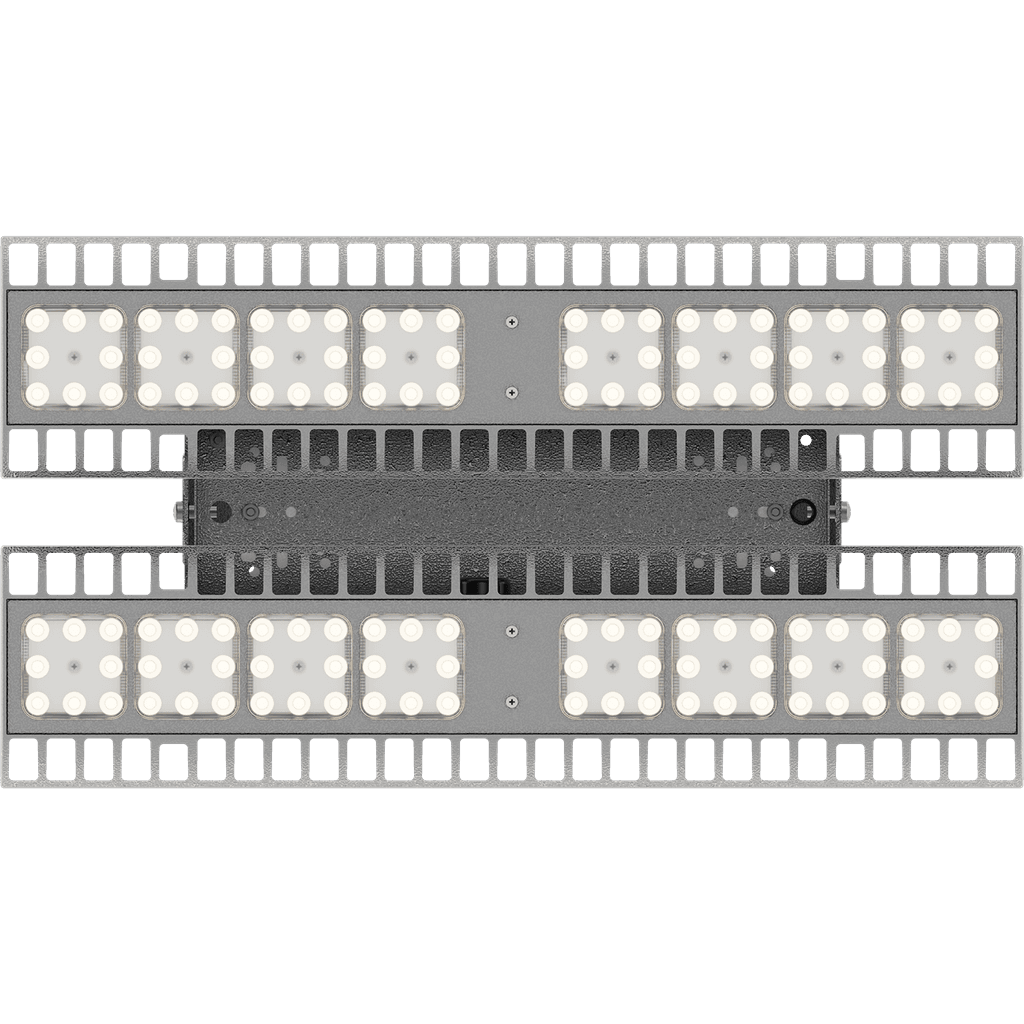

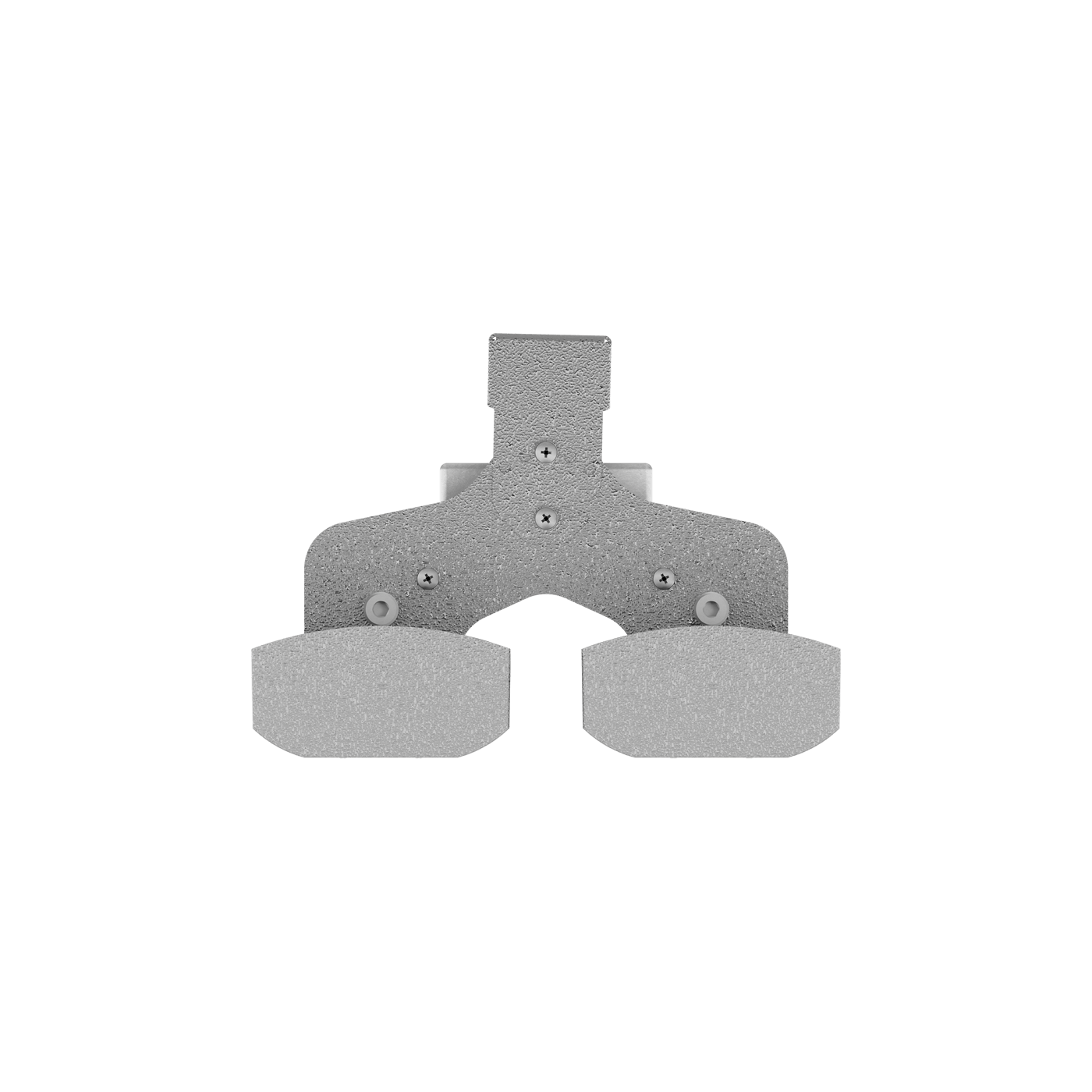

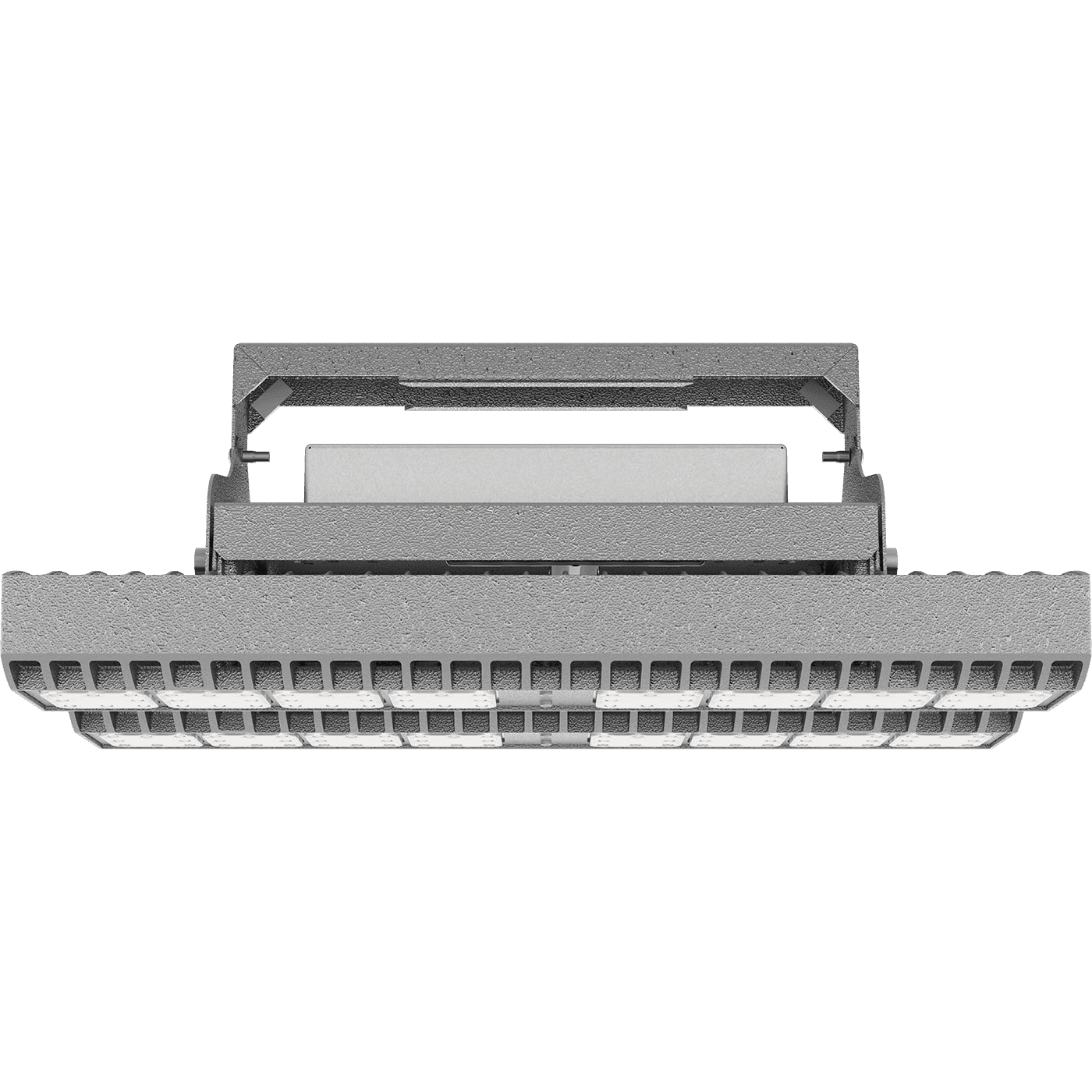

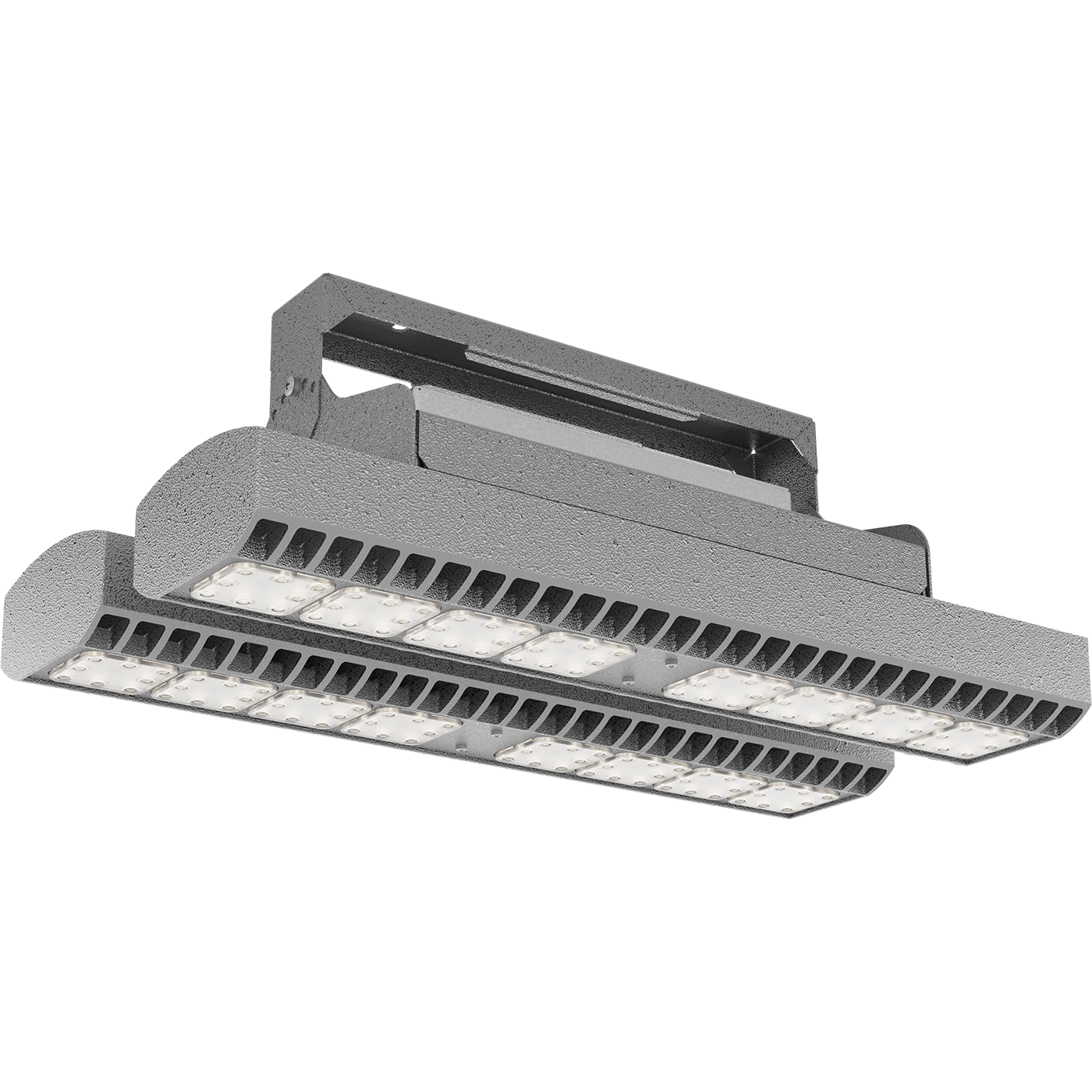

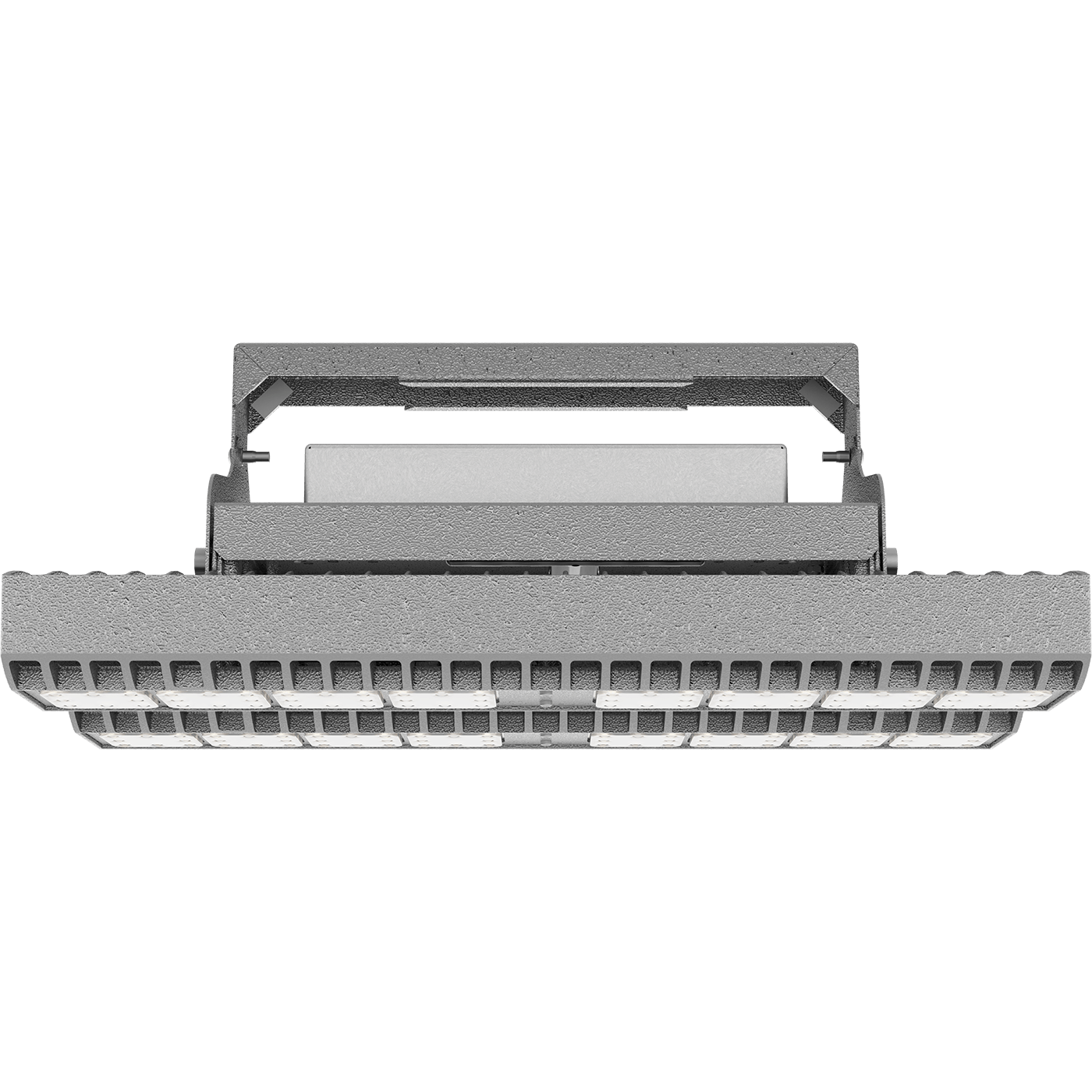

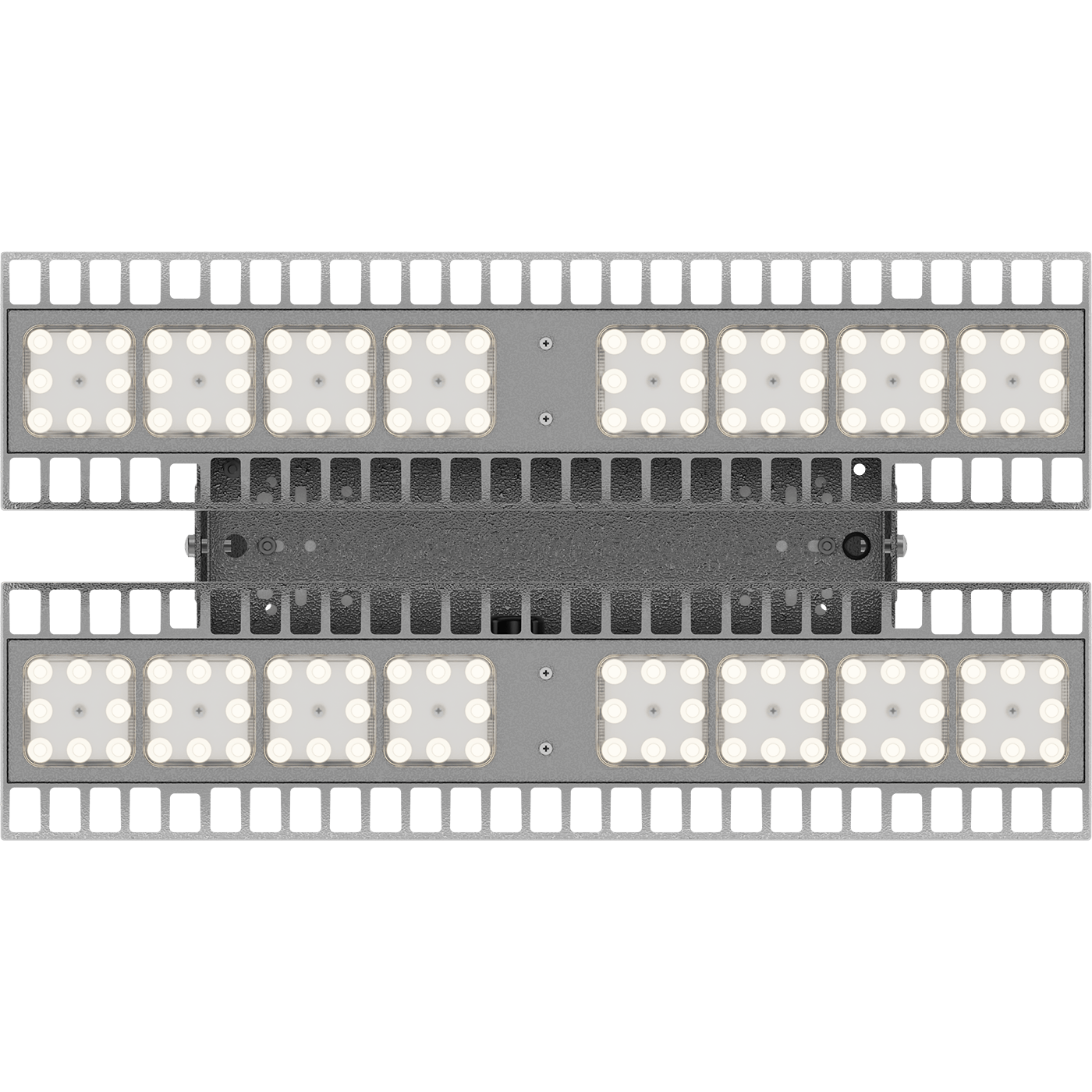

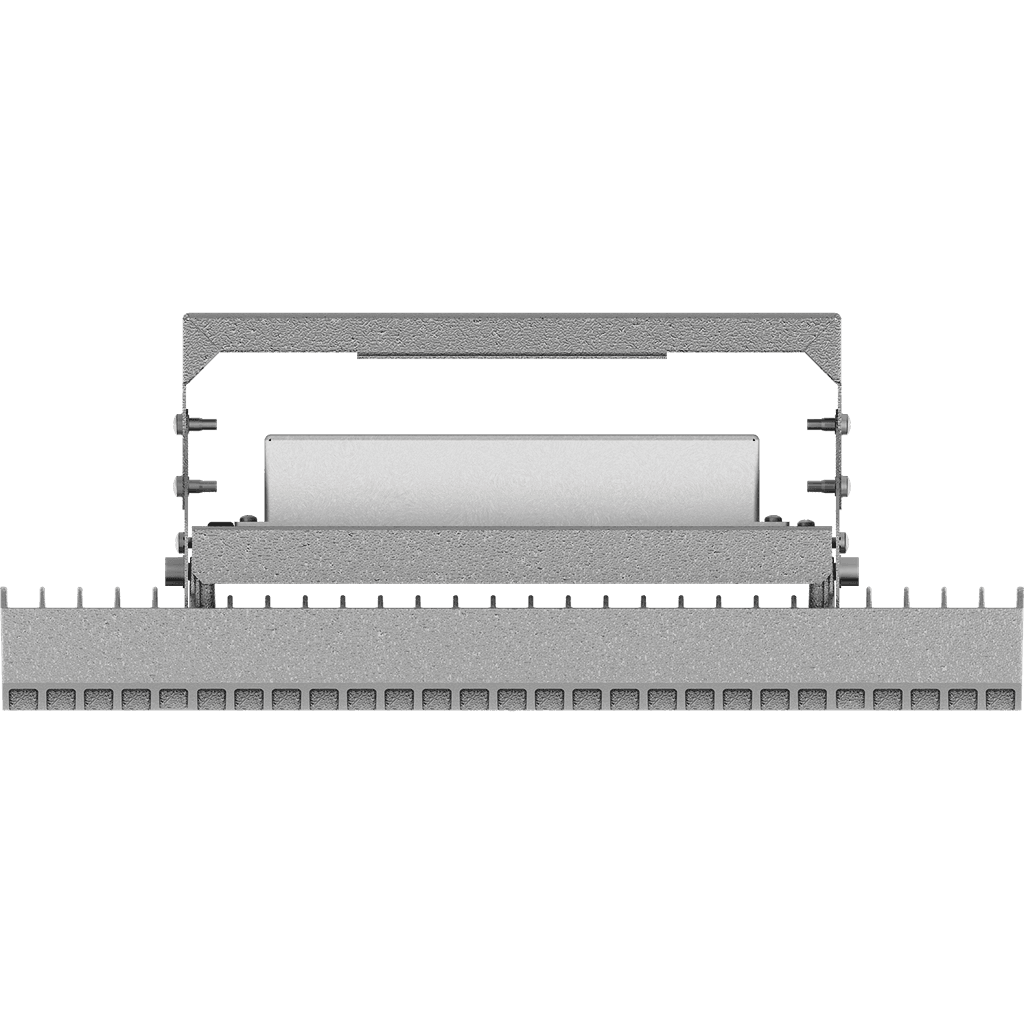

HB LED 200 A30 5000K G2
model is discontinued
.png&w=1920&q=100)
.png&w=1024&q=75)
model is discontinued
HB LED 200 A30 5000K G2
217 Wluminaire power
23000 lmlight flow
106 lm/Wenergy efficiency
code1224005830
color temperature5000 K
beam angleA30
weight7.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
23000 lmflickering factor
<5%energy efficiency
106 lm/Wbeam angle
A30color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
23000 lm
flickering factor
<5%
energy efficiency
106 lm/W
beam angle
A30
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
217 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
climatic performance
УХЛ1
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
shock resistance (IK)
IK07/2 Дж
weight
7.5 kg
ingress protection (IP)
IP65
length
463 mm
width
248 mm
height
215 mm
installation length
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +55 C
code
1224005830
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
