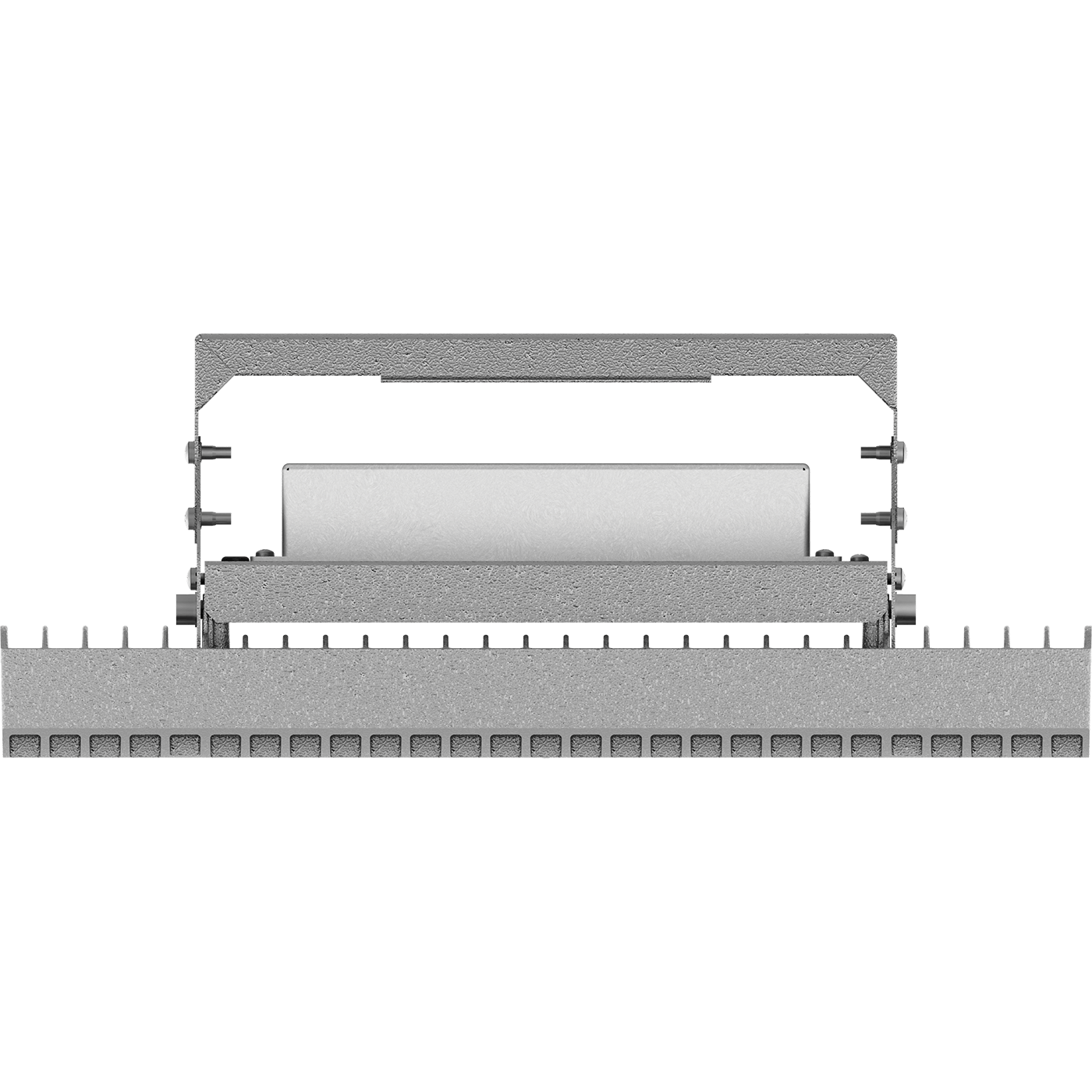

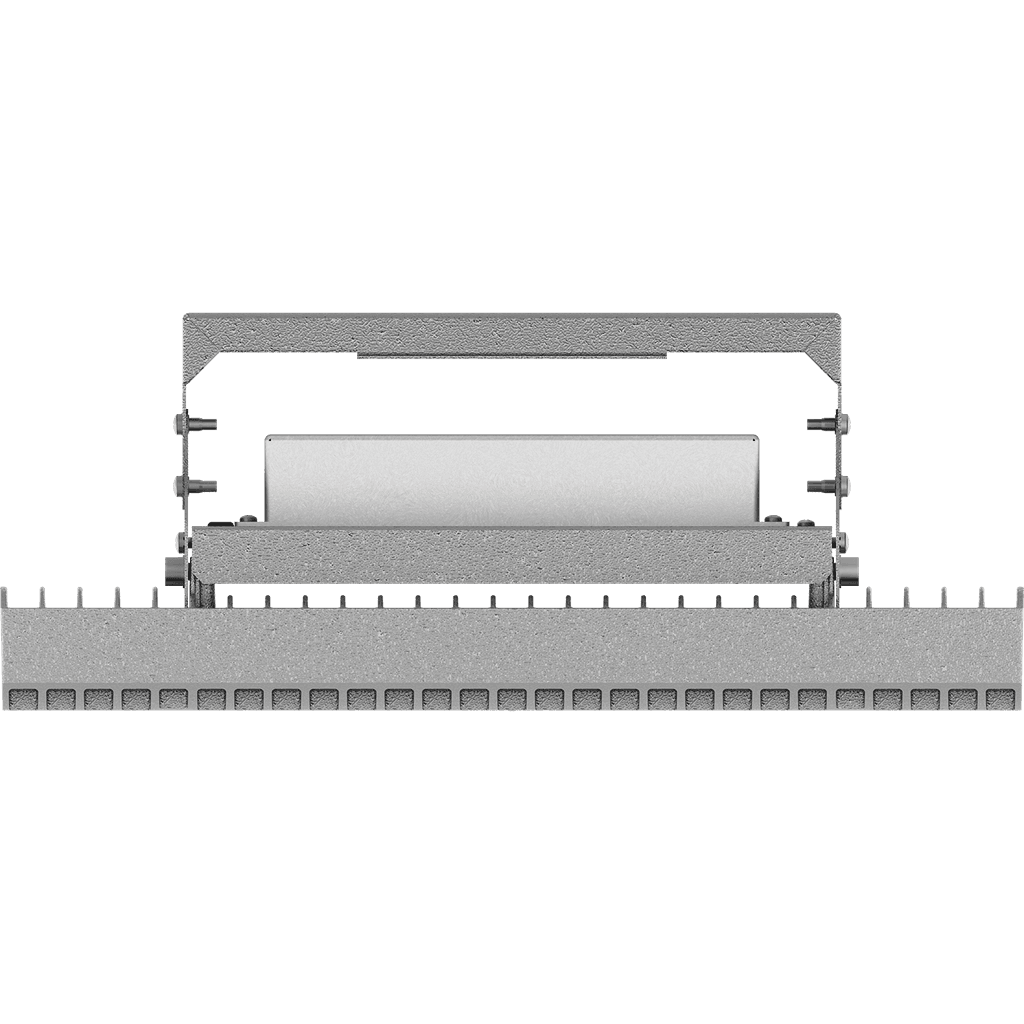

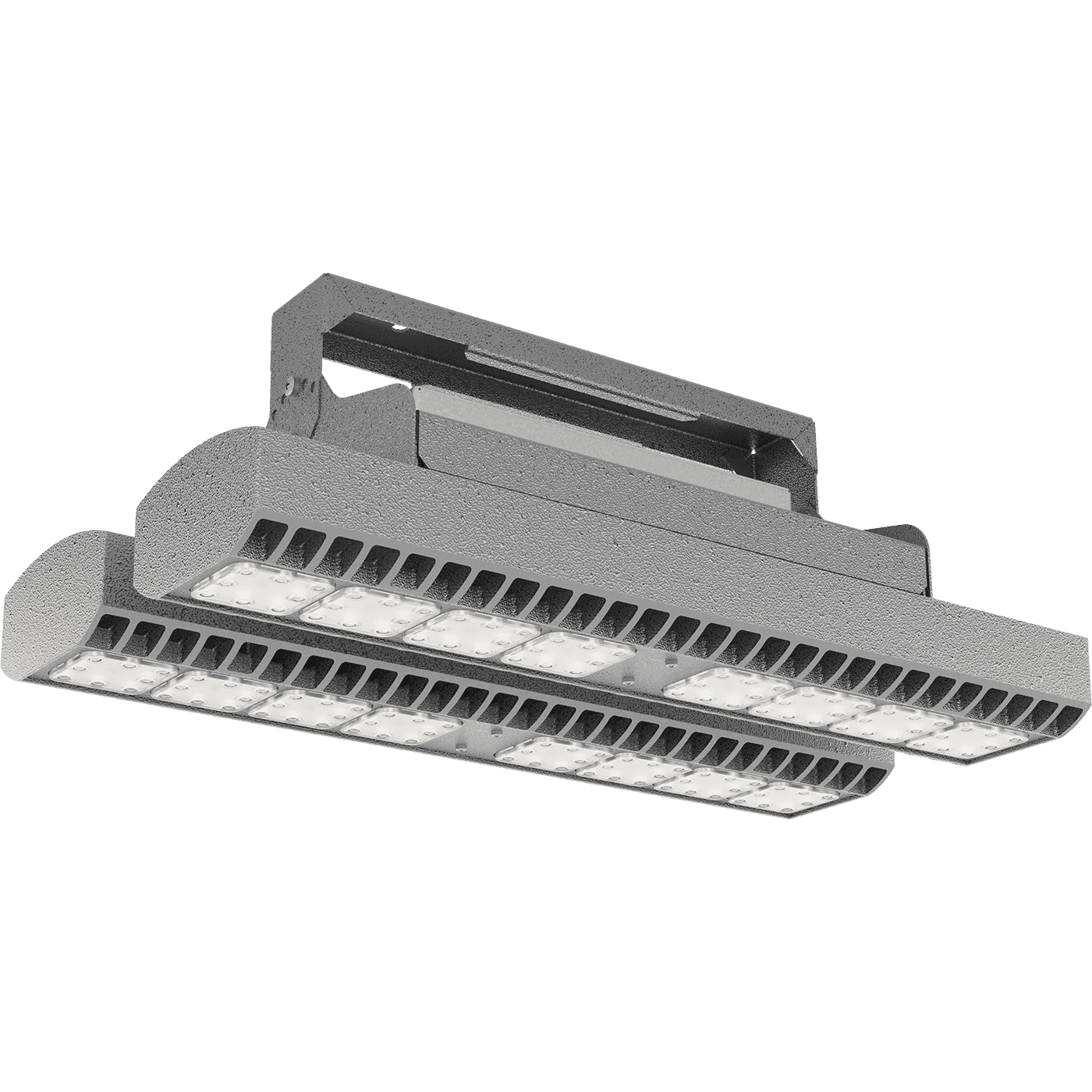

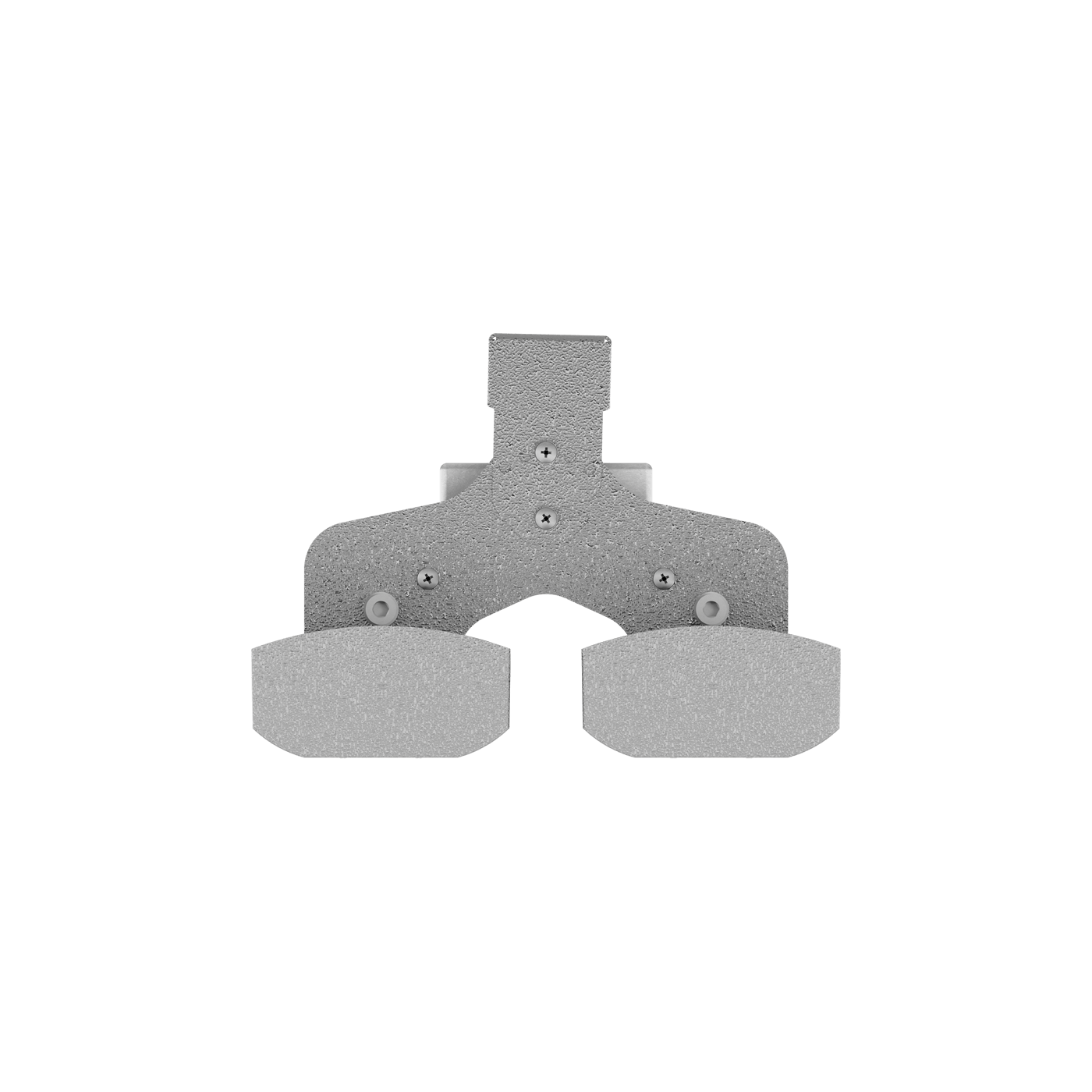

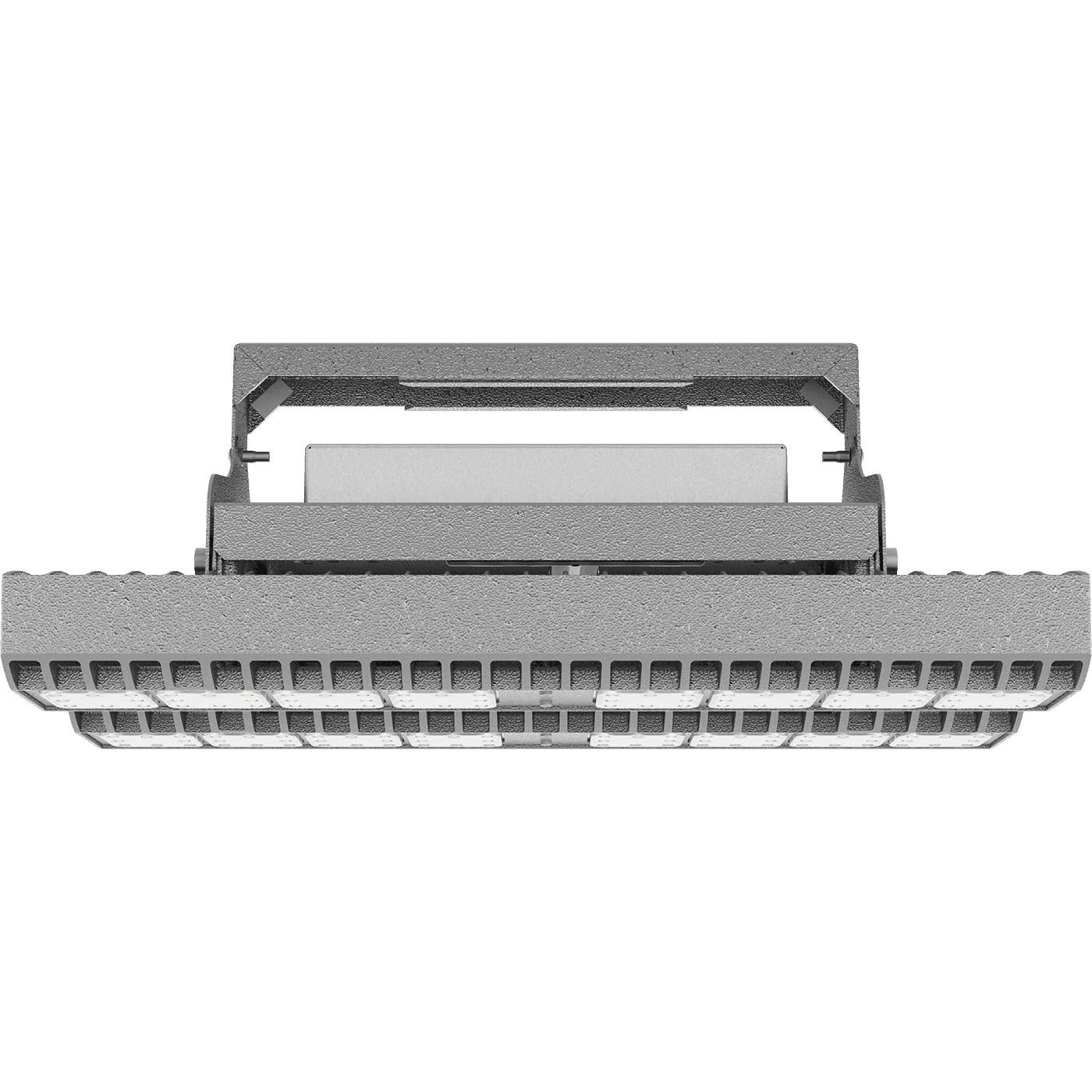

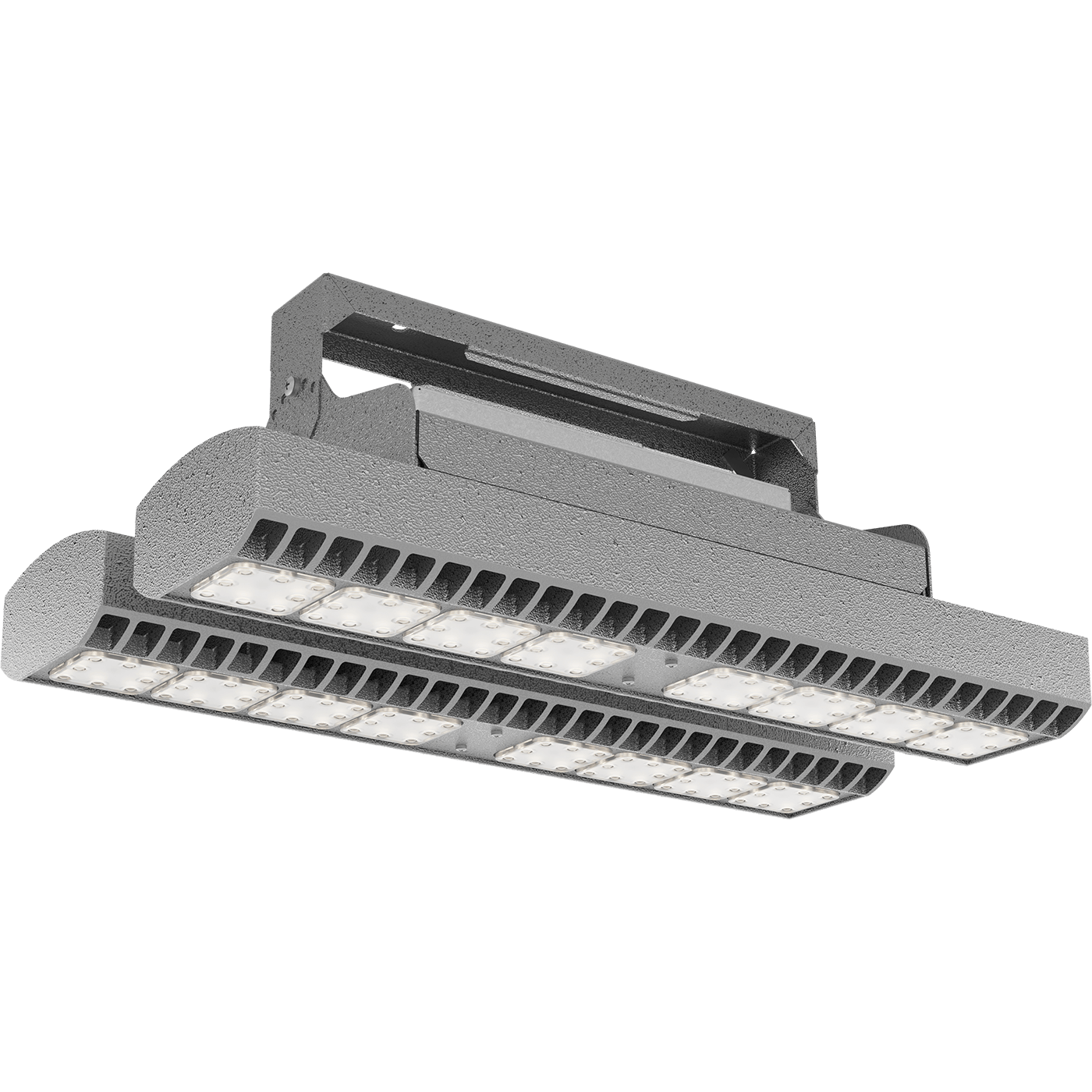

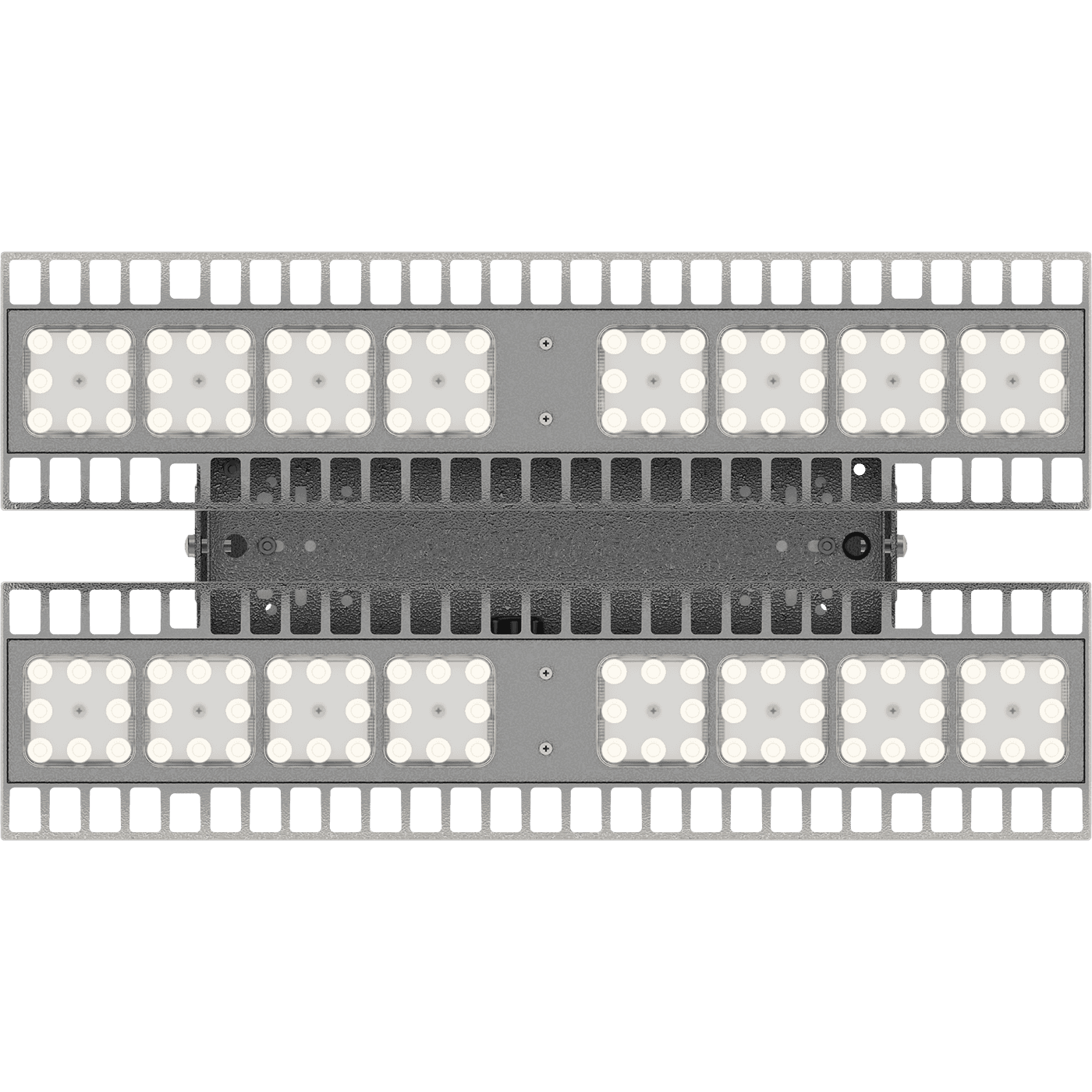

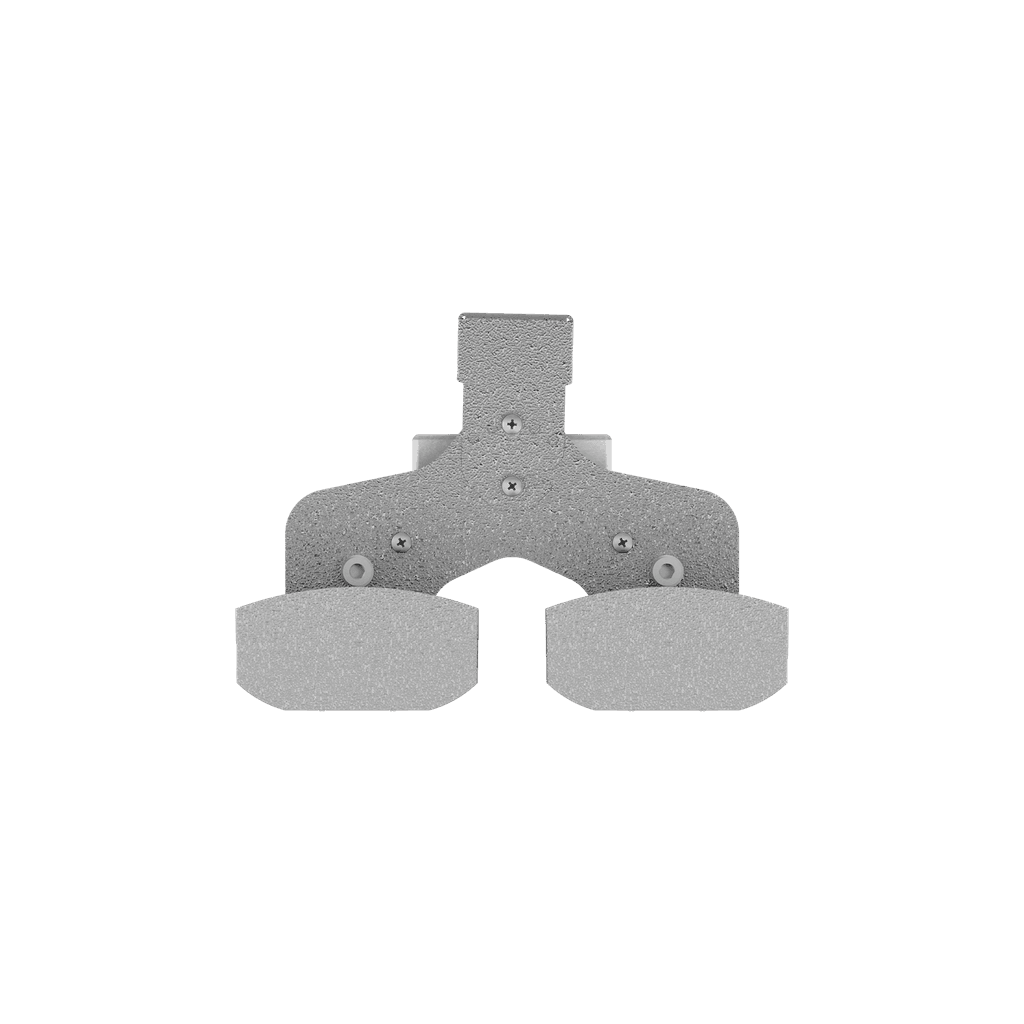

HB LED 150 D80 HFD 5000K G2
.png&w=1920&q=50)
.png&w=1024&q=50)

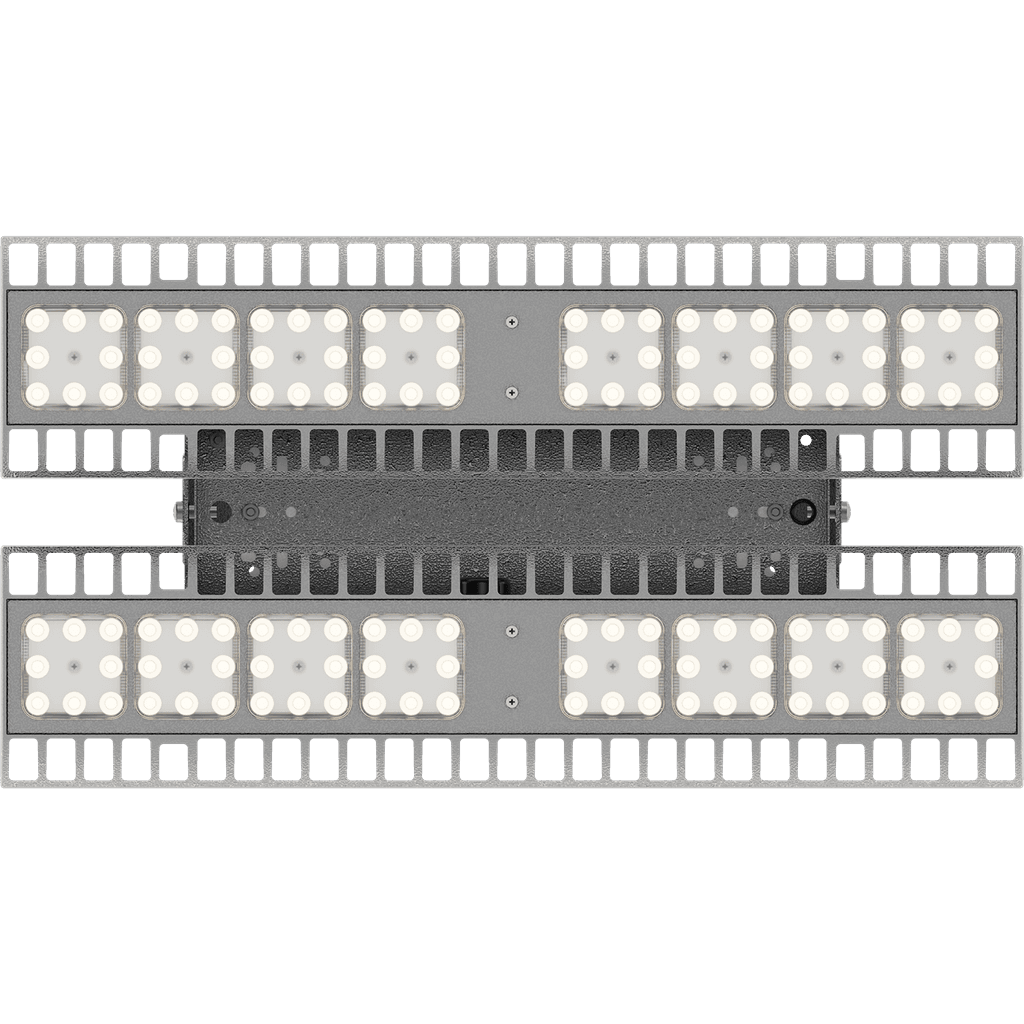

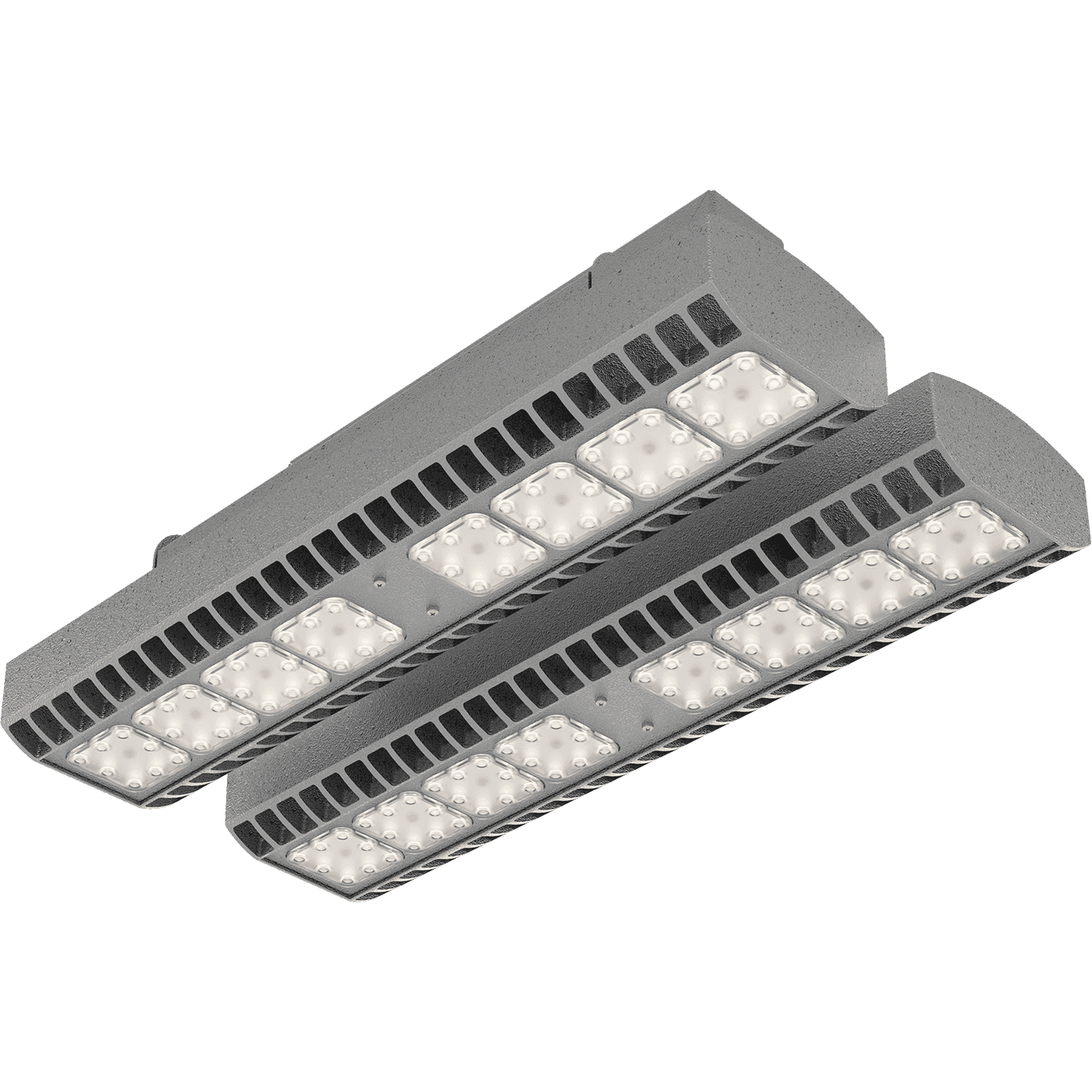

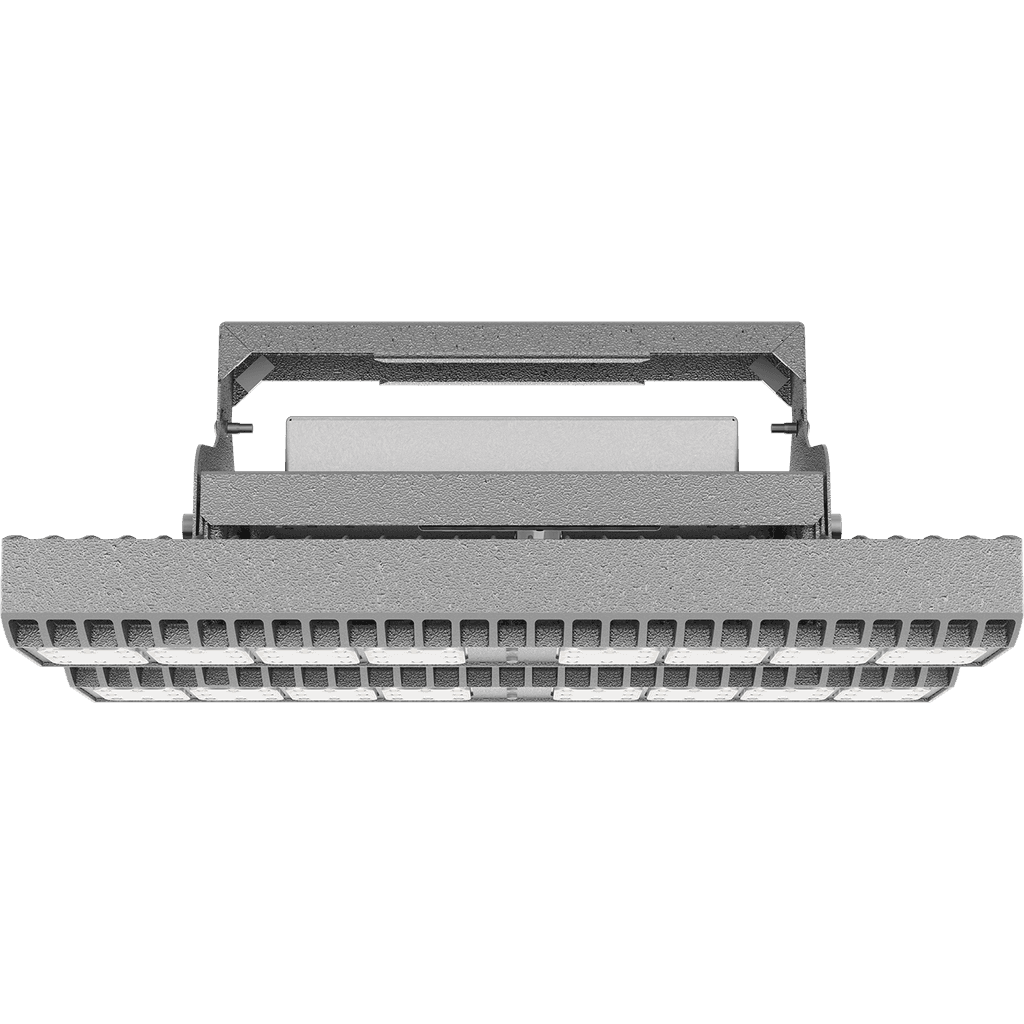

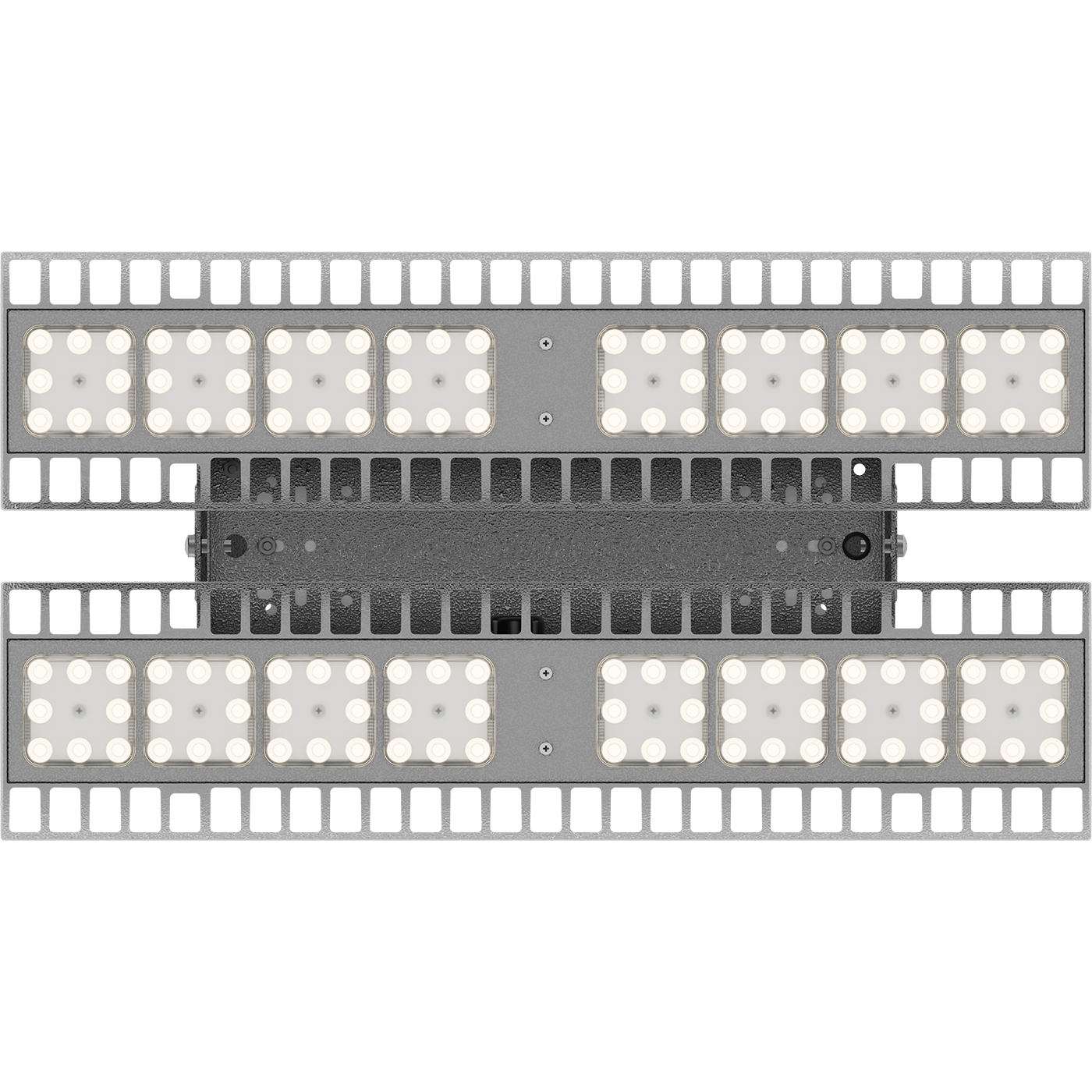

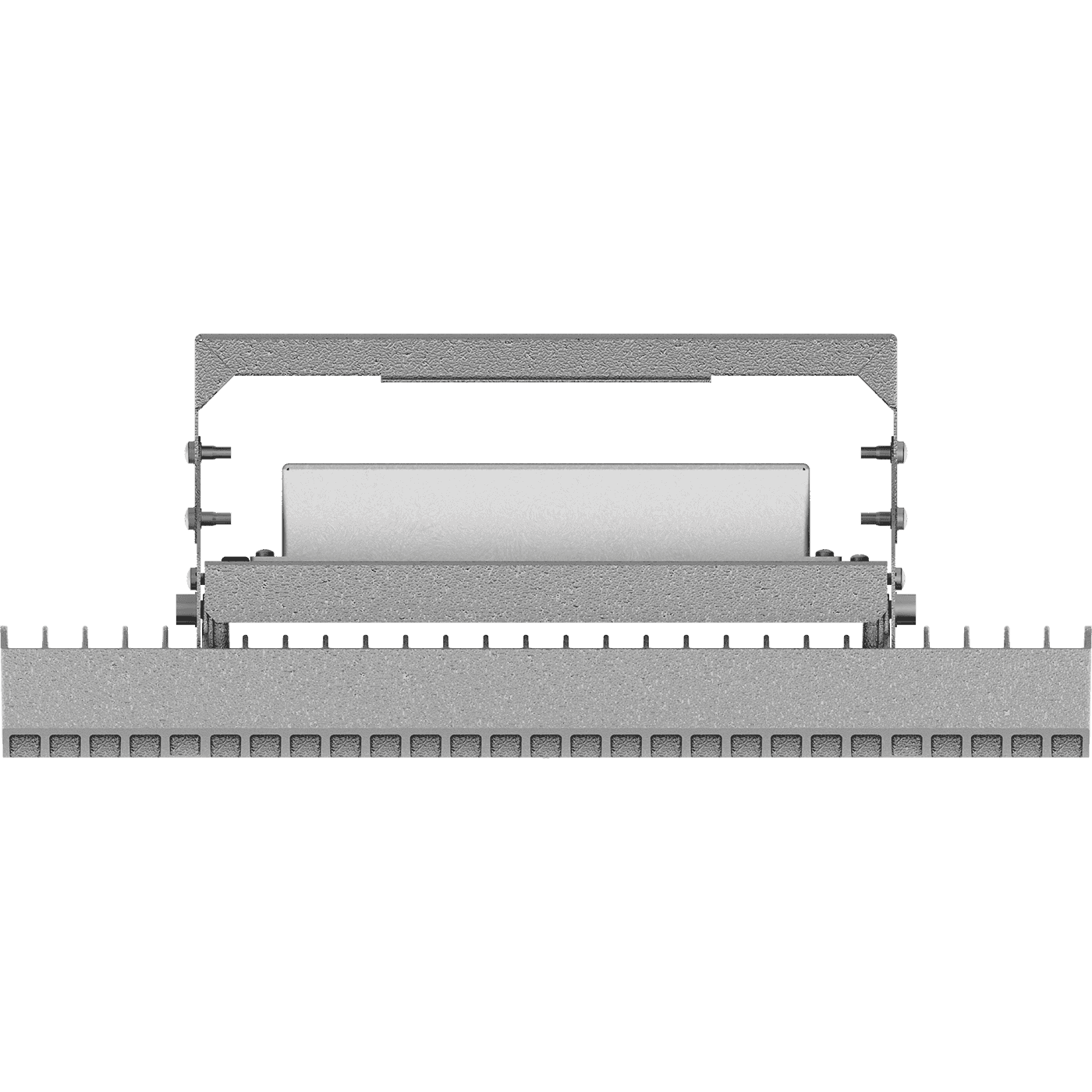

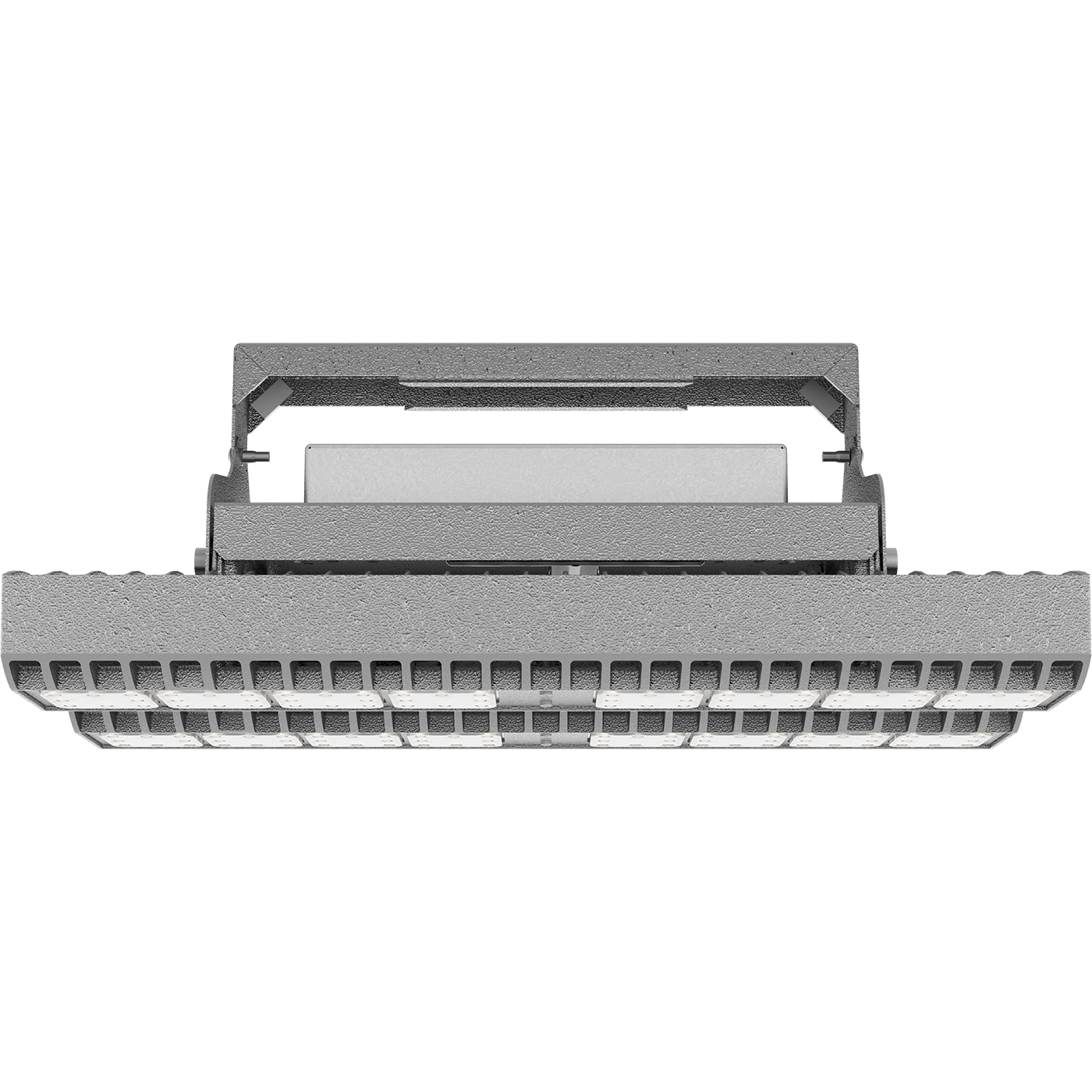

HB LED 150 D80 HFD 5000K G2
132 Wluminaire power
19200 lmlight flow
145 lm/Wenergy efficiency
code1224005620
color temperature5000
beam angleD80
weight8 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
60 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
132 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
60 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
132 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІ
material
Алюминий
weight
8 kg
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
463 mm
width, mm
249 mm
height, mm
218 mm
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +55 C
energy efficiency class
A++
service life, hour
50 000 h
code
1224005620
illuminating
light flow
19200 lm
flickering factor
<1%
energy efficiency
145 lm/W

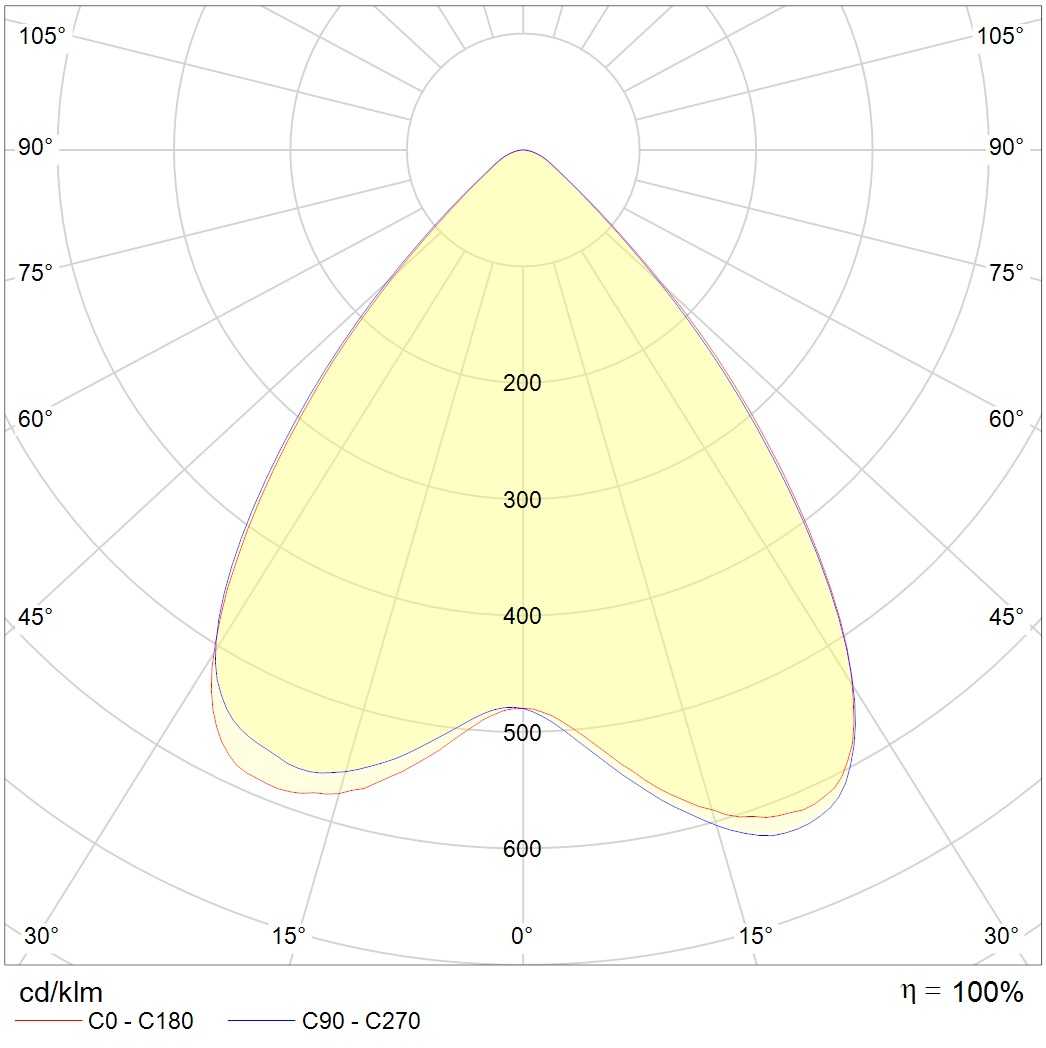

beam angle
D80
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
LMS options
dimming
DALI
model files
model files

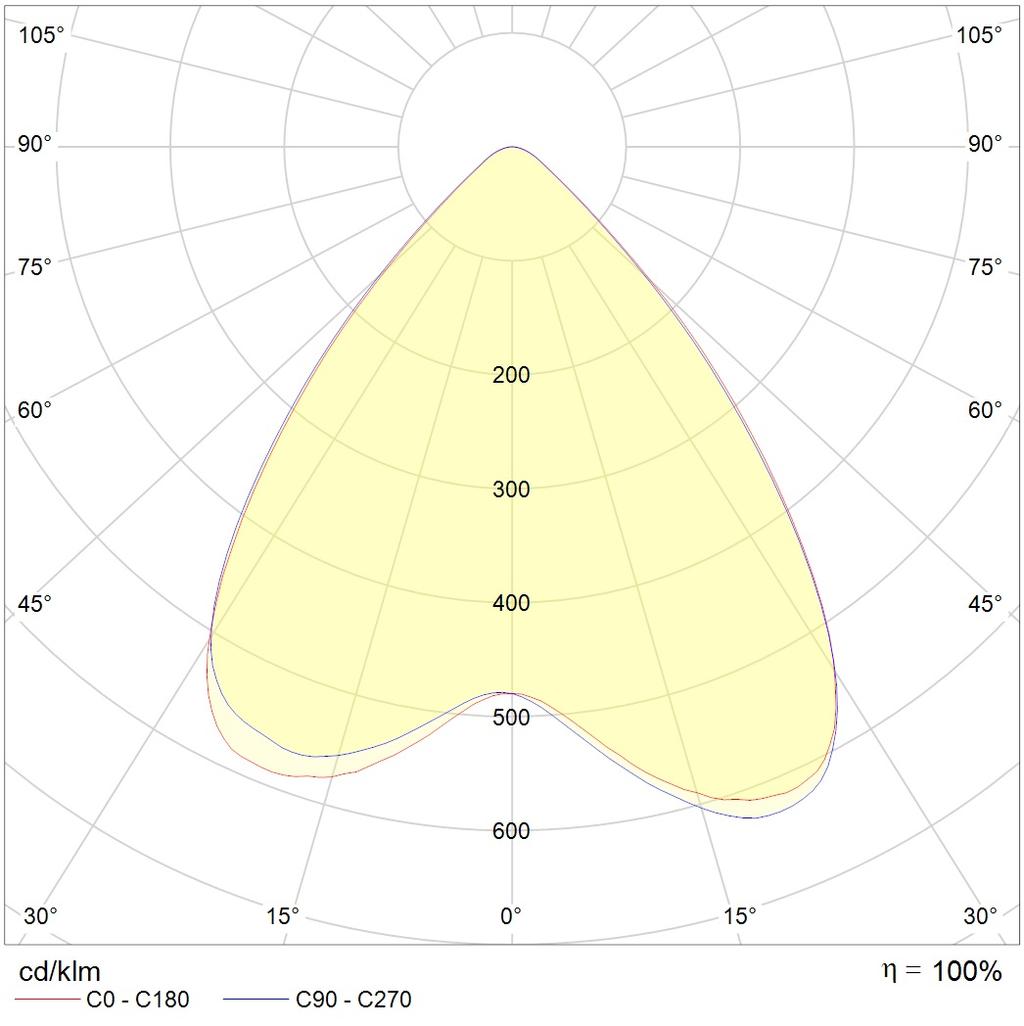

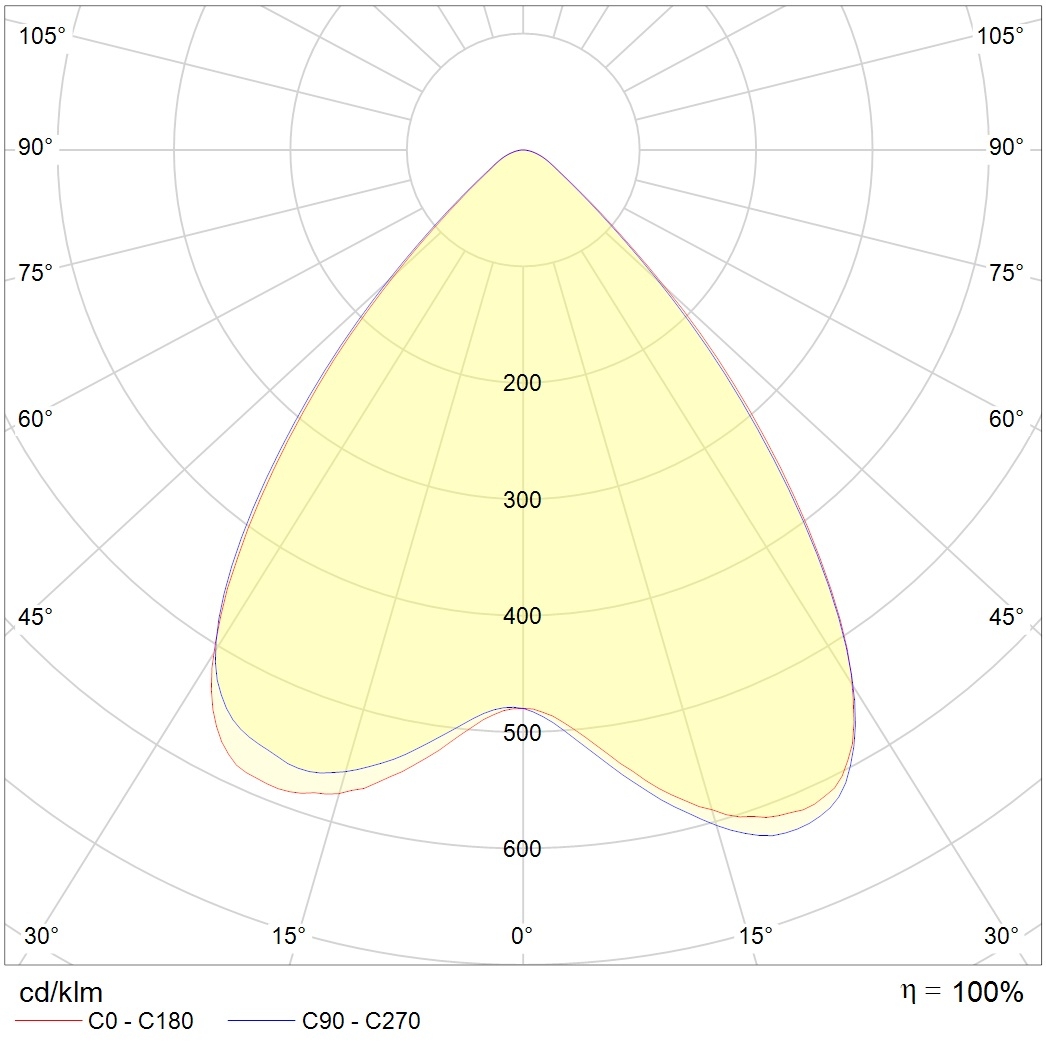

photometric files
