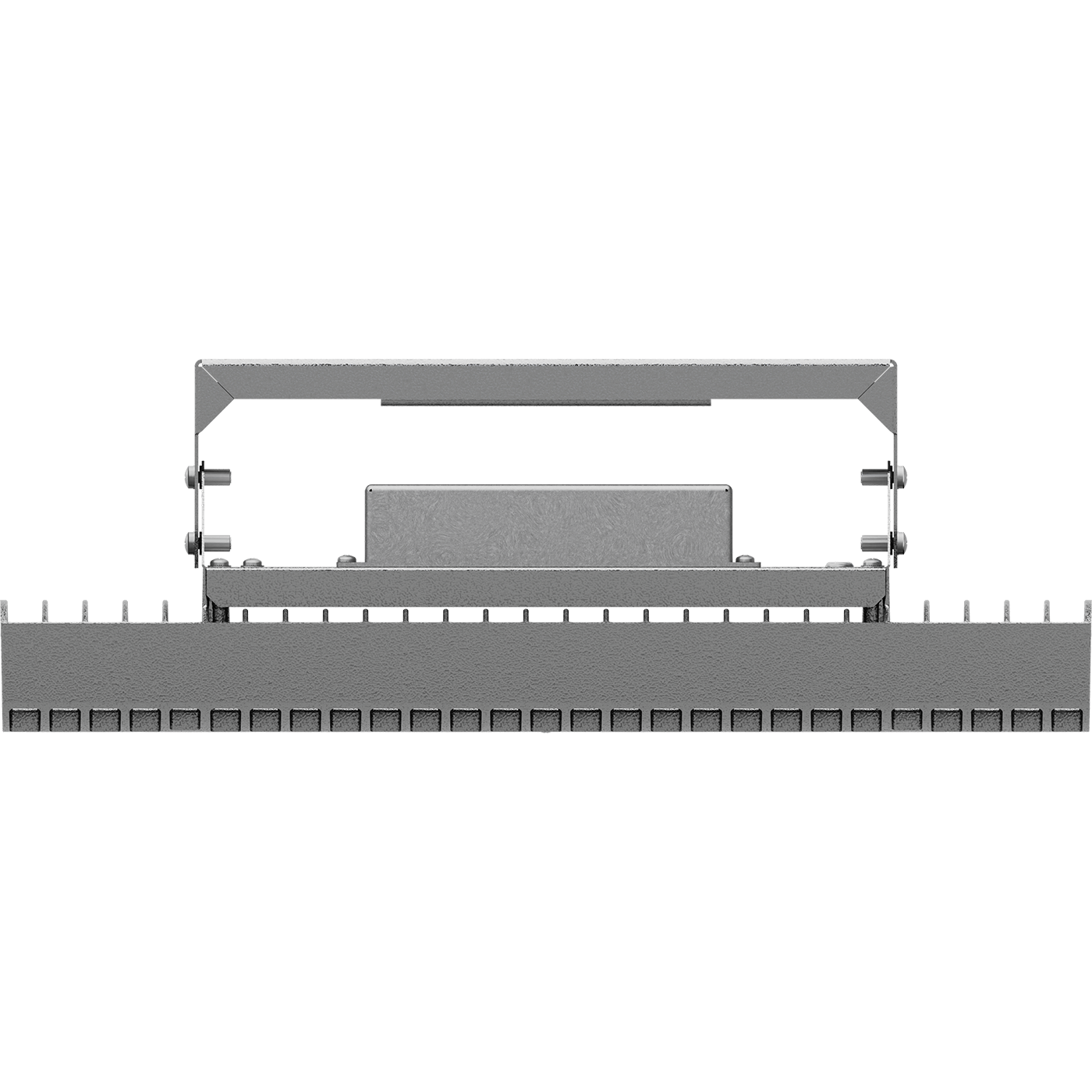

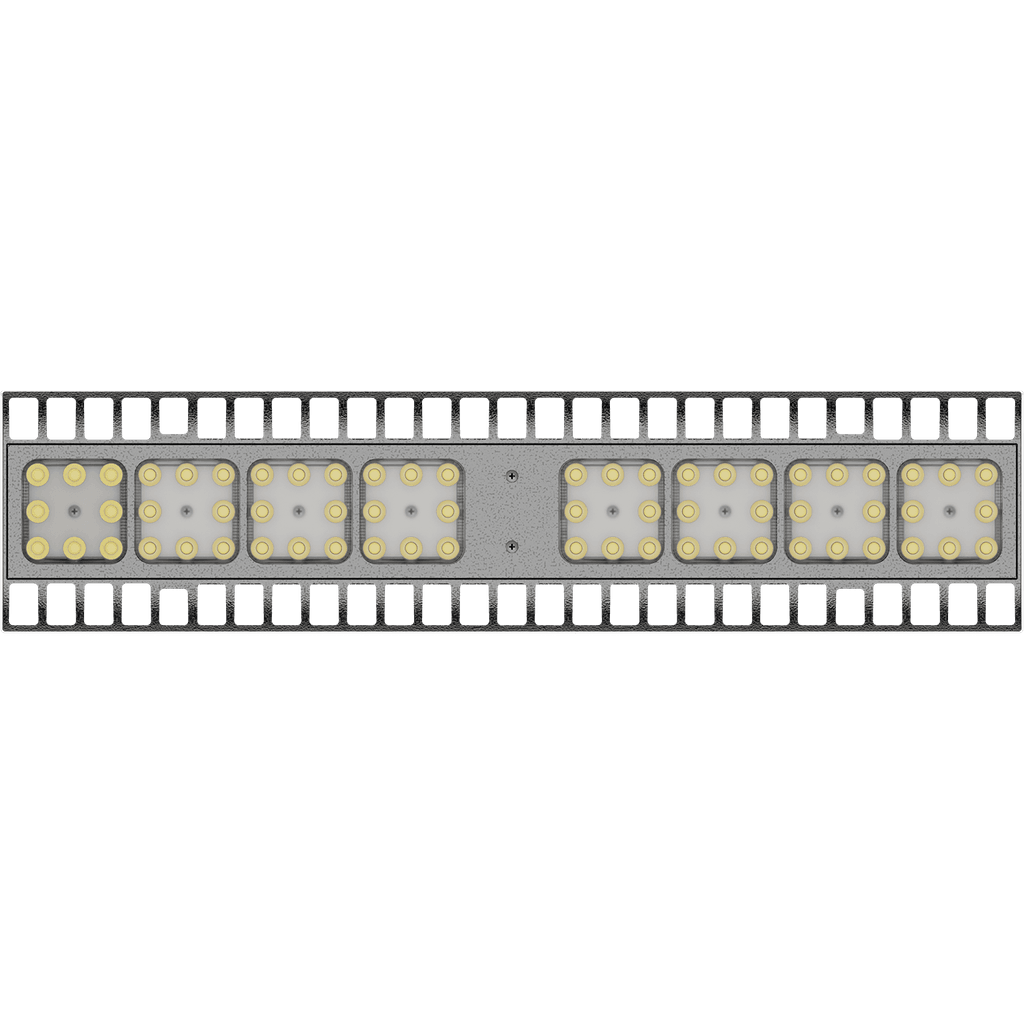

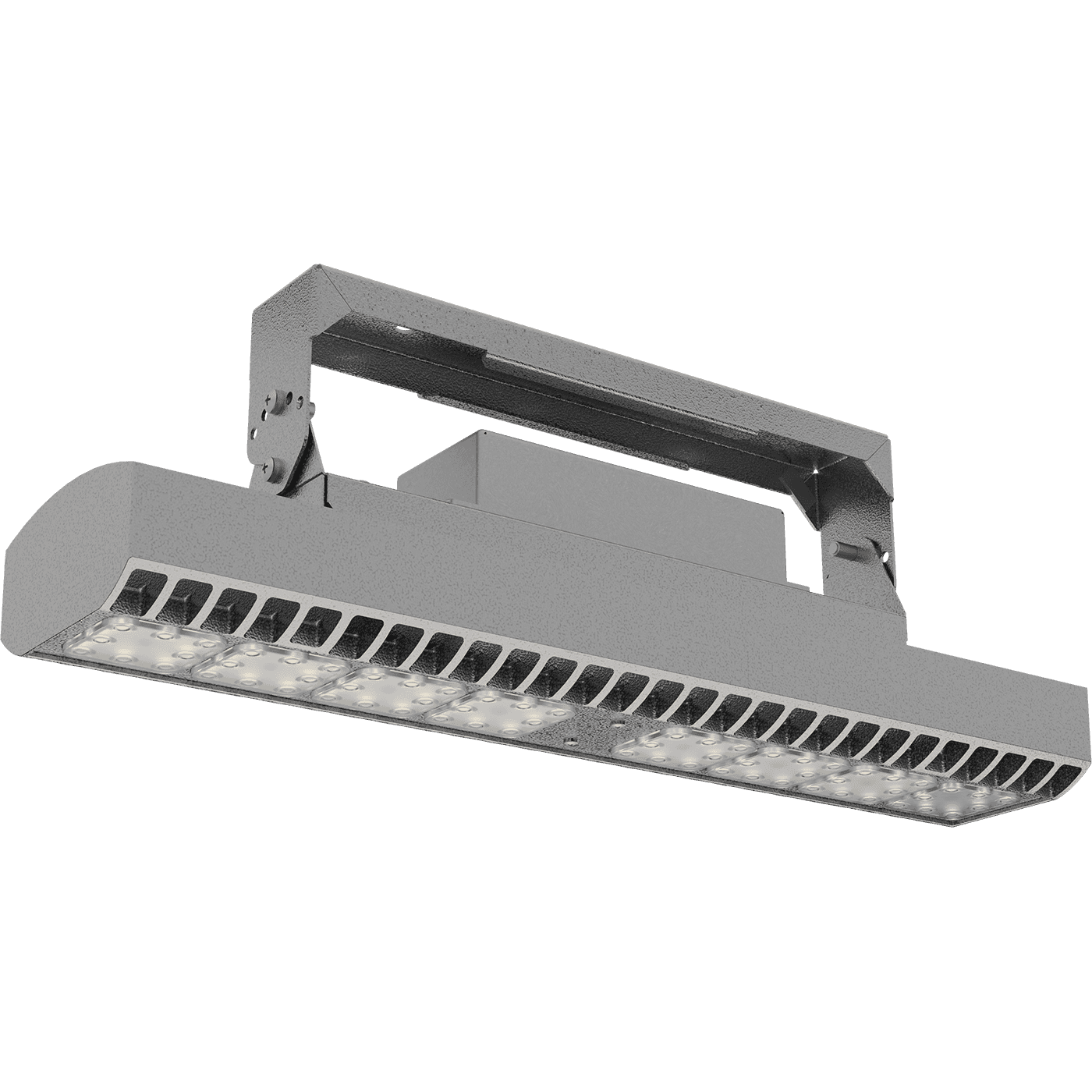

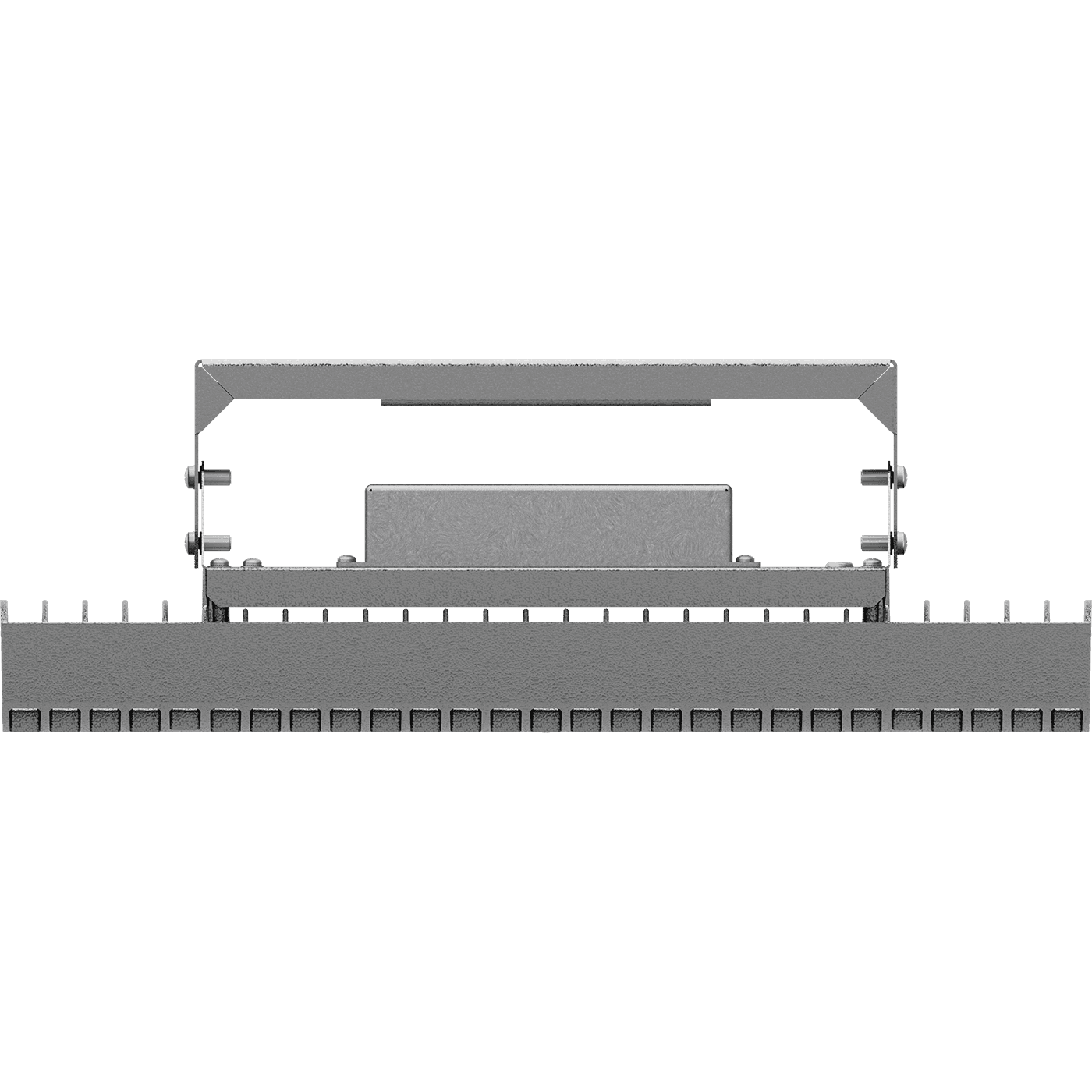

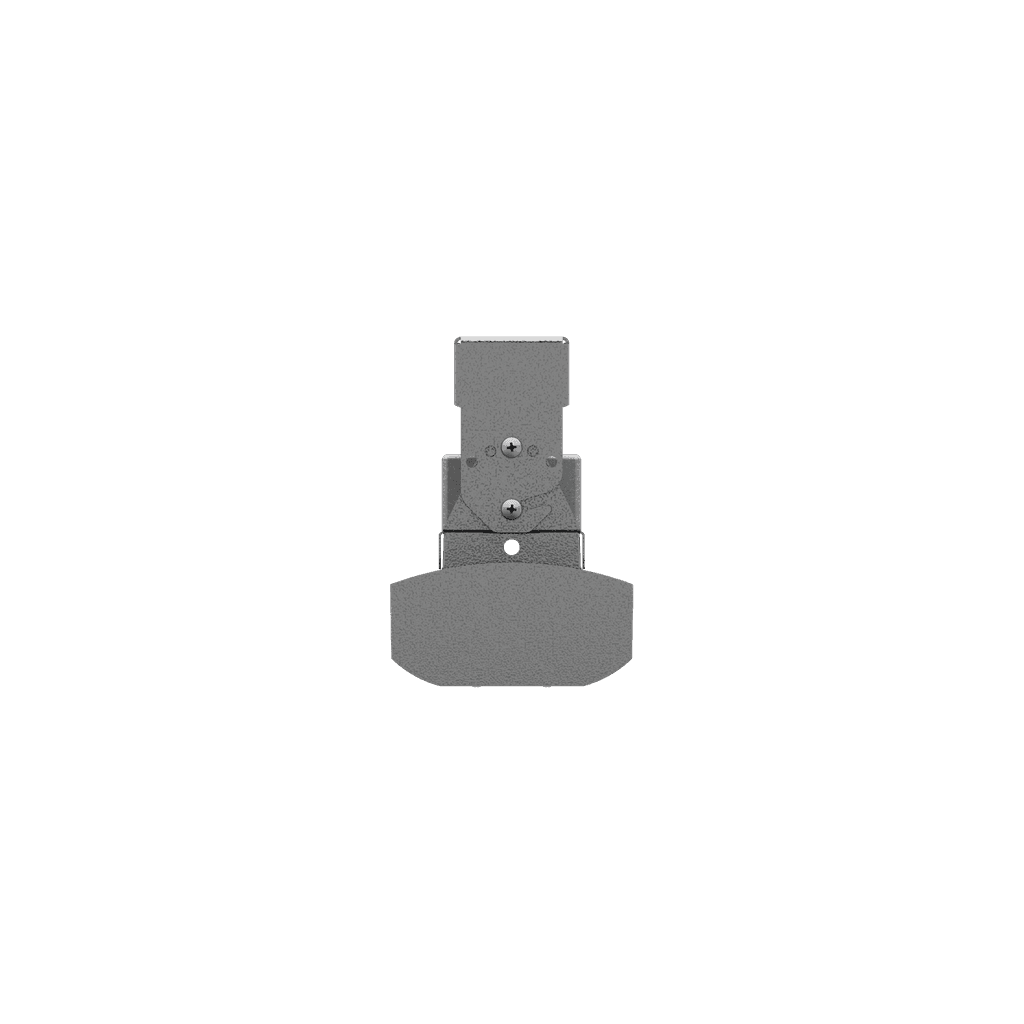

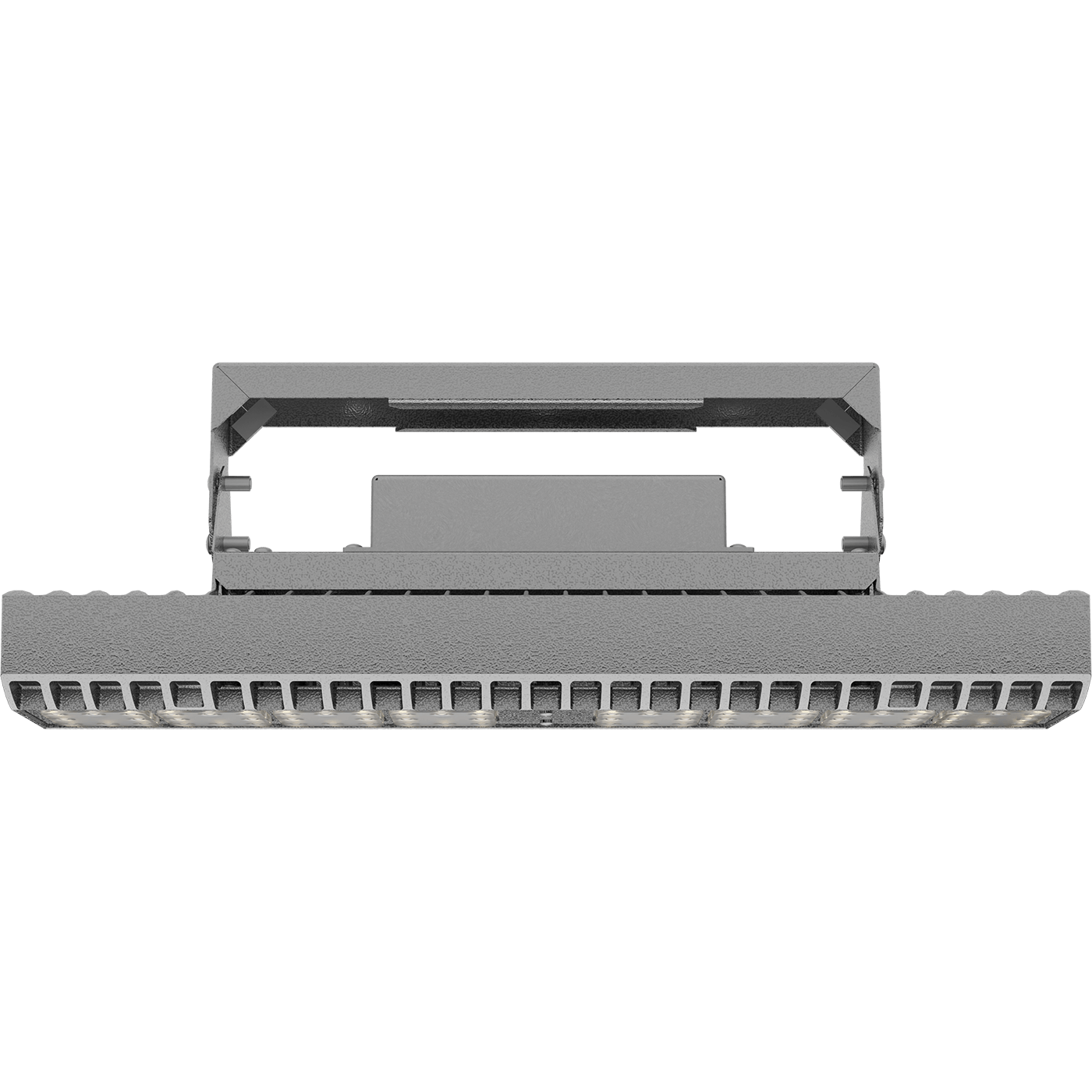

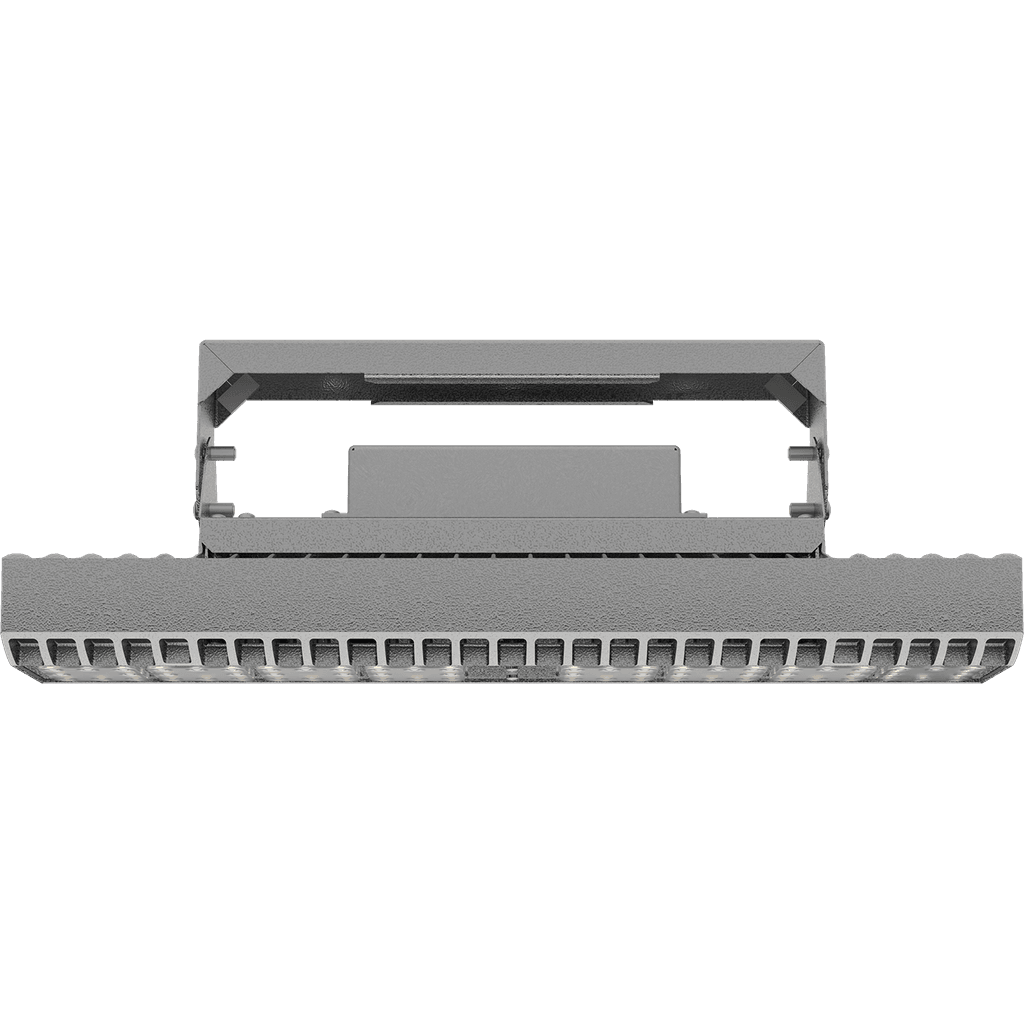

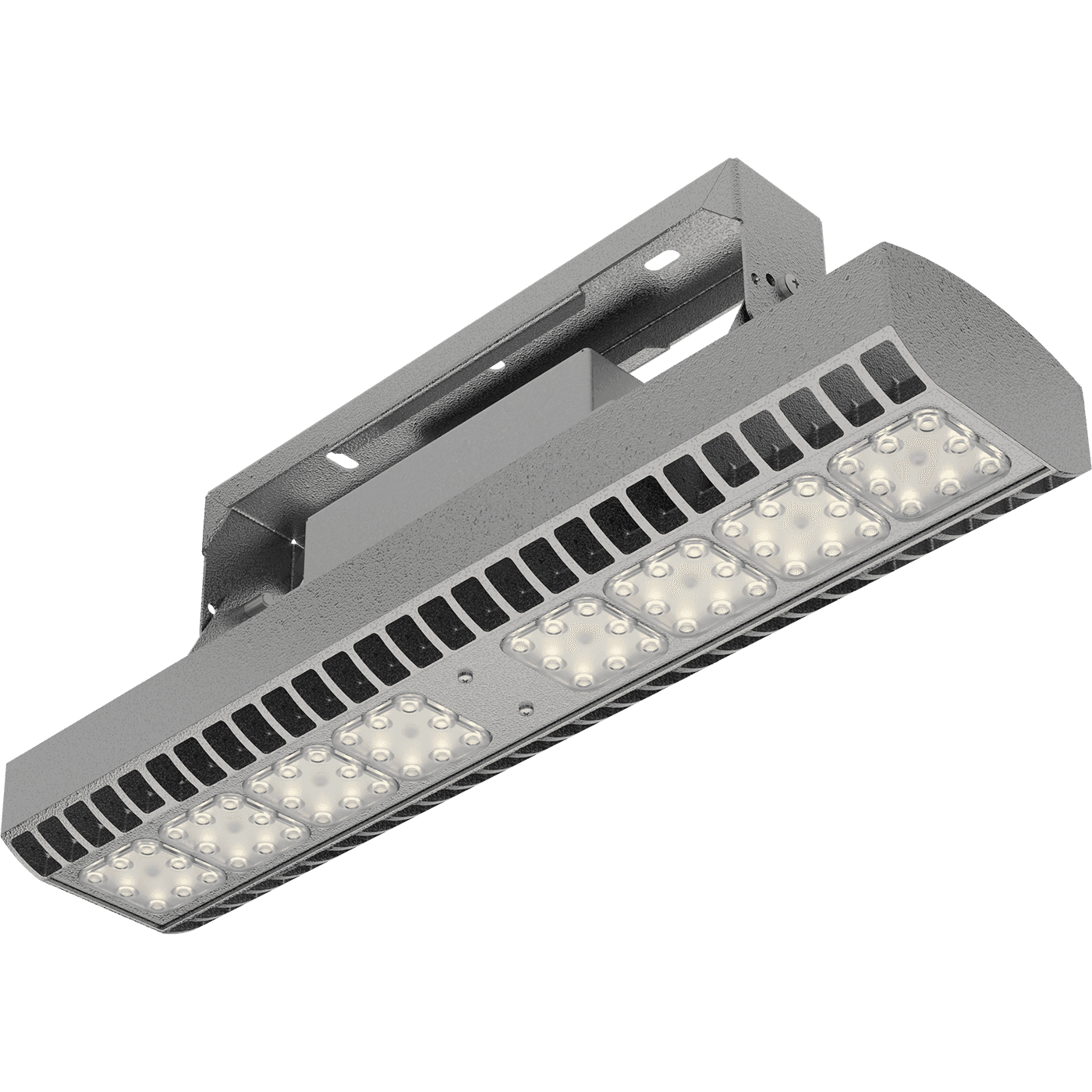

HB LED 100 D60 HFD 3000K G2
.png&w=1920&q=100)
.png&w=1024&q=75)
HB LED 100 D60 HFD 3000K G2
100 Wluminaire power
16000 lmlight flow
160 lm/Wenergy efficiency
code1224004470
color temperature3000 K

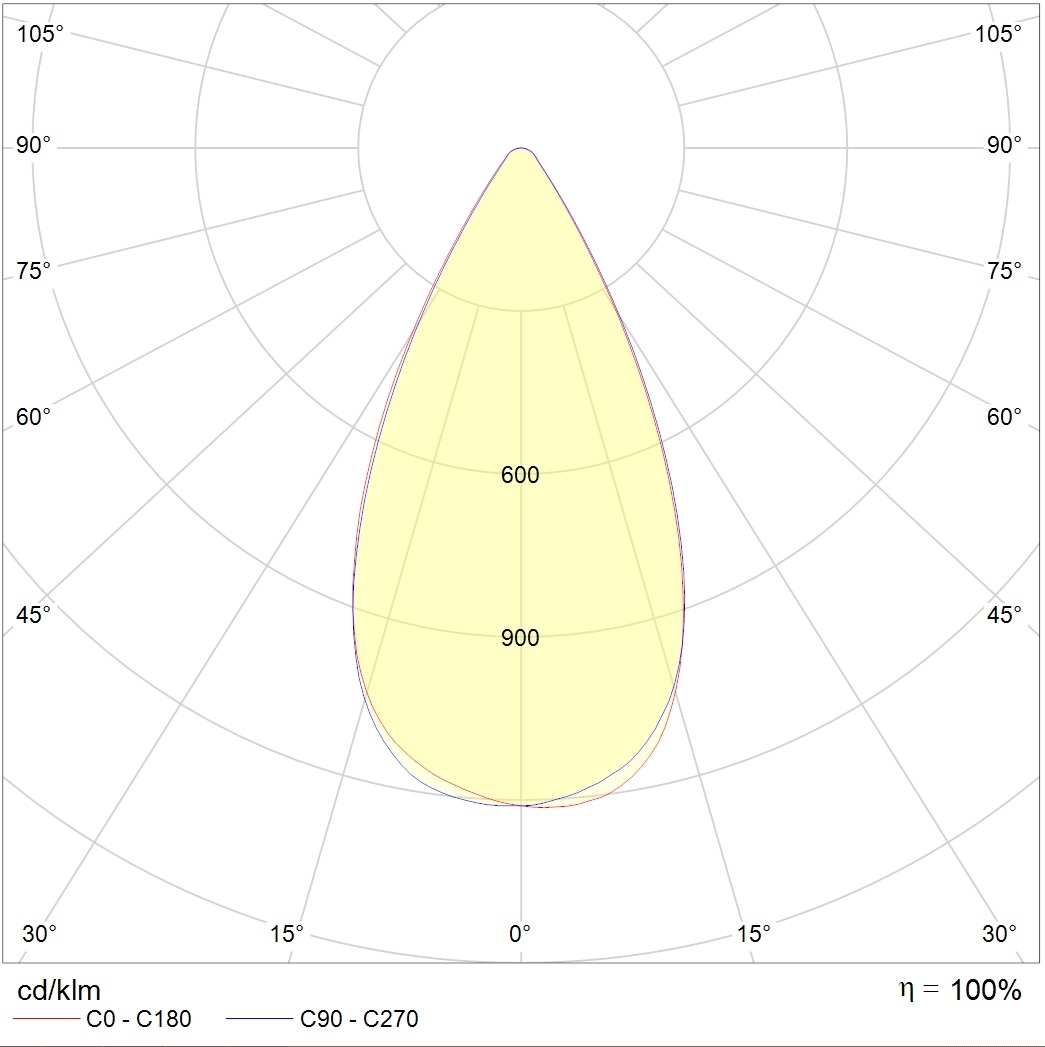

beam angleD60
weight3.7 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>80light flow
16000 lmflickering factor
<1%energy efficiency
160 lm/Wbeam angle
D60color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
16000 lm
flickering factor
<1%
energy efficiency
160 lm/W

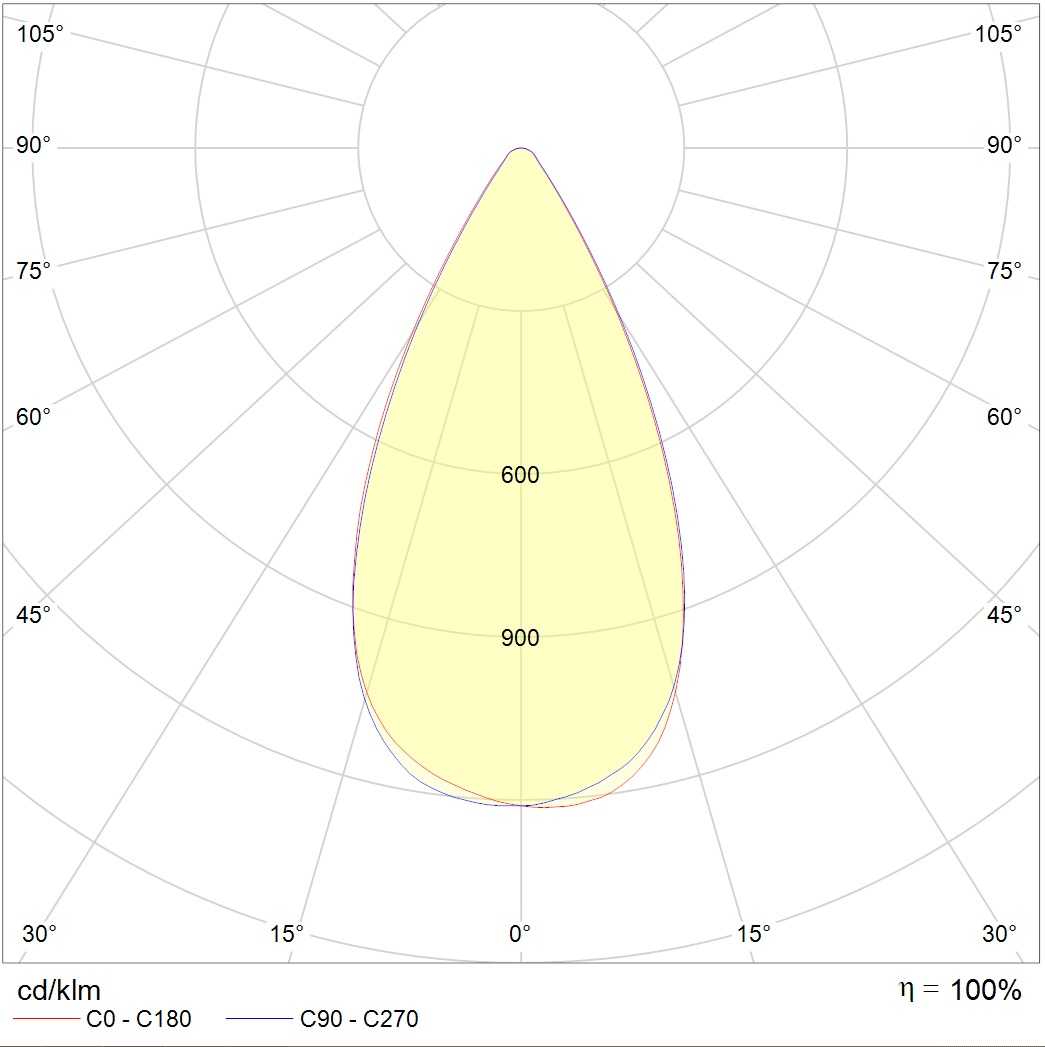

beam angle
D60
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
100 W
electric shock protection
I
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
60 A
supply voltage
230 V
starting current pulse time
500 µs
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
shock resistance (IK)
IK07/2 Дж
weight
3.7 kg
ingress protection (IP)
IP66
length
463 mm
width
110 mm
height
160 mm
installation length
180 mm
LMS options
dimming
DALI
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +55 C
code
1224004470
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg118.6 kB
ldt160.5 kB
documents
passport8.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
