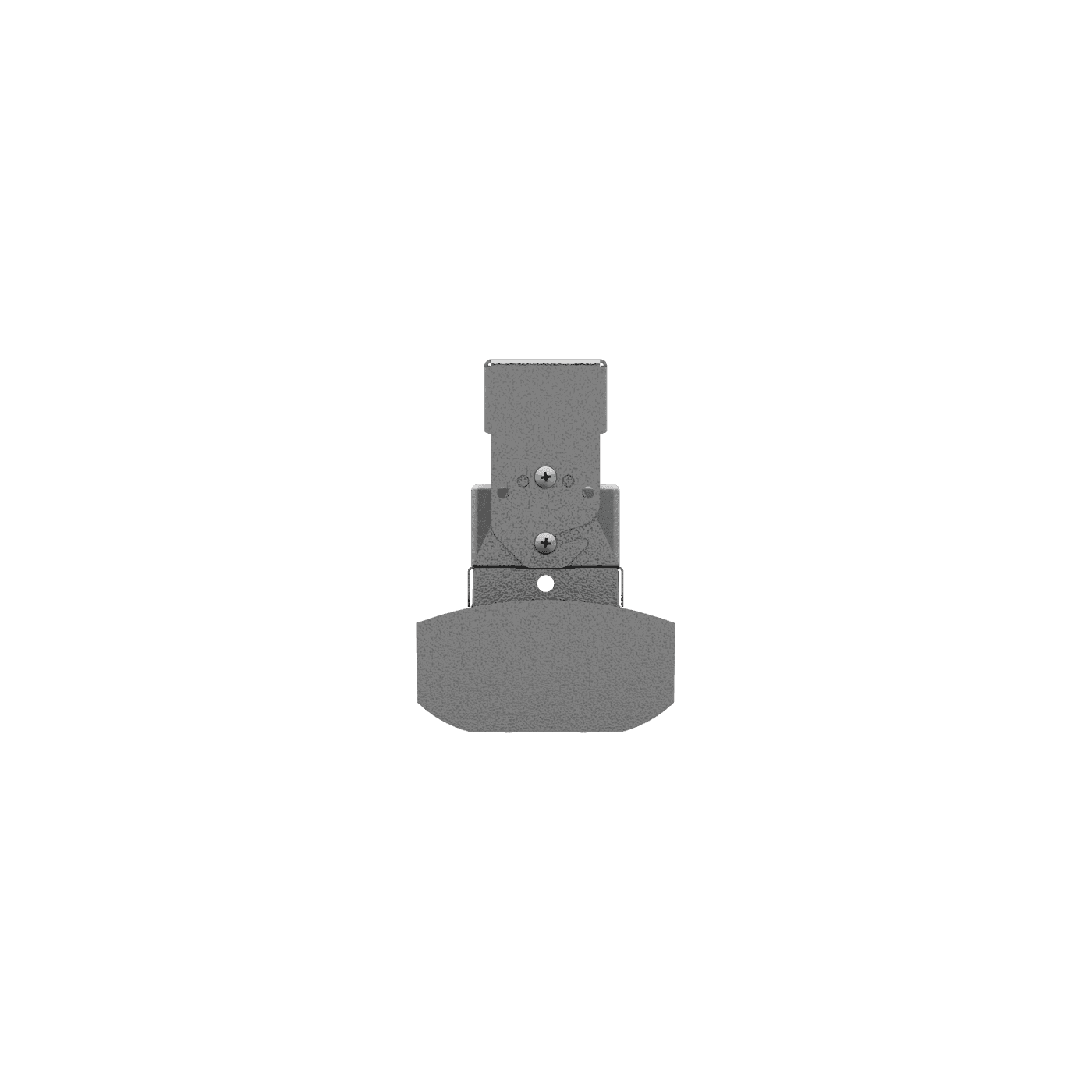

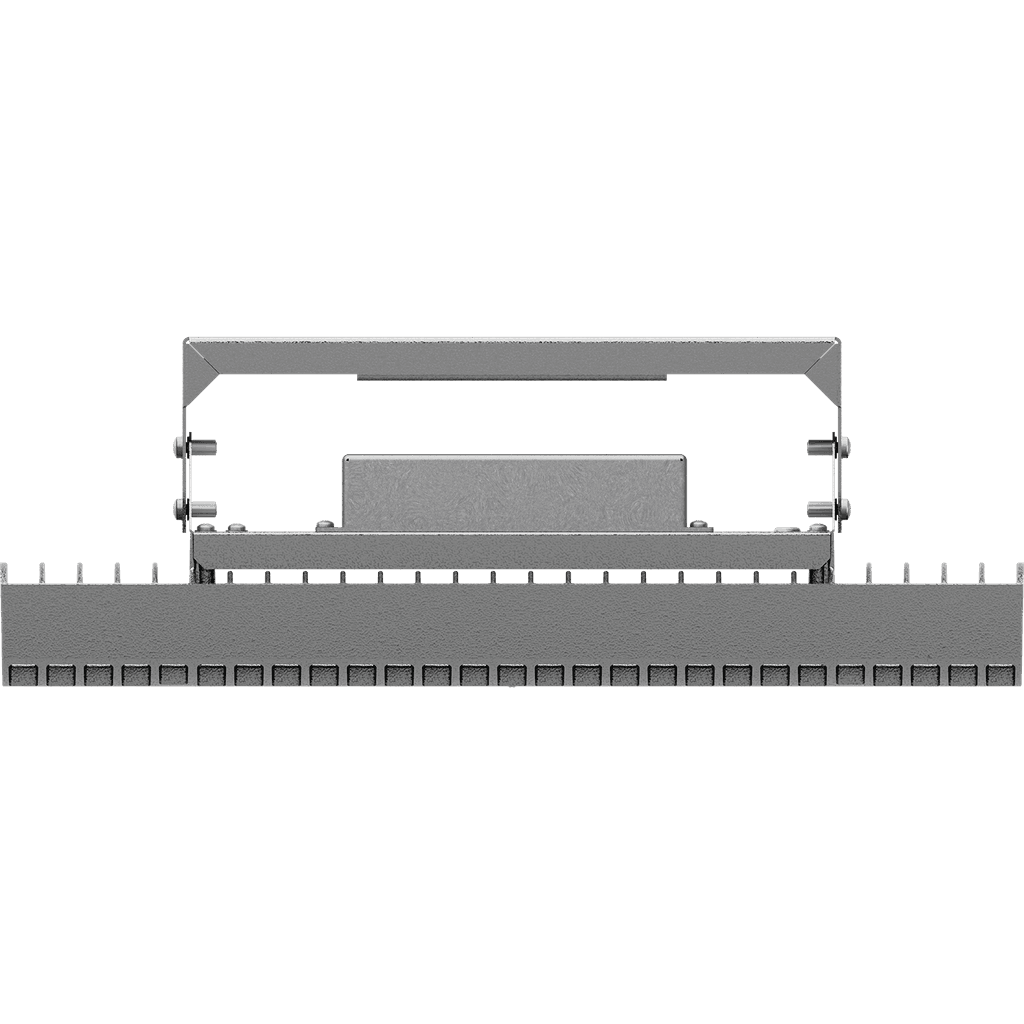

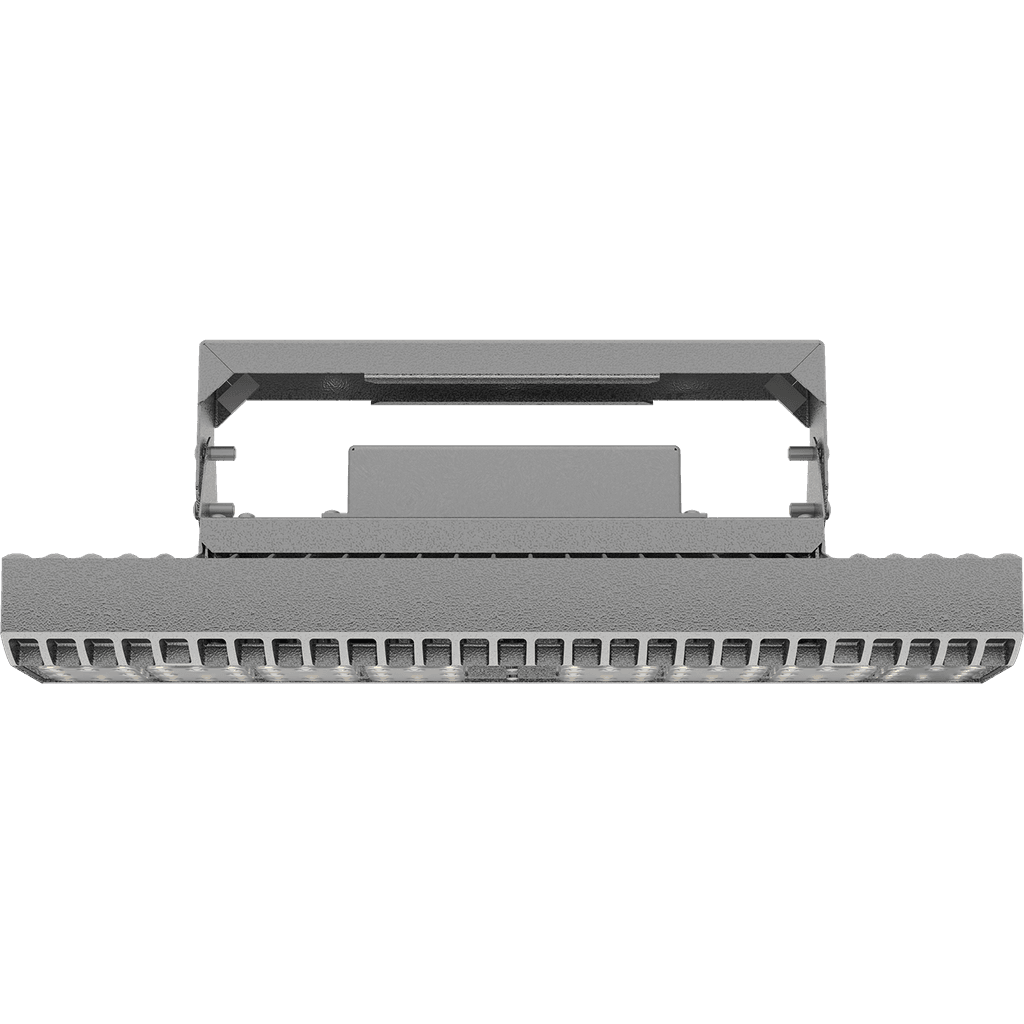

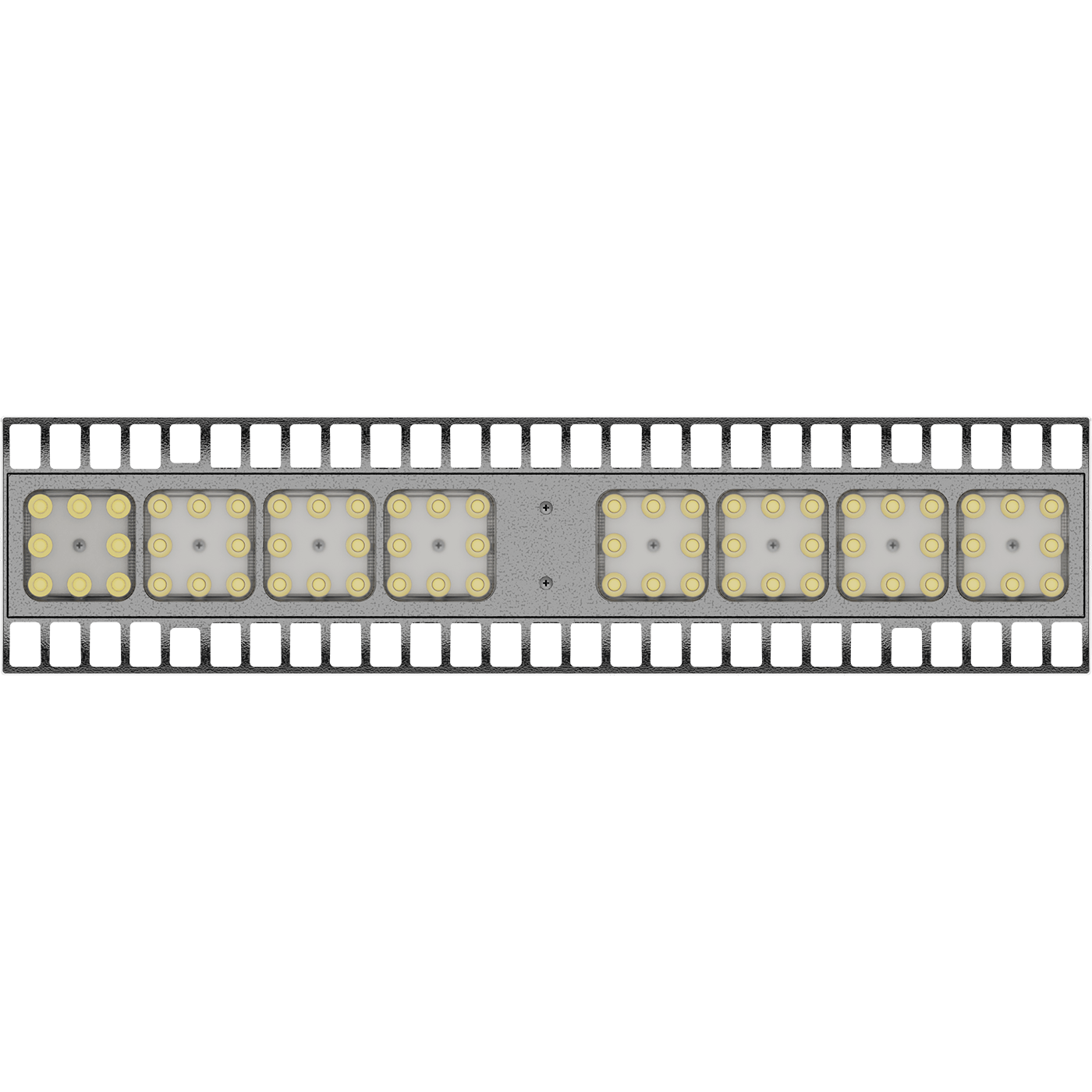

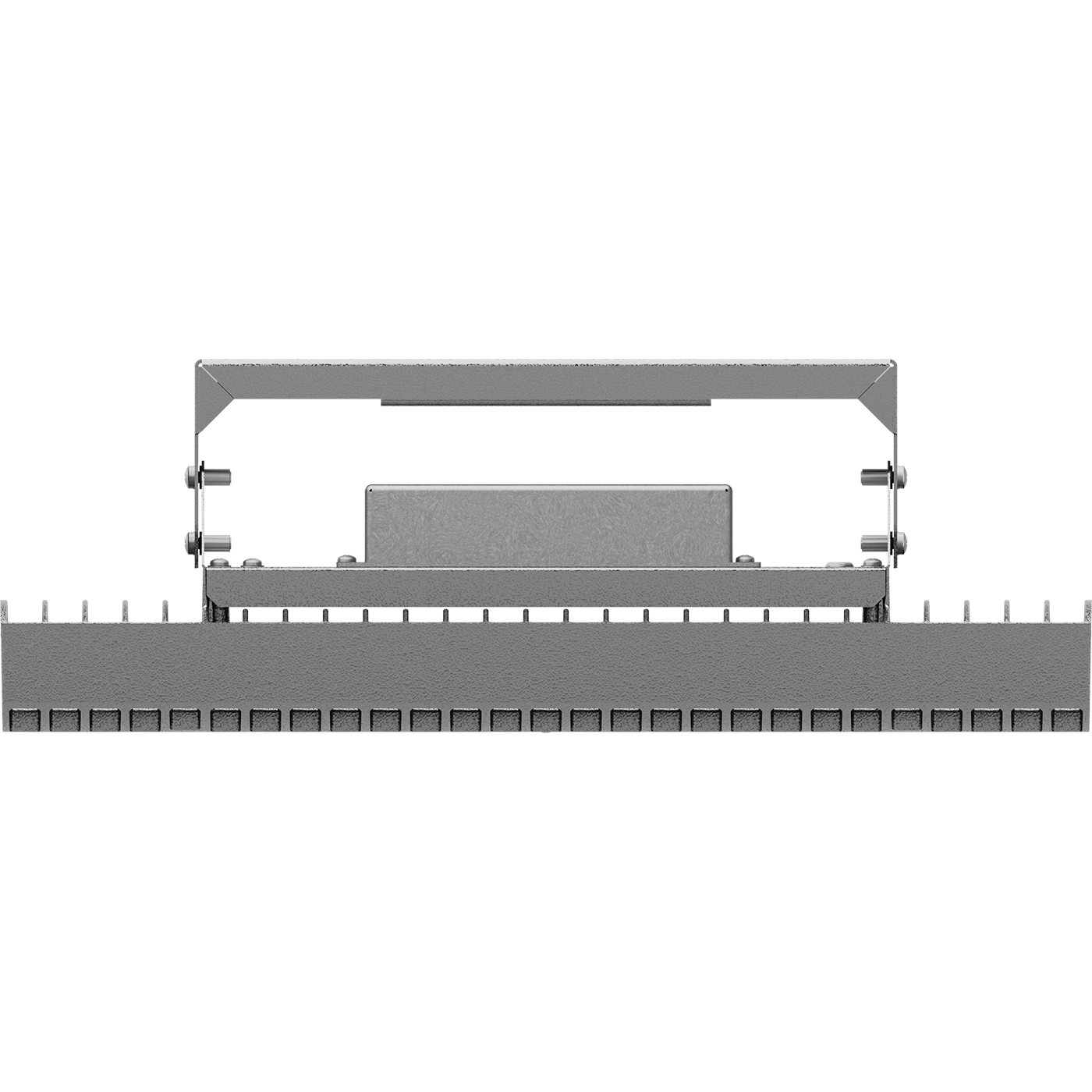

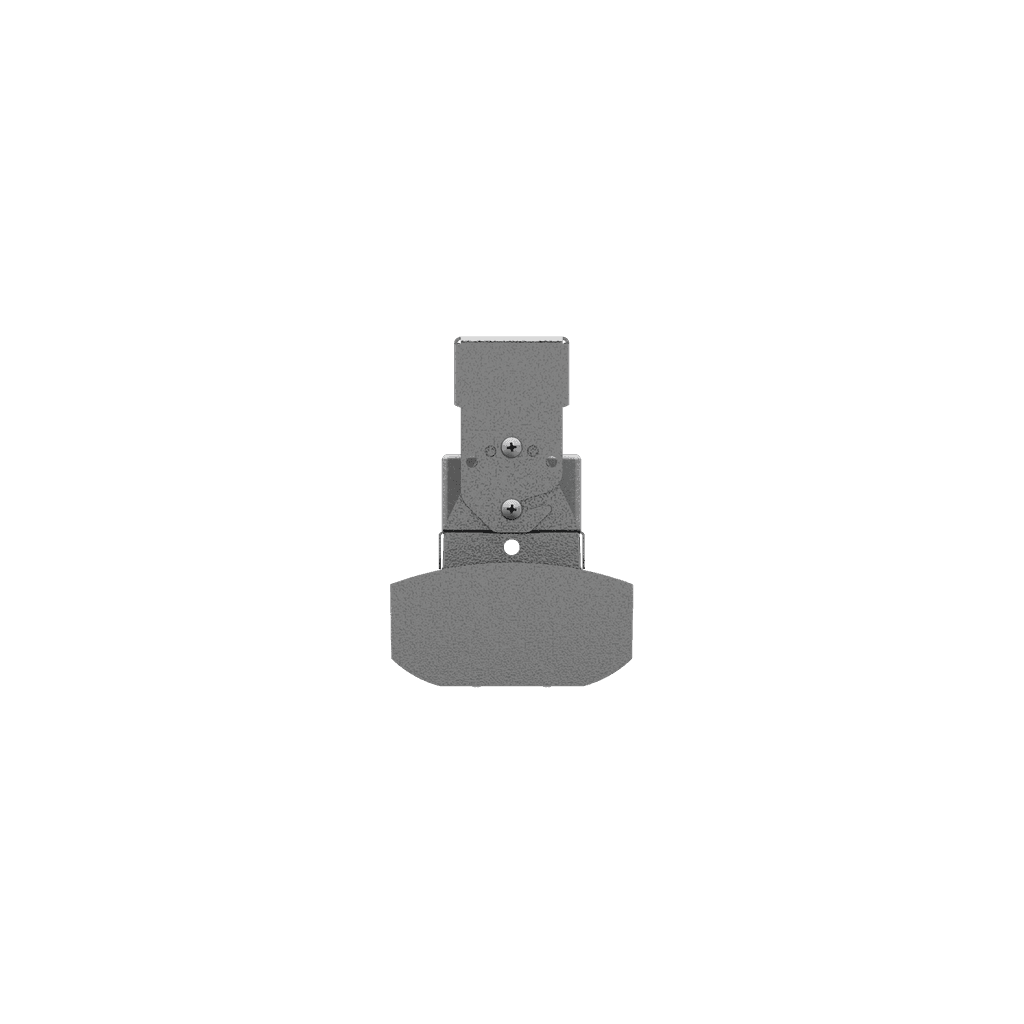

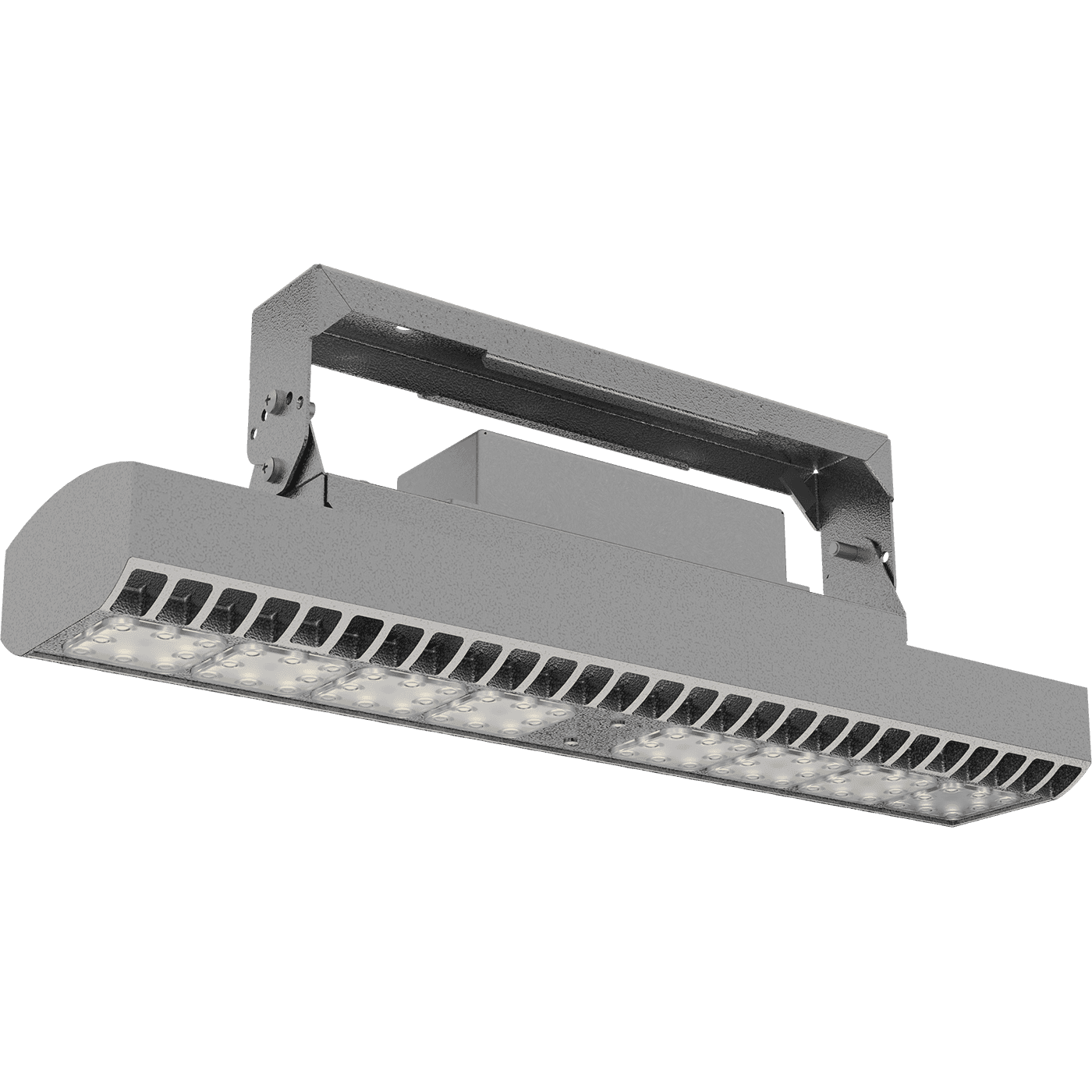

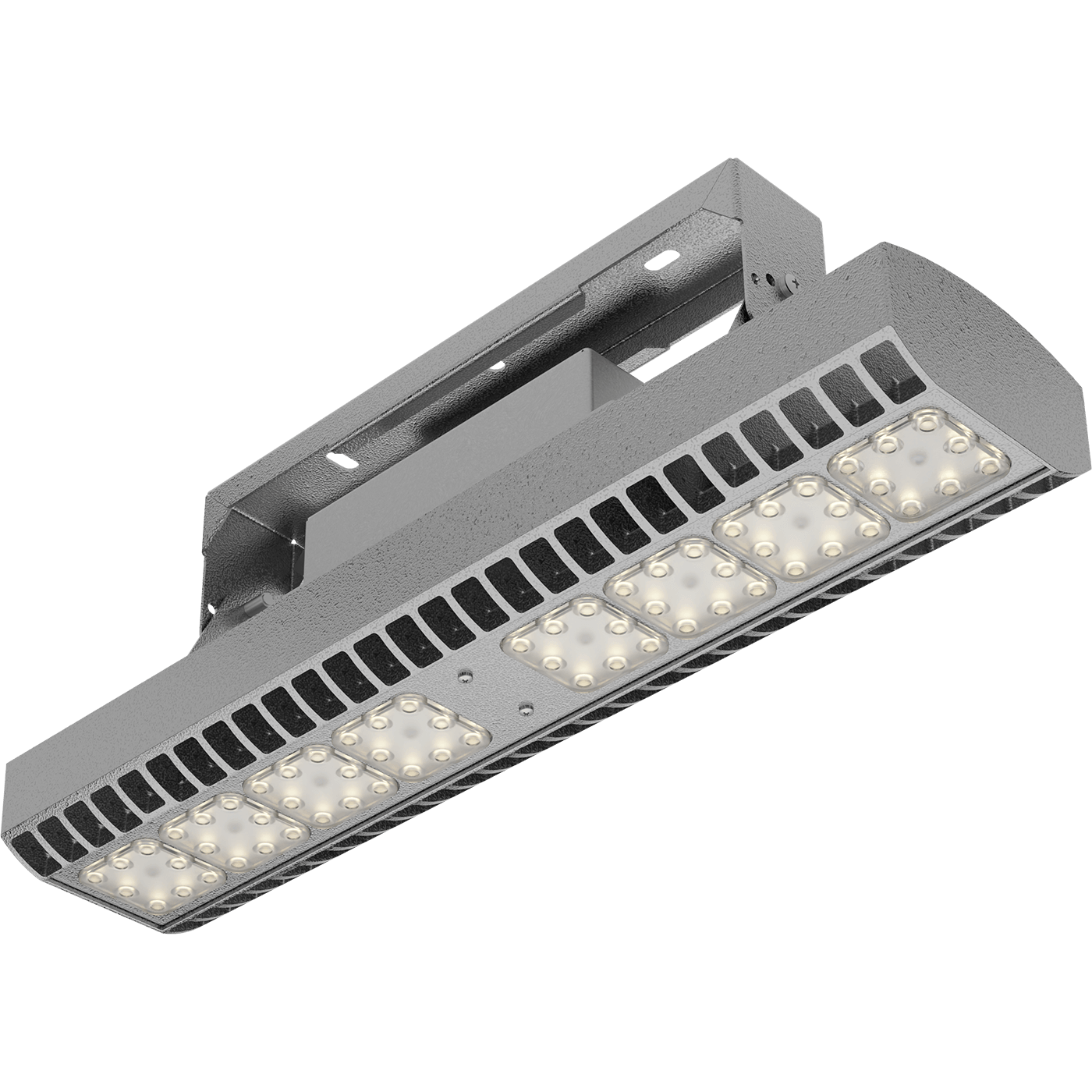

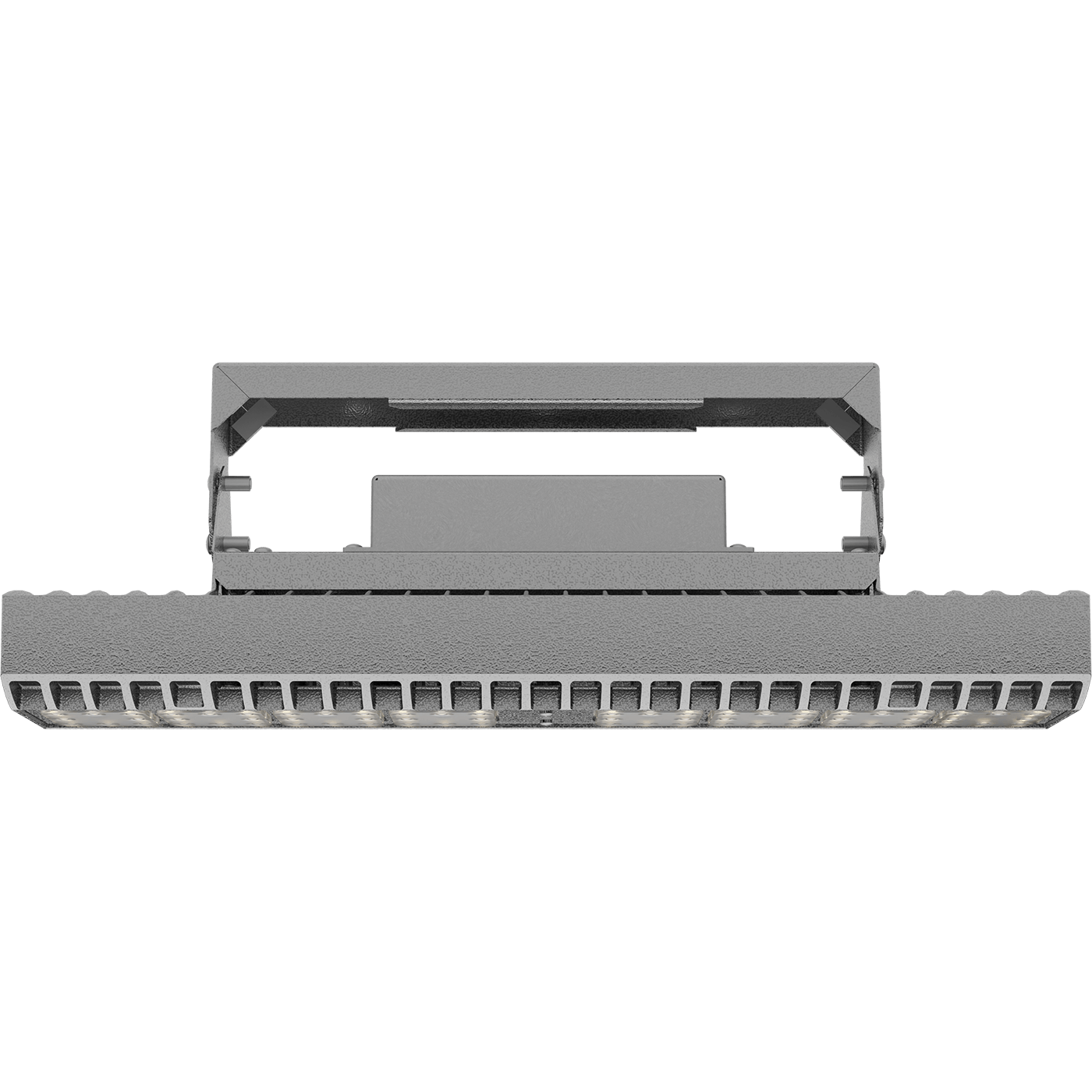

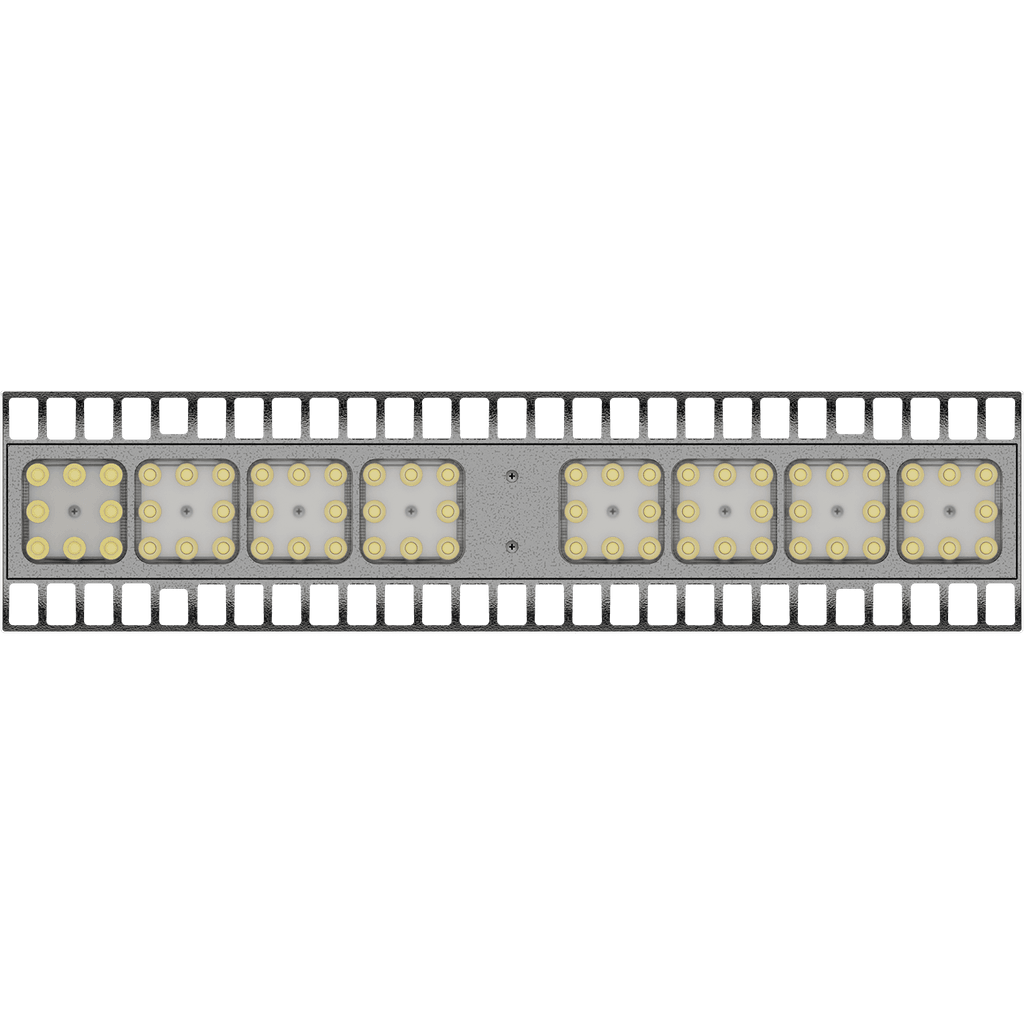

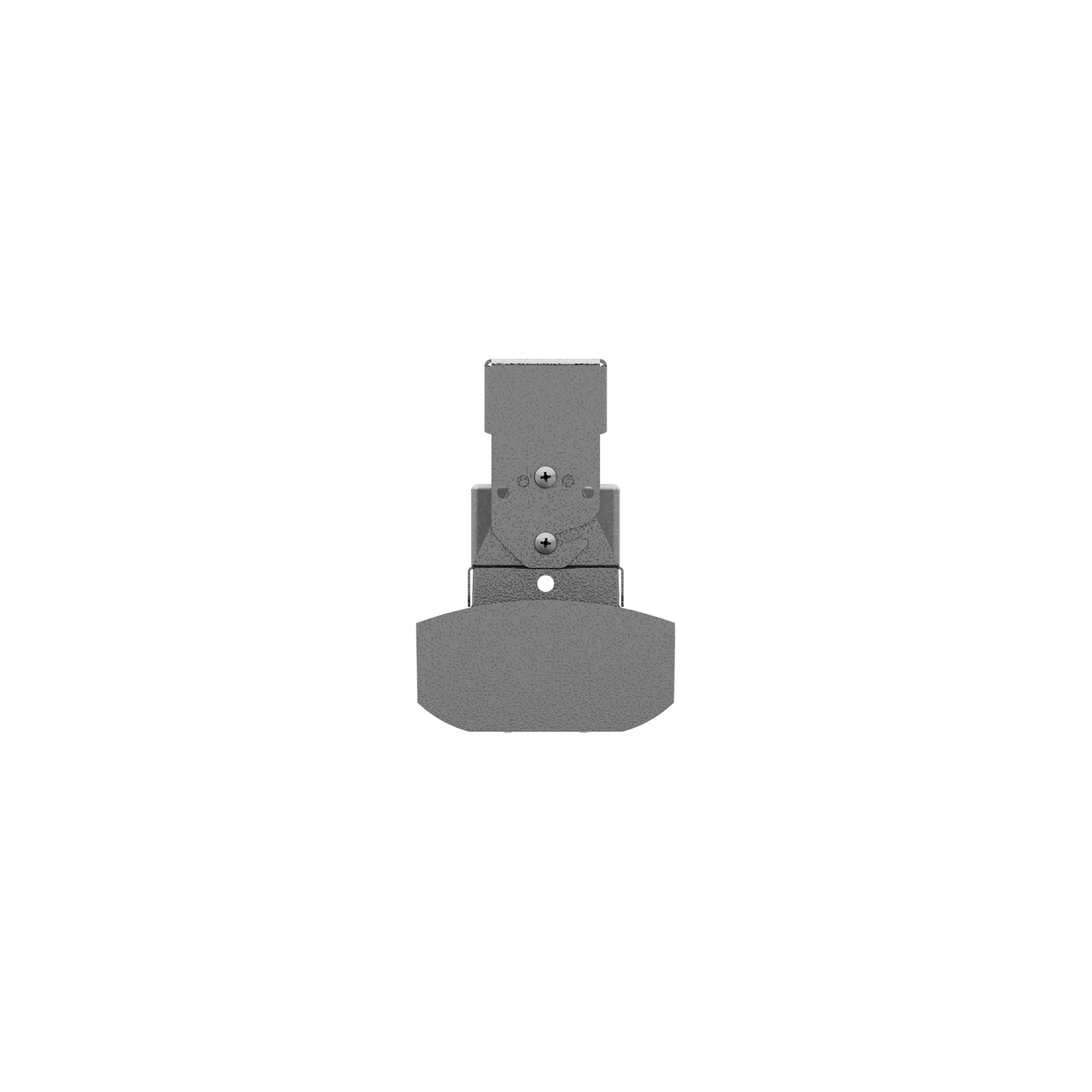

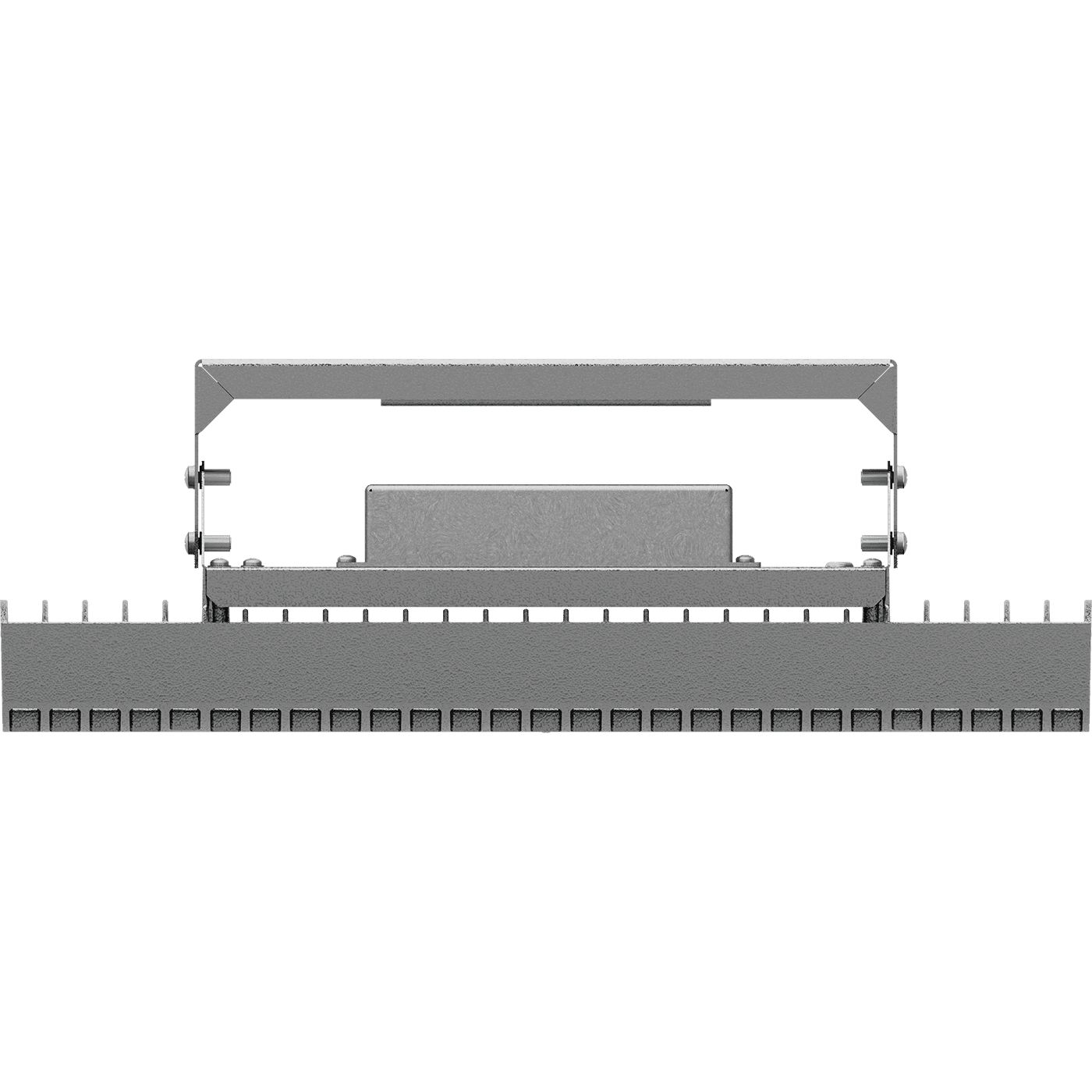

HB LED 100 D60 4000K G2 Sport
model is discontinued
.png&w=1920&q=100)
.png&w=1024&q=75)
model is discontinued
HB LED 100 D60 4000K G2 Sport
108 Wluminaire power
10600 lmlight flow
98 lm/Wenergy efficiency
code1224005910
color temperature4000 K
beam angleD60
weight4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
10600 lmflickering factor
<1%energy efficiency
98 lm/Wbeam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
10600 lm
flickering factor
<1%
energy efficiency
98 lm/W
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
108 W
electric shock protection
I
maximum cross-section of the connected cable
4 mm2
supply voltage
230 V
constructional
climatic performance
УХЛ1
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
shock resistance (IK)
IK07/2 Дж
weight
4 kg
ingress protection (IP)
IP65
length
463 mm
width
110 mm
height
160 mm
installation length
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +55 C
code
1224005910
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
