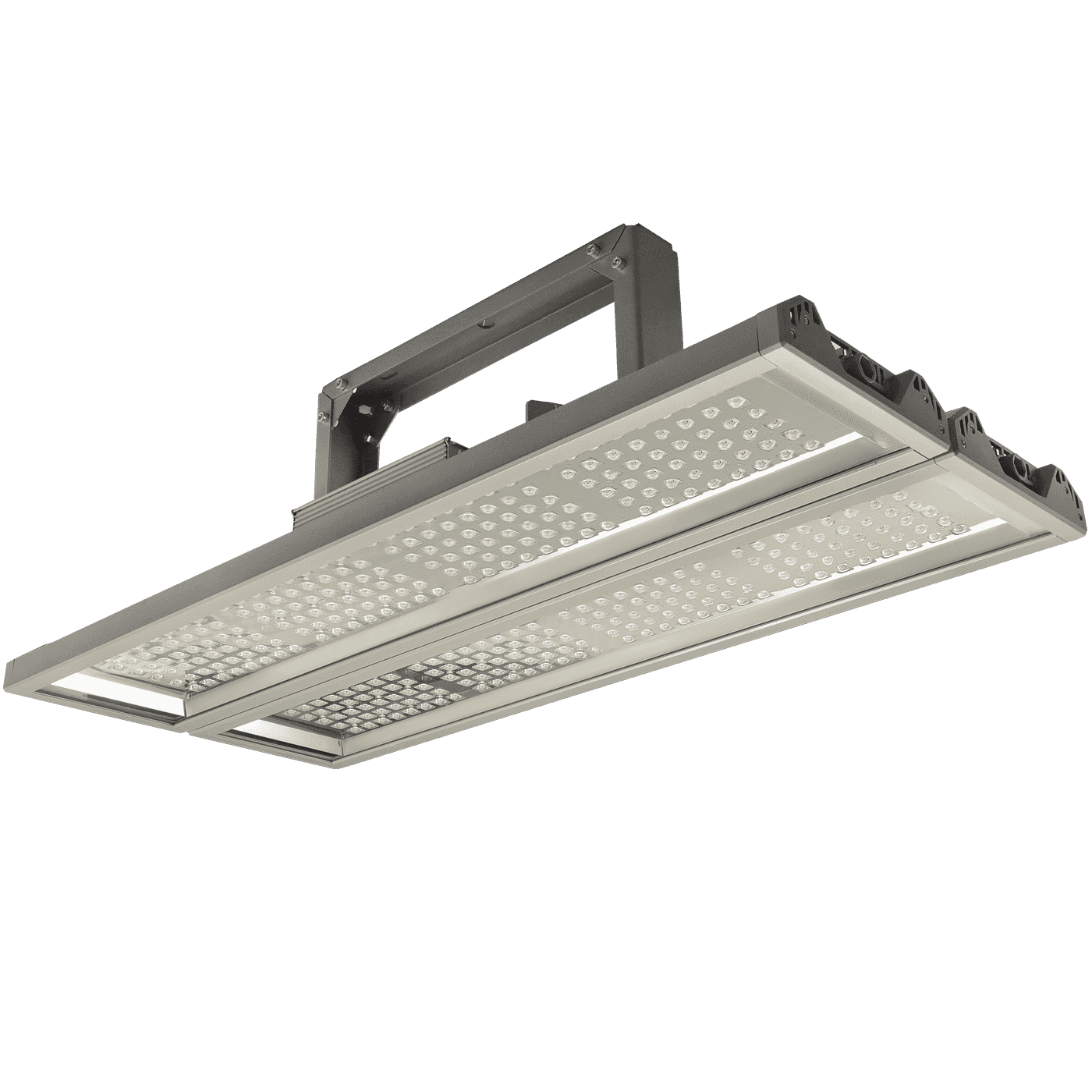

HB LED 800 D60 5000K (380V protection)

archive
archive
HB LED 800 D60 5000K (380V protection)
add to favorites
830 Wluminaire power
107600 lmlight flow
130 lm/Wenergy efficiency
code1224002440
beam angleD60
color temperature5000
weight28 kg
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. spotlights
  6. HB LED FLOODLIGHT
  7. HB LED 800 D60 5000K (380V protection)
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP65
housing color
Металлик
length, mm
710 mm
width, mm
535 mm
height, mm
360 mm
weight
28 kg
fire safety class
П-ІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
340 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
constructional
ingress protection (IP)
IP65
housing color
Металлик
length, mm
710 mm
width, mm
535 mm
height, mm
360 mm
weight
28 kg
fire safety class
П-ІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK07/2 Дж
installation length, mm
340 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
56 A
starting current pulse time, µs
360 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
180-528 V
supply voltage, direct current
250-740 V
luminaire power
830 W
power factor
> 0,97
supply voltage
380 V
common
code
1224002440
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
107600 lm
energy efficiency
130 lm/W
flickering factor
<1%
beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS408.6 kB
model 3dMax2.6 mB
photometric files
ies134.1 kB
jpg64.7 kB
ldt76.9 kB
documents
passport3.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS408.6 kB
model 3dMax2.6 mB
photometric files
ies134.1 kB
jpg64.7 kB
ldt76.9 kB
documents
passport3.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
accessories
Straight bracket HB LED FLOODLIGHT4.1kgarticle: 2224000280
