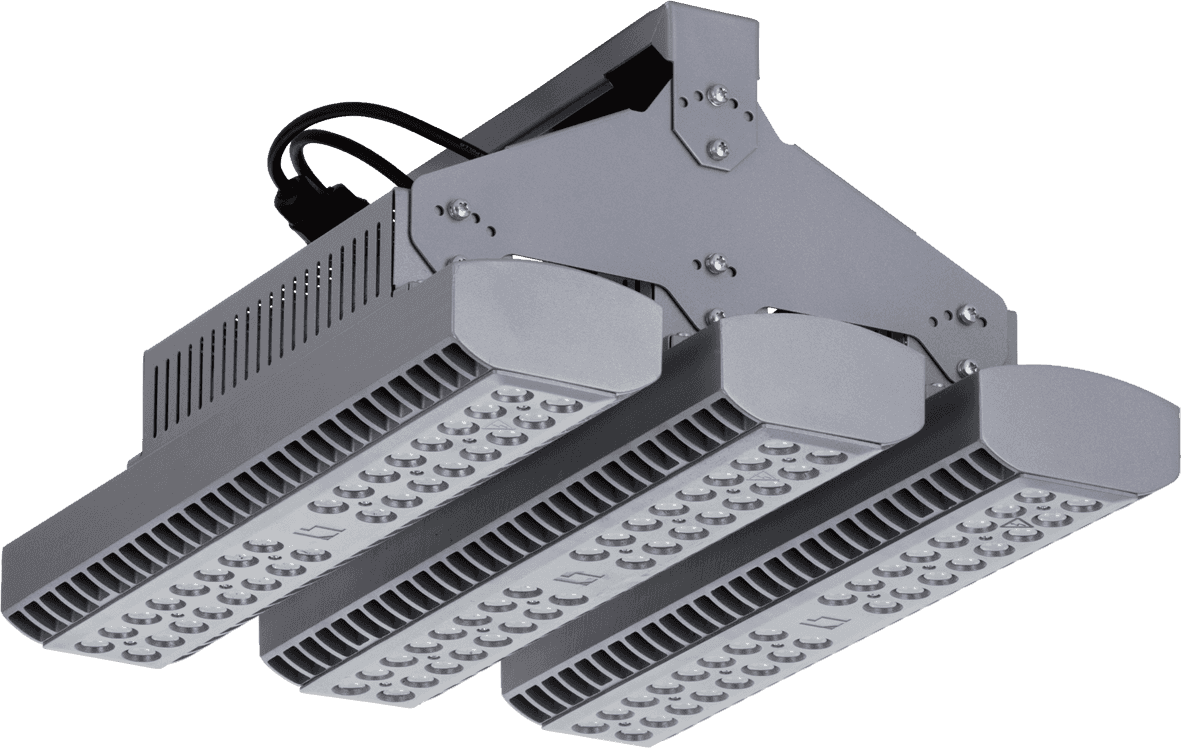

HB LED 800 D08 DMX 5700K (CRI 90)
model is discontinued
model is discontinued
HB LED 800 D08 DMX 5700K (CRI 90)
870 Wluminaire power
91600 lmlight flow
105 lm/Wenergy efficiency
code1224005790
beam angleA30
color temperature5700 K
weight37.5 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
105 lm/Wcolor rendition index (CRI)
>90light flow
91600 lmflickering factor
<5%beam angle
A30color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
105 lm/W
color rendition index (CRI)
>90
light flow
91600 lm
flickering factor
<5%
beam angle
A30
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
luminaire power
870 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
supply voltage, alternating current
100-305 V
power factor
> 0,96
constructional
climatic performance
УХЛ1
fire safety class
П-ІІ
width
463 mm
height
360 mm
installation width
100 mm
installation length
320 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
880 mm
material
Алюминий
ingress protection (IP)
IP65
shock resistance (IK)
IK02/0,2 Дж
weight
37.5 kg
LMS options
dimming
DMX
common
code
1224005790
warranty
60 month
energy efficiency class
A+
temperature range
от -60 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
