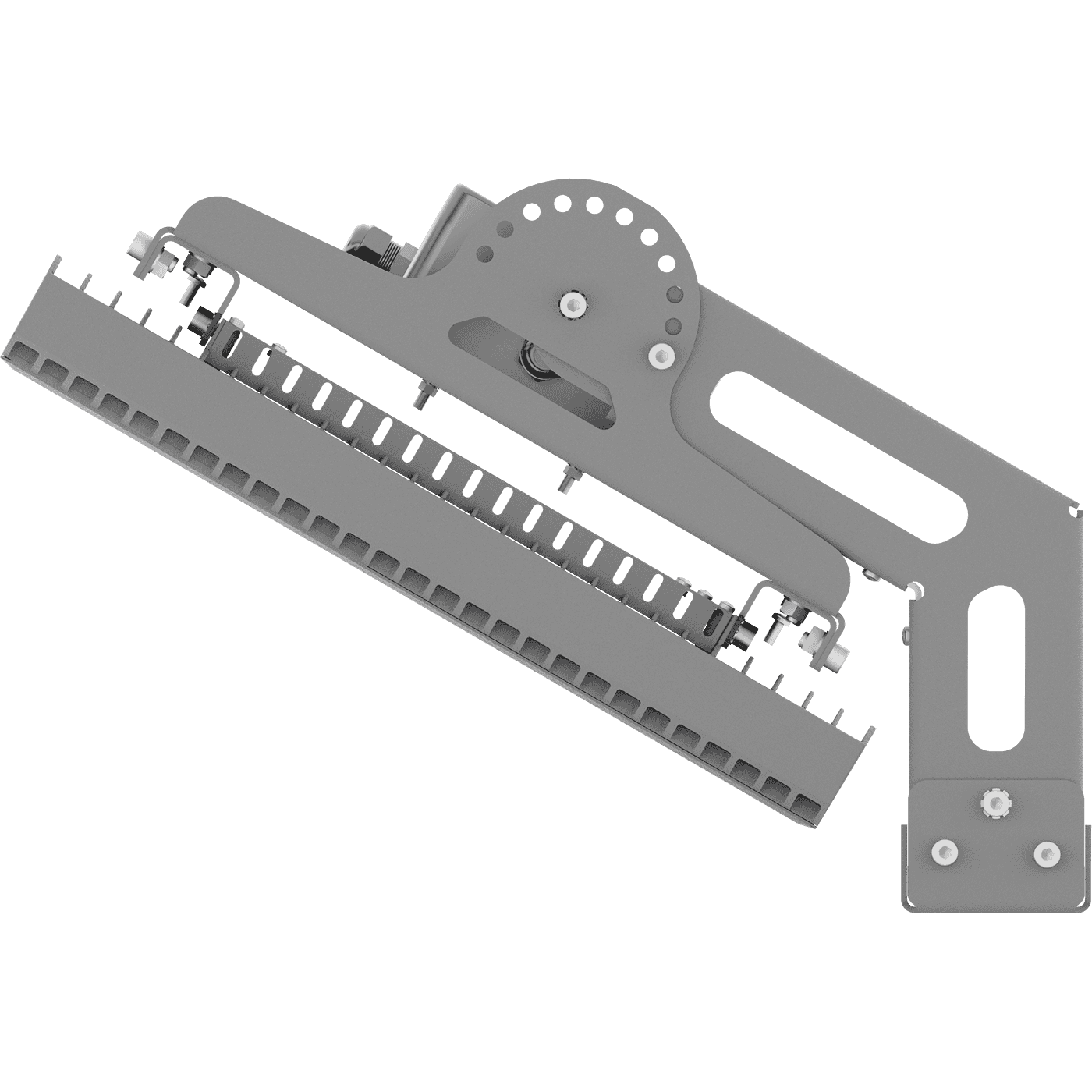

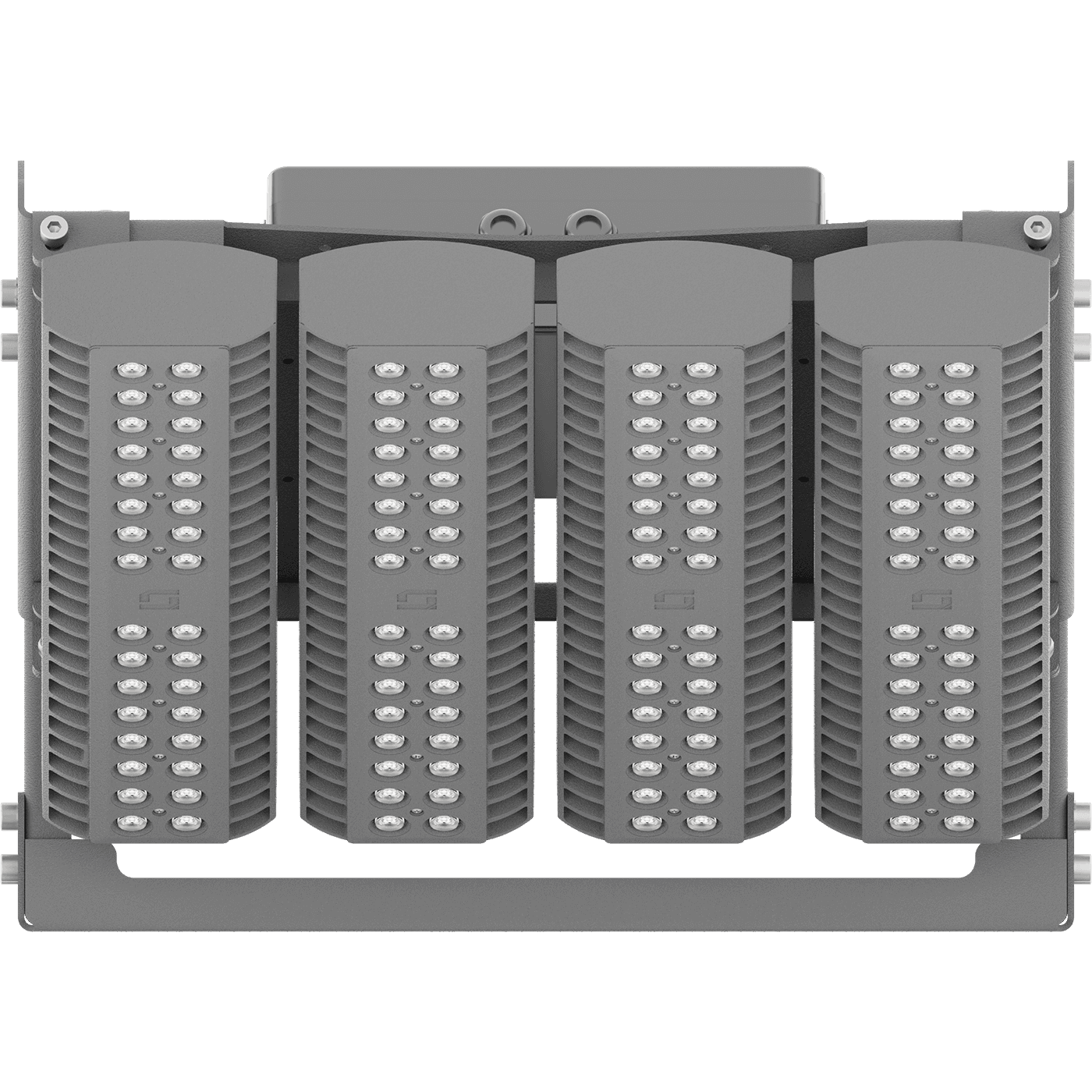

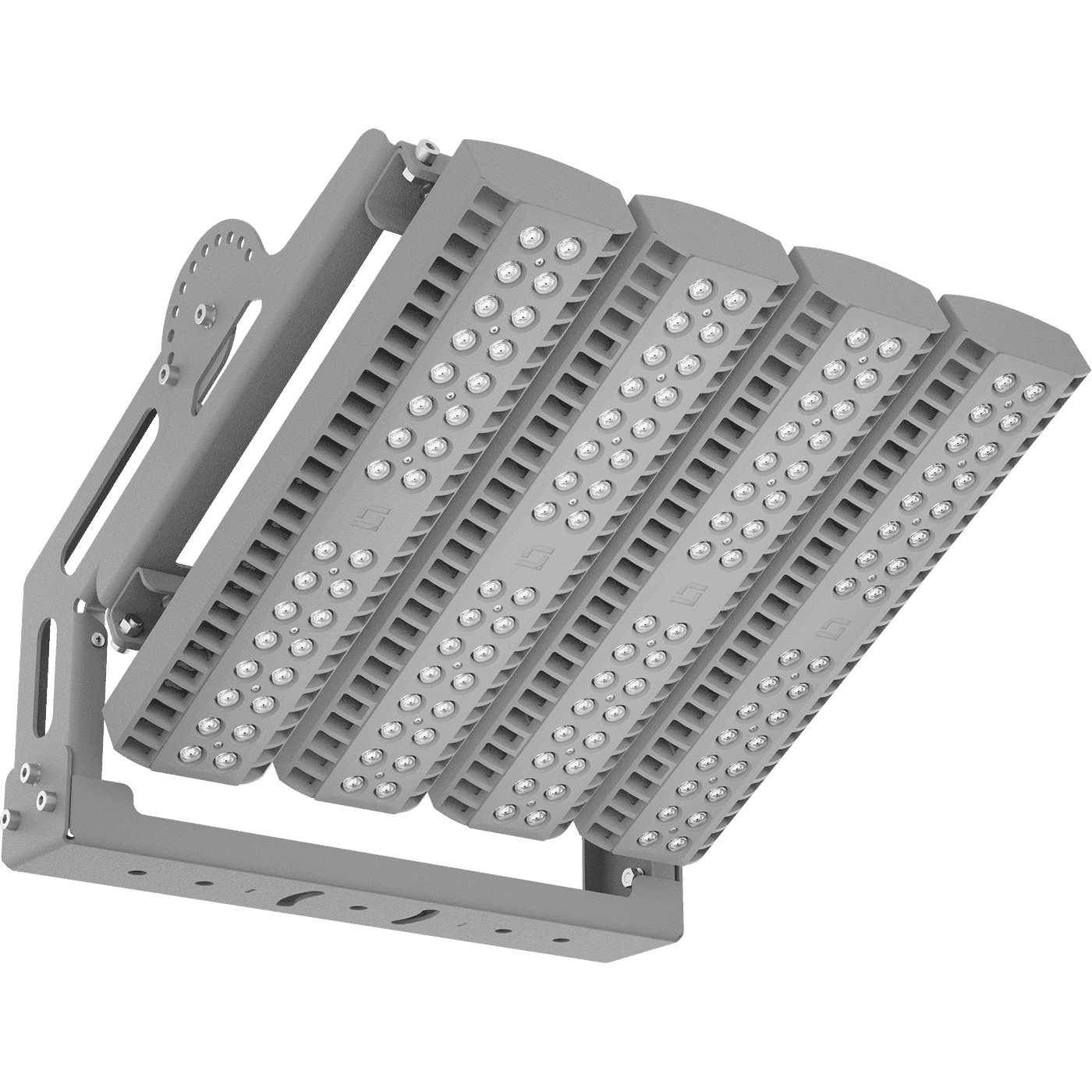

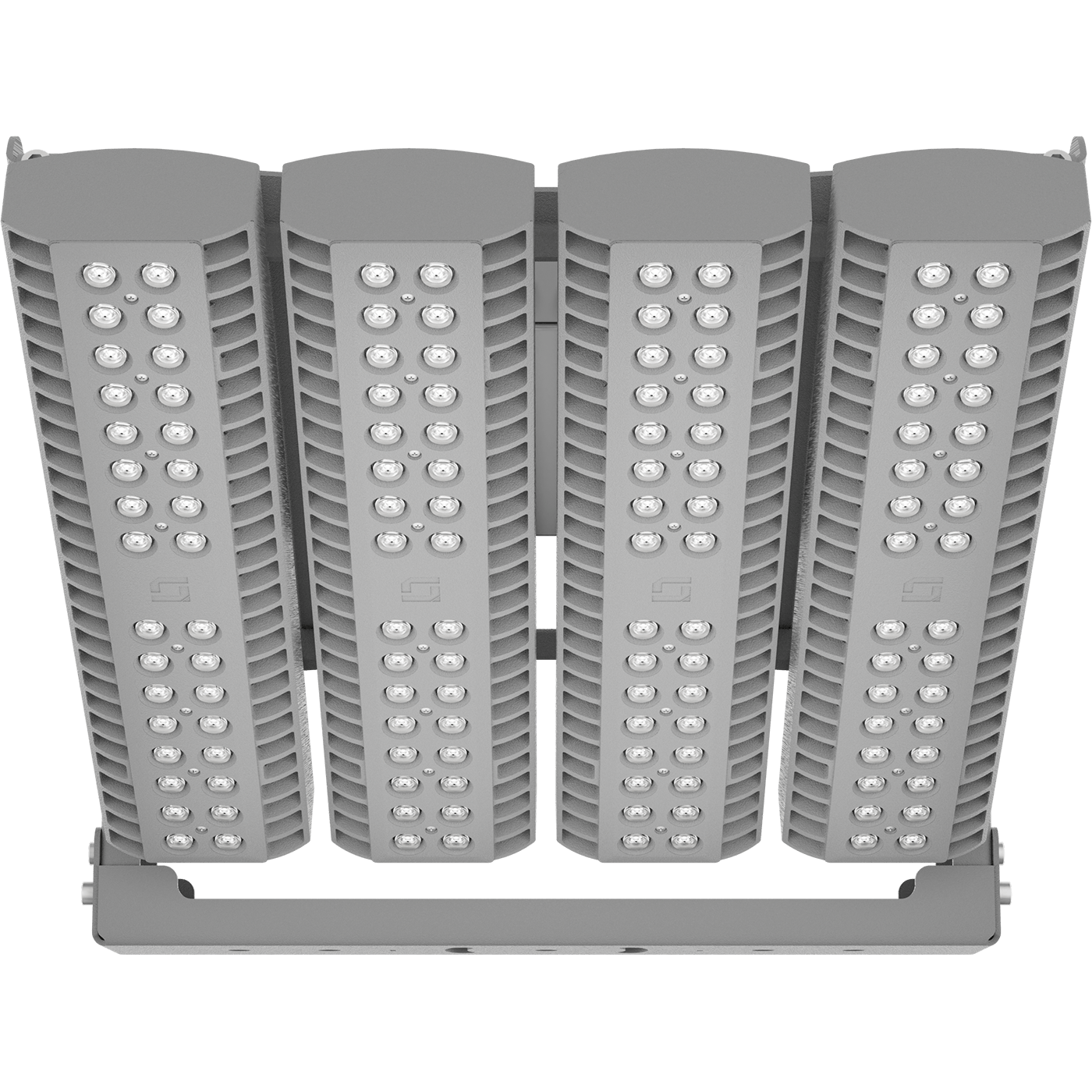

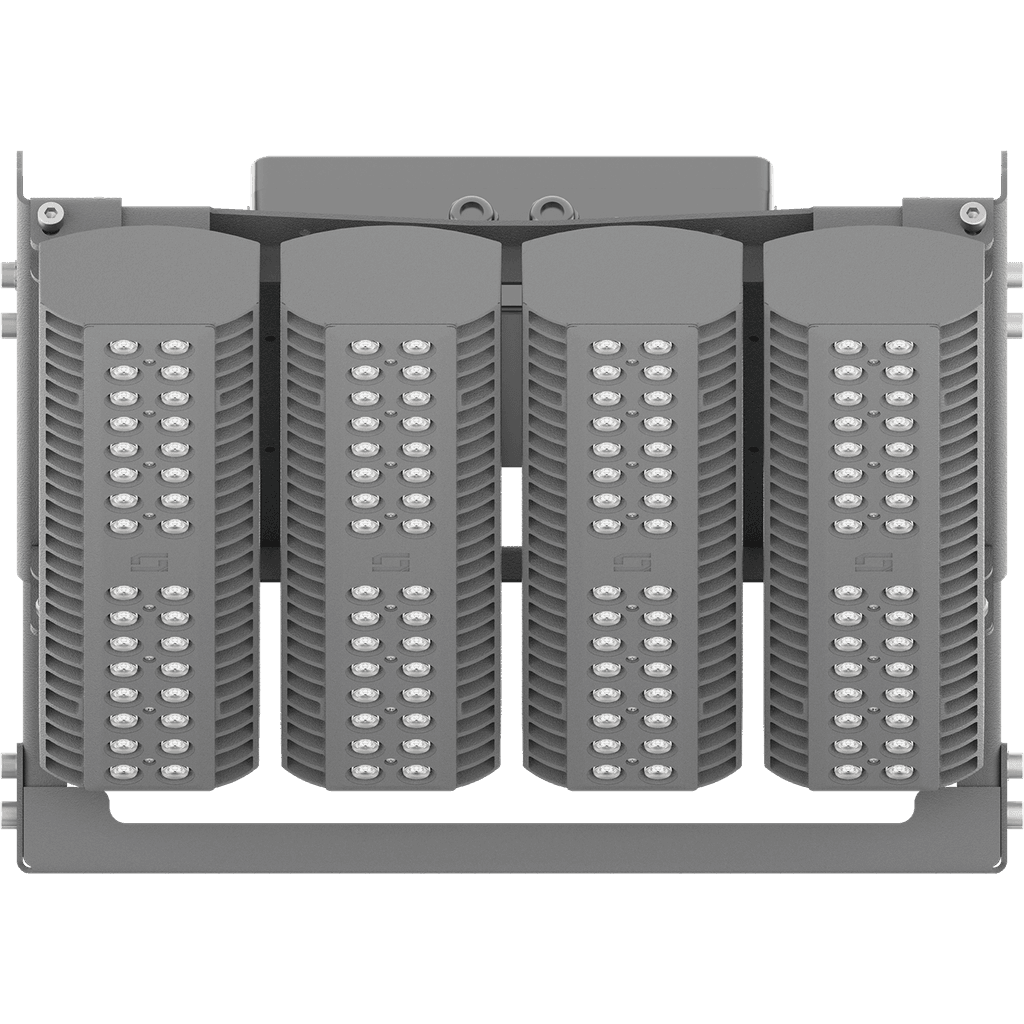

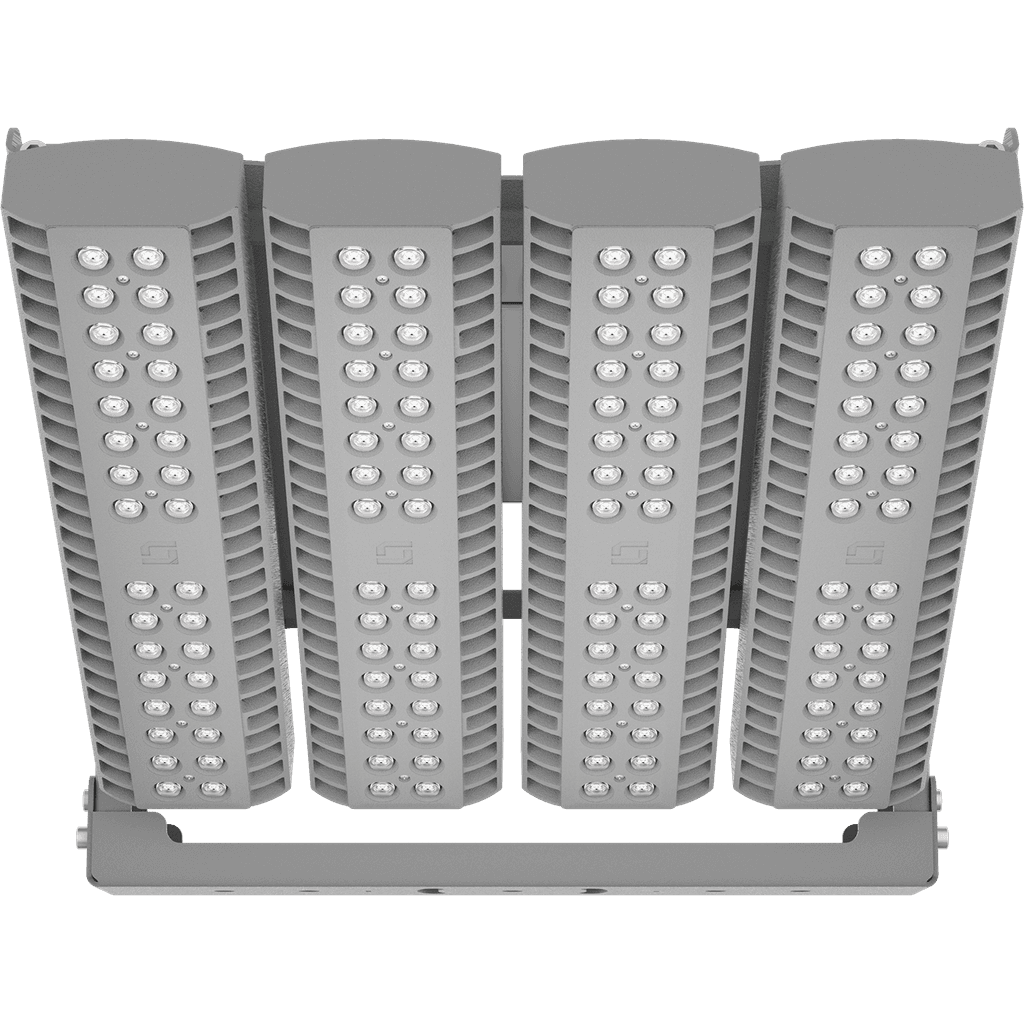

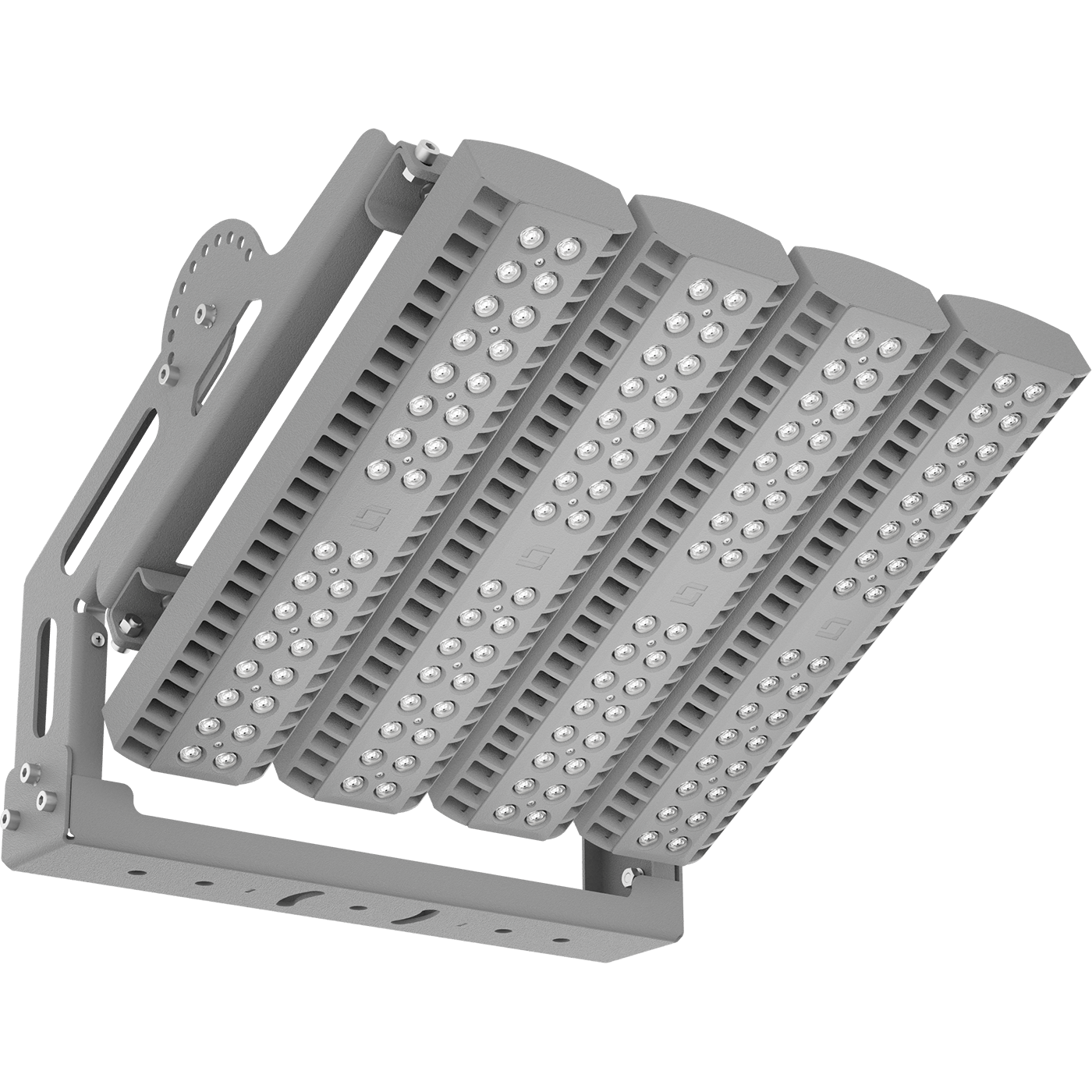

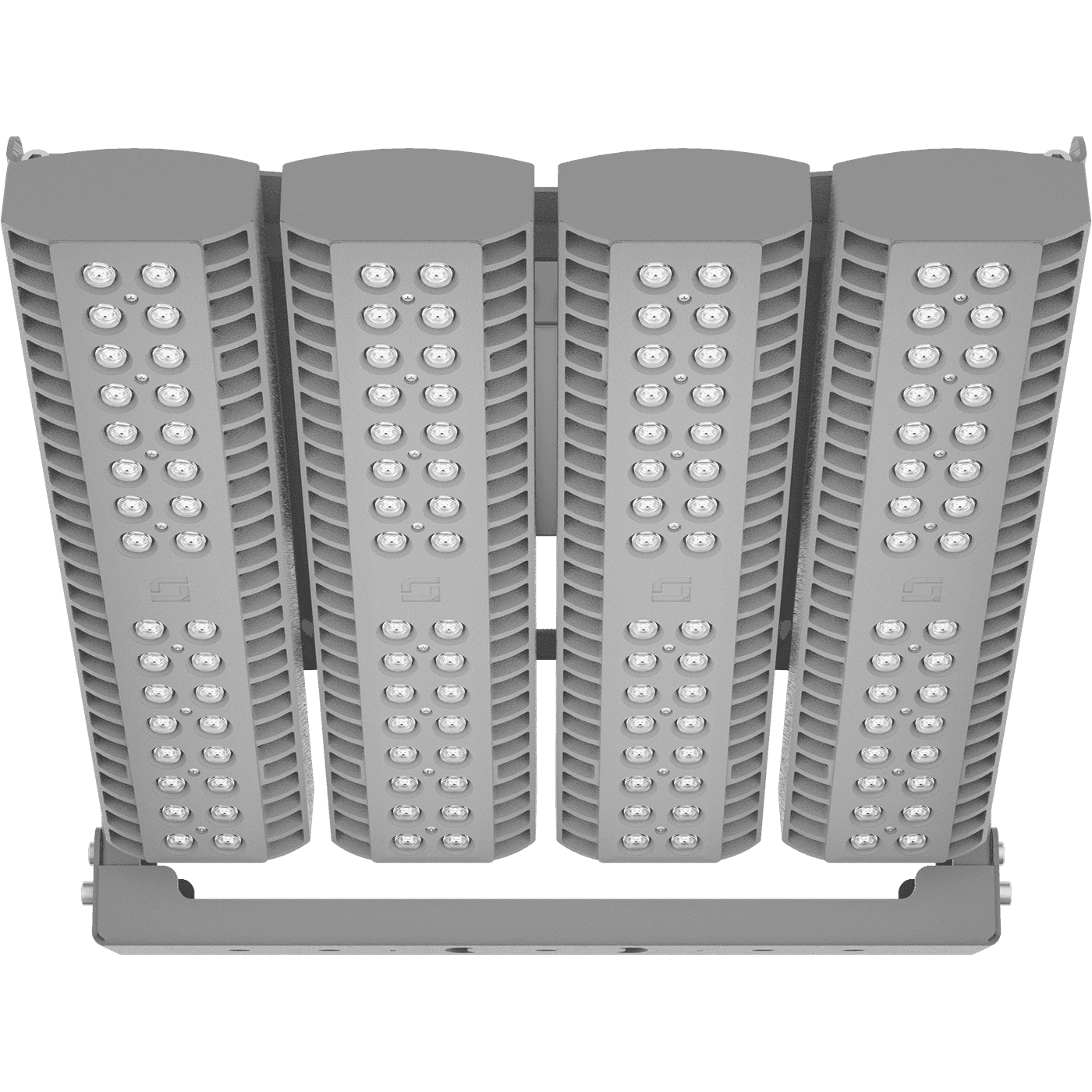

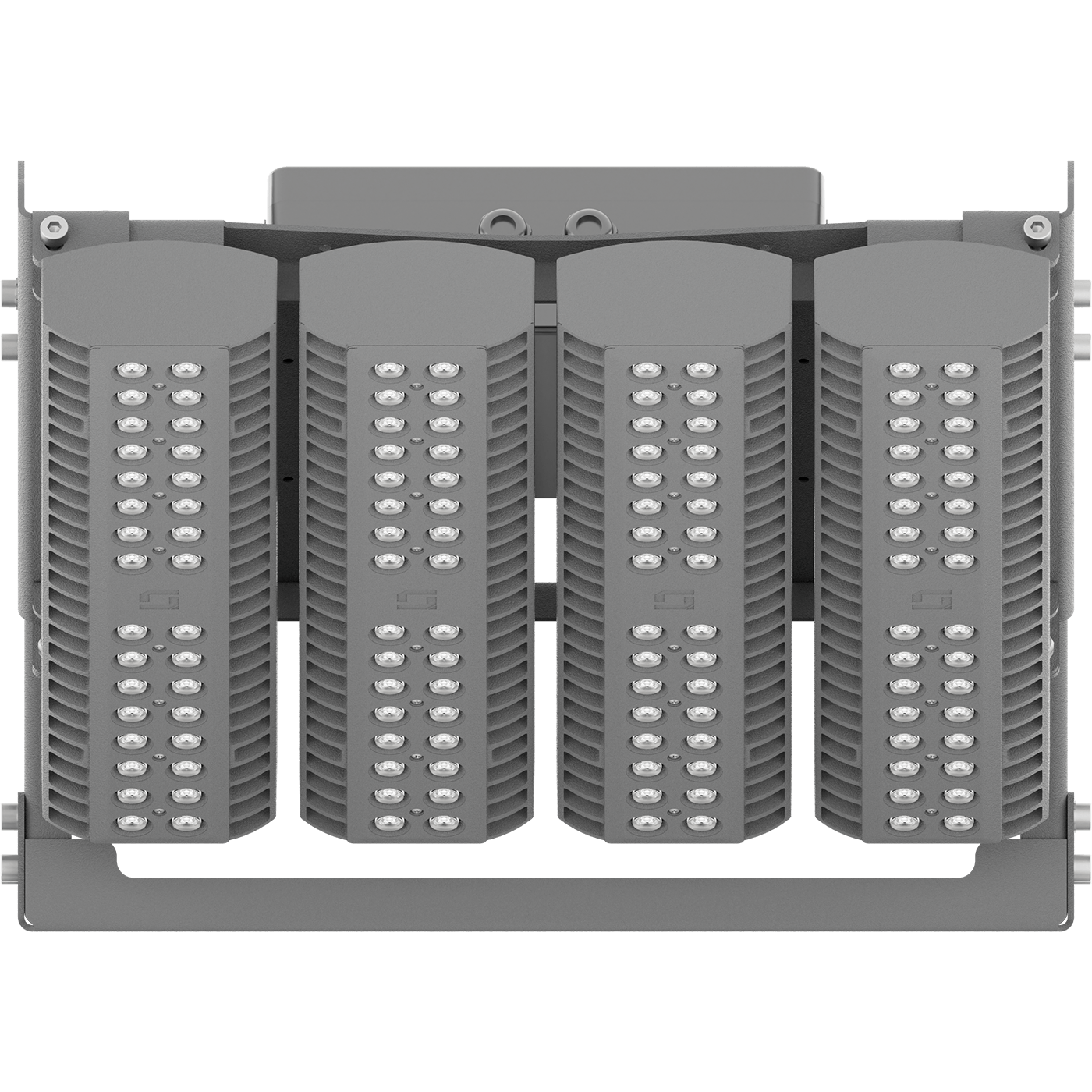

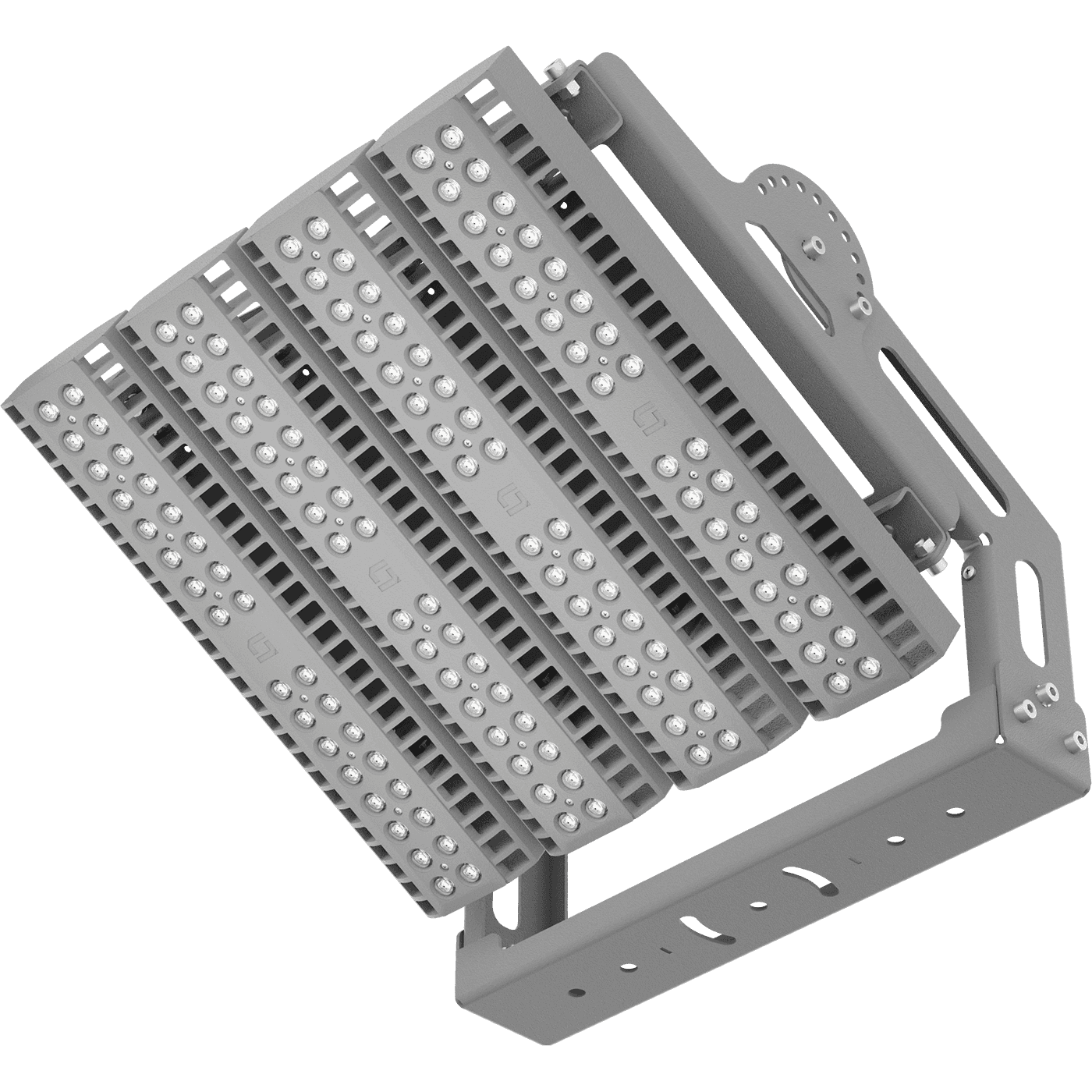

HB LED 400 A30 5700K (CRI90)
archive
archive
HB LED 400 A30 5700K (CRI90)
440 Wluminaire power
45000 lmlight flow
102 lm/Wenergy efficiency
code1224005110
beam angleA30
color temperature5700
weight20 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP65housing color
Металликlength, mm
535 mmwidth, mm
510 mmheight, mm
360 mmweight
20 kgfire safety class
П-ІІclimatic performance
УХЛ1maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK02/0,2 Джinstallation length, mm
340 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP65
housing color
Металлик
length, mm
535 mm
width, mm
510 mm
height, mm
360 mm
weight
20 kg
fire safety class
П-ІІ
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK02/0,2 Дж
installation length, mm
340 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
supply voltage, alternating current
90-300 V
luminaire power
440 W
power factor
> 0,96
supply voltage
230 V
common
code
1224005110
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +50 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>90
light flow
45000 lm
energy efficiency
102 lm/W
flickering factor
<5%
beam angle
A30
color temperature
5700
light source type
LED
emission color
Белый
