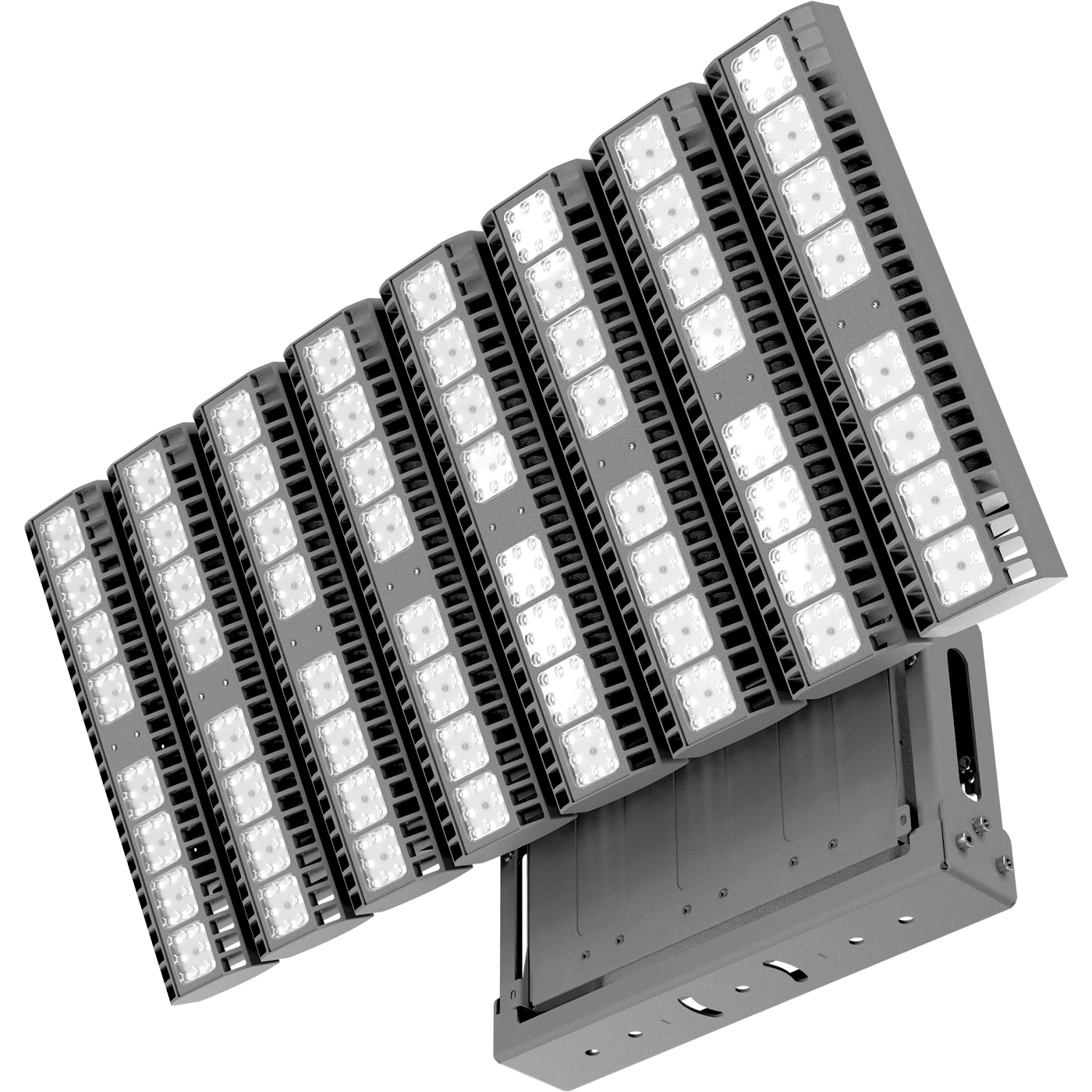

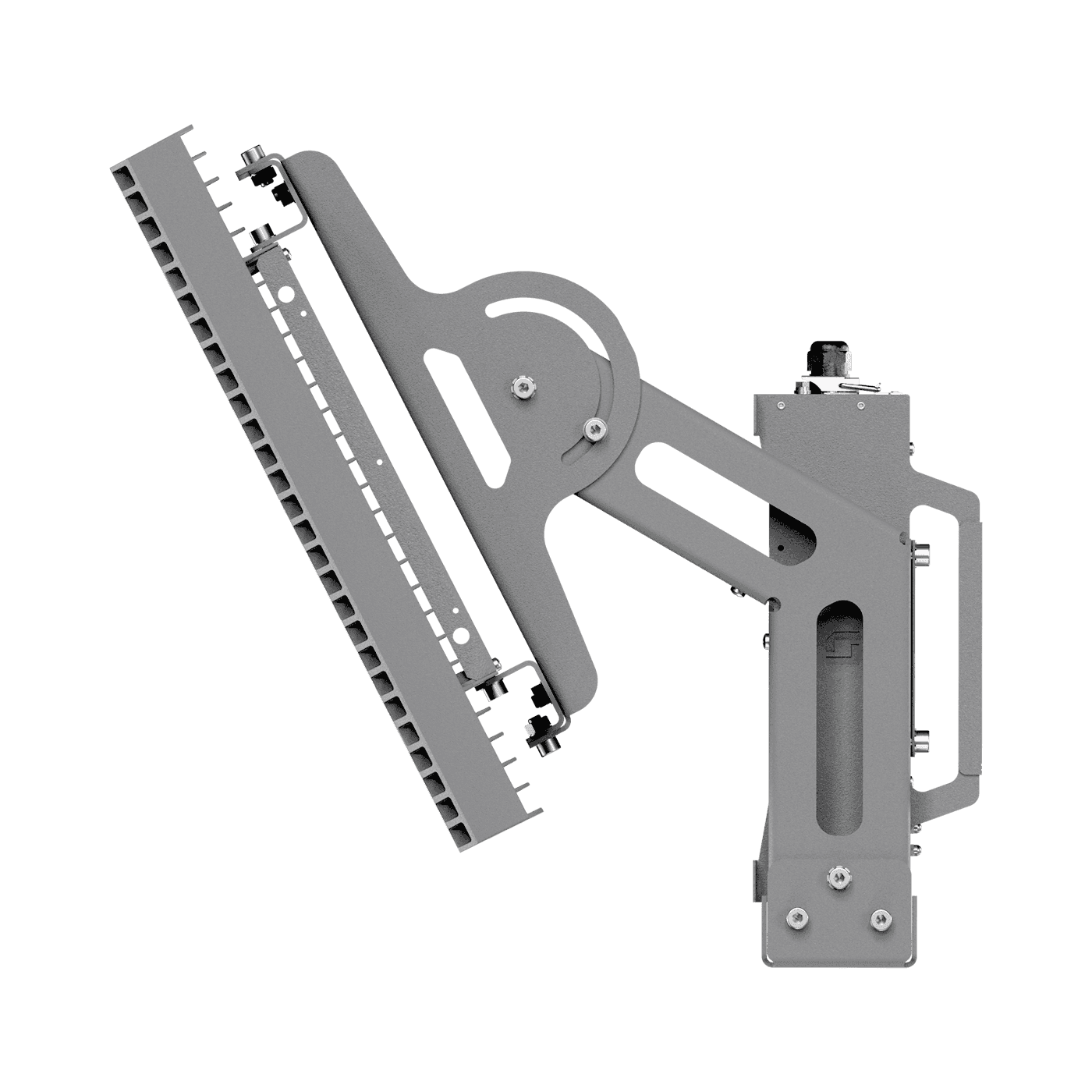

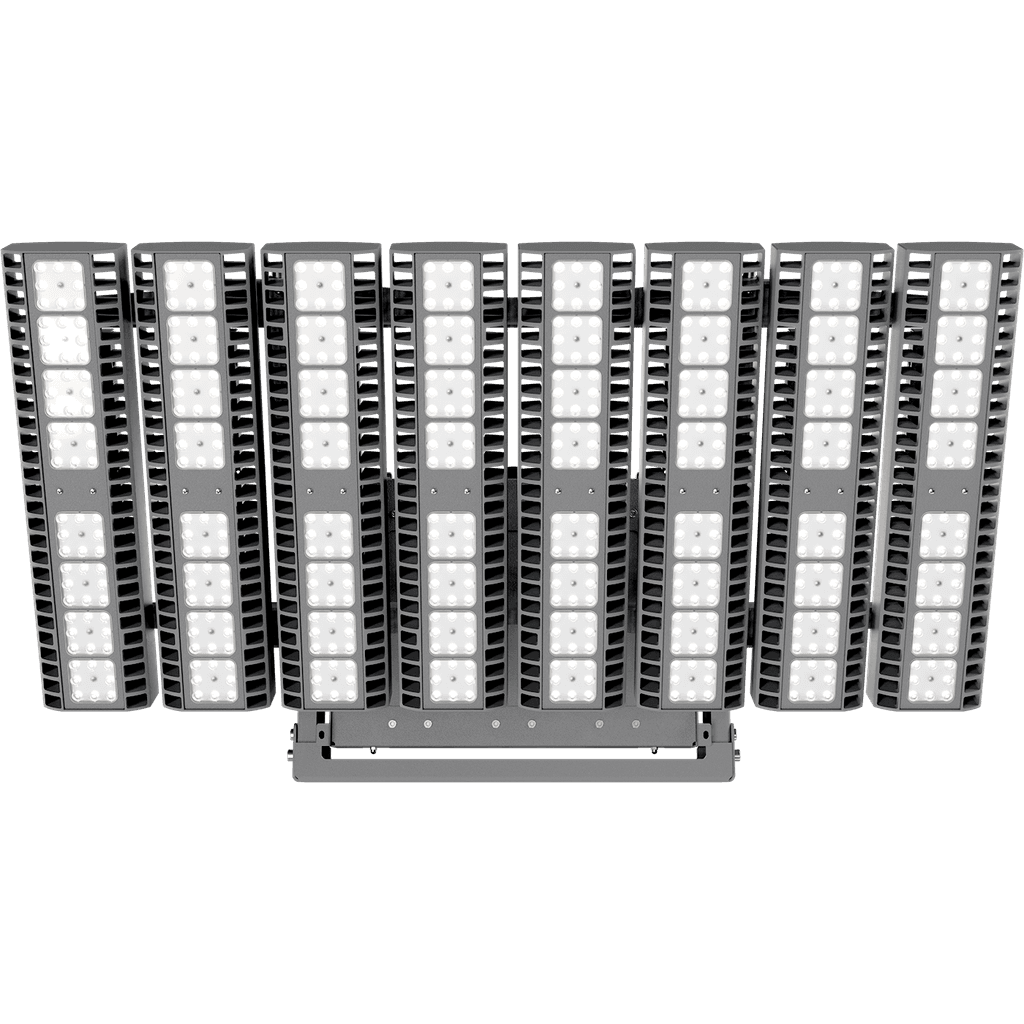

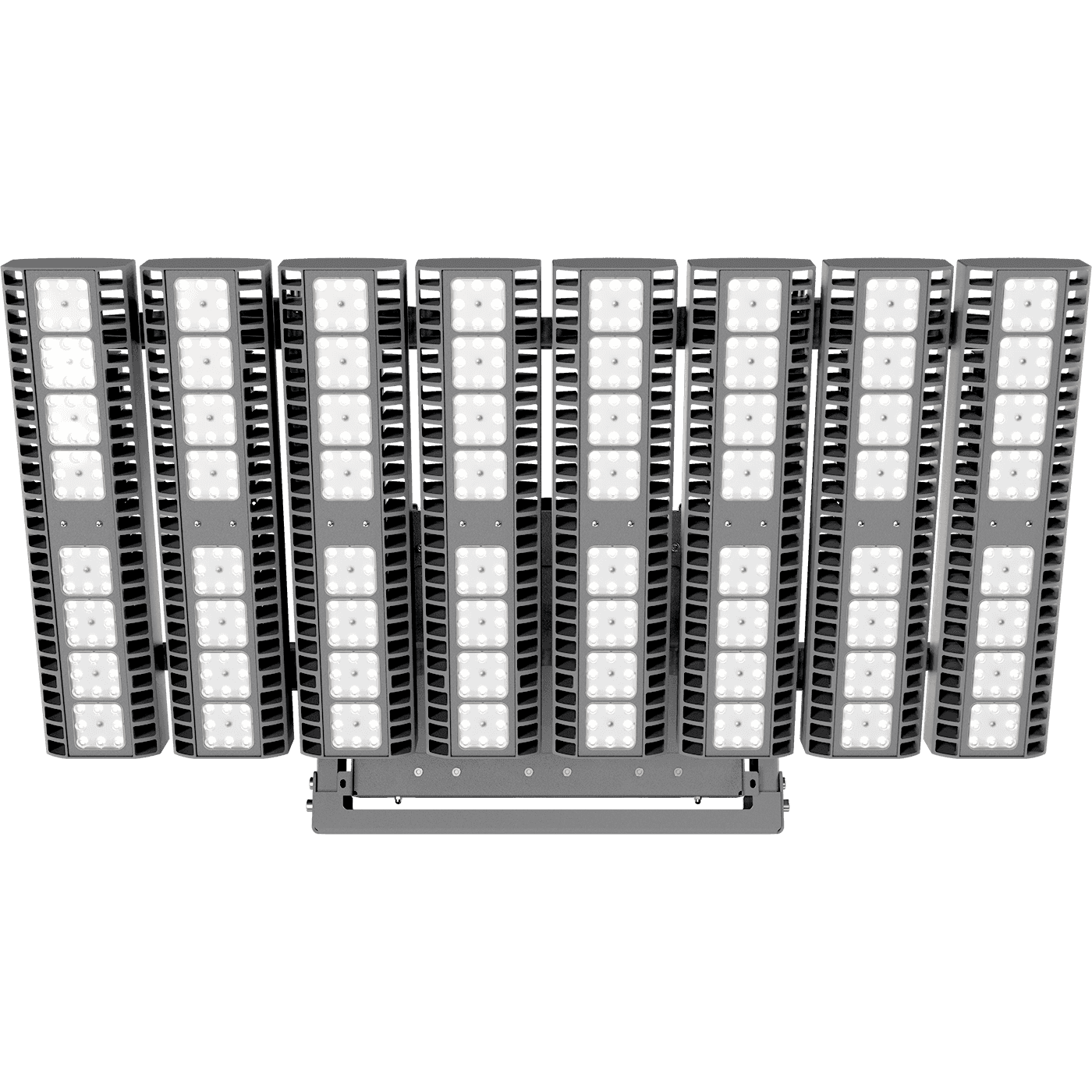

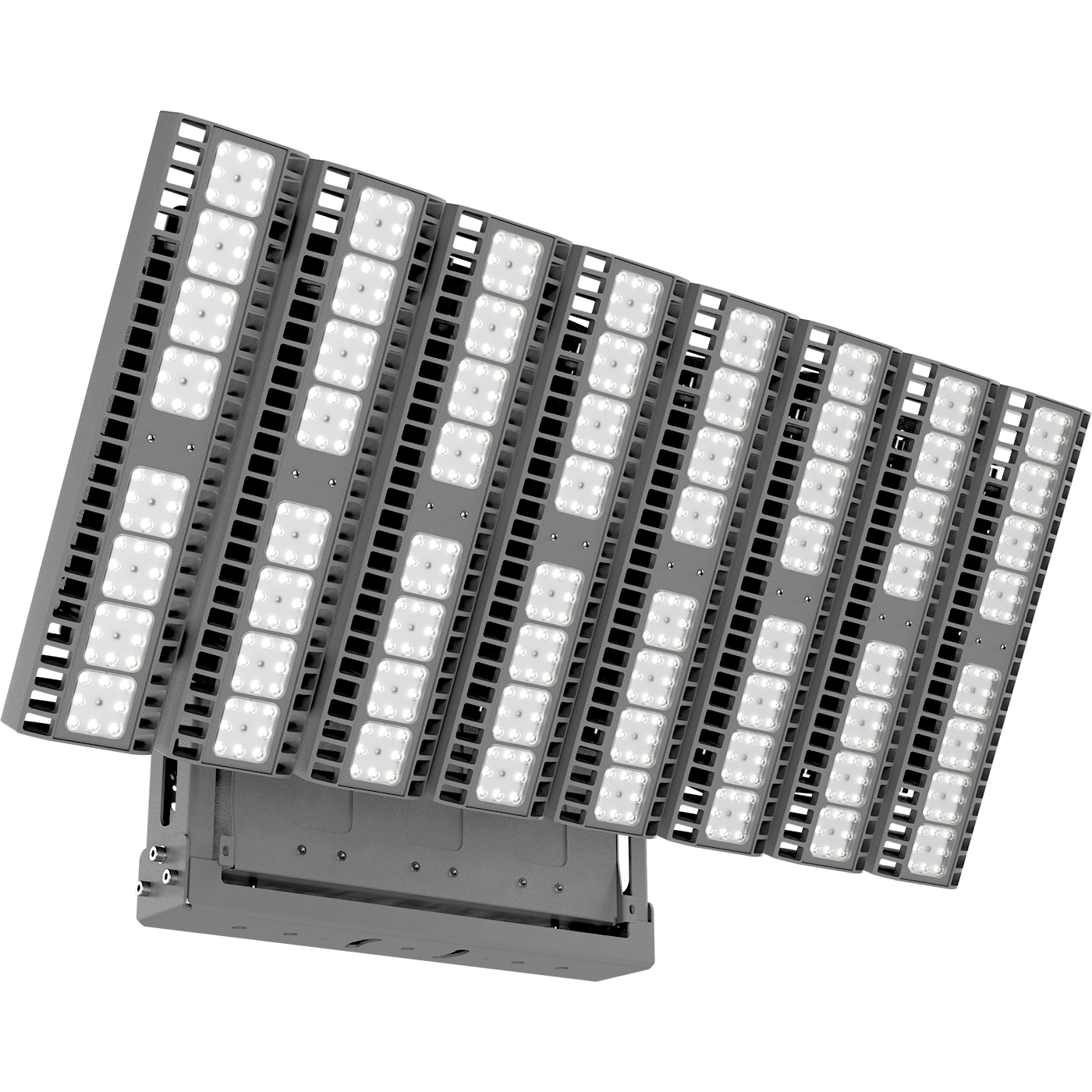

HB LED FLOODLIGHT G2 1100W D30 840 HG
HB LED FLOODLIGHT G2 1100W D30 840 HG
1050 Wluminaire power
140000 lmlight flow
133 lm/Wenergy efficiency
code1224008810
color temperature4000
beam angleD30
weight33 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
70 Astarting current pulse time, µs
1200 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-431 Vluminaire power
1050 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
70 A
starting current pulse time, µs
1200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-431 V
luminaire power
1050 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,ІІІ
material
Алюминий
weight
33 kg
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
950 mm
width, mm
535 mm
height, mm
360 mm
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
340 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +45 C
energy efficiency class
A+
service life, hour
50 000 h
code
1224008810
illuminating
light flow
140000 lm
flickering factor
<1%
energy efficiency
133 lm/W
beam angle
D30
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

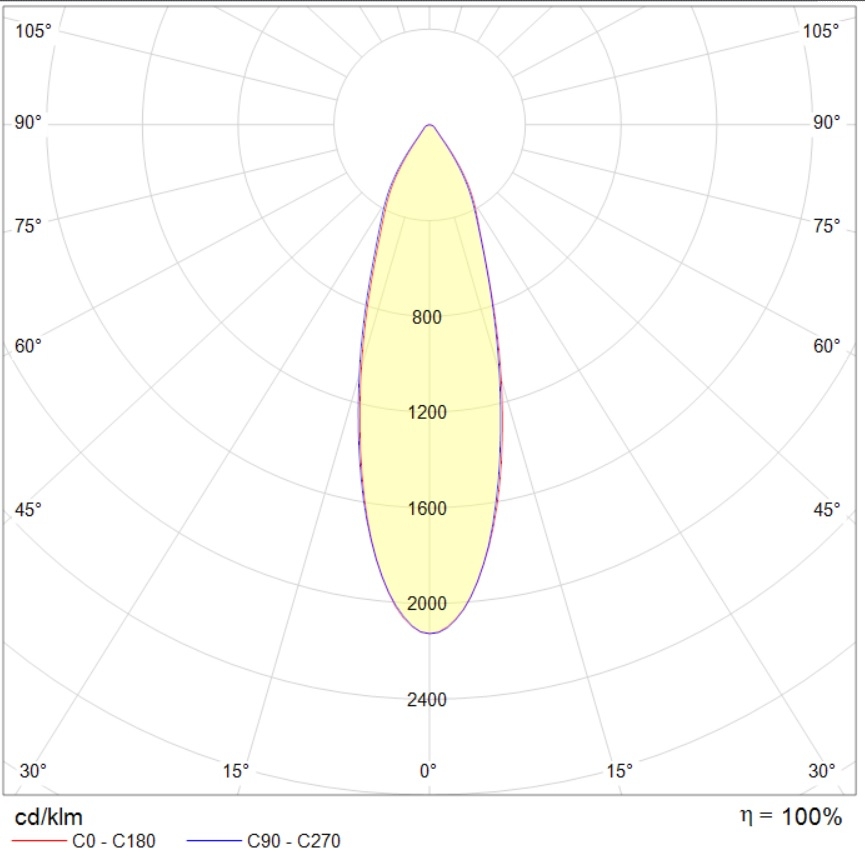

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg84.2 kB
ldt174.8 kB
documents
passport4.9 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
