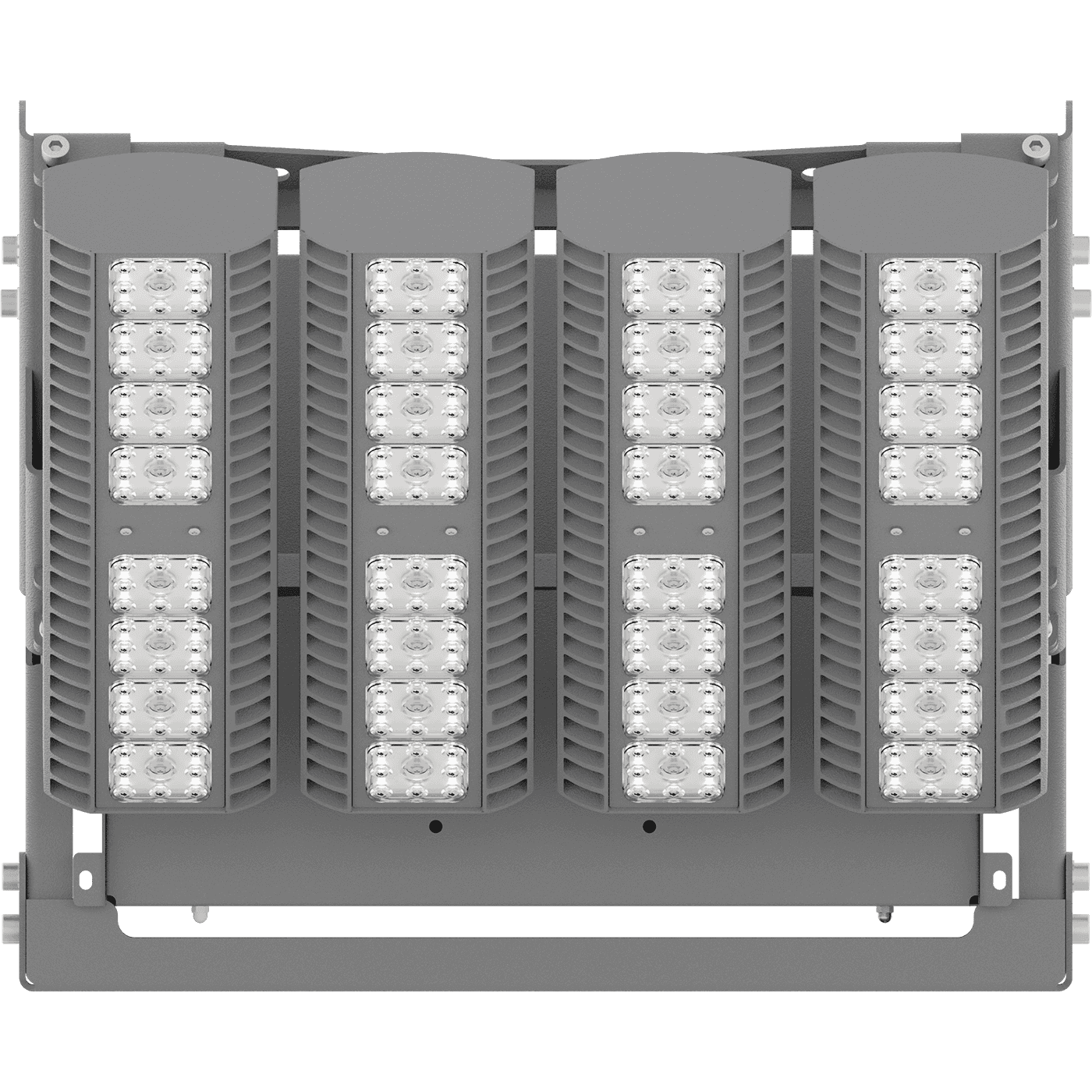

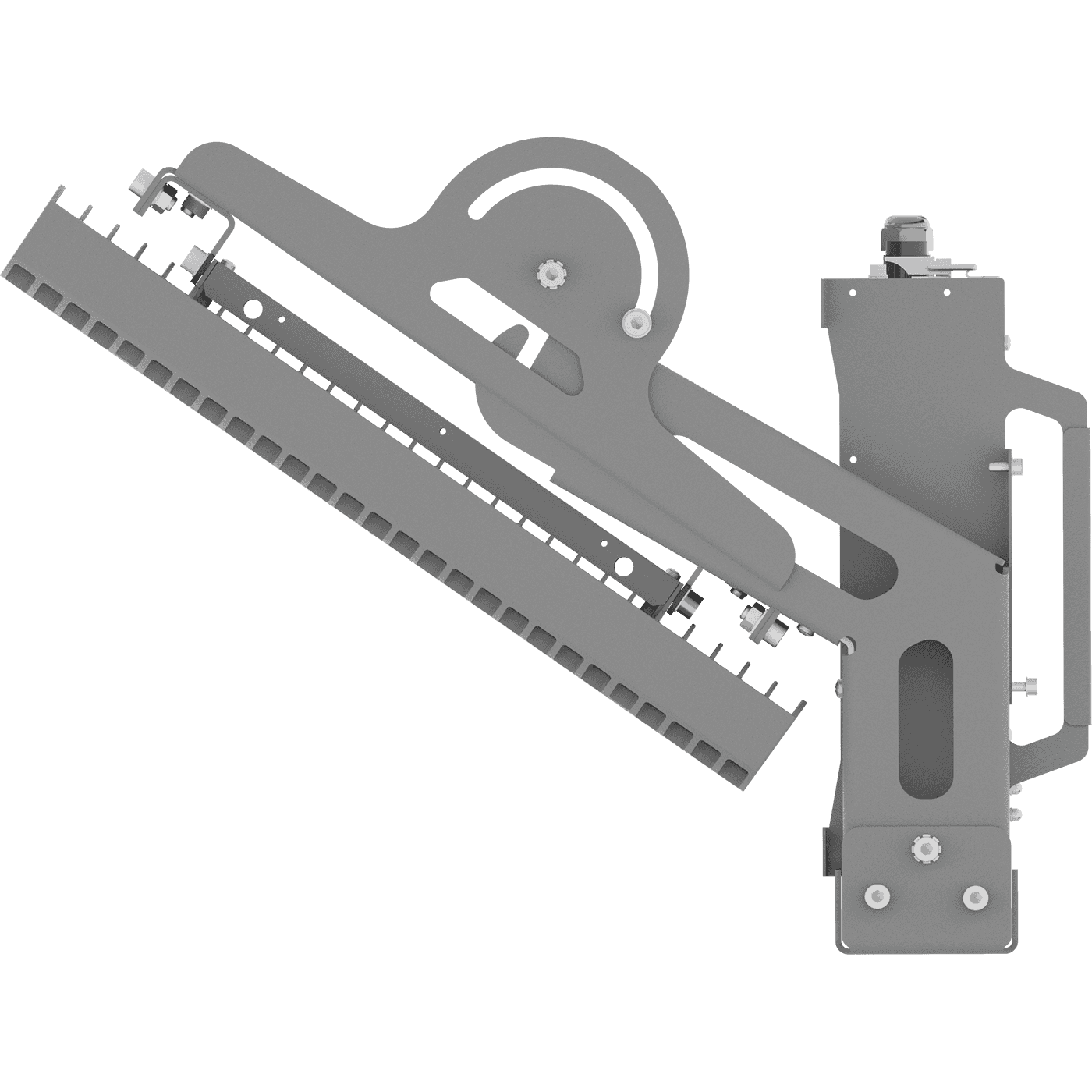

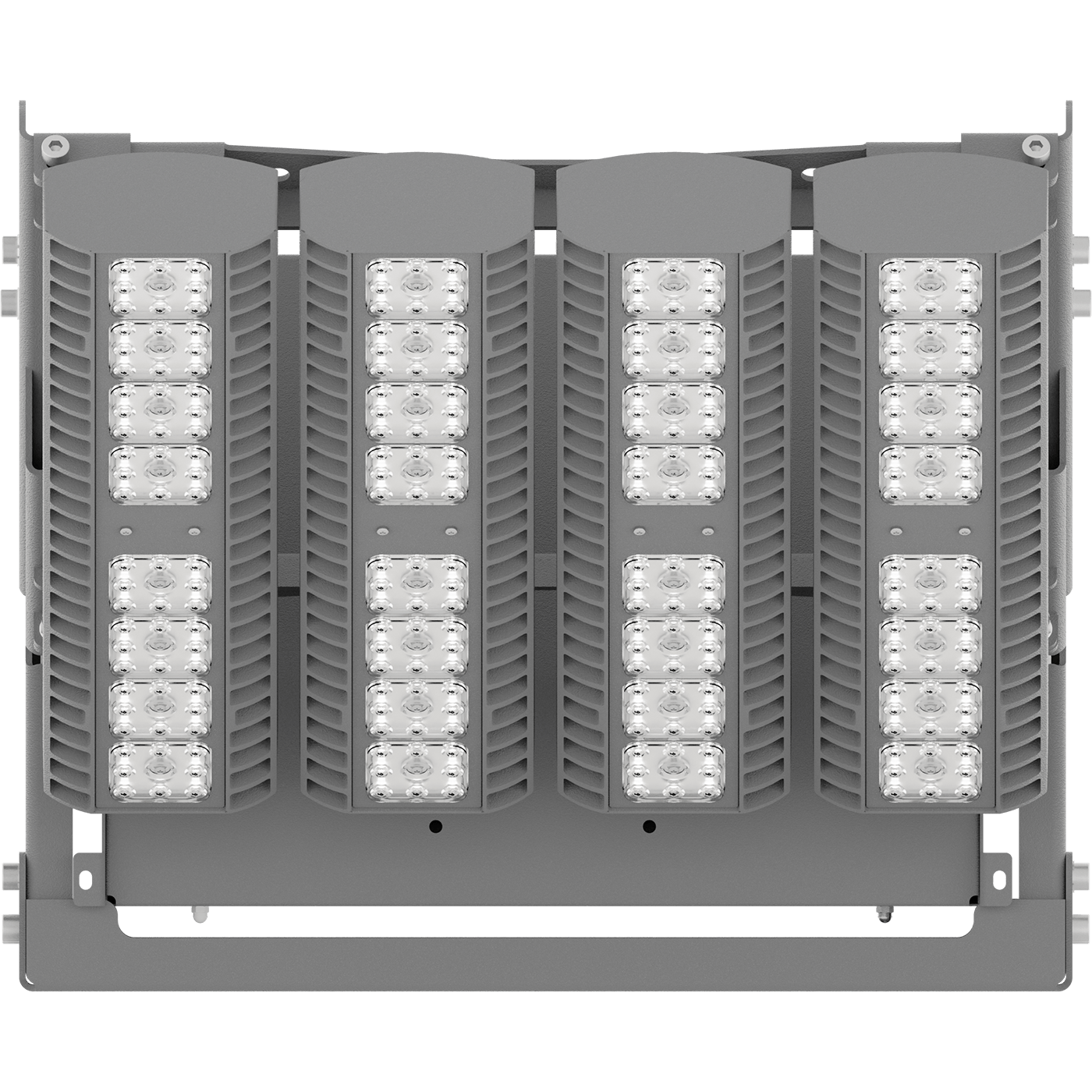

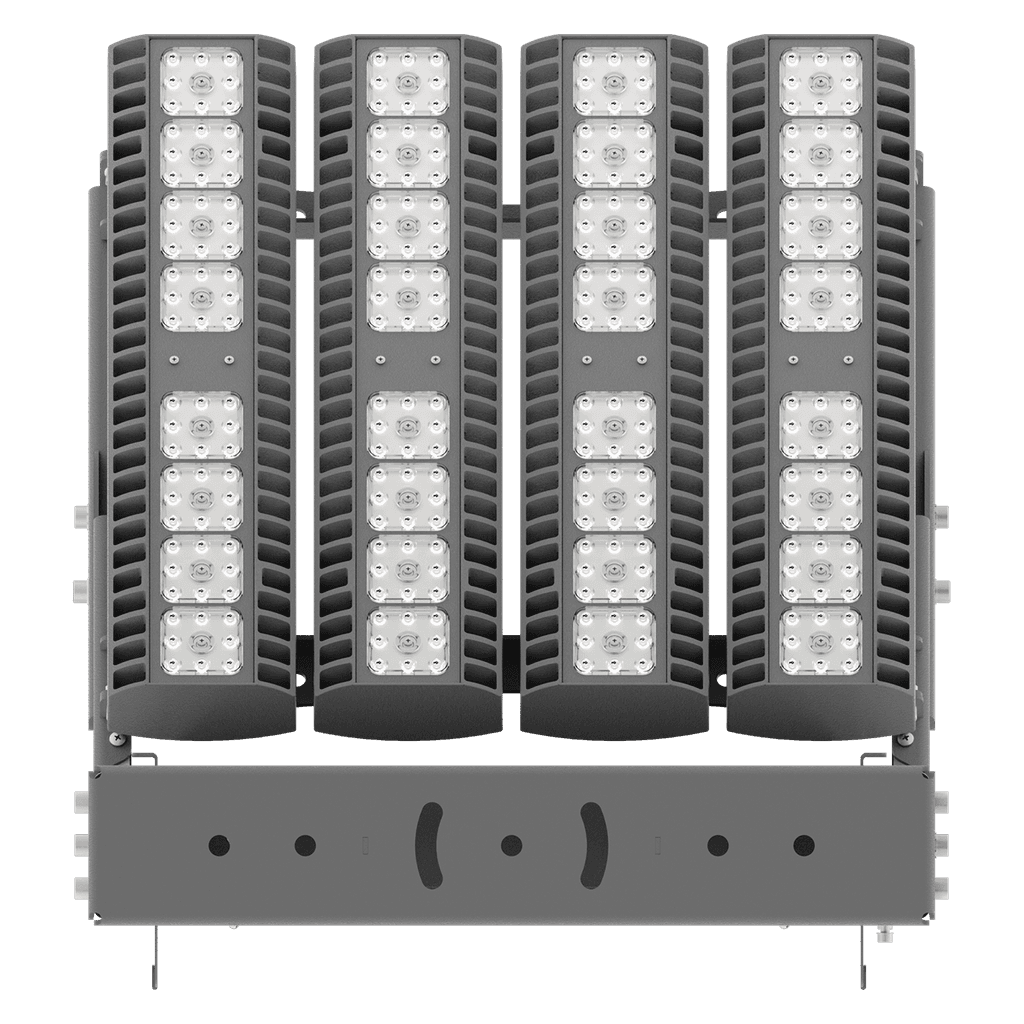

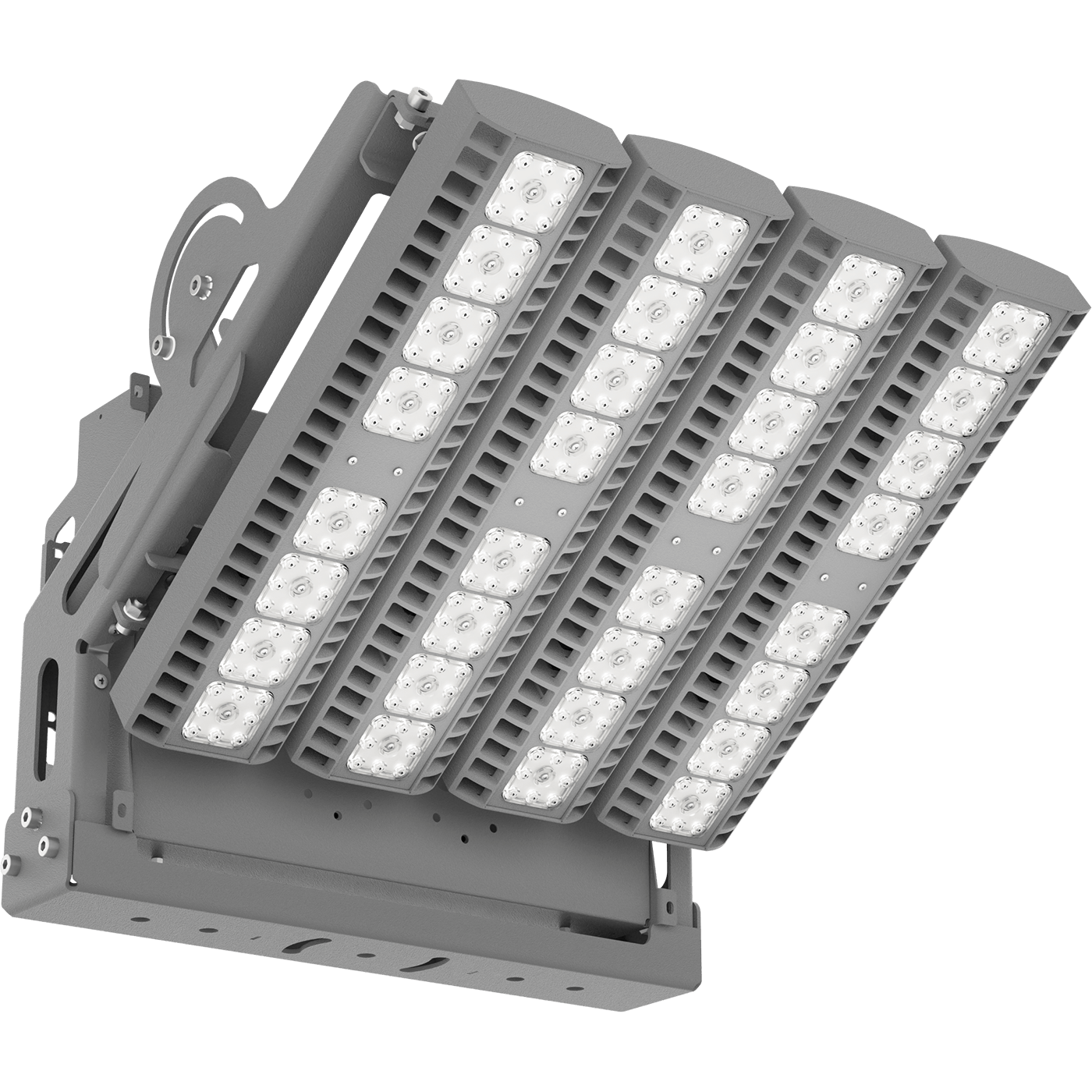

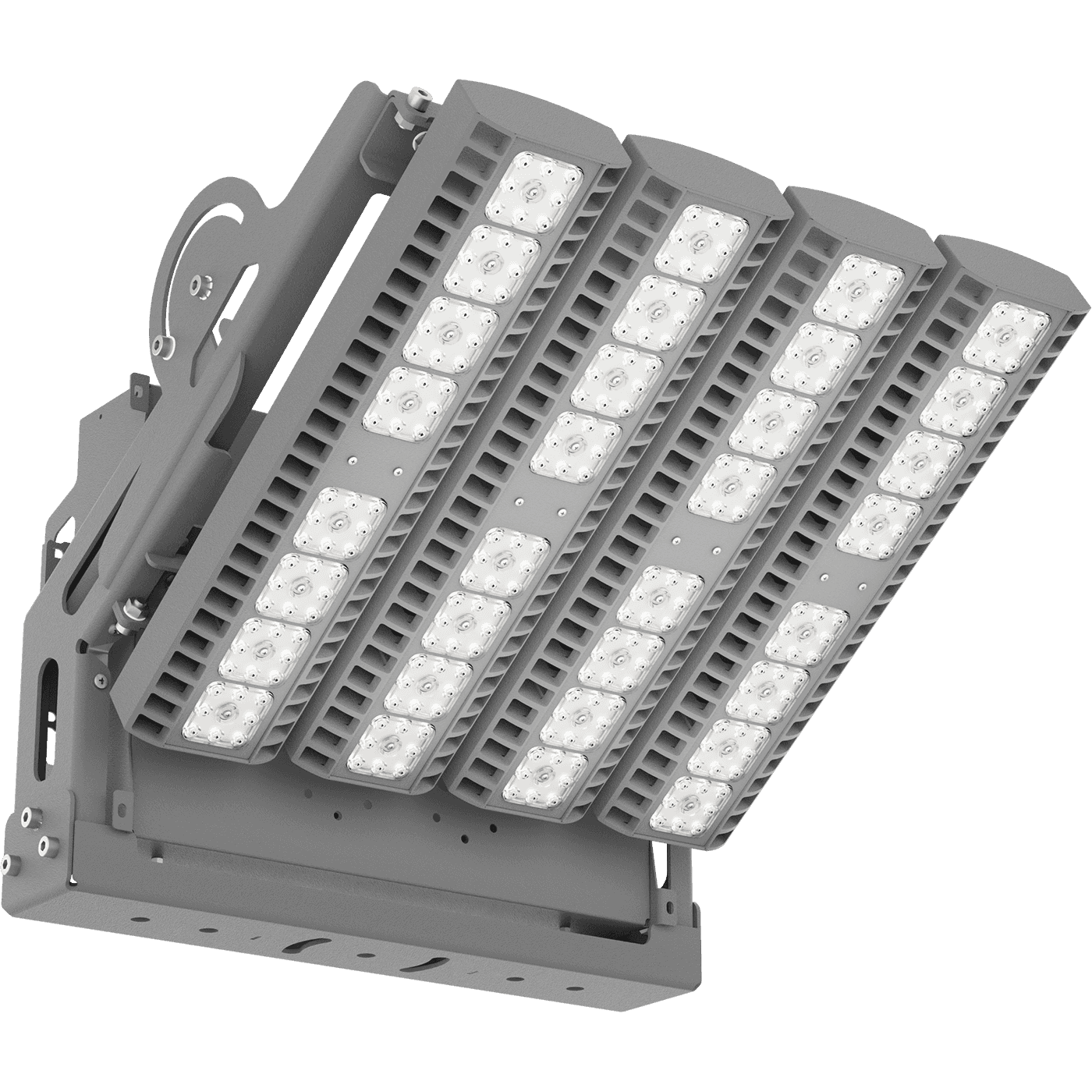

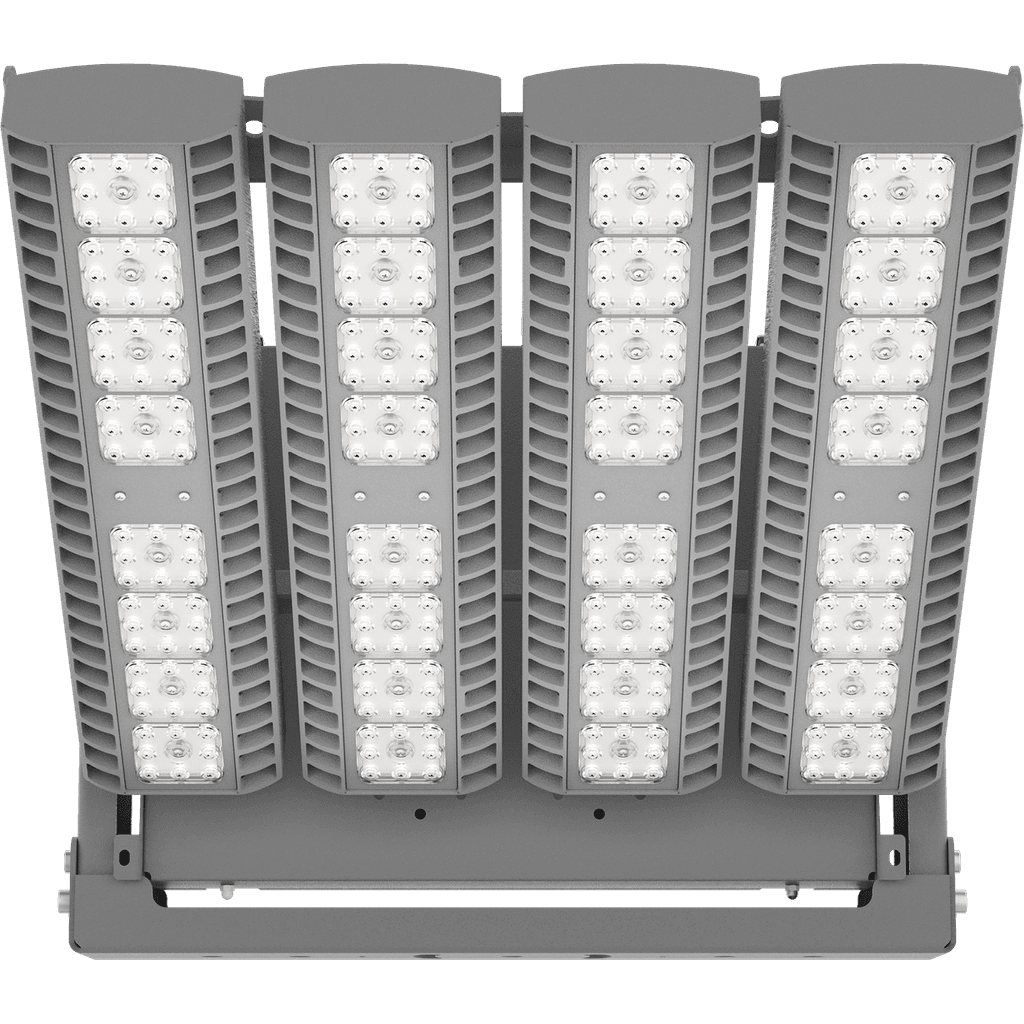

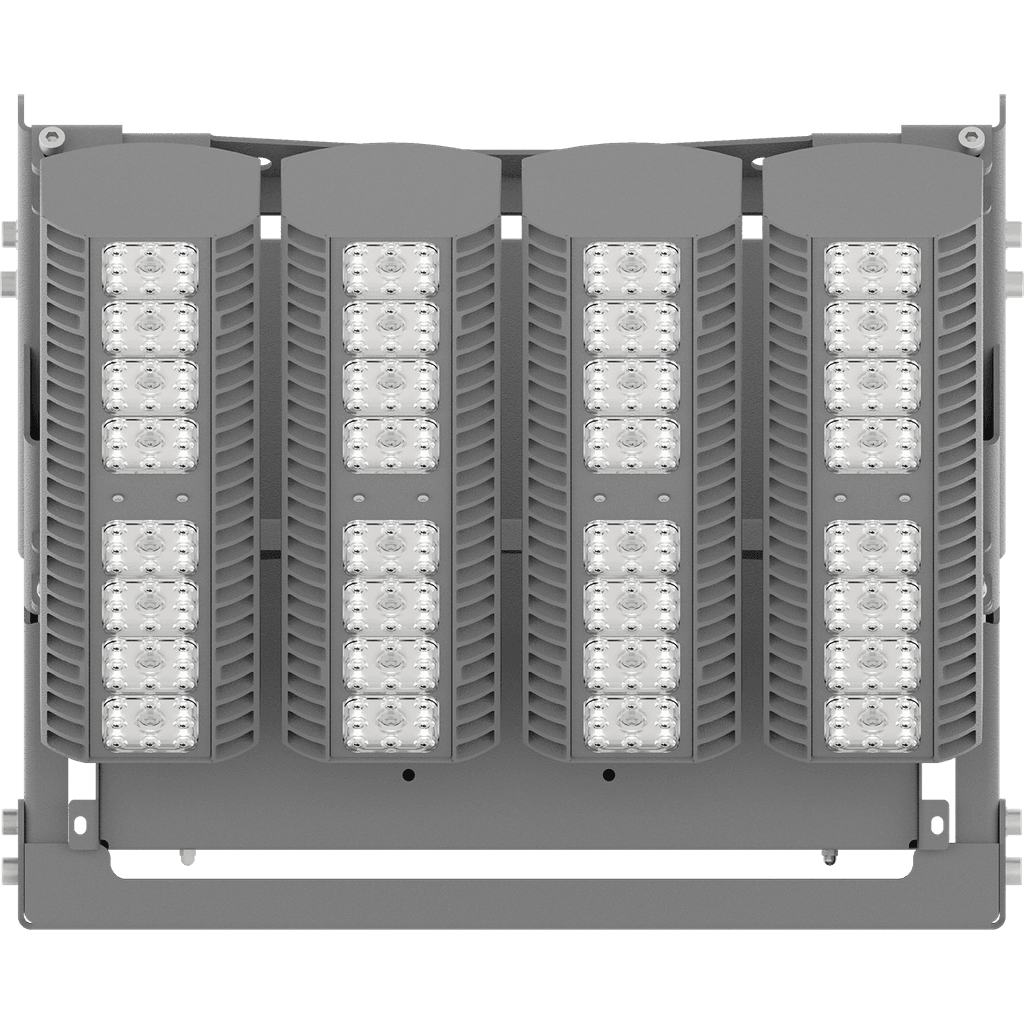

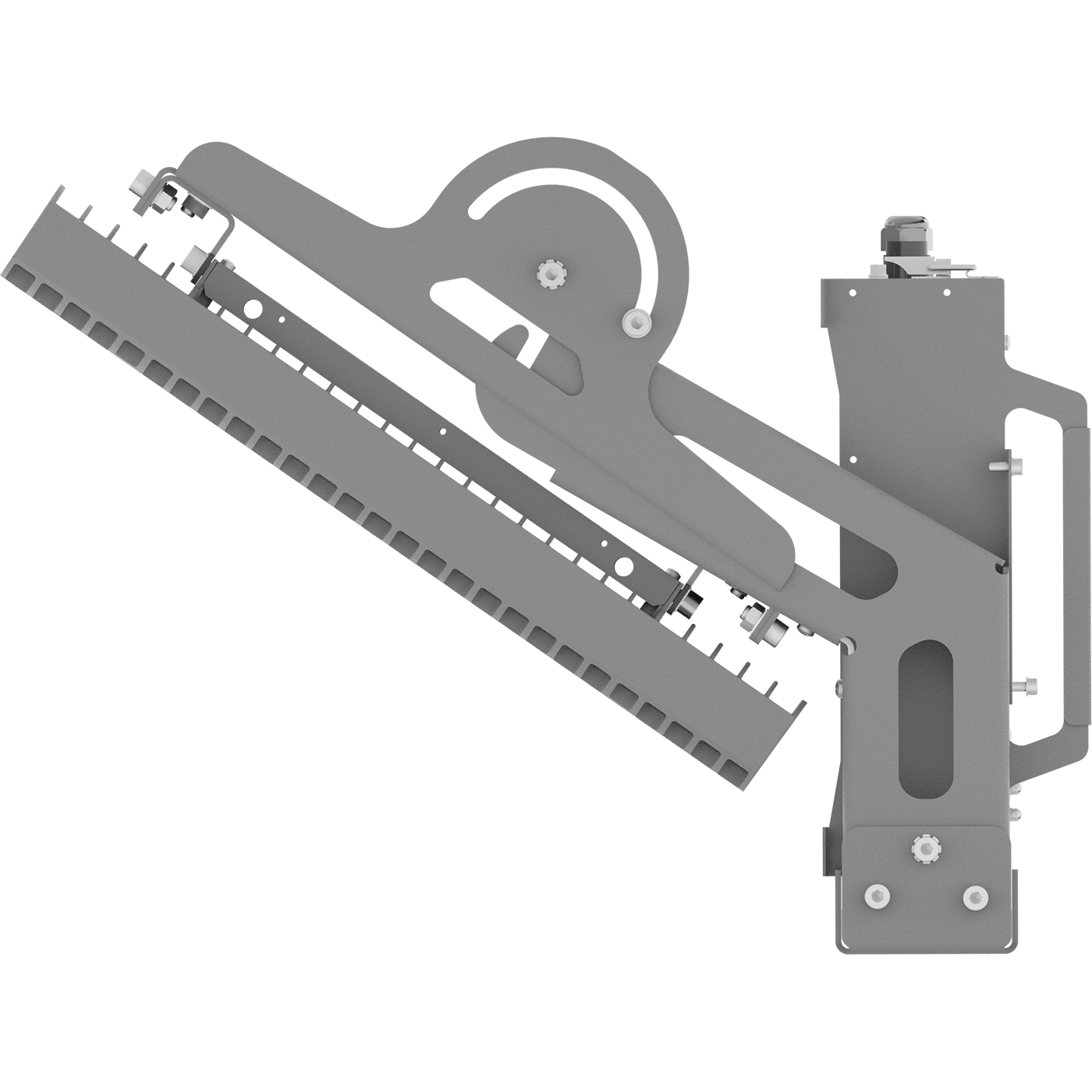

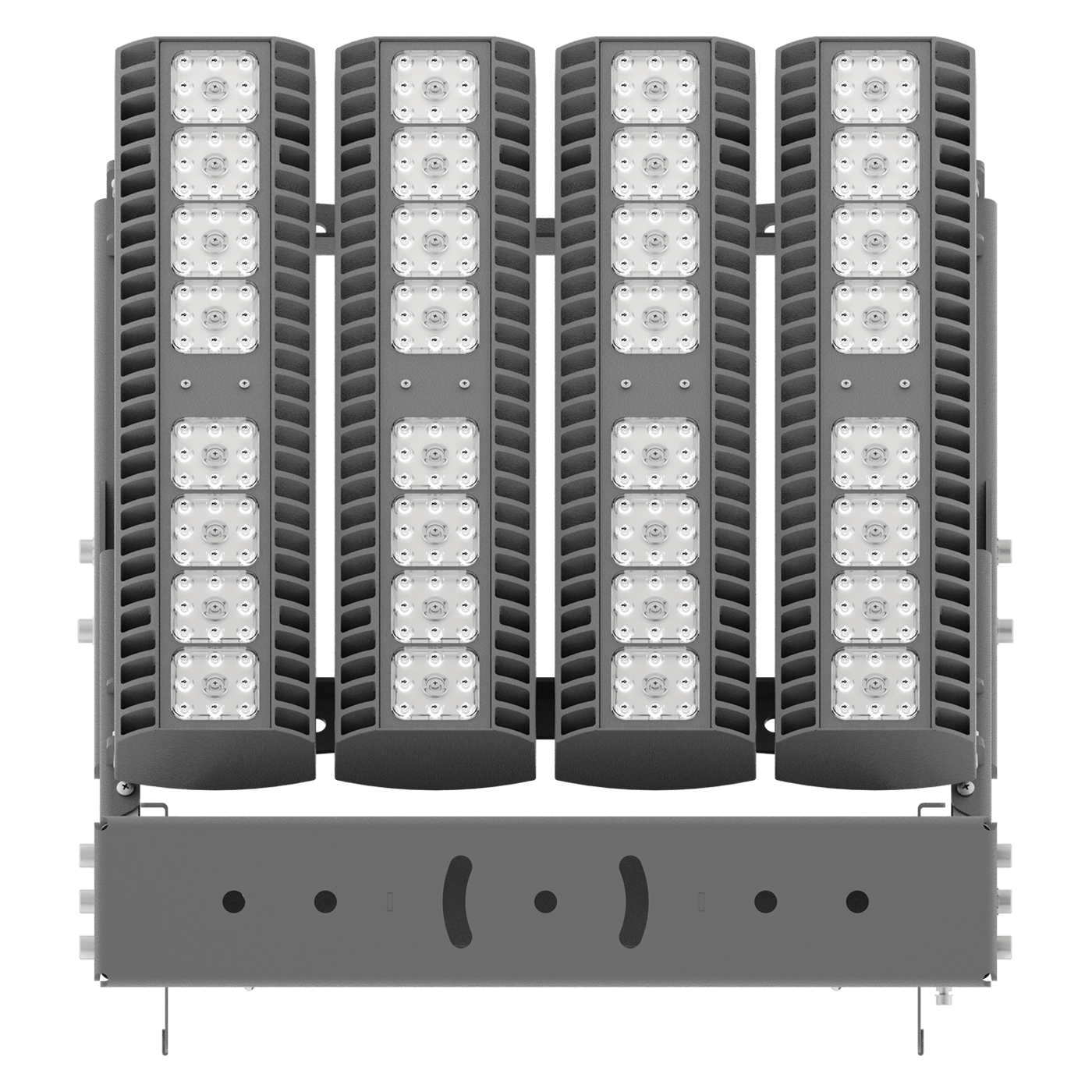

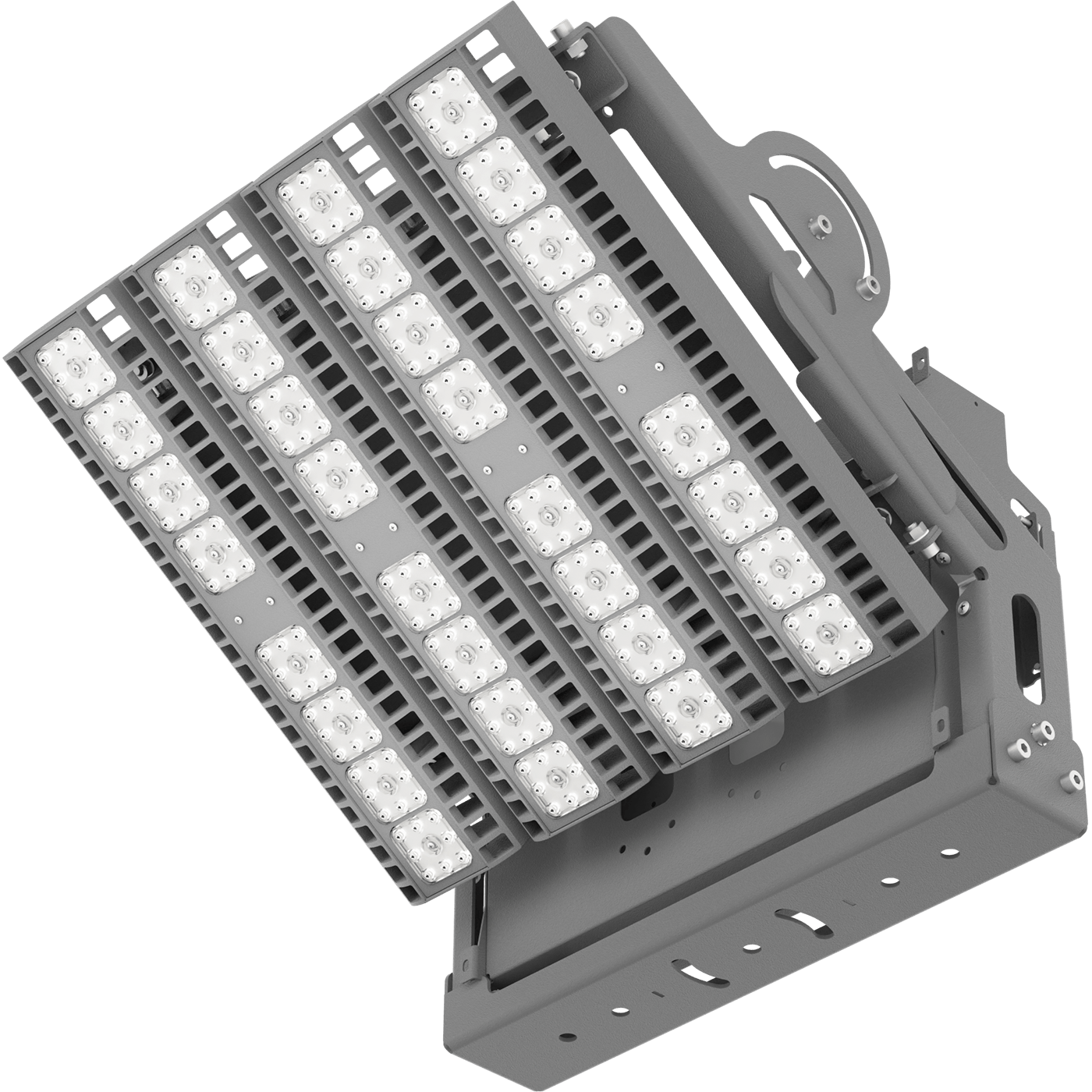

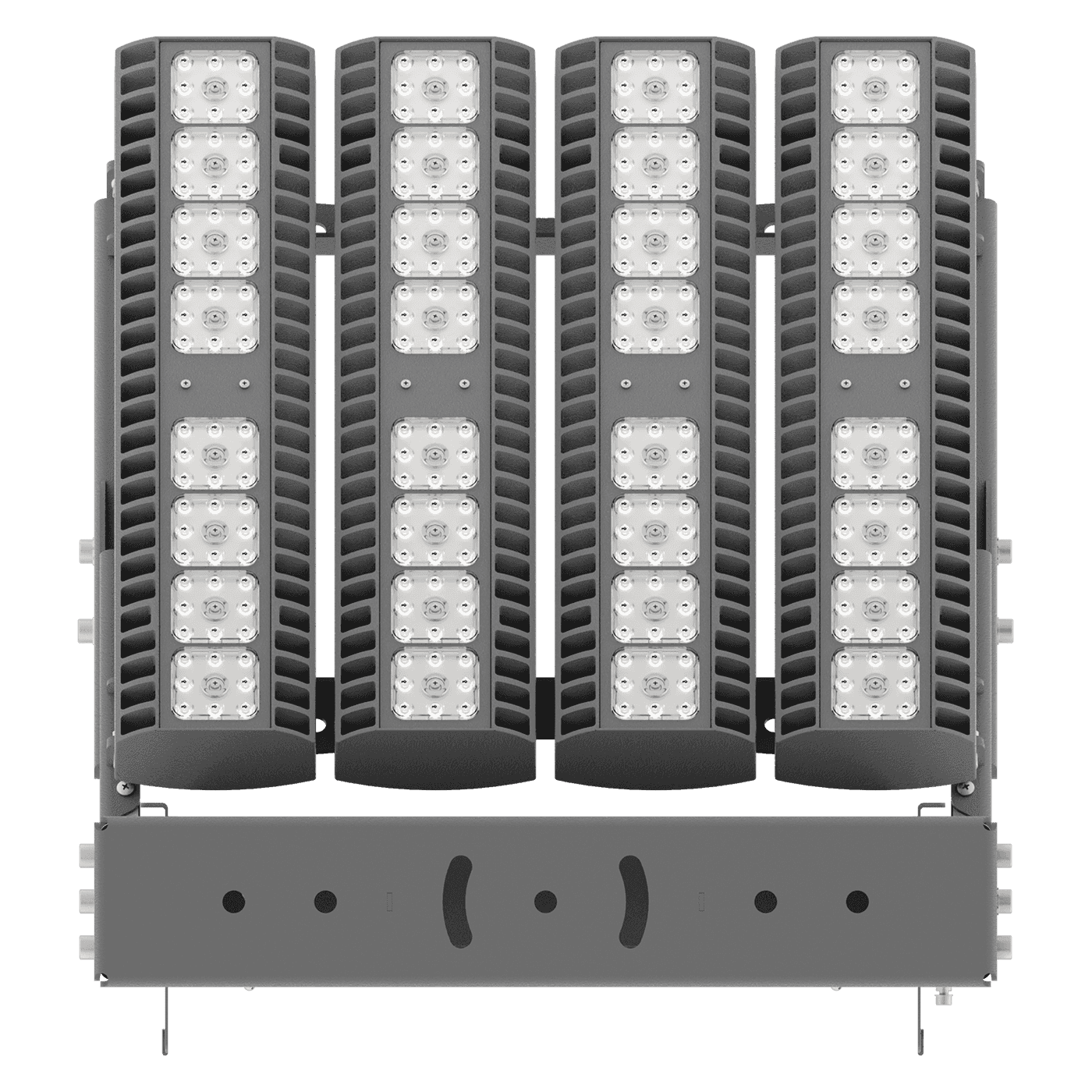

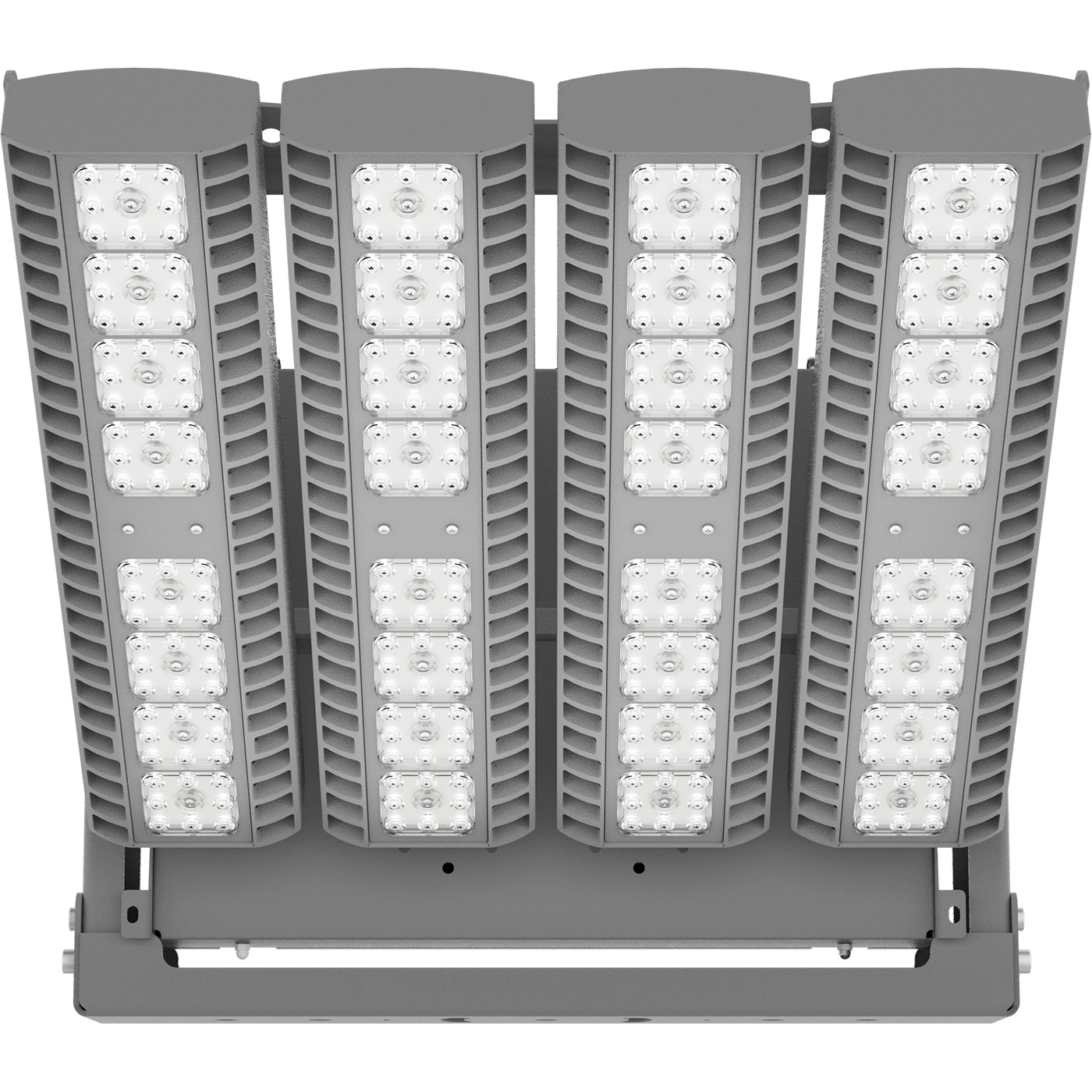

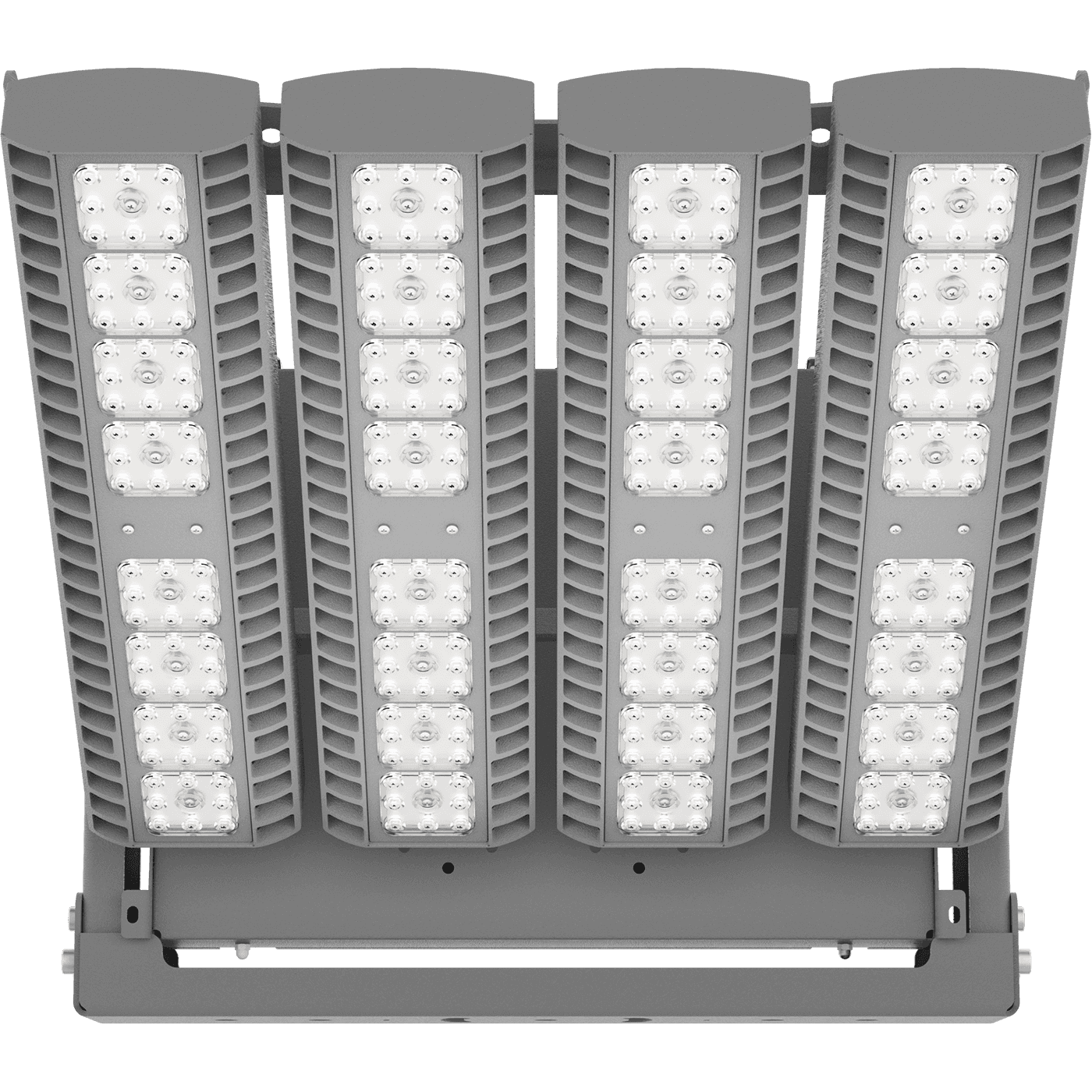

HB LED 600 D60 4000K G2
HB LED 600 D60 4000K G2
550 Wluminaire power
71600 lmlight flow
130 lm/Wenergy efficiency
code
1224008770
color temperature
4000 K
beam angle
D60
weight
22 kg
- main page
- catalog
- by product type
- industrial lighting
- 5-12 meters
- 5-12 метров
- HB LED FLOODLIGHT G2
- HB LED 600 D60 4000K G2
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
color rendition index (CRI)
>80light flow
71600 lmflickering factor
<1%energy efficiency
130 lm/Wbeam angle
D60color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
71600 lm
flickering factor
<1%
energy efficiency
130 lm/W
beam angle
D60
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
550 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
400 V
starting current
5 A
supply voltage
230 V
starting current pulse time
800 µs
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
mounting type
shock resistance (IK)
IK07/2 Дж
weight
22 kg
ingress protection (IP)
IP66
length
515 mm
width
535 mm
height
430 mm
installation length
340 mm
emergency
emergency power supply
Нет
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
code
1224008770
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files

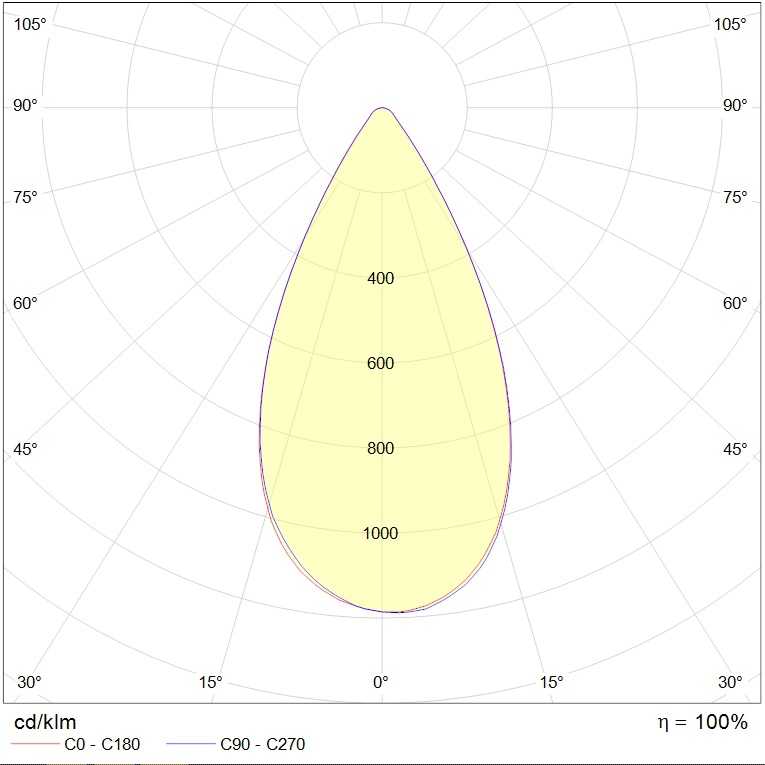

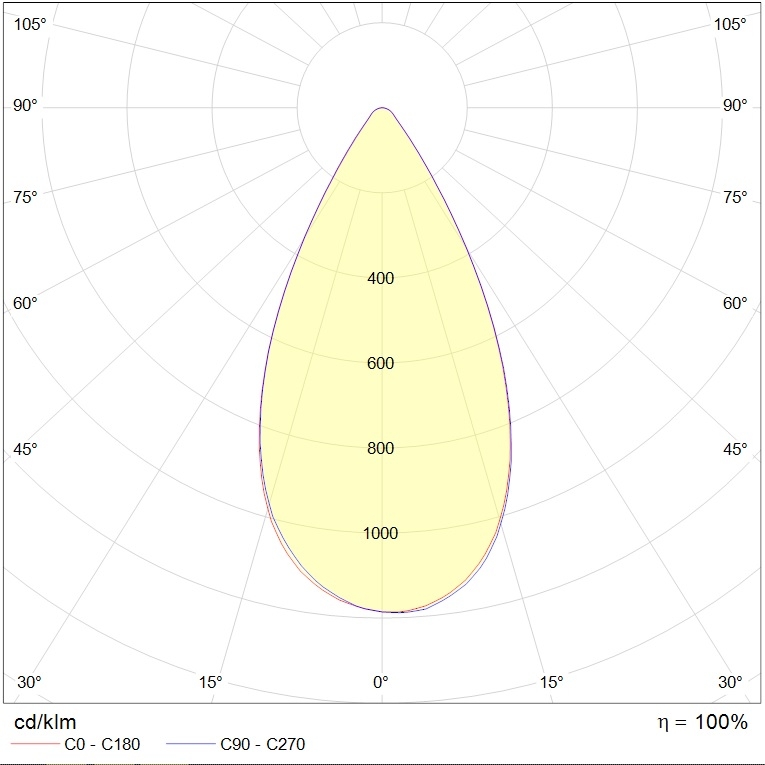

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg83 kB
ldt63.5 kB
csv455 B
documents
passport5.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
