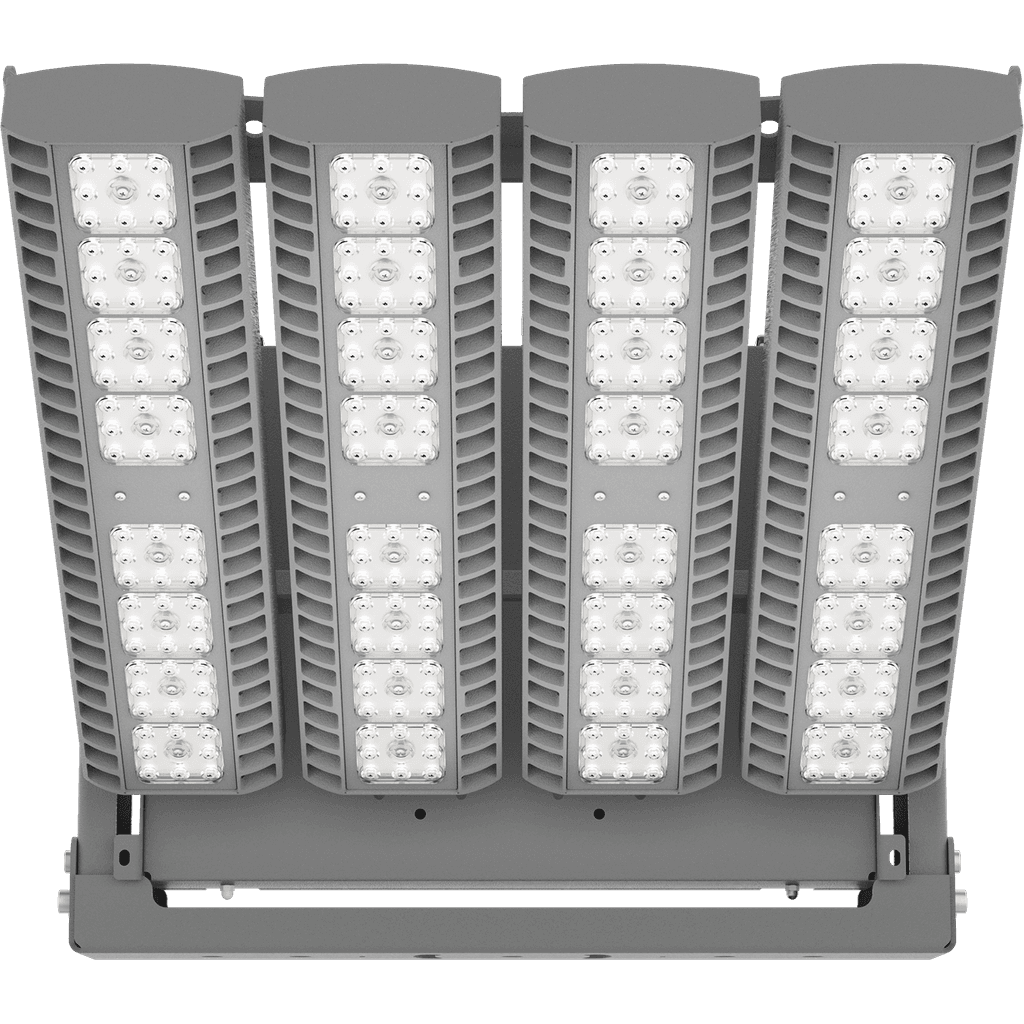

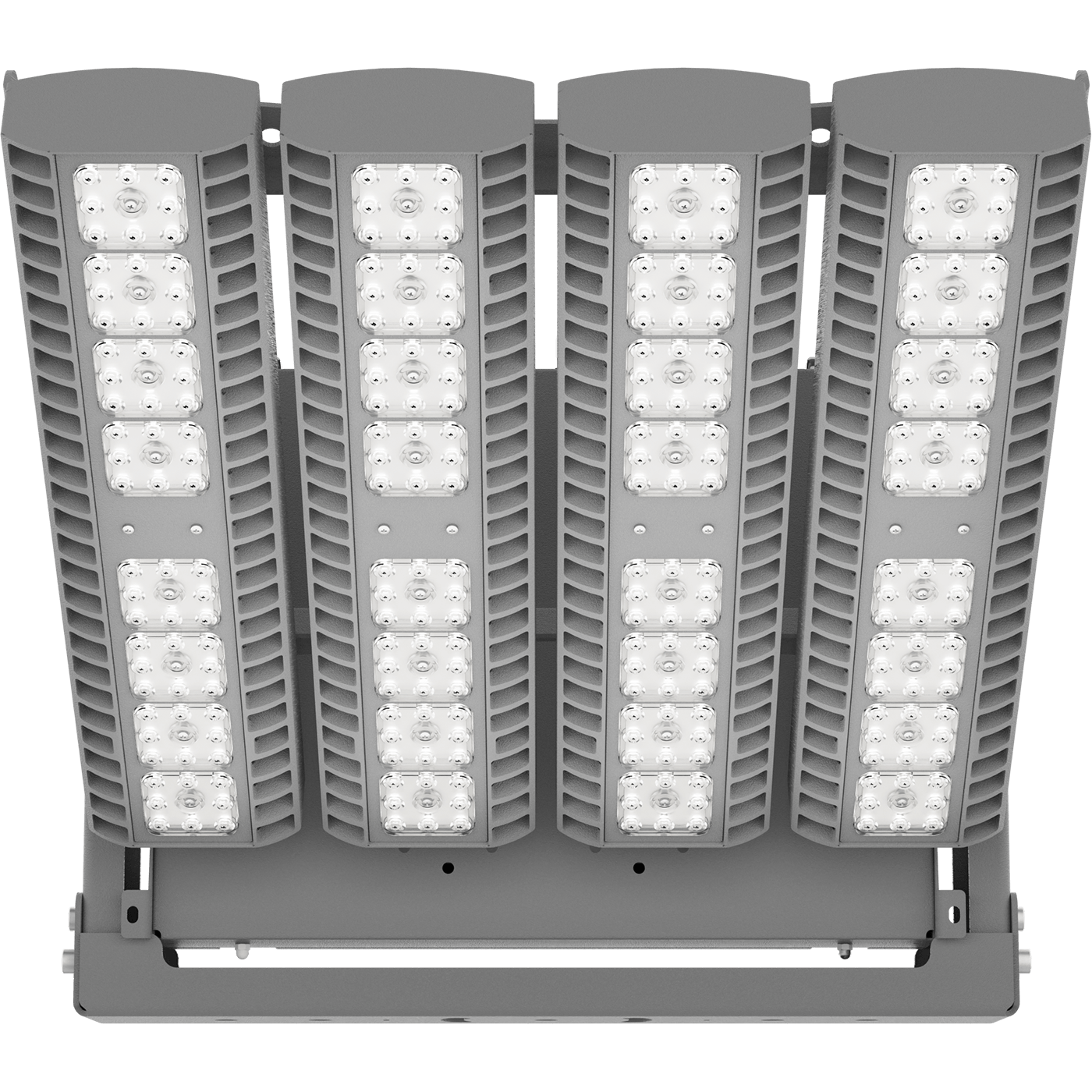

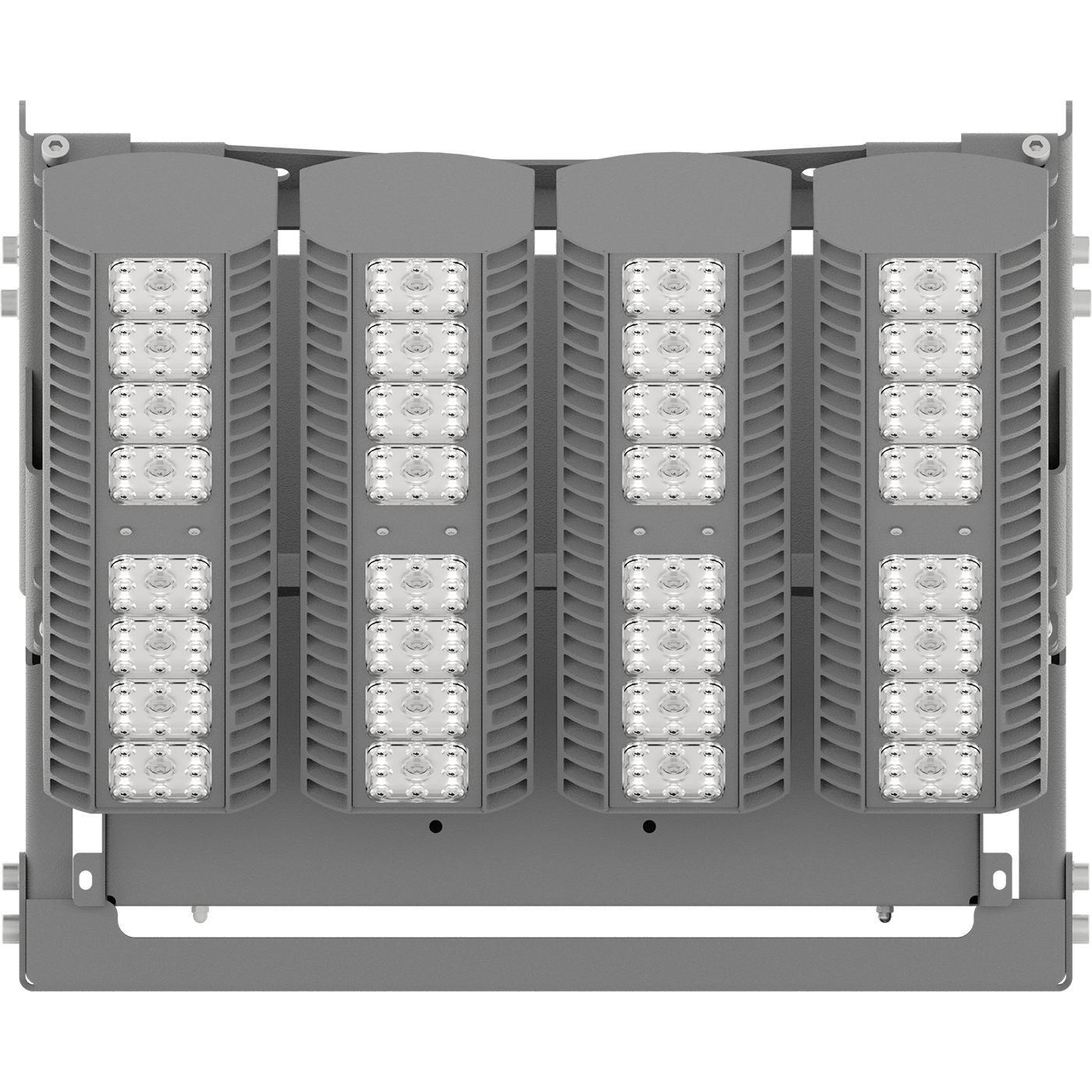

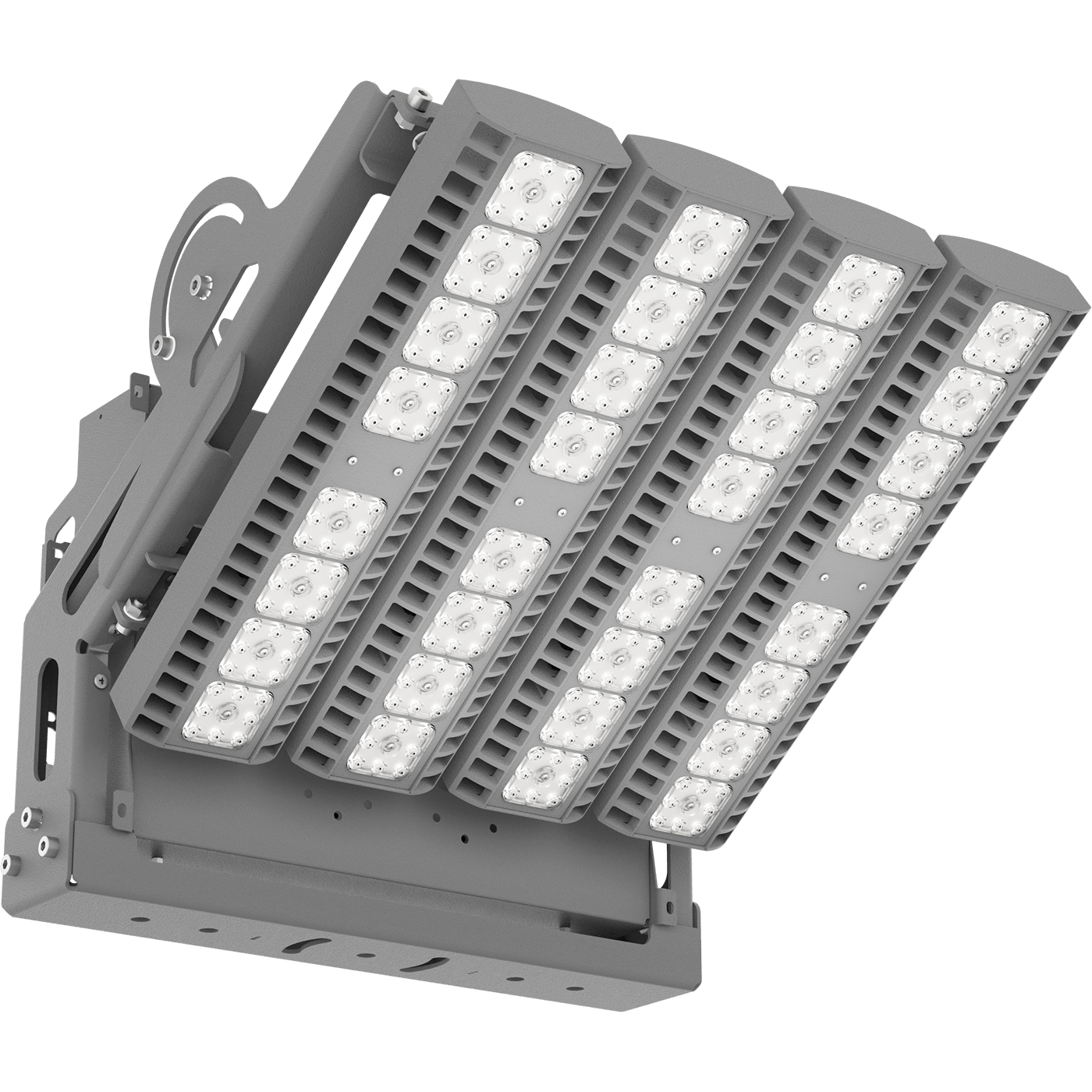

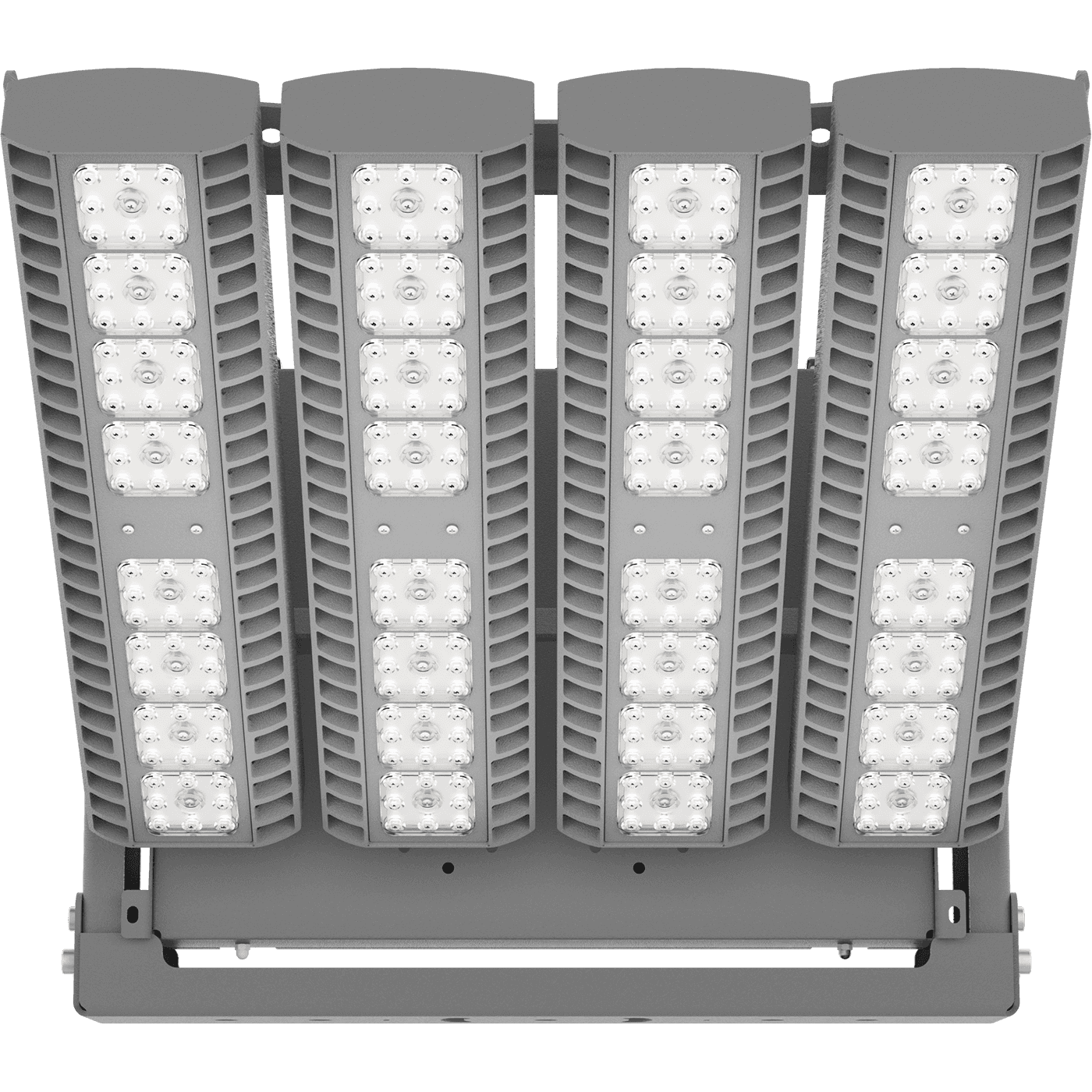

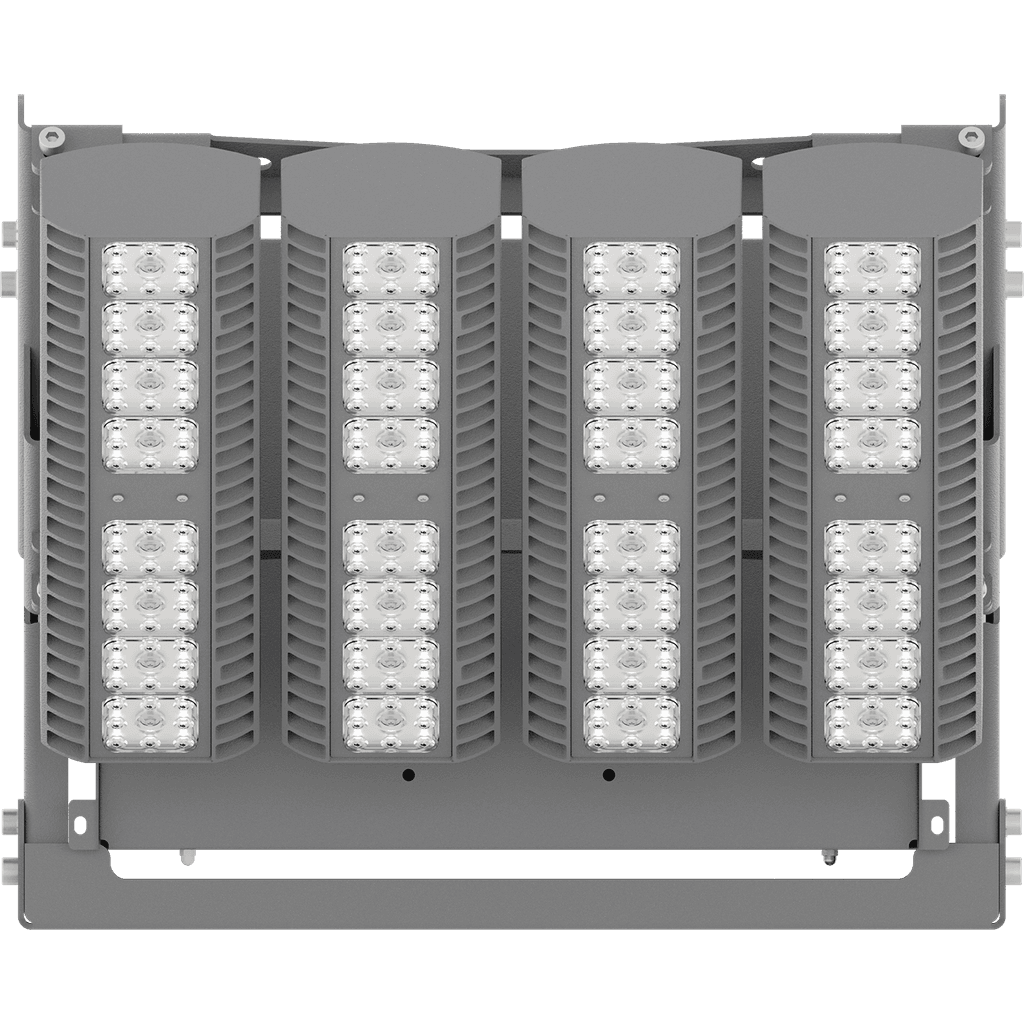

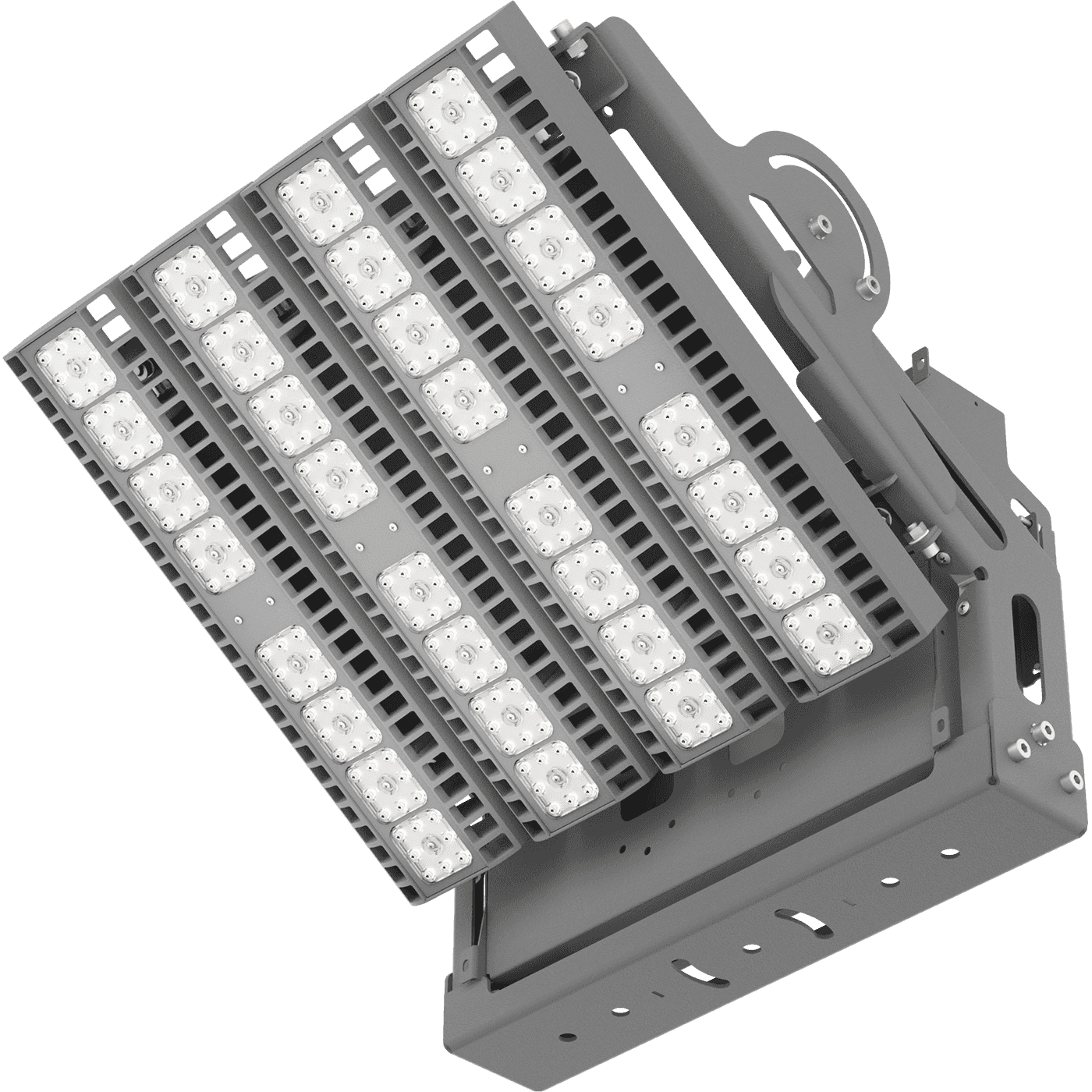

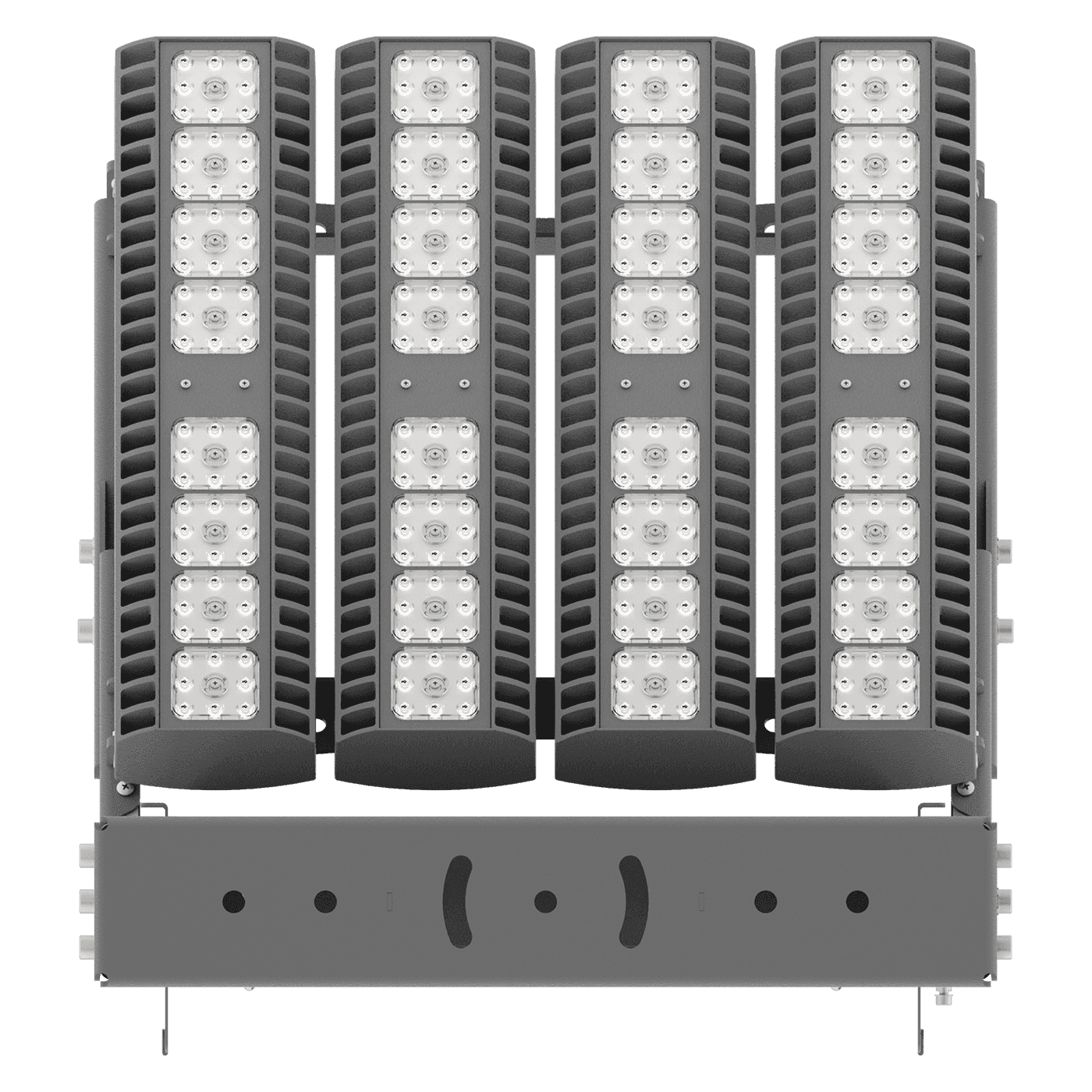

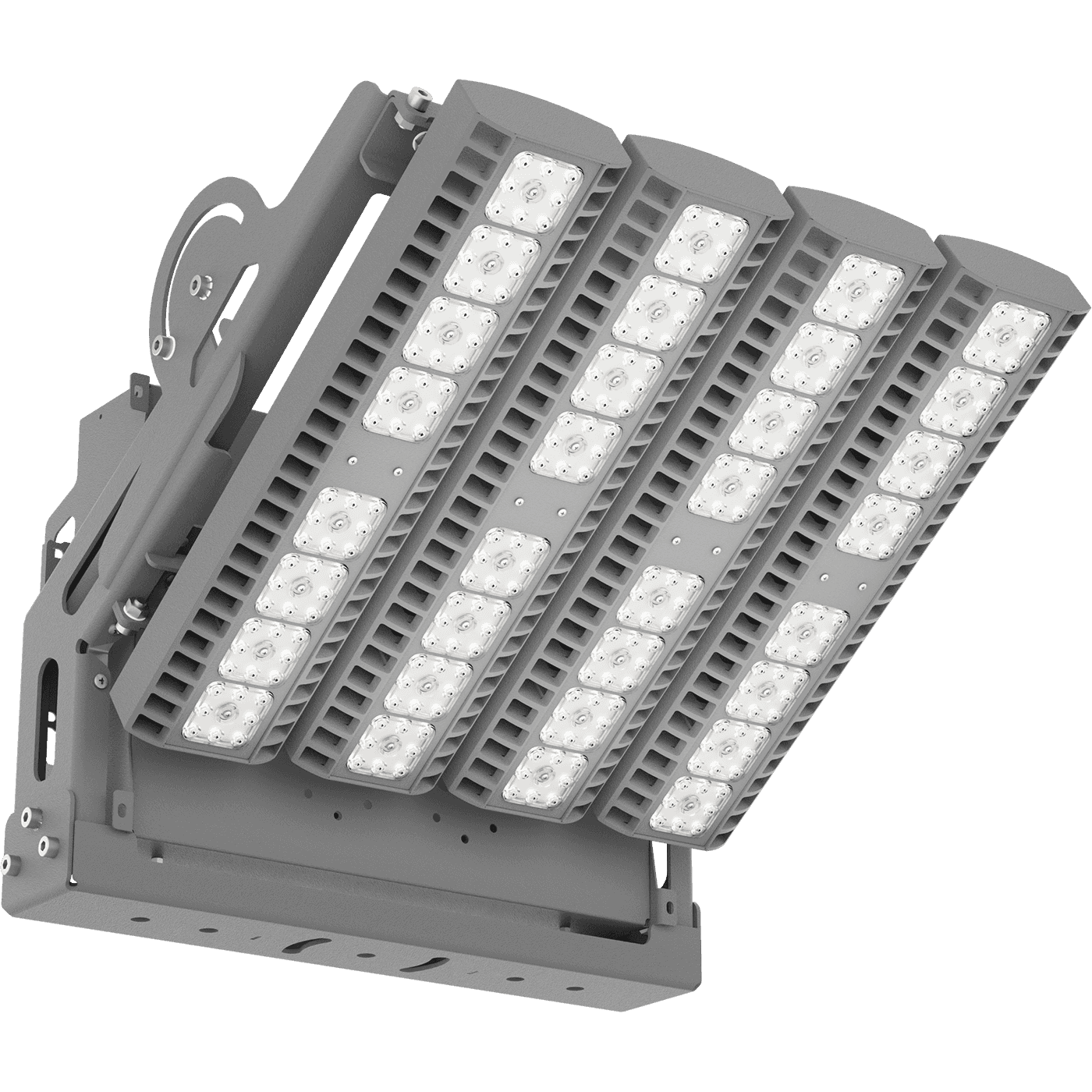

HB LED 600 D15 4000K G2
HB LED 600 D15 4000K G2
550 Wluminaire power
71600 lmlight flow
130 lm/Wenergy efficiency
code1224010500
color temperature4000 K
beam angleD15
weight22 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
71600 lmflickering factor
<1%energy efficiency
130 lm/Wbeam angle
D15color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
71600 lm
flickering factor
<1%
energy efficiency
130 lm/W
beam angle
D15
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
550 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
400 V
starting current
5 A
supply voltage
230 V
starting current pulse time
800 µs
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
shock resistance (IK)
IK07/2 Дж
weight
22 kg
ingress protection (IP)
IP66
length
515 mm
width
535 mm
height
430 mm
installation length
340 mm
common
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +45 C
code
1224010500
model files
model files
photometric files
documents
сертификаты
photometric files
ldt84.4 kB
documents
passport5.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
Fire Safety Certificate2.5 mB
