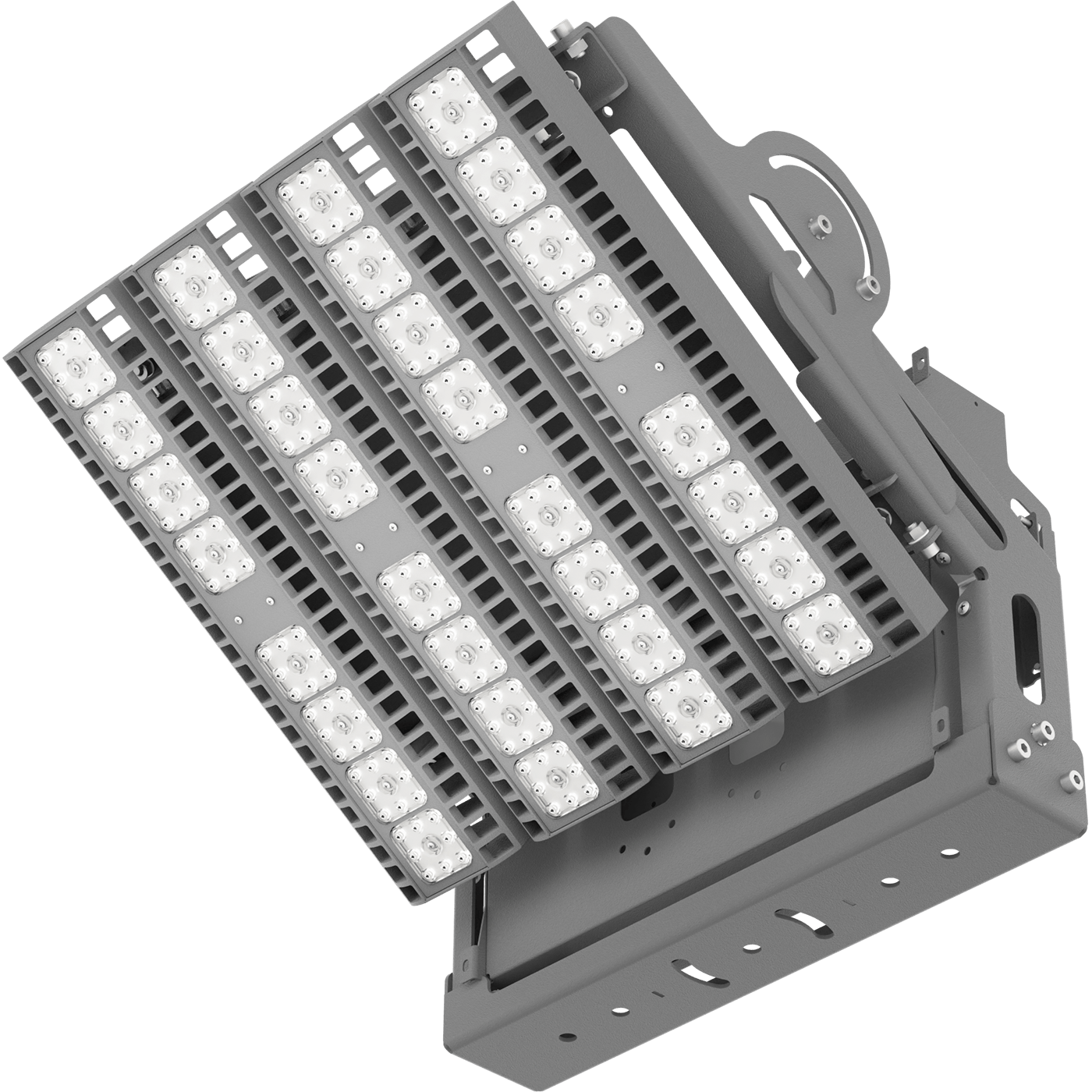

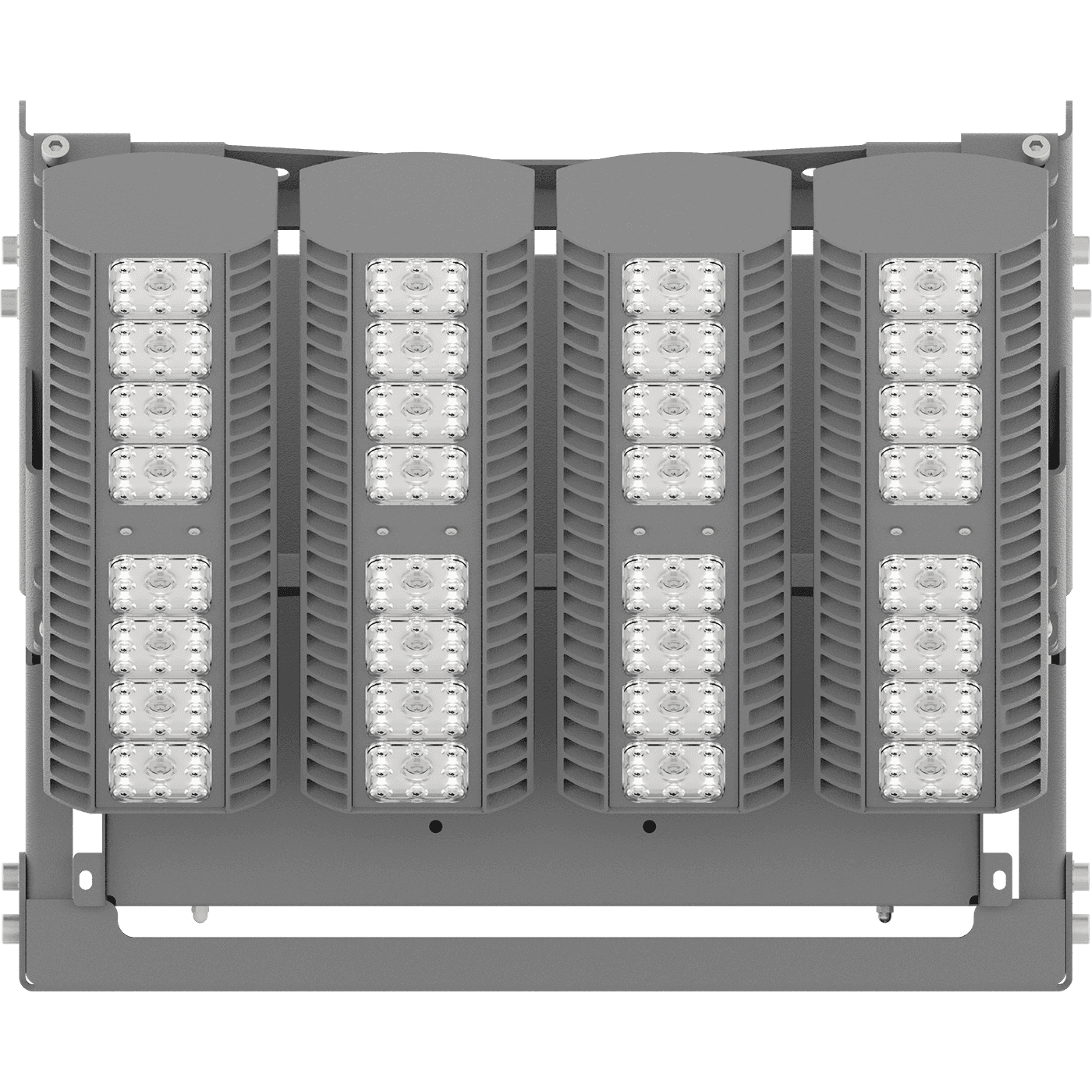

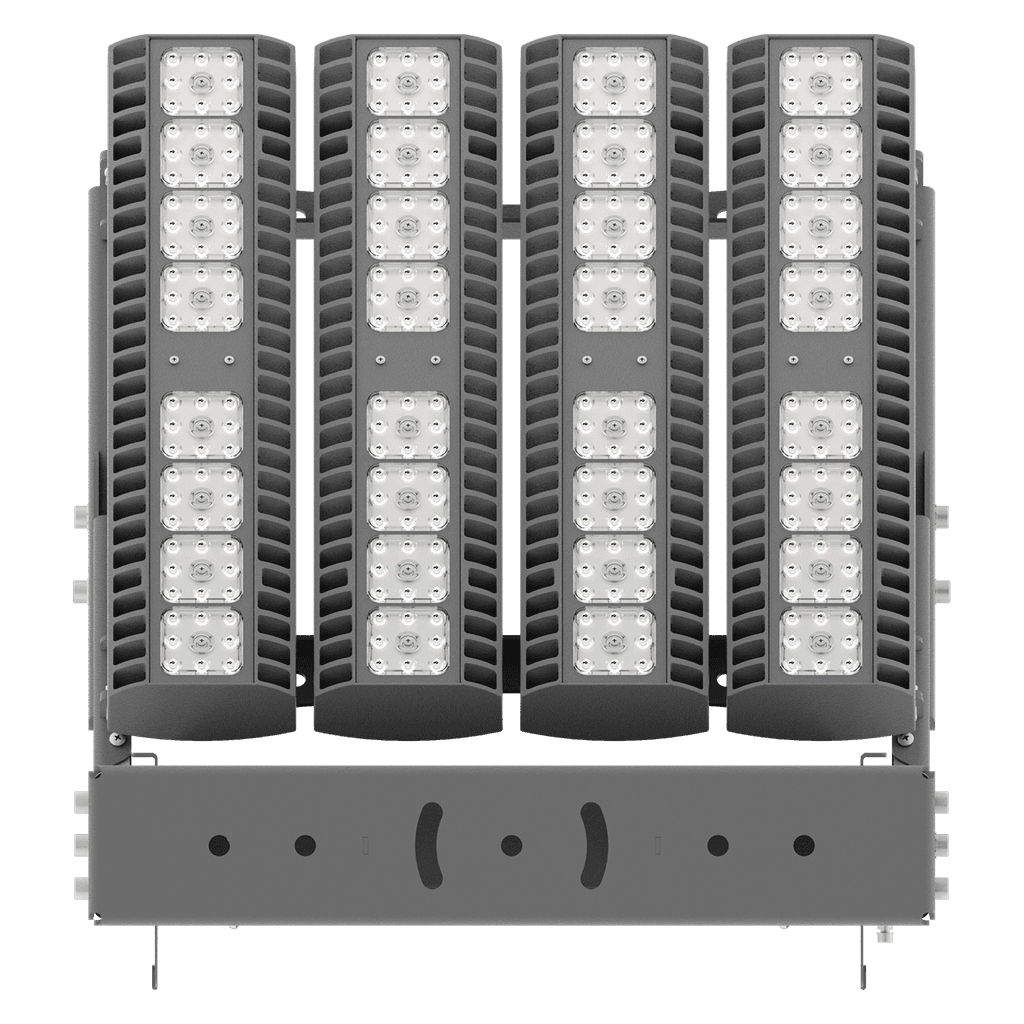

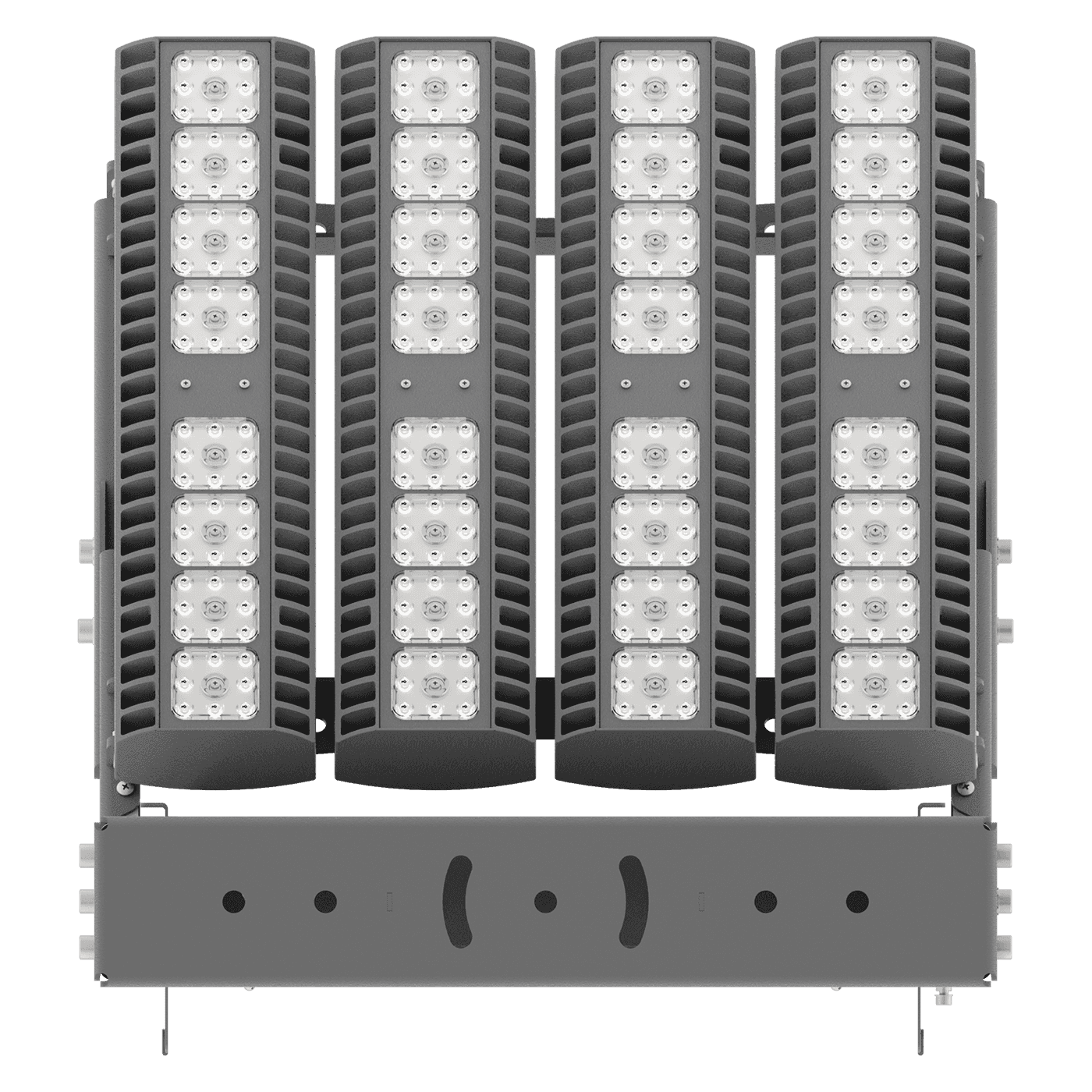

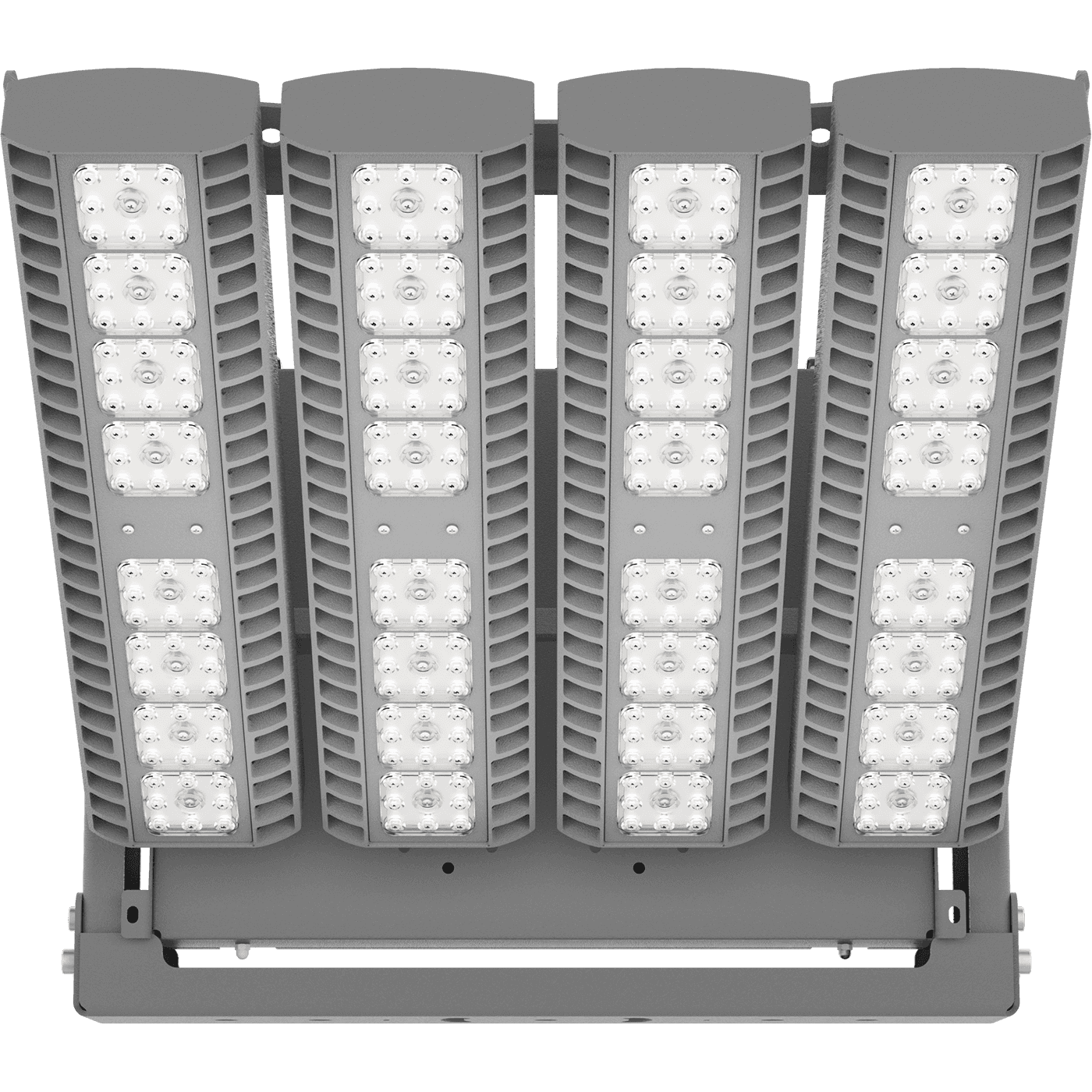

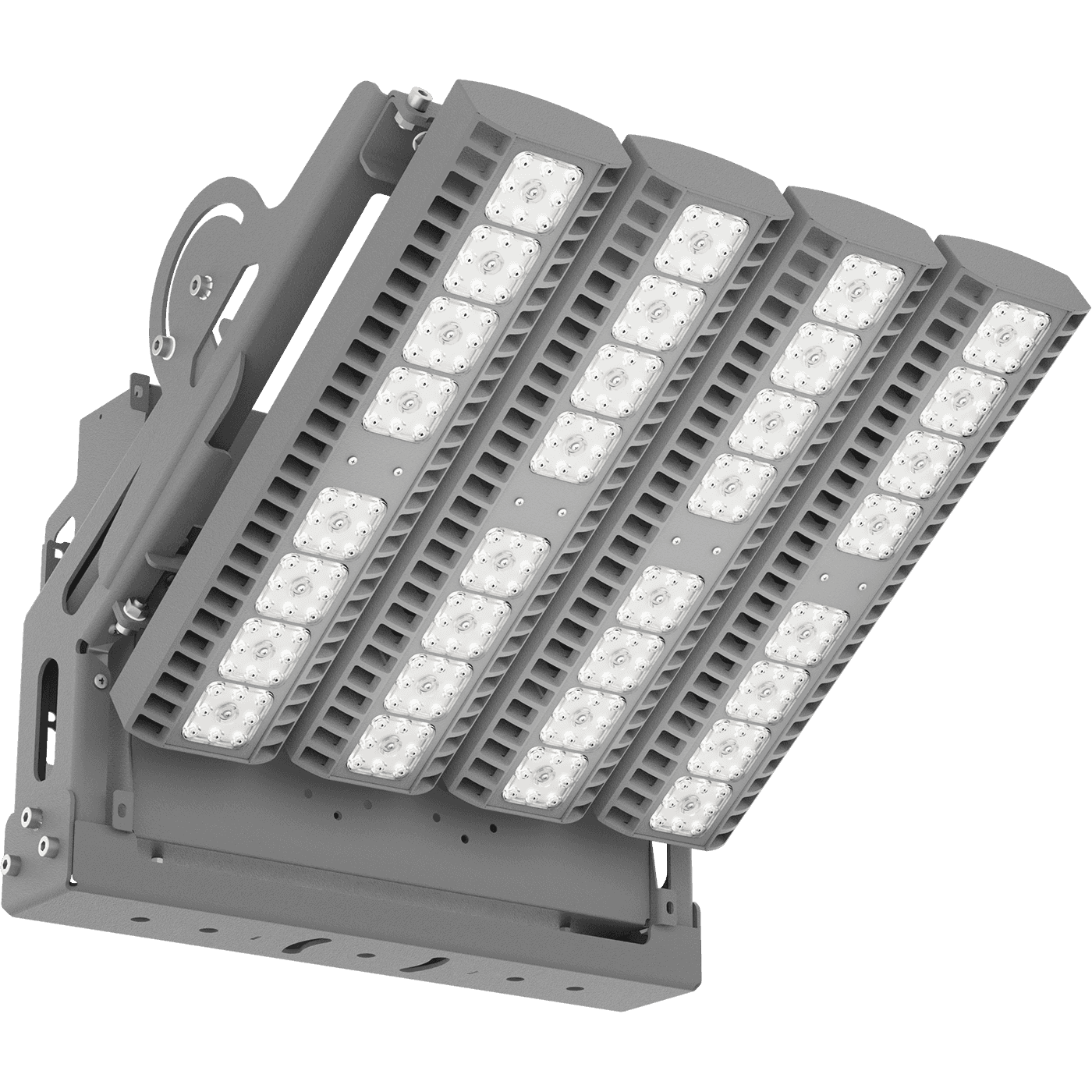

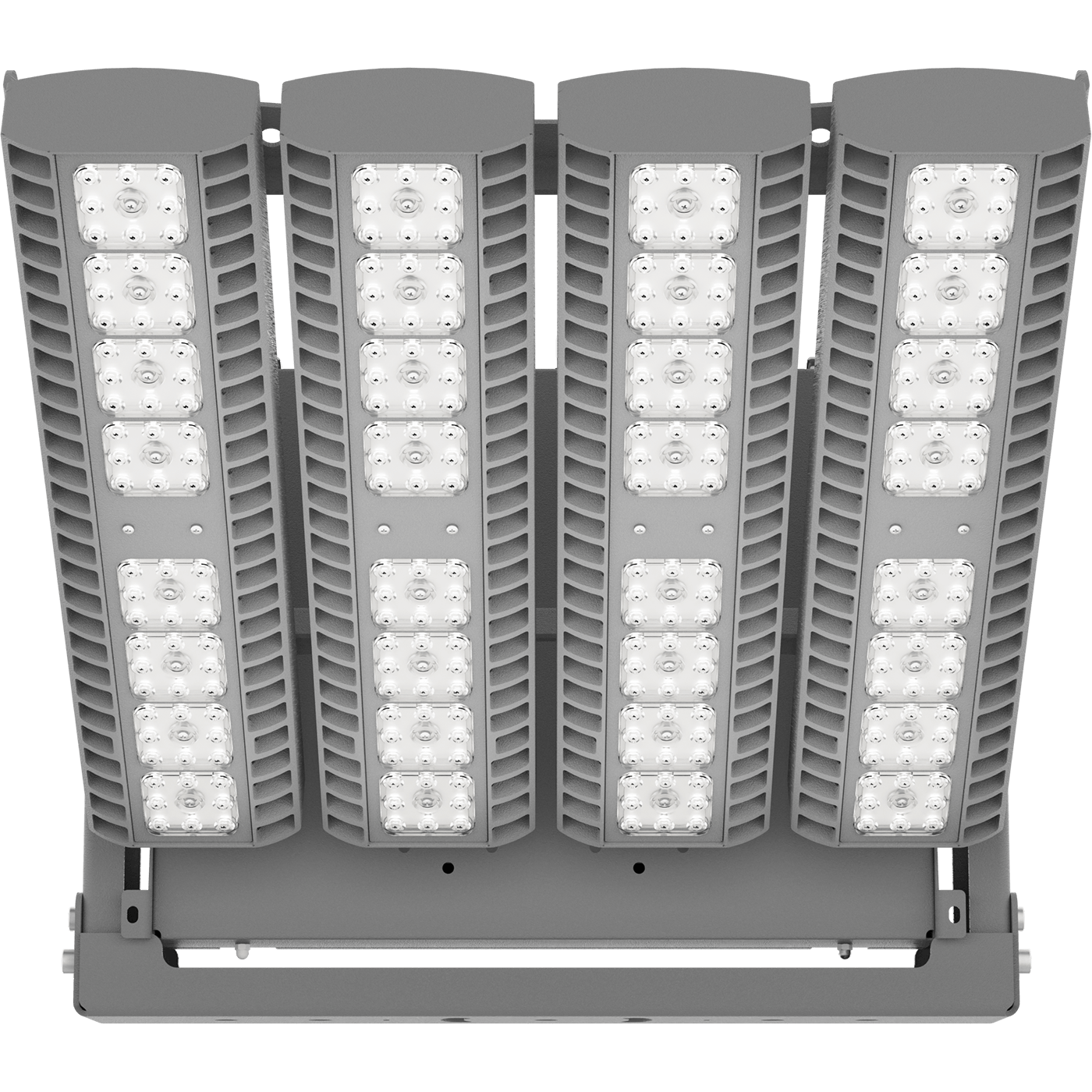

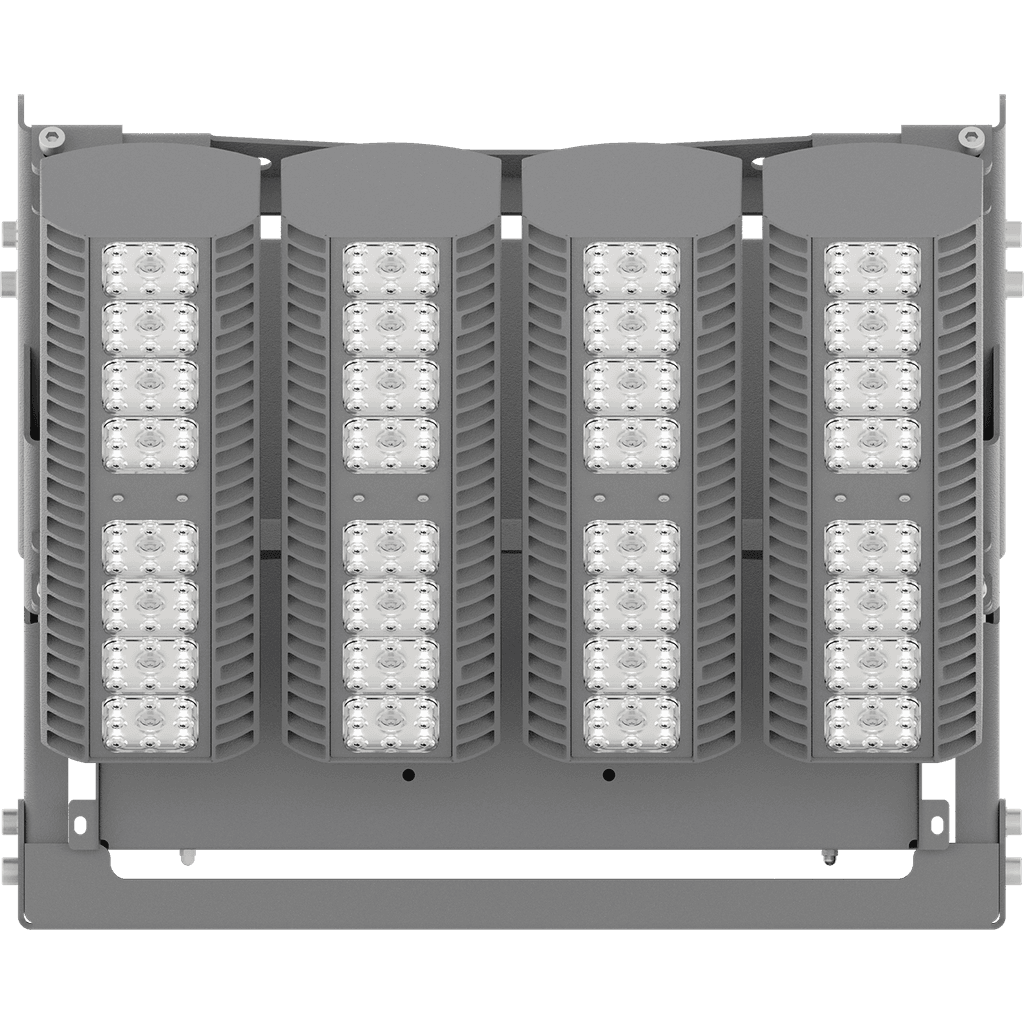

HB LED FLOODLIGHT G2 CD60 400W D60 850 HG
HB LED FLOODLIGHT G2 CD60 400W D60 850 HG
400 Wluminaire power
54200 lmlight flow
136 lm/Wenergy efficiency
code1224008880
color temperature5000
beam angleD60
weight21 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
54 Astarting current pulse time, µs
600 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-420 Vluminaire power
400 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
54 A
starting current pulse time, µs
600 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
luminaire power
400 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІ
material
Алюминий
weight
21 kg
housing color
Серый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
510 mm
width, mm
535 mm
height, mm
360 mm
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
340 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -60 до +45 C
energy efficiency class
A+
service life, hour
50 000 h
code
1224008880
illuminating
light flow
54200 lm
flickering factor
<1%
energy efficiency
136 lm/W

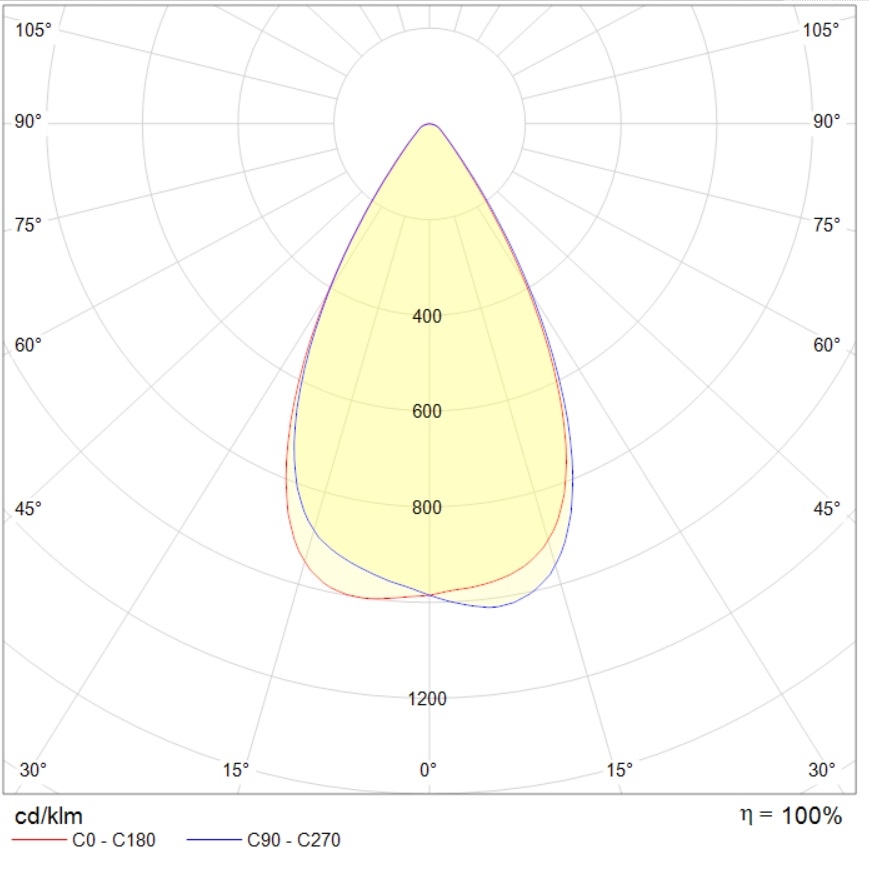

beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

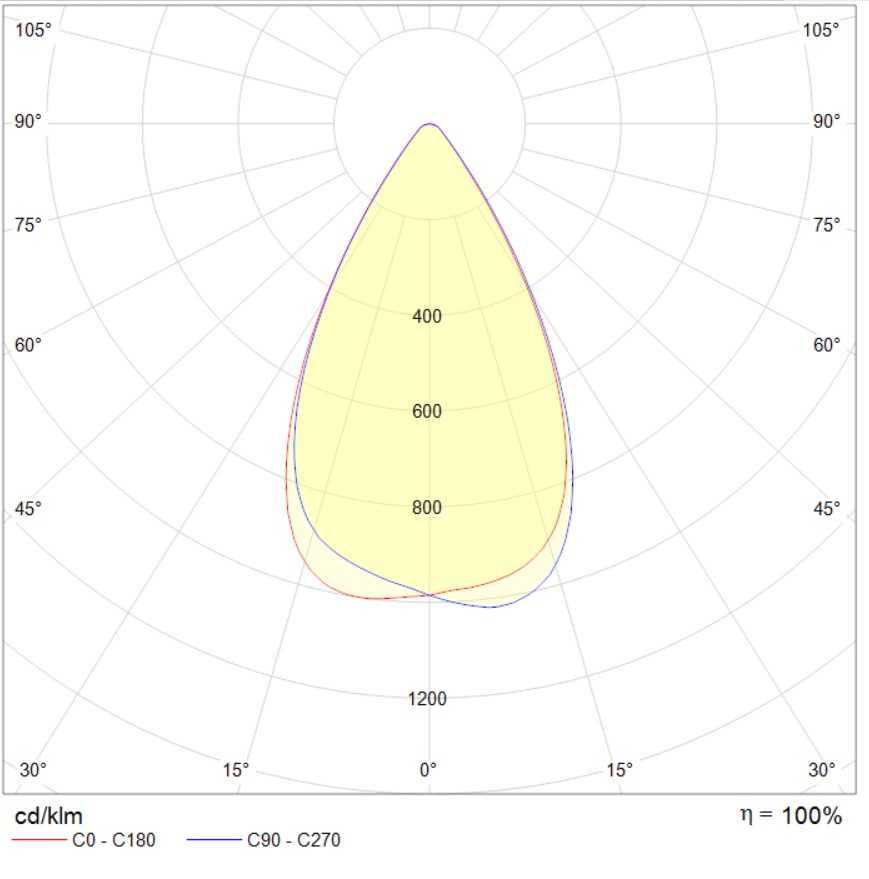

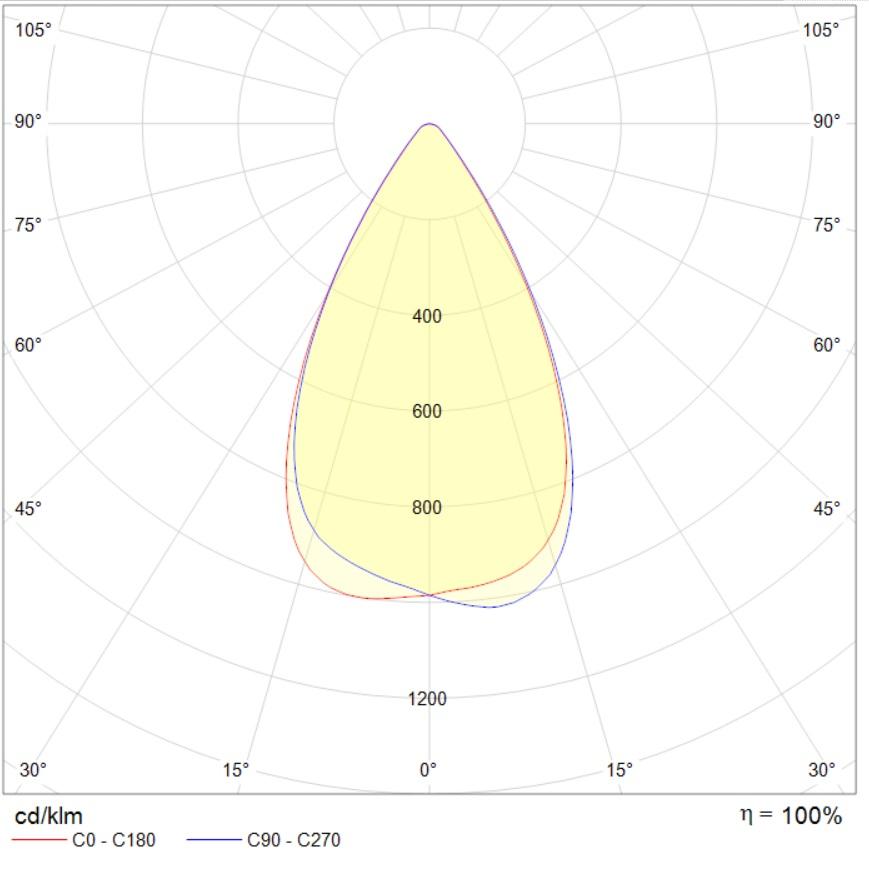

photometric files
