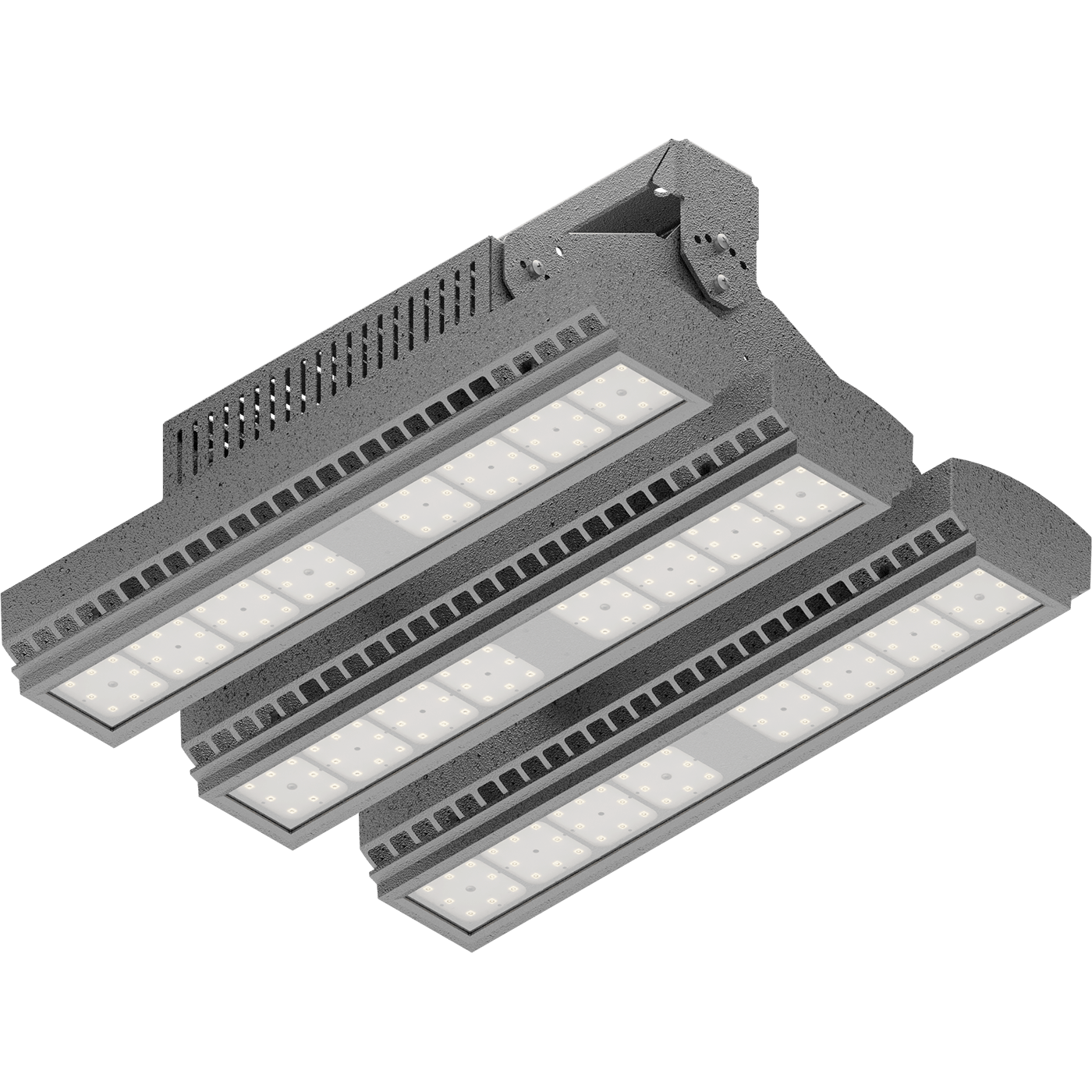

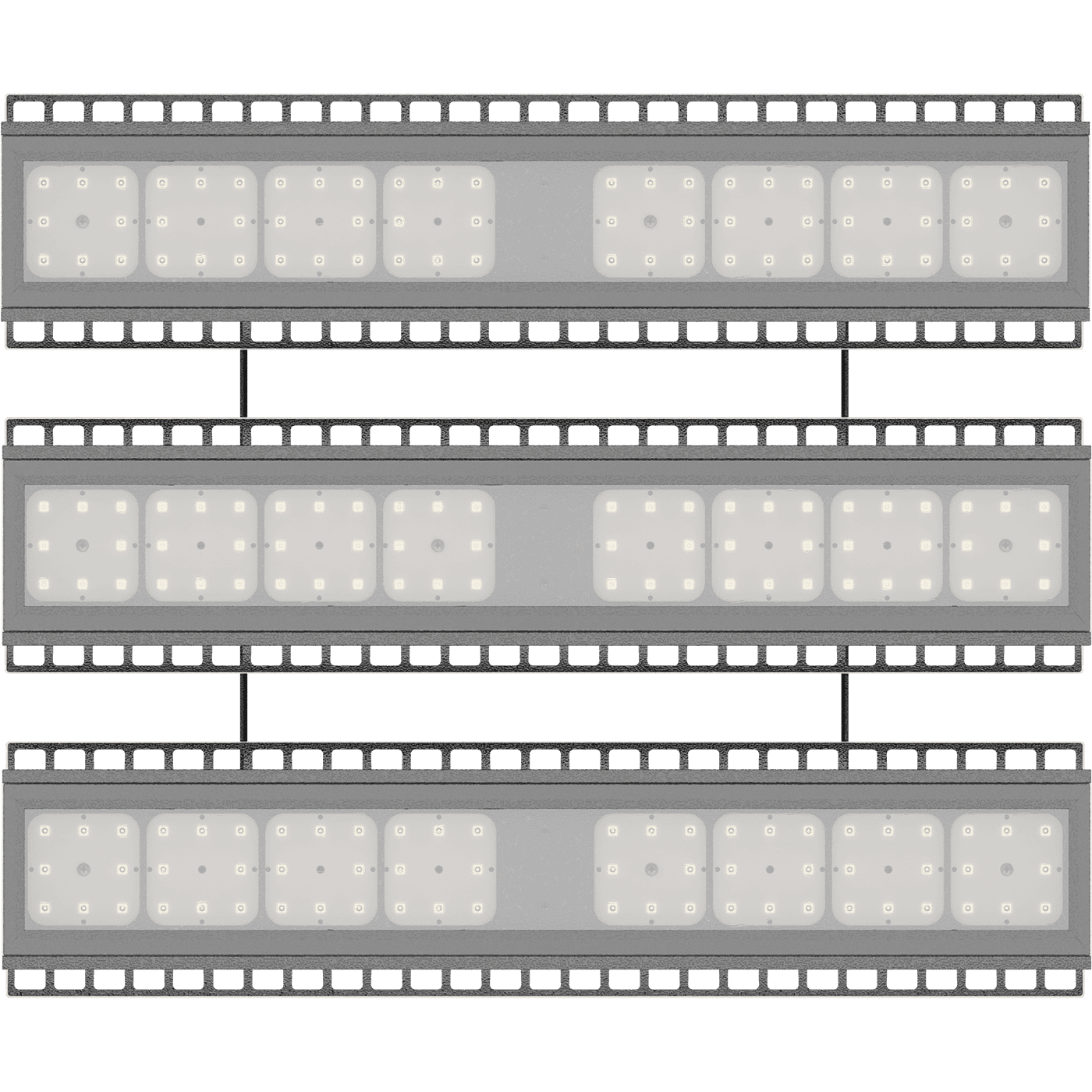

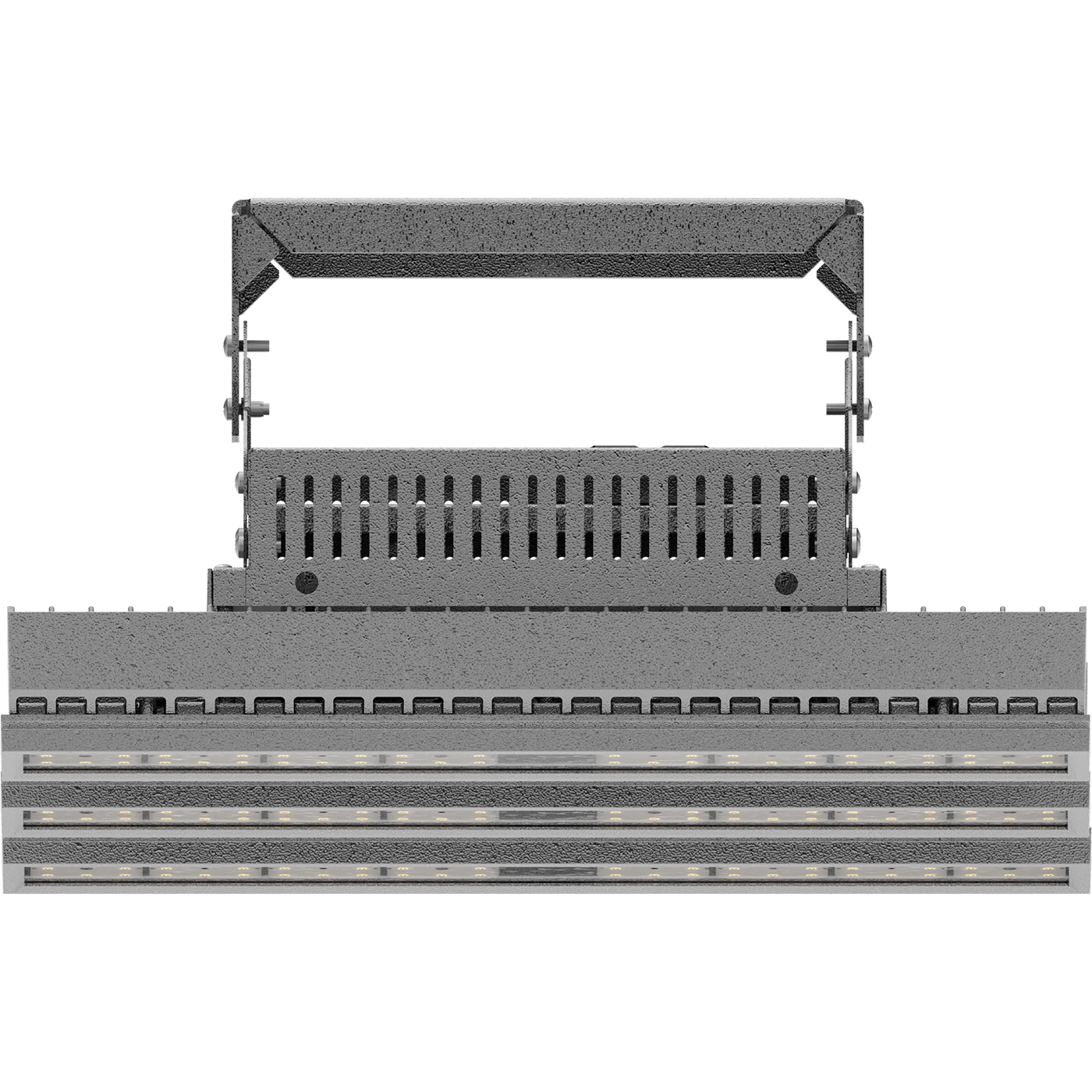

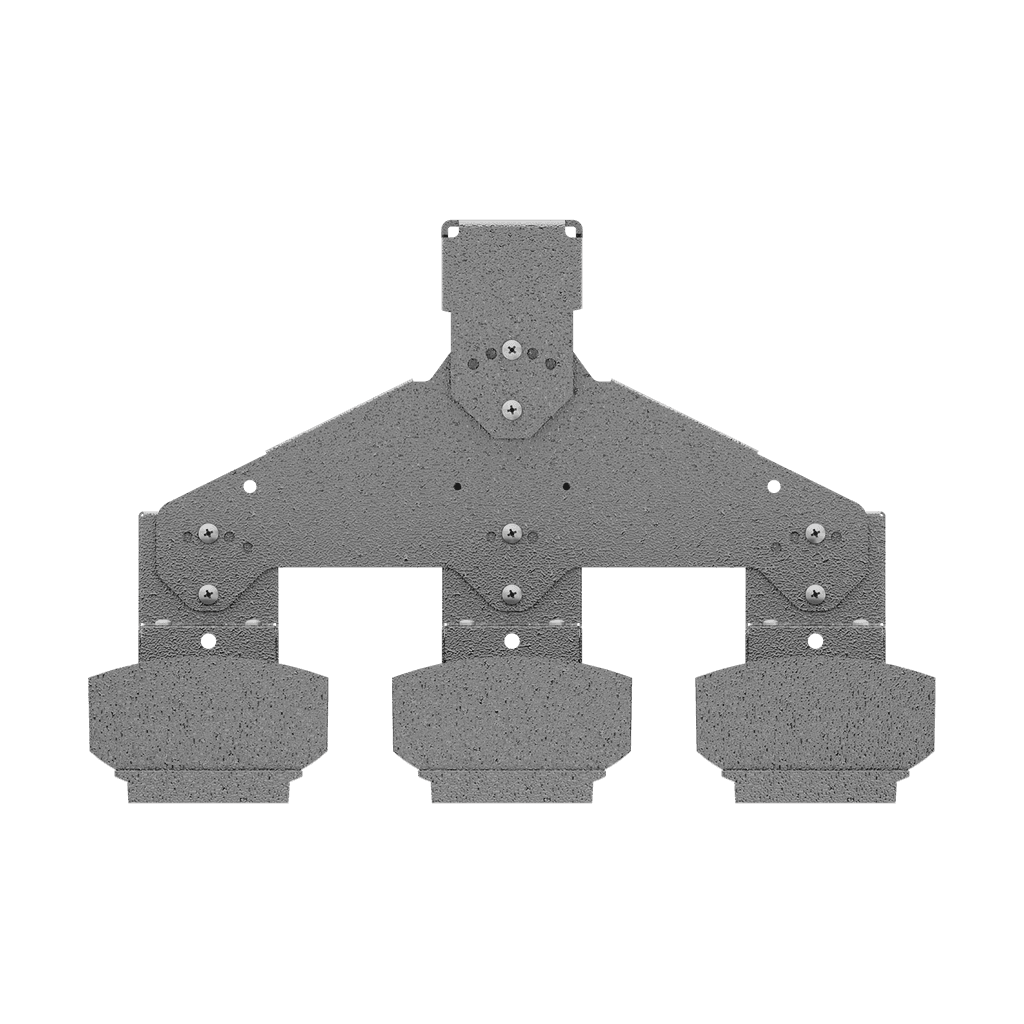

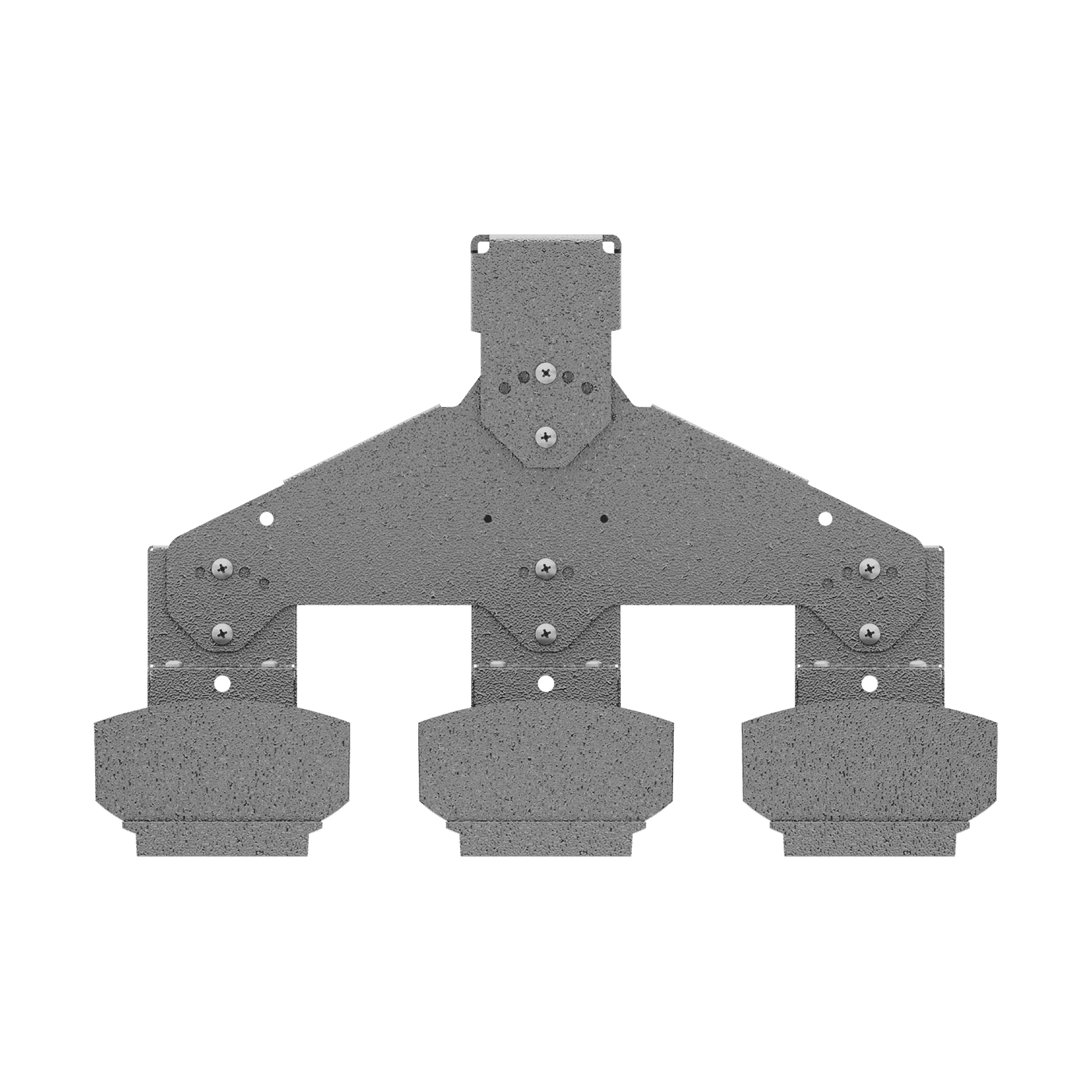

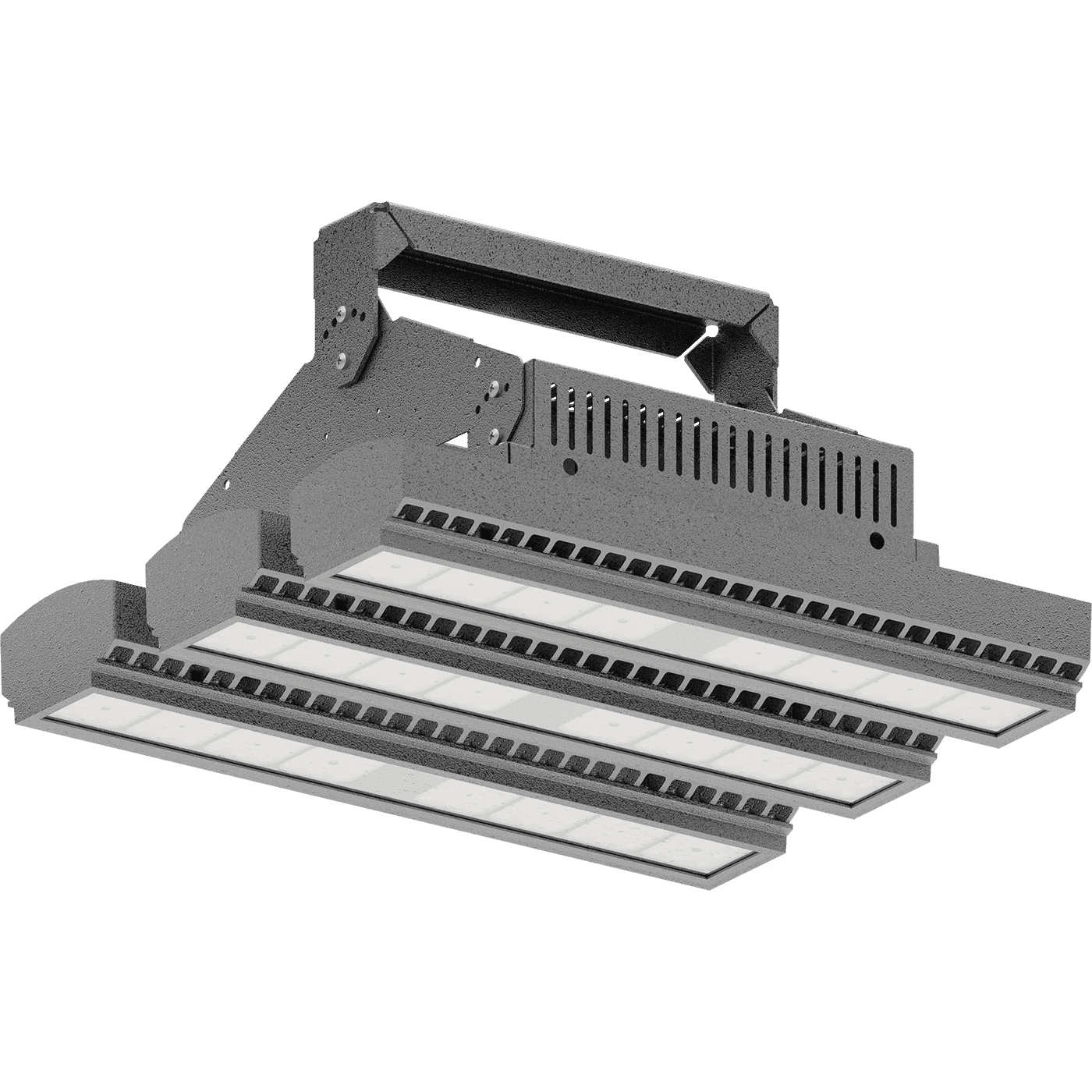

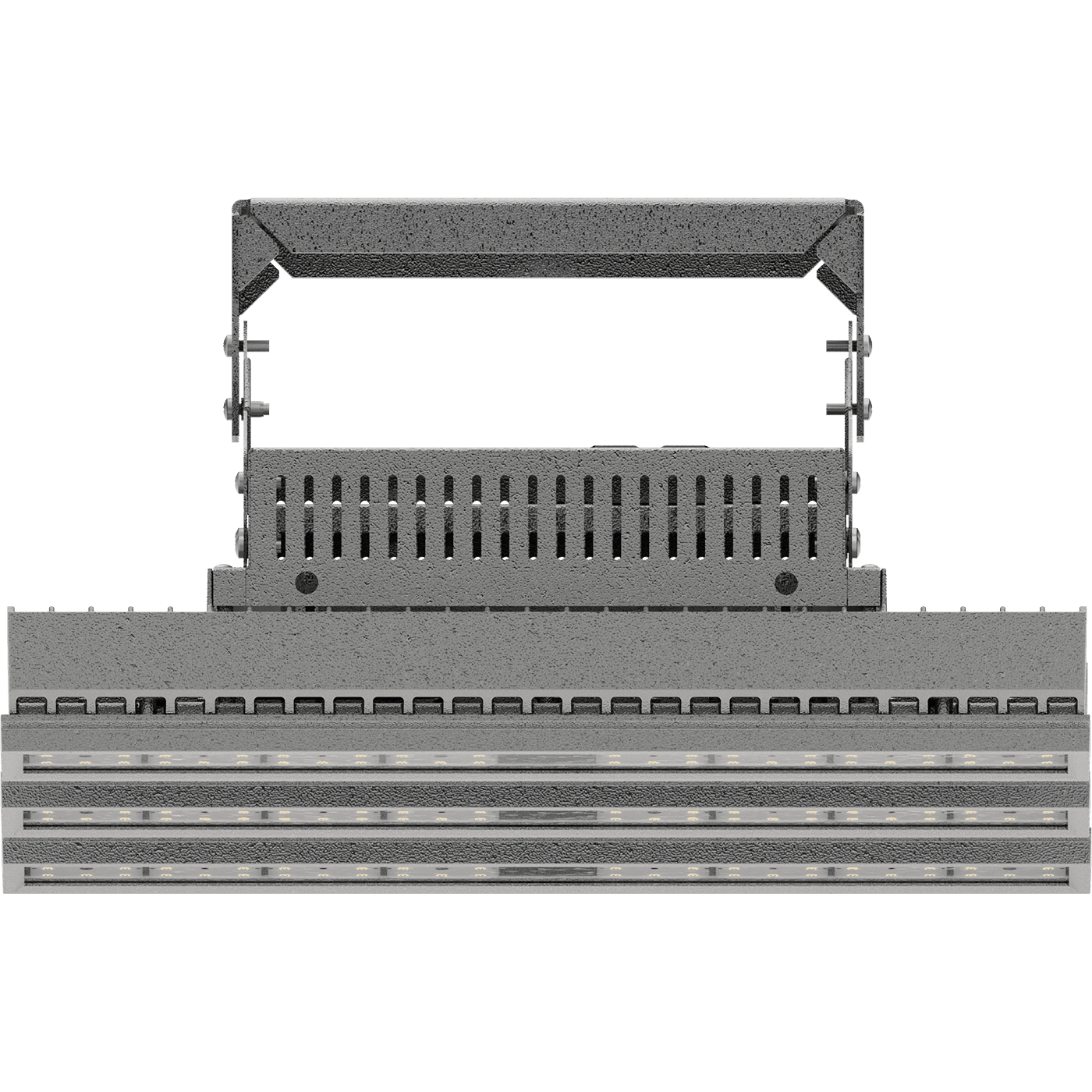

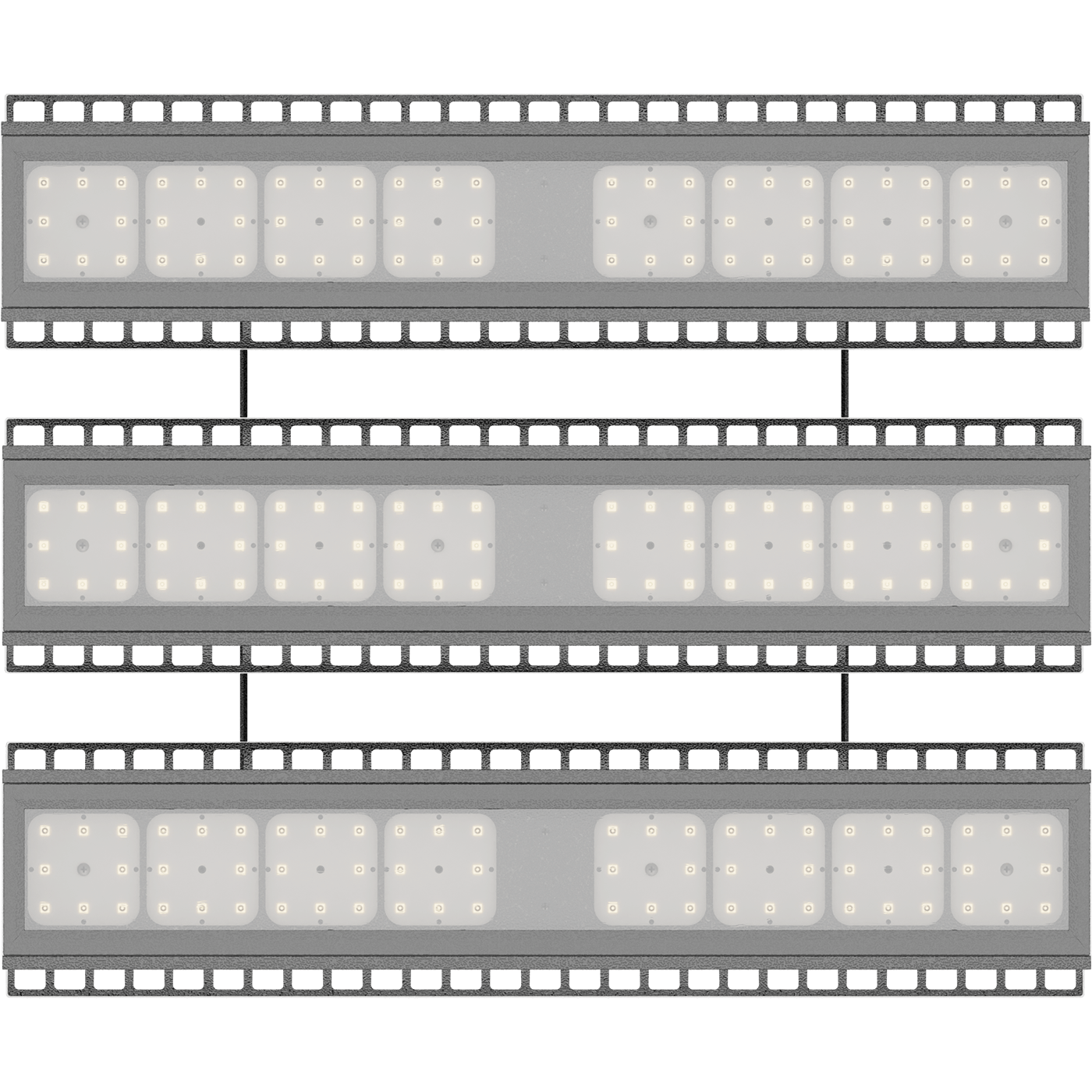

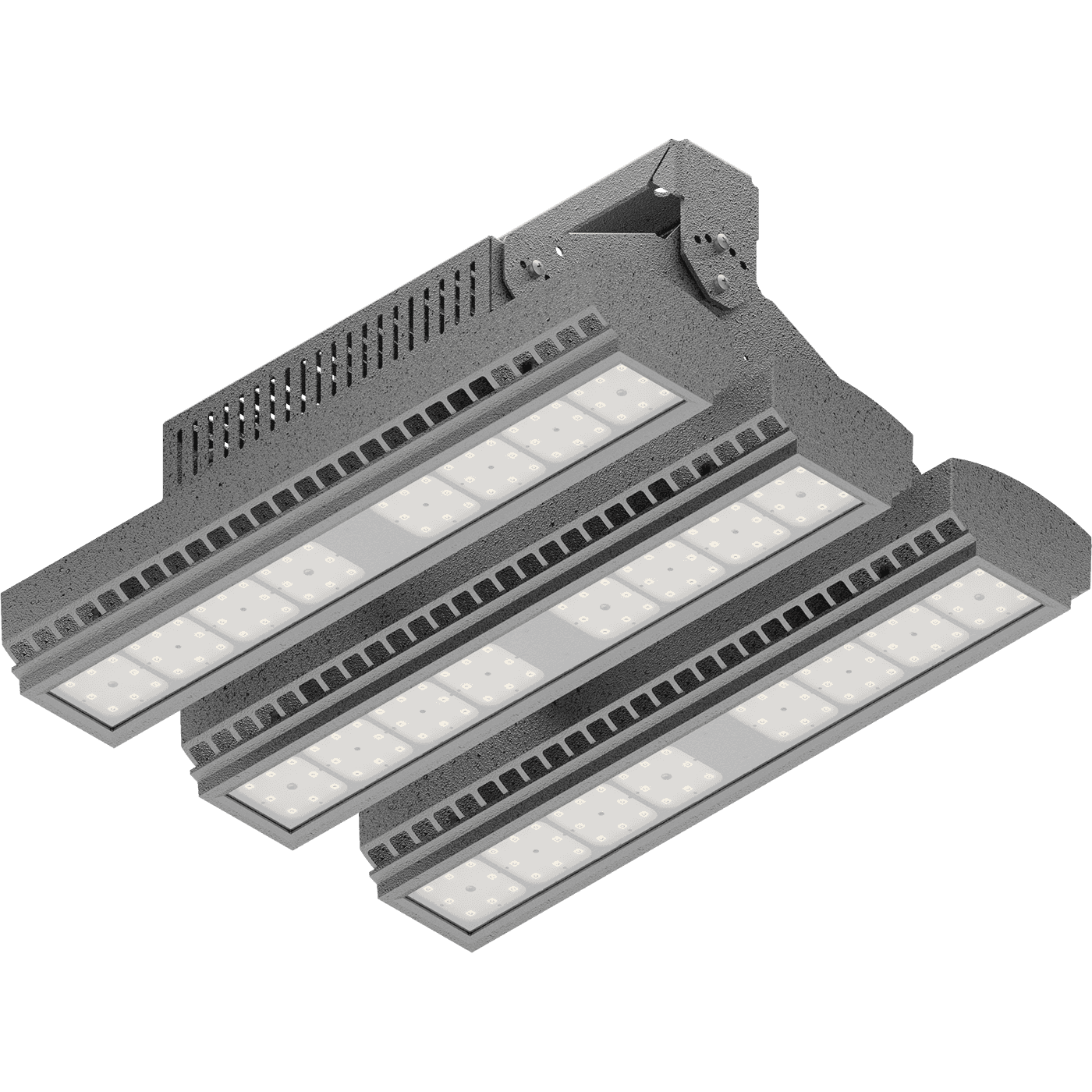

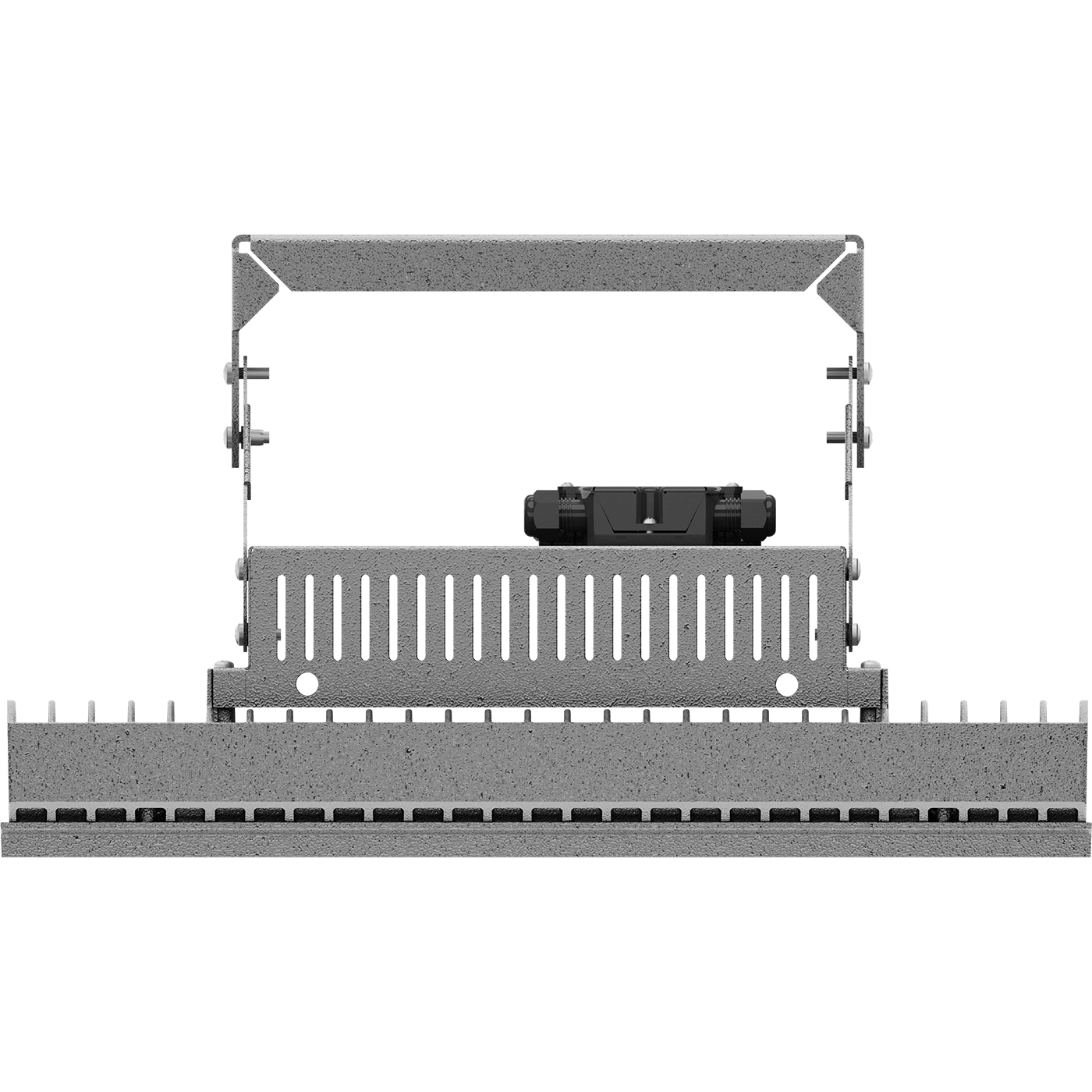

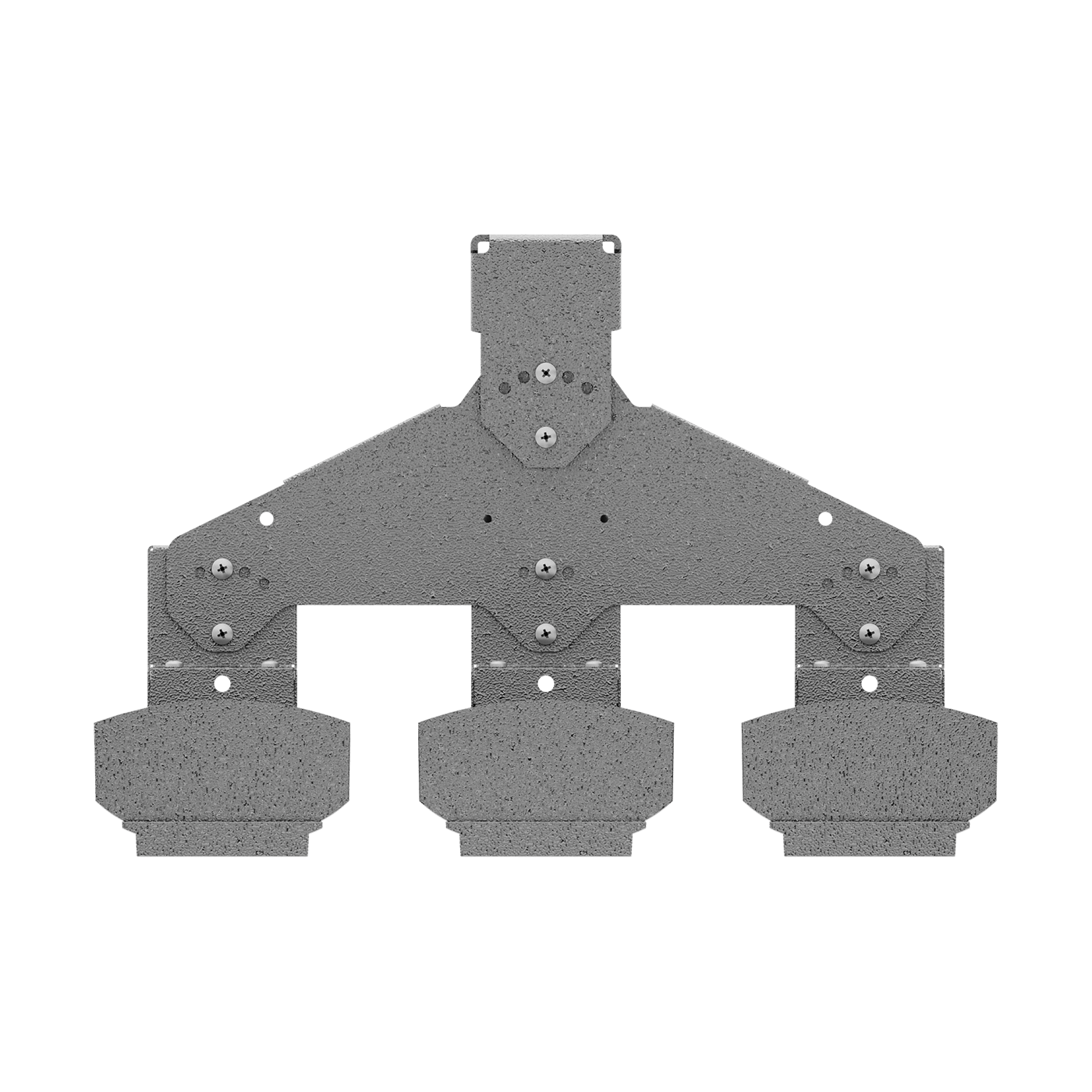

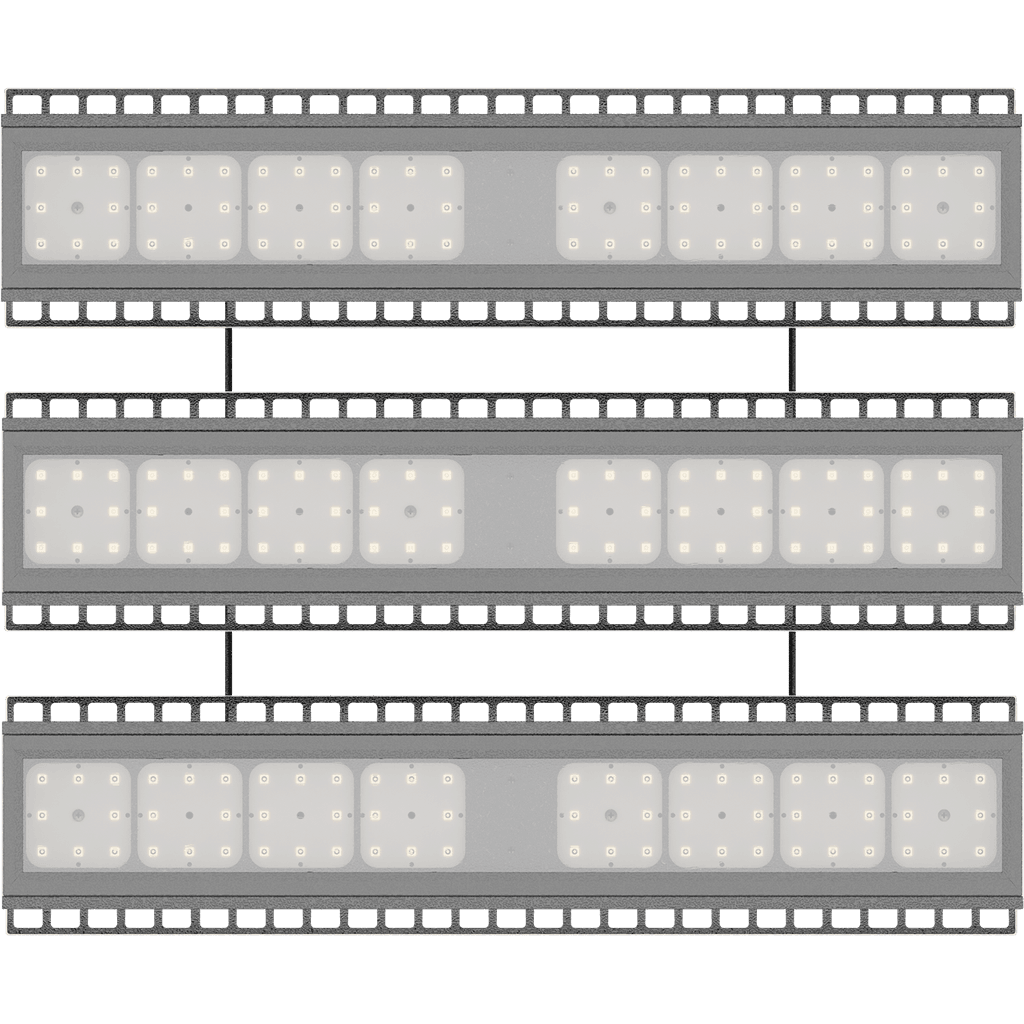

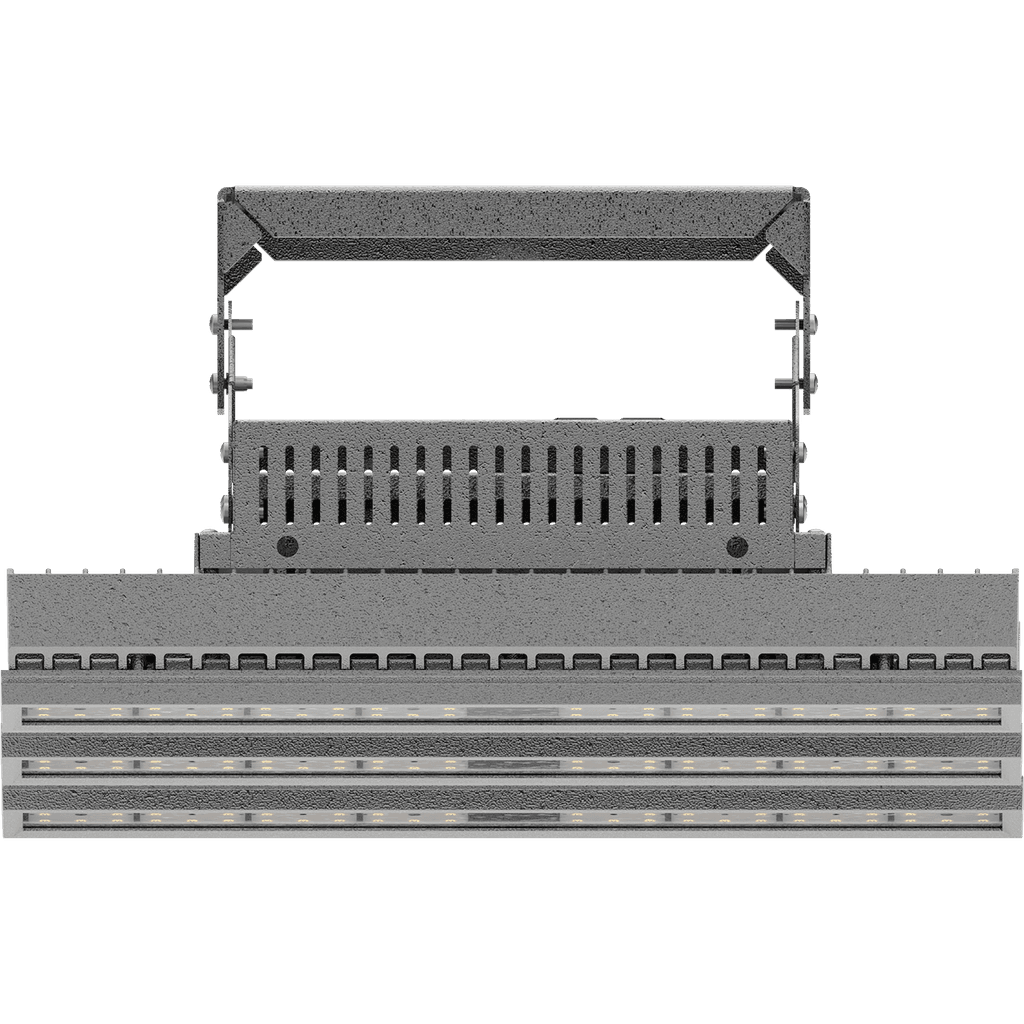

HB LED 225 D80 HFD 2.0 3000K (EXTREME)
model is discontinued
model is discontinued
HB LED 225 D80 HFD 2.0 3000K (EXTREME)
215 Wluminaire power
24200 lmlight flow
113 lm/Wenergy efficiency
code1224004830
color temperature3000 K
beam angleD80
weight17.5 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
color rendition index (CRI)
>70light flow
24200 lmflickering factor
<1%energy efficiency
113 lm/Wbeam angle
D80color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
24200 lm
flickering factor
<1%
energy efficiency
113 lm/W
beam angle
D80
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
215 W
electric shock protection
I
maximum cross-section of the connected cable
4 mm2
supply voltage
230 V
constructional
climatic performance
УХЛ1
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
shock resistance (IK)
IK08/7 Дж
weight
17.5 kg
ingress protection (IP)
IP65
length
467 mm
width
388 mm
height
266 mm
LMS options
dimming
DALI
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
code
1224004830
