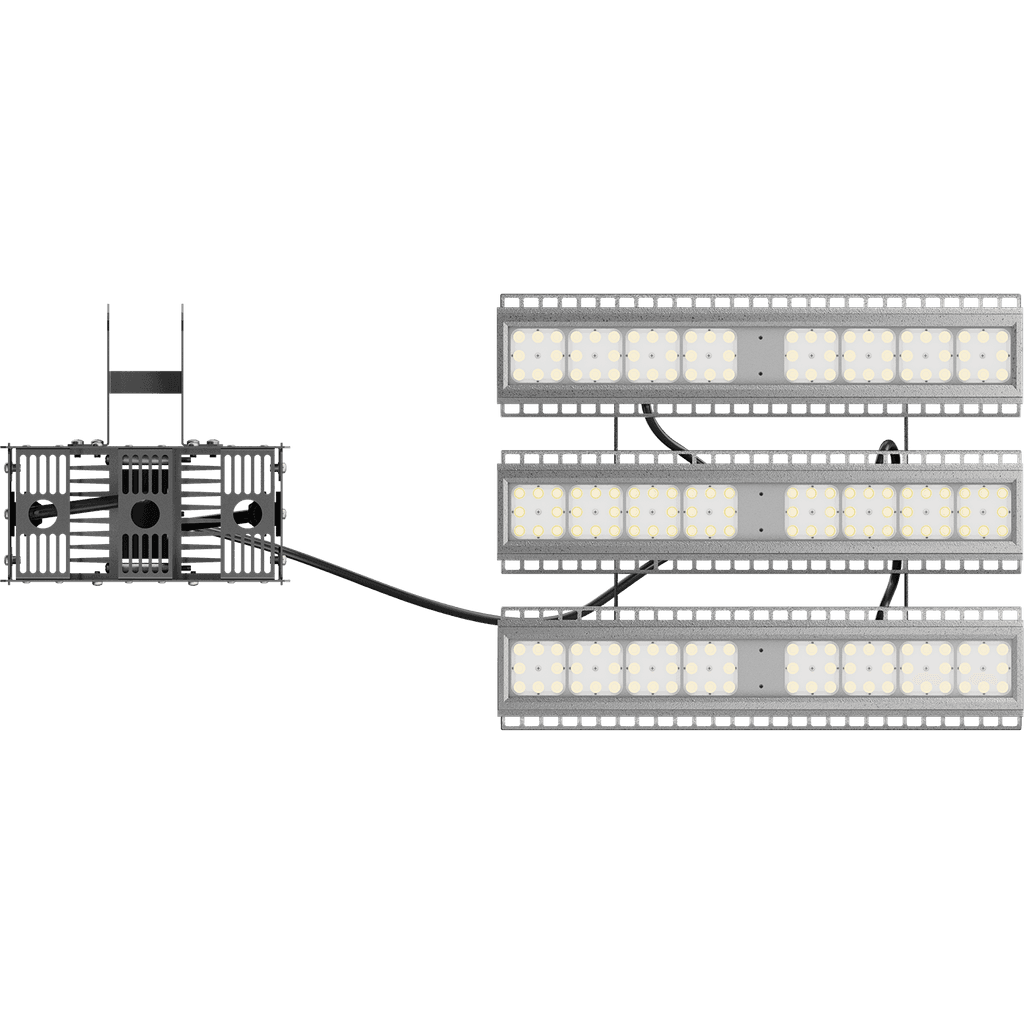

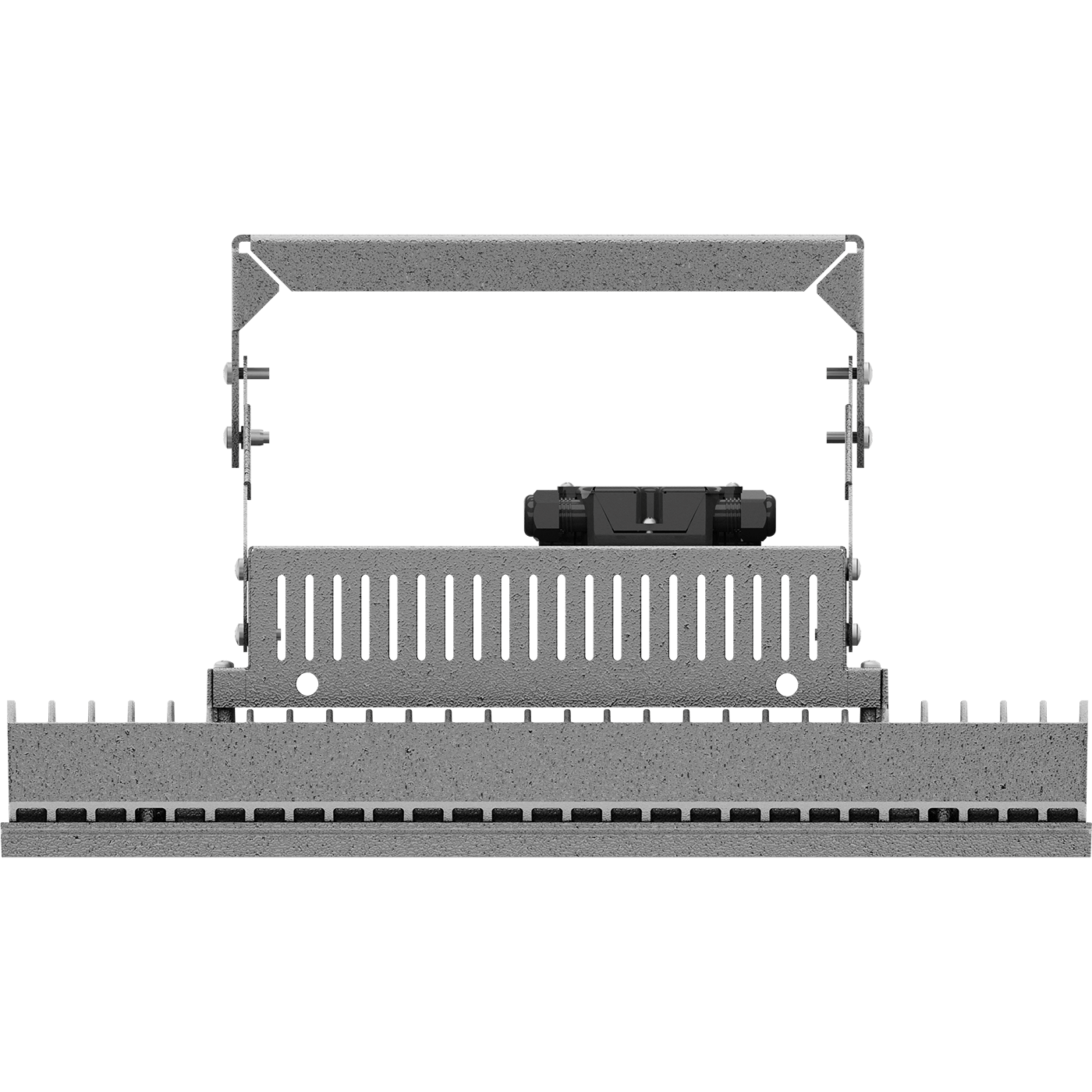

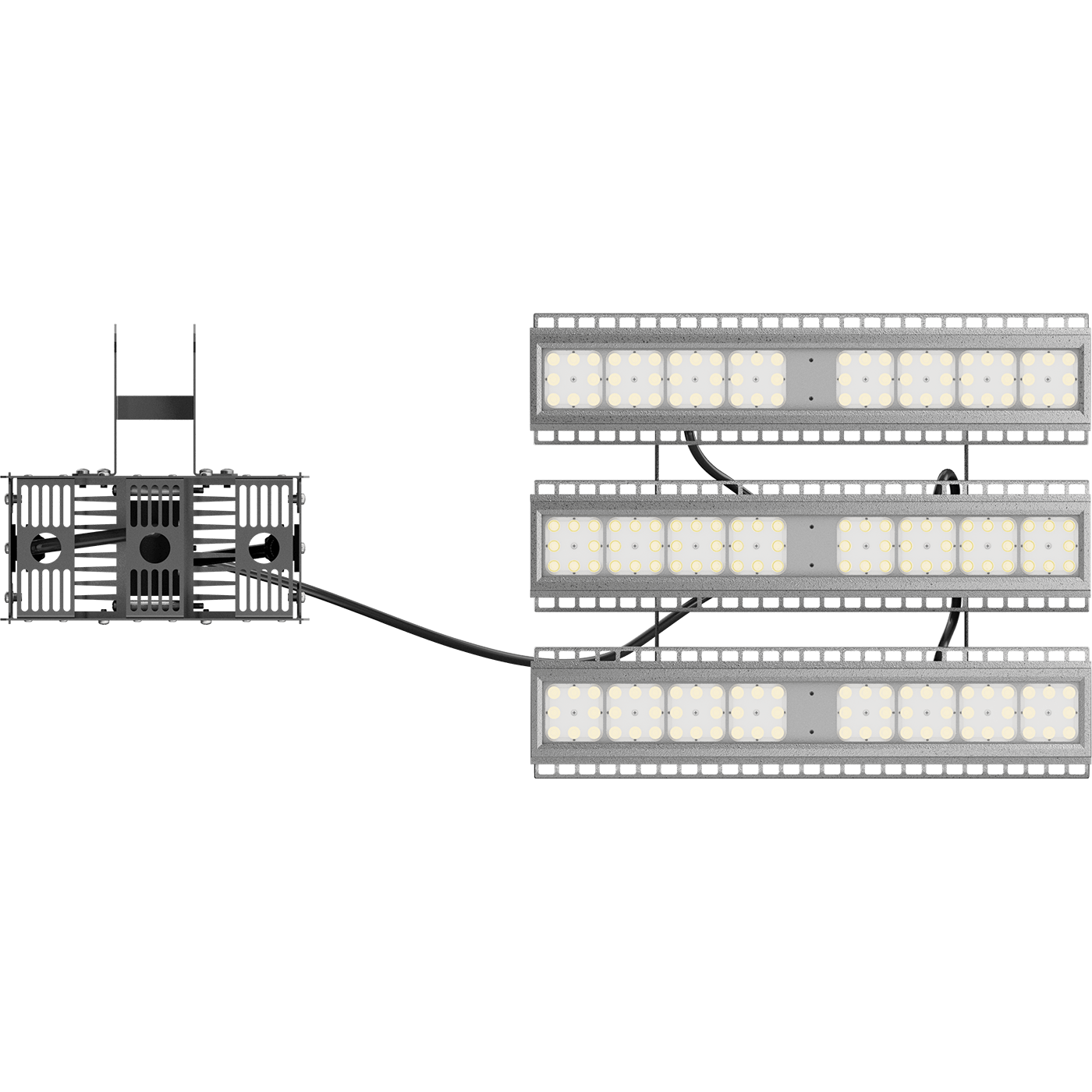

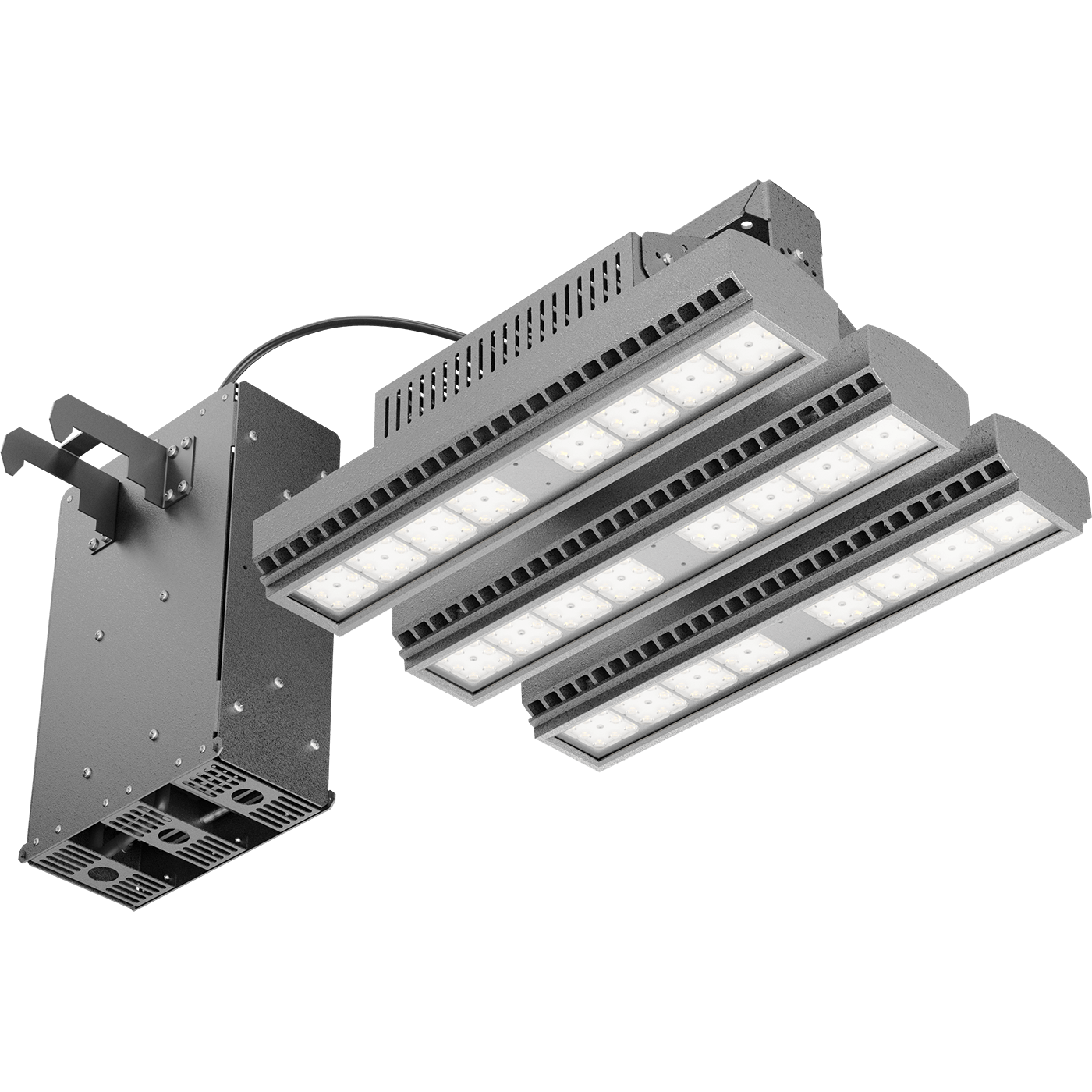

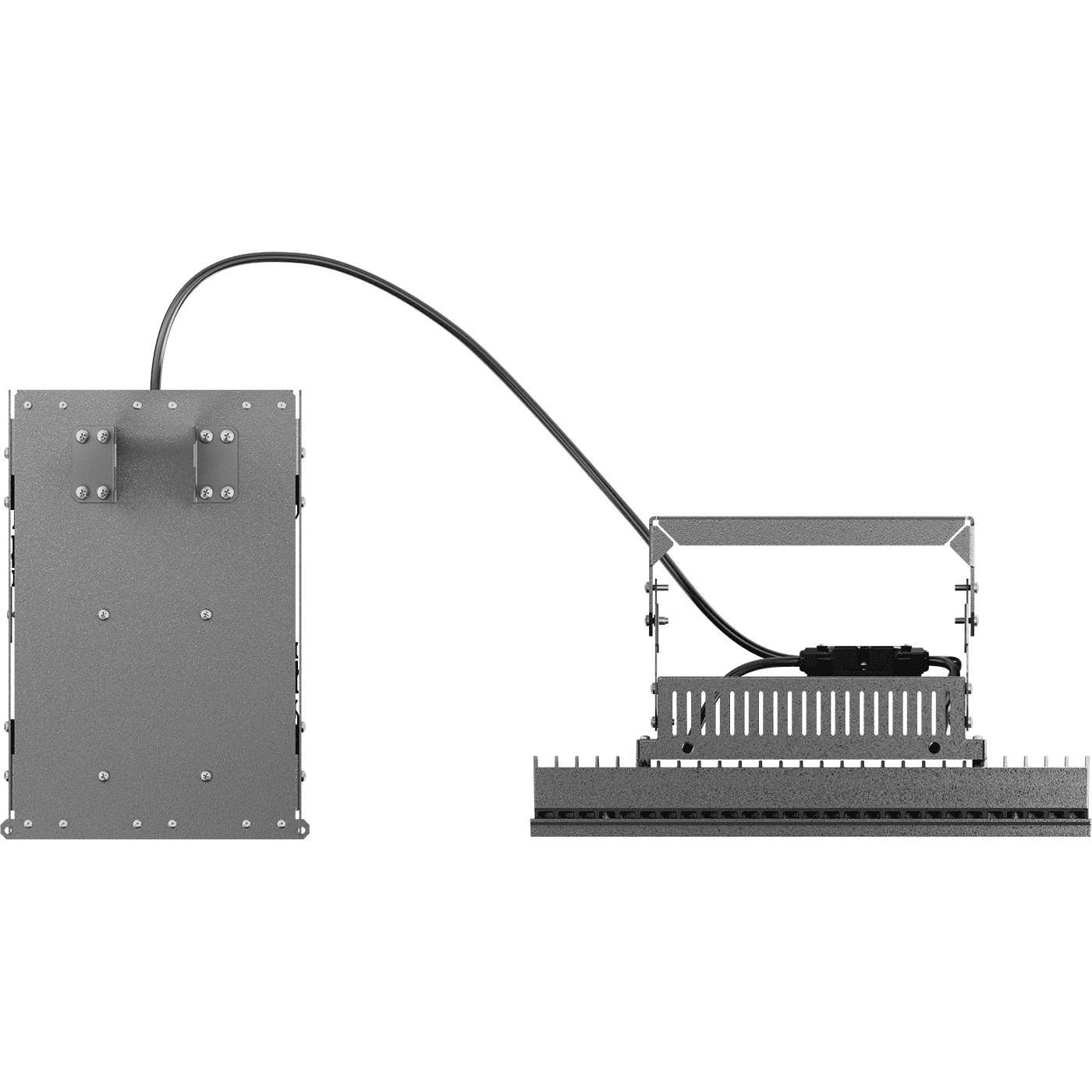

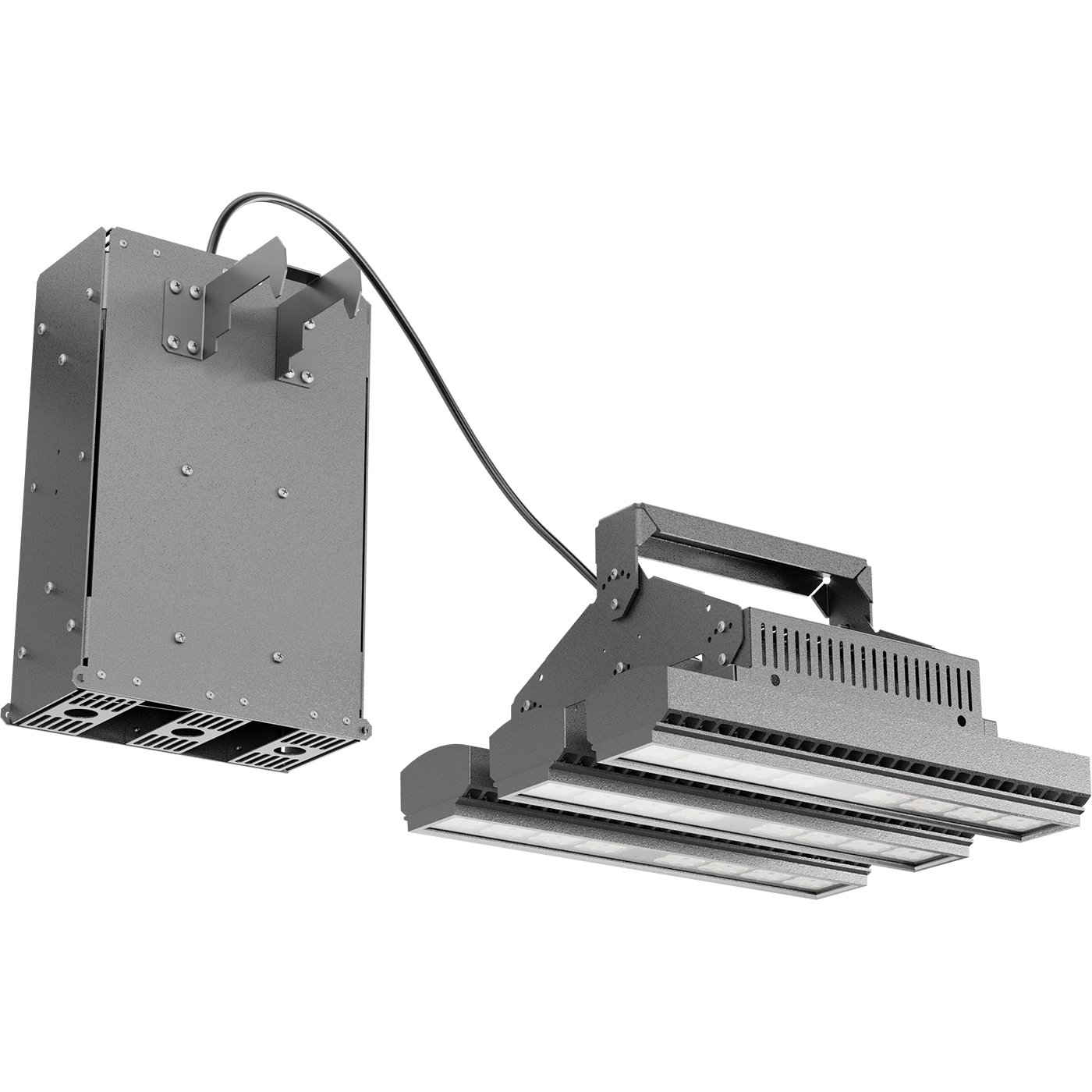

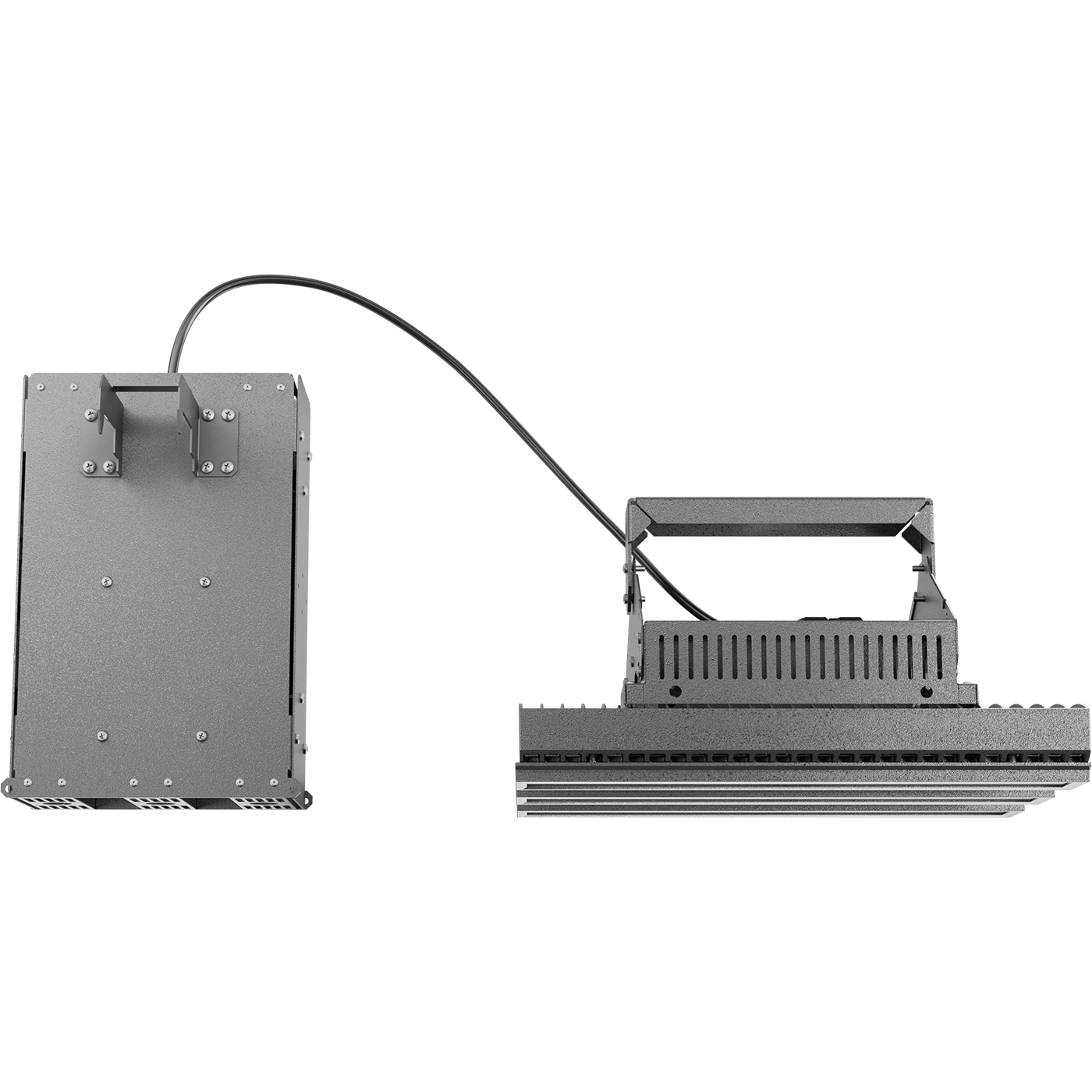

HB LED 225 D60 5000K (EXTREME) with round frame 620 mm (SET)
_with_round_frame_620_mm_(set).jpg&w=1920&q=100)
_with_round_frame_620_mm_(set).jpg&w=1024&q=75)
HB LED 225 D60 5000K (EXTREME) with round frame 620 mm (SET)
215 Wluminaire power
25000 lmlight flow
116 lm/Wenergy efficiency
code4224000030
color temperature5000 K
beam angleD60
weight17.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
25000 lmflickering factor
<1%energy efficiency
116 lm/Wbeam angle
D60color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
25000 lm
flickering factor
<1%
energy efficiency
116 lm/W
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
215 W
electric shock protection
I
maximum cross-section of the connected cable
4 mm2
starting current
75 A
supply voltage
230 V
constructional
shock resistance (IK)
IK07/2 Дж
climatic performance
УХЛ1
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
17.5 kg

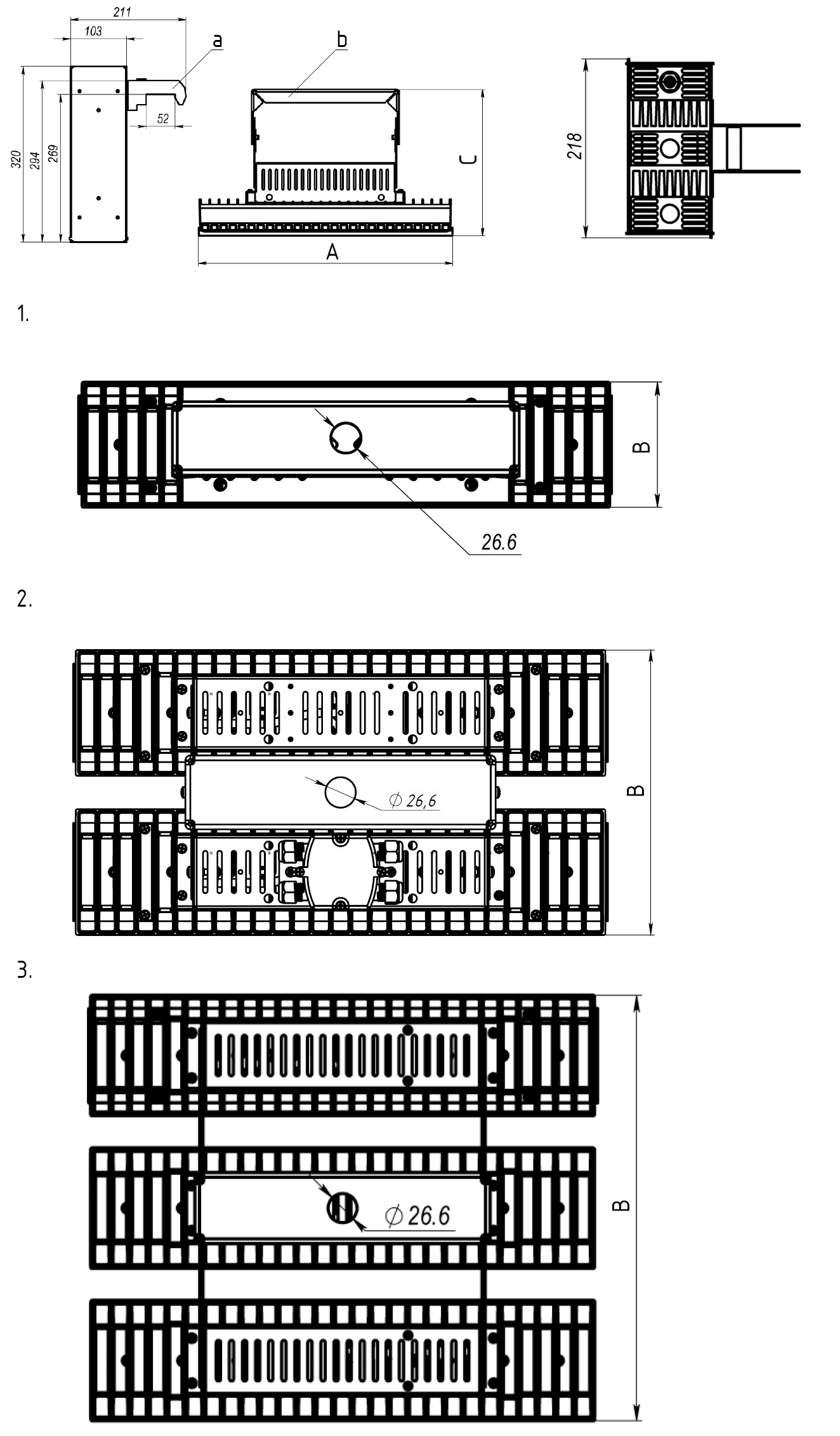

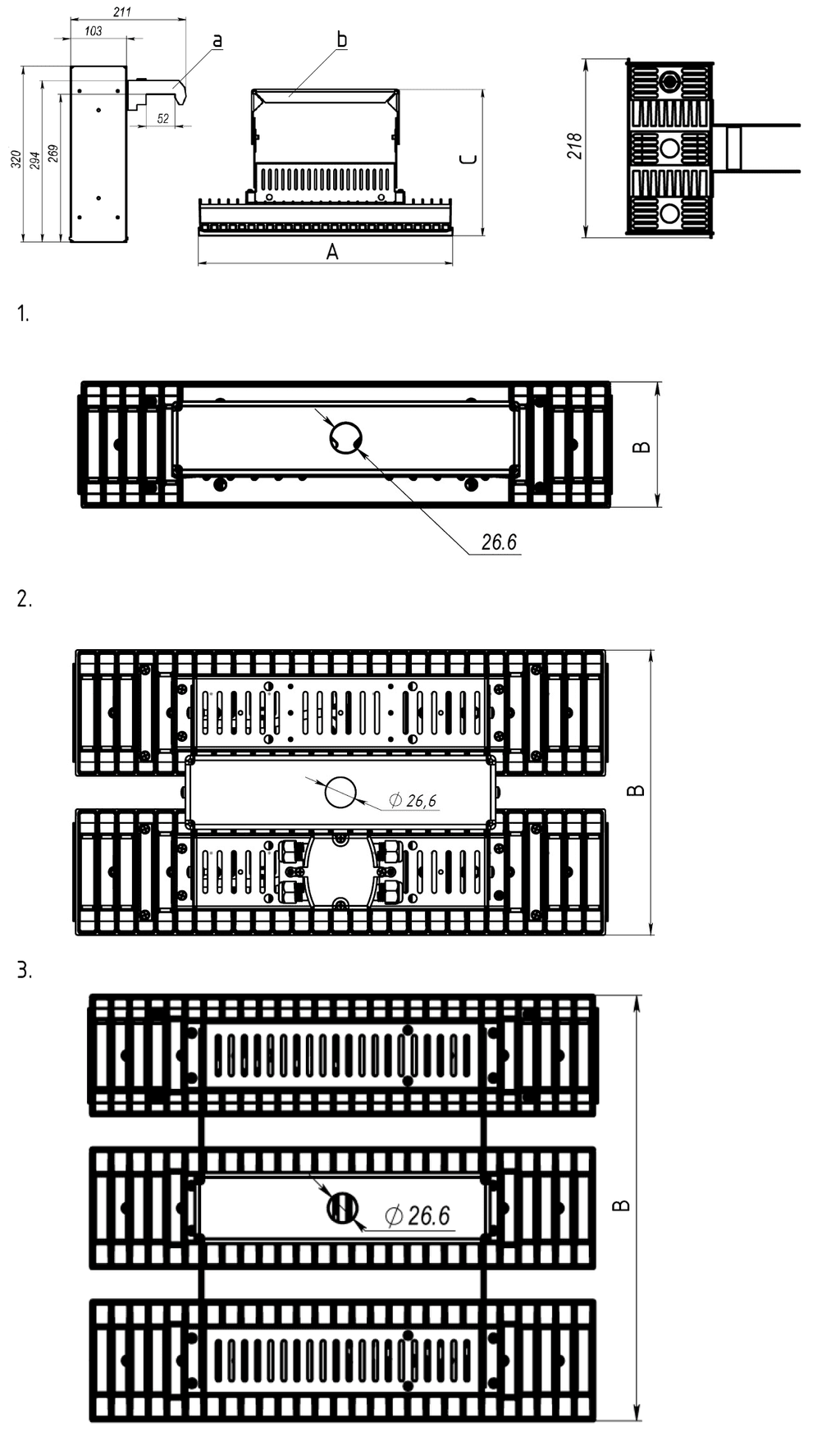

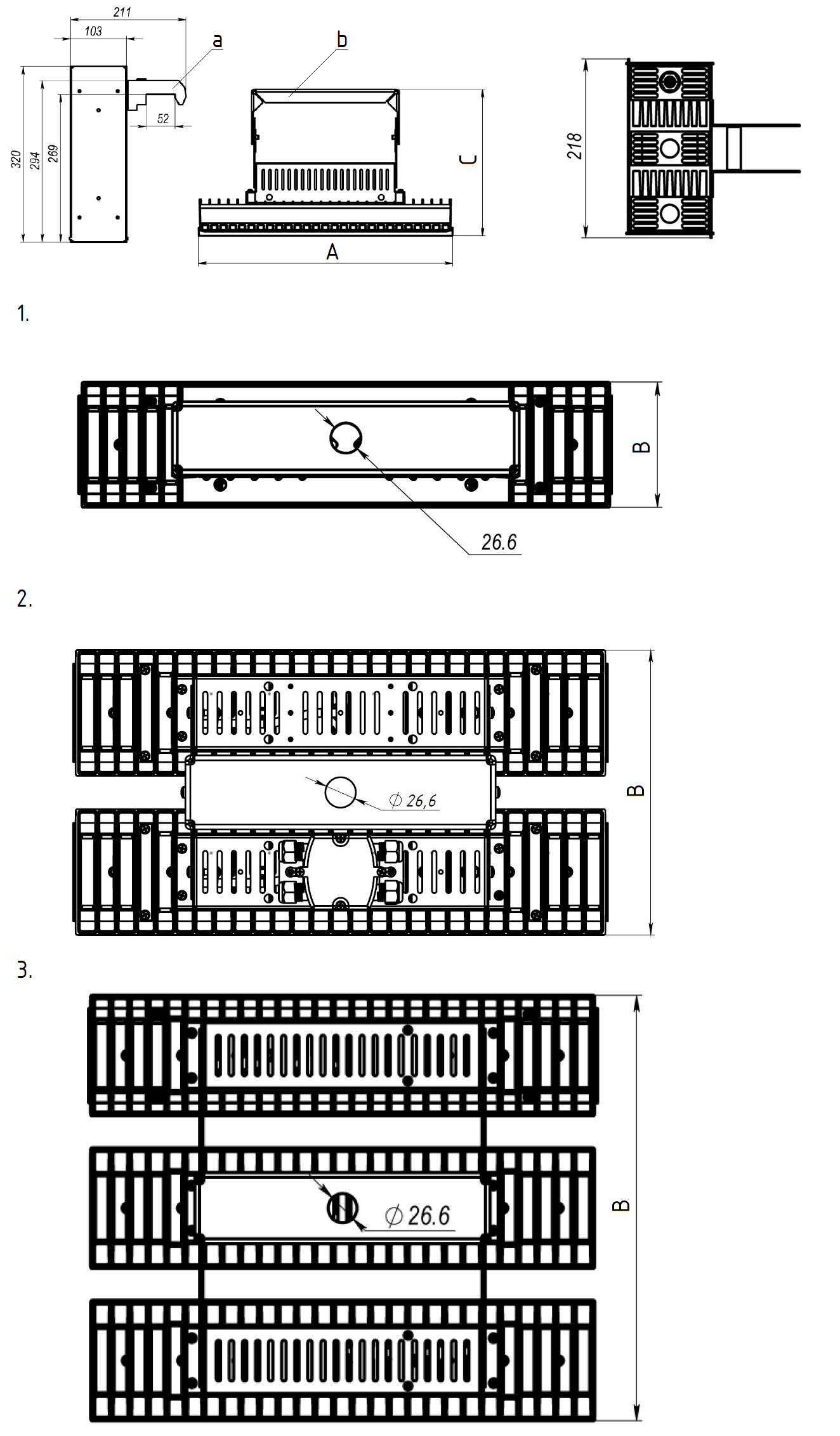

length
467 mm
width
388 mm
height
266 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +75 C
code
4224000030
model files
model files
photometric files
сертификаты
photometric files
ies263.3 kB
jpg58 kB
ldt159.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
