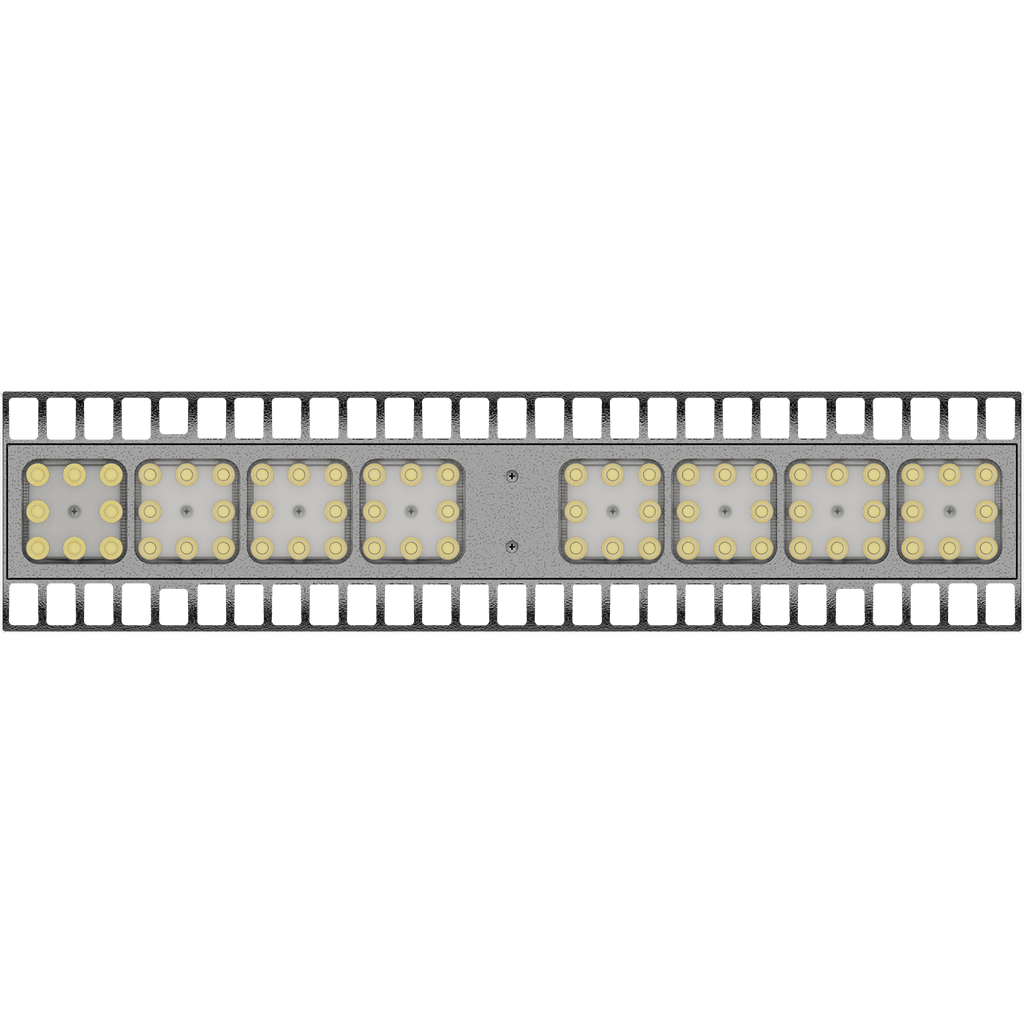

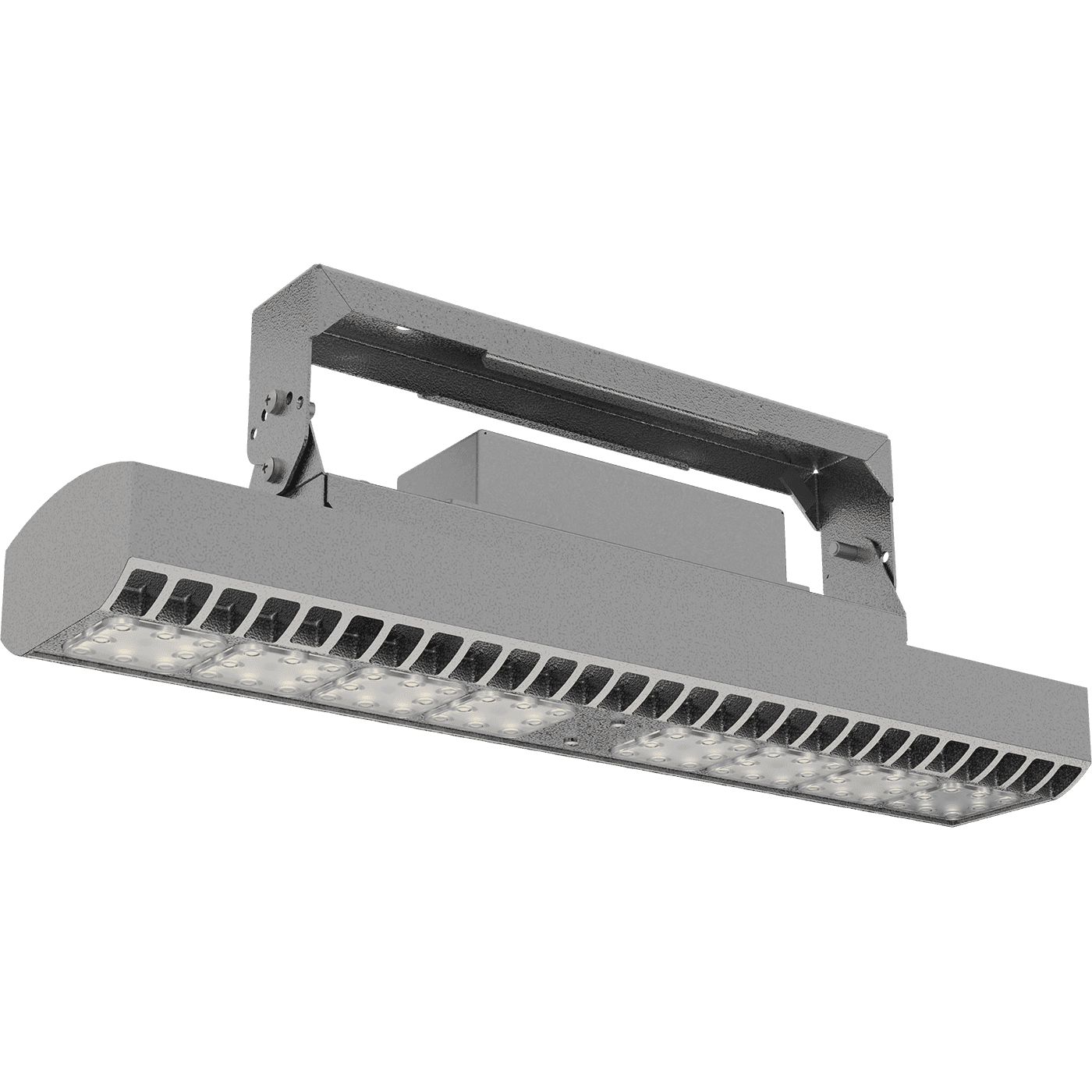

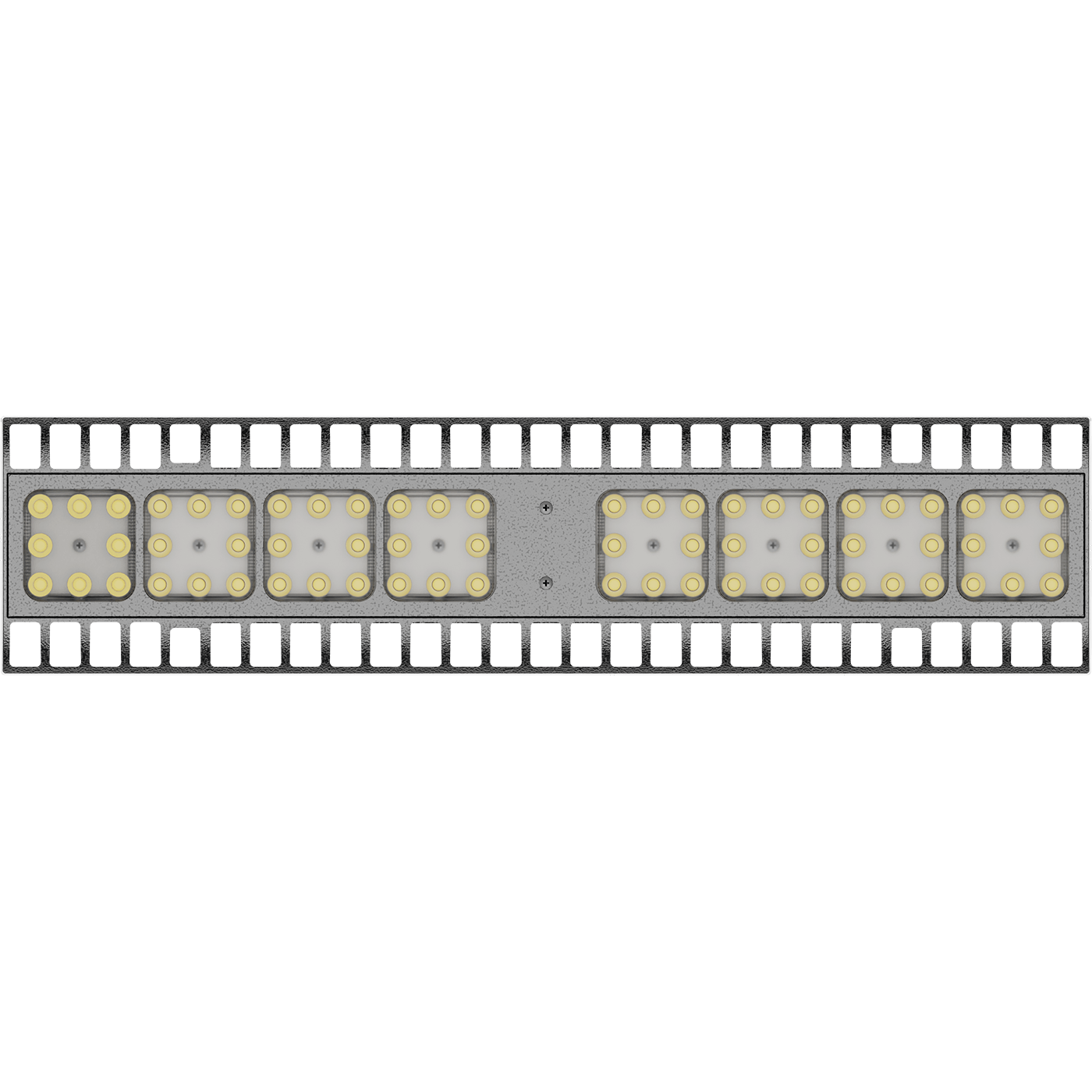

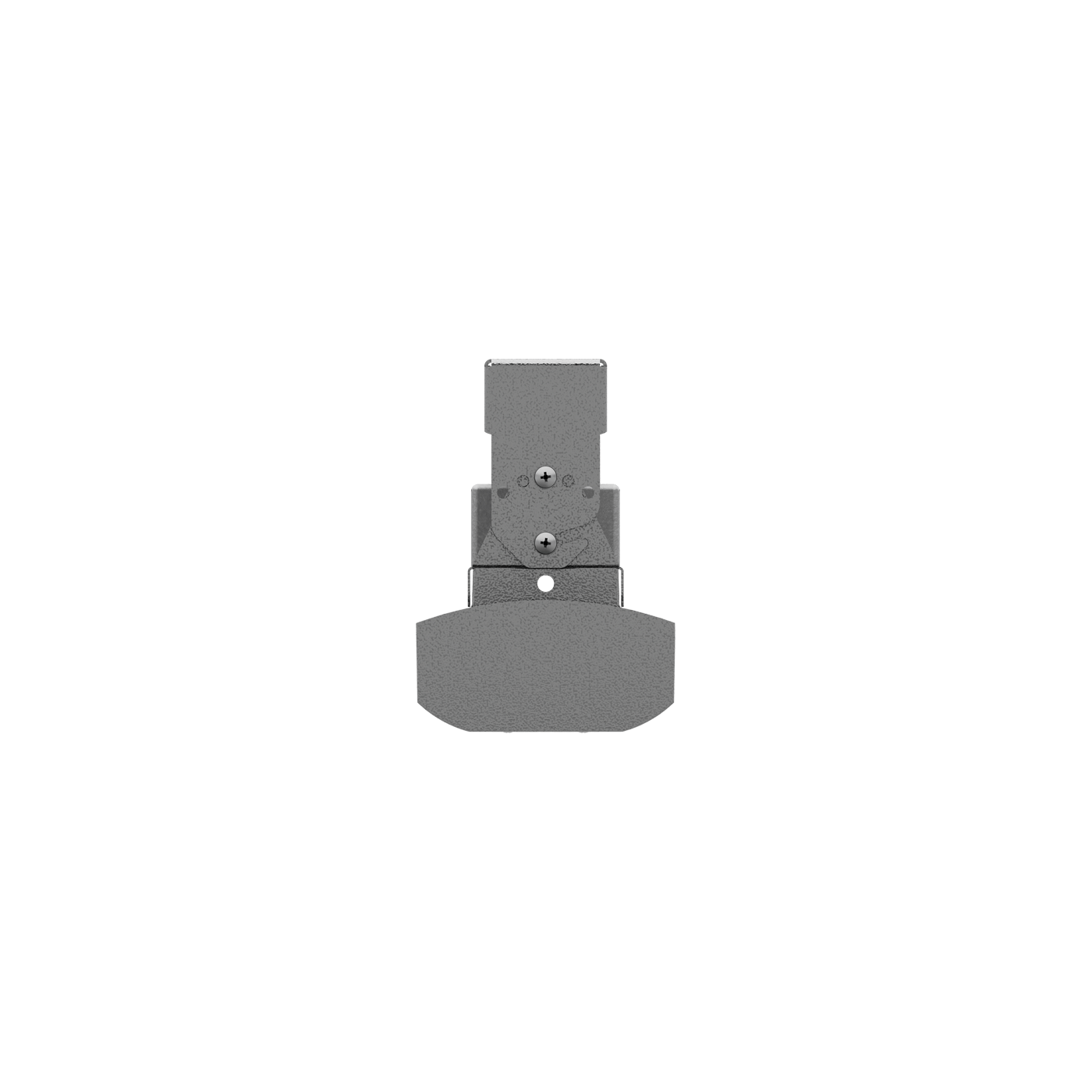

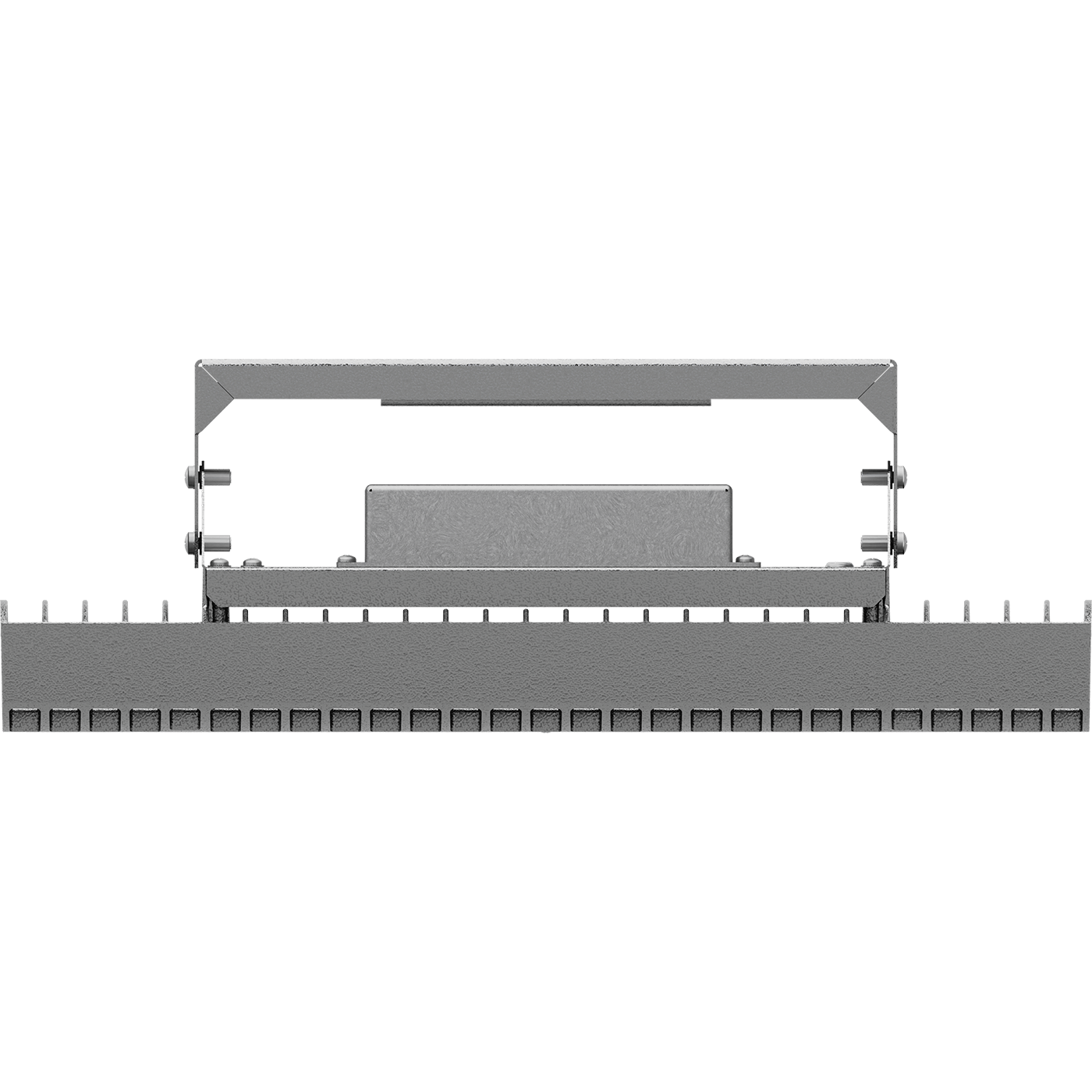

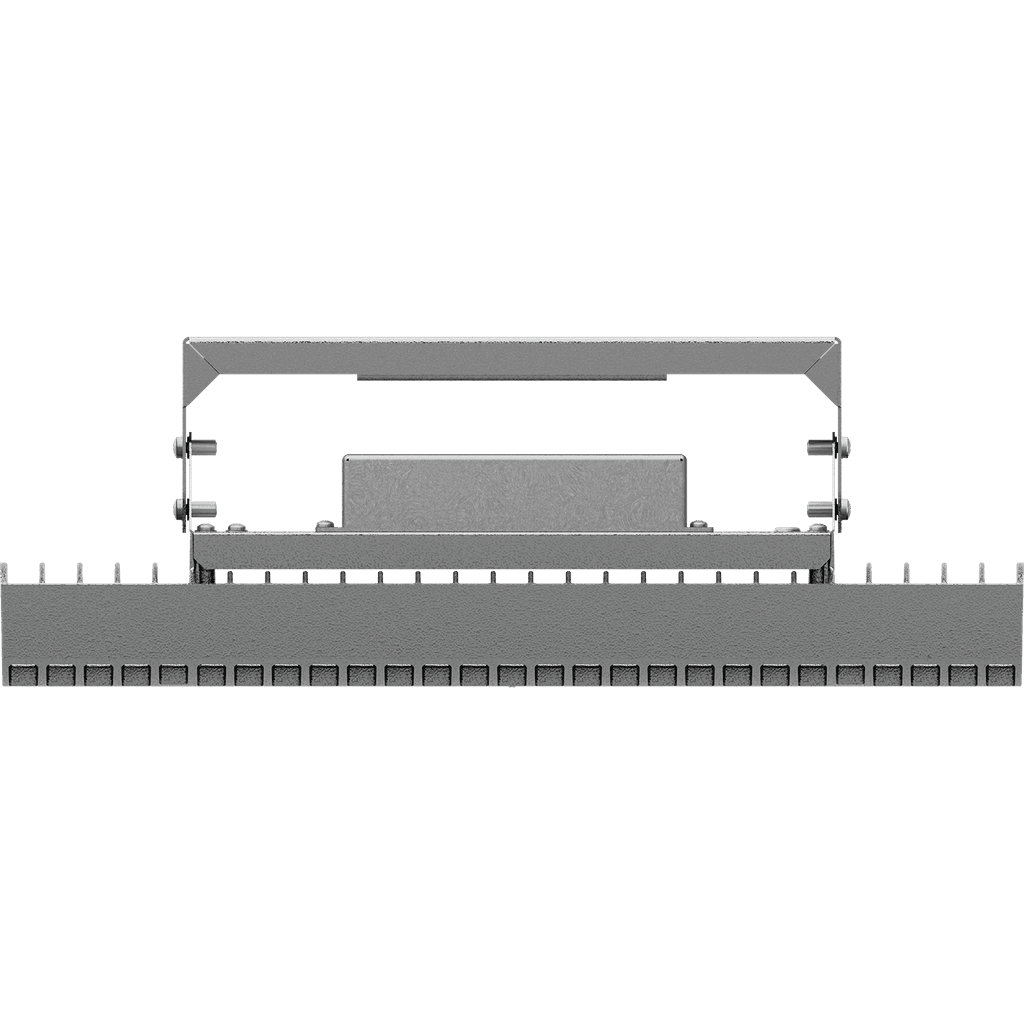

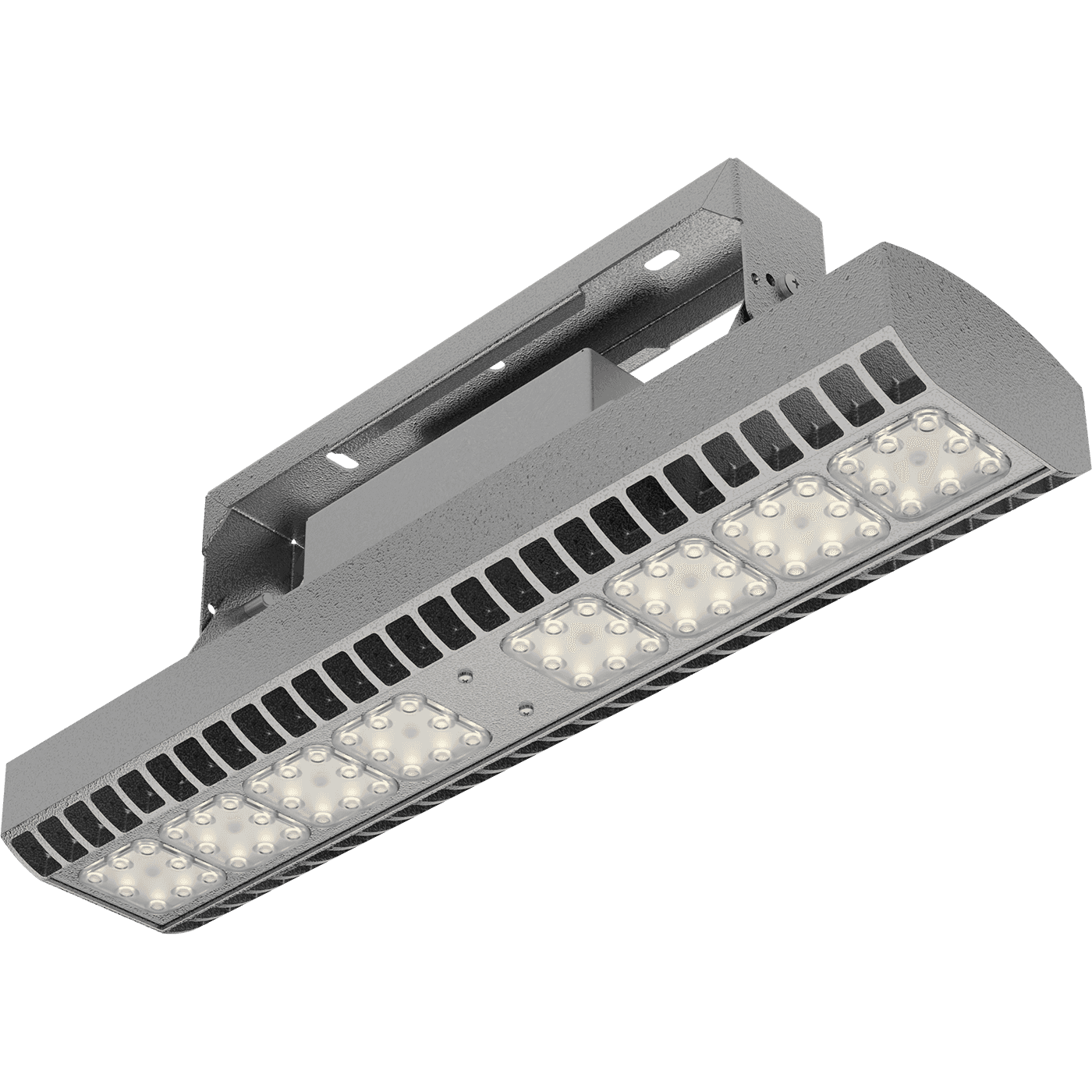

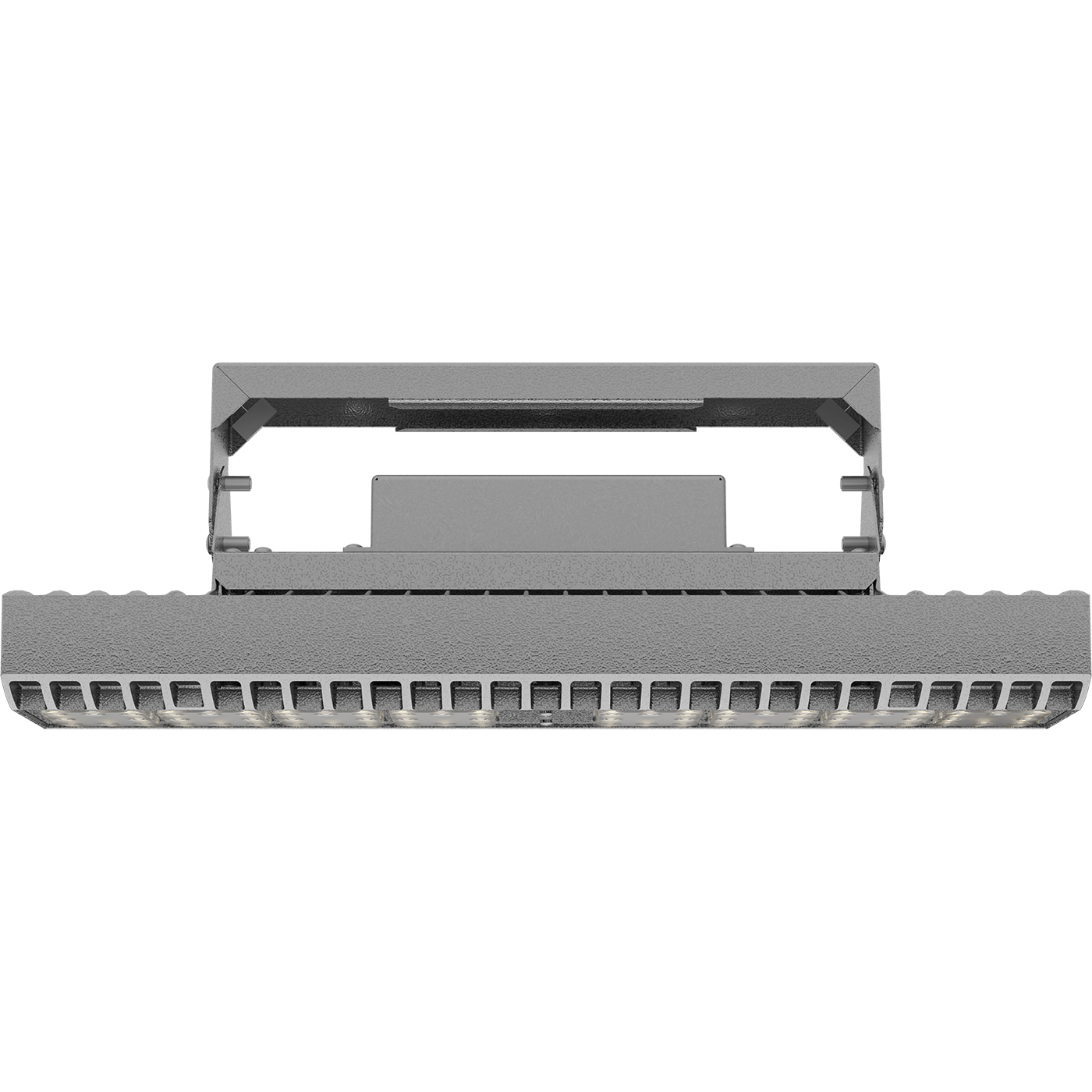

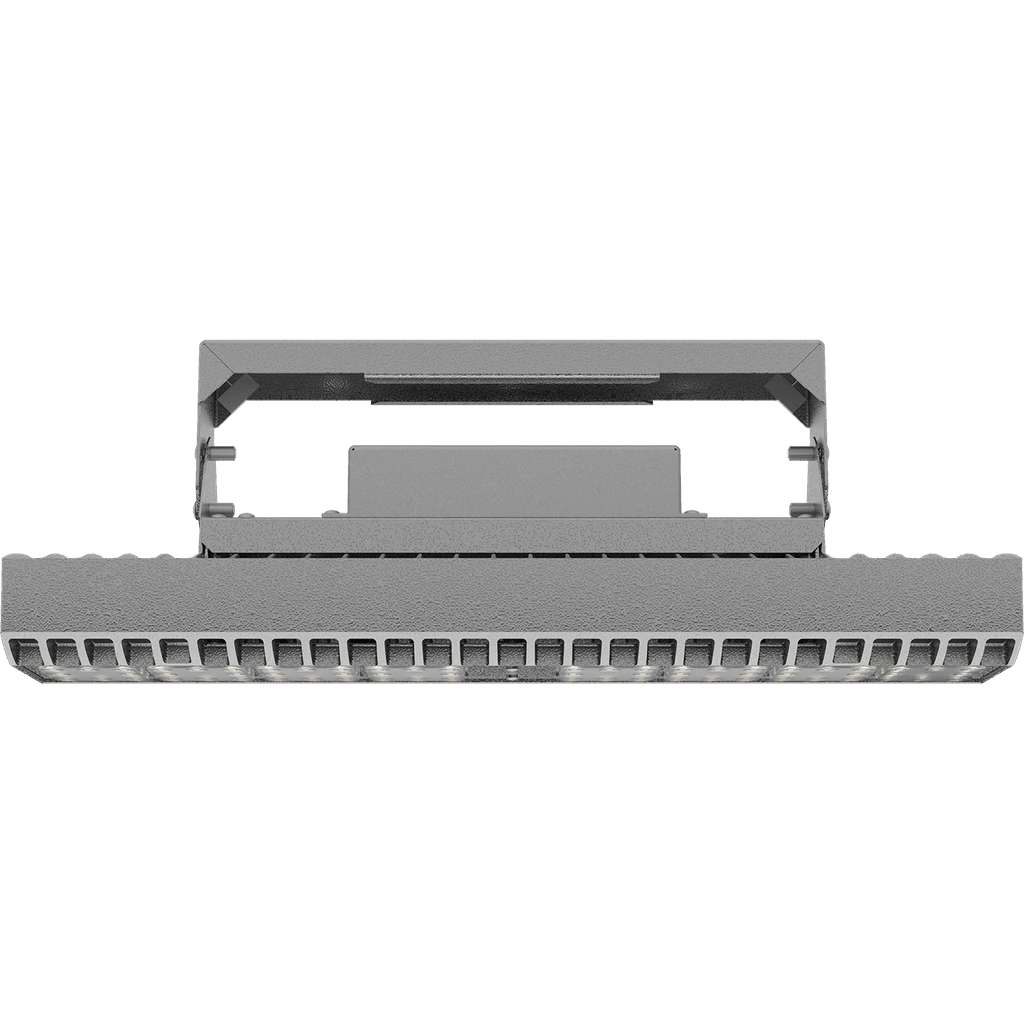

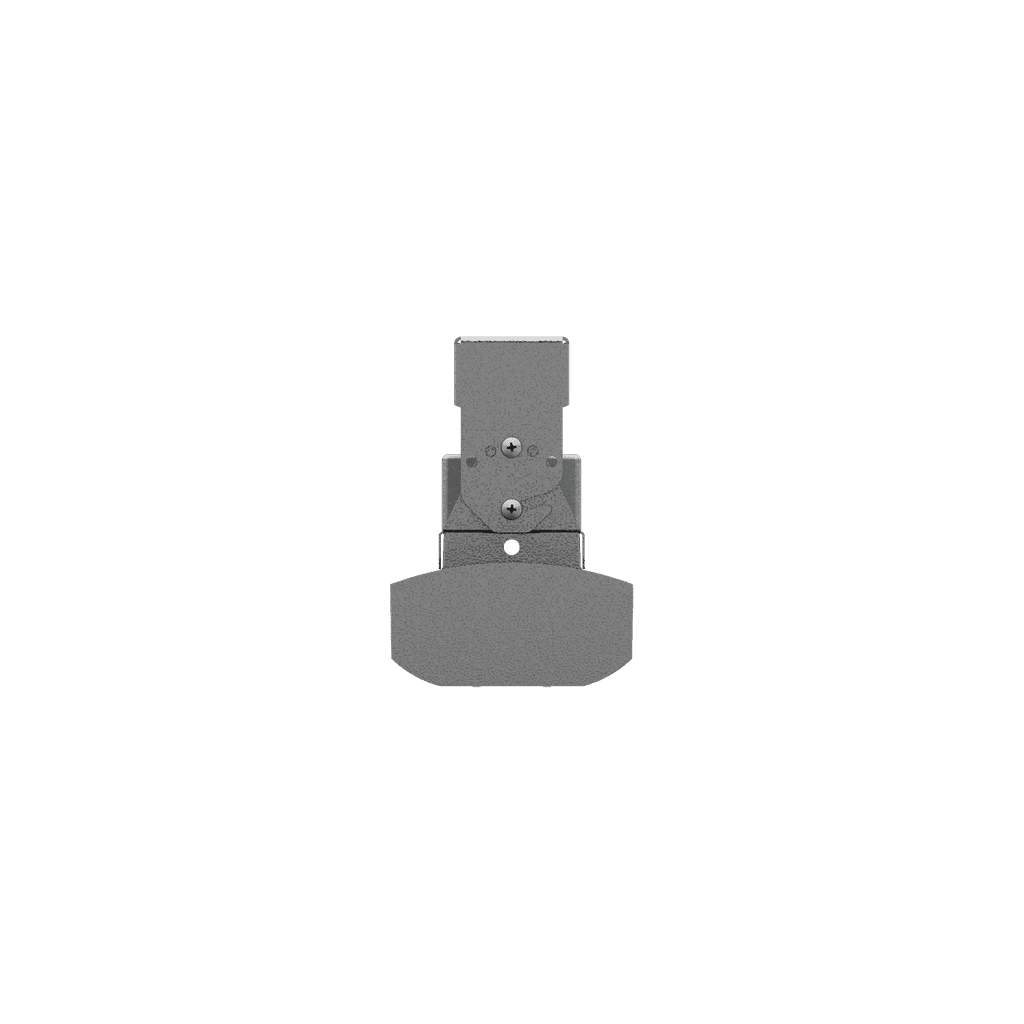

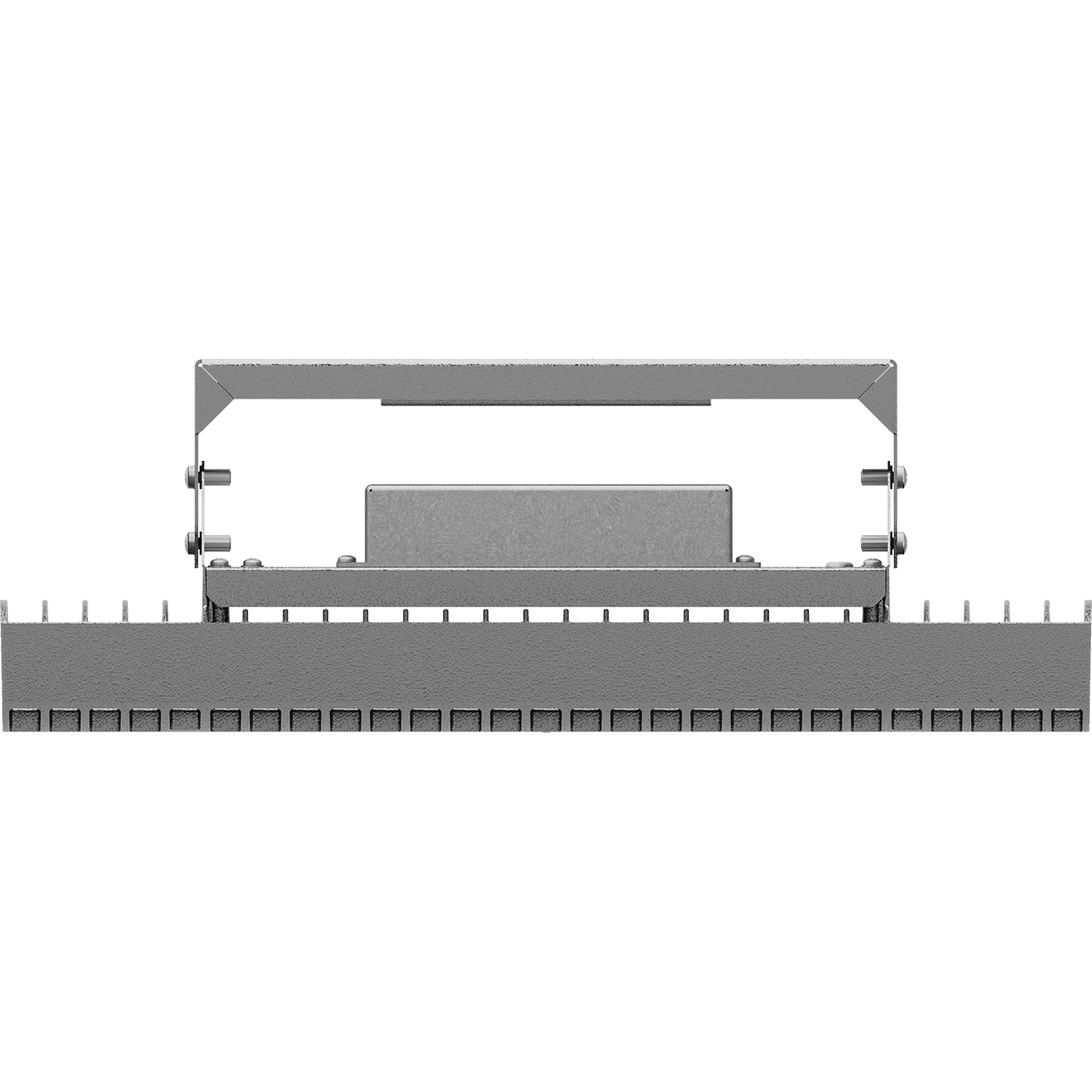

HB LED 100 D80 Ex 5000K

HB LED 100 D80 Ex 5000K
add to favorites
100 Wluminaire power
12800 lmlight flow
128 lm/Wenergy efficiency
code1224001560
color temperature5000
gas marking2 Ex nA II T6 Gc X
dust markingEx tc IIIC T80 C Dc X
beam angleD80
weight3.5 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 2
  7. HB LED Ex
  8. HB LED 100 D80 Ex 5000K
options
свернуть все
electricalconstructionalcommonilluminatingexplosion-proof
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
4
starting current
65 A
starting current pulse time, µs
500 mks
luminaire power
100 W
supply voltage, alternating current
140-305 V
supply voltage, direct current
220-420 V
power factor
> 0,96
electrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
4
starting current
65 A
starting current pulse time, µs
500 mks
luminaire power
100 W
supply voltage, alternating current
140-305 V
supply voltage, direct current
220-420 V
power factor
> 0,96
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-ІІа
material
Сплав алюминиевый
weight
3.5 kg

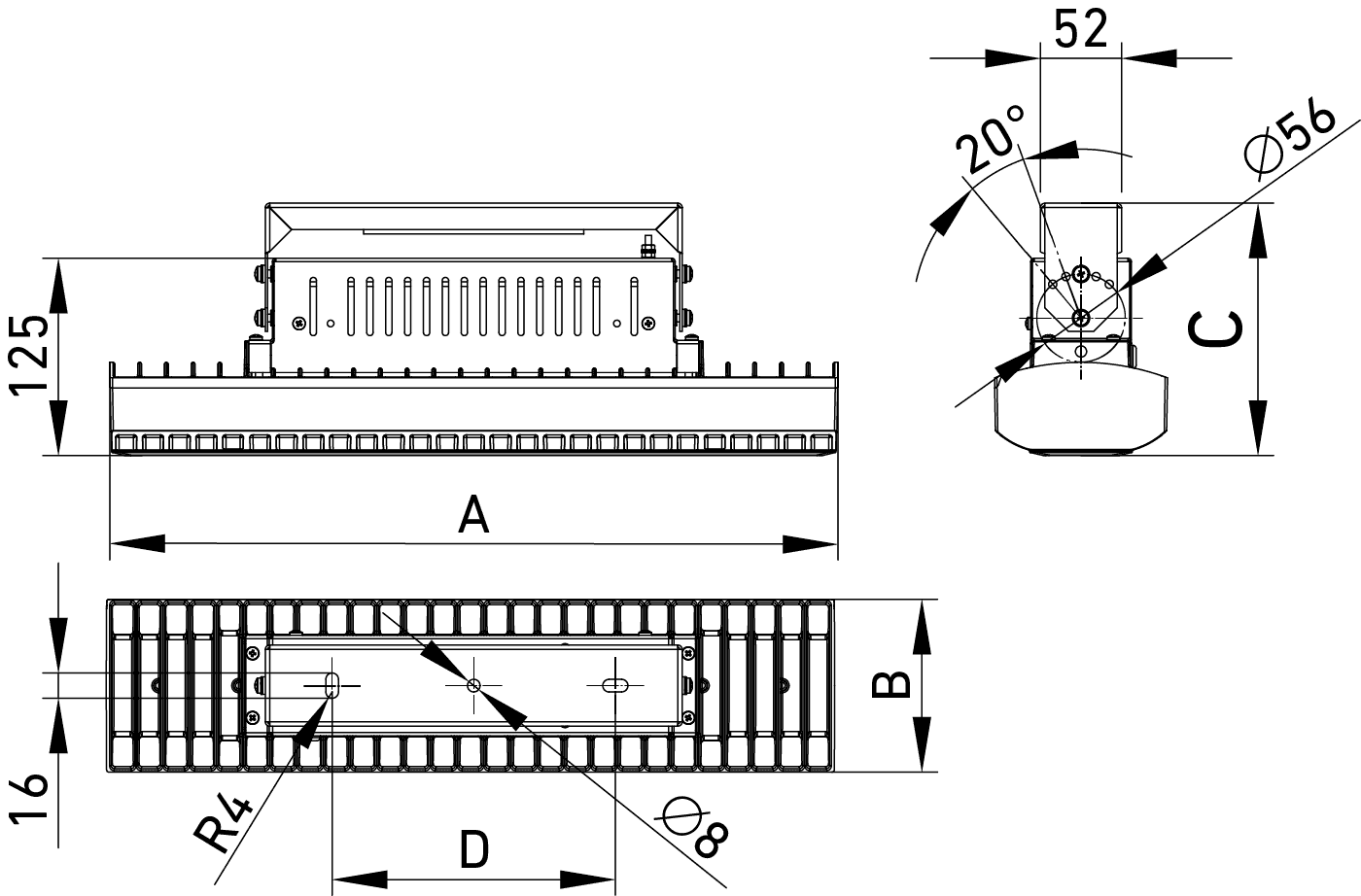

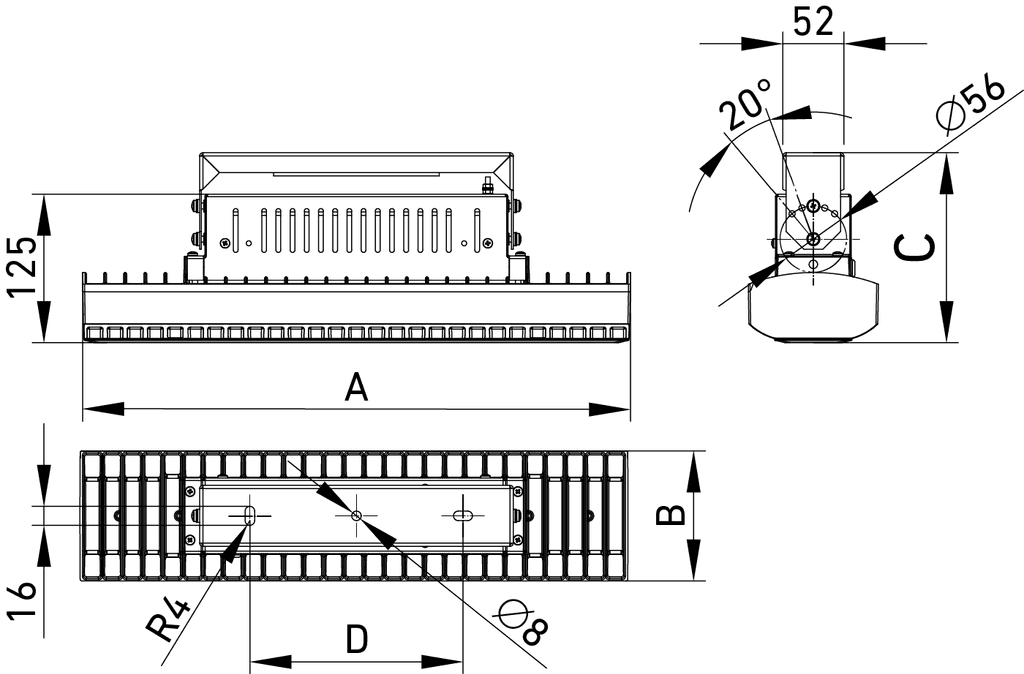

length, mm
463 mm
width, mm
110 mm
height, mm
160 mm
housing color
Металлик
installation length, mm
180 mm
shock resistance (IK)
IK08/7 Дж
common
code
1224001560
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>70
light flow
12800 lm
energy efficiency
128 lm/W
flickering factor
<1%

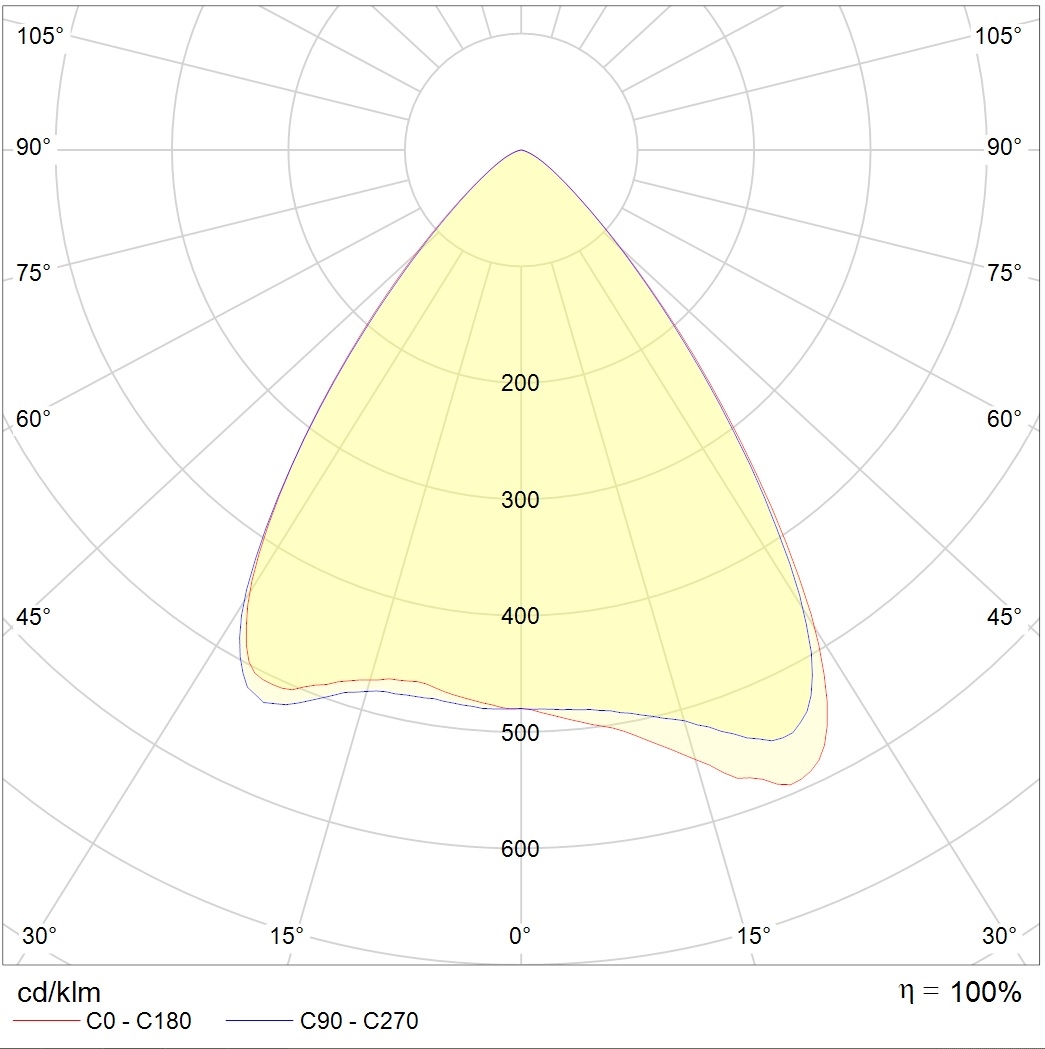

beam angle
D80
color temperature
5000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
2 Ex nA II T6 Gc X
dust marking
Ex tc IIIC T80 C Dc X
gas explosion-proof (type)
Ex nA
gas explosion-proof (zones)
2
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T6
model files
model files
CAD/BIM files
CAD model 3DS274.9 kB
model 3dMax636 kB

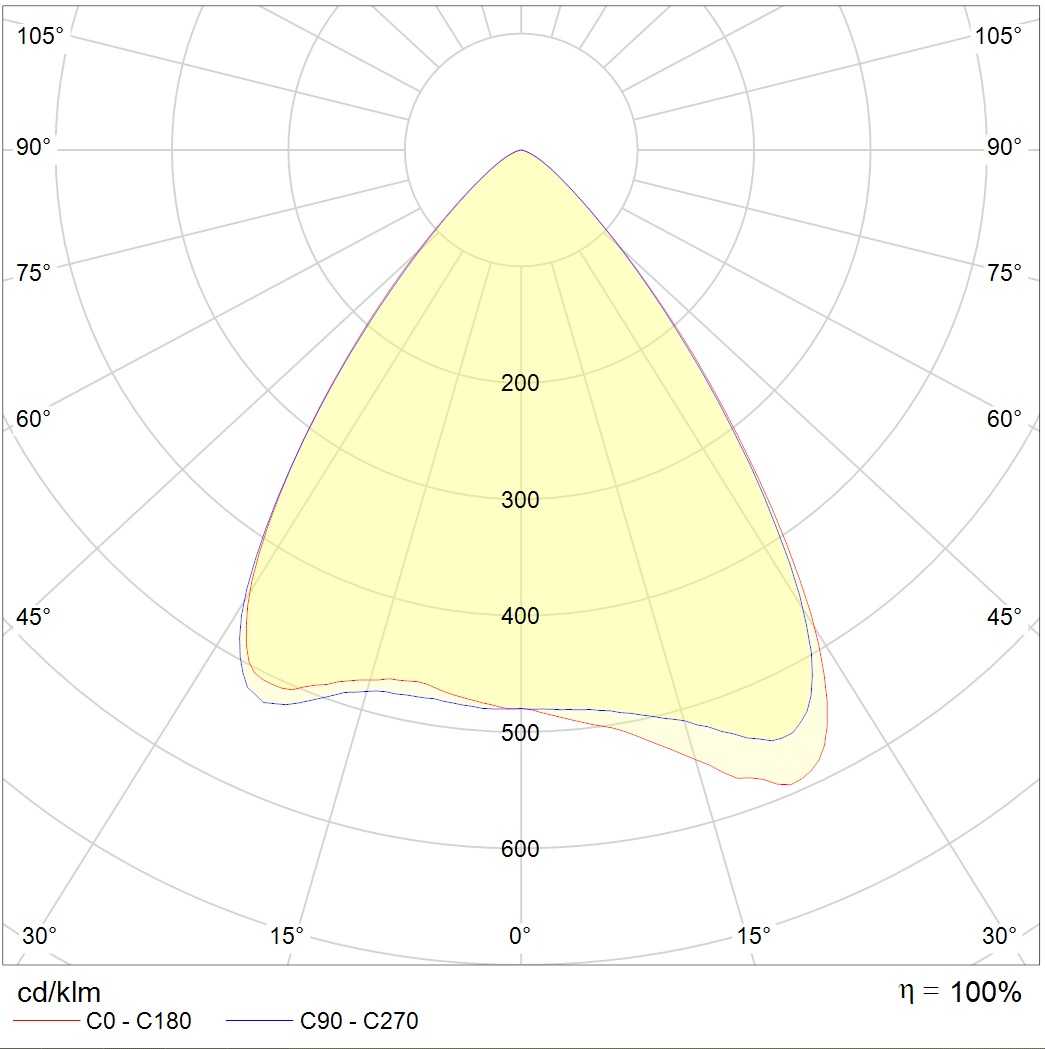

photometric files
ies263.2 kB
jpg134.9 kB
ldt163.1 kB
documents
passport6.4 mB
сертификаты
Russian origin559 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/20112.2 mB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
CAD/BIM files
CAD model 3DS274.9 kB
model 3dMax636 kB
photometric files
ies263.2 kB
jpg134.9 kB
ldt163.1 kB
documents
passport6.4 mB
сертификаты
Russian origin559 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/20112.2 mB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
accessories
Clear tempered glass for HB LED G20.64kgarticle: 2224000270
Clear tempered glass OPH for HB LED G20.64kgarticle: 2224000300
