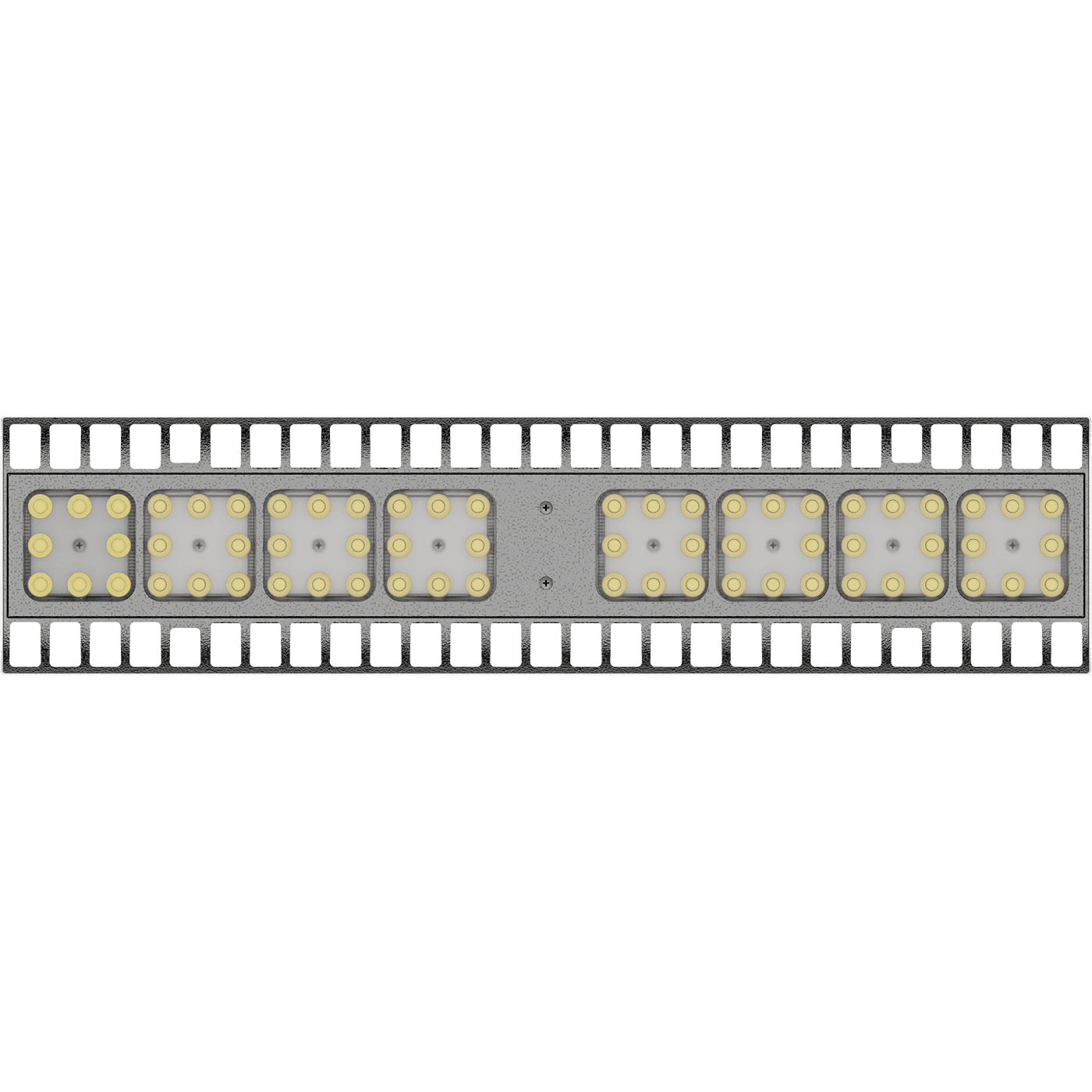

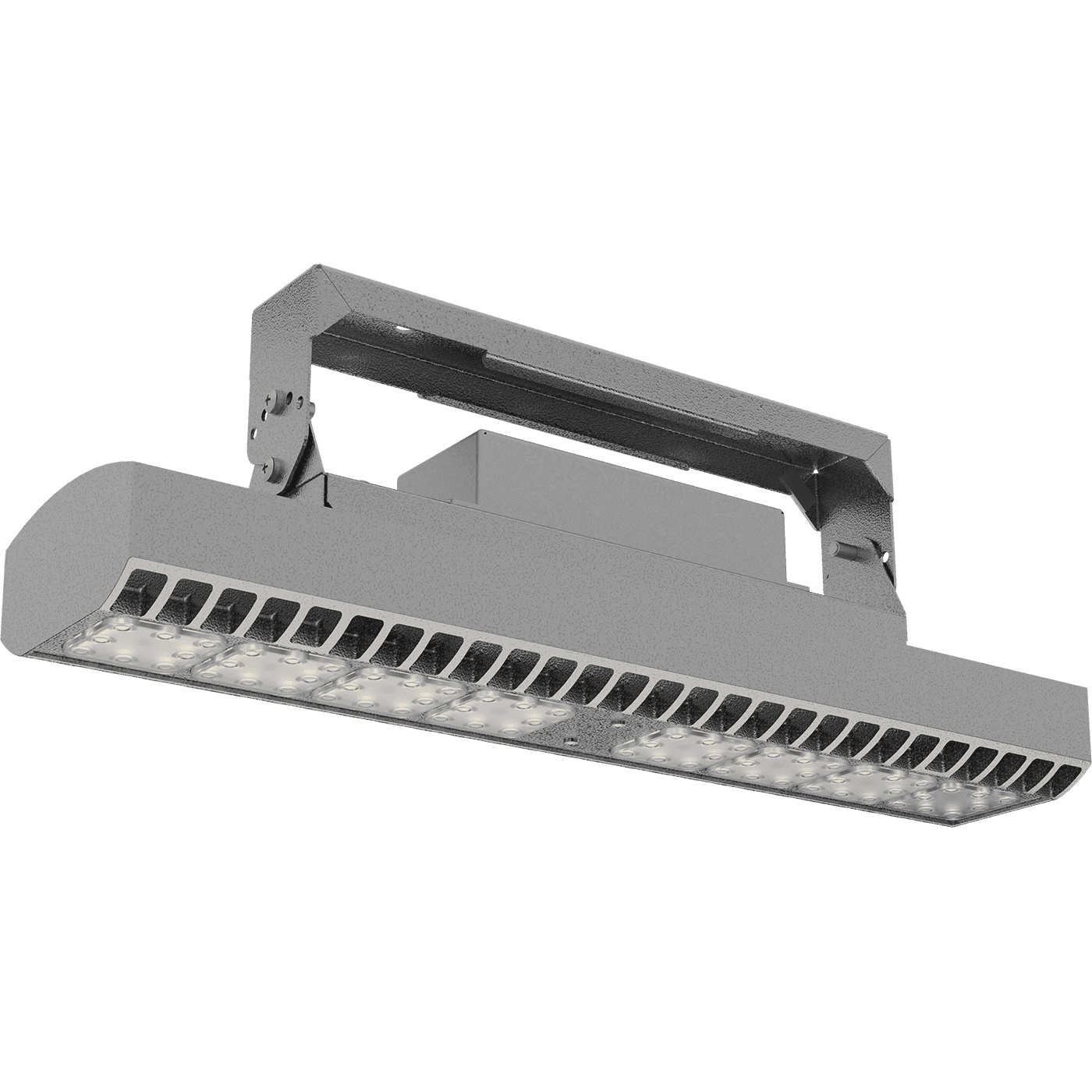

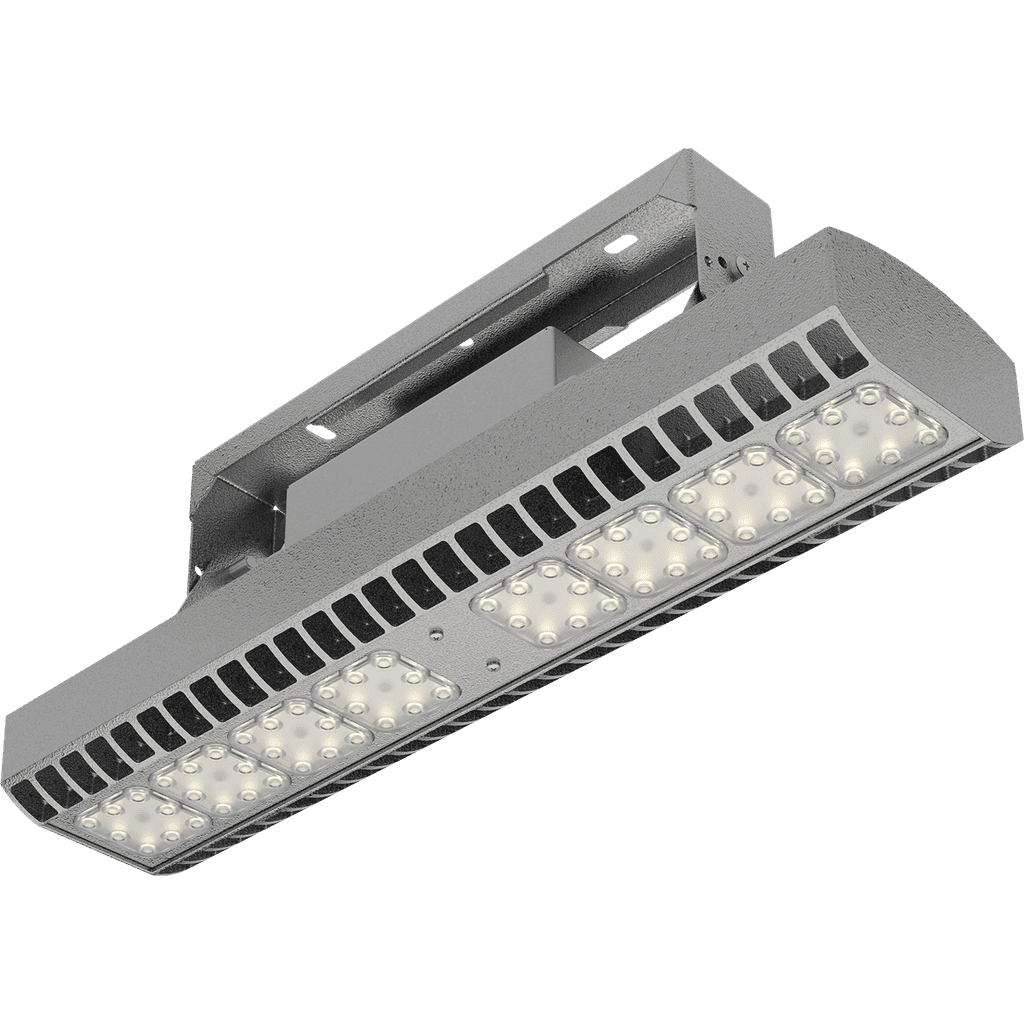

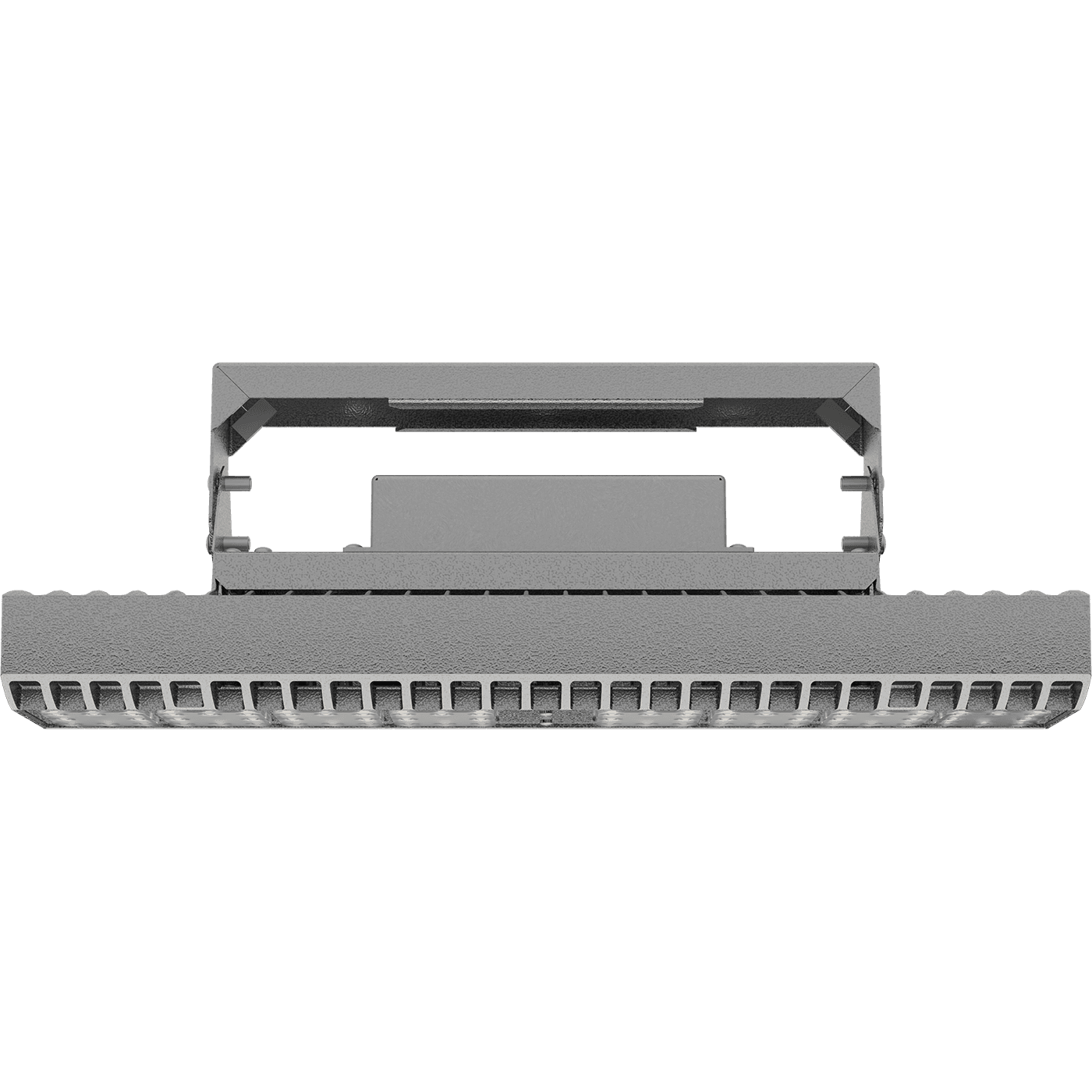

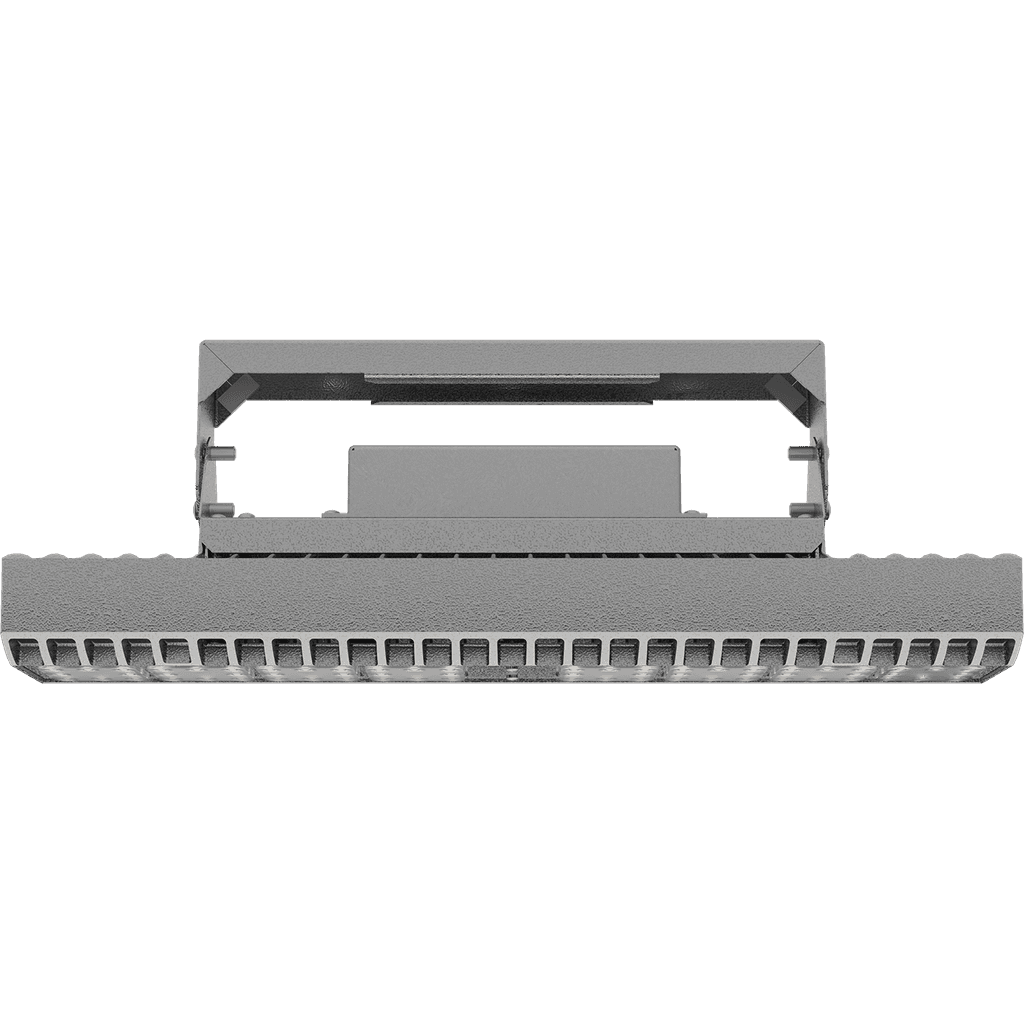

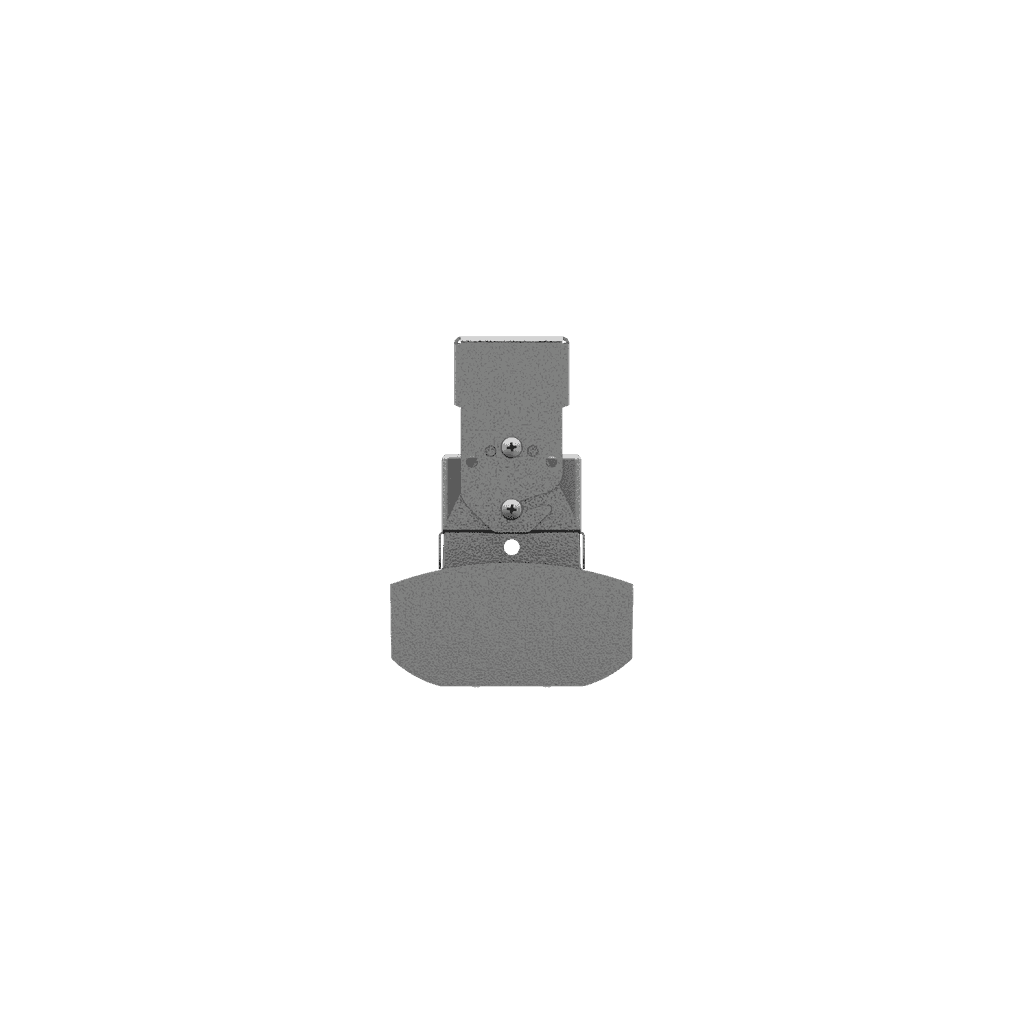

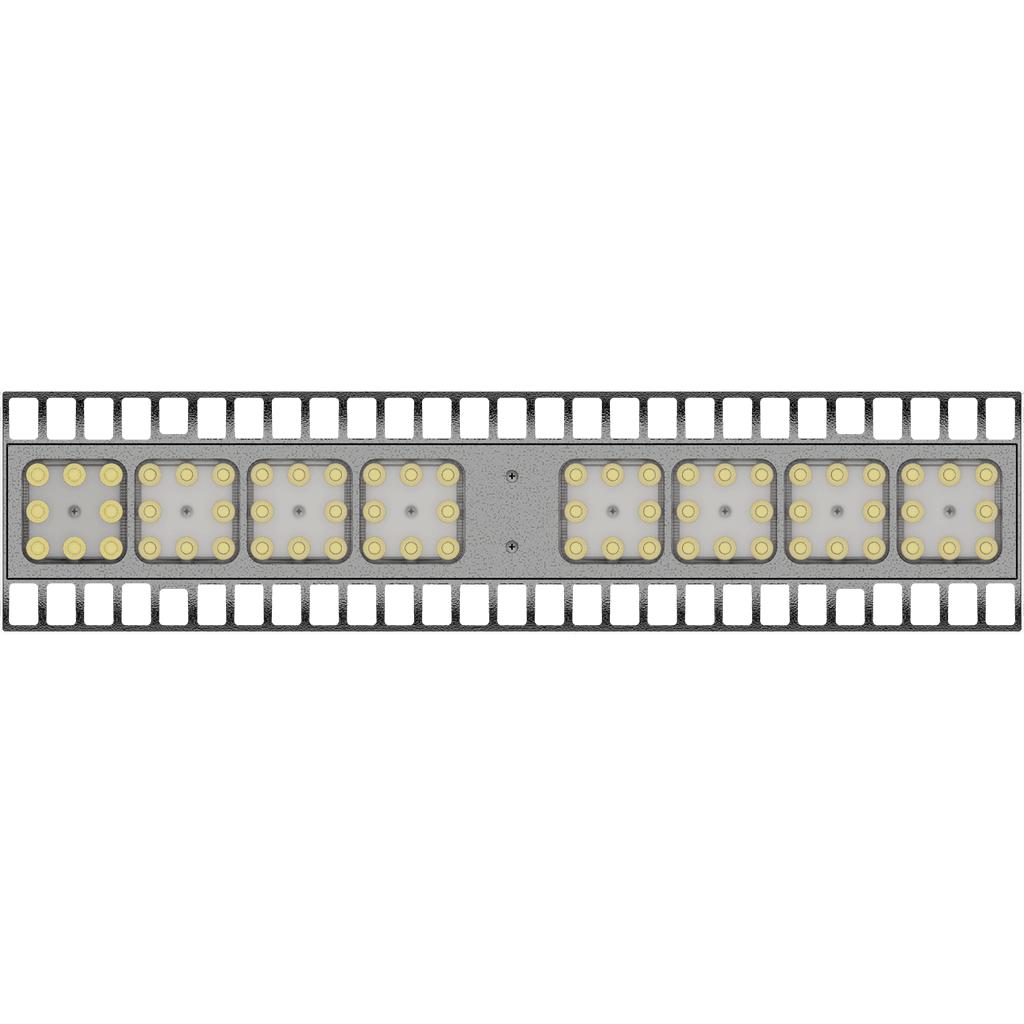

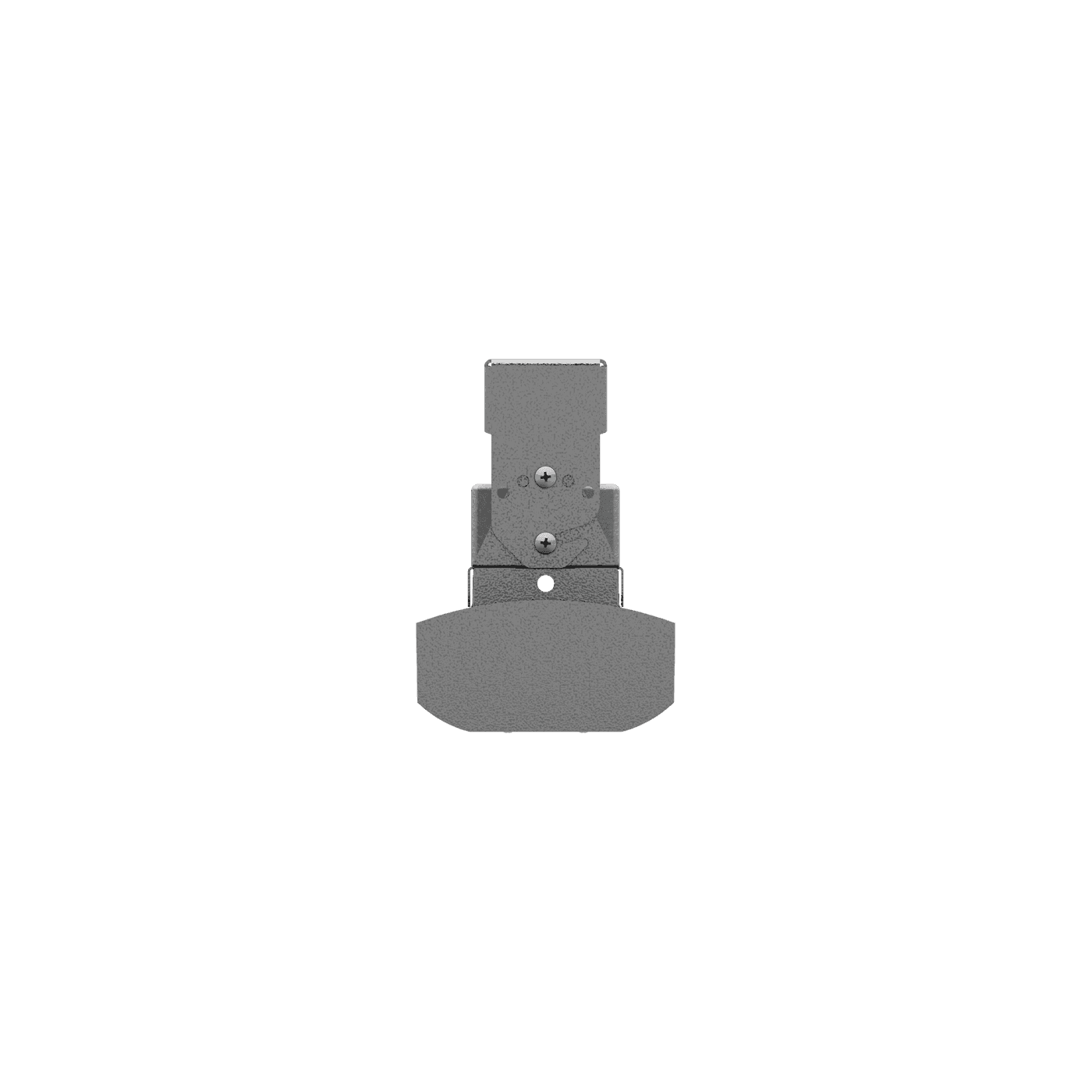

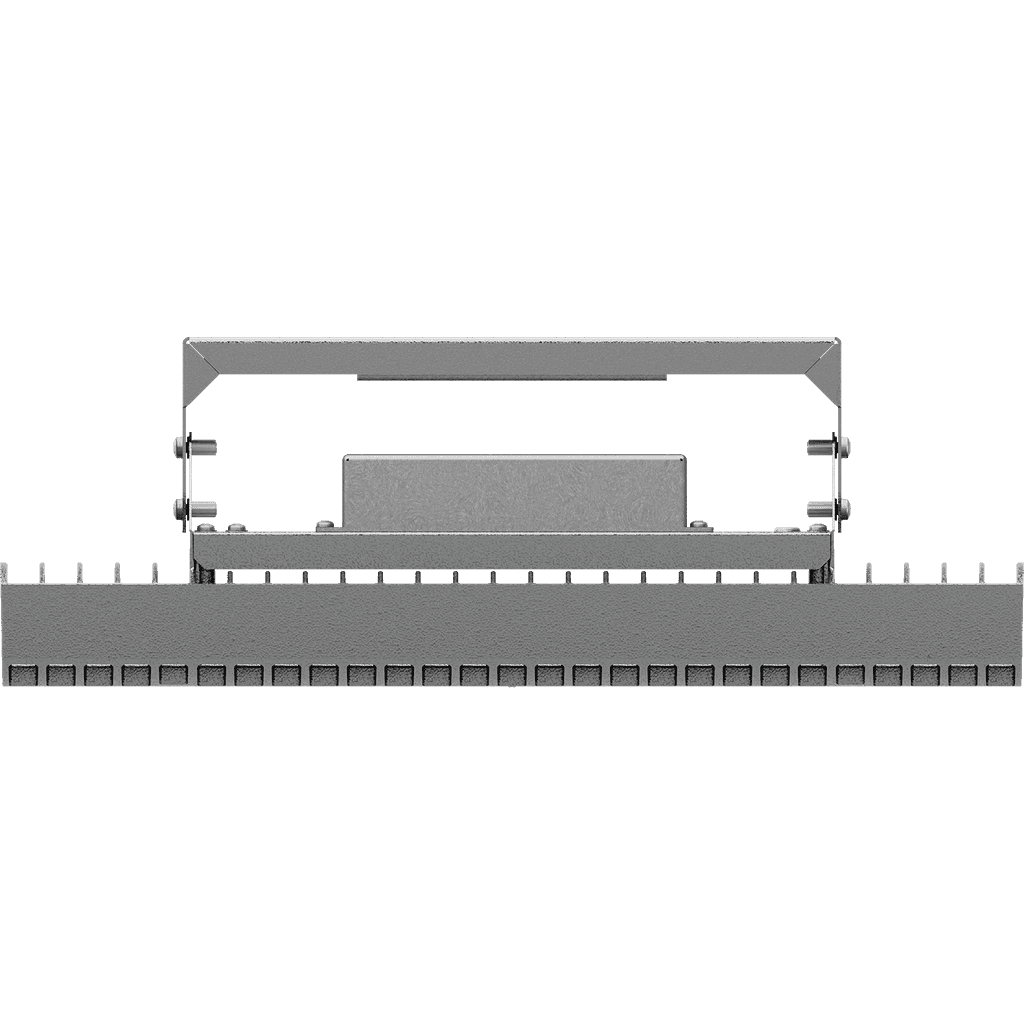

HB LED 100 D60 Ex 5000K

HB LED 100 D60 Ex 5000K
add to favorites
100 Wluminaire power
12000 lmlight flow
120 lm/Wenergy efficiency
code1224001620
color temperature5000
gas marking2 Ex nA II T6 Gc X
dust markingEx tc IIIC T80 C Dc X
beam angleD60
weight2.9 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 2
  7. HB LED Ex
  8. HB LED 100 D60 Ex 5000K
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нет
color rendition index (CRI)
>70
light flow
12000 lm
energy efficiency
120 lm/W
flickering factor
<1%
beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
illuminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>70
light flow
12000 lm
energy efficiency
120 lm/W
flickering factor
<1%
beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
electrical
electric shock protection
I
supply voltage, direct current
220-420 V
supply voltage, alternating current
140-305 V
maximum cross-section of the connected cable, sq. mm
4
starting current pulse time, µs
500 mks
luminaire power
100 W
power factor
> 0,96
starting current
65 A
constructional
weight
2.9 kg

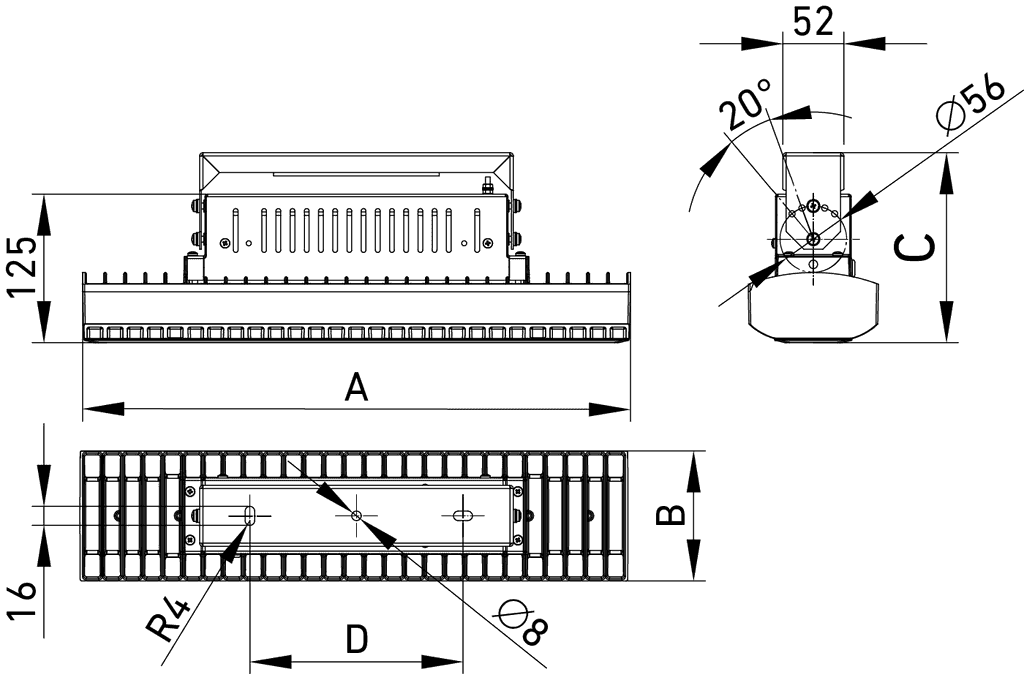

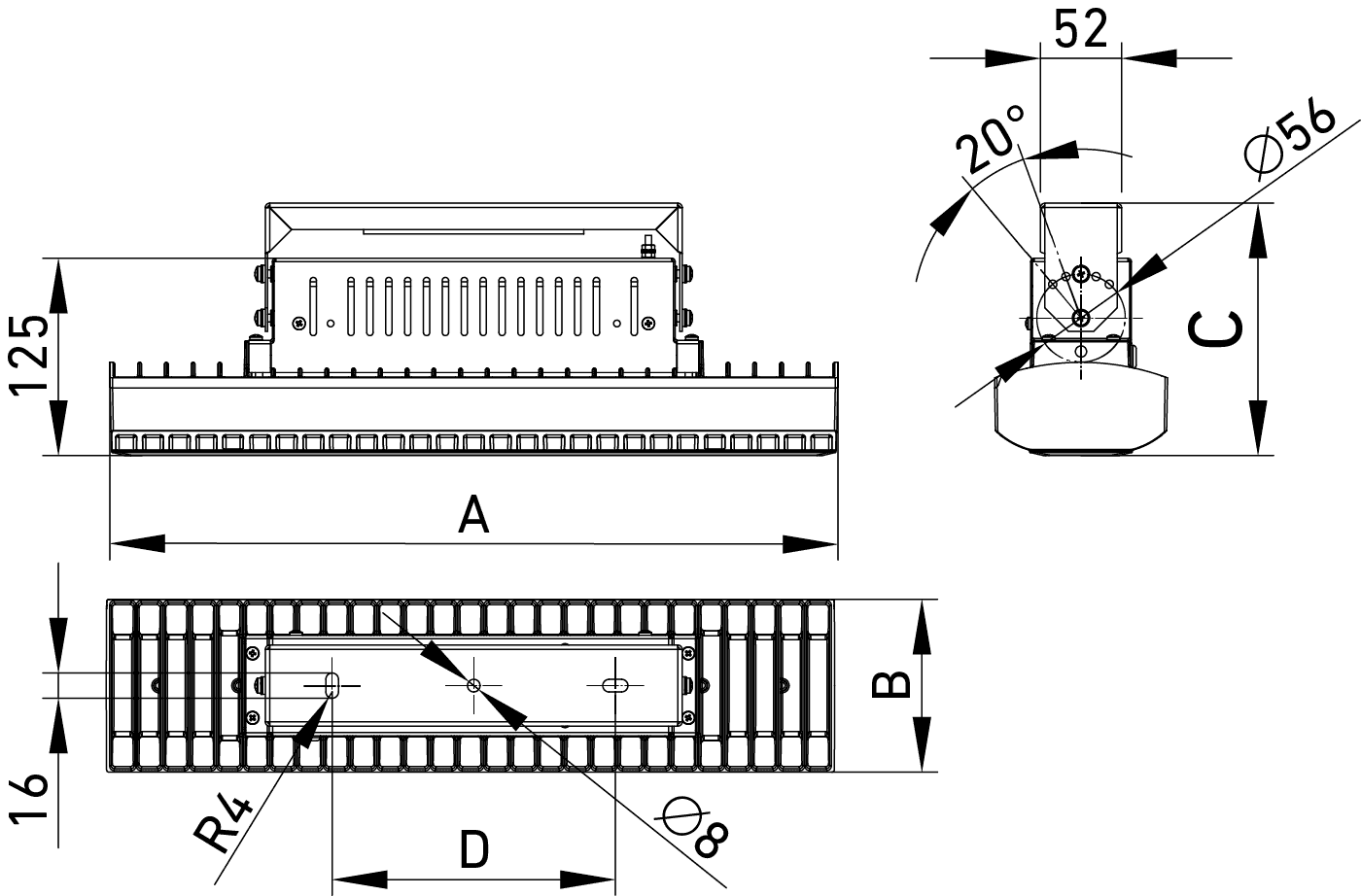

length, mm
463 mm
width, mm
110 mm
height, mm
160 mm
installation length, mm
200 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/7 Дж
housing color
Металлик
explosion-proof
gas marking
2 Ex nA II T6 Gc X
dust marking
Ex tc IIIC T80 C Dc X
gas explosion-proof (type)
Ex nA
gas explosion-proof (zones)
2
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T6
common
code
1224001620
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
model files
model files
CAD/BIM files
model 3dMax636 kB

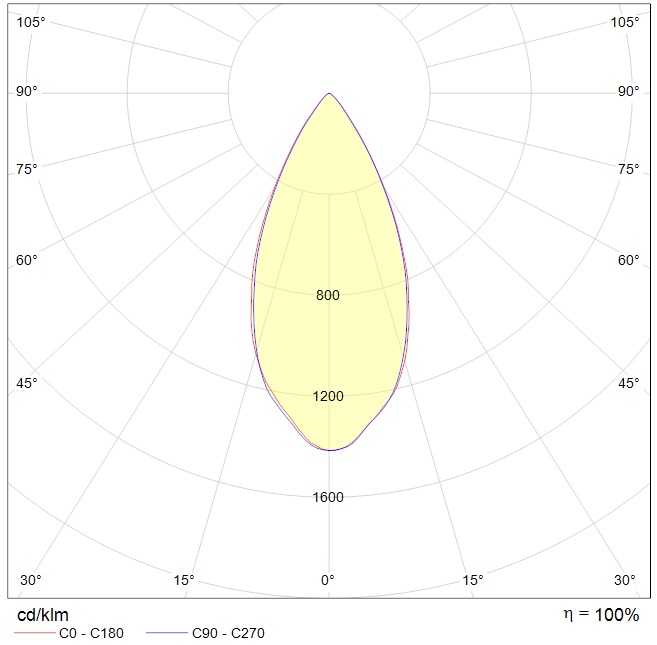

photometric files
ies263.2 kB
jpg58.9 kB
ldt159.8 kB
documents
passport4 mB
сертификаты
Russian origin559 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/20112.2 mB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
CAD/BIM files
model 3dMax636 kB
photometric files
ies263.2 kB
jpg58.9 kB
ldt159.8 kB
documents
passport4 mB
сертификаты
Russian origin559 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/20112.2 mB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
accessories

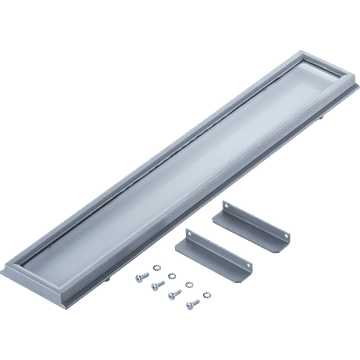

Clear tempered glass for HB LED G20.64kgarticle: 2224000270
Clear tempered glass OPH for HB LED G20.64kgarticle: 2224000300
